AN08A-6.0kg-YMAS - Boat anchor Vevor - Free user manual and instructions

Brand	Vevor
Model	AN08A-6.0kg-YMAS
Product Type	Fluke Boat Anchor
Anchor Weight	6 kg
Anchor Material	Galvanized Steel
Color	Silver
Rope Included	Nylon Rope
Chain Included	Galvanized Steel Chain
Shackles Included	2 pieces
Recommended Use	Boats from 4.5 to 9 meters (15-30 feet)
Suitable Bottom Type	Sand, mud
Use Environment	Freshwater and Saltwater
Number of Flukes	1
Main Functions	Anchor the boat by digging into the seabed
Maintenance and Cleaning	Rinse with fresh water after use to prevent corrosion
Safety	Read the manual, avoid injuries, keep away from children
Spare Parts and Repairability	Contact Vevor for spare parts
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available on the website
Manufacturing	Made in China

Frequently Asked Questions - AN08A-6.0kg-YMAS Vevor

How do I install the anchor on my boat?

Attach the chain to the anchor using the provided shackles, then tie the nylon rope to the chain. Ensure that the boat's anchor roller is suitable and that installation follows the safety instructions in the manual.

What boat size is recommended for this anchor?

The 6 kg model is suitable for boats from 15 to 30 feet (approximately 4.5 to 9 meters). Check the specific recommendations in the manual for your boat length.

Can I use this anchor in saltwater?

Yes, the anchor is made of galvanized steel and resists corrosion in both freshwater and saltwater. Rinse it with fresh water after each use to extend its lifespan.

How do I maintain the anchor after use?

Clean the anchor, chain, and rope with fresh water to remove salt and dirt. Dry them before storing. Regularly check that no parts are damaged or corroded.

What if a part of the anchor is damaged?

Do not use the anchor if a part is broken or missing. Contact Vevor technical support via www.vevor.com/support for spare parts or advice.

Is this anchor suitable for rocky bottoms?

No, this Fluke anchor is designed for sandy or muddy bottoms. On rocky bottoms, it may not set properly and could drag. Use a different type of anchor for those conditions.

How do I properly attach the rope to the anchor?

Pass the shackle through the anchor eye and the last link of the chain. Tighten securely. Then attach the nylon rope to the other end of the chain with a secure knot (e.g., bowline knot).

What anchor weight is recommended for my 20-foot boat?

For a 20-foot boat, the 6 kg (13 lb) model is suitable. Consult the manual for specific recommendations based on boat length and type.

Does the anchor come with the chain and rope?

Yes, the kit includes the galvanized steel anchor, a steel chain with two shackles, and a nylon rope. Everything is ready to use after assembly.

Where can I find Vevor technical support?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support. You can ask questions or request spare parts there.

USER MANUAL AN08A-6.0kg-YMAS Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FLUKE BOAT ANCHOR

MODEL:AN08A-4.0kg-YM(AS) / AN08A-6.0kg-YM(AS)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FLUKE BOAT ANCHOR

MODEL:AN08A-4.0kg-YM(AS) / AN08A-6.0kg-YM(AS)

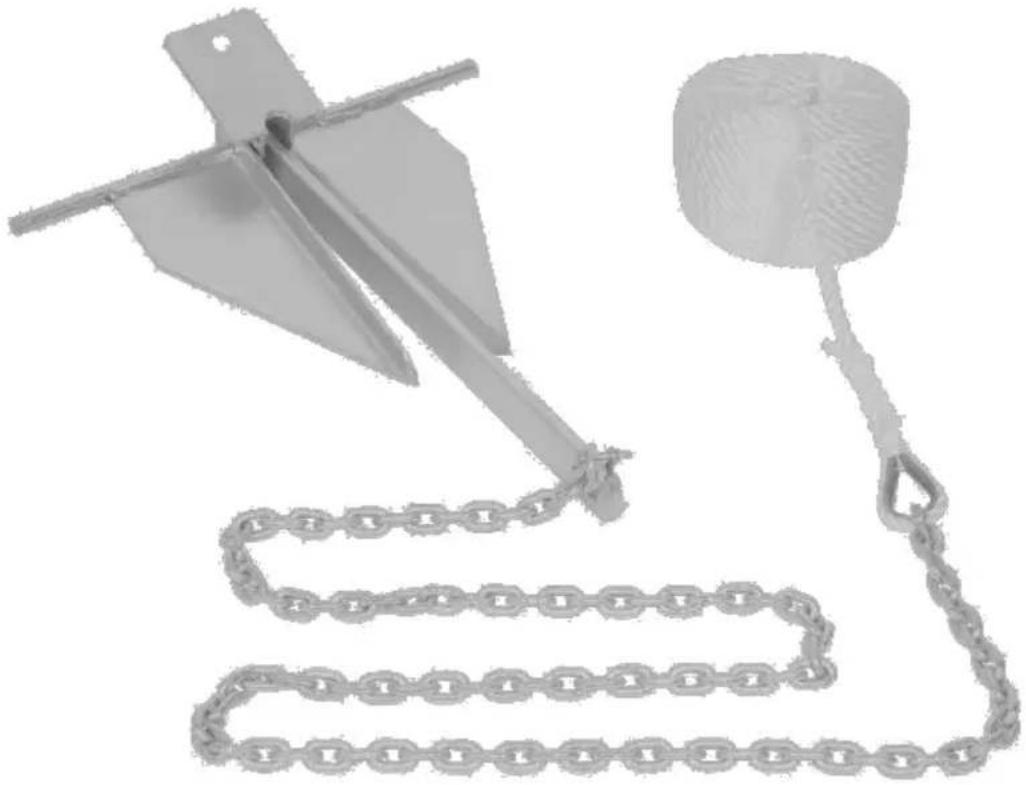

Illustration of a metal anchor with a chain and a circular object attached (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. While Installing and using this product, keep work area clean and well lig and keep spectators and children out of the work area.
2. Install only according to boat anchor hook parameter. Improper Instally can create hazards.
3. Use as intended only.
4. Keep anyone not wearing the appropriate safety equipment away from the area when using.
5. Control the boat anchor hook, personal movement, and the work environment to avoid personal injury or damage to the tool.
6. Do not operate any product when tired or under the influence of drugs, a or medications.
7. Do NOT operate if any part is damaged or broken.
8. Be careful not to trap fingers or hands in any of the moving parts when and closing the rolling boat anchor hook.
9. This is not a toy, Not for use by children. Do not let children play or juice product.

SAVE THESE INSTRUCTIONS

PRODUCT INTRODUCTION

Our premium grade 8.5 lb and 13lb anchor kit provides reliable anchoring for 15' to 30' feet and includes all you'll need to anchor your boat; a fluke and lead chain with shackles, and a nylon anchor rope. This fluke-style anchor is heavy duty and will dig into the seabed and hold tightly even in high tide of wind conditions.

Our boat anchors will work on 15' 18' and 21', 25', 30 Check the different size recommendations for varying len The anchor chain and anchor are hot-dipped galvanized ensure durability and corrosion. This set performs extrem well in sand or mud bottoms. Our boat anchor with rop chain can also be used in freshwater or saltwater.

3D rendered object with a looped handle and an upward arrow, no visible text or symbols

TIP: Please do not remove the outer packaging, please slowly pull out the from the middle.

PRODUCT PAREMETERS

Model		AN08A-4.0kg-YM (AS)	AN08A-6.0kg-YM (AS)
Anchor Weight		8.5lbs / 4kg	13lbs / 6kg
Anchor Material		Galvanized Steel	Galvanized Steel
Anchor Color		Silver	Silver
Fluke Anchor		1pcs	1pcs
Nylon Rope		1pcs	1pcs
Chain		1pcs	1pcs
Shackles		2pcs	2pcs
