USER MANUAL BS-280 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

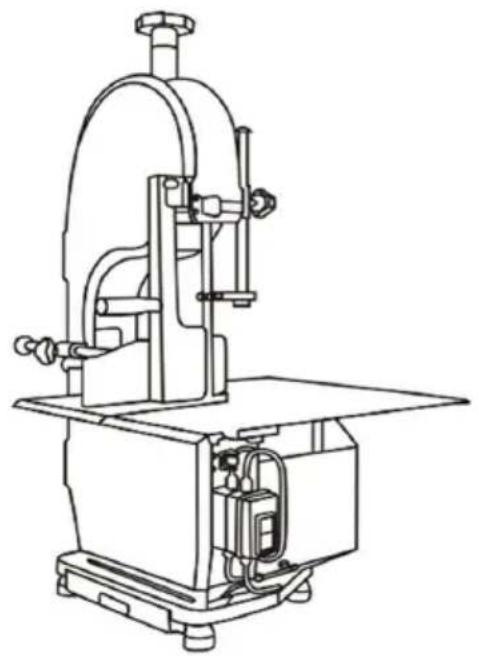

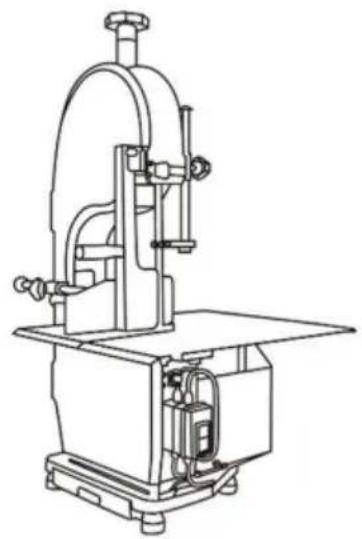

BONE SAW MACHINE

MODEL: 130/210/250/280

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

BONE SAW MACHINI

MODEL:130/210/250/280

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a stand and cylindrical base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your product you received. Please forgive us that we won't inform your product you received.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Produ marked as such may not be discarded with normal d waste, but must be taken to a collection point for r electrical and electronic devices

IMPORTANT SAFEGUARDS

WARNING:

Read all safety warnings, instructions, illustrations and specifications provided with this electrical appliances. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

1. There shouldn't be anything else on the counter.
2. There is no abnormal phenomenon after the power is switched on
3. It must be placed on the horizontal plane to avoid danger from s back and forth during use.

4. Because the chain saw rotates at high speed, it is also necessary to develop the habit of turning off the switch when the operation is suspended. Do not plug the power cord into the socket when not in Please unplug the power cord after use and before cleaning or maintenance.

5. If iron nails or other metal items are included in the cut items, it cause jagged cracks or damage. So, please pay attention to the cutti surface during operation to ensure workplace safety.

6. Please unplug the power of the machine before cleaning, assembling disassembling.

7. Do not place the product within reach of children. Children should supervised to ensure they do not play with the appliance.

8. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi
9. Don't unplug the machine before it stops operation.
10. If the supply cord is damaged, it must be replaced by the manu service agent, or similarly qualified persons to avoid a hazard.
11. Electric Shock Danger! Non-professional personnel is forbidden to repair the products. Otherwise, it may result in electrical shock. When failures happen, they should be fixed by qualified maintenance personnel.
12. WARNING! Putting the main body into the water to clean is strict prohibited. It only can be scrubbed with a wet towel. The machine m thoroughly cooled before cleaning.
13. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).
14. Avoid power cord damage. Do not squeeze, bend, or friction; kee away from heat sources and open fires. The power cord does not to the blade.
15. Power cord should be laid fiat. Do not pull the power cord and the product fall, which may cause damage.
16. Do not use the product on wet ground. Do not touch the product power cord plug with wet hands.
17. Do not disassemble the product at will. Also, do not let something or insert into the product, which may cause damage.
18. Only accessories the seller or manufacturer provides can be used the product. We will not be responsible for any failure caused by using accessories from other manufacturers not covered by warranty.

19. Do not use the product on uneven, damp, not heat-resistant surface to avoid damage or failure.

20. Do not place the product directly on the fire or near the source fire. Otherwise, the product will be damaged or even result in danger.

21. When the plug is plugged into the socket, it must be plugged in end. Otherwise, it will cause the components to overheat and burn due poor contact.
22. Do not leave the product to work with no one watching. If the I is overheating, please stop working immediately and unplug the power.
23. Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.
24. Please store the plastic bags and not allow children to play with to prevent a risk of suffocation.
25. It is prohibited to put the main body of the machine and the point into any liquid.
26. DO NOT open the case door; the hands are strictly forbidden from touching the saw blade while the machine operates.

SAVE THESE INSTRUCTIONS

Method of Application

1. Move the guide block to the correct height according to the size, it.
2. Adjust the thickness adjustment plate according to the required measure size.
3. Press the green button on the power switch. Do not push the sa item too much during the operation. This will cause the saw bar to or be damaged.
4. The operator should stand before the machine and push the product horizontally and straight.
5. The serrate should be exposed outside the wheel when replacing saw blade.
6. The side of the saw blade presses the looseness of the saw blade, the force of rebound.
7. Turn the upper wheel with your hand. Run the saw blade in and

the screw counterclockwise. Run the saw blade out and change the s clockwise.

Cleaning

The machine must be cleaned up after completion because the meat residue and foam attached to the body will not be hygienic for a long. The next time you use it, the noise increases, and the saw blade is damaged.

Diagnosis and repair of faults

1. Chainsaw often breaks

Reason: a. The band saw is of poor quality b. The band saw is too overpush or improper use, It is not direct push.

Repair: a. Use a good band saw. b. Adjust the band saw properly adjust the handle make sure the band saw is not too tight. This is the side of the saw blade presses the looseness of the saw blade force of rebound.

2. Departure with band saw

Reason: a. band saw is too loose. b something attached to the pull. Improper use Repair: a. Adjust the handle of the band saw properly it does not loosen too easily. b. Remove the thing attached to the p Use correctly.

3. Other malfunctions

Consult the agent, and please do not repair it by yourself. During the warranty period, the company is not responsible for the warranty of losses caused by improper operation, such as (water intake, lack of ph

Sawmill Series

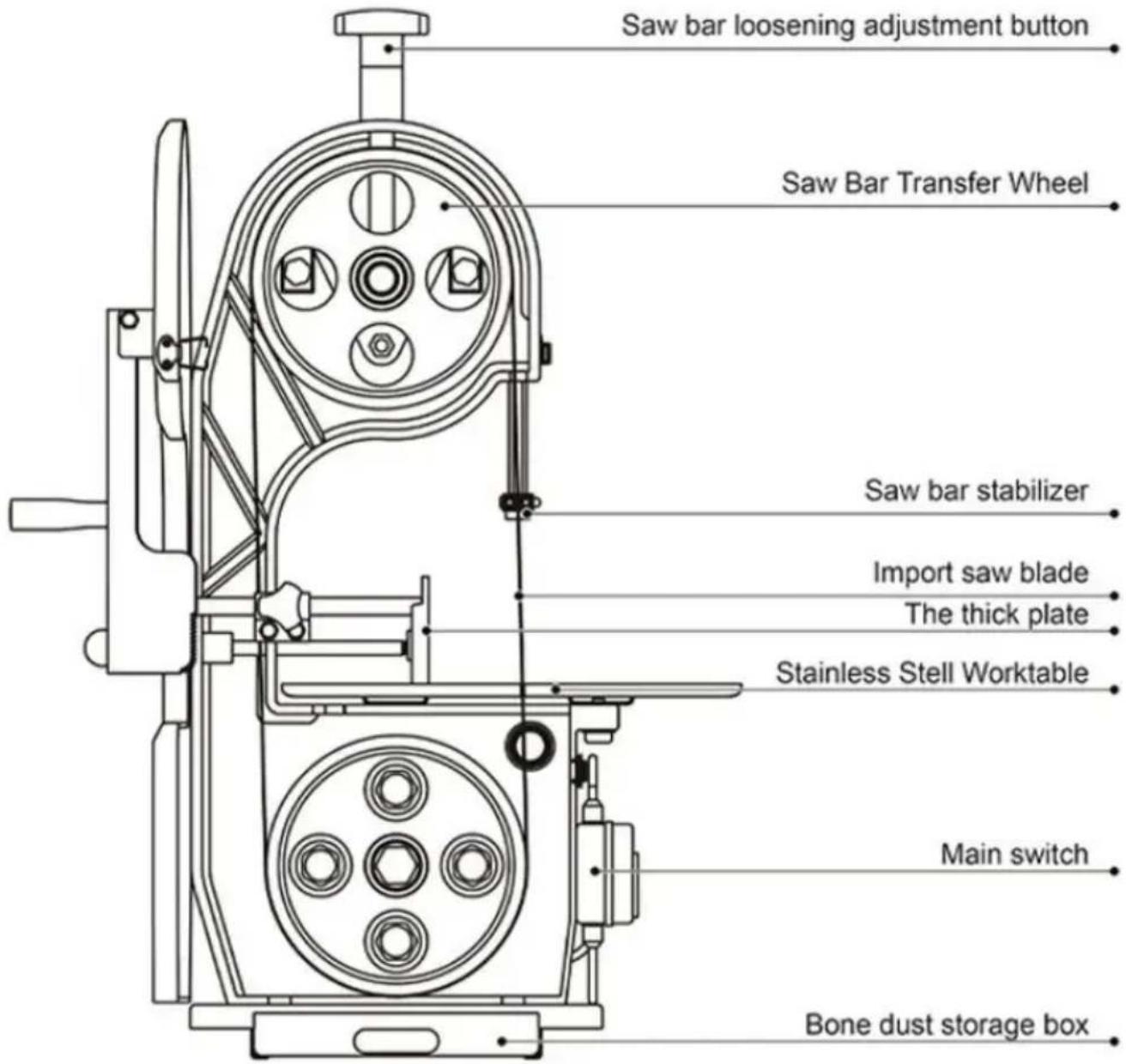

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a machine tool with no visible text or symbols

Installation steps

Simple line drawing of a rectangular electronic device casing with mounting holes and a central slot (no text or symbols)

Simple line drawing of a rectangular frame with no text or symbols

Simple line drawing of a vertical rod with a pointed tip, labeled 'C' and 'x 4' (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Simple illustration of a hexagonal bolt with threaded shaft (no text or symbols)

Simple line drawing of a hexagonal nut with a flat body, labeled 'F' and 'x 16' (no text or symbols on the nut itself)

Simple line drawing of a wrench with label 'G' and 'x 1' (no additional text or symbols)

Simple line drawing of a T-shaped tool or plunger with a base, labeled 'H' and 'x 1' (no text or symbols on the diagram itself)

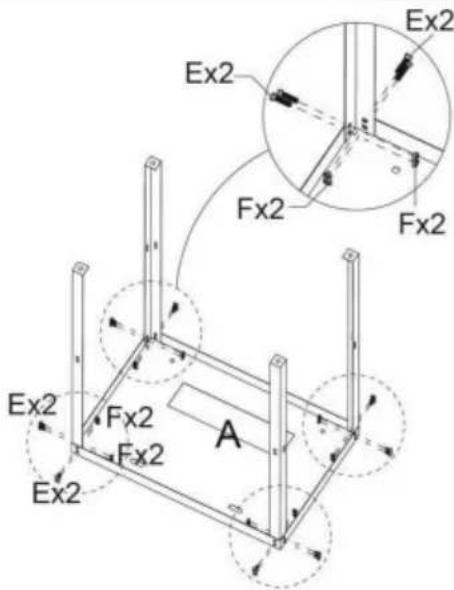

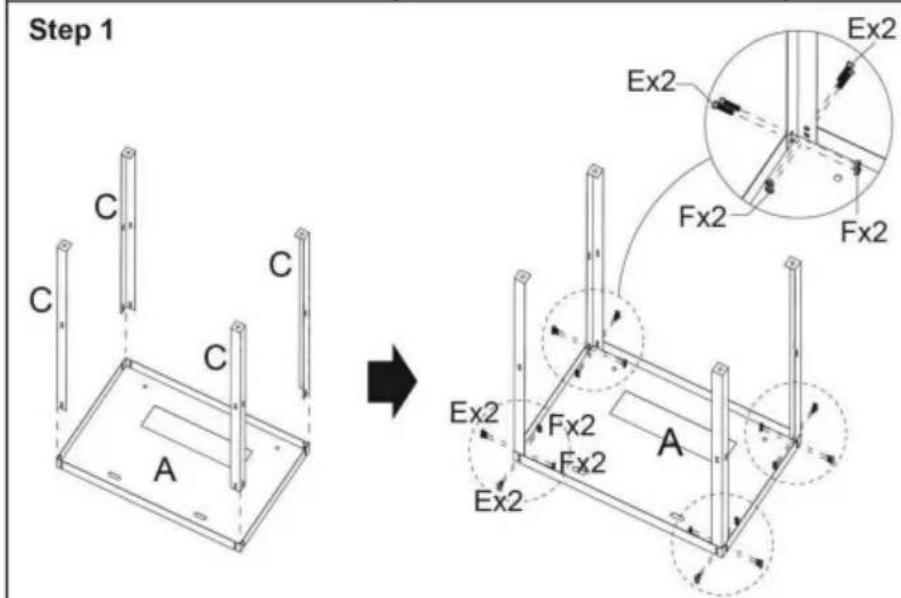

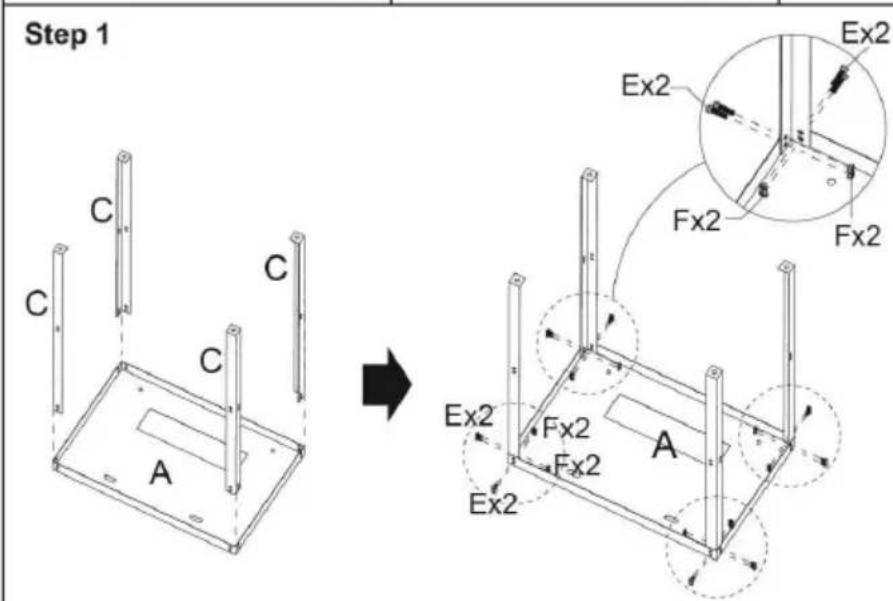

Step 1 C C C A Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

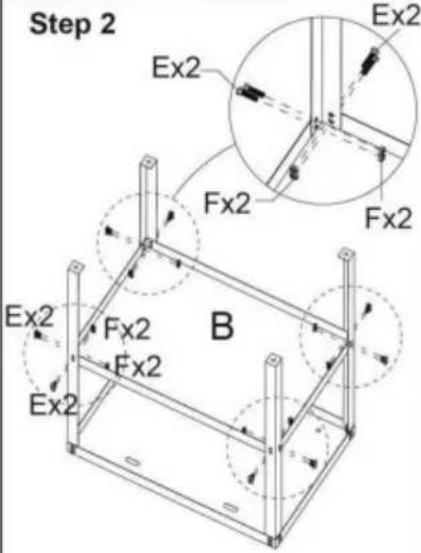

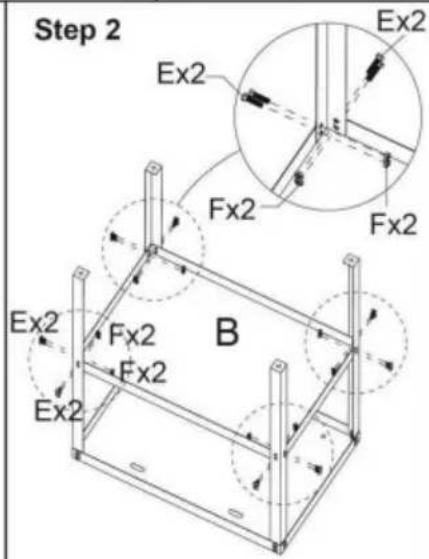

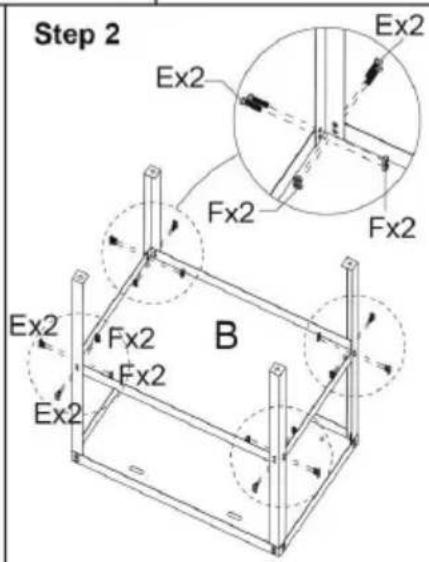

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

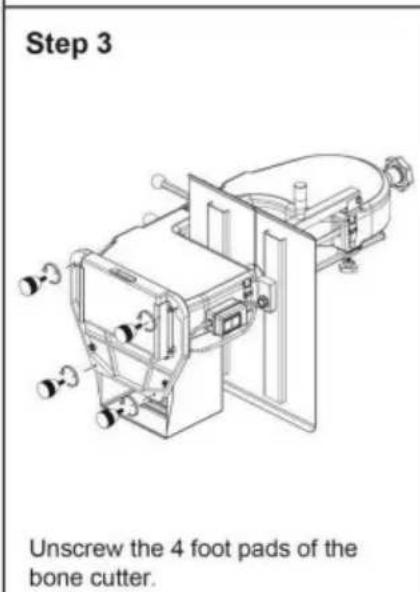

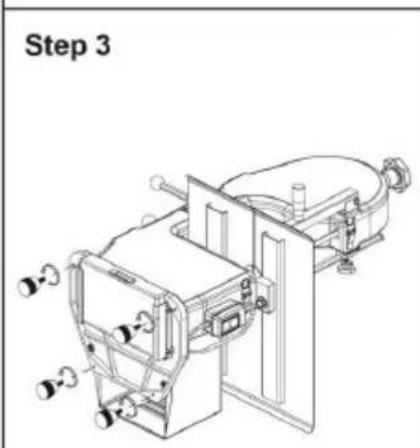

Step 3

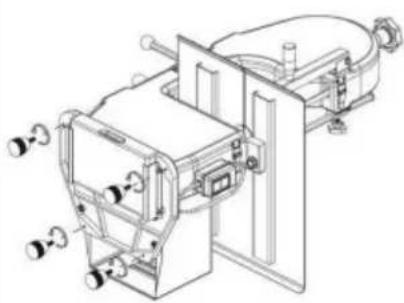

Unscrew the 4 foot pads of the bone cutter.

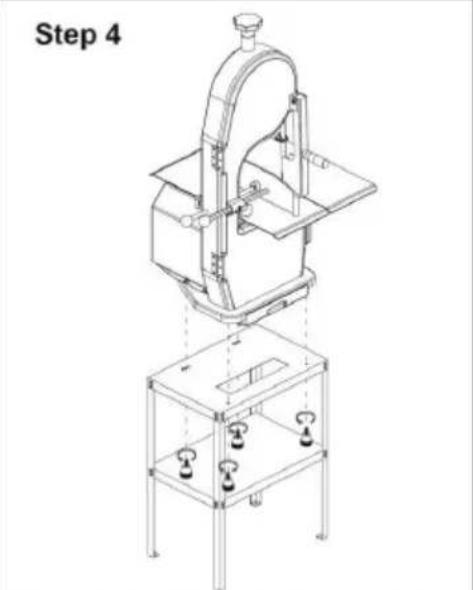

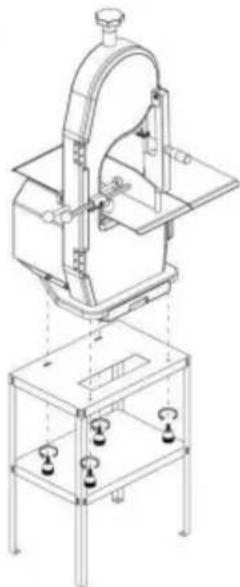

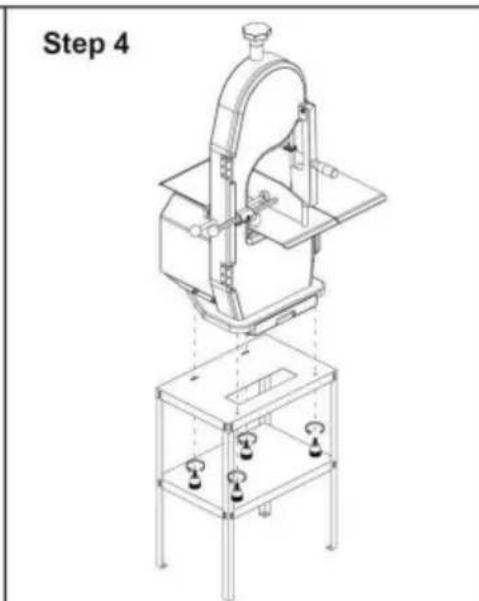

Step 4

Fix and tighten the rack and bone cutter with foot pads.

Line drawing of a mechanical device with a cylindrical top and base, labeled 'Completed' (no other text or symbols)

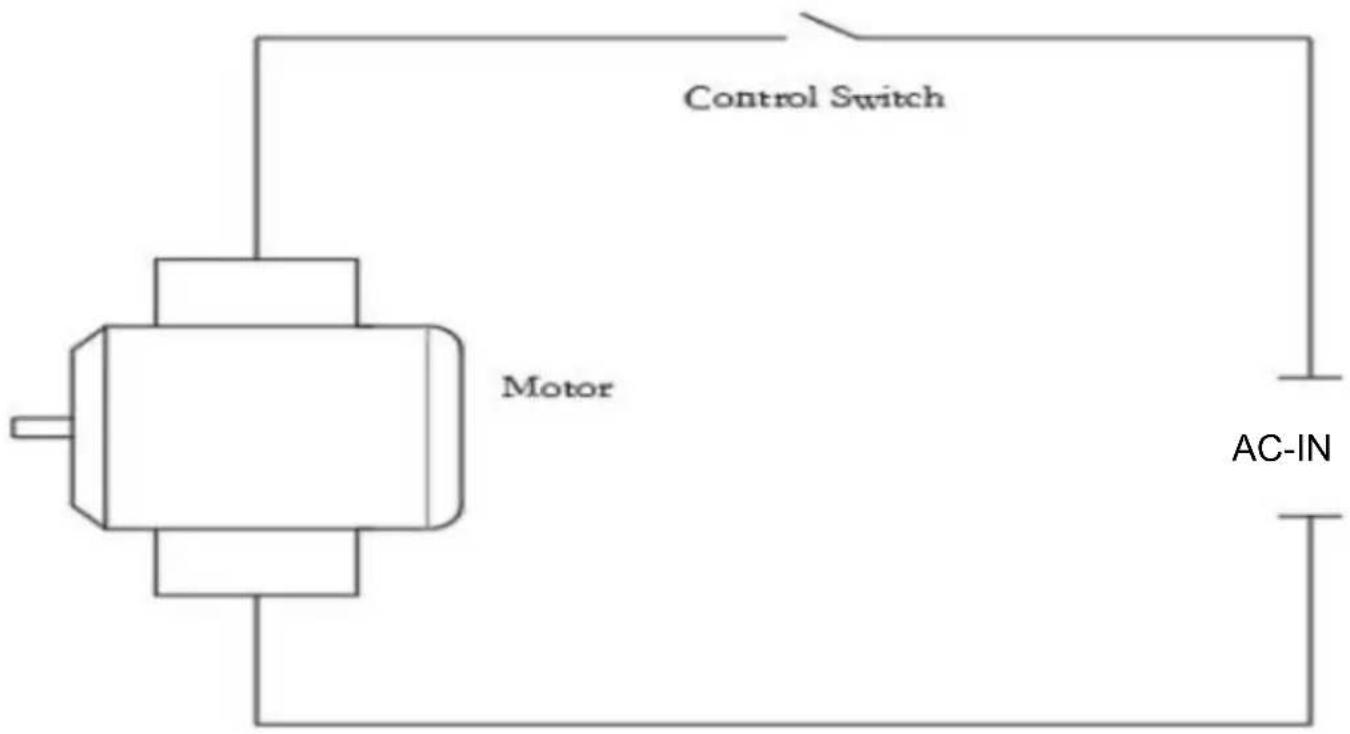

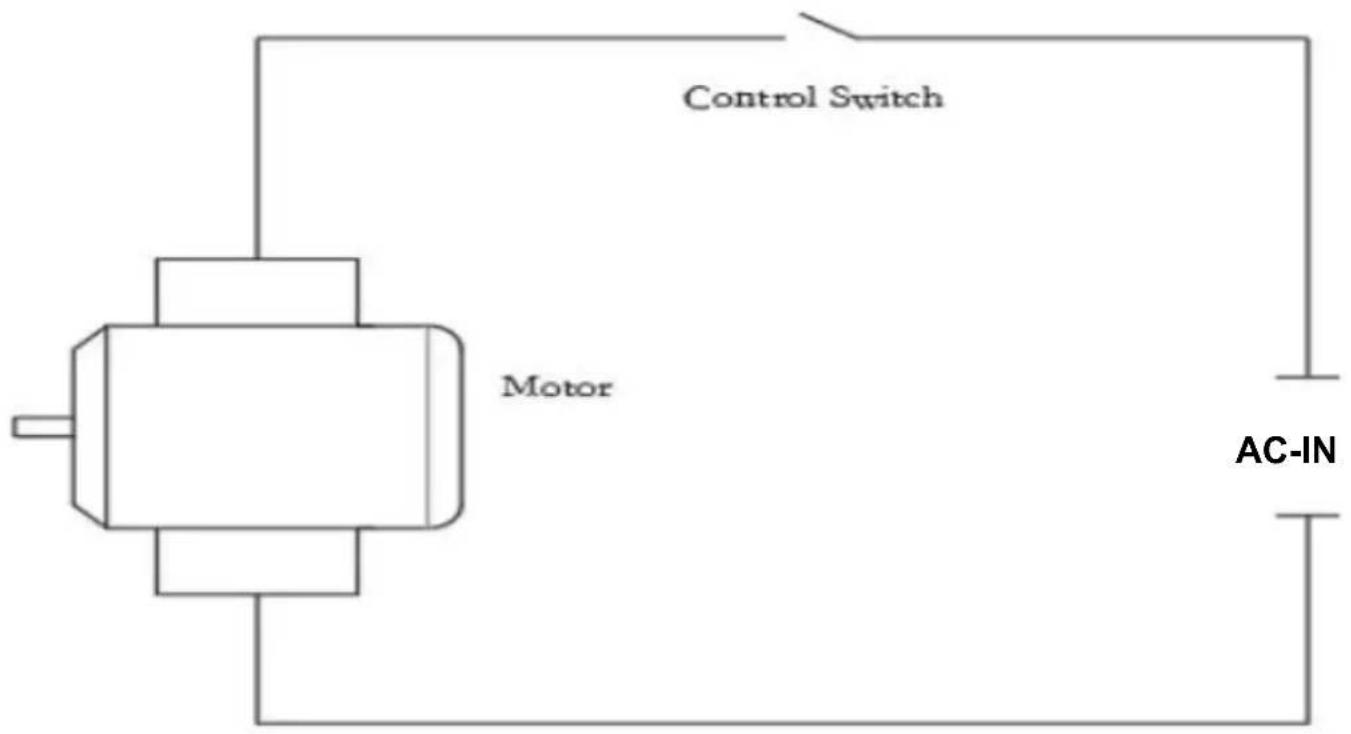

Electrical schematic diagram

Control Switch Motor AC-IN

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

BESOIN D'AIDE ? CONTACTEZ-NOUS!

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical device with no visible text or symbols

Installation steps

A

Simple line drawing of a rectangular frame with a recessed slot and mounting holes, labeled 'x 1' (no text or symbols on the diagram itself)

B

Simple 3D wireframe rectangle with no text or symbols, labeled 'x 1' on the right side (no other text or symbols)

C

D

Technical line drawing of a mechanical device with no visible text or symbols

E

x 16

F

× 16

G

H

Step 1

C C C A

Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3

Technical line drawing of a mechanical device with no visible text or symbols

Unscrew the 4 foot pads of the bone cutter.

Step 4

Technical line drawing of a mechanical device with mounting base and support frame (no text or symbols)

Fix and tighten the rack and bone cutter with foot pads.

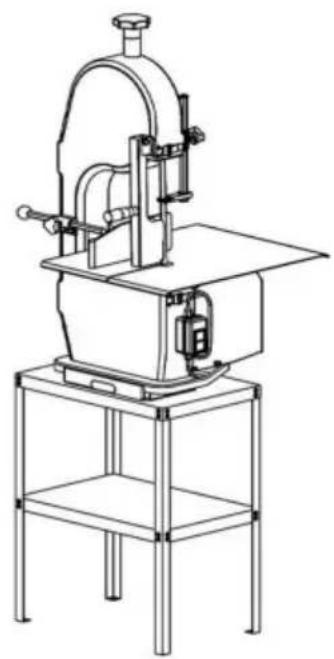

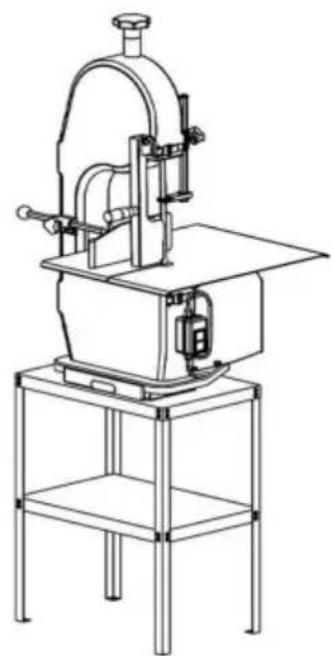

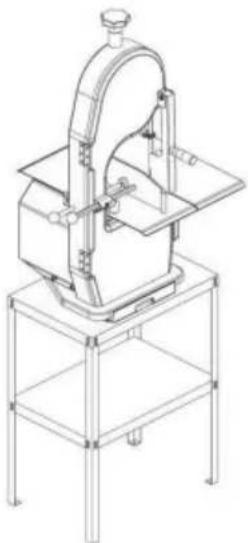

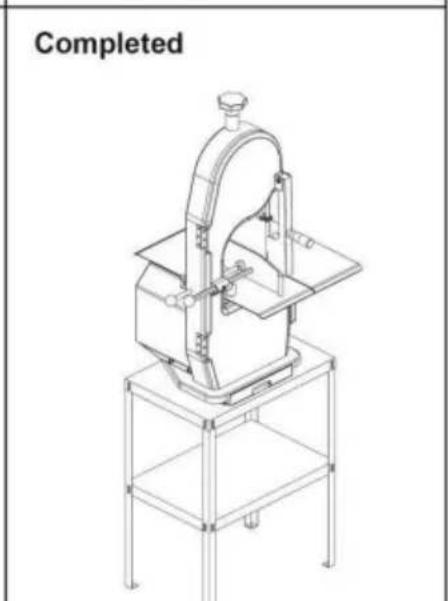

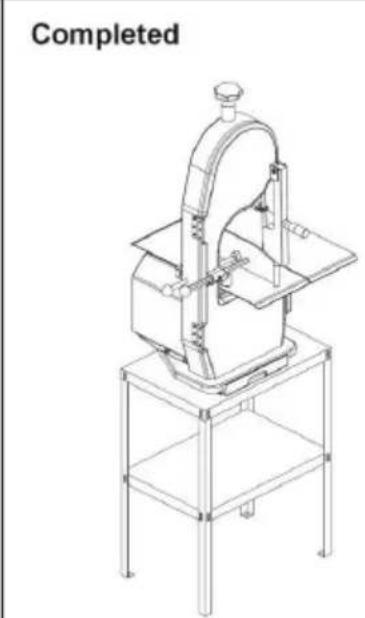

Completed

Technical line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

Schéma électrique

Control Switch Motor AC-IN

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical device with no visible text or symbols

Installation steps

Technical line drawing of a rectangular electronic device with mounting holes and a central slot (no text or symbols)

Simple line drawing of a rectangular frame with no text or symbols

Simple line drawing of a vertical rod with a pointed tip, labeled 'C' and 'x 4' (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Close-up of a hexagonal bolt with threaded shaft, labeled 'E' and 'x 16' (no other text or symbols)

Simple line drawing of a hexagonal nut with a flat body, labeled 'F' and 'x 16' (no text or symbols on the nut itself)

Simple line drawing of a wrench with label 'G' and 'x 1' (no other text or symbols)

Simple line drawing of a tool with a handle and base, labeled 'H' and 'x 1' (no text or symbols on the object itself)

Step 1 C C C A Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3 Unscrew the 4 foot pads of the bone cutter.

Step 4

Fix and tighten the rack and bone cutter with foot pads.

Technical line drawing of a machine on a stand, labeled 'Completed' (no other text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical machine with no visible text or symbols

Installation steps

A

Simple line drawing of a rectangular frame with a recessed slot and mounting holes, labeled 'x 1' (no text or symbols on the diagram itself)

B

Simple 3D wireframe rectangle with no text or symbols, labeled 'x 1' on the right side (no other text or symbols)

C

D

Technical line drawing of a mechanical device with no visible text or symbols

E

x 16

F

× 16

G

H

Step 1

C C C A

Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3

Technical line drawing of a mechanical device with no visible text or symbols

Unscrew the 4 foot pads of the bone cutter.

Step 4

Technical line drawing of a mechanical device with mounting base and support frame (no text or symbols)

Fix and tighten the rack and bone cutter with foot pads.

Completed

Technical line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

Schema elettrico

Control Switch Motor AC-IN

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical device with no visible text or symbols

Installation steps

A

Simple line drawing of a rectangular frame with a recessed slot and mounting holes, labeled 'x 1' (no text or symbols on the diagram itself)

B

Simple 3D wireframe rectangle with no text or symbols, labeled 'x 1' on the right side (no other text or symbols)

C

D

Technical line drawing of a mechanical device with no visible text or symbols

E

x 16

F

× 16

G

H

Step 1

C C C A

Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3

Technical line drawing of a mechanical device with no visible text or symbols

Unscrew the 4 foot pads of the bone cutter.

Step 4

Technical line drawing of a mechanical device with mounting base and support frame (no text or symbols)

Fix and tighten the rack and bone cutter with foot pads.

Completed

Technical line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical device with no visible text or symbols

Installation steps

A

Simple line drawing of a rectangular frame with a recessed slot and mounting holes, labeled 'x 1' (no text or symbols on the diagram itself)

B

Simple 3D wireframe rectangle with no text or symbols, labeled 'x 1' on the right side (no other text or symbols)

C

D

Technical line drawing of a mechanical device with no visible text or symbols

E

x 16

F

× 16

G

H

Step 1

C C C A

Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3

Technical line drawing of a mechanical device with no visible text or symbols

Unscrew the 4 foot pads of the bone cutter.

Step 4

Technical line drawing of a mechanical device with mounting base and support frame (no text or symbols)

Fix and tighten the rack and bone cutter with foot pads.

Completed

Technical line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

Schemat elektryczny

Control Switch Motor AC-IN

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

BEENZAAGMACHINE

MODEL: 130/210/250/280

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical machine with no visible text or symbols

Installation steps

Technical line drawing of a rectangular electronic device with mounting holes and a central slot (no text or symbols)

Simple line drawing of a rectangular frame with no text or symbols

Simple line drawing of a vertical rod with a pointed tip, labeled 'C' and 'x 4' (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Close-up of a hexagonal bolt with threaded shaft, labeled 'E' and 'x 16' (no other text or symbols)

Simple line drawing of a hexagonal nut with a flat body, labeled 'F' and 'x 16' (no text or symbols on the nut itself)

Simple line drawing of a wrench with label 'G' and 'x 1' (no other text or symbols)

Simple line drawing of a tool with a handle and base, labeled 'H' and 'x 1' (no text or symbols on the object itself)

Step 1 C C C A Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3 Unscrew the 4 foot pads of the bone cutter.

Step 4

Fix and tighten the rack and bone cutter with foot pads.

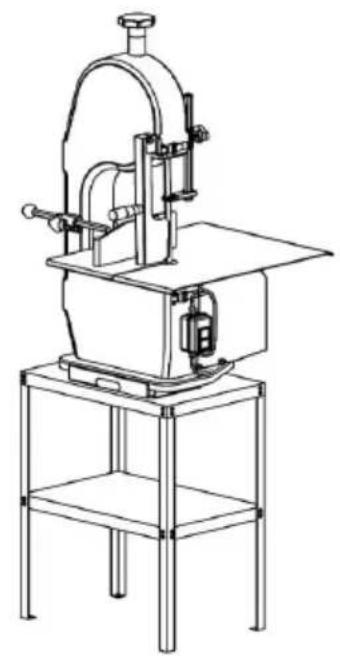

Technical line drawing of a machine on a stand, labeled 'Completed' (no other text or symbols)

Line drawing of a mechanical machine with no visible text or symbols

Line drawing of a mechanical device with a curved top and base, mounted on a stand (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Saw bar loosening adjustment button Saw Bar Transfer Wheel Saw bar stabilizer Import saw blade The thick plate Stainless Stell Worktable Main switch Bone dust storage box

Technical line drawing of a mechanical device with no visible text or symbols

Installation steps

A

Simple line drawing of a rectangular frame with a recessed slot and mounting holes, labeled 'x 1' (no text or symbols on the diagram itself)

B

Simple 3D wireframe rectangle with no text or symbols, labeled 'x 1' on the right side (no other text or symbols)

C

D

Technical line drawing of a mechanical device with no visible text or symbols

E

x 16

F

× 16

G

H

Step 1

C C C A

Ex2 Ex2 Fx2 Fx2 Ex2 Fx2 A Ex2

Fix A and 4 C with 8 screws and nuts (do not tighten too tightly).

Step 2 Ex2 Ex2 Fx2 Ex2 Ex2 Fx2 B Ex2 Ex2

Fix B and 4 C with 8 screws and nuts (tighten all screws)

Step 3

Technical line drawing of a mechanical device with no visible text or symbols

Unscrew the 4 foot pads of the bone cutter.

Step 4

Technical line drawing of a mechanical device with mounting base and support frame (no text or symbols)

Fix and tighten the rack and bone cutter with foot pads.

Completed

Technical line drawing of a mechanical device with a curved arm and base platform (no text or symbols)

www.vevor.com/support
