USER MANUAL BW-801 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SAUNA BLANKET

MODEL: BW-801

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODEL: BW-801

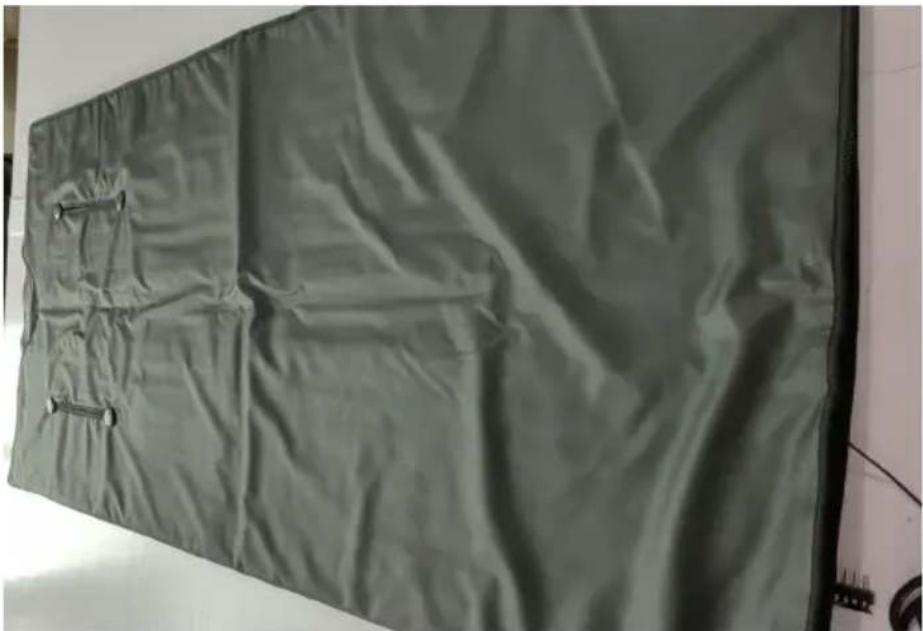

Folded fabric or panel with crumpled texture and two small clips, placed on a plain background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	BW-801	BW-801	BW-801
Territory of use	North America	Europe	Australia
Voltage	120V~ 60Hz	220-240V~ 50/60Hz	220-240V~ 50/60Hz
Power(w)	560	570	570
Product size(mm)	1900*900	1900*900	1900*900
net weight(kg)	10.29	10.29	10.29
Model	BW-801	BW-801	BW-801
Territory of use	North America	Europe	Australia
Voltage	120V~ 60Hz	220-240V~ 50/60Hz	220-240V~ 50/60Hz
Power(W)	560	630	630
Product size(mm)	1800*900	1800*900	1800*900
net weight(kg)	8.4	8.4	8.4

PART LIST

model	Picture	Quantity
Sauna bag		5
Sauna blanket		1
carry bag		1
Paint waffles Sauna inside covering		1

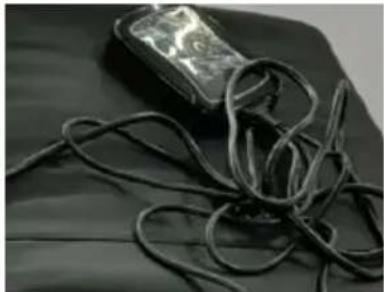

electrical cord		1

SECURITY & WARNINGS

1. Precautions that must be seen before use

1) Please do not wear metal jewelry or accessories when using the sau blanket.
2) Inspect the device, controller, and power cables before each use. Do not use if damaged,

malfunctioning, frayed or worn, or if the device has been exposed to water.

3) Staying well hydrated is extremely important. When you are dehydrated, your body cannot properly cool itself, which can cause heat exhaustion. Heat exhaustion can lead to heatstroke if left untreated, which can be fatal.
4) Drink plenty of fluids before, during, and after use to avoid dehydration. Do NOT drink

alcoholic beverages before using the device as alcohol can cause dehydration.

5) If you experience any of the following symptoms: confusion, loss of consciousness, vomiting, dizziness, headache, nausea, fainting,

musclecramping, elevated heart rate, or rapid

breathing, get out of the sauna blanket immediately and seek medical attention.

6) Keep the sauna blanket and power cables away from heat sources a fire.Excessive

heat can potentially cause fire, electrocution, or injury to people or proper

7) Never use the device or plug/unplug the power cable with wet hands Turn off and

unplug the device after each use.

8) The blanket is extremely hot after use. Allow it to completely cool before cleaning, folding, or storing. Failure to completely cool the device before folding can damage the blanket.

9) Do not heat the sauna blanket when there is no one inside.

10) Do not wrap the power cables tightly around the blanket or controller

11) We recommend that first-time users begin with 15-20 minute-minute treatment sessions, 1-2 times per week, and work up to

35-40-minutetreatment sessions, 3-5 times per week.

12) The temperature of the leather surface will fluctuate with the change of room temperature

SAFETY INSTRUCTIONS

PLEASE KEEP THIS MANUAL IN A SAFE PLACE FOR REFERENC

WARNING: To reduce the risk of burns, fire, electric shock, injury to persons, or damage to equipment, read the following important precautions and information before operating the Infrared Sauna Blanket.

DISCLAIMER

1. The health benefits suggested or implied in this manual, other product literature and website are not certified or endorsed by any regulatory authority or medical institute.

2. The use of this device is entirely at the user's discretion. Please read

instructions and

safety information carefully before using this product. We assume no responsibility for personal injury or property damage sustained by or through using this product.

RESPONSIBILITIES

1. It is the responsibility of the owner to ensure that all users of the devi are adequately informed of all warnings and precautions.
2. Use this device only as instructed in this manual.
3. Always inspect the device and power cable before each use. Do not use if damaged, malfunctioning, frayed or worn, or if the device has been exposed to water.
4. The device will automatically power off after the set working time, Do not use continuously for more than 60 minutes. Wait at least 24 hours between sessions.
5. For adult-use only. Keep away from children and pets.
6. The disposable thermal detox wraps may pose a suffocation hazard to small children or pets; keep away from children and pets at all times.
7. This device is not intended for use by adults with diminished mental, sensory, or physical capacity, unless they are closely supervision by a responsible adult.
8. This device is intended for in-home use only. Do not use in any commercial, rental, institutional, or therapeutic setting.

ELECTRICAL SAFETY

1. WARNING: Only use the included power cable at the specified voltage and frequency to power the device. Never use a non-original power cable to power the device.
2. Never leave the device unattended while it is plugged in or running.
3. Always unplug the device after using and allow to cool completely pr to cleaning storing, or moving

4. Do not store or use outdoors. Do not use during lightning and thunderstorms.

5. Unplug the device immediately in the event of a power failure.

6. Do not fold the sauna blanket while it is on.
7. Do not place the controller on the sauna blanket while it is turned o Always place the controller on a heat-resistance surface beside you.
8. The controller is not waterproof. Keep away from liquids. Do not use high-moisture environments or in any place where the controller may become wet or damp. Do not immerse in water. Do not spill liquids on t blanket, controller or cables. If the controller becomes wet or emits an oc unplug it, and do not use.
9. Keep the device, controller, and cables away from flammable or explosive items. chemicals, open flame, and heat sources such as central heating, portable heaters stoves, fireplaces, and ovens.
10. Do not use or store in high temperatures or in direct sunlight. Do not operate under a blanket or pillow.
11. Do not operate in the presence of aerosol (spray) products or corros gases, or where concentrated oxygen is being administered.
12. Do not exert excessive downward force on the blanket, controller, or power cable.
13. Do not wrap the power cables tightly around the mat or controller.
14. Never drag or hang the device by the power and controller cables. [not destroy, bend, stretch, twist, or tie the power or connector cable.
15. Keep sharp objects such as pins, knives, and needles away from device, controller, and cables.
16. Never plug/unplug the cables or touch the controller with wet hands.
17. If the device begins to make unusual noises, turn off and unplug immediately.

SAFETY

1. If you experience any of the following symptoms: confusion, loss of consciousness vomiting, dizziness, headache, nausea, fainting, muscle cramping, elevated heart rate, rapid breathing, get out of the sauna blank immediately and seek medical attention.

Dehydration can lead to heat exhaustion or heatstroke if left untreated

which can be fatal.

1. Drink plenty of liquids before, during, and after use to avoid dehydration.

2. Do not drink alcoholic beverages before using the device as this can cause dehydration.

3. People who: are pregnant; have hyperthyroidism; have a fever or an infection; or are dehydrated should not use the Sauna Blanket

4. The following people should consult with their physician before using the Sauna Blanket:those who have preexisting health conditions; are nursing; have multiple sclerosis;have autoimmune disorders that affect the thyroid; have abnormal (low or high) blood pressure or heart disease; have osteoporosis; have broken bones; have skin conditions or burns; have anhidrosis (inability to sweat normally); have splanchnic diseases or conditions; have, or suspect they may have, cancerous lesions; are sensitive to heat or easily overheat; take medications that cause heat intolerance,such as allergy, blood pressure, and decongestant medication; take medications that cause sensitivity to light/sunlight (photo sensitivity); take diuretic medications; take steroid medications or receive steroid injections; have had recent surgery; have metal or other medical implants in the body.

5. We recommend people who are or may be sensitive to infrared light consult with their physician before using the device. People with sensitive skin or skin conditions that can be exacerbated by heat, such as eczema and rosacea, may wish to consult their dermatologist before use.

6. If you feel discomfort or too hot during use, decrease the treatment temperature or the session time or stop using the device.

7. Do not operate the device while sleeping, driving, smoking, or intoxicated.

8. Do not wear metal jewelry or accessories when using the sauna blanket.

9. Do not use the sauna blanket a surface that is not heat-resistant, Do not use on waterbeds, latex, plastic, memory foam, adjustable bed frames

bunk beds, or in a child's bed or crib, or on synthetic or flammable materials.

1. Do not use the sauna blanket directly on leather surfaces. Completely cover any leather surfaces with a towel or blanket before placing the blanket on top.

CLEANING, STORAGE & MAINTENANCE

1. Turn off, unplug, and allow to completely cool before cleaning, folding or storing.
2. Wipe down the device with a soft, damp cloth or an anti-bacterial wire as needed. Do not use abrasive, corrosive, solvent, or chemical cleaners of harsh detergents on the device. A damp cloth with a small amount of m soap may be used, if needed.
3. Never allow water, other liquids, or steam to come into contact with device.
4. Remove the power cable before storing, Fold the sauna blanket and place it and the controller and cables in the provided carrying bag for storage. Store the device in a cool.dry location.
5. Do not store other objects on top of the device.
6. Do not attempt to modify, disassemble, or repair the device.

OPERATION

SETTING UP THE SAUNA BLANKET

·Unfold the Infrared Sauna Blanket and lay it face up ona flat, sturdy heat-resistant surface such

as a bed, floor, or couch

·Unzip the Sauna Blanket enough you will be able to easily climb inside

.You may also unzip the zippered arm holes, if desired

- Plug the controller connector cable into the connector jack on the bottom of the Sauna Blanket.

- Plug the power cable into a standard wall outlet.

PREPARING TO USE THE SAUNA BLANKET

- Place a couple of bottles of water and any desired entertainment(such a tablet, cell phone, or

book] within easy reach of the Sauna Blanket. You may also wish to gra pillow to ensure your treatment session is comfortable.

·Wear clean, comfortable, loose-fitting cotton clothing and socksthat you don't mind getting sweaty.

- Remove your shoes and any metal jewelry or accessories.

- Optional: Wrap one of the included disposable thermal detox wraps around your body to increase sweating, detoxification, and fat loss.

- Wrap a towel around your shoulders to keep the heat inside the Sauna blanket and to absorb sweat, if desired.

·Climb into the Sauna Blanket as you would a sleeping bag.

- Zip up the zippers on the outside of the blanket to keep in the heat. You head should be at the top, outside of the Sauna Blanket. You may put your arms through the arm holes, if desired.

USING THE SAUNA BLANKET

- Press the On/Off button to turn on the controller.

- Press the TEMP button to set the desired temperature. It's a good idea start with a lower temperature and a shorter treatment time when you are first using the Sauna Blanket.

- Press the TIME button to set the desired treatment time. We recommend starting with 15-20 minute treatments the first few times you use the Saudi Blanket.

- Place the controller on a heat-resistance surface next to the Sauna Blanket. Placing the controller on the blanket during operation can damage the blanket or controller.

- Relax and enjoy your treatment session.

·The device will turn off automatically after the set working time ends.

- Press the On/Off button to power off the Sauna Blanket at any time if y wish stop the treatment session before the working time ends.

AT THE END OF YOUR TREATMENT SESSION

• Unzip the blanket and exit the Sauna Blanket.
• Unplug the sauna blanket.
• Allow the sauna blanket to completely cool (wait at least 30 minutes) before cleaning, folding, or storing.
• Drink plenty of water or an electrolyte drink after your session

OPERATING INSTRUCTIONS

Please read the operating instructions before using the Sauna Blanket Infrared Sauna Blanket.

Keep this manual for reference.

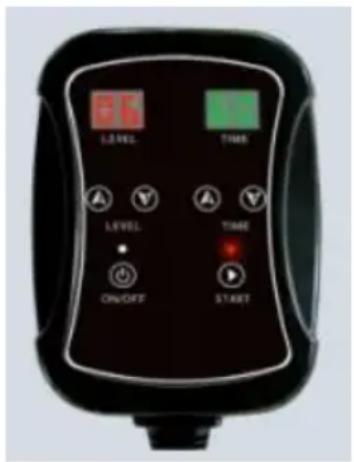

Operation:

1. Connect the electricity, the controller will beep, the red dot above ON/OFF will on, it is power-on state. then press ON/OFF, red dot disappear and controller ready to set up LEVEL and TIME.

2 Press Level ▲/Y to set from 1-6 as

LEVEL TIME ON/OFF START

you wish (equals to 35-85 degrees, LEVEL 1=35degrees, LEVEL 2=45degrees..).

Press TIME ▲/Y to set time from 1-60mins you want to have.

Long press will be 5 minutes a skip,shor press will be 1 press 1 minute 3. After above setting ,press START, the dot under right comer of LEVEL and TIME will flicker,means it is heating up accordingly.

and when the temperature heats up to the set LEVEL, the red dot under right comer will stop flicker

1. When the set working TIME is completed, the controller will beep, the product will return to the power-an state, and the ON/OFF red dot will lig up.

If you want to start again after the set time, press ON/OFF button and re-set it following the steps above. Or if you need leave when in the same press ON/OFF button to stop the sauna blanket and open it flat, take off plug before leaving (don't forget to take clean the sauna blanket after eating time use for sanitary).

We recommend you enter the blanket 3-5 minutes after STARTING the blanket and feel it heating up. It takes time for the blanket to reach the target temperature, especially during winter and in 110V countries(time to reach peak temperature: about 15 minutes).

USING THE SAUNA BLANKET INFRARED SAUNA BLANKET

1. Plug the large controller connector into the connector jack at the bottom of the Sauna Blanket, and plug the power cord into a standard wall outlet

2. Optionally, you may wrap a thermal detox wrap around your body.

3. Wrap a towel around your shoulders, head, or neck, if desired.

4.Climb into the Sauna Blanket as you would into a sleeping bag and zi up the zipper to keep in the heat.

1. Press the On/Off button on the controller to turn on the Sauna Blanke

2. Press the TEMP button to set the desired temperature from 113-176 °F. The default temperature is 140 °F.

a. Tap the button to increase the temperature in 9-degree increments.

b. Press and hold the button to increase the temperature in 18-degree increments.

c. Temperature is cyclical: when the maximum of 176 °F is reached.

pressing the TEMP button again will return to the minimum of 113 °F.

d. The Temperature/Time display will show the selected temperature in degrees Fahrenheit.

1. Press the TIME button to set the desired working time from 30-60

minutes. The default time 40 minute.

a. Tap the button to increase the time in 5-minute increments
b. Press and hold the button to increase the time in 10-minutein crements c. Time is cyclical: when the maximum of 60 minutes is reached, pressing the TIME button again will return to the minimum of 30 minutes.
d. The Temperature/Time display will show the selected time.

1. Place the Sauna Blanket controller on a heat resistant surface next to the sauna blanket to avoid potential damage to the blanket or controller.

2. Relax and enjoy your infrared sauna treatment session.

3. The Sauna Blanket will automatically shut off when the set working t ends

4. Press the On/Off button to stop the treatment session before the working time ends, if desired.

5. Always turn the sauna blanket off and unplug it after each use.

6. Allow the Sauna Blanket to completely cool (wait at least 30 minutes before cleaning, folding, or storing.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODÈLE : BW-801

Folded fabric with crumpled texture and two small clips, displayed against a plain background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODELL: BW-801

Folded fabric with crumpled texture and two small clips, displayed against a plain background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODELLO: BW-801

Folded fabric or panel with visible stitching and two small clips, placed on a plain surface (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Modello _	BW-801	BW-801	BW-801
Territorio di utilizzo	Nord America	Europa	Australia
Voltaggio	120 V~ 60 Hz	220-240V ~ 50/60Hz	220-240V ~ 50/60Hz
Potenza (w)	560	570	570
Dimensioni del prodotto (mm)	1900*900	1900*900	1900*900
peso netto (chilogrammo)	10.29	10.29	10.29
Modello _	BW-801	BW-801	BW-801
Territorio di utilizzo	Nord America	Europa	Australia
Voltaggio	120 V~ 60 Hz	220-240V ~ 50/60Hz	220-240 V ~ 50/60Hz
Potenza (W)	560	630	630
Dimensioni del prodotto (mm)	1800*900	1800*900	1800*900
peso netto (chilogrammo)	8.4	8.4	8.4

PART LIST

Importato in AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODELO: BW-801

Folded fabric or panel with visible cracks and small connectors, placed on a plain background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODEL: BW-801

Folded fabric or panel with visible cracks and small connectors, placed on a plain surface (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

KORZYSTANIE Z KOCA DO SAUNY

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SAUNADEKEN

MODEL: BW-801

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODEL: BW-801

Folded fabric or panel with visible cracks and small connectors, placed on a plain background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model _	BW-801	BW-801	BW-801
Gebruiksgebied	Noord Amerika	Europa	Australië
Spanning	120V~ 60Hz	220-240V ~ 50/60Hz	220-240V ~ 50/60Hz
Vermogen (w)	560	570	570
Productgrootte (mm)	1900*900	1900*900	1900*900
Netto gewicht / kg	10.29	10.29	10.29
Model _	BW-801	BW-801	BW-801
Gebruiksgebied	Noord Amerika	Europa	Australië
Spanning	120V~ 60Hz	220-240V ~ 50/60Hz	220-240V ~ 50/60 Hz
Vermogen (W)	560	630	630
Productgrootte (mm)	1800*900	1800*900	1800*900
Netto gewicht / kg	8.4	8.4	8.4

PART LIST

Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUNA BLANKET

MODELL: BW-801

Folded fabric with crumpled texture and two small clips, displayed against a plain background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

M odel	BW-801	BW-801	BW-801
Användningsområde	Nordamerika	Europa	Australien
Spänning	120V~ 60Hz	220-240V ~50/60Hz	220-240V ~50/60Hz
Effekt(w)	560	570	570
Produktstorlek(mm)	1900*900	1900*900	1900*900
nettovikt (kg)	10.29	10.29	10.29
M odel	BW-801	BW-801	BW-801
Användningsområde	Nordamerika	Europa	Australien
Spänning	120V~ 60Hz	220-240V ~50/60Hz	220-240V ~50/60Hz
Effekt (W)	560	630	630
Produktstorlek(mm)	1800*900	1800*900	1800*900
nettovikt (kg)	8.4	8.4	8.4

PART LIST

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support
