DD-4/8 - Honey extractor Vevor - Free user manual and instructions

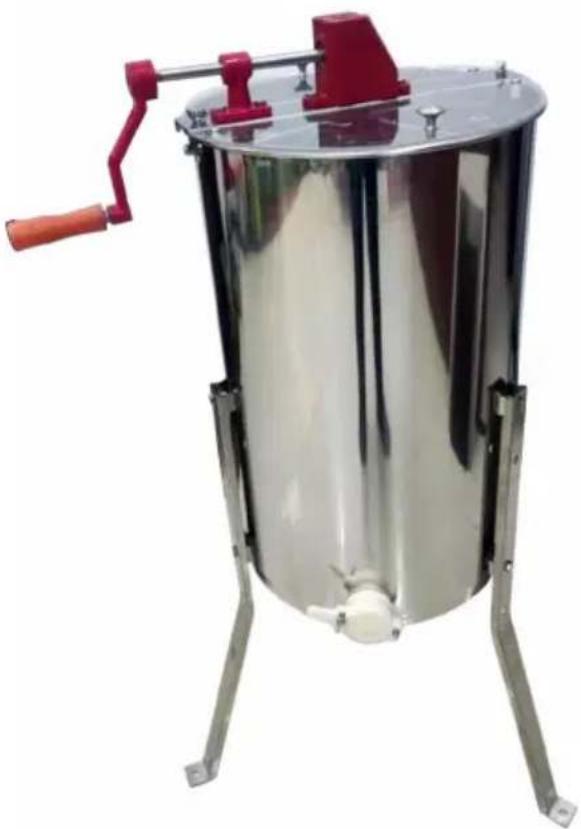

Product type	Manual honey extractor
Brand	Vevor
Model	DD-4/8
Frame capacity	2-4, 3 or 4-8 frames
Weight capacity	15 ± 1 kg / 18 ± 1 kg
Lifting height	32-40 cm
Frame size (large)	415 mm × 200 mm
Frame size (small)	415 mm × 135 mm
Main material	Stainless steel 201
Power supply	Manual (rotation by handle)
Main functions	Manual centrifugal honey extraction, drain valve, removable lid
Estimated weight	Approximately 12 kg
Maintenance and cleaning	Clean and dry after each use; store in a dry place away from dust
Safety	Do not disassemble or modify; fix the feet to the ground; use with grounding
Spare parts available	Honey valve, lid, support feet, inner frame
Repairability	Disassembly possible for cleaning; standard screws
Warranty	Electronic support and warranty certificate at vevor.com/support
General information	Made in China; beekeeping use

Frequently Asked Questions - DD-4/8 Vevor

How to install the support feet?

Place the barrel on the ground, align the holes of the three feet with those of the barrel, insert the screws and tighten with a screwdriver.

How to install the honey valve?

Erect the barrel, unscrew the honey outlet connector, place the honey outlet on the outside of the barrel, then insert the plastic nut inside and tighten.

How many frames can I extract at once?

The DD-4/8 model can hold 2 to 4 frames, 3 frames or 4 to 8 frames depending on the configuration.

What is the size of compatible frames?

Large frames measure 415 mm × 200 mm, small frames 415 mm × 135 mm.

How to use the extractor?

Place the honey frames in the supports, close the lids, then turn the handle in the same direction to rotate the inner frame. Adjust the speed according to the amount of honey.

How to open the valve to collect honey?

Loosen the valve screw, then lift the handle of the honey outlet connector to open and let the honey flow.

What to do if the extractor shakes?

Check that the frames are placed symmetrically, tighten any loose screws, and fix the feet to the ground.

How to clean and maintain the extractor?

After use, clean the inner and outer walls of the barrel and the frame with a clean cloth. Dry thoroughly with a hairdryer or air dry before storing.

Where to store the extractor?

Store it in a cool, dry place, out of reach of children, and cover it with a cloth to avoid dust.

How to get technical support or warranty?

Contact customer service at [e-mail] or check the electronic warranty certificate at vevor.com/support.

USER MANUAL DD-4/8 Vevor

Support and E-Warranty Certificate

https://www.vevor.com/support

Manual Honey Extractor

2-4/3/4-8frames

USER MANUAL

We continue to be committed to provide you tools with competitiveness "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying ce with us compared to the major top brands and doses not necessar cover all categories of tools offered by us. You are kindly reminis carefully when you are placing an order with us if you are actually in comparison with the top major brands.

HE-15C-24M-US HE-15C-3M-US HE-18C-48M-EU

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instru carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject product you received. Please forgive us that we won't inform y there are any technology or software updates on our prod

SAFETY INSTRUCTIONS

For your safety and the safety of others, the following precautions must be observed when operating the honey extractor:

1.Make sure the honey extractor is clean before use;
2. The speed of the honey extractor must not be too high or too low. Adjust the speed according to the amount of nectar or usage habits;

Connect to the grounding pile to fix the honey extractor;

WARNING:

Do not disassemble or change this machine.

MODEL AND PARAMETERS

Model	HE-15C-24M-US HE-15C-3M-US HE-18C-48M-EU
Capacity	15±1kg/18±1kg
Height from the bottom of barrel to the ground	32-40cm(lifting)
Frames	2-4/3/4-8 frames
Fit frame size	Large frame: L415mm * W200mm Small frame: L415mm * W135mm
Main materials	201 stainless steel

STRUCTURE DIAGAM

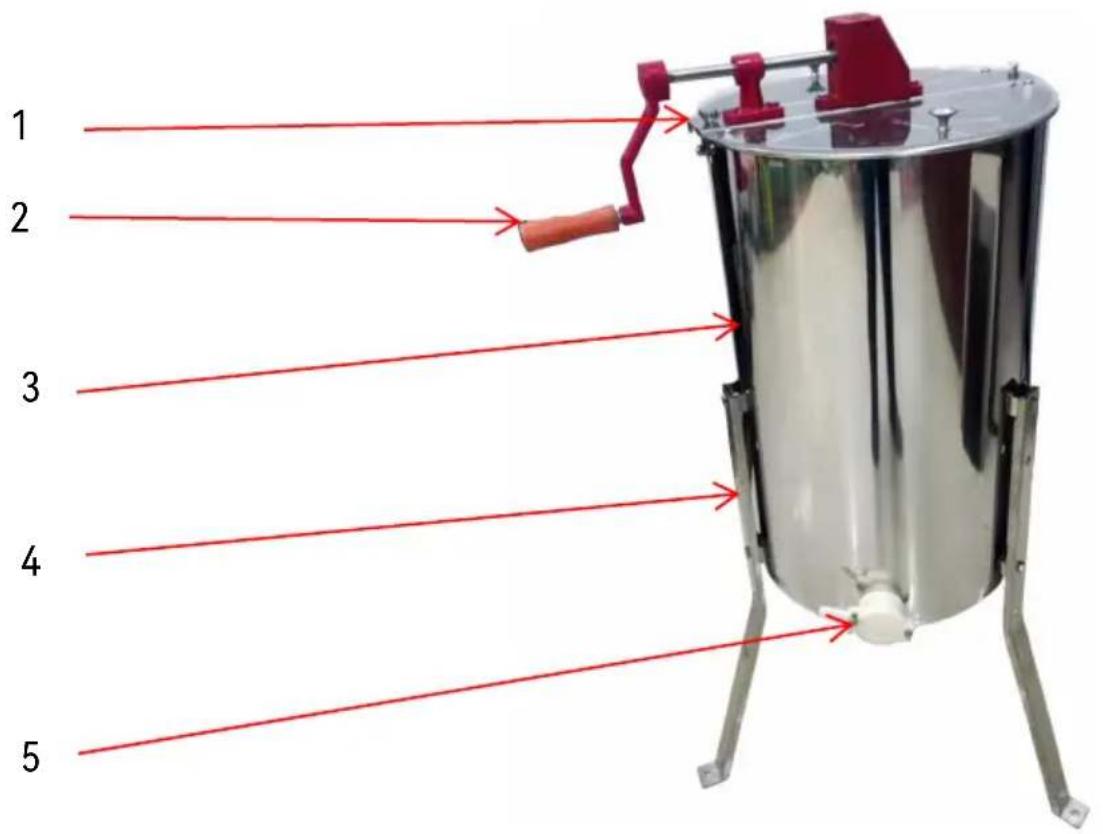

No	Parts name
1	Lid
2	Handle
3	Barrel Body
4	Support Leg
5	Honey Valve

ASSEMBLY AND USE

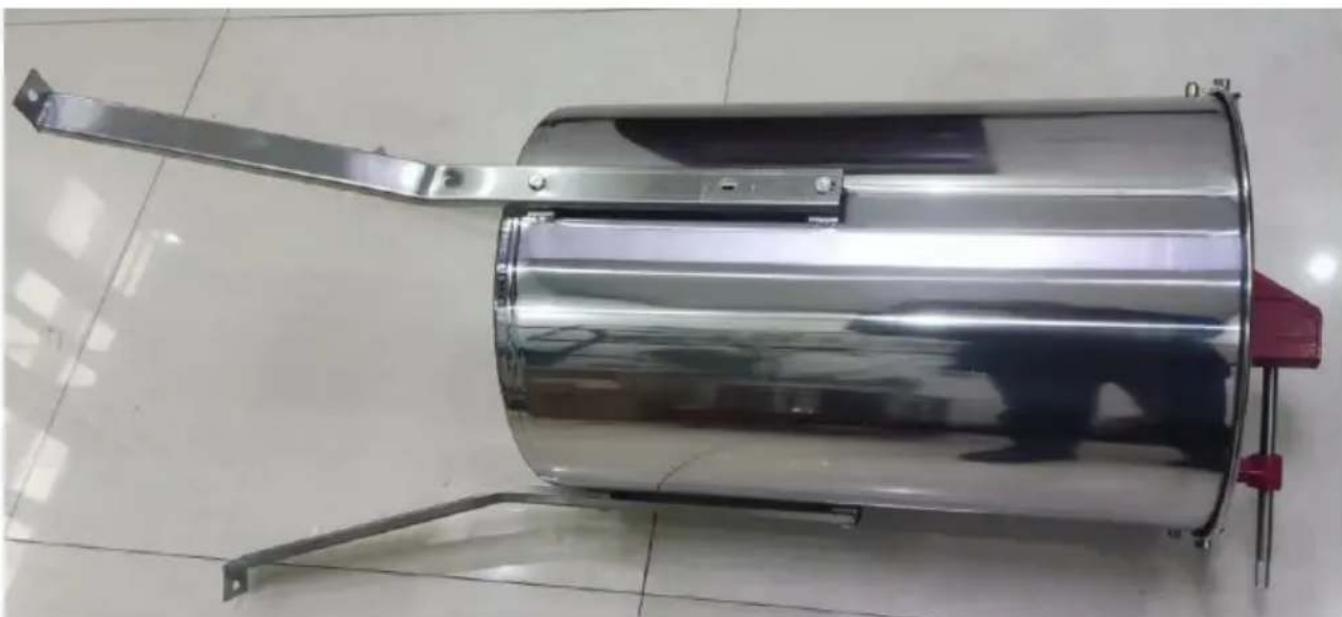

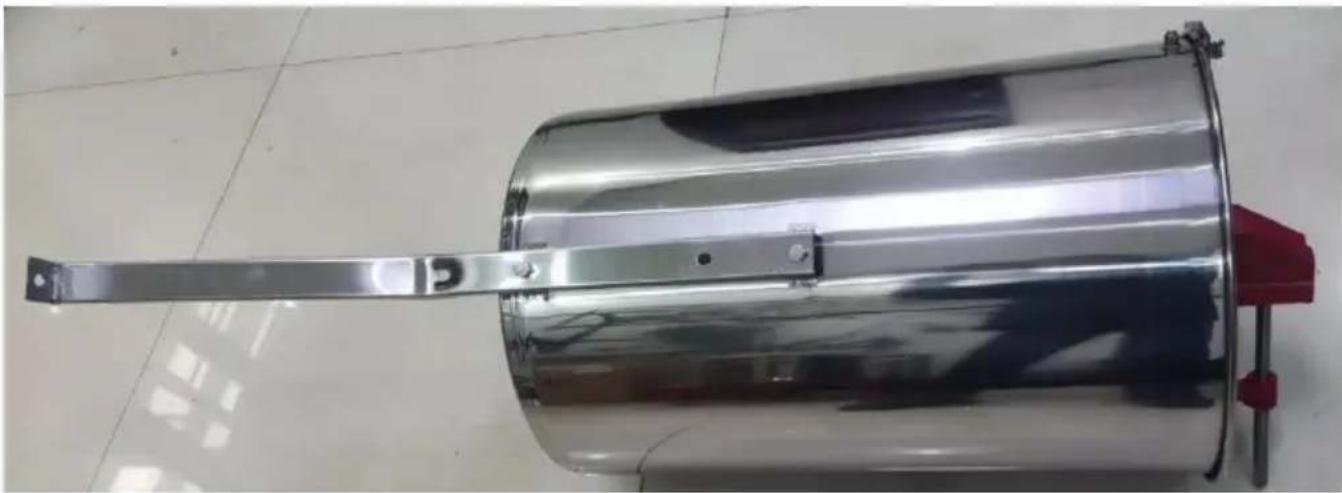

Step 1: Installation of Support Legs.

First, take out the three legs and place the barrel on the ground. Ne align the holes on the three legs with the corresponding three holes barrel, insert screws into the holes, and tighten them with a screwdriver

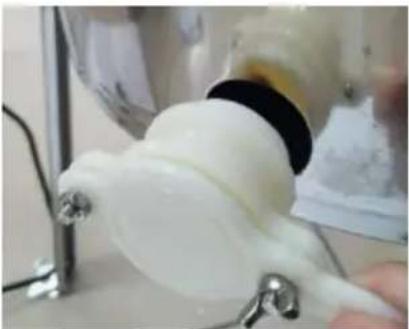

Step 2: Installation of the Honey Valve.

First, erect the barrel and unscrew the honey outlet connector. Then, the honey outlet at the corresponding outlet outside the barrel. Finally,

the plastic nut into the barrel, connect it with the honey outlet connne and tighten it.

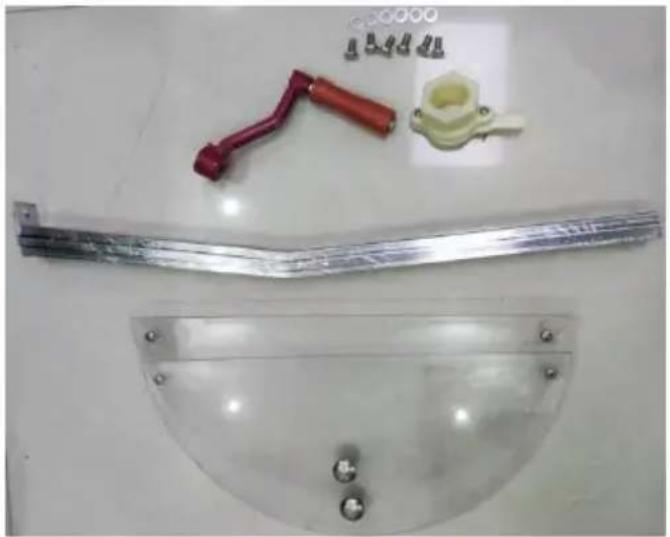

Step 3: Installation of Honey Extractor Lid.

Assemble the two lids with screws.

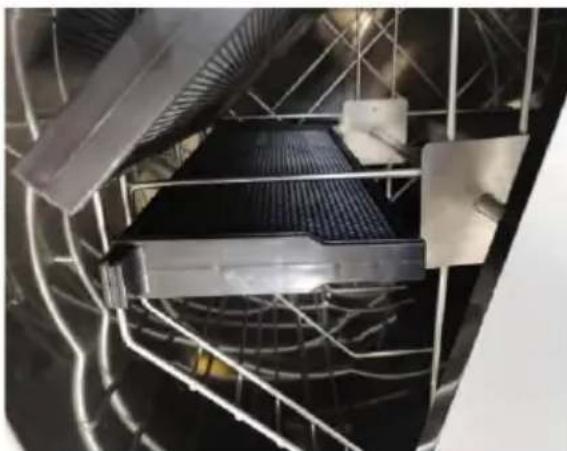

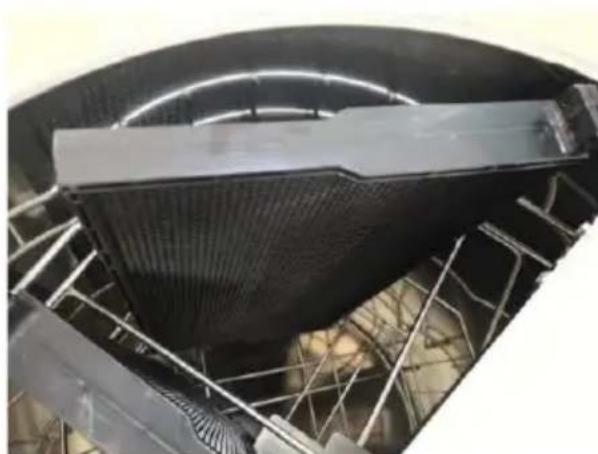

Step 4: Put the beehive frames of different sizes with honey into the corresponding frames in the barrel.

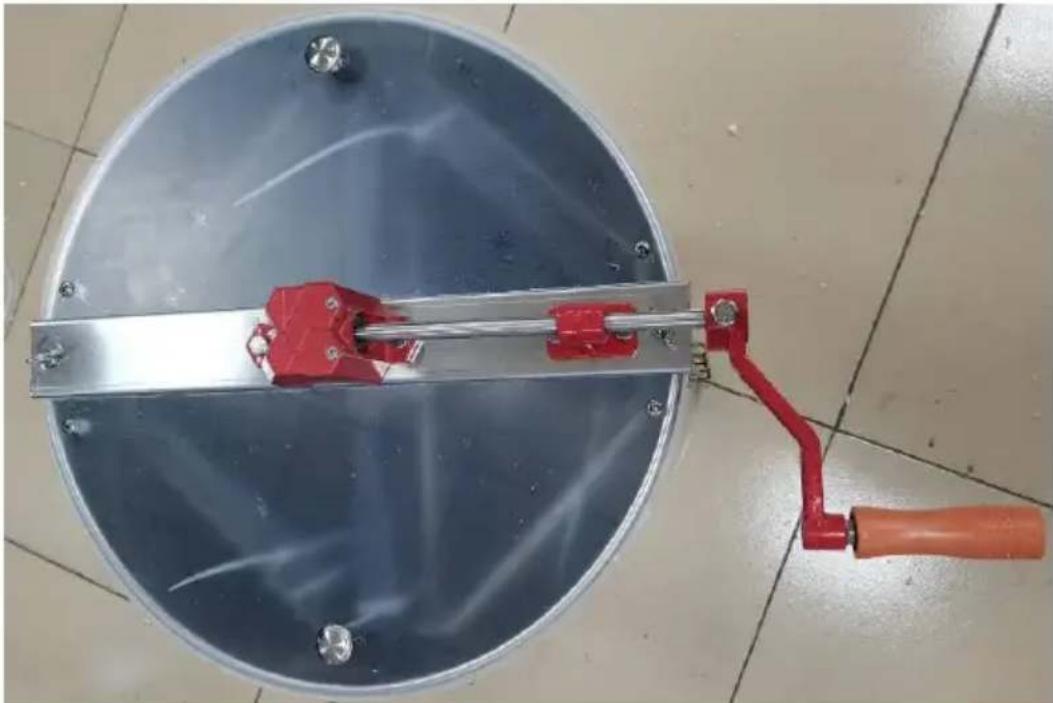

Step 5 : Cover the two lids separately at the mouth of the barrel.

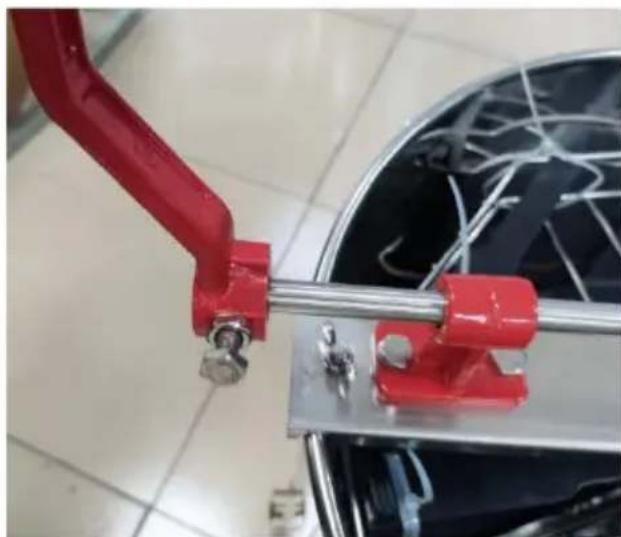

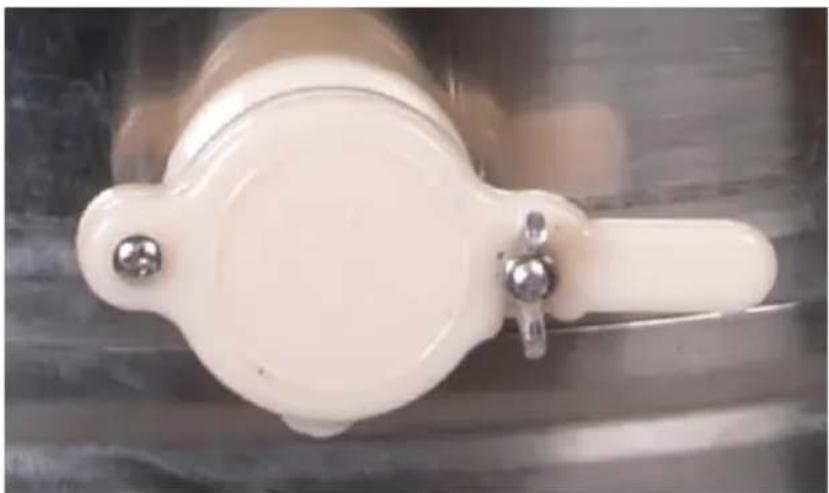

Step 6: Rotating honey extractor.

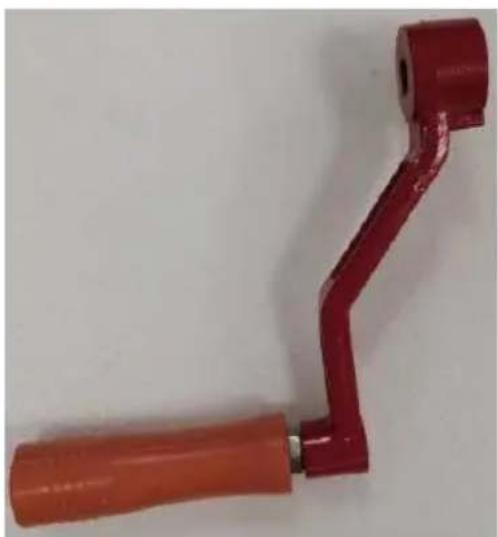

Hold the handle with your hand and shake it in the same direction to rotate the inner frame.

Step 7: Take out the honey.

First, loosen the screw. Then hold the handle of the honey outlet connector, lift it to open the honey outlet, and let the honey flow out.

TROUBLESHOOTING INSTRUCTION

Problem	Reason	Solutions
Shake hands loose	The screws are loos	Tighten the screws wi a screwdriver
Barrel shaking	The frames are no placed symmetrically	Place the frames symmetrically
	The feet are not fix on the ground	Fix the feet on the ground

CLEAN,CARE AND STORAGE RULES

Care and cleaning :

The honey extractor shall be thoroughly cleaned and dried before use. Especially the one that has not been used for a long time, shall be disassembled and cleaned. Otherwise, the honey stains and other impurities left in the honey shaker will pollute the honey. After using the honey extractor, clean the inner and outer walls of the barrel and its stainless steel frame. And dry them with a clean and dry cloth, use a hair dryer, or let them air dry to keep them clean to prepare for the next use.

Storage :

Please store it out of the reach of children; After using the honey extractor, place it in a cool place and cover it with a large cloth to prevent dust from entering.

Manufacturer: Changge Xinao Bee Industry Co. Ltd

Add: He Shang Yang Village, Da Zhou Town, Changge City, Xuchang City, Henan Province

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Support and E-Warranty Certificate

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica https://www.vevor.com/support

elettronica https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Lagg till: He Shang Yang Village, Da Zhou Town, Changge City, Xuchang City, Henan-provincesen

Tillverkad i Kina

VEVOR

TOUGH TOOLS, HALF PRICE

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

https://www.vevor.com/support
