USER MANUAL 75-450 Vevor

Affordable. Reliable. Home Improvement.

GEO GRID

Model:50-400/50-450/50-500/75-450/75-500/100-450

Technical Support and E-Warranty Certificate

www.vevor.com/support

Model:50-400/50-450/50-500/75-450/75-500/100-450

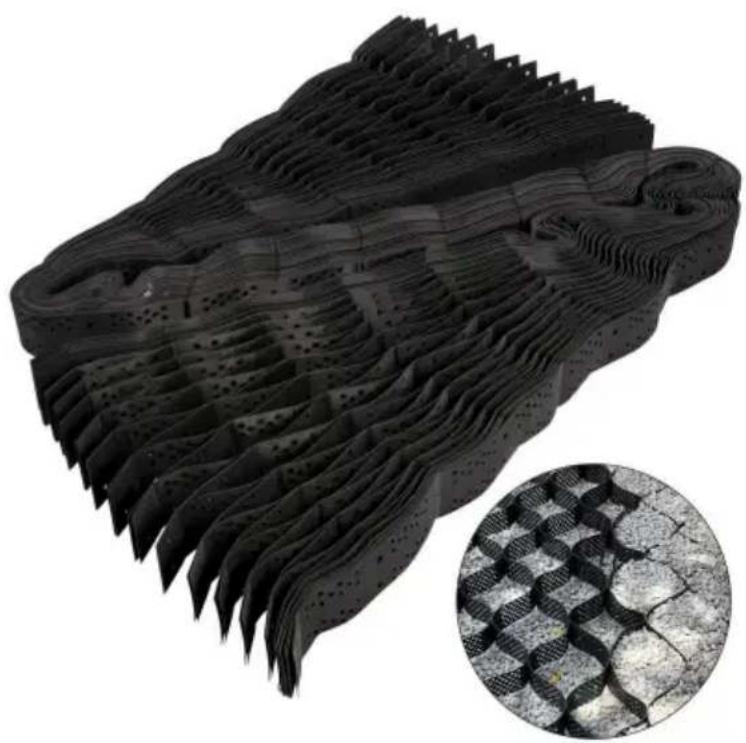

3D-printed black mesh structure with wavy, layered patterns and a circular inset showing detailed texture (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using geo grid. And this product is not a toy. Do r children to play with.

• Keep away from sharp points, blades and other items.

• Wear ANSI-approved work gloves during construction.

• Keep construction area well-lit.
• Keep bystanders out of the area during construction.
• Do not operate when tired or when under the influence of alcohol or medication.
• Product capabilities apply to properly and completely assembled products only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	50-400	50-450	50-500	75-450	75-500	100-450
Depth (mm)	50	50	50	75	75	100
Load (t/m2)	9.2
Unfold size (mm)	8200*1200	5200*2700/5000*1980	10000*3000	5200*2700	7600*2900	5200*2700
Cell size (mm)	200*200	240*210	250*250	250*250	250*250	240*210
Material	HDPE
Color	black

PREPARATIONS

◆ Clean the project area according to the requirements of the drawi ensuring the flatness and cleanliness of the area.
When the ground area is uneven, it is necessary to clean the ground add a layer of supplementary material to pave it.
Before construction, the size of each exposed compartment hopper should be calculated based on the stretching length of each group of compartments. The excess part at the connection is generally not with the calculated length to prevent uneven hopper size and affect the appearance.

SIMPLE INSTRUCTION

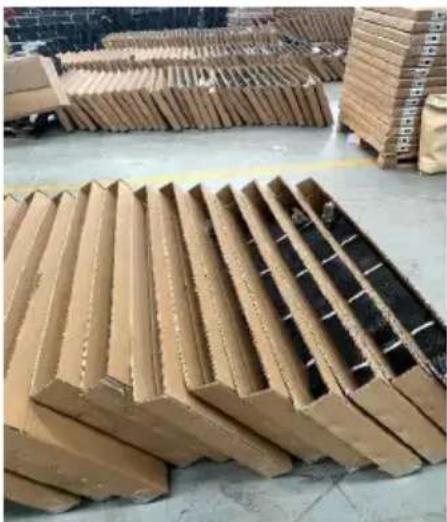

Step1:Open the cardboard box and take out the geo grid.

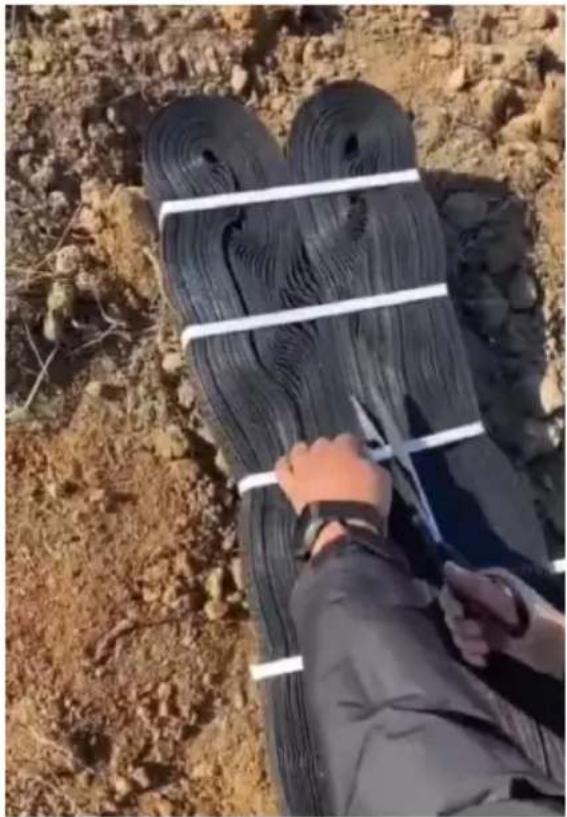

Step2: After leveling the construction ground, use a scissors to cut the package tap the geo grid.

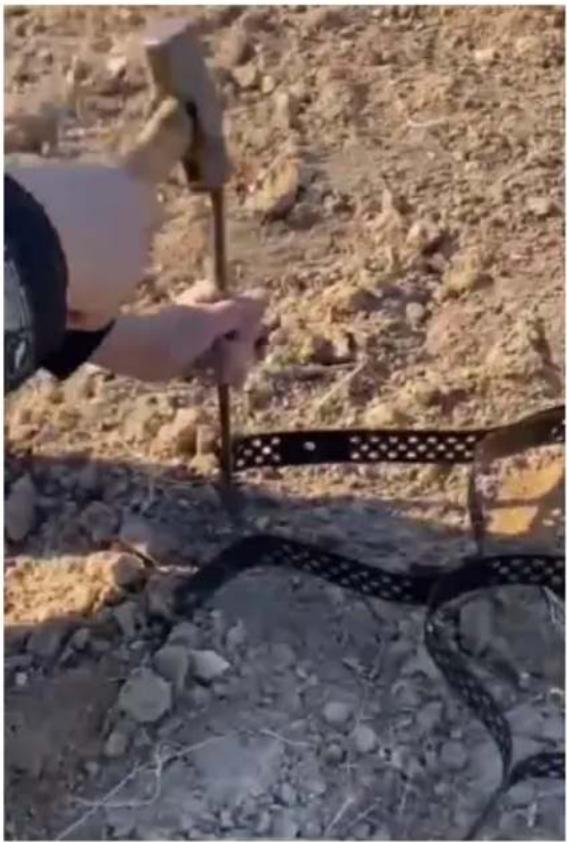

Step3: Fix the edge of the ge with a steel bar to ensure full expanded out.

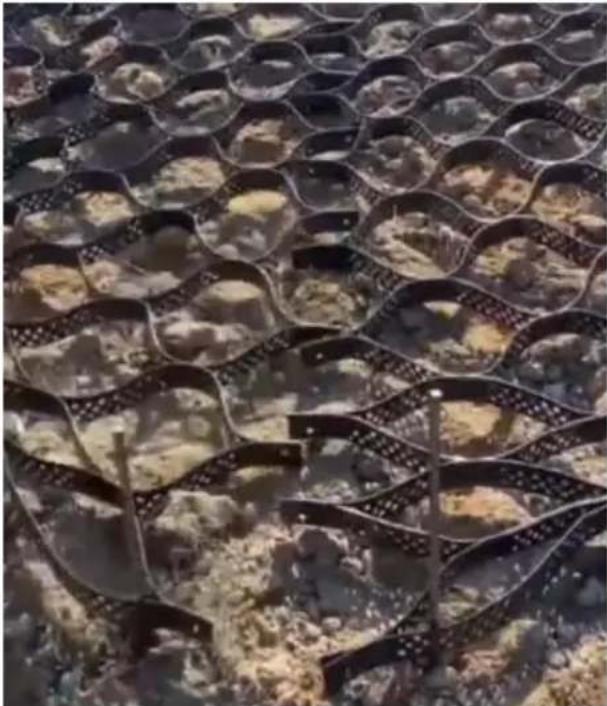

Step4: Install geo girds near together, there are connecting holes at the edge of the geo

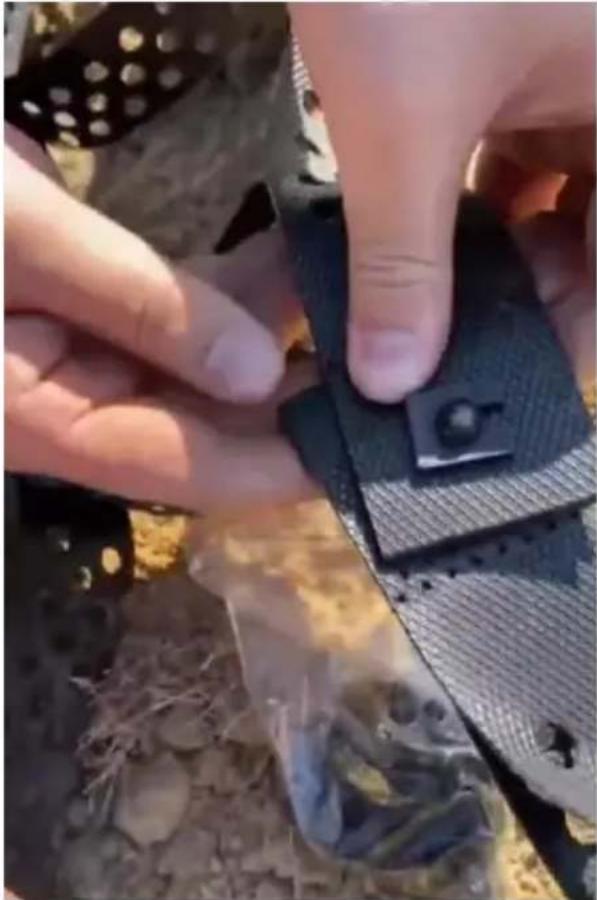

Step5: Use the link to join two connecting holes of geo grids together.

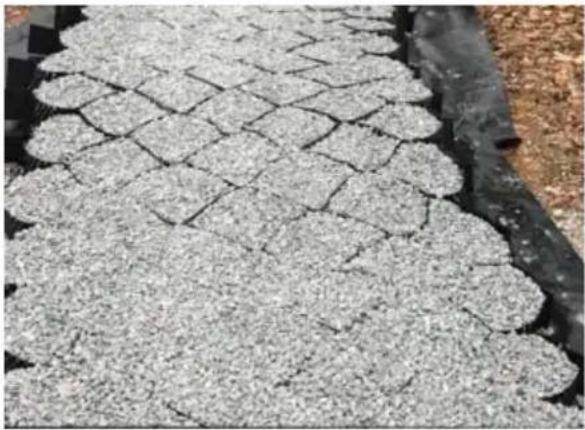

Step6: Start backfilling and compact the filling material firm The filling material should cover the grid, ENSURE THE GEO GRIDS ARE NOT EXPOSED ABOVE THE FILLING MATERIA otherwise the geo grid is possible to be pulled out of the filling material and will be damaged.

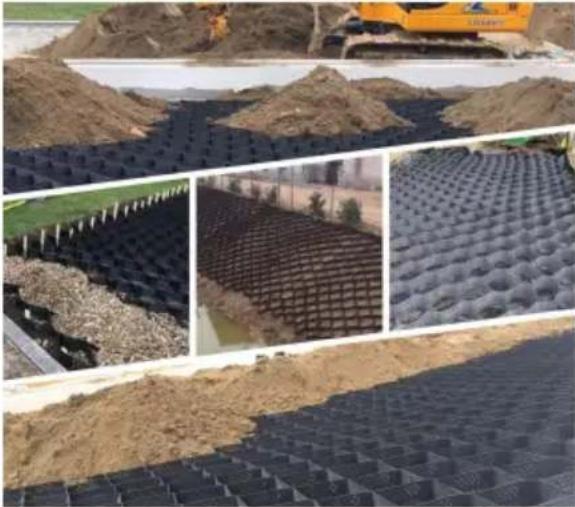

The geo grid driveway is performed for slopes or flat areas and with for patios, parking areas, driveways, walking paths, and more.

LAYING PROCESS AND SPECIFIC METHODS:

1. Organize the ground to make it flat and compact. Unfold the bund grid, place its outer edge along the gray line, and fix both ends with attachment anchor rods. Each grid is fixed with a steel bar or U-sha. The steel bar is inserted 30-50 cm into the ground, and then the gr unfolded. The middle grid is fixed with a steel bar or U-shaped nail 1-2 square meters (fixing this step is crucial, as it will affect the performance of subsequent grids. If not fixed properly, the product will be able to fully play its role) to fill the soil inside the unit. Usually, filled to two-thirds of the height of the geotechnical unit, and then the

inside is compacted with an iron rod.

1. The main purpose is to promote overall linear adjustment after the formation of geotechnical units.

At this point, the connection of the second compartment can be made, the interior of the first compartment can continue to be filled with soil height exceeding two-thirds of the panel height. Then, use an iron rod a heavy hammer to compact the soil.

During the process of filling the wall unit, the remaining soil can be together until the construction of the entire unit is completed. The fill should completely cover the unit grid and not expose it to the outside which may affect the performance of the grid.

1. When adjusting the panel line type, attention should be paid to identify parts that are not easily deformed for line type control. (Each edge should be fixed with steel bars or U-shaped nails, and a point should be fixed every 1-2 square meters in the middle part)

For compartment panels, attachments connected to the panel can serv control points.

1. After positioning, the filling material should be evenly distributed to ensure uniform size inside the battery; In addition, it is necessary to interior of the battery with fine-grained soil, especially in the areas in contact with the exposed materials of the battery panel, to avoid local protrusions on the surface of the panel, which may affect its aesthetic.
2. For stacked flexible retaining walls, the panels and walls are fixed together without the need to control the elevation of each layer. After controlling the elevation of the bottom layer, the subsequent layers can controlled according to the filling thickness.

Caution:

It is necessary to pay attention to the weight of the rolling machine use a construction machine that is suitable for the foundation condition
◆ Determine the height of the filling soil based on the foundation conditions, generally greater than or equal to 30 centimeters of the grid;
