Brand	Vevor
Model	2732 (also compatible 2532)
Product Type	Floor-mounted bathtub faucet
Dimensions (L x W x H)	170 x 270 x 1038 mm (model 2732)
Net Weight	3.75 kg (model 2732)
Outlet Area	1140 mm²
Supply	Hot and cold water connection (flexible hoses included)
Main Functions	Mechanical mixer, removable hand shower, fill faucet
Safety	Do not use as a toy; avoid contact with acids, alkalis or solvents
Care and Cleaning	Clean with a soft cloth and soapy water; avoid abrasive products
Spare Parts and Repairability	Parts available (fixed seat, adapter, screws, gaskets); technical support at www.vevor.com/support
General Information	Made in China; technical assistance and electronic warranty certificate online

Frequently Asked Questions - 2732 Vevor

How to install this bathtub faucet?

Follow the steps in the manual: fix the base to the floor, screw the supply pipe, connect the flexible hot and cold water hoses, then install the hand shower. Tighten the connections by hand without using a wrench to avoid damaging the seals.

What tools are needed for installation?

The tools provided are: an M4 hex key, an M3 hex key, and screws. You will also need a screwdriver and possibly a drill for the floor expansion screws.

Does the faucet work with standard water pressure?

Yes, the faucet is designed for standard hot and cold water connections. Ensure water pressure is within normal limits (no specific value provided, but standard flexible hoses are suitable).

How to maintain the faucet regularly?

Clean with a soft cloth and soapy water. Avoid abrasive or acidic products. Periodically check the tightness of connections.

Can I use this faucet with an overflow bathtub?

Yes, the floor-mounted faucet is designed for freestanding bathtubs, including overflow models. Ensure dimensions and height are respected.

Is the hand shower removable?

Yes, the hand shower is removable and connected by a flexible hose. It can be used as a handheld shower or fixed on the holder.

What to do in case of a leak after installation?

Check that all connections are hand-tight. Use the provided Teflon tape for threads. If the leak persists, contact Vevor technical support.

Where to find spare parts?

Spare parts are available from Vevor via www.vevor.com/support. The parts list is provided in the manual.

What is the total height of the model 2732 faucet?

The total height of model 2732 is 1038 mm (approx. 104 cm).

Is this faucet guaranteed?

Yes, Vevor offers an electronic warranty. Register at www.vevor.com/support to obtain the warranty certificate.

USER MANUAL 2732 Vevor

FREESTANDING BATHTUB FAUCET

MODEL: 2732/2532

We continue to be committed to providing you with tools that offer competitive prices. Expressions such as "Save Half", "Half Price", or any other similar expressions used by us represent an estimate of savings you might benefit from buying tools with us compared to the major top brands, and do not mean to cover all categories of tools offered by us. You are reminded to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: 2732/2532

2732 2532

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

PARAMETER LIST

model	2732	2532
outlet area (mm²)	1140	935
product size (mm)	170*270*1038	272*170*1185
net weight(kg)	3.75	3.85

PART LIST

model	2732 picture	2732 QTY.	2532 picture	2532N QTY.
		1		1
fixed seat		1		1
main part		1		1
adapter(1/2 to 9/16)		2		2
Expansion screw assembly		3		3
sprinkler		1		1
shower hose		1		1
Cold and hot water pipe		2		2
pipe		1
sealing ring		1		1
pointed screw		3	/	0
hexagonal Wrench M4		1	/	0
hexagonal Wrench M3		1	/	0
bag	/	0		1
teflon tape	/	1		1
extension pipe	/	2		2

SECURITY & WARNINGS

WARNING: Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. It is strictly prohibited to mix the hose with acid, alkali, oil, organic solvents, inflammable and explosive materials. The freestanding bathtub faucet should not be in direct contact with goods with sharp edges.
2. When handling the freestanding bathtub faucet, do not drag it. Prevent accidental damage to the freestanding bathtub faucet.
3. When storing the freestanding bathtub faucet, keep it away from acids, alkalis, oils, organic solvents, or other corrosive liquids or gases.
4. This product is not a toy. The freestanding bathtub faucet must not be used as a toy for children.

ASSEMBLY PRECAUTIONS

1. Assemble the product strictly in accordance with the instructions. Incorrect assembly could be hazardous.
2. Wear safety goggles and work gloves properly during assembly. Do not attempt to assemble the product when tired or under the influence of alcohol, drugs, or medication. The product parameters apply only to a properly and completely assembled product.

OPERATION

The following are the installation steps for the round bathtub faucet. For the square bathtub faucet, refer to the round bathtub faucet installation steps.

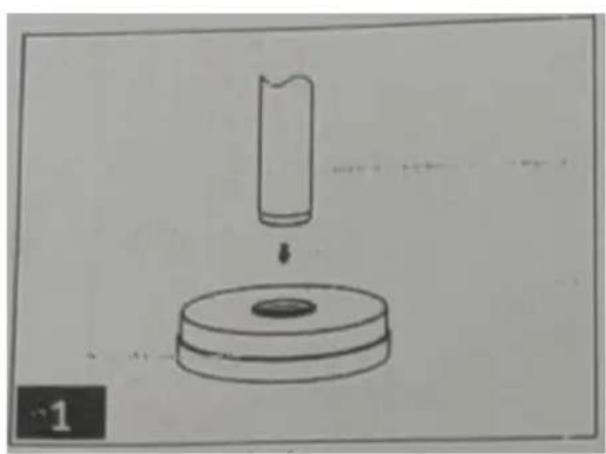

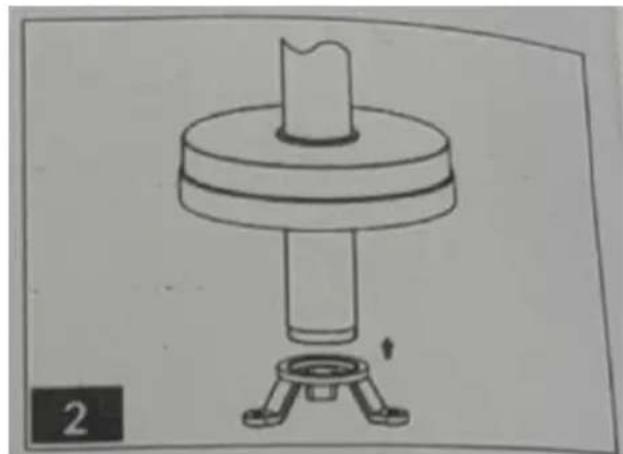

Place the base cover over the pipe. Screw the pipe to the base.

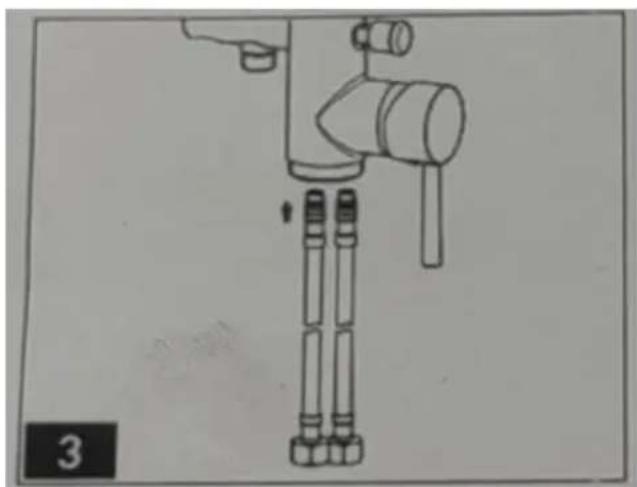

First, hand-tighten the extension pipe with the hot and cold water pipes. Install the flexible hoses now and ensure they are hand-tightened into place. (DO NOT USE A SPANNER TO TIGHTEN AS IT CAN DAMAGE THE O-RING). The flexible hoses must be fitted into the correct inlets for hot water and cold water.

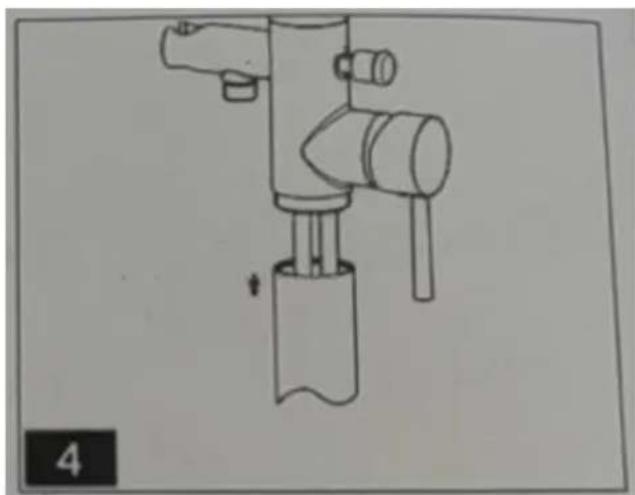

2532: Fix the faucet body to the pipe.

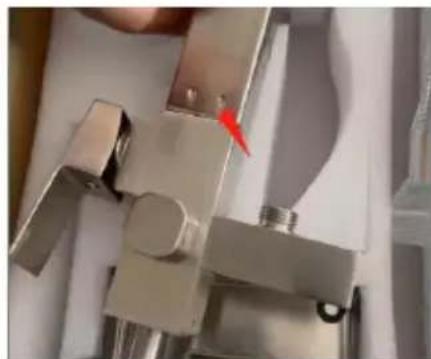

2732: Using a hexagonal

wrench, attach the main part and pipe together with a pointed screw.

Fix the screw position.

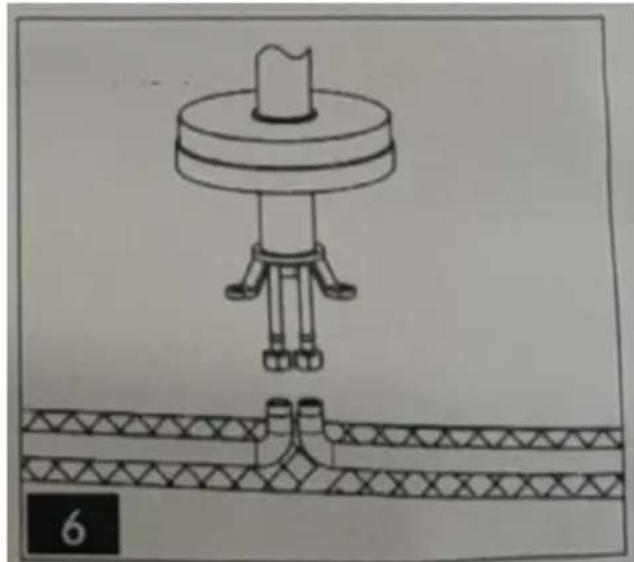

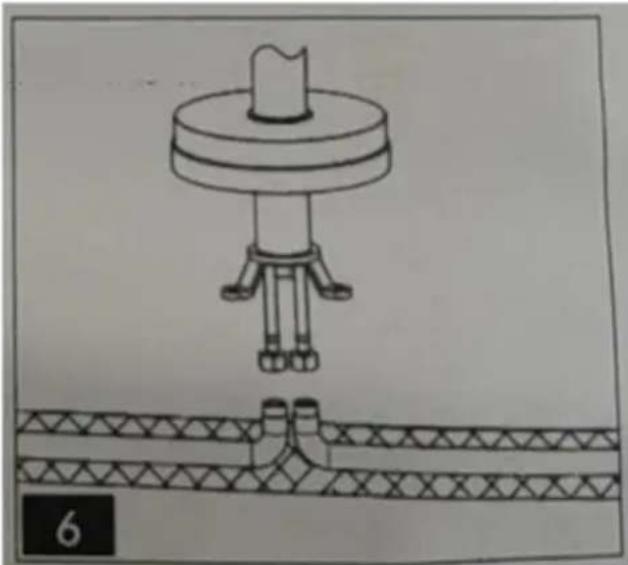

Connect the other side of the flexible hose to the water supply pipe. Make sure they are fitted into the correct outlets for hot water and cold water.

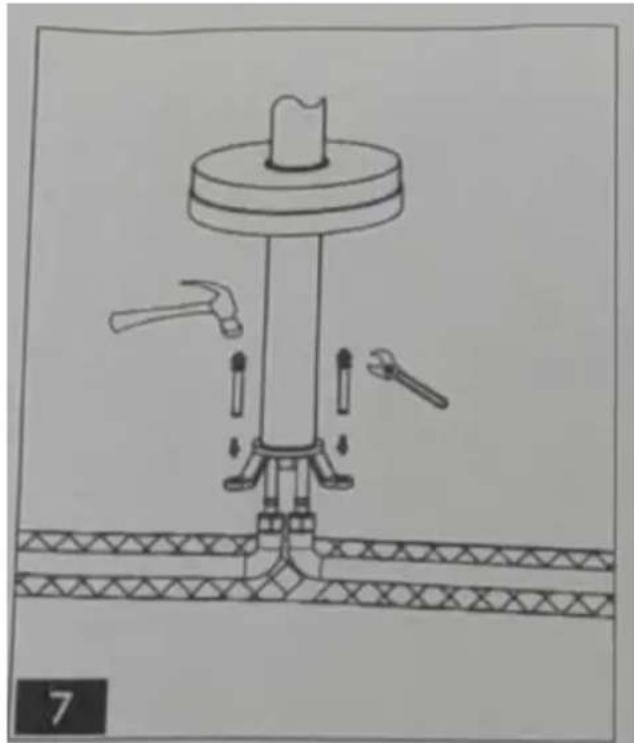

Use the explosion screw to fix the base on the ground and put the base cover over the base.

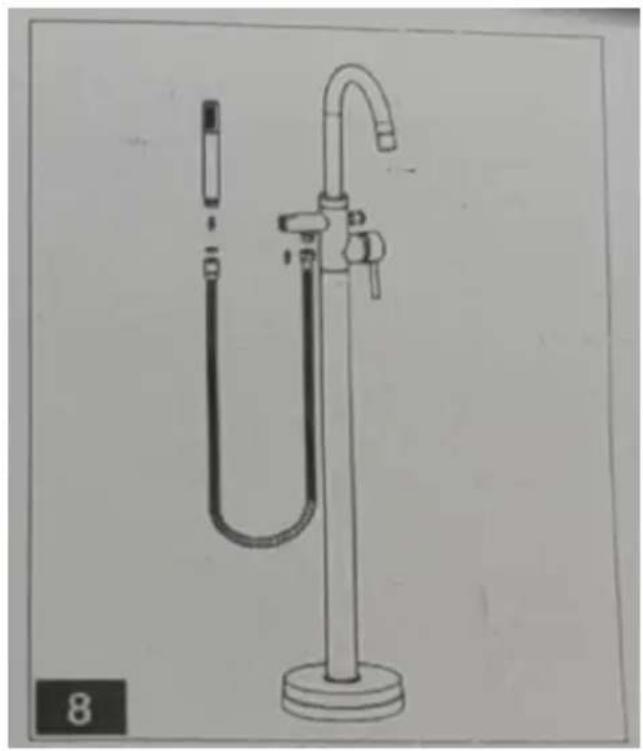

Connect the shower hose and hand shower.

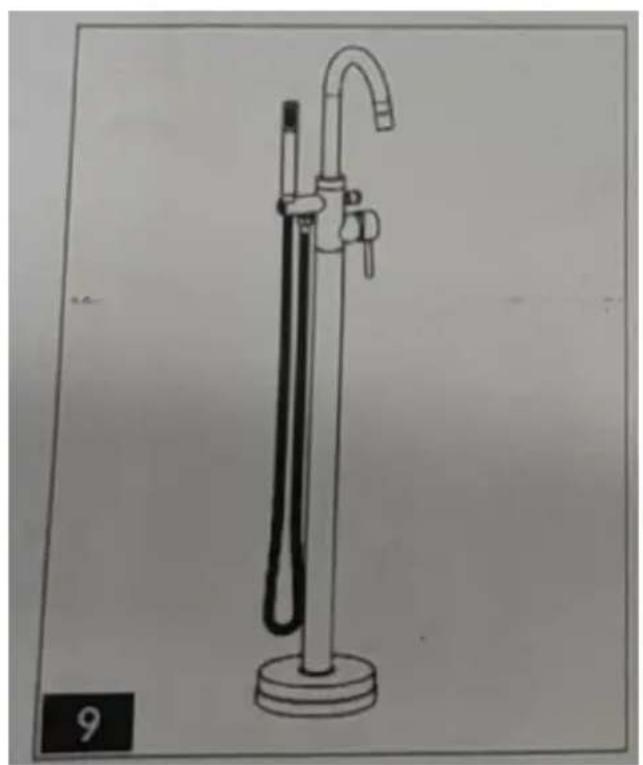

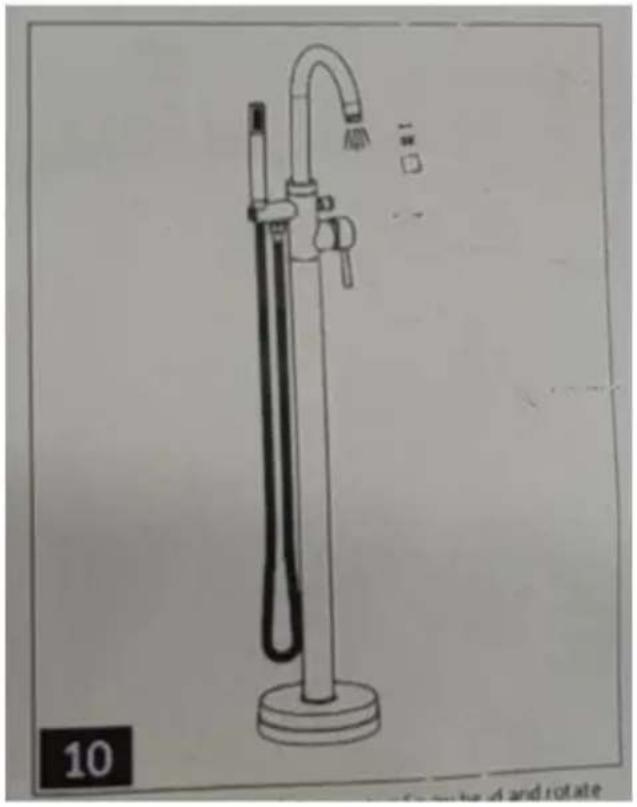

The installation is completed.

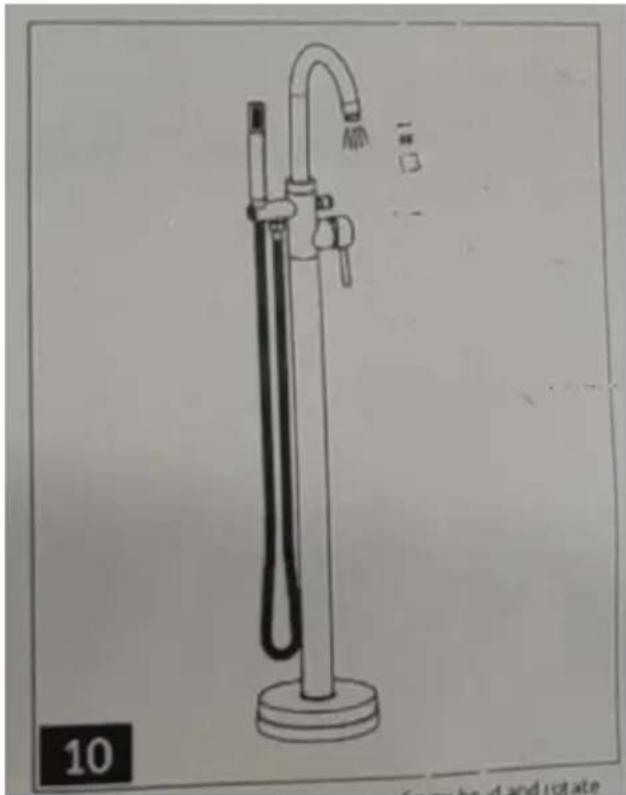

After installation is complete, remove the spray head and rotate the handle to the close position. Turn the water supply valves on and check all connections for leaks. Flush the faucet by running hot and cold water in full position for one minute. Retighten the aerator.
