USER MANUAL 2532 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FREESTANDING BATHTUB FAUCET

MODEL: 2732/2532

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with are actually saving half in comparison with the top major brand

MODEL:2732/2532

Modern stainless steel floor drain with adjustable arm and base (no text or symbols visible)

2732 2532

Illustration of a standard chrome floor drain with adjustable handle and base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

model	2732	2532
outlet area (mm2)	1140	935
product size (mm)	170*270*1038	272*170*1185
net weight(kg)	3.75	3.85

PART LIST

model	2732 picture	2732 QTY.	2532 picture	2532N QTY.
		1		1
fixed seat		1		1
main part		1		1
adapter (1/2 to 9/16)		2		2
Expansion screw assembly		3		3
sprinkler		1		1
shower hose		1		1
Cold and hot water pipe		2		2
pipe		1
sealing ring		1		1
pointed screw		3	/	0
hexagonal Wrench M4		1	/	0
hexagonal Wrench M3		1	/	0
bag	/	0		1
teflon tape	/	1		1
extension pipe	/	2		2

SECURITY & WARNINGS

WARNING: Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuat property.

1. It is strictly prohibited to mix the hose with acid, alkali, oil, organic solver inflammable and explosive materials. The freestanding bathtub faucet should not be in direct contact with goods with sharp edges.

2. When handling freestanding bathtub faucet, they should not be dragged anywhere. Accidental damage to the freestanding bathtub faucet should be prevented.

3. When storing freestanding bathtub faucet, they should not come into contain with acids, alkalis, oils, organic solvents, or other corrosive liquids or gases.

4. This product is not a toy. The freestanding bathtub faucet cannot be used toys for children to play with.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructions. Incc assembly could be hazardous.

2. Please wear safety goggles and work gloves properly during assembly.

3. Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs or medication.

4. The product parameters are applied to the properly and completely assemble product only.

OPERATION

The following are the round bathtub faucet installation steps. Square bathtub faucet can refer to the round bathtub faucet installation steps.

Simple line drawing of a mechanical component with a cylindrical part and a base, no text or symbols present.

Simple line drawing of a mechanical press or lever device with a cylindrical component and base mount (no text or symbols)

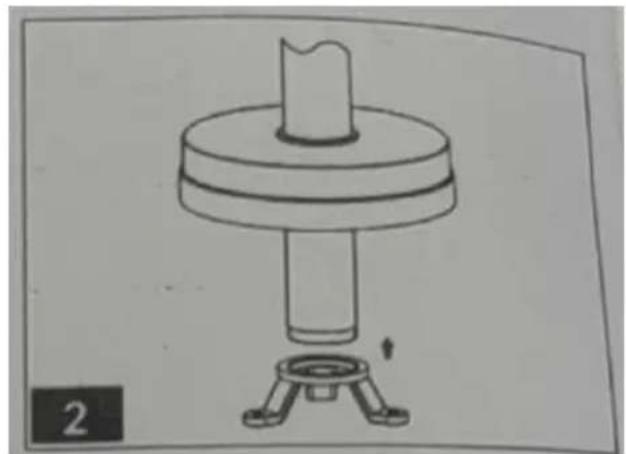

Put the base cover over the pipe. Screw the pipe to the base.

Technical line drawing of a mechanical device with cylindrical components and a cylindrical housing (no text or symbols)

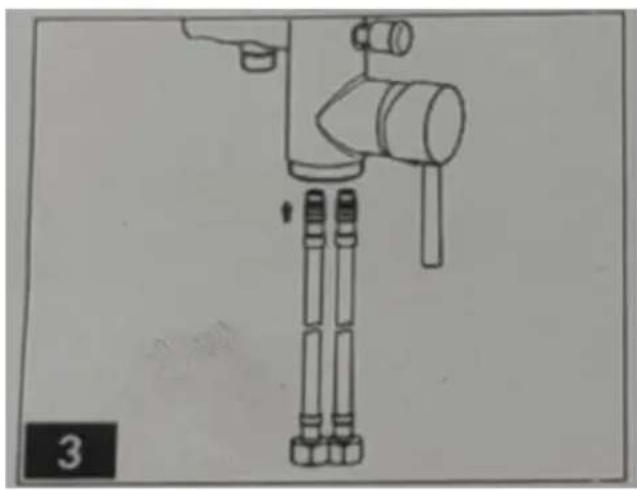

First, tighten the extension pipe with the hot and cold water pipe manually. Install the flexible hose now and ensure the flexible hoses are hand tightened into place.(DO NOT USE SPANNER TO TIGHTEN AS IT CAN DAMAGE THE O-RING). The flexible hoses are to be fitted into the correct inlets for hot water and for cold water.

Technical line drawing of a mechanical device with no visible text or symbols

Close-up of a metallic mechanical clamp or bracket component with a red arrow pointing to a detail (no visible text or symbols)

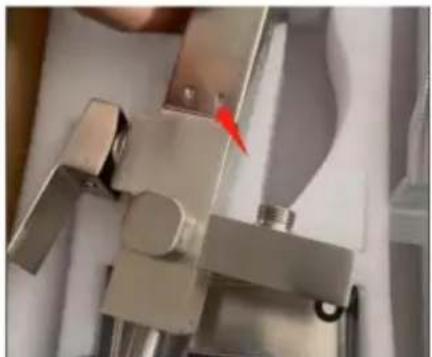

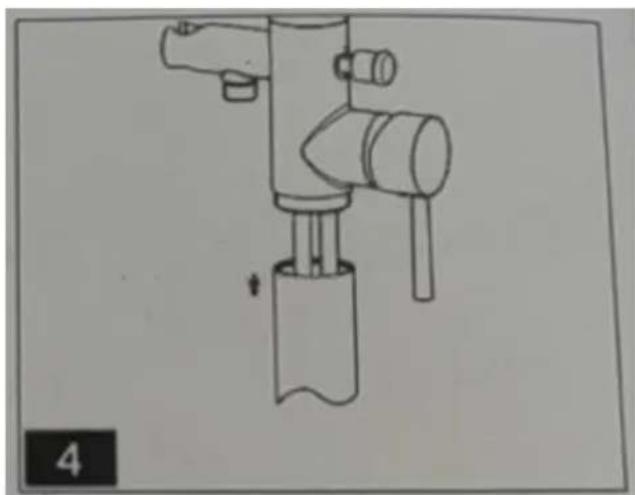

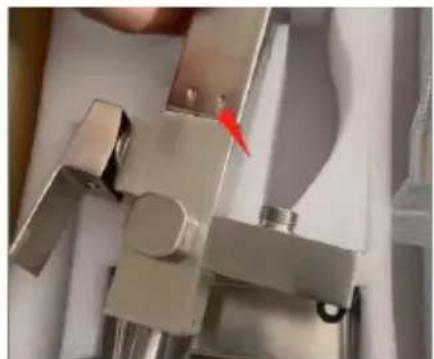

2532: Fix the faucet body to the pipe.

2732: In hexagonal

Wrench attached the main part and pipe together with a pointed screw

5

Fix the screw position.

Technical line drawing of a mechanical assembly with a central component and base structure (no text or symbols)

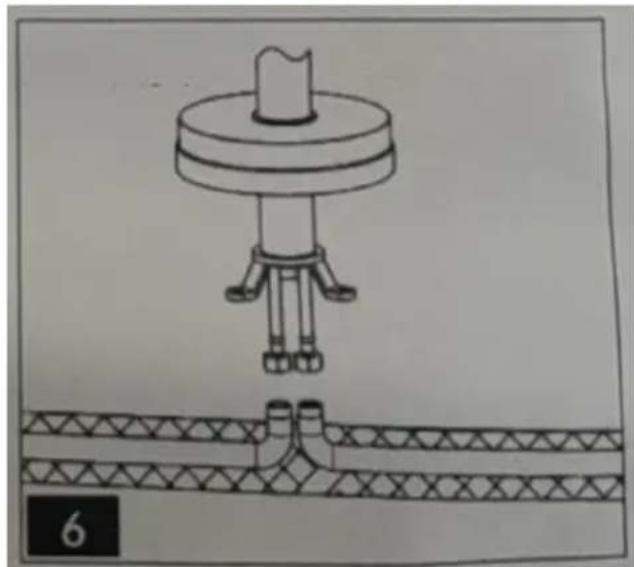

Connect another side of the flexible hose to the water supply pipe. Make sure they are to be hitted into the correct outlets for hot water and cold water.

Technical diagram of a mechanical assembly with labeled parts (no text or symbols present)

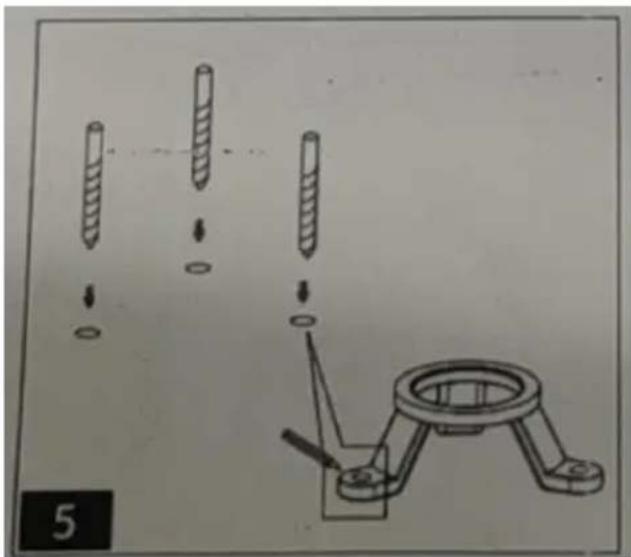

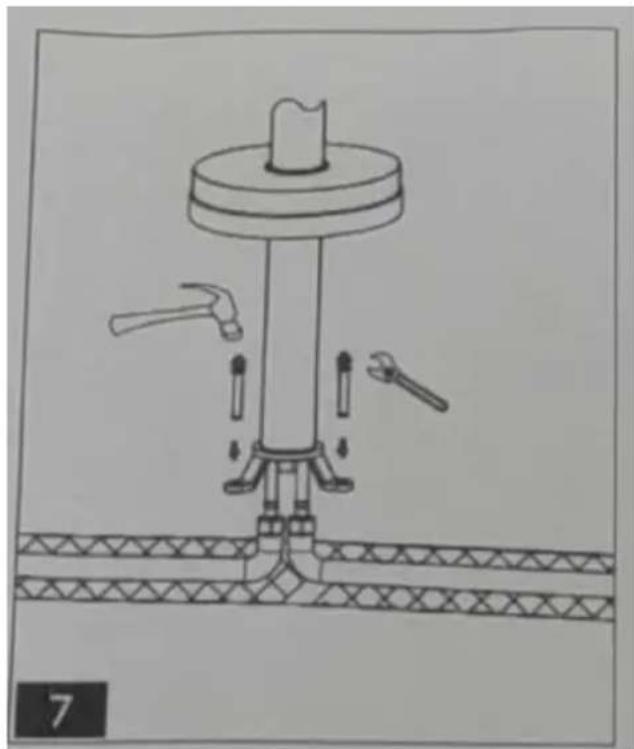

Use the explosion screw to fix the base on the ground and put the base cover over the base.

Line drawing of a laboratory apparatus with a U-shaped tube and vertical stand (no text or symbols)

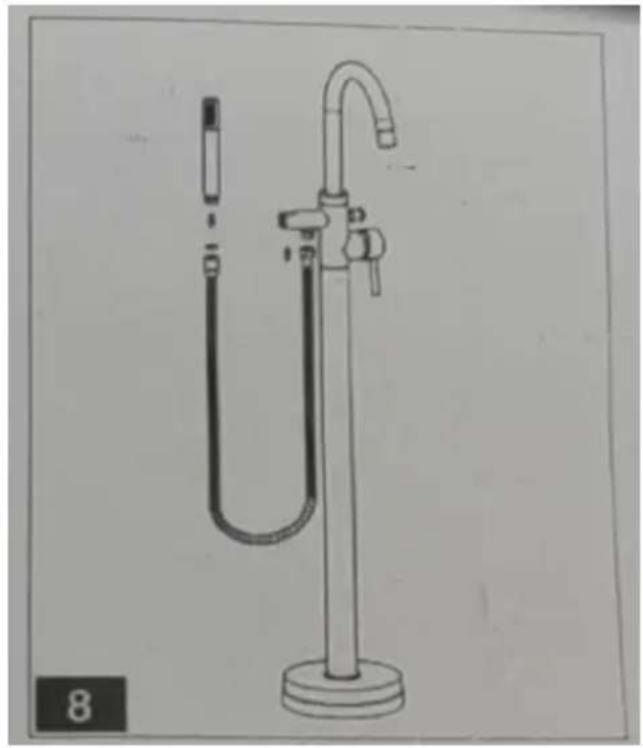

Connect the shower hose and hand shower.

Line drawing of a laboratory apparatus with a stand and tubing (no text or symbols)

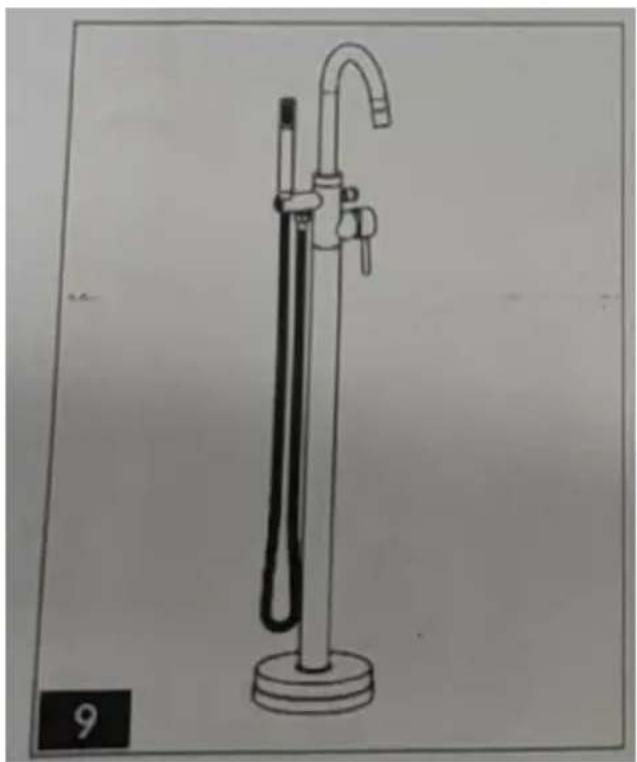

The installation is completed.

Line drawing of a laboratory apparatus with a vertical stand and tubing (no text or symbols)

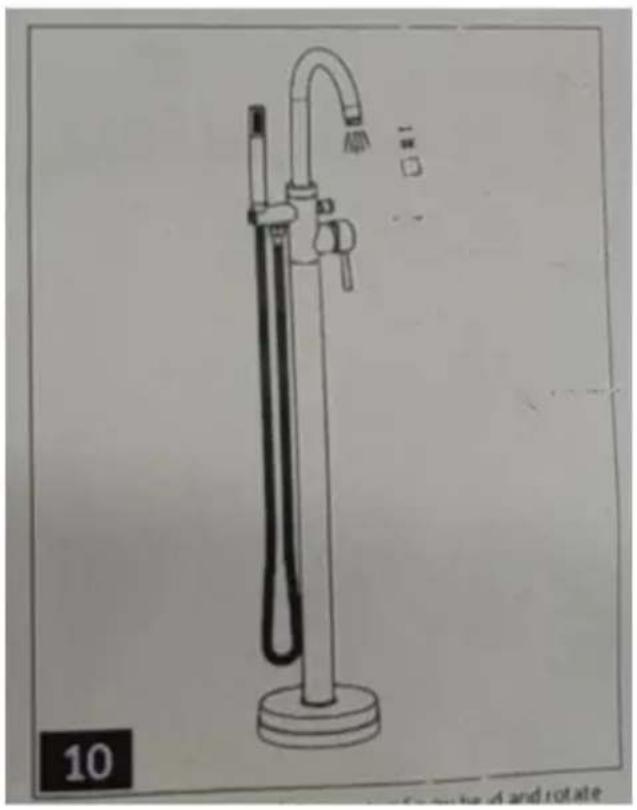

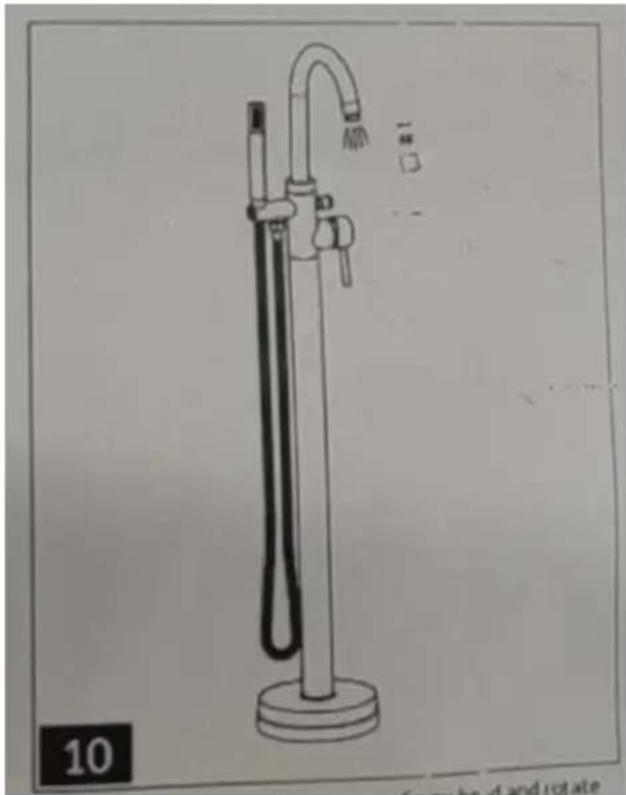

After installation is complete, remove the Spray head and rotate the handle to the close position. Turn the Water Supply Valves on and check all connections for leaks. Flush the faucet by running hot and cold water in full position for one minute. Retighten the Aerato
