BRAKE BLEEDING SYSTEM

MODEL: YS-090

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BRAKE BLEEDING SYSTEM

MODEL: YS-090

Product photo of a gas washing machine with various fittings and connectors (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

PRECAUTIONS (SAFETY INSTRUCTIONS)

This instruction manual describes the operation and operation of the brake maintenance device. The risk-free operation of this equipment can only be read if you read the operating instructions and safety instructions completely and so follow the instructions contained therein.

Please use and handle the brake maintenance device in a professional manner that complies with safety specifications. Only trained personnel are allowed to change the brake fluid.

For Your Safety

Work performed incorrectly can lead to injury or property damage!

1. Operator must have basic structure and theoretical knowledge of automobile braking system.
2. Only applicable to bleed DOT fluid in automobile brake system and clutch system. Any other kind of use beyond the scope shall be deemed as not b used as required, which may cause equipment failure and must be prohibited. case of incorrect application, the manufacturer shall not be liable for any dan caused. The risks arising therefrom shall only be borne by the operator.
3. For safety reason, the working pressure shall NOT exceed 3 bar, otherwise vehicle brake pipeline and the pipeline of the equipment itself may be damaged

4. Brake fluids are toxic and can lead to serious injury!

5. Avoid all contact with brake fluid.

6. Wear safety goggles to minimize the risk of injury from splashing.
7. Wear suitable, protective gloves to minimize the risk of injury caused by s contact.
8. In case of skin contact with brake fluid, wash off immediately with water.
9. Remove contaminated clothing.

Do not carry any rags or anything else that has been in contact with brake your clothes.

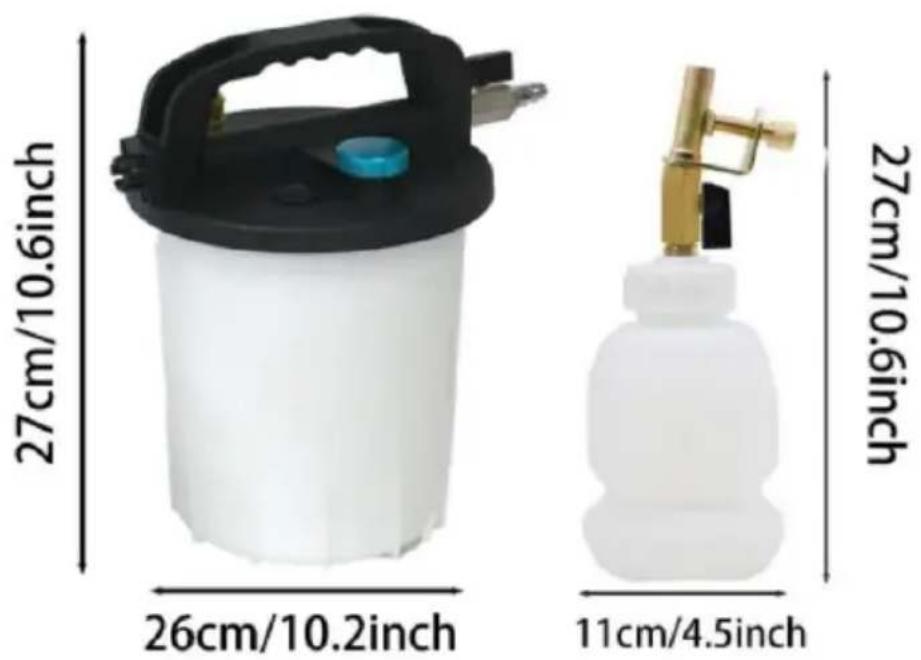

27cm/10.6inch 26cm/10.2inch 11cm/4.5inch 27cm/10.6inch

Product operation process.

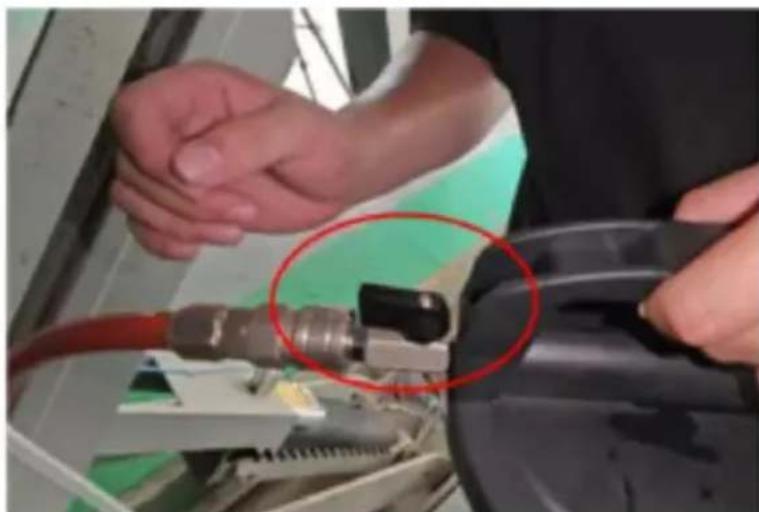

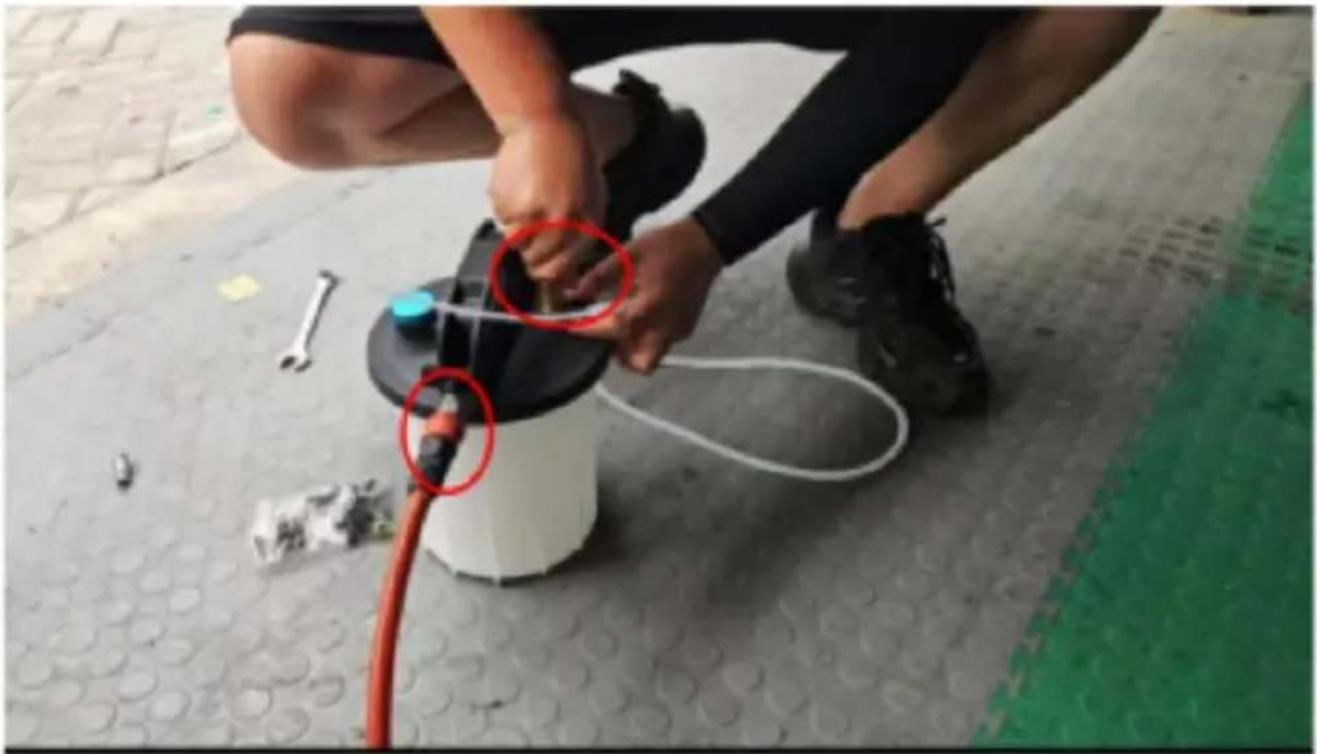

Step 1: Tightly connect the auxiliary pipe and connect the air pump.

Person kneeling beside a white cylindrical device with red tubing, surrounded by tools and debris on a paved surface (no visible text or symbols)

Step 1

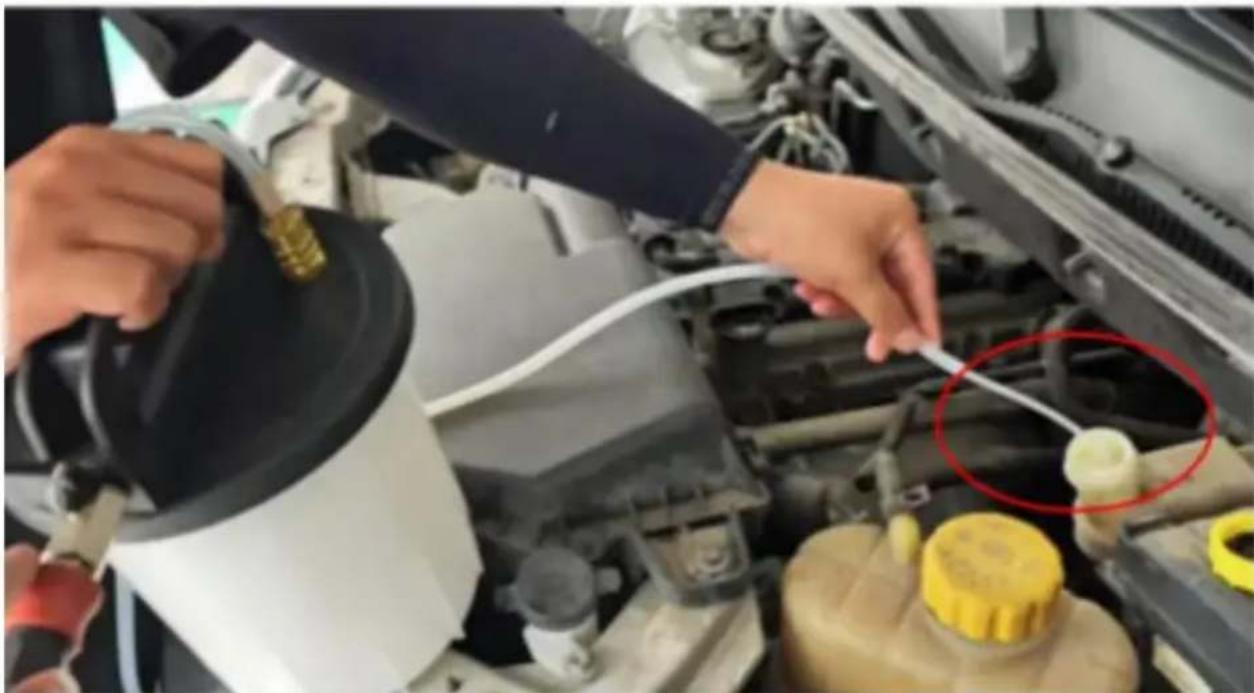

Step 2: Insert the other end of the auxiliary pipe into the bottom of brake fluid tank. This ensures that the old liquid is completely extract

Close-up of hands inspecting a car engine with a blue hose and yellow bottle, no visible text or symbols

Step 2

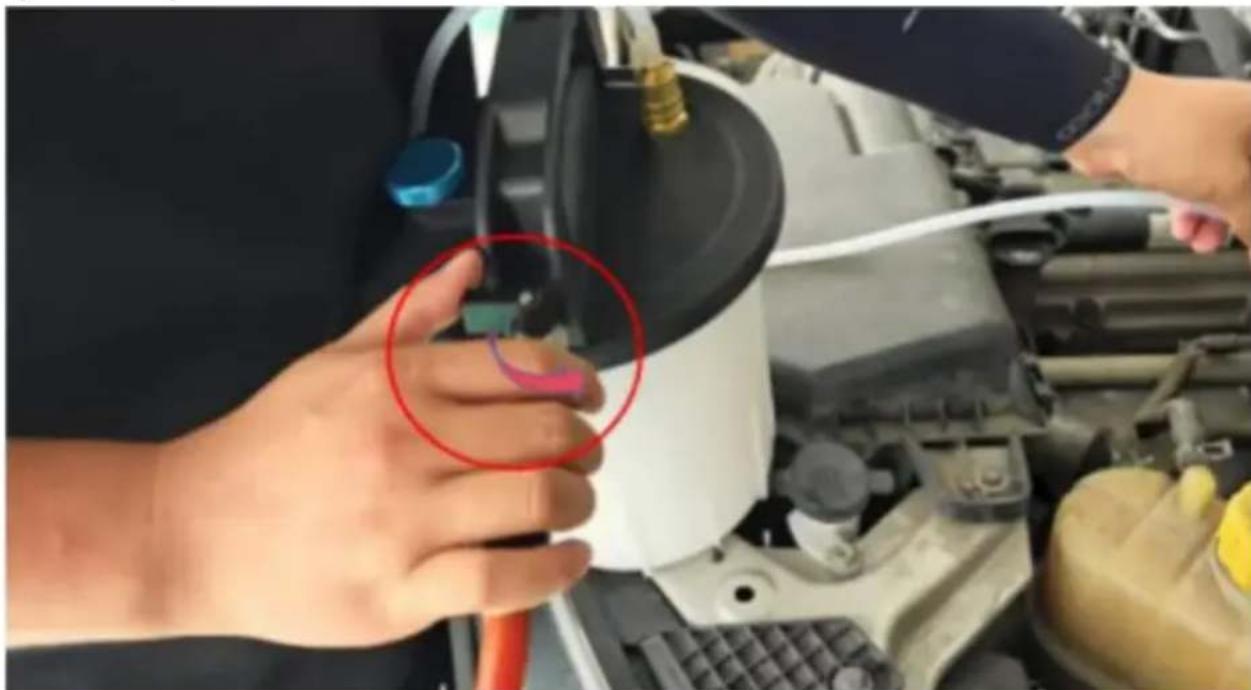

Step 3: Open the valve and extract the old brake fluid.

Close-up of hands operating a car engine bay with a red circle highlighting a component (no visible text or symbols)

Step 3

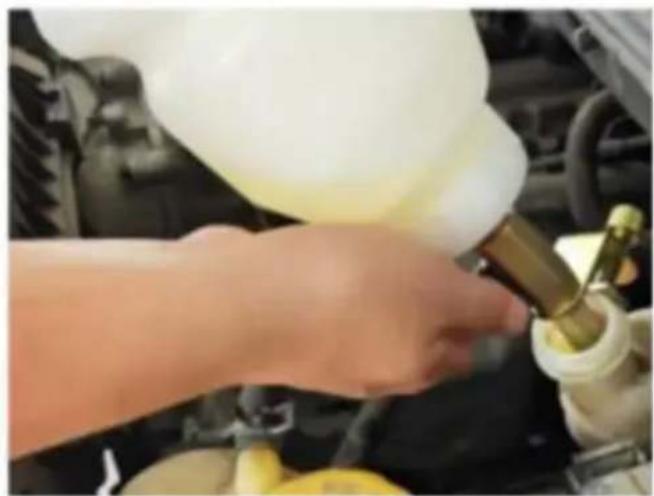

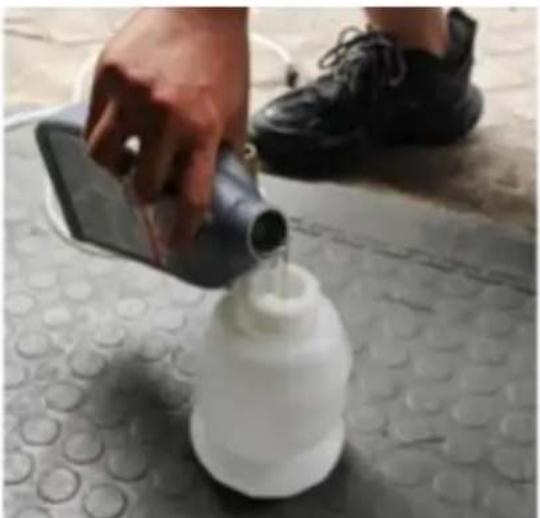

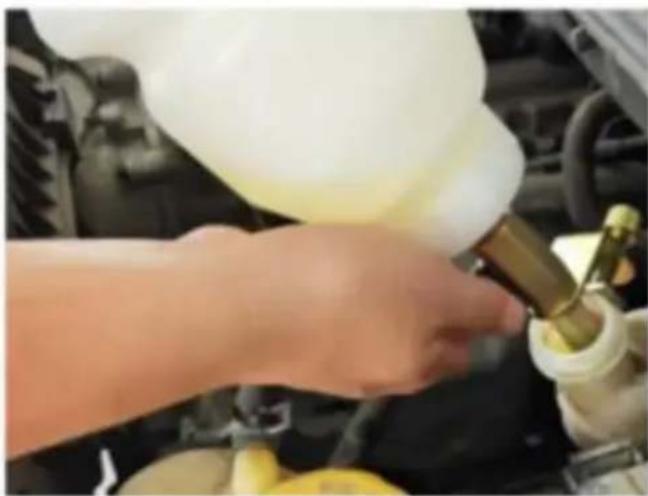

Step 4: Add new brake fluid. Pour new brake fluid into a 1L contain open the valve and add it to the vehicle brake fluid tank.

Person pouring liquid from a bottle onto a perforated floor, wearing a black athletic shoe (no text or symbols visible)

Close-up of a hand pouring liquid into a car engine compartment (no visible text or symbols)

Step 4

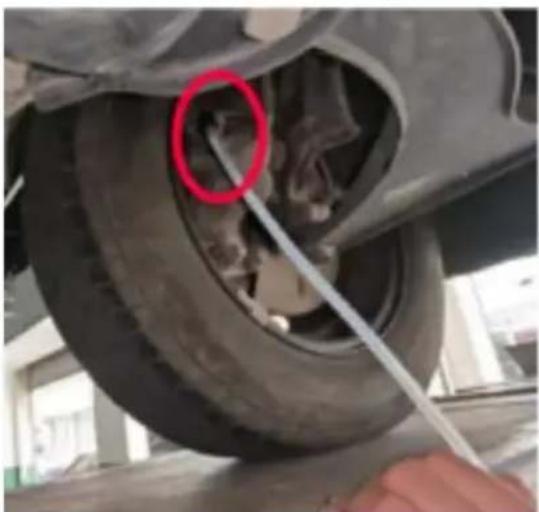

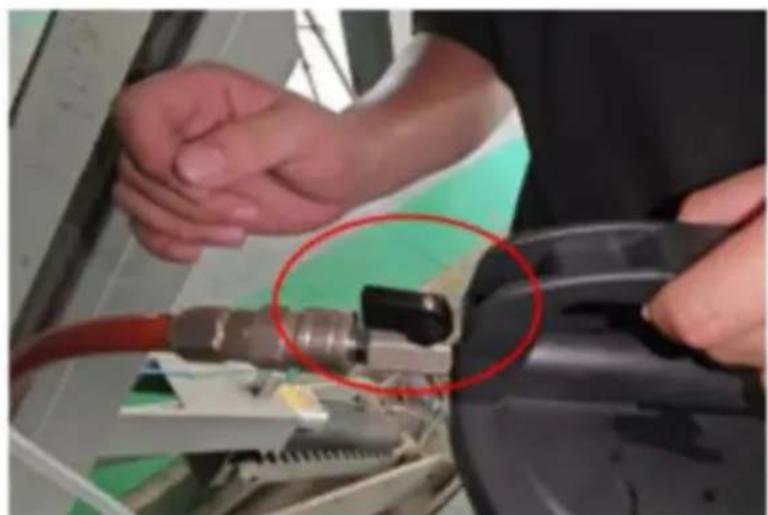

Step 5: Tightly connect the supervisor adapter to the brake cylinder c drain screw, and note that the vacuum state must be maintained during process. Therefore, it is recommended to tighten the oil drain screw f and then loosen it, and then open the valve to start working. After t pumping work is completed, tighten the drain screw first, and then ur the main pipe adapter. This ensures vacuum operation.

Close-up of a car tire under maintenance, showing a red circle highlighting the wheel (no text or symbols visible)

Close-up of hands holding a medical or electrical device with a red circle highlighting a component (no visible text or symbols)

Step 5

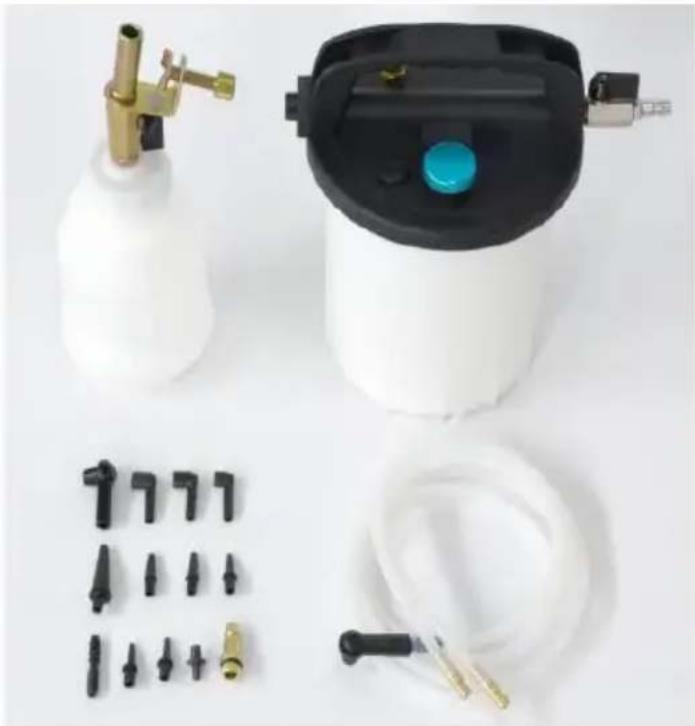

PART LIST

Name	Quantity	picture
Compatible fitting	13pcs
Silicone tube	2PCS
Brake fluid extract	1PCS(3L)
Liquid reservoir	1PCS(1L)

Maintenance and Care

In principle our "General Terms of Sale and Delivery Terms" apply. These are available to the end-user/operator since contract signing.Warranty and liability claims for personal injury and property damage are excluded, when one or n the following causes apply:

• Improper use
• Improper startup procedure, operation and maintenance of the brake maintenance device.
  ● Failure to follow the instructions in the operating manual for the startup procedure, operation and maintenance.
  ● Unauthorized change of the brake maintenance device.
• Improper repair.
• Catastrophic events caused by exposure to foreign objects and acts of Go! Customer service requests and payment for the return costs will not be honc when they result from not following the above-mentioned, itemized list of point Before returning the product, please contact the manufacturer.
