USER MANUAL SSSHKYTXS-H Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Pull Up Bar Station

ssshkytxs-h

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

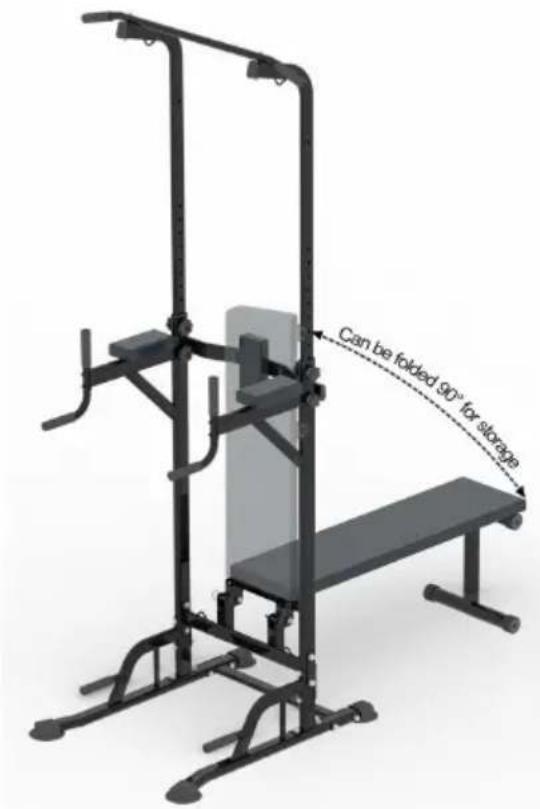

Pull Up Bar Station

MODEL: ssshkytxs-h

Can be folded 90° for storage

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Pull Up Bar Station

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

INTRODUCTION

SAVE THESE INSTRUCTIONS

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this prod

are fully aware of all warnings and precautions.

• Children or persons with disabilities must be closely supervised when using the boxing ring.
• This product is used only as intended.Do not exceed the rated load
• Do not drop or insert anything into any hole.
• This product for family use only. Do not use this product for any commercial, rental, school or institution.
• Do not use outside.
• Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.

Prohibition sign showing a walking person crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

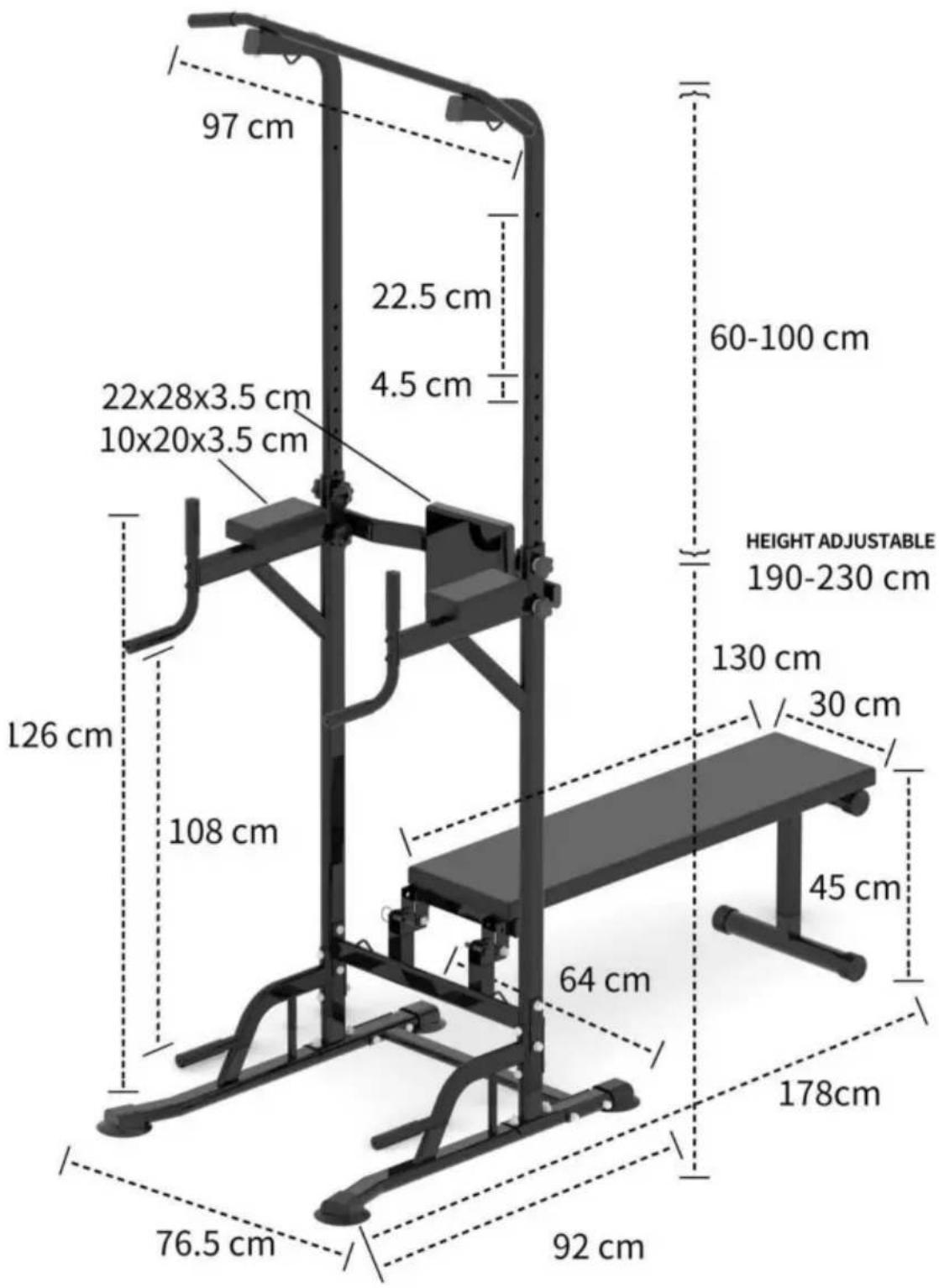

MODEL:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 130 cm 30 cm 45 cm 64 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

PART LIST

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1	x1	x1	x1
5x1	6x1	72	8x2
9x1	10x1	11x1	12x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
25x3	26x8	27x8	28x2
29x2	30x3	31x4	32x16
33x19	34x2	35x8	36x11
37x4	38x4	39x4	40x1

ASSEMBLY

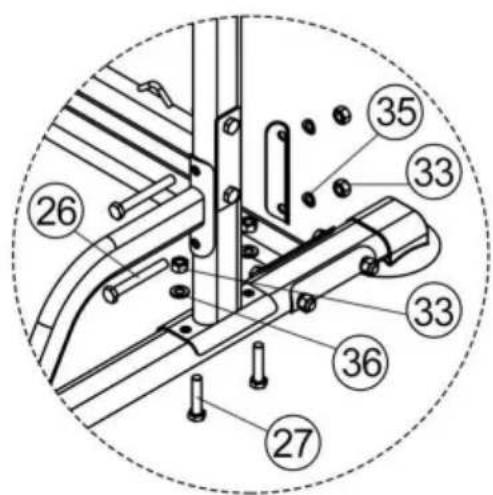

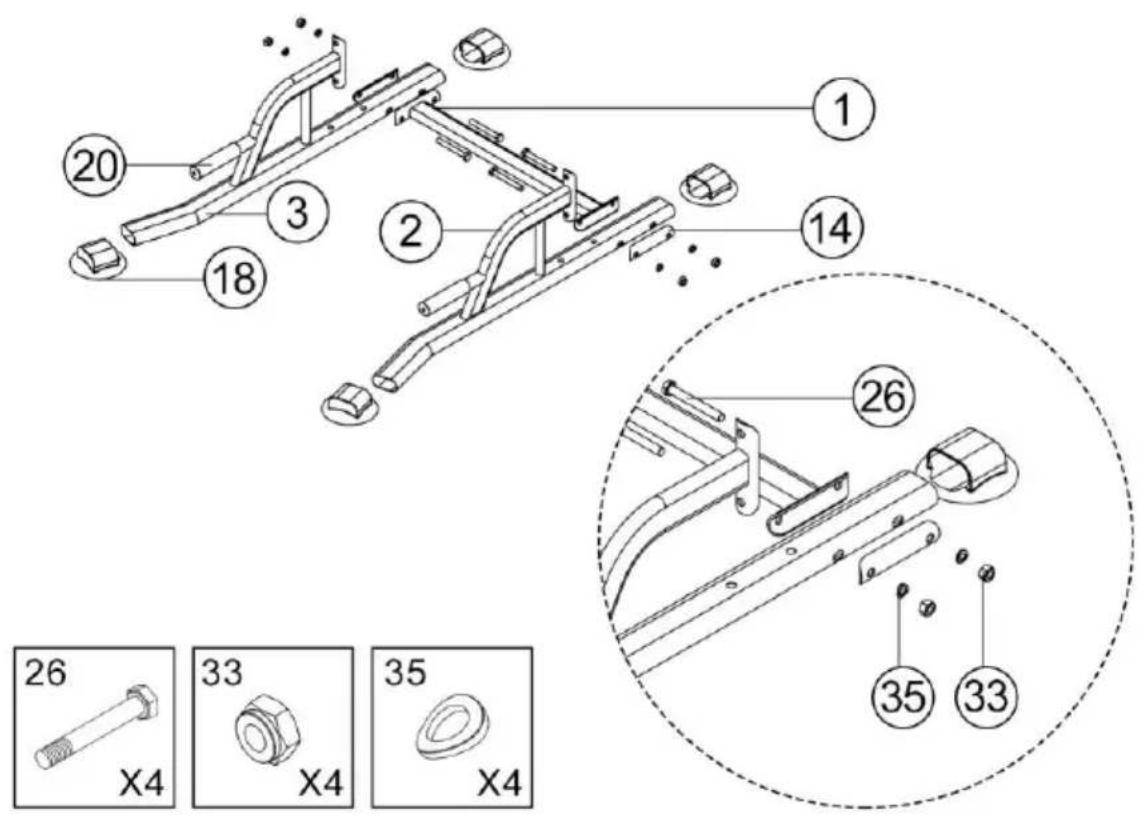

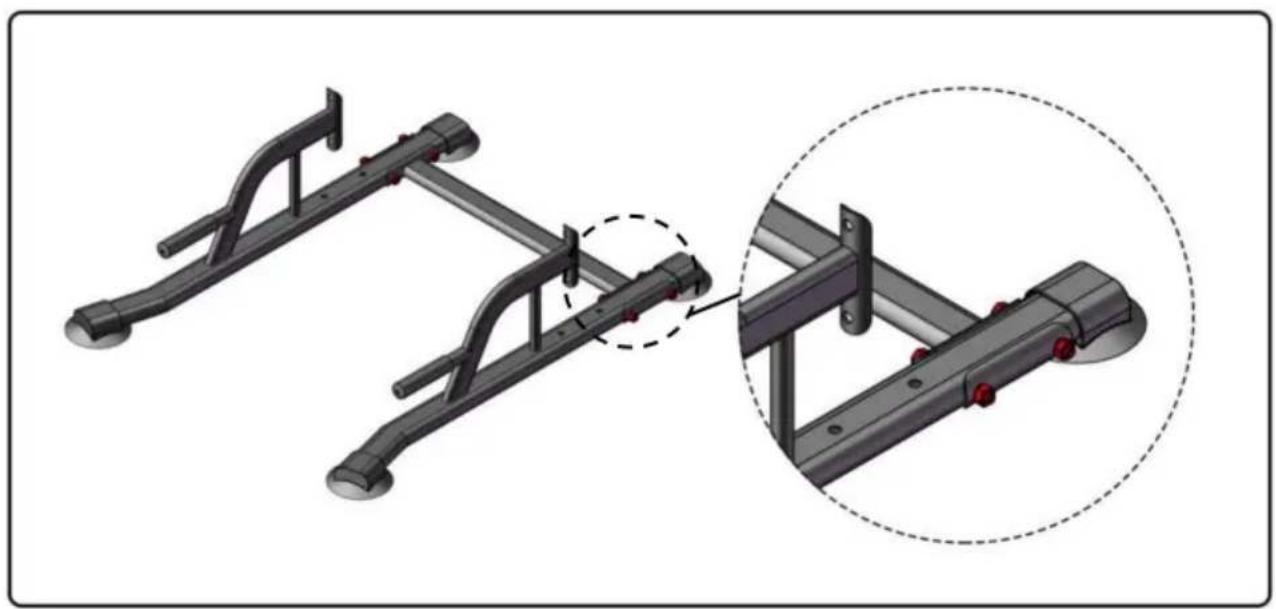

Step1 : Install the base part

( Assemble the parts and accessories as shown )

Technical diagram of a mechanical assembly with numbered parts and corresponding X4 component images below.

Mechanical assembly diagram showing two metal frame assemblies with mounting brackets and a close-up inset of the detail (no text or symbols)

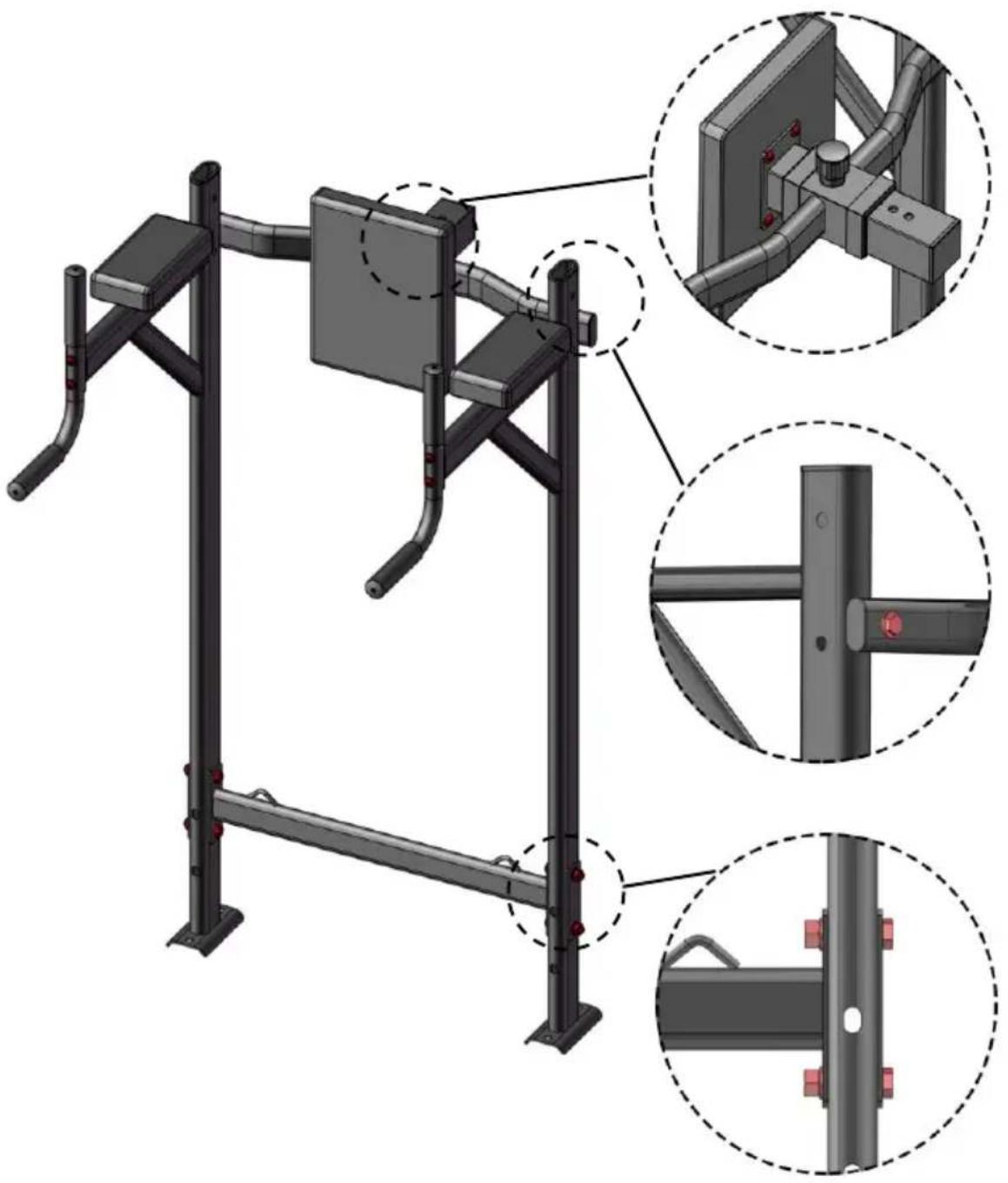

Step2 : Install the main body

( Assemble the parts and accessories as shown )

Step2-2 19 Step2-1 Step2-3 5 20 8 6 13 Step2-4 27 X4 29 X2 31 X4 32 X12 33 X4 36 X4 37 X2

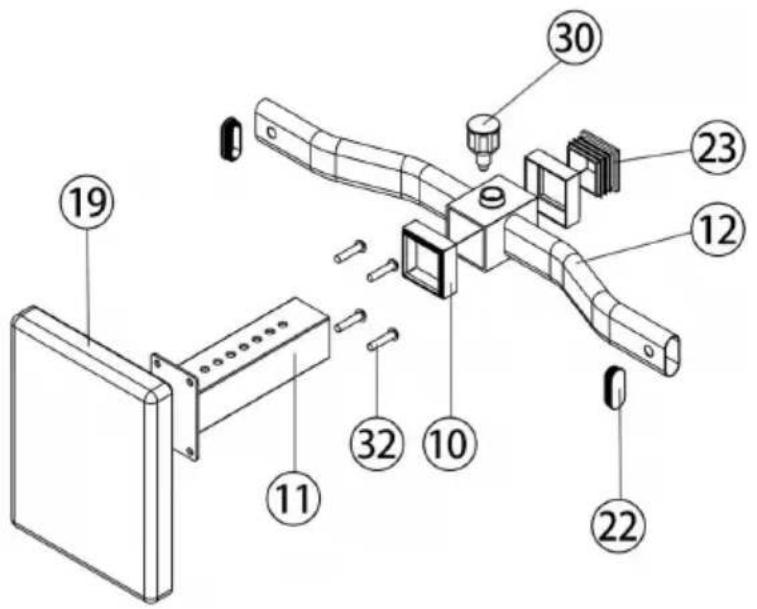

Step2-1 : Install the back cushion section

Technical diagram of a mechanical device with numbered components for identification

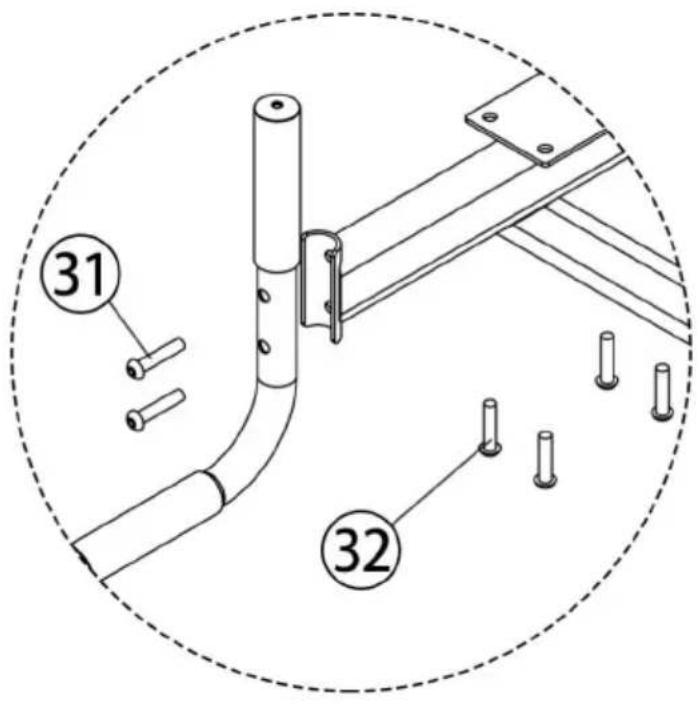

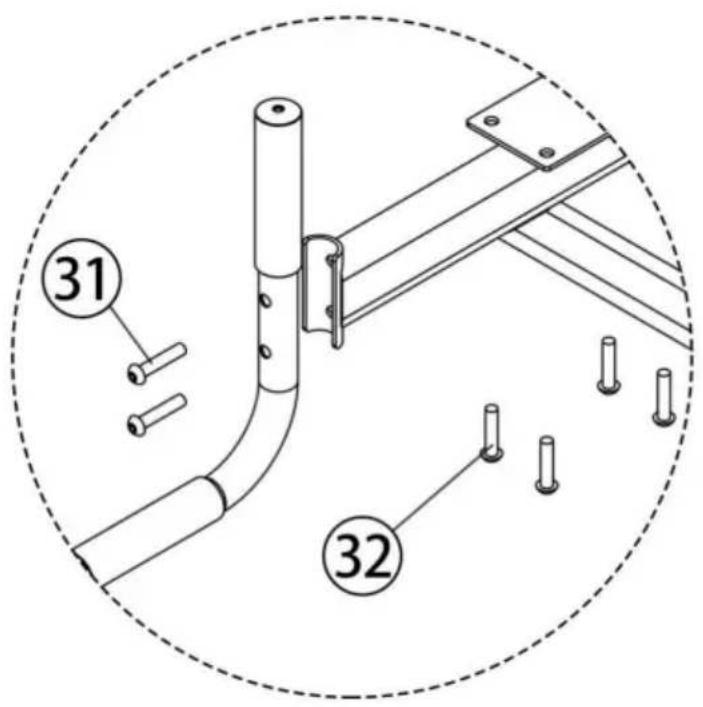

Step2-2 : Install the handle

31 32

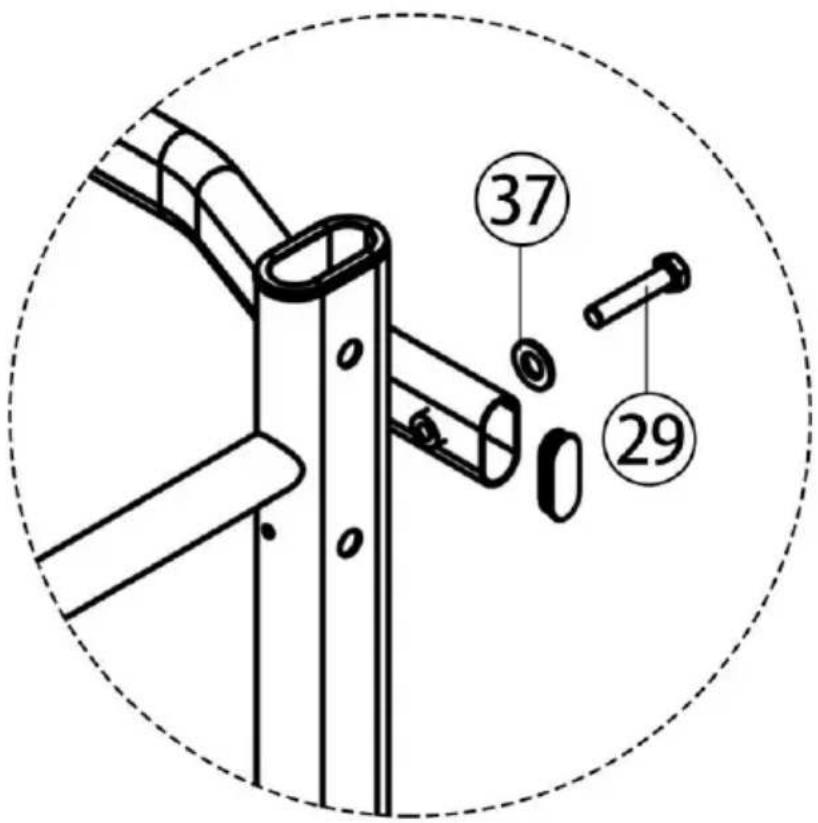

Step2-3 : The back cushion section is installed with the main body

37 29

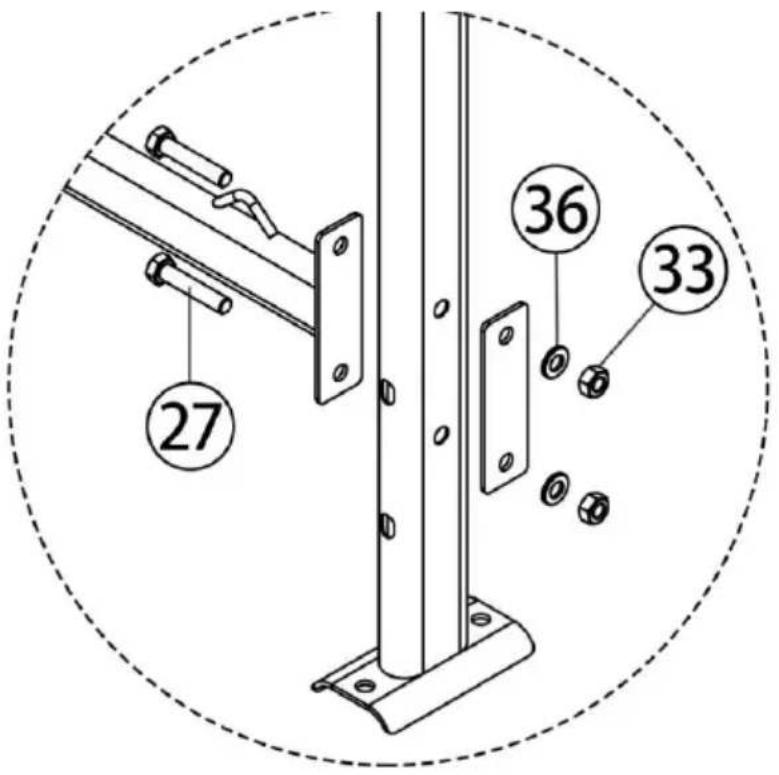

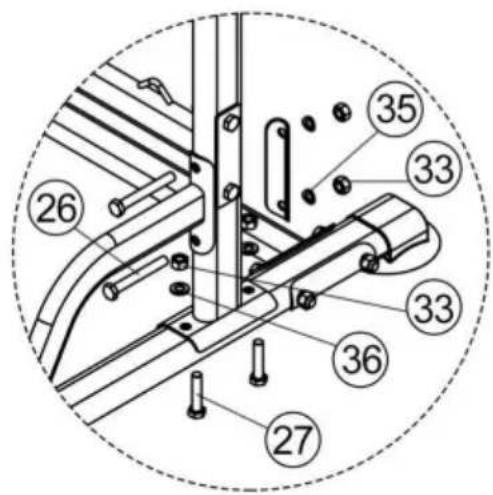

Step2-4 : Install the main body connection rod

27 36 33

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

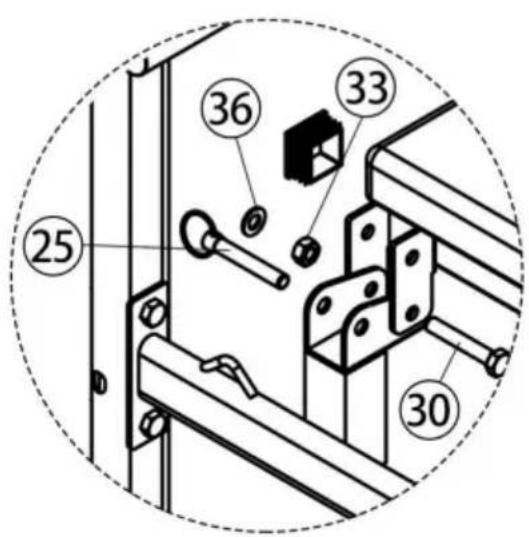

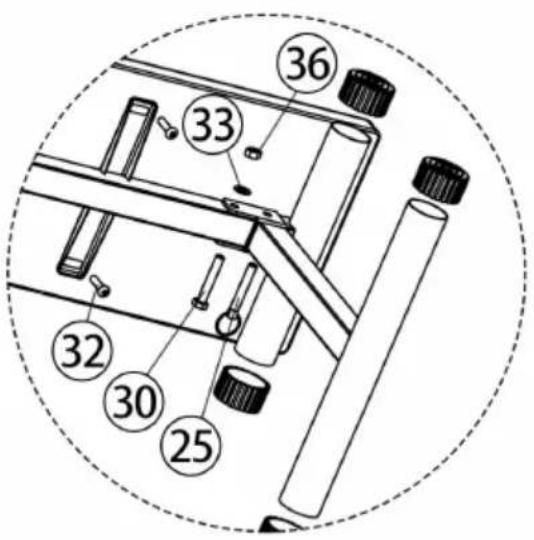

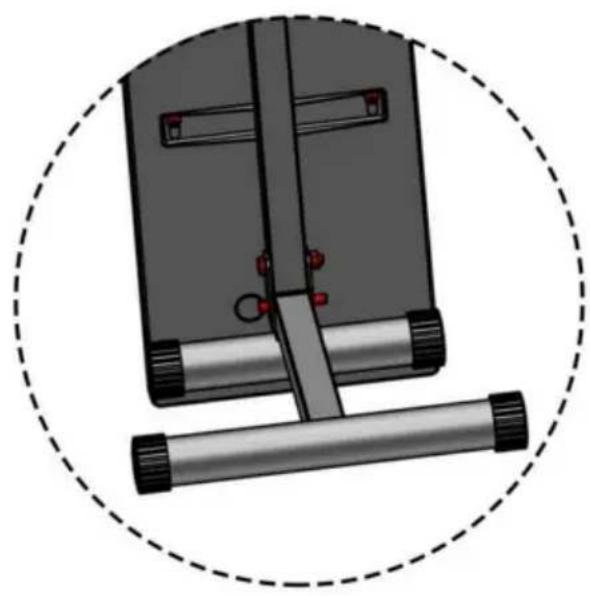

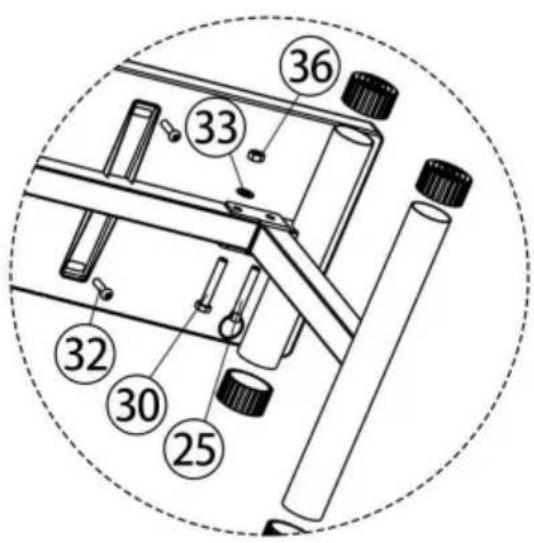

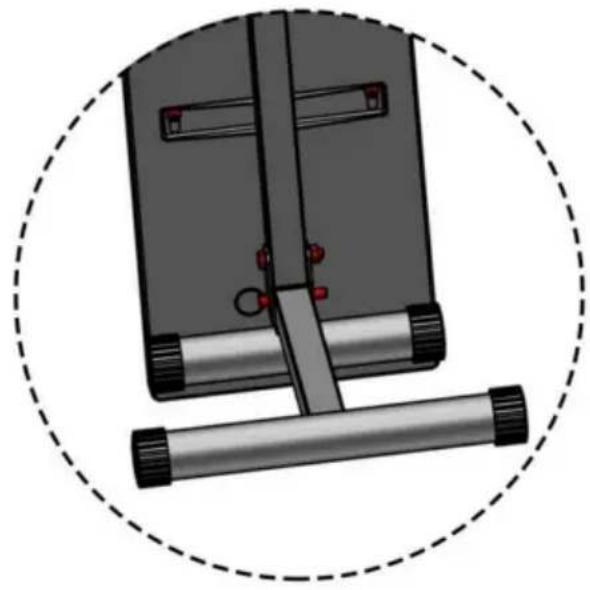

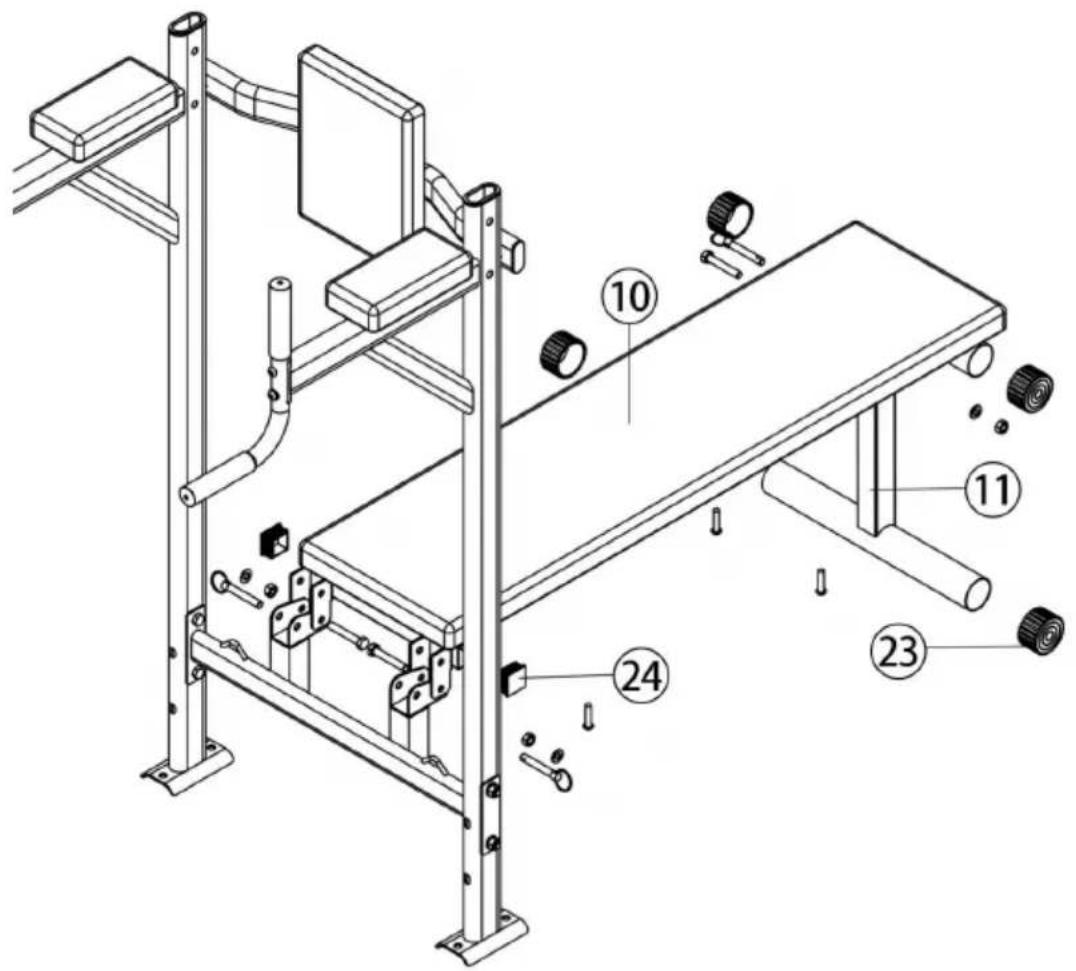

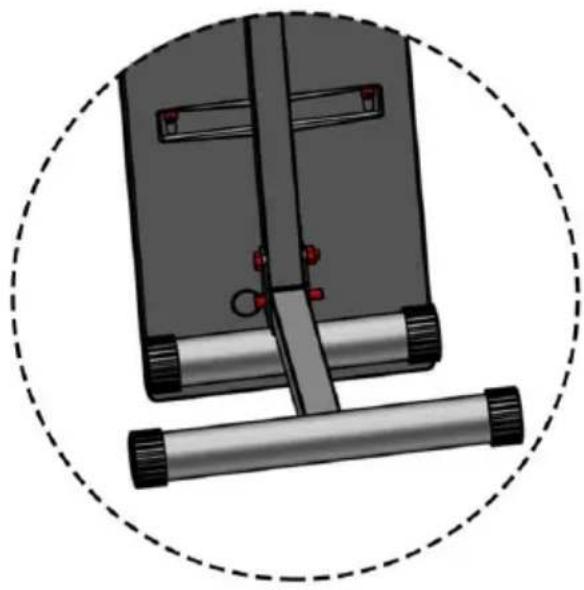

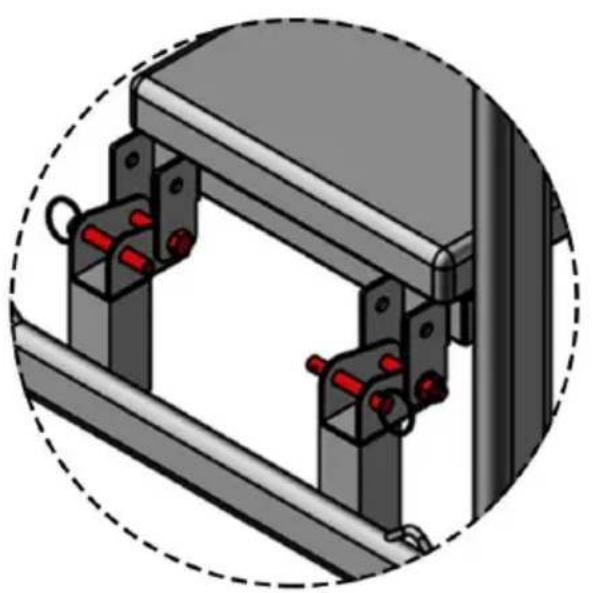

Step3 : Install lie stool

(Assemble the parts and accessories as shown)

Technical diagram of a mechanical bench assembly with numbered parts and labeled components

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

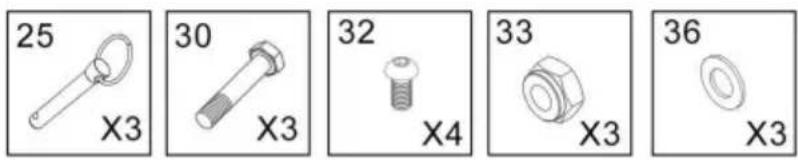

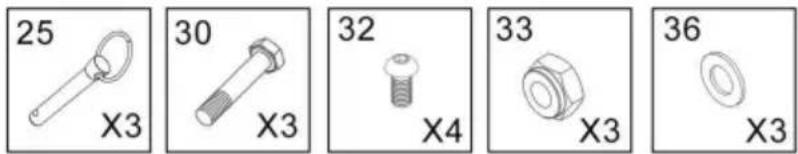

36 33 32 30 25

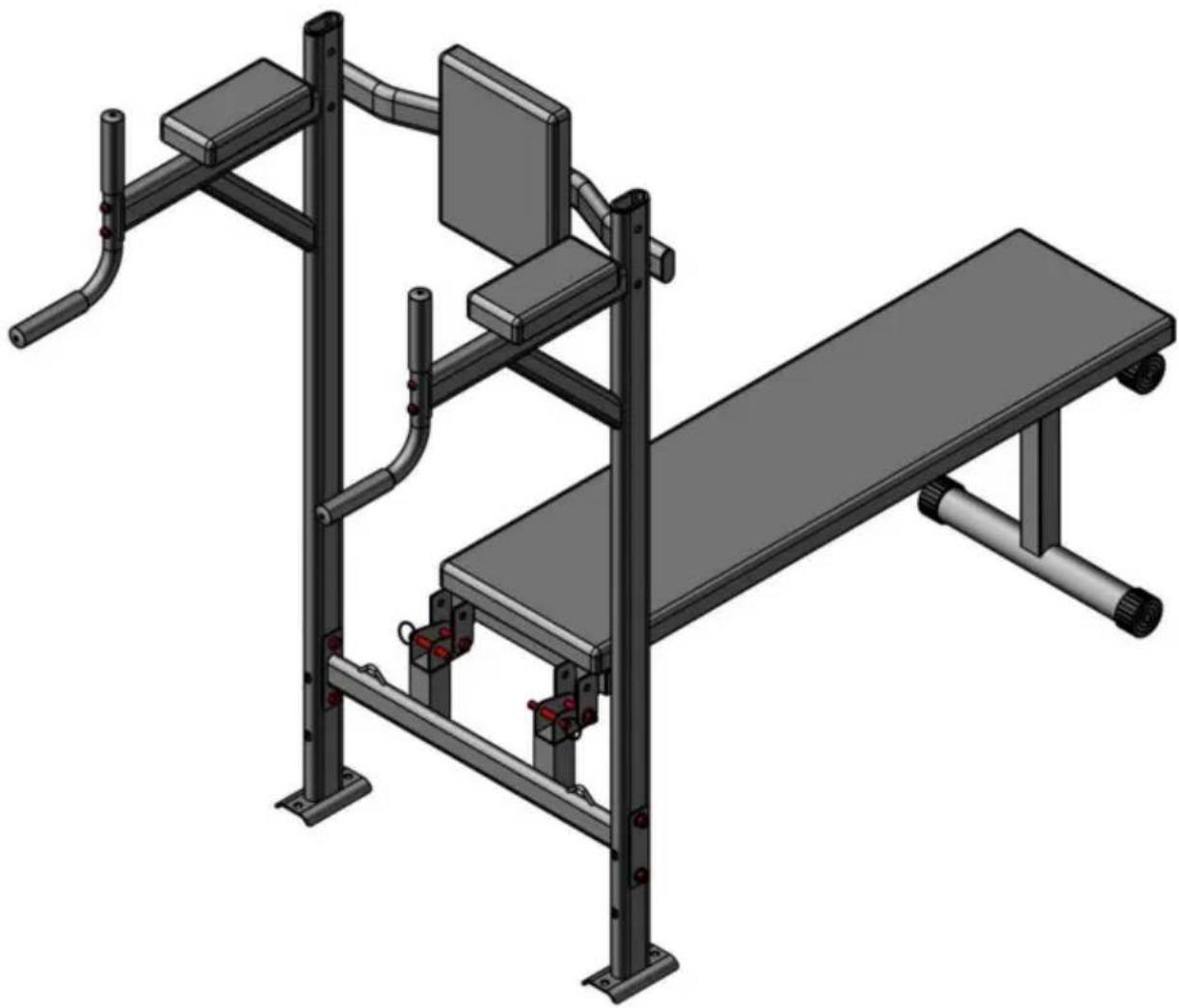

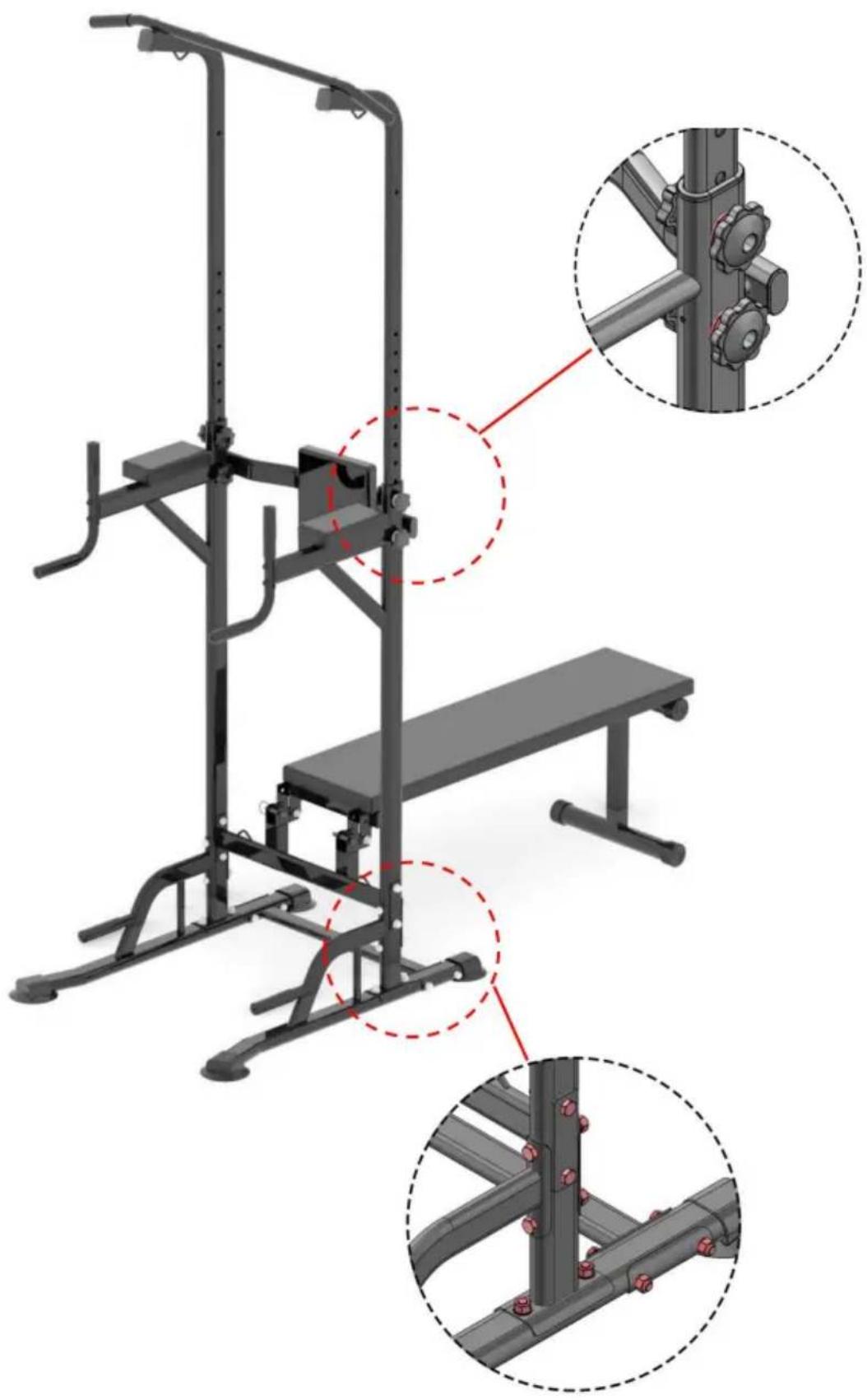

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two metal frame components with red clamps, enclosed in a dashed circular border (no text or symbols)

Mechanical device with a cylindrical shaft and attached lever, enclosed in a dashed circular border (no text or symbols)

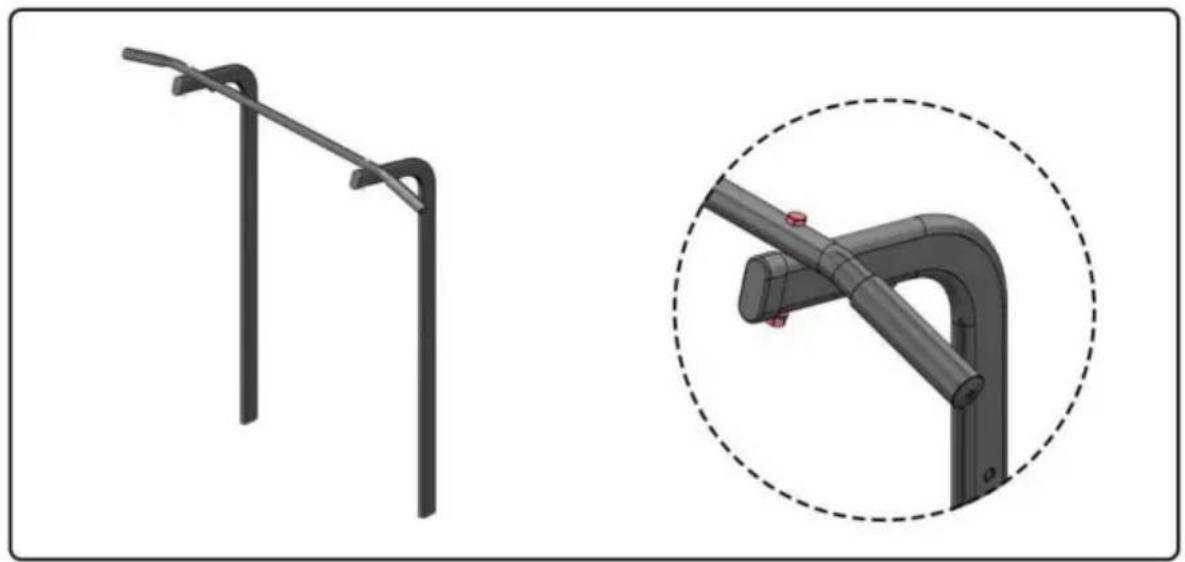

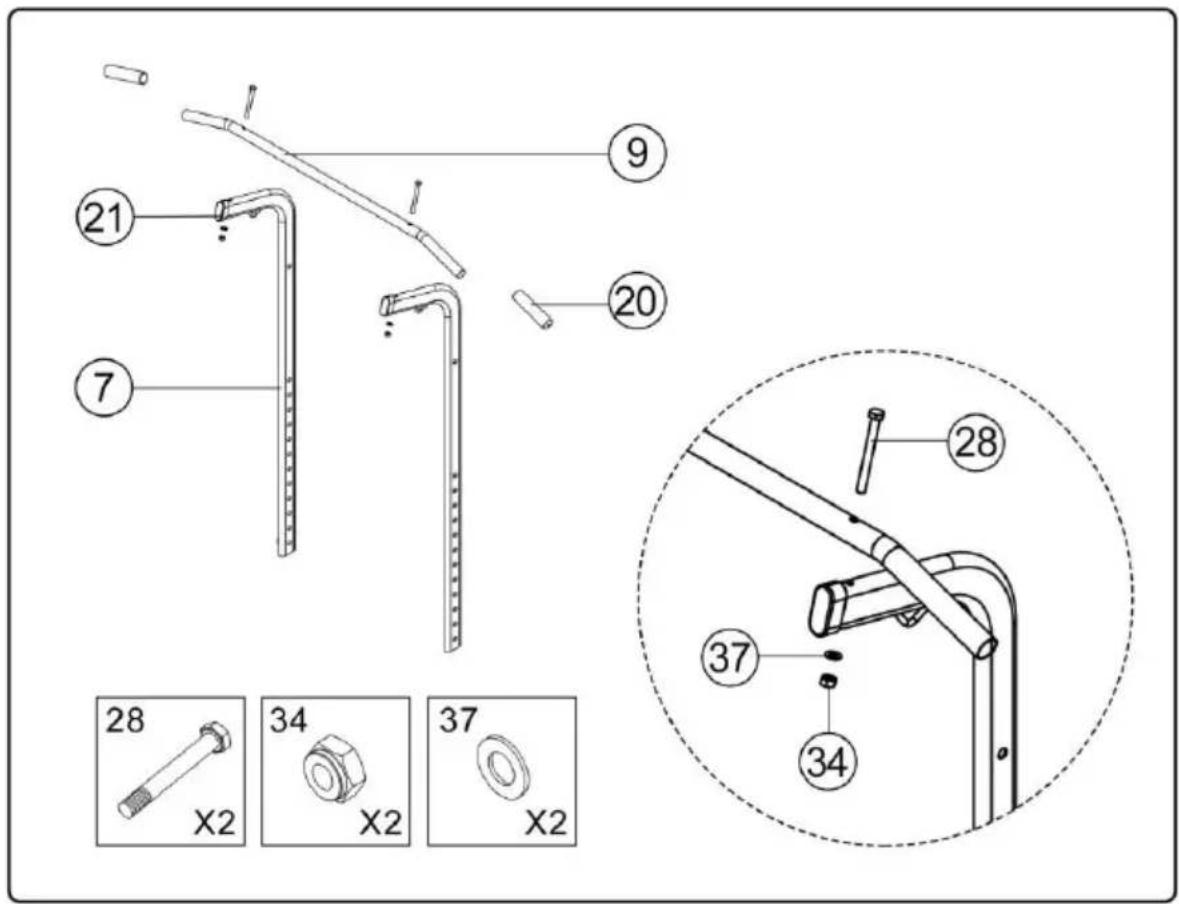

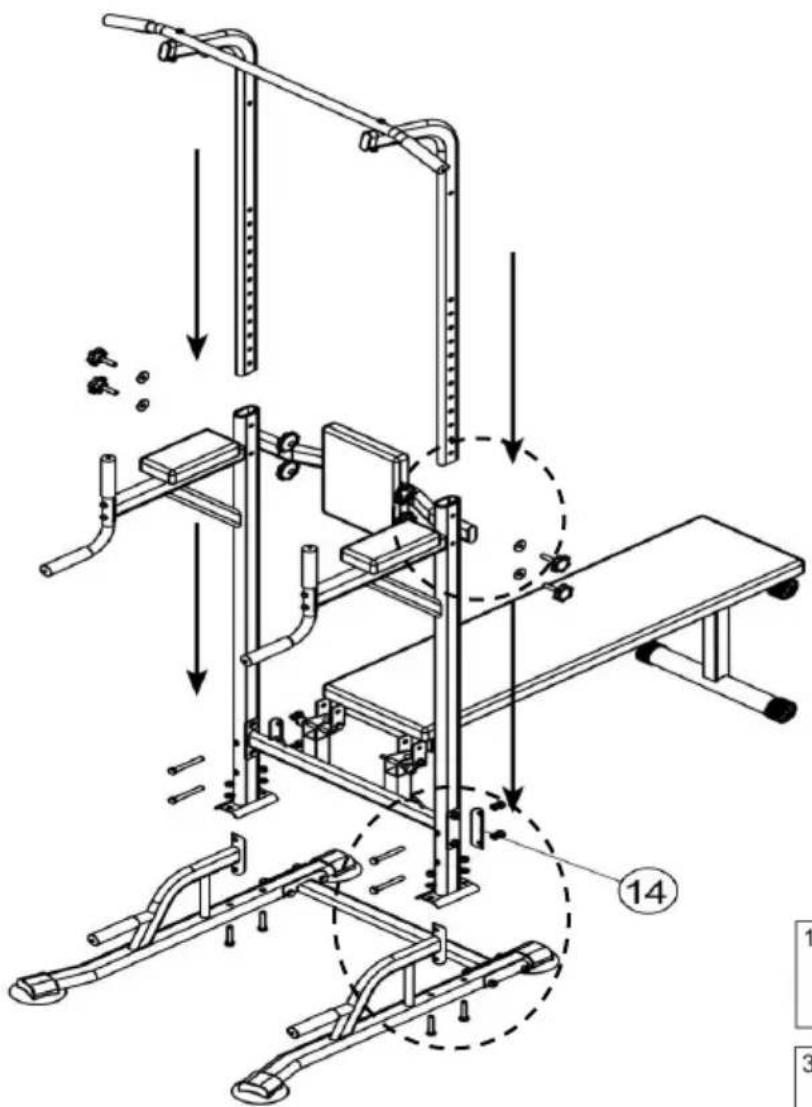

Step3 : Install top part

(Assemble the parts and accessories as shown)

Technical diagram of a mechanical assembly with numbered parts and corresponding X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe connection detail (no text or symbols)

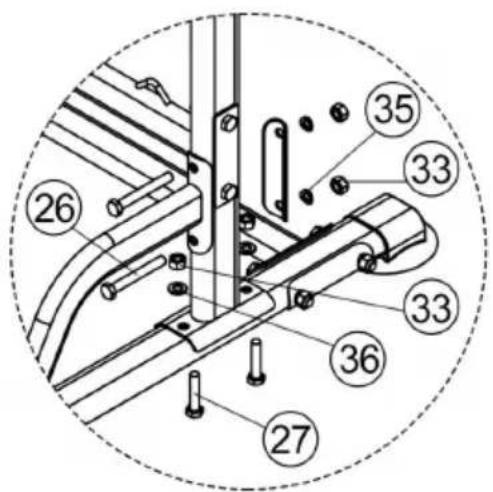

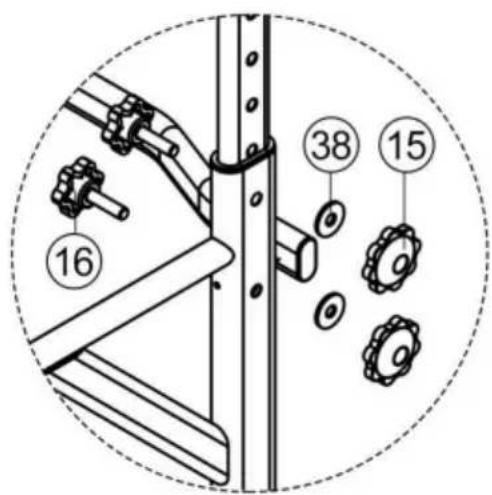

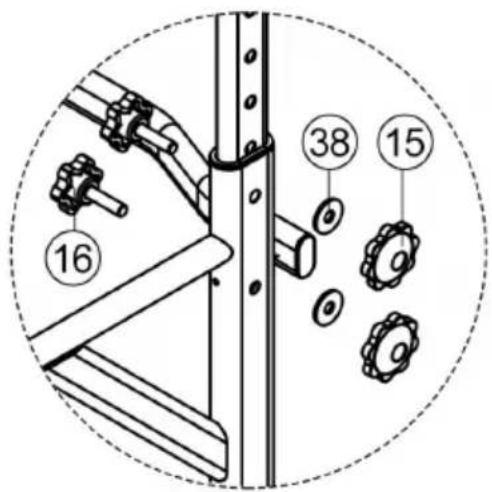

Step4 : Final assembly (assemble each part as shown)

Technical diagram of a gym exercise setup with labeled components and motion arrows

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up views showing internal components (no text or symbols present)

Cleaning and Maintenance

-Use a soft, clean cloth that will not scratch the surface when dustin

-This item could be cleaned with soap and water. Be sure to avoid har solvents and abrasives.

- Periodically (every 90 days) makesure the screws are fully tightened

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

BESOIN D'AIDE? CONTACTEZ-NOUS!

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMÈTRE DU PRODUIT

MODÈLE : ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

LISTE DES PIÈCES

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
9x1	10x1	11	1?x1

2^5 x3	26 x8	27 x8	28 x2
29 x2	30 x3	31 x4	32 x16
33 x19	34 x2	35 x8	36 x11
37 x4	38 x4	39 x4	40 x1

ASSEMBLÉE

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

25 X3 30 X3 32 X4 33 X3 36 X3

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal supports within a frame (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe connection detail (no text or symbols)

Technical diagram of a gym bench with labeled components and motion arrows, including a numbered annotation '14' pointing to a specific apparatus.

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUKTPARAMETER

MODELL:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

TEILELISTE

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
6x1	10x1	11	1?x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
2^5 x3	26x8	27x8	28x2
29x2	30x3	31x4	32x16
33x19	34x2	35x8	36x11
37x4	38x4	39x4	40x1

MONTAGE

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Schritt 3: Liegehocker installieren

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal supports within a frame (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe connection detail (no text or symbols)

Technical diagram of a gym exercise setup with labeled components and directional arrows indicating movement or assembly.

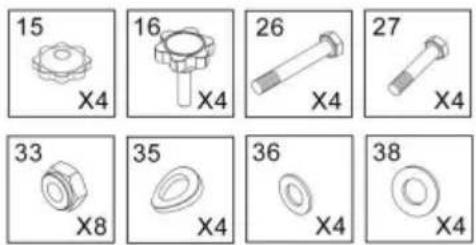

15 X4 16 X4 26 X4 27 X4 33 X8 35 X4 36 X4 38 X4

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETRO PRODOTTO

MODELLO:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

ELENCO DEI PEZZI

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
9x1	10x1	11	1?x1

2^5 x3	26x8	27x8	28x2
29x2	30x3	31x4	32x16
33x19	34x2	35x8	36x11
37x4	38x4	39x4	40x1

ASSEMBLAGGIO

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Fase 2-2: Installare la maniglia

31 32

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

25 X3 30 X3 32 X4 33 X3 36 X3

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal supports within a frame (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe joint detail (no text or symbols)

Technical diagram of a gym exercise setup with labeled components and directional arrows indicating movement or assembly.

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

Prohibition sign showing a walking person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARÁMETRO DEL PRODUCTO

MODELO:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

LISTA DE PIEZAS

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
6x1	10x1	11	1?x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
25x3	26x8	27x8	28x2
29x2	30x3	31x4	32x16
33x19	34x2	35x8	36x11
37x4	38x4	39x4	40x1

ASAMBLEA

Technical diagram of a mechanical assembly with numbered parts and corresponding X4 component images below.

Mechanical assembly diagram showing two metal frame assemblies with red bolts and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Paso 2-2: Instale el mango

31 32

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

25 X3 30 X3 32 X4 33 X3 36 X3

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal brackets, enclosed in a dashed circular border (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Paso 3: Instale la parte superior

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe joint detail (no text or symbols)

Technical diagram of a gym bench with labeled components and motion arrows, showing structural changes and movement paths.

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PARAMETR PRODUKTU

MODEL:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

LISTA CZEŚCI

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
6x1	10x1	11	1?x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
2^5 x3	26 x8	27 x8	28 x2
29 x2	30 x3	31 x4	32 x16
33 x19	34 x2	35 x8	36 x11
37 x4	38 x4	39 x4	40 x1

MONTAŻ

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components for identification

Krok 2-2: Zainstaluj uchwyt

31 32

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

25 X3 30 X3 32 X4 33 X3 36 X3

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal brackets, enclosed in a dashed circular border (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe connection detail (no text or symbols)

Technical diagram of a gym exercise setup with labeled components and directional arrows indicating movement or assembly.

15 X4 16 X4 26 X4 27 X4 33 X8 35 X4 36 X4 38 X4

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

HULP NODIG? NEEM CONTACT MET ONS OP!

WAARSCHUWING: OM HET RISICO OP LETSEL TE VERMINDEREN.

BEWAAR DEZE INSTRUCTIES

WAARSCHUWING:

Prohibition sign showing a walking person crossed out by a diagonal line, enclosed in a circle (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUCTPARAMETER

MODEL:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 178cm 130 cm 30 cm 45 cm 92 cm 76.5 cm

ONDERDELENLIJST

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
14	Link spacer 2	2
15	Torx handle screw	4
16	Rubber nut 10M	4
17	Reducer sleeve	2
18	Suction cup foot cover	4
19	mat	3
20	Rubber handle	8
21	Pipe sleeve	2
22	Pipe plug	2
23	Round pin cover	4
24	Square tube sleeve	4
25	Latch with ring	3
26	Screw M10x75	8

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

NO.	Part Name	Q'ty
34	Lock nut M8	2
35	Arc pad M10	8
36	Gasket M10	11
37	Gasket M8	4
38	Gasket M10X25	4
39	Open end wrench	2
40	Hexagon handle	1

1x1
5x1	6x1	7	8x2
6x1	10x1	11	1?x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
2^5 × 3	26 × 8	27 × 8	28 × 2
29 × 2	30 × 3	31 × 4	32 × 16
33 × 19	34 × 2	35 × 8	36 × 11
37 × 4	38 × 4	39 × 4	40 × 1

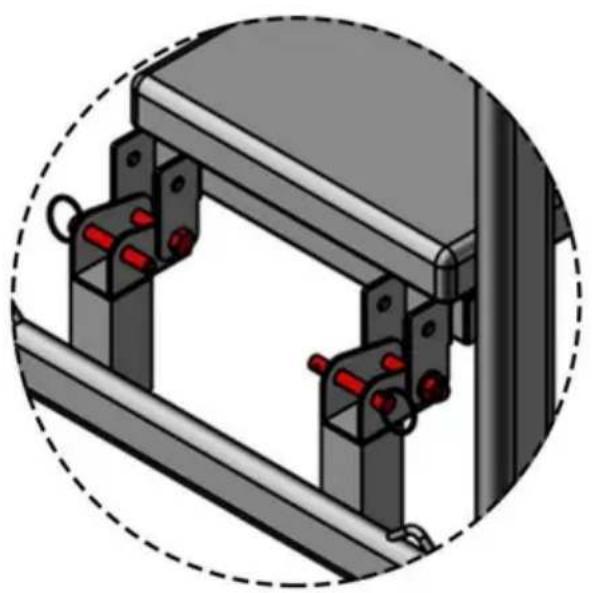

MONTAGE

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Stap 2-2: Installeer de handgreep

31 32

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal supports within a frame (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe connection detail (no text or symbols)

Technical diagram of a gym exercise setup with labeled components and directional arrows indicating movement or assembly.

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Can be folded 90° for storage

BEHÖVER HJÄLP? KONTAKTA OSS!

WARNING: FÖR ATT MINSKA RISKEN FÖR SKADA PÅ PERSONER.

SPARA DESSA INSTRUKTIONER

WARNING:

Prohibition sign showing a walking stick crossed out of a circle, no text or symbols present

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

PRODUKTPARAMETER

MODELL:ssshkytxs-h

97 cm 22.5 cm 4.5 cm 60-100 cm 22x28x3.5 cm 10x20x3.5 cm 126 cm 108 cm 64 cm 130 cm 30 cm 45 cm 178cm 76.5 cm 92 cm HEIGHT ADJUSTABLE 190-230 cm

DELLISTA

NO.	Part Name	Q'ty
1	Bottom connection	1
2	Bottom support tube 1	1
3	Bottom support tube 2	1
4	Central connecting pipe	1
5	Bottom column 1	1
6	Bottom column 2	1
7	Top post	2
8	elbow	2
9	Top connection	1
10	Chair cushion	1
11	Chair folding tube	1
12	Back support tube	1
13	Link spacer 1	4

NO.	Part Name	Q'ty
27	Screw M10X45	8
28	Screw M8X16	2
29	Screw M8X35	2
30	Screw M10X60	3
31	Inner hexagon screw 8x35	4
32	Inner hexagon screw 6X16	16
33	Lock nut M10	19

1x1
5x1	6x1	7	8x2
6x1	10x1	11	1?x1

13x4	14x2	15x4	16x4
17x2	18x4	19x3	20x8
21x2	22x2	23x4	24x4
2^5 x3	26x8	27x8	28x2
29x2	30x3	31x4	32x16
33x19	34x2	35x8	36x11
37x4	38x4	39x4	40x1

MONTERING

Steg 1: Installera basdelen

Technical diagram of a mechanical assembly with numbered components and corresponding X4 parts for identification.

Mechanical assembly diagram showing two metal frame assemblies with red fasteners and mounting brackets, one highlighted with a dashed circle (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Steg 2-2: Installera handtaget

31 32

Technical illustration of a mechanical support structure with multiple close-up views (no text or symbols)

Steg 3: Installera lie pall

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

36 33 32 30 25

3D technical illustration of a gym bench with adjustable arms and legs (no text or symbols)

Mechanical assembly diagram showing two red clamps mounted on metal supports within a frame (no text or symbols)

Mechanical device with cylindrical components and a dashed circular outline (no text or symbols)

Technical diagram showing exploded and assembled parts of a pipe fitting with numbered annotations and X2 component diagrams below.

Technical illustration of a metal bracket with a close-up inset showing the pipe joint detail (no text or symbols)

Technical diagram of a gym bench with labeled components and motion arrows, showing structural changes and movement paths.

16 38 15

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical illustration of a mechanical lifting platform with two close-up insets showing detailed components (no text or symbols present)

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
