WK320017 - Bathroom accessory Vevor - Free user manual and instructions

Product Type	Corner shower caddy with tension pole
Brand	Vevor
Model	WK320017, WK320017-1, WK320017-2
Available Colors	Bronze, Silver, Black
Main Material	Stainless steel and chrome-plated steel
Number of Shelves	4 fan-shaped shelves
Adjustable Height	142 to 290 cm (56 to 114 inches)
Load Capacity per Shelf	5.4 kg maximum
Product Weight (approx.)	Approximately 2.5 kg
Installation	No drilling, spring tension between floor and ceiling
Usage	Shower storage: shampoos, soaps, etc.
Care and Cleaning	Clean with a soft cloth and soapy water; avoid abrasive products
Safety	Do not exceed maximum load; ensure ceiling is sufficiently hard
Height Adjustment	Coarse adjustment by adding/removing poles; fine adjustment by rotating threaded rod
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - WK320017 Vevor

How to install the Vevor WK320017 corner caddy?

Installation is done without drilling: place the pole between the floor and ceiling, then adjust the length by turning rod C to compress the spring. Make sure the ceiling is hard (tile, concrete) for proper hold.

What is the maximum load capacity per shelf?

Each shelf can support up to 5.4 kg. Do not exceed this limit to avoid any risk of falling.

Is the caddy suitable for all types of ceilings?

No, it requires a hard ceiling (tile, concrete). Ceilings made of aluminum loops or other soft materials may not hold the pole.

How to adjust the height of the caddy?

First make a coarse adjustment by adding or removing pole sections (A). Then fine-tune by turning rod C to compress the spring by about 50 to 80 mm.

What are the available colors?

The WK320017 model is available in three finishes: Bronze, Silver, and Black.

What material is the caddy made of?

It is made of stainless steel and chrome-plated steel, offering good corrosion resistance in humid environments.

Can the caddy be used in a shower with a glass wall?

Yes, as long as the ceiling and floor are hard. Be careful not to scratch the wall during installation.

How to maintain the caddy?

Clean regularly with a soft cloth and soapy water. Avoid abrasive sponges that could scratch the surface.

Does the caddy come with screws or anchors?

No, installation does not require drilling or screws. The tension pole system holds the caddy in place by spring pressure.

How to get technical support or a warranty certificate?

Go to www.vevor.com/support to download your electronic warranty certificate and contact technical service.

USER MANUAL WK320017 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOWER CORNER CADDY TENSION POLE

MODEL: WK320017/WK320017-1/WK320017-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: WK320017/WK320017-1/WK320017-2

Pure line drawing of three vertical panels with curved internal structures, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, the user must rea instructions manual carefully.

WARNING

• The product is fixed in front of the ground and ceiling by the built-in spring structure. Before use, confirm that the installation position is a hard ceiling. F non-hard ceilings (such as aluminum buckle ceilings), the product may not be to be installed and used properly.
• Fan shaped and square trays (excluding soap holders), the weight of items placed on a single tray must not exceed 5.4kg.

PRODUCTION CONFIGURATION

Model	WK320017-1	WK320017-2	WK320017
Height range (in)	56-114
Single tray load-bearing capacity (kg)	5.4
Tray	4 layers, fan-shaped
Colour	Bronze	Silvery	Black

PARTS LIST

A=5x L=490mm

B=1x L=480mm

C=1xC=2x

D=2x

E=1xE=1x

F=1x

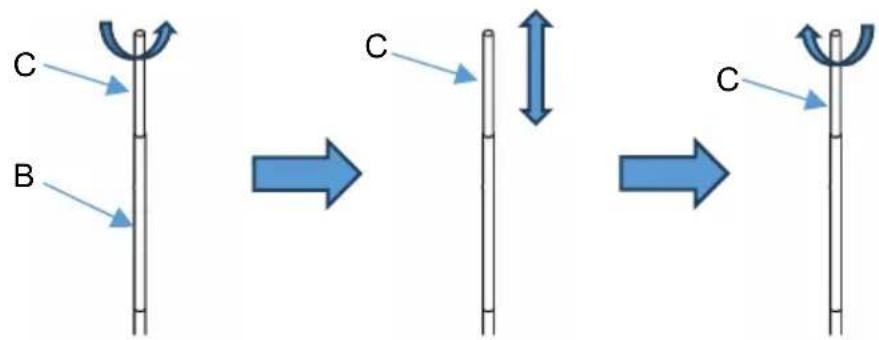

Height adjustment instructions

1. Coarse adjustment: The user confirms the installation position, the distance between the ceiling and the ground, and adapts by increasing decreasing the number A pole.
2. By adjusting the length of the C rod inserted into the B rod, ens the spring compression is approximately 50-80mm.

Rotate the C-rod in the direction shown in the diagram to loosen it, to the appropriate length, and then rotate it in the opposite direction tighten the C-rod.

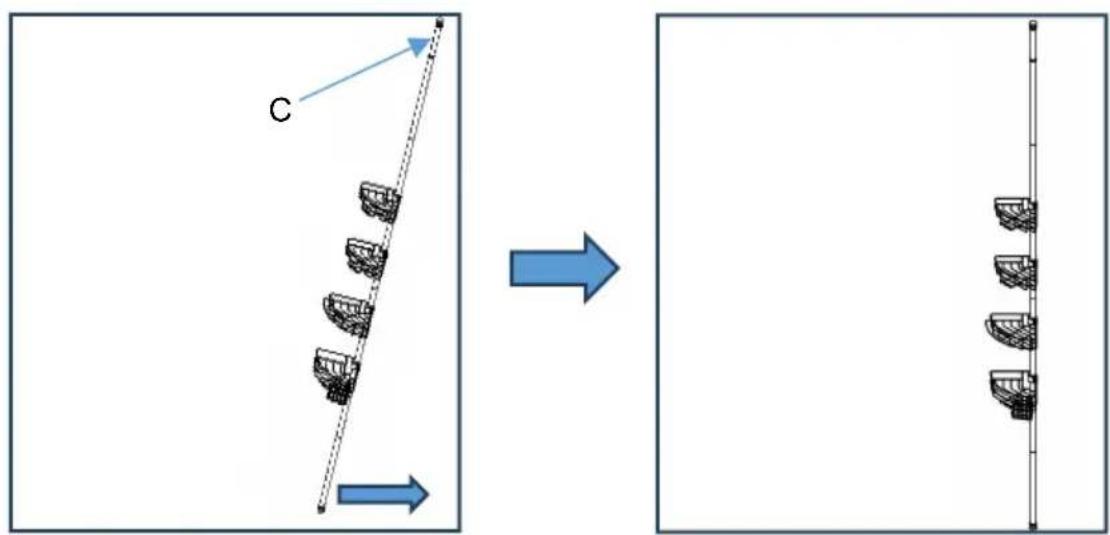

Overall installation

Complete installation

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

    G["Step 7: Vertical rod with clockwise arrow labeled 'C', 'Vor', 'Eingerichtet'"] --> H["Step 8: Vertical rod with clockwise arrow labeled 'J'"]
    H --> I["Step 9: Vertical rod with clockwise arrow labeled 'I'"]
    I --> J["Step 10: Vertical rod with downward arrow"]
    J --> K["Step 11: Vertical rod with downward arrow labeled 'D', 'E', 'F', 'G'"]
    K --> L["Step 12: Vertical rod with downward arrow"]

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

KONFIGURACJA PRODUKCYJNA

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

DOUCHE HOEK CADDY SPANNINGSPEEL

MODEL: WK320017/WK320017-1/WK320017-2

Pure line drawing of three identical mechanical components arranged vertically (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

PRODUCTIECONFIGURATIE

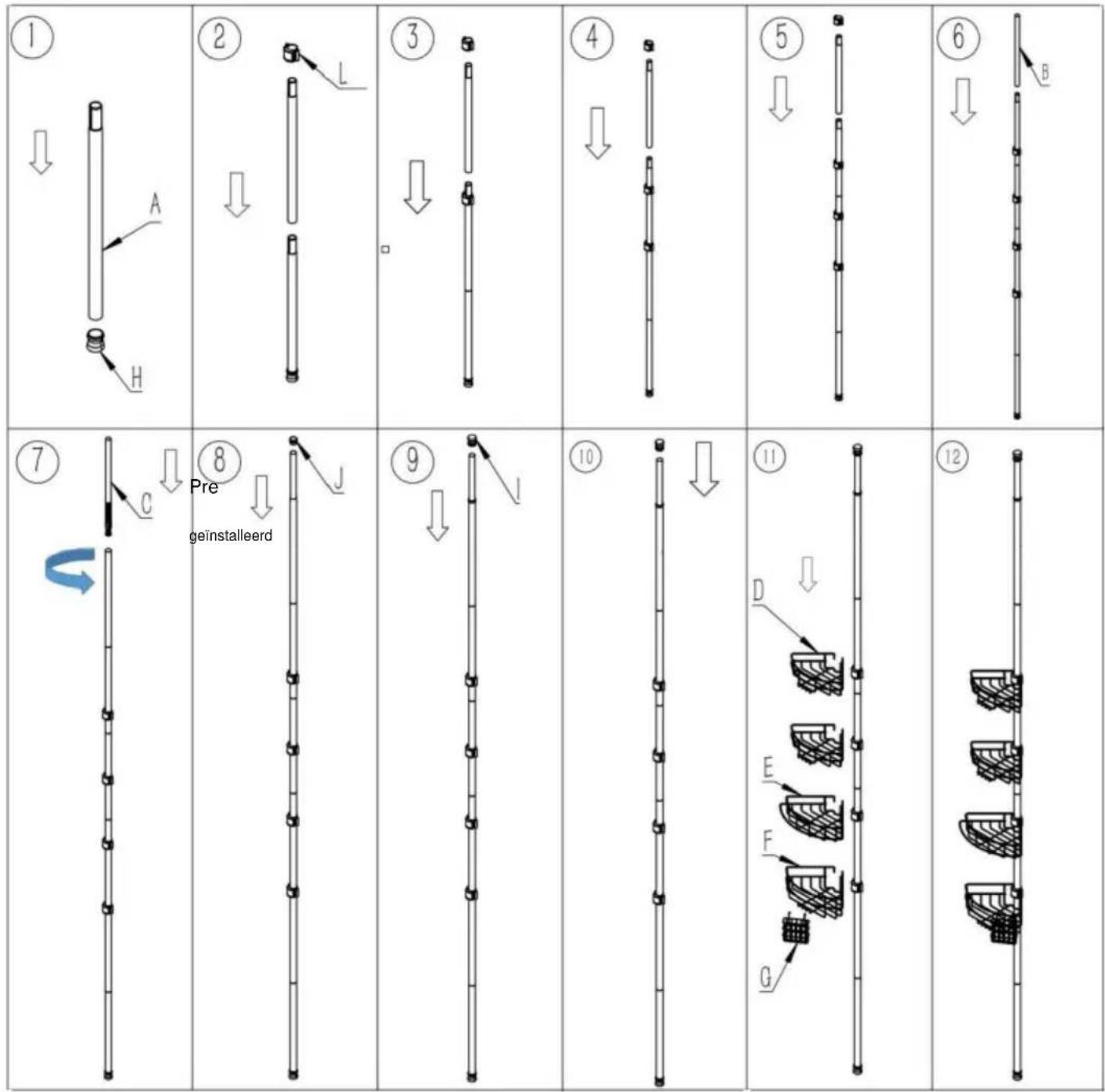

INSTALLATIE INSTRUCTIES
