USER MANUAL ZG-LJ150 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

PROJECTION SCREEN

USER MANUAL

MODEL NO.: ZG-LJ120、ZG-LJ150

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

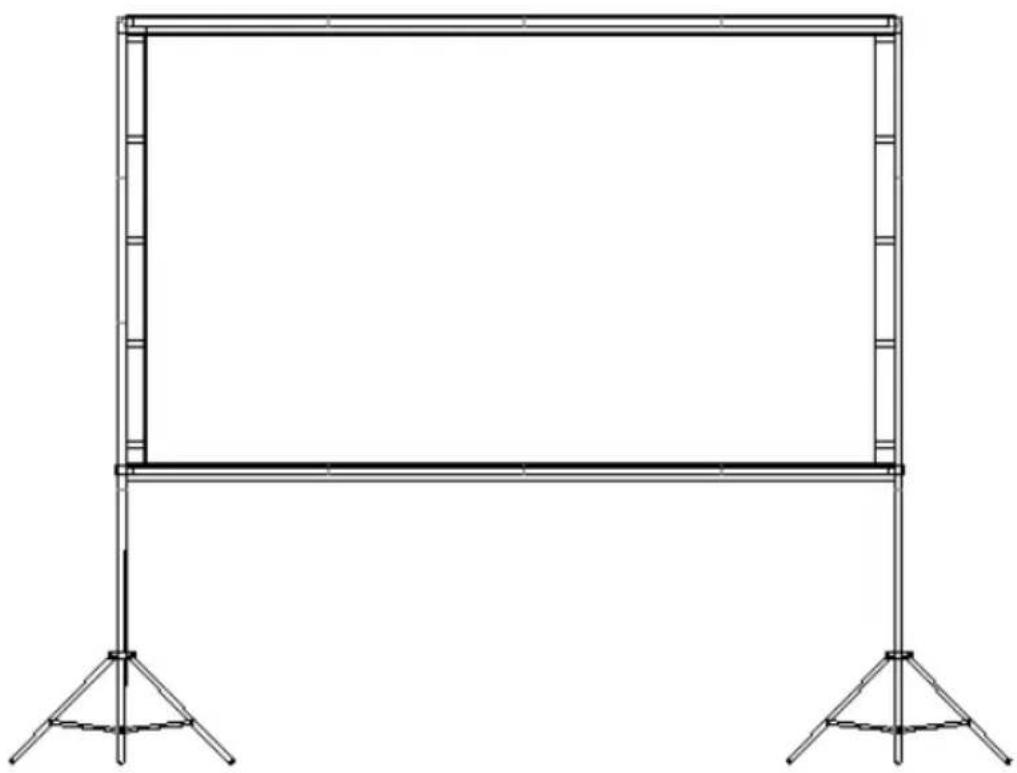

Projection Screen

MODEL NO.: ZG-LJ120、ZG-LJ150

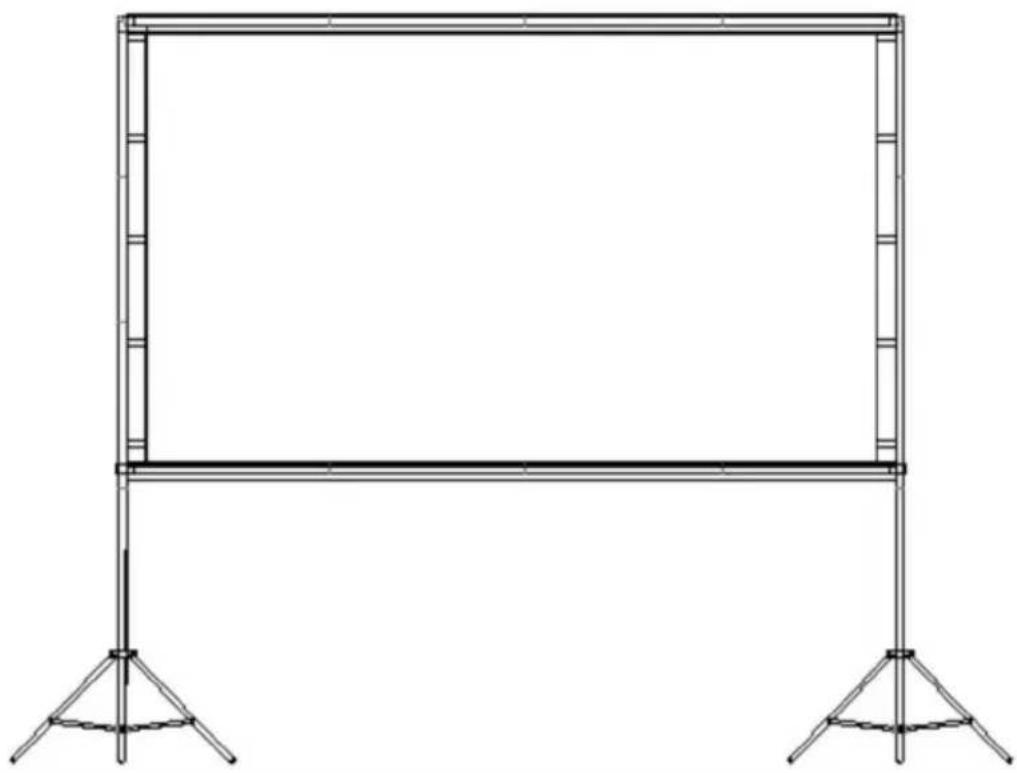

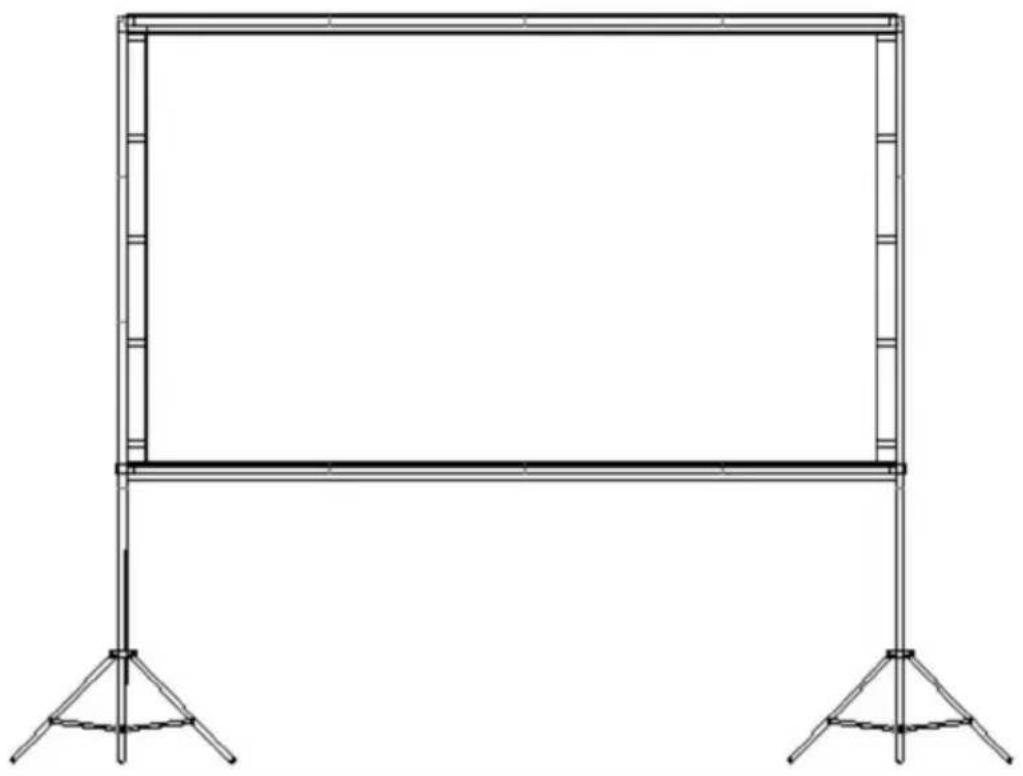

Simple line drawing of a rectangular frame with two supports at the bottom (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

1. The screen cannot be folded. Do not use fingers or hard objects to touch the screen surface. Do not splash milk. fruit juice or other chemical doses to the screen surface. Keep the screen far away from high temperature objects or fire.
2. If the screen is dirty, wash it gently with a clean cloth or a cotton ball. Do not use organic solvents to clean the screen surface.
3. When pulling the screen down, it must be done must be slowly and vertically. Do not pull it roughly. Stop pulling as soon as the black border is out or when the screen is jammed. Send the screen to the service center if the jammed is permanent.
4. After using, retract the screen back to the housing in order to prevent dirt. If not using it for a long time, please remove screen from the wall and pack it in a carton.

TECHNICAL SPECIFICATIONS

Model	ZG-LJ120	ZG-LJ150
Main Material	Steel	Steel
Screen Size	120 inch, 16:9	150 inch, 16:9
Product Dimensions(LxWxH)	3450*650*2286 mm	4202*650*2746 mm
Packing Size(LxWxH)	860*185*160 mm	860*185*160 mm
Net Weight (kg)	5	6.1
Gross Weight (kg)	5.7	6.8

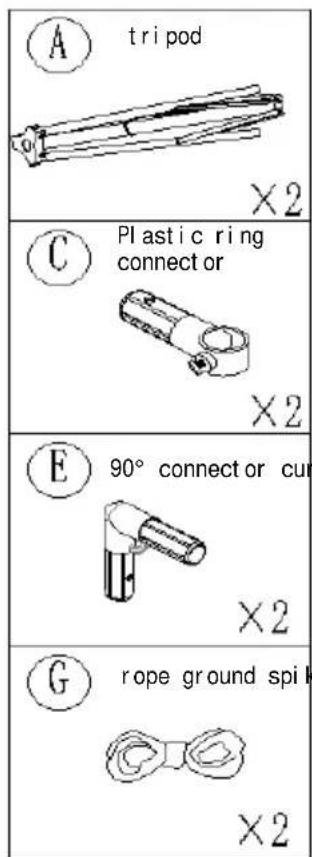

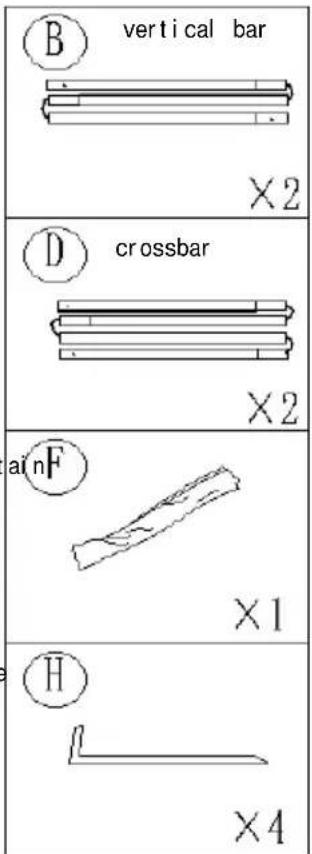

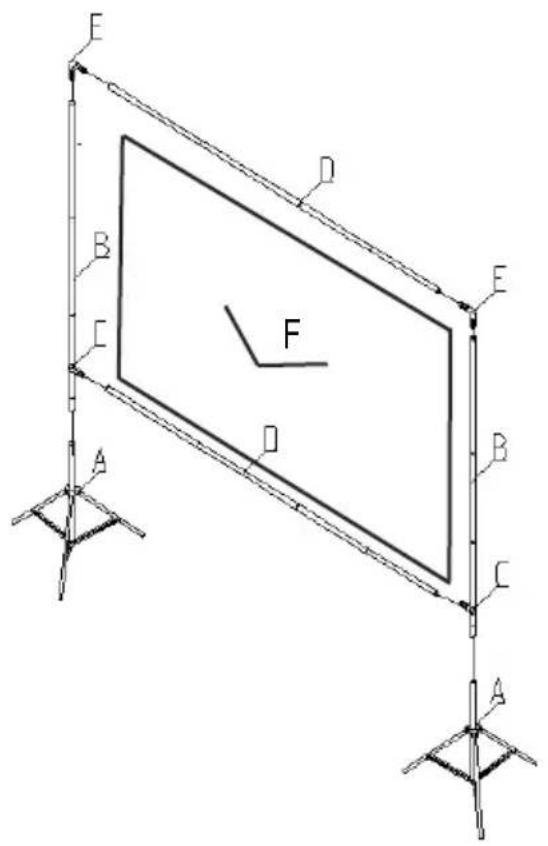

PACKAGE CONTENTS

E D B C F D E A B C A

A tripod ×2 C Plastic ring connect or ×2 E 90° connect or cur ×2 G rope ground spi k ×2

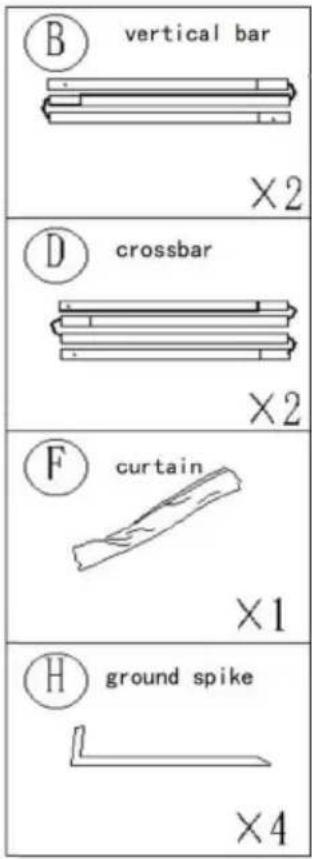

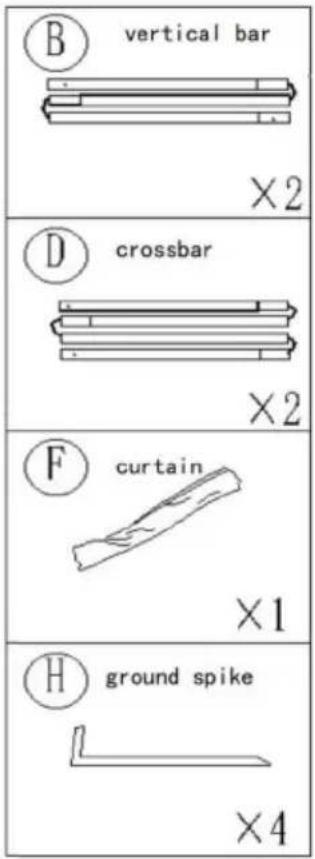

B vertical bar ×2 D crossbar ×2 a n F ×1 H ×4

ASSEMBLY STEPS

STEP1

X2

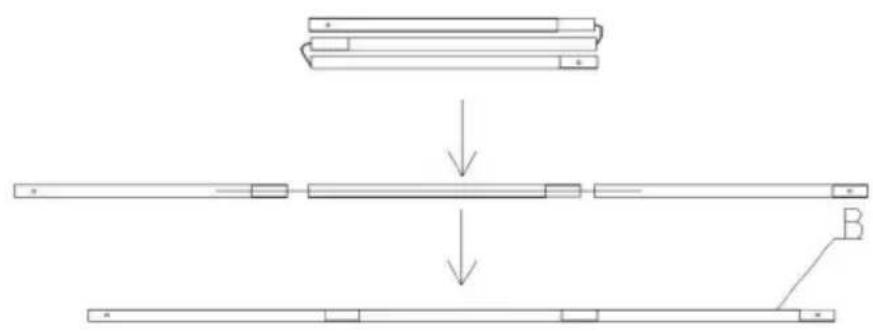

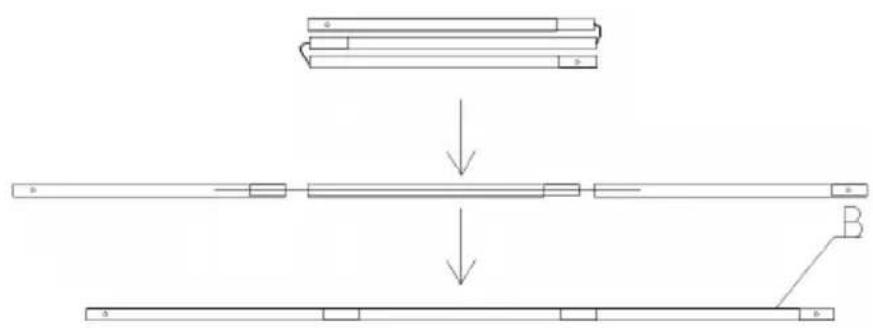

TaketheaccessoryBandassembletwogroupsasshowninthe figure.

STEP2

Diagram showing a mechanical or electrical component with labeled parts B and C, connected by an arrow indicating transformation or assembly.

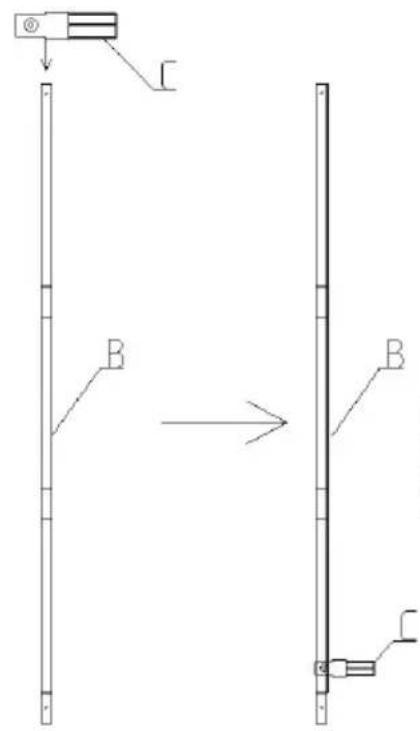

Connect the fitting C with the tube instep1B and insert the fittingC into the tubeB.Repeattheabove.

X2

STEP3

E B E B C C

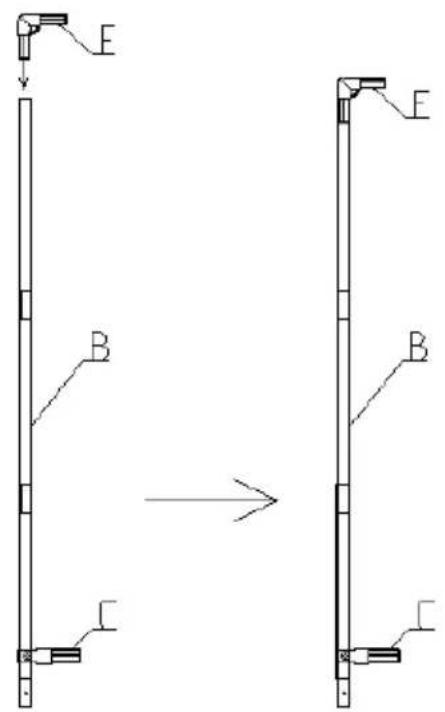

Take the accessory e and assemble the accessory e to step2,asshownin the figure. Repeattheabove.

X2

STEP 4

X2 D

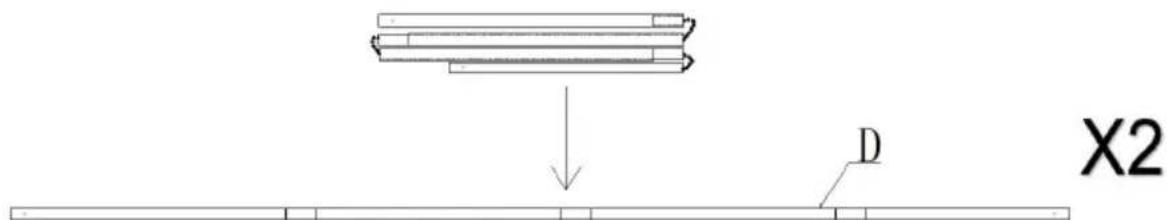

Take the fitting D and assemble it as shown in the figure.

STEP5

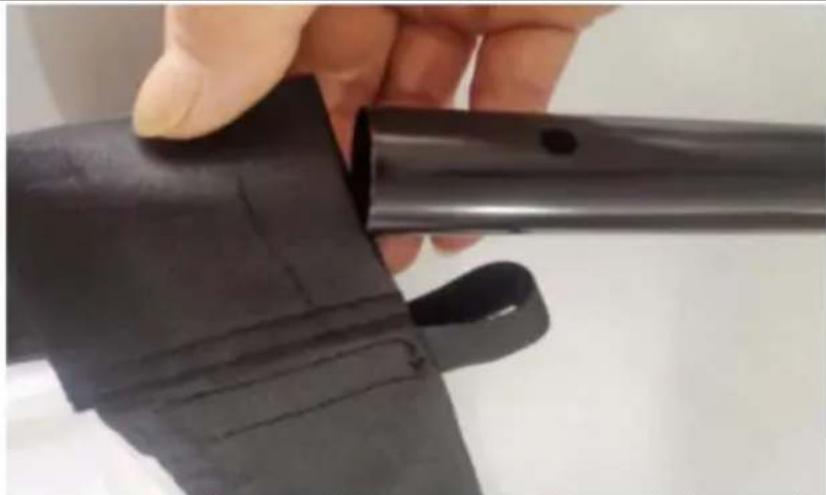

Close-up of a hand holding a black plastic object with a handle, showing texture and folds (no text or symbols visible)

Take the two cross bars d from step 4 and thread them into the black sleeve of the curtain.

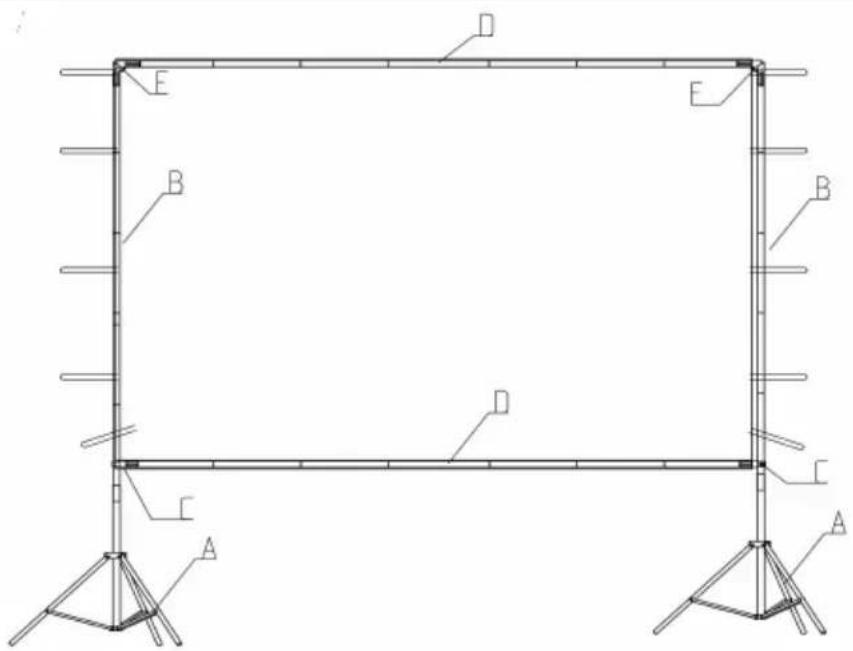

STEP 6

D E B E B C D

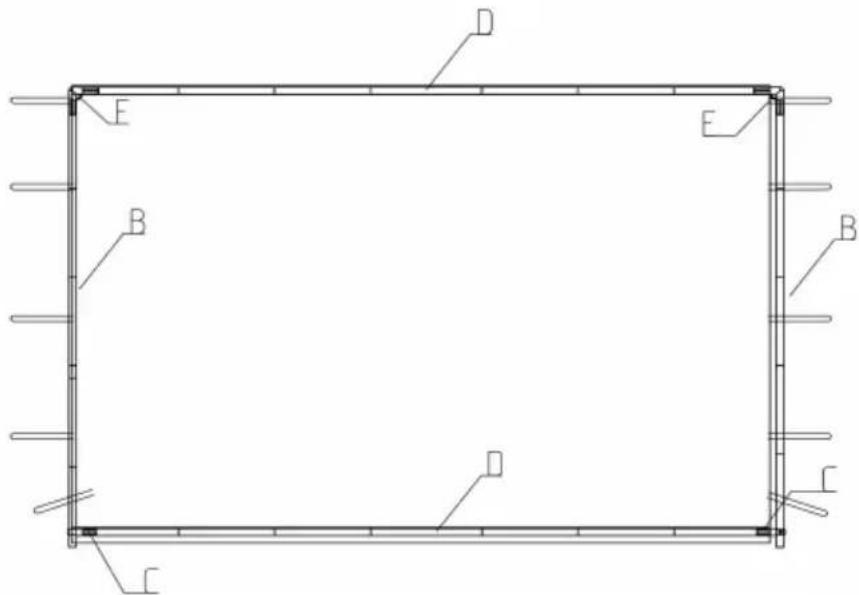

Connect the D tube with the curtain on to the upper plastic part [in step3, and the other D tube to the lower plastic part C instep3, as shown in the figure.

STEP 7

E D E B B D C A A

Take the fitting A and assemble it to the bottom of the pipe B.

STEP 8

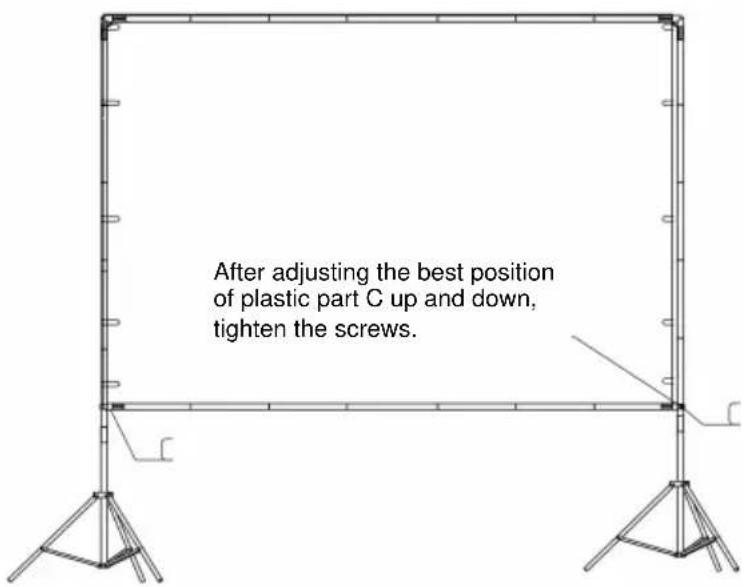

After adjusting the best position of plastic part C up and down, tighten the screws.

Paste the hook and loop on the curtain in sequence, adjust the position of the plastic part C, and tighten the screws on the plastic part C to complete the installation after ensuring that the curtain picture is in the beststate.

STEP 9

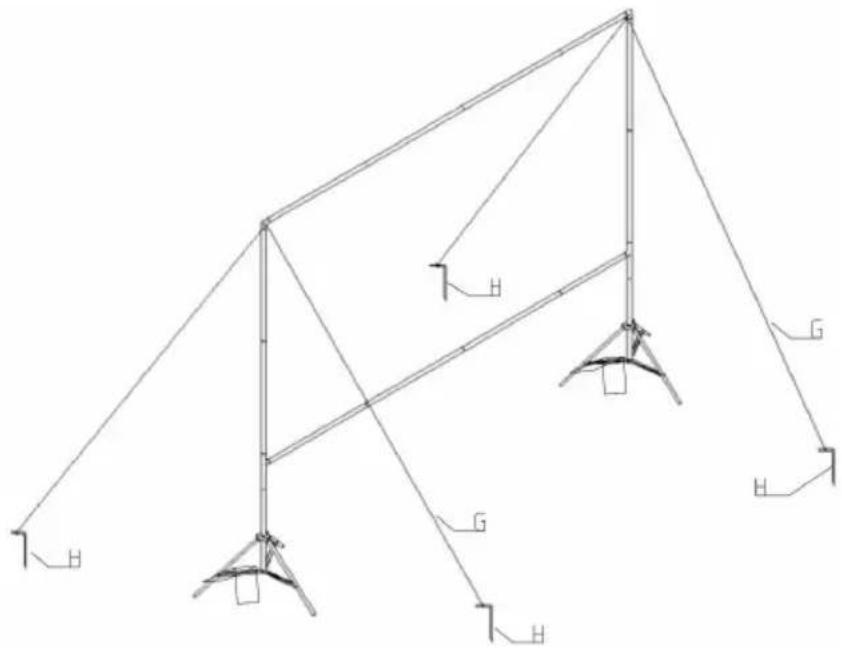

Pure technical line drawing of a mechanical or structural assembly without any text, numbers, or symbols

Tips: If it is used outdoors, the accessories G/H can be used to stabilize the shelf as shown in the figure

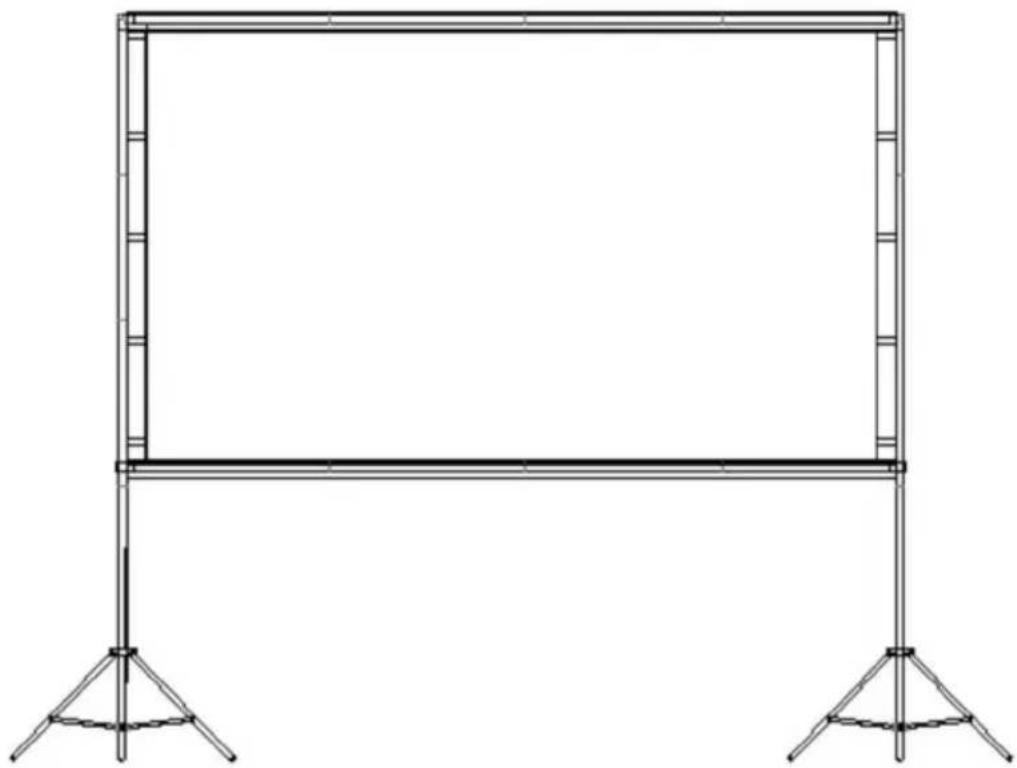

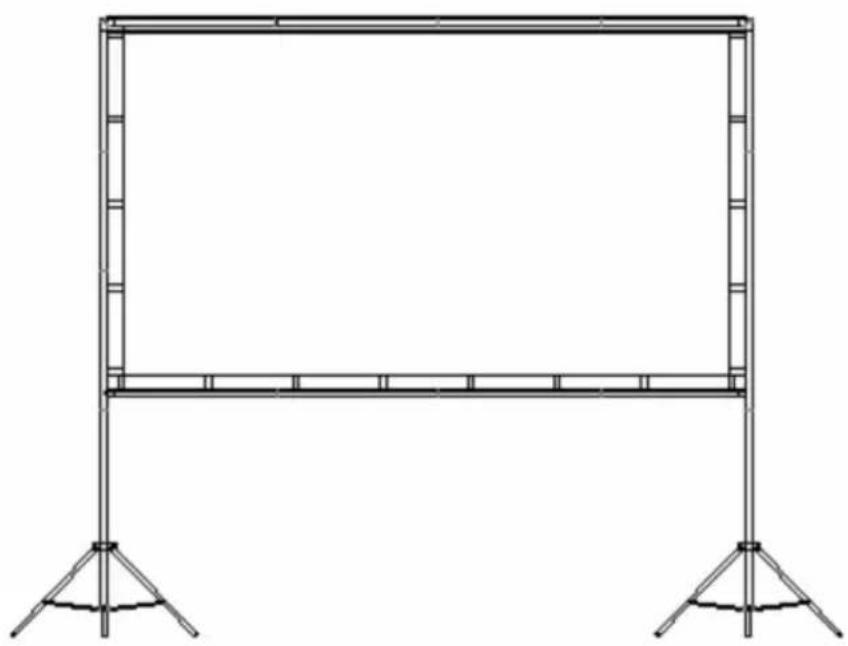

COMPLETION

Simple line drawing of a rectangular frame with two supports at the bottom (no text or symbols)

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China
