Product Type	Portable Projection Screen
Brand	Vevor
Model	QC-168
Screen Diagonal	168 inches (426.7 cm)
Aspect Ratio	16:9
Screen Material	Matte white polyester with black backing
Viewing Angle	160 degrees
Screen Gain	1.1
Mounting Type	Free-standing tripod
Tripod Height	Adjustable from 110 cm to 200 cm
Screen Type	Foldable, quick-fold design
Portability	Lightweight with carrying bag
Net Weight	Approx. 4.5 kg
Folded Dimensions	Approx. 1450 x 120 x 120 mm
Set up Time	Under 1 minute
Compatibility	Works with all projectors
Outdoor Use	Yes, with weighted base for stability
Cleaning and Maintenance	Wipe with a soft, dry cloth; do not use water or chemical cleaners
Storage	Store in dry, clean place away from direct sunlight
Spare Parts & Repair	Replacement parts (tripod, screen) available from Vevor; repair service via authorized centers
Package Contents	Screen, tripod base, crossbar, carrying bag, user manual

Frequently Asked Questions - QC-168 Vevor

How do I set up the Vevor QC-168 projection screen?

To set up your screen, unfold the tripod legs, adjust the height to your desired position, slide the crossbar into the top bracket, and hang the screen over the crossbar. Ensure the screen is pulled straight and the tripod is stable. The entire setup takes under 1 minute.

Can I use this screen outdoors?

Yes, the QC-168 is designed for both indoor and outdoor use. For outdoor stability, place the tripod on flat ground and use the included stakes or sandbags (not supplied) to secure the base. Avoid using it in high wind conditions.

What is the recommended projector distance for this screen?

The ideal distance depends on your projector's lens. For a 168-inch 16:9 screen, place standard projectors at a distance of roughly 5-10 meters. Check your projector's manual for specific throw ratio calculations.

How should I clean the screen surface?

Gently wipe the screen with a soft dry cloth to remove dust. Do not use water, detergents, or abrasive cleaners, as they may damage the matte coating.

Are the creases from folding permanent?

No, the QC-168 uses a wrinkle-resistant material. Most creases disappear after hanging and slight tension. If you see persistent folds, use a low-temperature iron with a cloth between the iron and screen, or hang it for a few hours.

Is the tripod height adjustable?

Yes, the tripod stand is adjustable from about 110 cm to 200 cm. Tighten the locking knobs firmly before use to ensure safety.

Can I wash the screen bag?

The carrying bag can be hand-washed with cold water and mild soap if needed. Air dry thoroughly before storing the screen.

What is the warranty period for this screen?

Vevor offers a 12-month warranty against manufacturing defects. Contact Vevor support for claims with your order number and photos.

Does the screen have a black backing?

Yes, the screen material features a black backing to prevent light bleed through, improving contrast and image quality even in bright environments.

How do I get replacement parts if something breaks?

Spare parts such as the tripod base or crossbar can be ordered directly from Vevor. Contact their customer service or visit the official website to place a parts request. Most replacements are simple to install.

USER MANUAL QC-168 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

PROJECTION SCREEN

USER MANUAL

MODEL NO.: QC-168

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL NO.: QC-168

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

Inflatable movie screen storage precautions

1. Do not use fingers or hard objects to touch the screen surface. [splash milk. fruit juice or other chemical doses to the screen surface. the screen far away from high temperature objects or fire.
2. If the screen is dirty, wash it gently with a clean cloth or a cotton not use organic solvents to clean the screen surface.
3. Avoid strong squeezing as much as possible.
4. Avoid storing in a cool and humid place, try to keep it dry.
5. Keep ventilated and stay away from fire4. Keep the inflation fan c when using it.

TECHNICAL SPECIFICATIONS

Model	QC-168
Rating(s)	AC120V, 60Hz, 100V	AC220-240V, 50Hz, 100V
Product Size	168 inch
Product Dimensions(LxWxH)	3400*1550*2600 mm
Packing Size(LxWxH)	400*310*250 mm
Net Weight (kg)	4.75
Gross Weight (kg)	5.5

PACKAGE CONTENTS

Storage bag*1

Projection

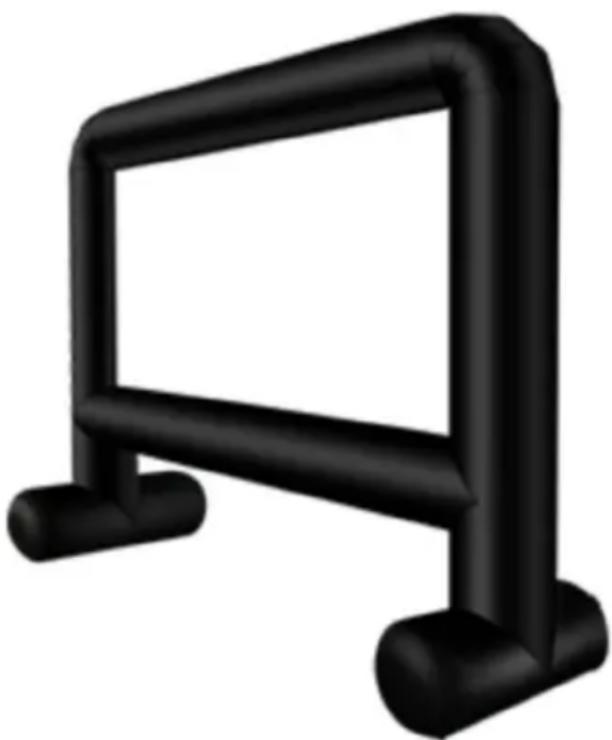

Frame*1

Iron Stakes*6

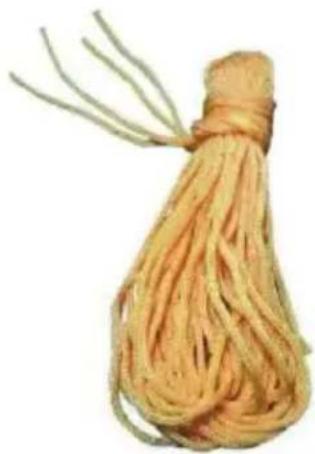

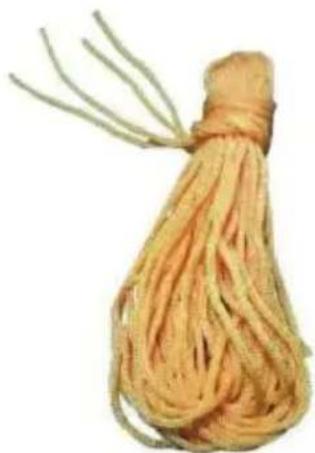

strong ropes*4

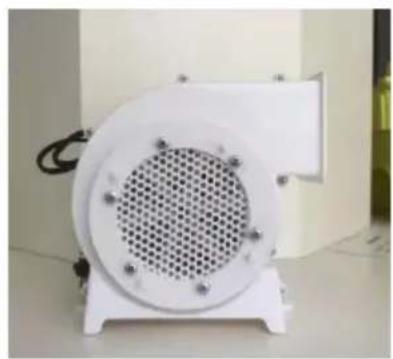

Blower*1
( The blower is bui into the product)

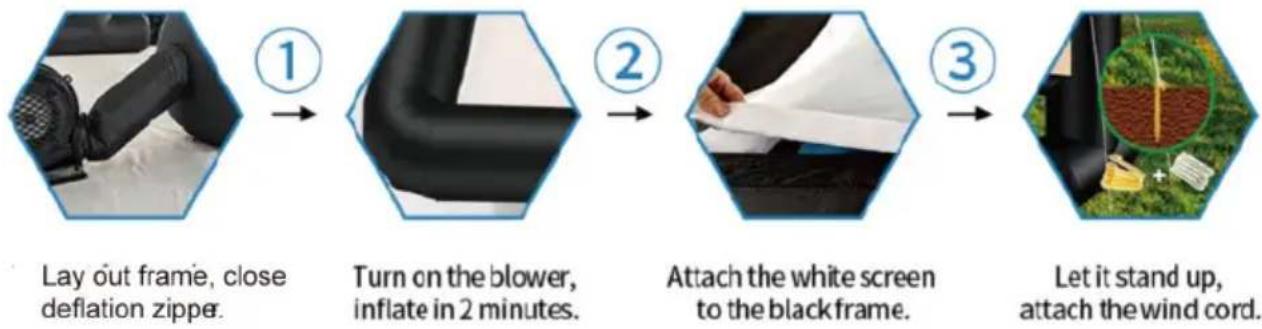

ASSEMBLY STEPS

Lay out frame, close deflation zipper.

Turn on the blower, inflate in 2 minutes.

Attach the white screen to the black frame.

Let it stand up, attach the wind cord.

COMPLETION
