YM-35 - DIY tool Vevor - Free user manual and instructions

Product Type	Broken Screw and Bolt Extraction Kit
Brand	Vevor
Model	YM-35
Number of Pieces	35 (19 bolt extractors + 16 reverse drill bits)
Extractor Material	Chrome-molybdenum steel (Cr-Mo)
Drill Bit Material	HSS4241 steel (high-speed steel)
Bolt Extractor Sizes	No. 1 to No. 6, 15/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Reverse Drill Bit Sizes	7/64", 1/8", 5/32", 3/16", 7/32", 1/4", 19/64", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Main Use	Extraction of broken, stripped, or damaged screws and bolts
Instructions	Drill a hole in the center, insert the extractor, and turn counterclockwise
Recommended Tools	Adjustable wrench or power tool to turn the extractor
Safety Instructions	Wear ANSI-approved safety glasses and work gloves; keep work area clean and well-lit
Maintenance	Clean after use; store in a dry place
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Manufacture	China

Frequently Asked Questions - YM-35 Vevor

How to use the Vevor YM-35 bolt extractor?

Choose the appropriate diameter drill bit, drill a hole in the center of the broken bolt, insert the corresponding extractor, then turn counterclockwise with a wrench or power tool.

What materials make up the YM-35 kit?

The bolt extractors are made of chrome-molybdenum steel (Cr-Mo) and the reverse drill bits are made of HSS4241 steel, offering good strength and durability.

What is the difference between the YM-35, YM-29, and YM-48 models?

The YM-35 includes 19 bolt extractors and 16 reverse drill bits (35 pieces). The YM-29 contains nut extractors (29 pieces) and the YM-48 combines both (48 pieces).

Can I use this kit with an electric drill?

Yes, you can use a drill or power tool to turn the extractor counterclockwise, but be sure to set moderate torque to avoid breaking the tool.

What safety precautions should I take?

Always wear ANSI-approved safety glasses and work gloves. Ensure the work area is clean and well-lit. Do not work when tired or under the influence.

Is the YM-35 kit compatible with metric bolts?

Yes, the sizes are given in inch fractions, but they correspond to common metric dimensions. For example, 1/4" equals approximately 6.35 mm.

How to maintain the extraction kit?

Clean the tools after each use with a dry or slightly oiled cloth to prevent corrosion. Store them in a dry place, preferably in the original storage case.

What to do if the extractor breaks inside the bolt?

Use a smaller drill bit to drill into the broken extractor, then try another extractor of a larger size. If necessary, heat the area to expand the metal.

Where can I find the complete user manual?

The manual is available for free download in PDF format on the website notice-facile.com. You can also consult technical support at www.vevor.com/support.

Is the kit suitable for rusted or seized bolts?

Yes, that is its main use. Apply penetrating oil before drilling, then use the extractor turning gently to avoid damaging the remaining threads.

USER MANUAL YM-35 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SCREW BOLT EXTRACTOR USER MANUAL

MODEL: YM-35/YM-29/YM-48

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with are actually saving half in comparison with the top major brand

VEVOR®

TOUGH TOOLS, HALF PRICE

SCREW BOLT EXTRACTOR

MODEL: YM-35/YM-29/YM-48

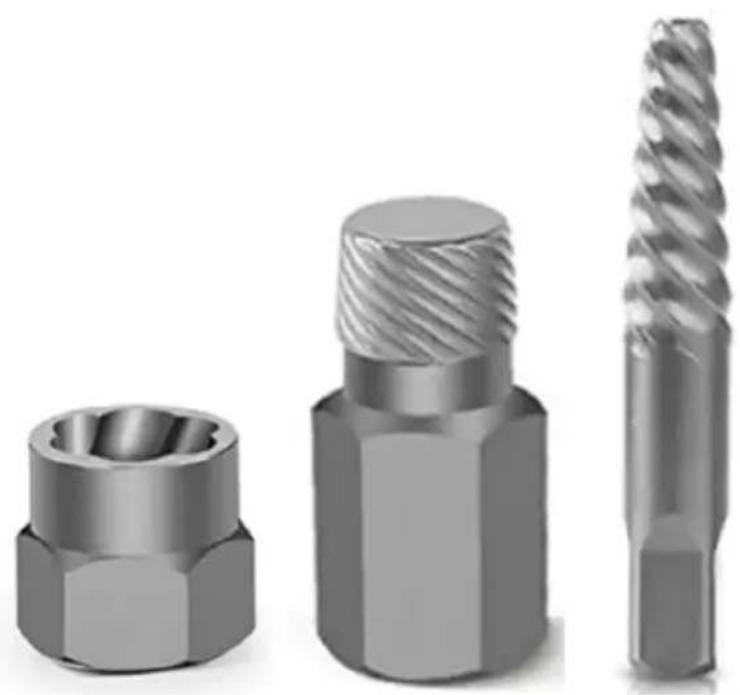

Three metallic mechanical components: a hexagonal nut, a threaded bolt with helical end, and a drill bit (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
   4.Keep bystanders out of the area during assembly.
   5.Do not assemble when tired or when under the influence of alcohol drugs or medication.

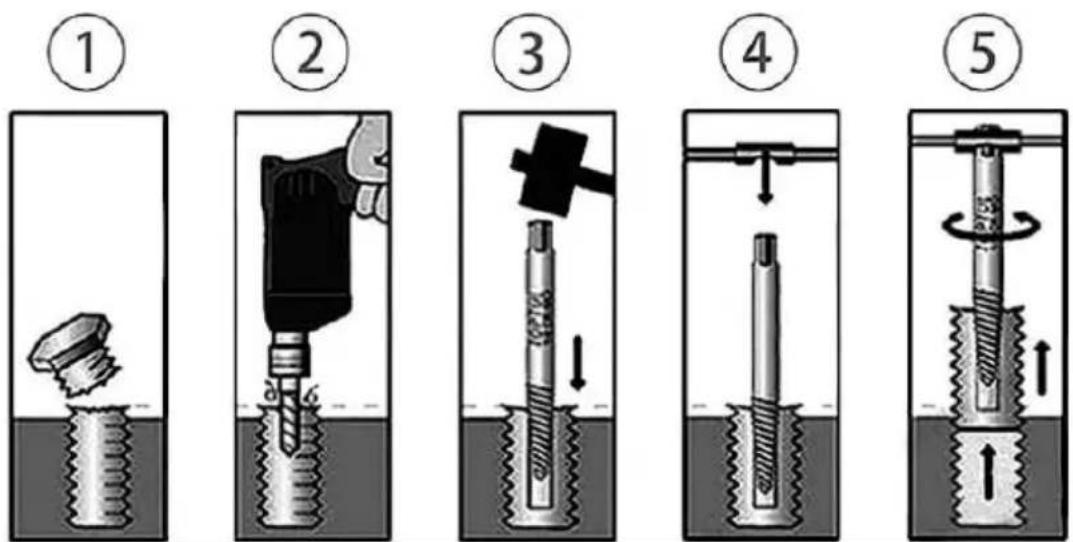

Bolt Extractor Use Steps

1. First check the bolt is due to what reason into the broken open.
2. Select proper gauge bit according to the diameter of the bolt.
3. In the center of the crack open, drilling holes.
4. Select the corresponding screw extractor insert.
5. Use the active wrench or power tool to turn anticlockwise and remove success.

Nut Extractor Use Steps

Close-up of a hand using a screwdriver to adjust a component (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

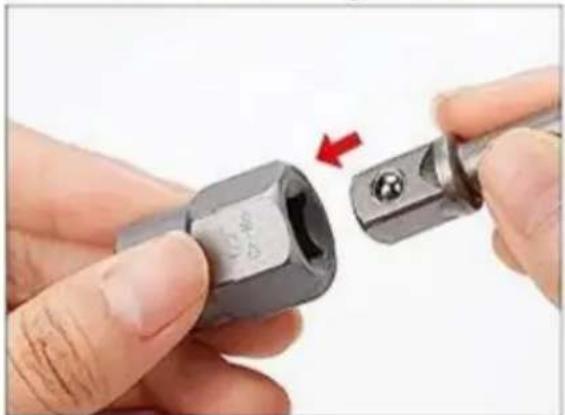

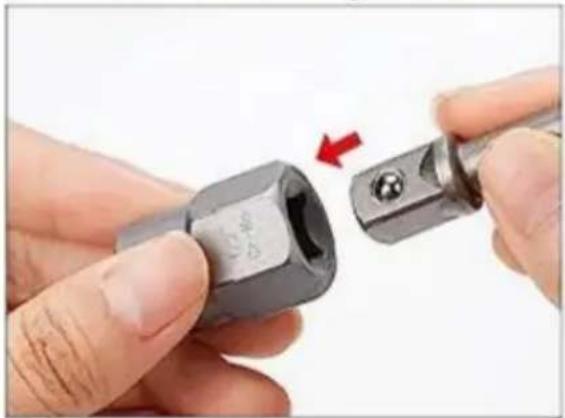

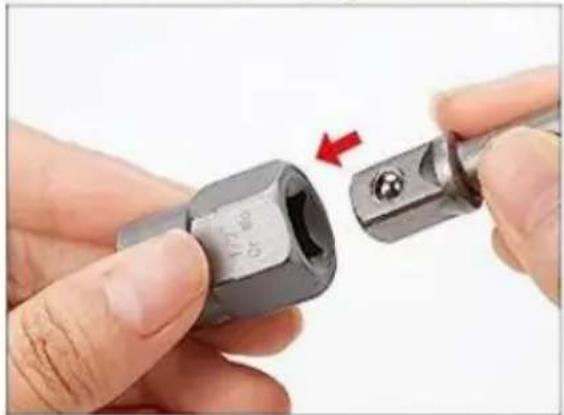

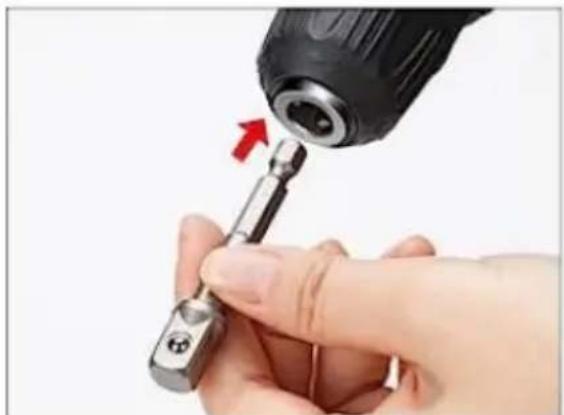

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical component with a red arrow indicating rotation (no text or symbols visible)

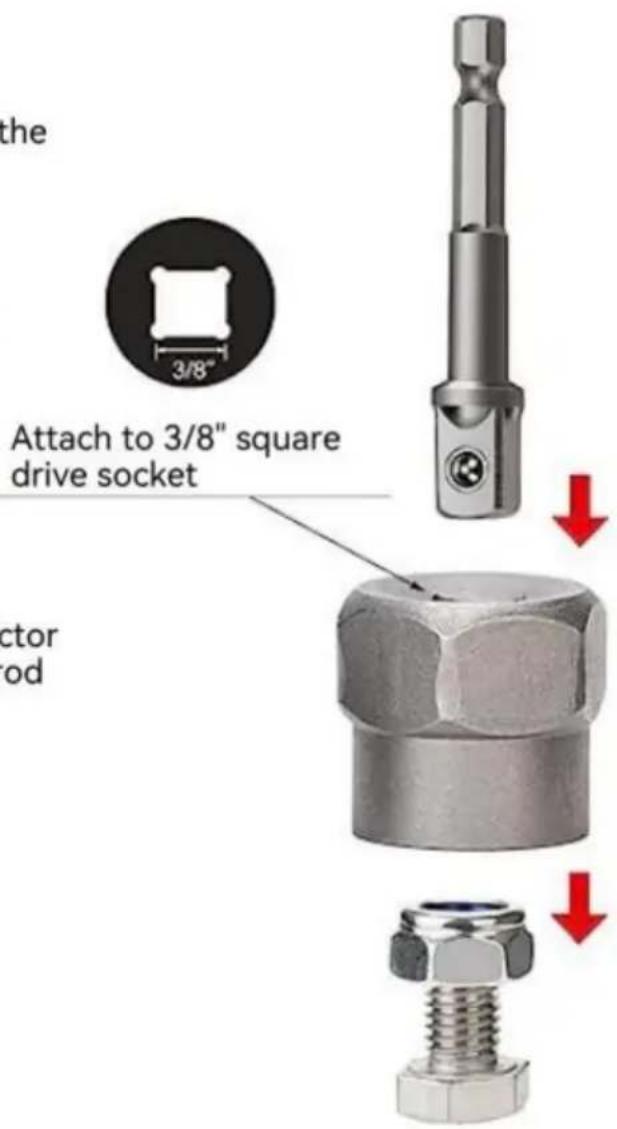

Attach to 3/8" square drive socket

Metallic cylindrical connector with threaded shaft and mounting base (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic drill bit with a hexagonal base (no text or symbols visible)

Close-up of a metallic hexagonal bolt head (no text or symbols visible)

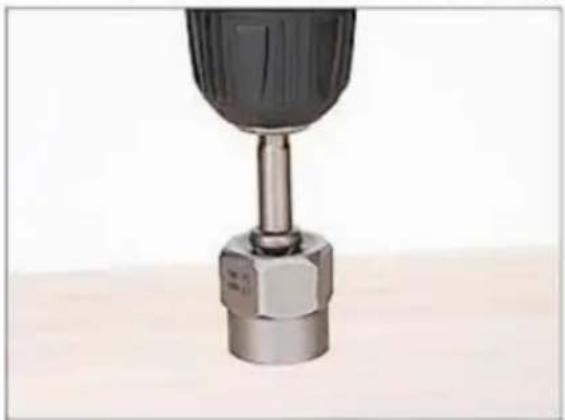

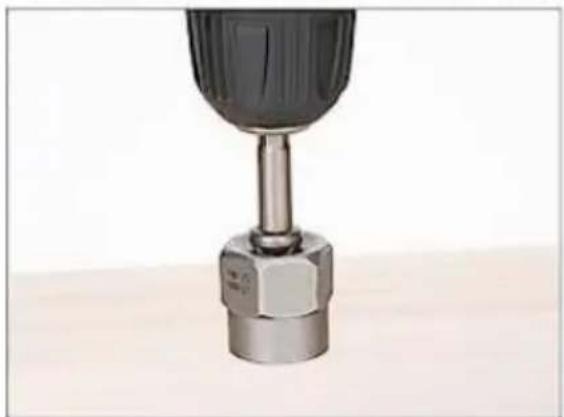

Step 3: Installation is completed

Reverse Drill Bit Use Steps

1. select a bit thinner than the broken screw and drill a hole in the broken hole.
2. select a suitable size and hole extractor, put into the hole, with wrench, slide anti-clockwise rotation out.

Technical illustration of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and base assembly (no text or symbols)

	Items	Description
1	Name	Screw Bolt Extractor
2	Model	YM-35
3	Parameter	QTY: 35, Main materials: Cr-Mo/HSS4241
4	List	Bolt Extractor (19PCS) : #1、#2、#3、#4、#5、#6; 1/8"5/32"、3/16"、7/32"、1/4"、9/32"、5/16"、11/32"、3/8"、13/32"、7/16"、15/32"、1/2"Reverse Drill Bit (16PCS) : 7/64"、1/8"、1/8"、5/32"、37/32"、1/4"、19/64"、9/32"、5/16"、11/32"、3/8"、13/327/16"、15/32"、1/2"Give: 1、Drill Bit: 7/64"、1/8"; 2、Bolt Extractor: #1、#2
2	Model	YM-29
3	Parameter	QTY: 29, Main materials: Cr-Mo
4	List	Nut Extractor: 1/4"Square interface: 6mm、1/4" (6.2mm)6.5mm、6.7mm、9/32" (7mm)、7.2mm、7.5mm、7.7mm5/16" (8mm)、8.2mm、8.5mm、11/32" (8.7mm)、9mm9.2mm、3/8" (9.5mm)、10mmNut Extractor 3/8" Square interface: 13/32" (10.5mm)7/16" (11mm)、12mm、1/2" (12.5mm)、13mm、14mm9/16" (14.5mm)、19/32" (15mm)、5/8" (16mm)、21/32" (17mm)、11/16" (17.5mm)、23/32" (18mm)、3/4" (19mm)Give: 1、Sleeve: 3/8" square to1/4" 1/4" square to3/8"2、Connecting rod: 3/8"square to1/4"、1/4"square to1
2	Model	YM-48
3	Parameter	QTY: 48, Main materials: Cr-Mo/HSS4241
4	List	Bolt Extractor (19PCS) : #1、#2、#3、#4、#5、#6、1/8"5/32"、3/16"、7/32"、1/4"、9/32"、5/16"、11/32"、3/8"、13/32"、7/16"、15/32"、1/2"Reverse Drill Bit(16PCS) : 7/64"、1/8"、1/8"、5/32"、3/17/32"、1/4"、19/64"、9/32"、5/16"、11/32"、3/8"、13/327/16"、15/32"、1/2"Nut Extractor(13PCS) : 1/4"、5/16"、3/8"、10mm、7/16"12mm、1/2"、13mm、9/16"、5/8"、17mm、11/16"、3/4"Give: 1、Drill Bit 7/64"、1/8"; 2、Bolt Extractor #1、#23、Connecting rod: 3/8"square to1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a helical screw (no text or symbols visible)

Illustration of a bolt being inserted into a liquid (no text or symbols)

②

Illustration of a mechanical tool inserted into a threaded component (no text or symbols visible)

③

Diagram of a mechanical device with a hammer striking a cylindrical component submerged in liquid (no text or symbols)

4

Diagram of a mechanical setup with a cylindrical component submerged in liquid, showing internal threading and a downward force (no text or symbols)

5

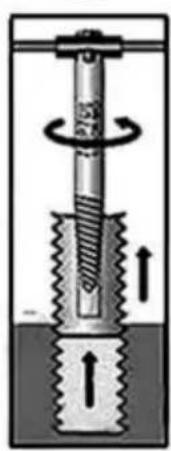

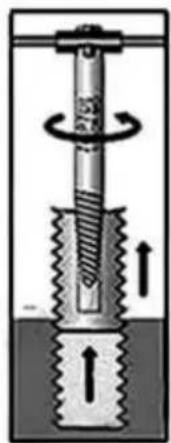

Diagram of a mechanical screw assembly with rotational motion arrows (no text or labels)

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Metallic cylindrical connector with hexagonal end and circular base (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Close-up of a metallic mechanical component with hexagonal end caps (no visible text or symbols)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

	Elementi	Descrizione
1	Nome	Estrattore per bulloni e viti
2	Modello YM-35
3	Parametri QTYÿ35ÿMateriali principaliÿCr-Mo/HSS4241
4	Elenco	Estrattore per bulloni (19 pezzi): #1, #2, #3, #4, #5, #6; 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Punta per trapano inversa (16 pezzi): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Fornire: 1, Punta da trapano: 7/64"ÿ1/8"; 2, Estrattore per bulloni: #1ÿ#2
2	Modello	YM-29
3	Parametri QTYy29yMateriali principaliyCr-Mo
4	Elenco	Estrattore di dadi: 1/4"Interfaccia quadrata: 6 mmy1/4" (6,2 mm)y6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16"yy8mmyy8,2mmyy8,5mmyy11/32"yy8,7mmyy9mmyy9,2 mm, 3/8" (9,5 mm), 10 mmEstrattore di dadi: interfaccia quadrata da 3/8": 13/32" (10,5 mm)7/16"yy11mmyy12mmyy1/2"yy12,5mmyy13mmyy14mmyy9/16"yy14,5 mmyy19/32"yy15 mmyy5/8"yy16 mmyy21/32"yy17mmyy11/16"yy17,5mmyy23/32"yy18mmyy3/4" (19 mm)Dare: 1, manicotto: 3/8" quadrato a 1/4", 1/4" quadrato a 3/8"2yBiella3/8" quadrato a 1/4"yy1/4" quadrato a 1/4"
2	Modello	YM-48
3	Parametri QTY:	48, Materiali principali: Cr-Mo/HSS4241
4	Elenco	Estrattore per bulloni (19 pezzi): #1, #2, #3, #4, #5, #6, 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Punta per trapano inversa (16 pezzi): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Estrattore per dadi (13 pezzi): 1/4", 5/16", 3/8", 10 mm, 7/16",12mmÿ1/2"ÿ13mmÿ9/16"ÿ5/8"ÿ17mmÿ11/16"ÿ3/4"Fornire: 1, Punta da trapano: 7/64"ÿ1/8"; 2, Estrattore per bulloni: #1ÿ#23ÿBiellaÿ3/8" quadrato a 1/4"

MADE IN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a twist drill bit (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Illustration of a bolt being inserted into a liquid container (no text or symbols)

②

Diagram of a mechanical device with a threaded shaft and spring, no text or symbols present

③

Diagram of a mechanical device with a spring and base, showing internal components and a downward arrow (no text or symbols)

4

Diagram of a mechanical setup with a threaded rod inserted into a liquid container (no text or symbols)

5

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

	Rzeczy	Opis
1	Nazwa	Wyciągacz śrub
2	Model	YM-35
3	Parametr Ilość:	35, Główne materiały: Cr-Mo/HSS4241
4	Lista	Wyciągacz śrub (19 szt.): #1, #2, #3, #4, #5, #6; 1/8"5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8",13/32", 7/16", 15/32", 1/2"Wiertła odwrotne (16 szt.): 7/64", 1/8", 1/8", 5/32", 3/16",7/32", 1/4", 19/64", 9/32", 5/16", 11/32", 3/8", 13/32",7/16" 15/32" 1/2"Podaj: 1, Wiertło: 7/64" 1/8" 2, Wyciągarka do śrub: #1, #2
2	Model	YM-29
3	Parametr Ilość:	29, Główne materiały: Cr-Mo
4	Lista	Wyciągacz nakrętek: 1/4" Interfejs kwadratowy: 6 mm, 1/4" (6,2 mm), 6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm, 5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm, 9,2 mm, 3/8 cala (9,5 mm), 10 mmWyciągacz nakrętek: interfejs kwadratowy 3/8": 13/32" (10,5 mm), 7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm, 9/16" 14,5mm , 19/32" 15mm , 5/8" 16mm , 21/32" 17mm , 11/16" 17,5mm , 23/32" 18mm , 3/4" (19 mm)Podaj: 1, Rękaw: 3/8" kwadrat na 1/4", 1/4" kwadrat na 3/8"2. Korbowód: 3/8" kwadrat na 1/4", 1/4" kwadrat na 1/4"
2	Model	YM-48
3	Parametr Ilość:	48, Główne materiały: Cr-Mo/HSS4241
4	Lista	Wyciągacz śrub (19 szt.): #1, #2, #3, #4, #5, #6, 1/8"5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8",13/32", 7/16", 15/32", 1/2"Wiertła odwrotne (16 szt.): 7/64", 1/8", 1/8", 5/32", 3/16",7/32", 1/4", 19/64", 9/32", 5/16", 11/32", 3/8", 13/32",7/16" 15/32" 1/2"Wyciągacz nakrętek (13 szt.): 1/4", 5/16", 3/8", 10 mm, 7/16",12 mm, 1/2 cala, 13 mm, 9/16 cala, 5/8 cala, 17 mm, 11/16 cala, 3/Podaj: 1, Wiertło: 7/64" 1/8" 2, Wyciągarka do śrub: #1, #23. Korbowód: 3/8" kwadrat do 1/4"

WYKONANO W CHINACH

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a helical screw (no text or symbols visible)

Illustration of a bolt being inserted into a liquid (no text or symbols)

②

Diagram of a mechanical device with a threaded component inserted into a liquid, showing no text or symbols.

③

4

Diagram of a mechanical screw being inserted into a liquid container (no text or symbols)

5

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal base (no text or symbols visible)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt with helical end, and a drill bit (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a helical screw (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Illustration of a bolt being inserted into a liquid container (no text or symbols)

②

Illustration of a mechanical tool interacting with a threaded screw and liquid (no text or symbols)

③

Diagram of a mechanical drill bit with a hammer striking the tip and a downward arrow indicating force or direction (no text or symbols)

4

Diagram of a mechanical setup with a cylindrical component submerged in liquid, showing internal structure and flow direction (no text or labels)

5

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Attach to 3/8" square drive socket

Metallic cylindrical connector with threaded shaft and mounting base (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Close-up of a metallic mechanical component with hexagonal end caps (no visible text or symbols)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

	Artikelen	Beschrijving
1	Naam	Schroefbout extractor
2	Model Jaargang 35
3	Parameter QTYÿ35, Belangrijkste materialenÿCr-Mo/HSS4241
4	Lijst	Bout Extractor (19PCS): #1, #2, #3, #4, #5, #6; 1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omgekeerde boorbeitel (16 stuks): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Geven: 1ÿBoor: 7/64"ÿ1/8"ÿ2ÿBoutenextractor: #1ÿ#2
2	Model	Jaargang 29
3	Parameter QTYÿ	29, Belangrijkste materialenÿCr-Mo
4	Lijst	Moerenextractor: 1/4"Vierkante interface: 6 mmÿ1/4"(6,2 mm)ÿ6,5 mmÿ6,7 mmÿ9/32"ÿ7 mmÿÿ7,2 mmÿ7,5 mmÿ7,7 mmÿ5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm9,2 mm, 3/8" (9,5 mm) en 10 mmMoer Extractor: 3/8" Vierkante interface: 13/32" (10,5 mm)ÿ7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm)21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm)3/4" (19 mm)Geef: 1, Mouw: 3/8" vierkant tot 1/4"ÿ1/4" vierkant tot 3/8"2ÿDrijfstang: 3/8" vierkant tot 1/4"ÿ1/4" vierkant tot 1/4"
2	Model	Jaargang 48
3	Parameter QTYy48, HoofdmaterialenÿCr-Mo/HSS4241
4	Lijst	Bout Extractor (19PCS): #1, #2, #3, #4, #5, #6, 1/8"5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omgekeerde boorbeitel (16 stuks): 7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Moerenextractor (13 stuks): 1/4"ÿ5/16"ÿ3/8"ÿ10mmÿ7/16"ÿ12mmÿ1/2"ÿ13mmÿ9/16"ÿ5/8"ÿ17mmÿ11/16"ÿ3/4"Geven: 1ÿBoor: 7/64"ÿ1/8"ÿ2ÿBoutenextractor: #1ÿ#23ÿDrijfstang: 3/8" vierkant tot 1/4"

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a helical screw (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

Illustration of a bolt being inserted into a liquid container (no text or symbols)

②

Illustration of a hand using a tool to lift a screw into a liquid (no text or symbols)

③

Diagram of a mechanical device with a hammer striking a cylindrical component and a downward arrow indicating force or direction (no text or symbols)

④

Diagram of a mechanical setup with a cylindrical component submerged in liquid, showing internal structure and force arrow (no text or labels)

⑤

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal nut (no text or symbols visible)

Step 3: Installation is completed

Diagram of a screw with threaded shaft and base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

	Föremål	Beskrivning
1	Namn	Skruvbultsutdragare
2	Modell	YM-35
3	Parameter QTY	ÿ35ÿHuvudmaterialÿCr-Mo/HSS4241
4	Lista	Bolt Extractor (19PCS): #1ÿ#2ÿ#3ÿ#4ÿ#5ÿ#6ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Omvänd borrmaskinÿt 16PCSÿÿ7/64"ÿ1/8"ÿ1/8"ÿ5/32"ÿ3/16"ÿ7/32"ÿ1/4"ÿ19/64"ÿ9/32"ÿ5/16"ÿ11/32"ÿ3/8"ÿ13/32"ÿ7/16"ÿ15/32"ÿ1/2"Geÿ1ÿborrskärÿ7/64"ÿ1/8"ÿ2ÿBult Extractorÿ#1ÿ#2
2	Modell	YM-29
3	Parameter QTY	29-Mo
4	Lista	Mutterdragare 1/4" fyrkantigt gränssnitt 6mm1/4" 6.2mm 6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm,9,2 mm, 3/8" (9,5 mm), 10 mmMutterdragare 3/8" fyrkantigt gränssnitt 13/32" 10,5 mm 7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm,9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm),21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm),3/4" (19 mm)Ge 13/8" kvadrat till1/4" 1/4" kvadrat till3/8"2 Vevstång: 3/8" kvadrat till 1/4" 1/4" kvadrat till 1/4"
2	Modell	YM-48
3	Parameter QTY	48-Mo/HSS4241
4	Lista	Bolt Extractor (19PCS): #1 #2 #3 #4 #5 #6 1/8" 5/32" 3/16" 7/32" 1/4" 9/32" 5/16" 11/32" 3/8" 13/32" 7/16" 15/32" 1/2" Omvänd borrmaskin 16PCS7/64" 1/8" 1/8" 5/32" 3/16" 7/32" 1/4" 19/64" 9/32" 5/16" 11/32" 3/8" 13/32" 7/16" 15/32" 1/2" Mutterdragare (13 st): 1/4" 5/16" 3/8" 10mm7/16" 12mm1/2" 13mm9/16" 5/8" 17mm11/16" 3/4" Ge 1är7/64" 1/8" 2 Extractor #1 #2 3 Vevstång: 3/8" kvadrat till 1/4"

GJORT I KINA

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three metallic mechanical components: a hexagonal nut, a threaded bolt, and a helical drill bit (no text or symbols visible)

Close-up of a hand using a drill bit to adjust a screwdriver, with a red arrow indicating the tool's direction (no text or symbols visible)

Clamp the hexagonal side with adjustable wrenches, spanners and vice grip pliers for easy turning.

Step 1: Install the connecting rod on the electric drill bit and tighten it

Close-up of hands holding a mechanical tool with a red arrow pointing to a hole (no text or symbols visible)

Step 2: Select the required nut extractor size and install it on the connecting rod

Close-up of a black and metallic screwdriver inserted into a hexagonal base (no text or symbols visible)

Step 3: Installation is completed

Pasos para utilizar la broca inversa

Diagram of a screw with threaded shaft and mounting base (no text or symbols)

Close-up of a screw being inserted into a nut, showing thread and shaft assembly (no text or symbols)

	Elementos	Descripción
1	Nombre	Extractor de tornillos y pernos
Modelo 2		YM-35
3	Cantidad de parámetros: 35, Materiales principales: Cr-Mo/HSS4241
4	Lista	Extractor de pernos (19 piezas): n.° 1, n.° 2, n.° 3, n.° 4, n.° 5, n.°5/32" 3/16" 7/32" 1/4" 9/32" 5/16" 11/32" 3/8"13/32", 7/16", 15/32", 1/2"Broca inversa (16 piezas): 7/64", 1/8", 1/8", 5/32", 3/16",7/32" 1/4" 19/64" 9/32" 5/16" 11/32" 3/8" 13/32"7/16", 15/32", 1/2"Proporcionar: 1. Broca: 7/64", 1/8"; 2. Extractor de pernos: n.° 1, n.°
Modelo 2		YM-29
3	Cantidad de parámetros: 29, Materiales principales: Cr-Mo
4	Lista	Extractor de tuercas: interfaz cuadrada de 1/4": 6 mm, 1/4" (6,2 m)6,5 mm, 6,7 mm, 9/32" (7 mm), 7,2 mm, 7,5 mm, 7,7 mm5/16" (8 mm), 8,2 mm, 8,5 mm, 11/32" (8,7 mm), 9 mm9,2 mm, 3/8" (9,5 mm), 10 mmExtractor de tuercas: 3/8" Interfaz cuadrada: 13/32" (10,5 mm)7/16" (11 mm), 12 mm, 1/2" (12,5 mm), 13 mm, 14 mm9/16" (14,5 mm), 19/32" (15 mm), 5/8" (16 mm),21/32" (17 mm), 11/16" (17,5 mm), 23/32" (18 mm),3/4" (19 mm)Dar: 1 Manga: 3/8" cuadrado a 1/4", 1/4" cuadrado a 3/8"2 Biela: 3/8" cuadrado a 1/4", 1/4" cuadrado a 1/4"
Modelo 2		YM-48
3	Cantidad de parámetros: 48, Materiales principales: Cr-Mo/HSS4241
4	Lista	Extractor de pernos (19 piezas): n.° 1, n.° 2, n.° 3, n.° 4, n.° 5, n.° 6, 1/5/32" 3/16" 7/32" 1/4" 9/32" 5/16" 11/32" 3/8"13/32", 7/16", 15/32", 1/2"Broca inversa (16 piezas): 7/64", 1/8", 1/8", 5/32", 3/16",7/32" 1/4" 19/64" 9/32" 5/16" 11/32" 3/8" 13/32"7/16", 15/32", 1/2"Extractor de tuercas (13 piezas): 1/4", 5/16", 3/8", 10 mm, 7/16",12 mm, 1/2", 13 mm, 9/16", 5/8", 17 mm, 11/16", 3/4"Proporcionar: 1. Broca: 7/64", 1/8"; 2. Extractor de pernos: n.° 1, n.° 23 Biela: 3/8" cuadrado a 1/4"

HECHO EN CHINA

VEVOR®

TOUGH TOOLS, HALF PRICE
