USER MANUAL YHEO-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LAB DISTILLATION APPARATUS USER MANUAL

MODEL:YHEO-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LAB DISTILLATION APPARATUS

MODEL:YHEO-3

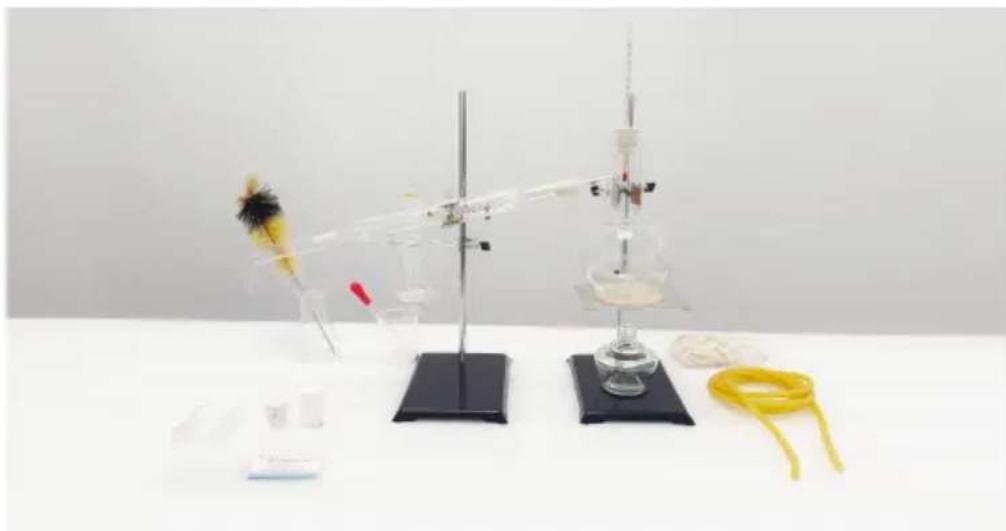

Laboratory distillation setup with glassware and tubing on a white table (no visible text or labels)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear safety goggles and duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Lab Distillation Apparatus.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed weight capacities.

4. Use only on a flat, level, hard and smooth surface capable of sa supporting a fully loaded Lab Distillation Apparatus.

5. Use as intended only.

6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

INSTRUCTIONS

Thank you very much for choosing this model.Glass fittings should be handled with care. Please read all of the instructions before using information will help you achieve the best possible results.

Parts name	Number of parts	Description
Flask	1	500ml
Coil condenser	1	/
Pear-shaped Separatory funnel	1	125ml
Conical flask	1	100ml
Glass stopper	2	19#
beaker	1	100ml
Glue head dropper	1	Red glue head
Alcohol burner	1	150ml
thermometer	1	100°C
Rubber plug	4	/
Latex tubing	1	2m
Vacuum grease	1	Vaseline
PH test paper	1	/
Flask brush	1	Small size
Iron support stand	2	With 40cm supporting pole
Flask clamp	2	/
Cross clamp	2	/
Horn tube	1	/
Circular ring	2	1 of 5.1cm, 1 of 7.3
Terracotta net	1	/

OPERATION

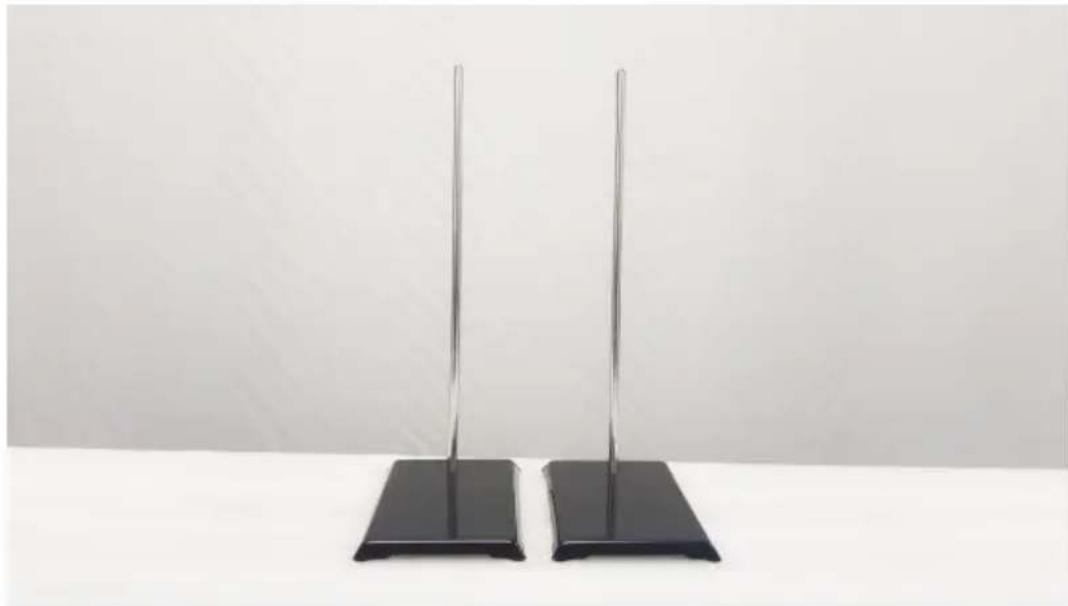

1. Assemble the iron support stand;

Two black rectangular electronic devices with vertical metal legs placed on a white surface against a plain background (no text or symbols visible)

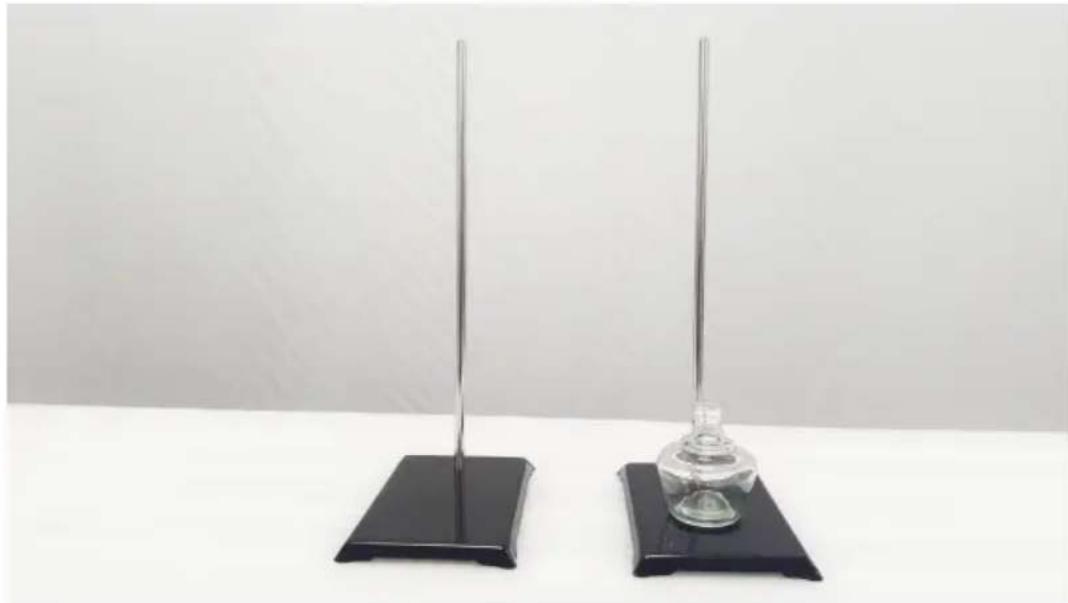

1. Place alcohol burner;

Two laboratory glassware items on black stands, one with a clear glass cap and the other with a lit alcohol lamp (no text or symbols visible)

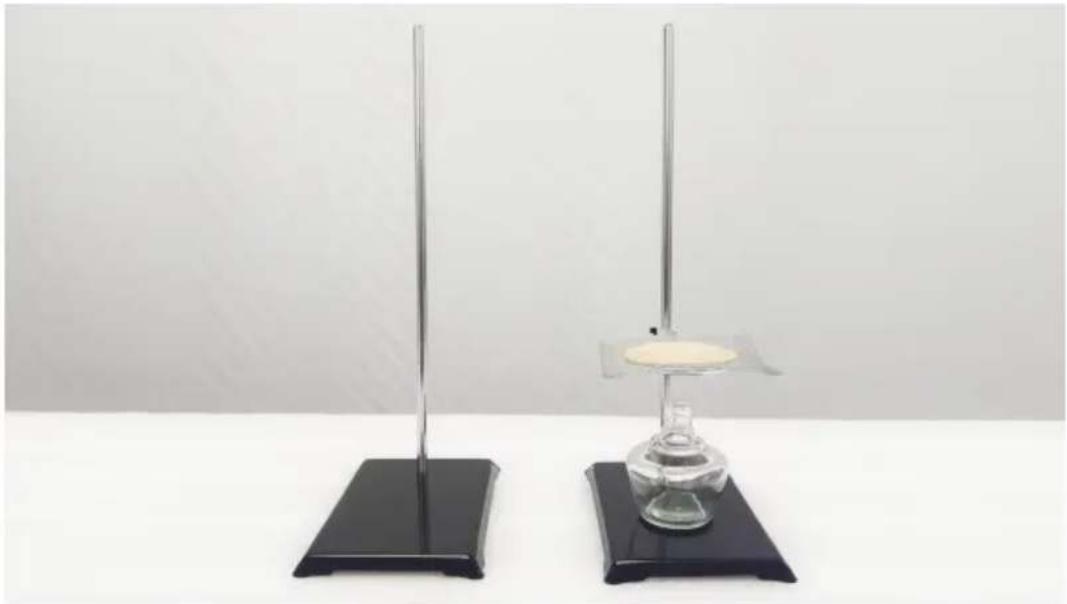

1. Install the circular ring and place the terracotta net on the circular I

Laboratory setup with two glassware on black stands, one emitting a flame (no text or symbols visible)

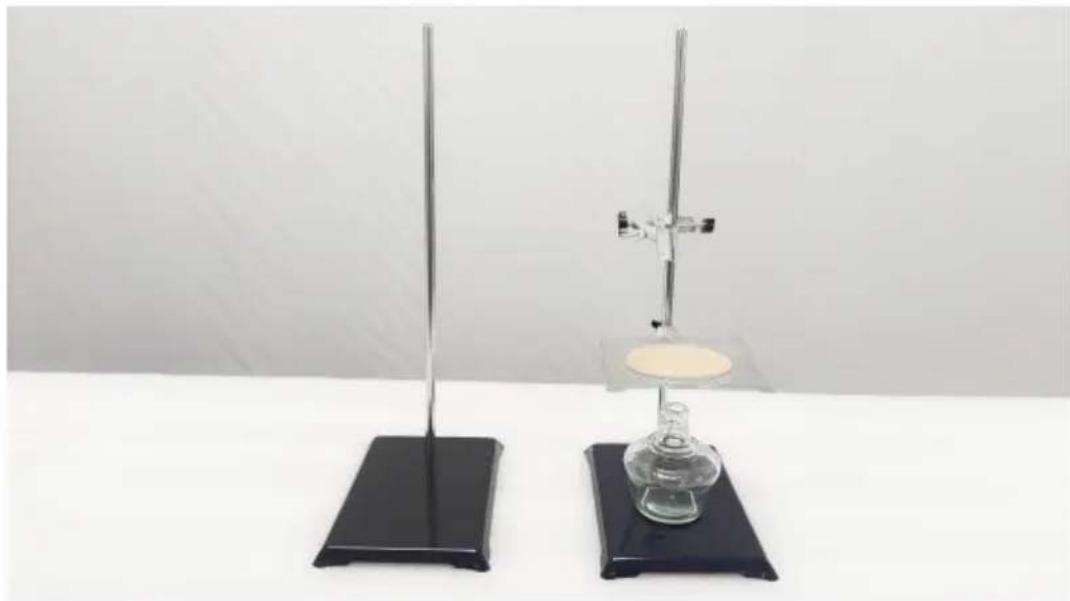

1. Install the cross clamp and flask clamp at the appropriate height;

Laboratory setup with two stand-mounted glassware and a conical flask mounted on a black base (no visible text or symbols)

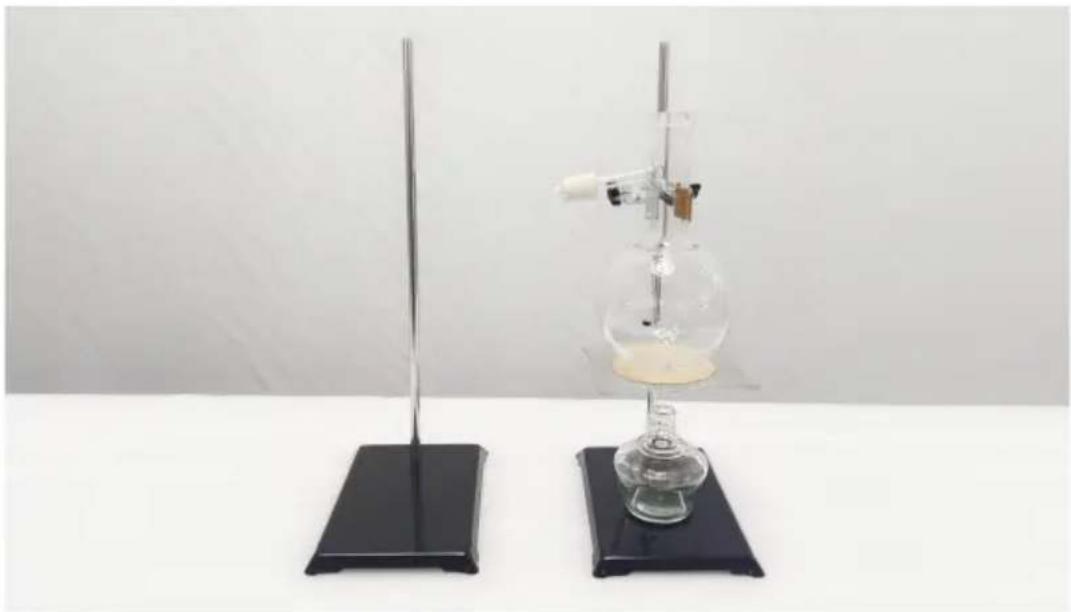

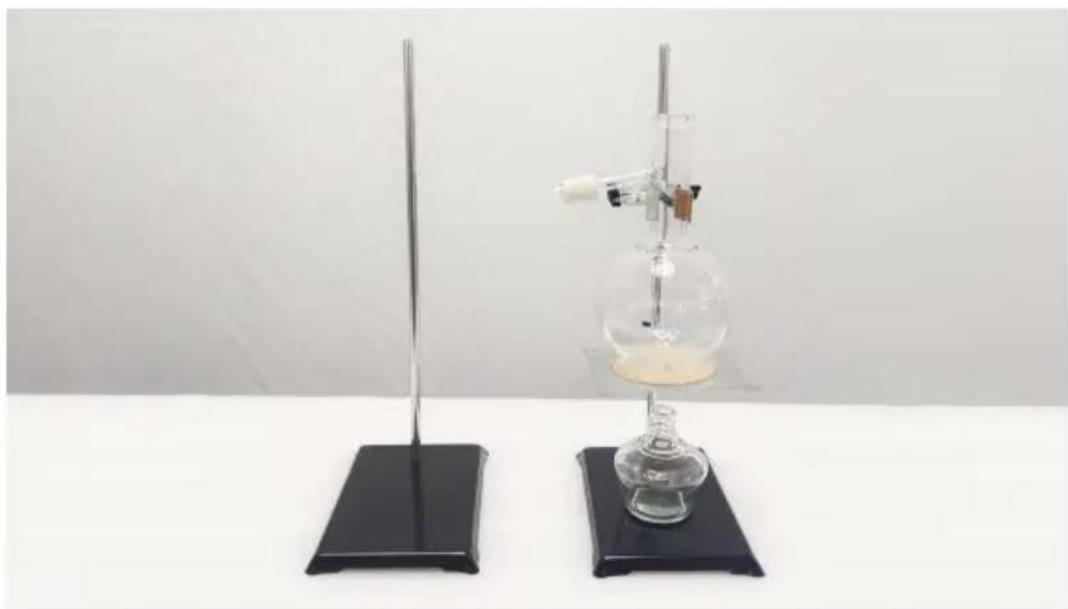

1. Install the flask;

Laboratory setup with a glass flask on a black stand and a vertical rod, no visible text or symbols

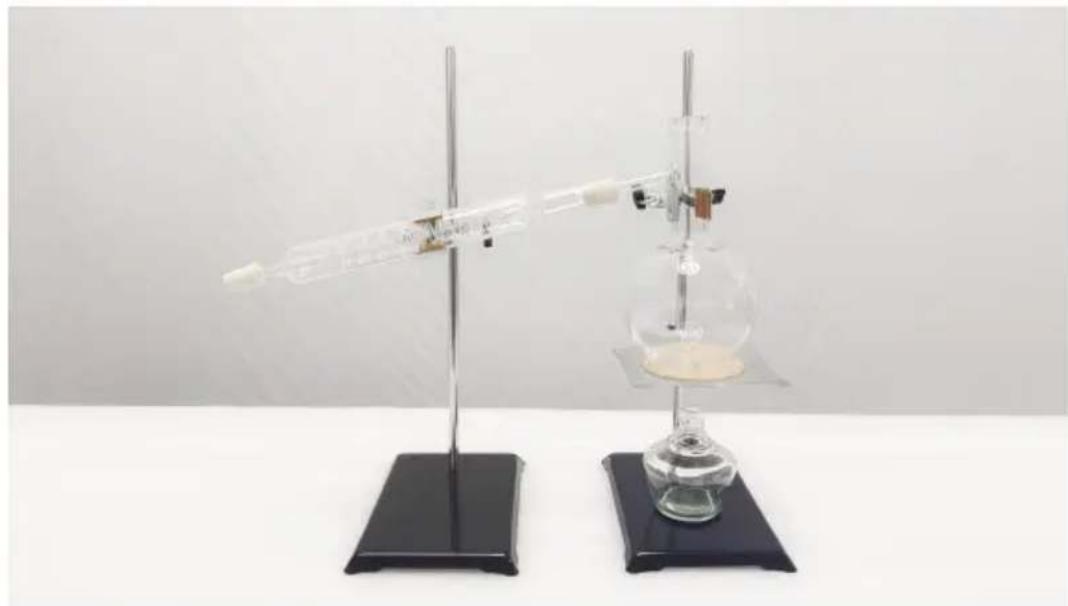

1. Install the coil condenser and fix it with the flask clamp

Laboratory setup with glassware and a vertical condenser mounted on a black stand, no visible text or symbols

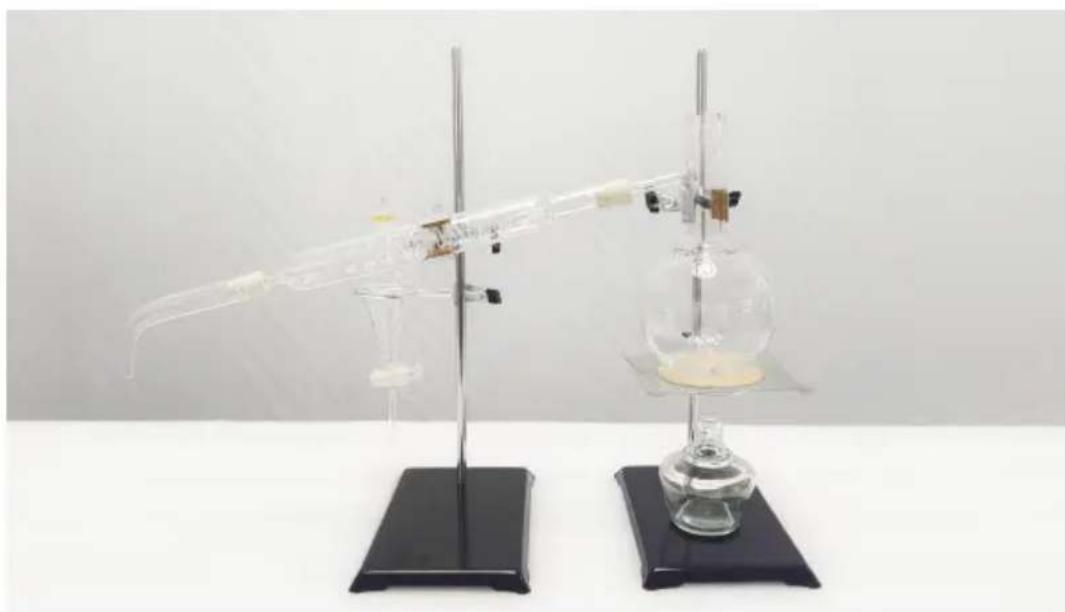

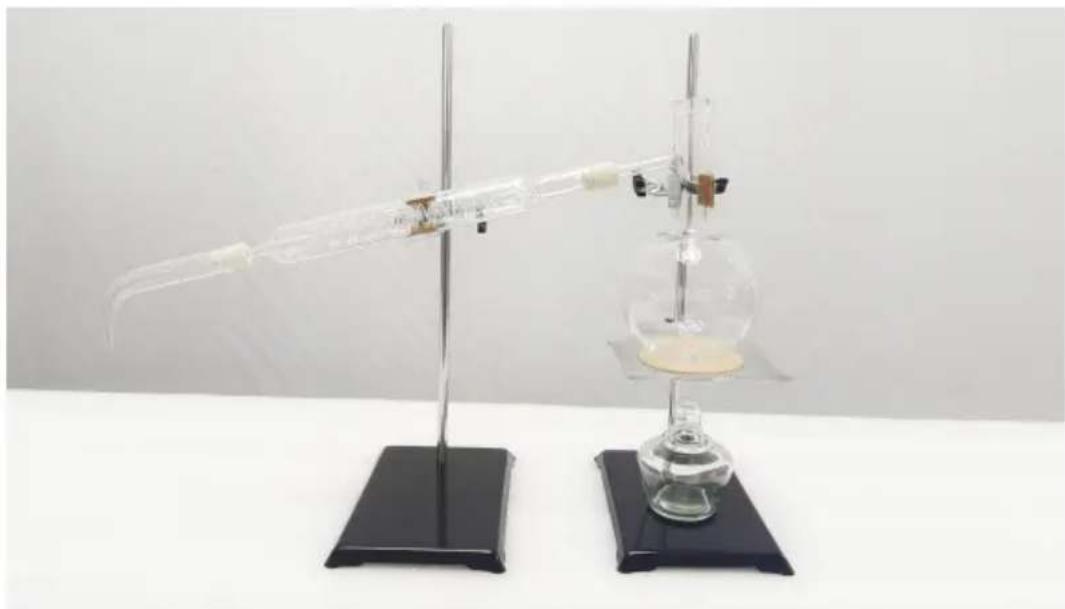

1. Install the horn tube ;

Laboratory distillation setup with glassware and a round-bottom flask on a stand (no visible text or labels)

1. Install the circular ring at the appropriate height of the iron support stand, and place the pear-shaped separatory funnel on it, then place beaker below the outlet of the pear-shaped separatory funnel;

Laboratory distillation setup with glassware and a round-bottom flask on a black stand (no visible text or labels)

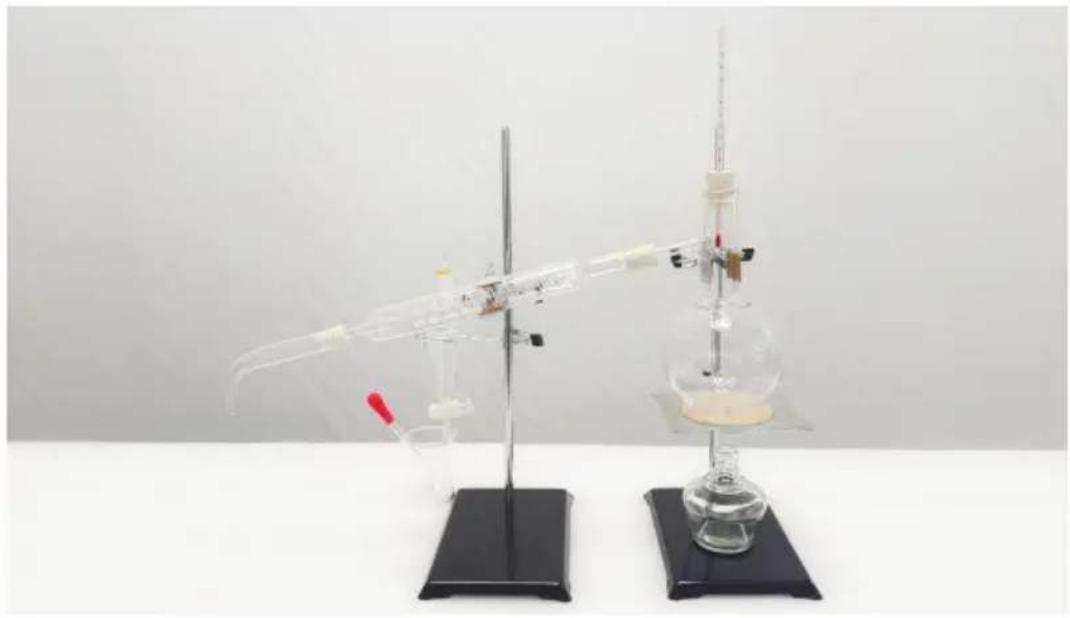

1. Screw the thermometer into the rubber plug and install the rubber in the mouth of the flask.

Laboratory distillation setup with glassware and a round-bottom flask on a stand (no visible text or labels)

PRODUCT PARAMETER

Model YHEO-3

Heating Method Alcohol Burner

Flask Type Distilling Flask

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET-EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support
