XZ-628 - Ice machine Vevor - Free user manual and instructions

Product Type	Electric Ice Machine (Blender)
Brand	Vevor
Model	XZ-628
Main Use	Preparation of hard ice cream, frozen yogurt, or milk mixture with frozen fruits
Hopper Capacity	About half volume for ice, 1/5 for fruits
Power Supply Type	Mains, voltage according to nameplate (estimated 220-240 V, 50 Hz)
Power	Not specified (estimated 300-500 W)
Dimensions (approx.)	40 × 30 × 50 cm
Weight (approx.)	15 kg
Main Function	Mixing and dispensing ice by handle and spiral action
Cleaning Function	Self-cleaning button with water supply
Container Material	Hopper, spiral, and metal panels with coating
Water Inlet and Drainage	Water inlet hose and drainage hose
Safety	Mandatory grounding, surge protection, do not tilt more than 10°
Maintenance	Wet cleaning after each use, air drying
Spare Parts	Hopper (2), discharge opening (2), manual
Warranty	Electronic warranty certificate via www.vevor.com/support
Applications	Fresh drink store chains, bars, fast foods, entertainment venues
Recommended Ice Temperature	-12°C
Frozen Fruit Diameter	15-20 mm

Frequently Asked Questions - XZ-628 Vevor

How to start the XZ-628 machine?

Make sure the power switch is on (red LED indicator). Place hard ice at -12°C into the hopper, then lower the handle to activate the spiral. The operation takes about 20 seconds before pulling the handle to dispense.

What types of ice can I use with this machine?

The machine is designed for hard ice cream, frozen yogurt, or a milk mixture with frozen fruits. Fruits must be cut into pieces of 15-20 mm.

How to clean the Vevor XZ-628 machine?

Use the self-cleaning button: connect a clean water hose and place the drainage into a container. Press the button and lower the handle to let water flow. Repeat until the hopper and spiral are clean.

The machine does not start, what to do?

First check the power supply voltage: it must match the nameplate. If the voltage is correct, reinsert the plug. If the problem persists, the switch or motor may be defective. Contact support.

How to install the machine correctly?

Place it on a stable and level surface, with proper grounding. Ensure the power cord is plugged into a compliant outlet. The water inlet hose must be in clean water and the drainage hose in a sink or bucket.

What is the hopper capacity?

The hopper should be filled halfway for hard ice. For frozen fruits, fill to 1/5 of the volume.

The machine makes noise or vibrates, is this normal?

Slight noise is normal, but excessive vibration indicates a problem. Check that the machine is on a flat surface and that all parts are tightly secured. If necessary, adjust the screws.

Can I use the machine without grounding?

No, reliable grounding is mandatory to avoid electrical hazards. Do not share the outlet with other devices.

How to maintain the machine long-term?

Unplug and clean the machine after each use. Wipe the interior and exterior with a damp cloth. Do not pour corrosive liquids and keep the machine dry when not in use.

Where to find spare parts or after-sales service?

Contact technical support via www.vevor.com/support. You will also find the electronic warranty certificate there.

USER MANUAL XZ-628 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC ICE CREAM MIXER MACHINE USER MANUAL

Model: XZ-628

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices

Attention

It is mainly used for hard ice cream or frozen yogurt or a mixti milk with frozen fruit. Applicable to cold drink chain stores, bars, fast food restaurants and other entertainment places.

Before using the Machine, please read this manual carefully and it properly

1.Before using the Machine, clean it inside and outside with a damp
2. Do not fill the Machine with corrosive liquids. Do not directly pour into the refrigerator.
3. When the Machine is not used for a long time, please disconnect power supply and keep it dry.
4.Machine clean the inner chamber to prevent odor and bacteria and ensure food safety.

Installation

(1) Surface: Place the machine on a stable surface to ensure that the machine is vertically horizontal
(2) Grounding: reliable grounding, according to the grounding and voltage requirements on the machine rated label

Note: stable ambient temperature, good ventilation, stable voltage, good cleaning conditions will make the machine have higher efficiency, less power consumption and longer life.

Installation process

1) Position selection places the machine on a sufficiently stable and ro level stage to safely support its weight.
2)power suppl

a.Select the appropriate power supply according to the voltage and pot on the nameplate
b. Connect the power cord and power supply to ensure that the grou wire is firmly connected to the ground wire

Note: For safety reasons, make sure the ground connection is good. external wires and other appliances must meet national standards.

3) Water input and drainage output Put the inlet pipe into the clean a clear water, and put the drainage pipe into the drainage bucket.

Operation

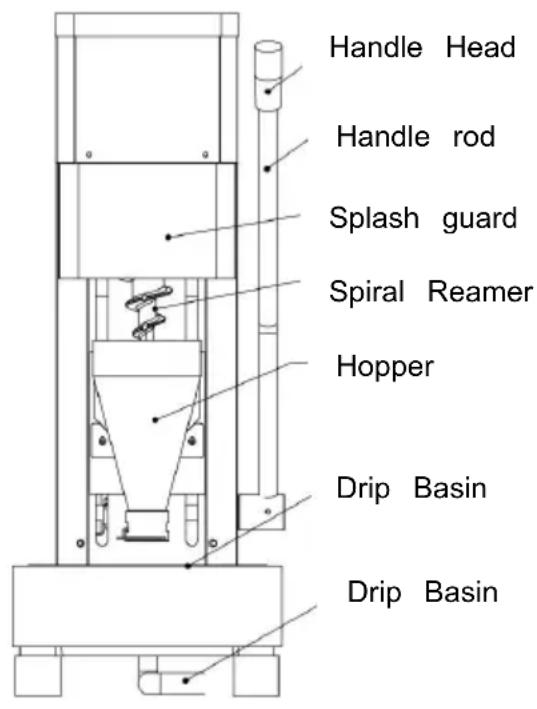

1. Appearance introduction

Power Switch

Cleaning Button

2.How to make a whirlpool of ice cream

1)put in order

Clean this device with a wet cloth before making the vortex ice cream. The specific steps are described as follows:

a.Make sure to pull the plug
b. Remove the funnel, place it into disinfectant in water and food gr atanks, clean until clean, then dry the inside with a dry cloth
c. Clean the spiral with a wet cloth until clean, and then dry with a d. Clean the other panels of this machine with a wet cloth and dry with a dry cloth.
e. After cleaning, return the funnel to the machine.

After routine operation, you may need to remove the shields and fence clean them thoroughly and clean the mixer for sanitary reasons.

2)operate

a.Insert a reliable power supply that meets the rating label requirement b.Make sure that the switch on the funnel is turned on
c. Turn on the power switch, and the red LED light of the switch is d. Put the prepared hard ice cream (recommended at-12'C) into the funnel about half of the volume of the funnel
e.Frozen fruit was placed in a funnel, and the fruit slices were 15-20 diameter and 1 / 5 of the volume of the funnel
f.Pull the handle down, the funnel rises, and the spiral dragon begins in the funnel for 20 seconds
g. Continue pulling the handle and vortex the ice cream from the funnel drain all of the ice cream
h.Pull back the handle, the funnel down, the spiral stops

3)Automatic cleaning

a.Make sure that the water inlet pipe enters a clean water bottle b. Ensure that the dripping drain outlet pipe leads to a drain pipe or bin
c. Press the self-cleaning button, and pull down the handle, water into funnel and clean the auger, do not exceed the highest sign line.
d. Continue pressing the button and pull the handle down until the fui

and spiral are clean

eRelease the button and pull back to the handle to remove the was water.

Troubleshooting methods

Question	Possible cause	Rx
The machine does not work	1. the voltage is to high or too low	Use the regulator
	power suppl	Insert the plug again
	The switch is broke	Change the switch
	Motor failure	Replace the motor
Often shut down	Input voltage or the problem	Use the regulator
Noise and vibration	The machine floor is uneven	Place the machine or flat and stable surface
	The parts on the machine are loose	Adjust the parts and tighten them

Packing List

No.	Item	Qty	Remark
1	Mixer Machine	1 set
2	Hopper	2 set
3	Discharge opening	2 pcs
4	Manual	1 pcs

Safety Precautions

Before using this machine, read the following instructions:

pay attention to:

• This machine must be grounded reliably; do not share the socket with other electrical appliances.

• Check the voltage specification on the type plate corresponds to that the energy supply.

• The machine cannot tilt by more than 10 degrees during the opera
• When the machine is plugged in, cover the plexiglass protective cover of the machine. Do not put hands and hard objects within the mixing ratio of the screw separator, which may cause serious harm to the body or machine.
• The machine should be unplugged and cleaned after each use. After cleaning, wipe it with a towel. Wipe it off with a wet towel. Do not directly with water.
• The local machine is strictly prohibited to use by minors.
