INSTRUCTIONS

Thank you very much for choosing this dog gate .

Please read all of the instructions before using it.

The information will help you achieve the best possible results.

Model and Parameters

Model	YFB1001W	YFB1001B
Width	192inch (487.7cm)
Height	28inch (71.1cm)
Colour	White	Black

ASSEMBLY AND USE

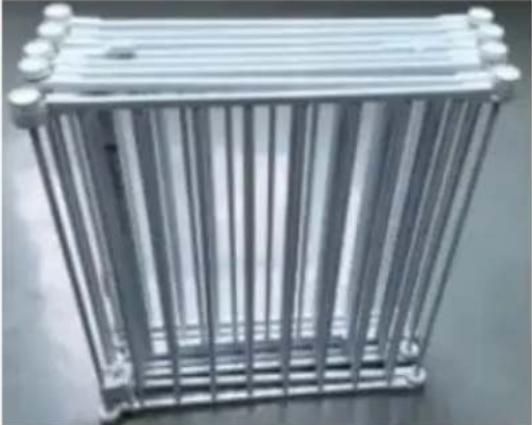

1. Component Diagram Please check to make sure you have the following parts

A. Gate Frame Assembly	B. Plastic Mounting Brackets *4	C. 1"Screws *8

1. Read and follow all instructions carefully to ensure that your install is proper. Improper installation could result in the fence becoming uns

or cause the fence to detach. Always make sure the extensions secure attached to the fence before using. The safety of your child is your responsibility.

1. The four mounting brackets must be used in securing the fence to wall. These brackets prevent the fence from dislodging from its opening and becoming unstable. The maximum width of this fence is 192 inch.
2. Periodically check the fence for signs of damage, wear, or missing components. Do not use if any part is missing, worn or damaged.

Option A: Installing Your Gate Between Two Walls

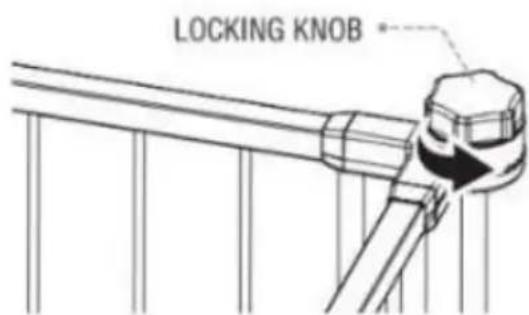

1. Unfold the gate frame by turning the locking knobs counter clockw at each pivoting joint. Loosen the knobs enough to allow the gate to open freely without fully removing the knobs.

LOCKING KNOB

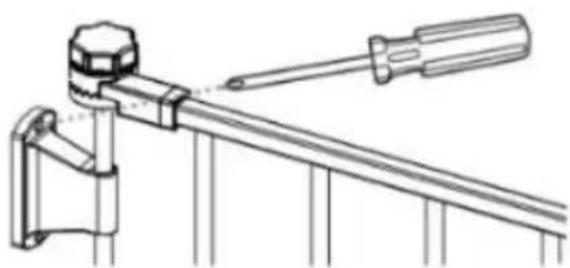

1. Use a screwdriver to attach the plastic mounting brackets to a su with the specified width, and it also mentions the recommended instal height as illustrated in a diagram.

The recommended installation height for the brackets is as illustrated diagram.

Technical line drawing of a mechanical lever assembly with a screwdriver and lever (no text or symbols)

1. Arrange the gate frame to your desired configuration, then tighten the locking knobs.

Note: This gate is designed to fit openings 51.5 inches to 192 inches

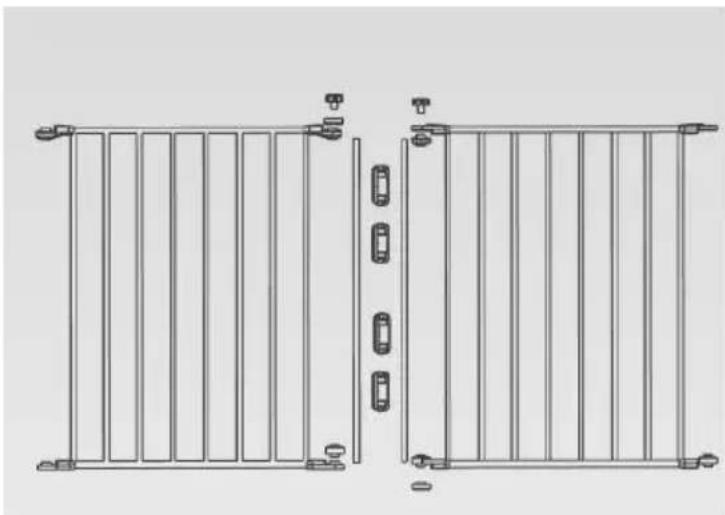

Option B: Gate Frames Can Be Installed As A Fence

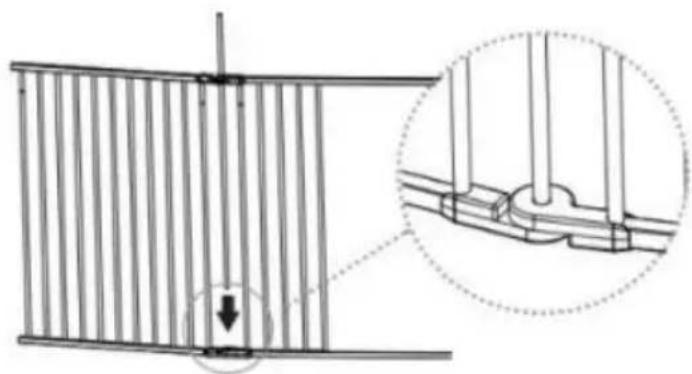

1. Unfold the gate frame by turning the locking knobs counter clockw each pivoting joint. Loosen the knobs enough to allow the gate to sv open freely without fully removing the knobs, Release the vertical met pivot bars at each gate frame by removing the following parts from t assembly.

Technical line drawing of two vertical metal frame structures with mounting feet and side lockers (no text or symbols)

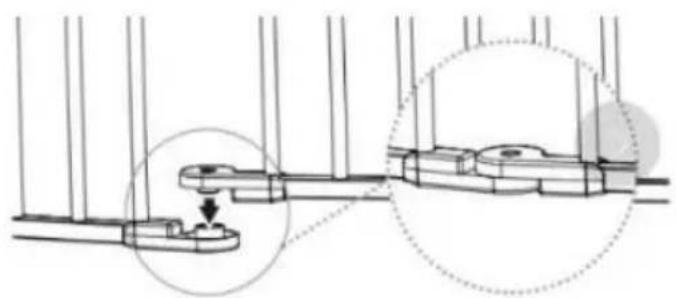

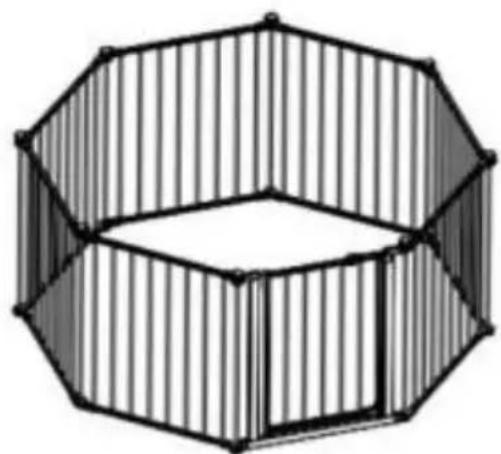

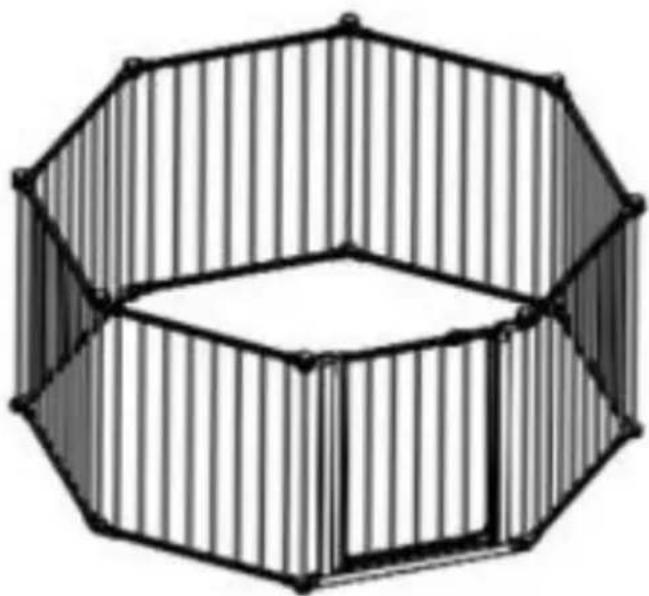

1. Position the play yard into your desired configuration (e.g. octagon, square), then join the free ends of the play yard together at the pla joints.

Technical line drawing of a mechanical assembly with two circular insets showing close-up views (no text or symbols)

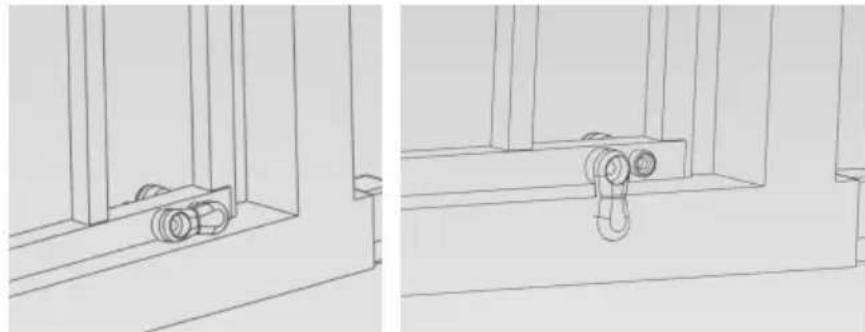

1. Insert one of the previously removed metal pivot bars through the opening created by joining the upper plastic joints. Guide the metal p bar downward into the circular housing on the lower plastic joint.

Technical diagram showing a structural connection with an inset close-up of a bracket detail (no text or symbols)

1. Reassemble the upper locking joint by adding one of the previously removed toothed disks and locking knobs.

Mechanical assembly diagram showing gear and shaft components with a magnified inset (no text or symbols)

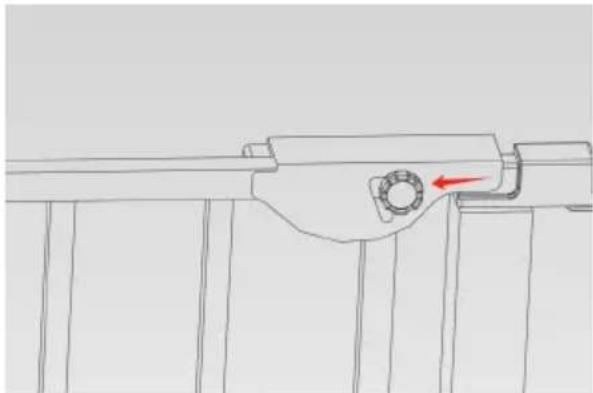

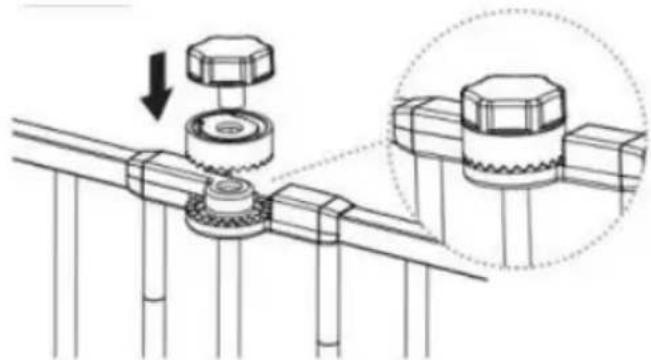

1. Tighten each of the locking knobs by turning them clockwise, fixing fence into the configuration you have chosen. To position the fence in new configuration or shape, simply loosen each of the locking knobs, adjust and retighten.

NOTE: When adding or removing additional panel units to the configu panels must be added or subtracted in sets of two for the freestandi enclosure to function properly.

Geometric 3D diagram of a hexagonal prism with vertical striped edges (no text or symbols)

Door Lock Operation

1. To open the gate, start with rotating the base lock in the upward direction. You can rotate the base lock in either direction.

Technical line drawing of two mechanical components with mounting brackets and a hanging hook (no text or symbols)

Unlocked Locked

1. Pull both sides of the slide lock sideways away from the metal lift while simultaneously pivoting the metal lift latch upward from the gate's door frame. To relock the gate, close the door completely and drop metal lift latch back into place. The slide lock will return to it's lock position on its own.

Technical line drawing of a mechanical assembly with a red arrow indicating a component (no text or symbols present)

Fold the fence

1. Loosen all of the locking knobs so the fence can move freely and becomes flexible at the joints.
2. Remove one of the locking knobs from the fence and remove one vertical tube.
3. Pull the two plastic joints and the top and bottom of the fence a
4. Fold and put away.

Product & Parts

WARNING

- To prevent serious injury or death, securely install the gate or enclosure and it according to the manufacturer's instructions.

- Never use with a child able to climb over or dislodge the gate or enclo-s

- This product will not necessarily prevent all accidents.

- Never leave children unattended.

- Use only with the locking mechanism securely engaged

- Intended for use with children from 8 months through 24 months of age.

- Stop using the gate if any parts are missing or become damaged.

- Children may die or been seriously injured when gates are not securely in

- ALWAYS install and use gates as directed using all required parts.

- Periodically check all fasteners to be sure they are tight and secure.

- Adult Assembly Required.

- The surfaces that the gate is to be fixed to must be suitable for the purp must be structurally sound.

- Indoor use only. It is not to be exposed to outdoor elements.

- Install this gate away from heaters and other sources of heat.

- STOP using it when a child can climb over or dislodge the gate.

- You MUST install [wall cups] to keep the gate in place. Without [wall cups] child can push out and escape.

- NEVER use it to keep the child away from a pool.
