XZ-40 - Pasta machine Vevor - Free user manual and instructions

Product Type	Manual dough divider
Brand	Vevor
Model	XZ-40
Main material	Metal and plastic
Weight	Approximately 5 kg
Dimensions (L x W x H)	Approximately 35 x 25 x 30 cm
Power supply	Manual (handle and chain guide)
Basin capacity	Approximately 1 kg of dough
Main functions	Dividing dough into uniform portions
Clamping plate	Yes, to hold the dough
Dividing plate	Yes, to cut the dough
Spatula	Included for handling dough
Front footrest	To stabilize the machine
Included accessories	Basin, pressure plates, screws, pusher stick
Safety	Not suitable for children under 14 years old. Use with pusher stick, not hands.
Cleaning and maintenance	Clean immediately after use with a clean cloth. Disassemble the head for thorough cleaning. Lubricate the head regularly.
Repairability	Spare parts available via Vevor support
Warranty	Electronic warranty certificate at www.vevor.com/support
Country of manufacture	China
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Representative (United Kingdom)	YH CONSULTING LIMITED, Office 147, Centurion House, London

Frequently Asked Questions - XZ-40 Vevor

How to install and use the Vevor XZ-40 pasta machine?

Place the machine on a dry, flat surface. Put cooking oil in the tray, then distribute the dough in the basin. Press the guide bar 2-3 times to compact the dough, then push the handle. Slowly release the chain guide to finish.

How to clean the machine after use?

Clean immediately after each use. Remove the basin, unscrew the screws on both sides of the head, rotate the head 90°, and wipe with a clean cloth. For complete cleaning, unscrew all screws of the tool holder and remove the plastic plates.

What safety precautions should be observed?

Do not let children under 14 years old use the machine. Always use the pusher stick to push the dough, never hands. Food acids corrode metal, so clean after each use.

Can I use the machine without the pusher stick?

No, it is mandatory to use the pusher stick to avoid injury. Never put your fingers directly into the feed inlet.

What type of dough can I use with this machine?

The machine is designed for fresh pasta dough. Avoid hard materials that could damage the machine.

How to maintain the machine to extend its lifespan?

Clean daily. Lubricate the head regularly, especially after long periods of non-use. Keep the machine in a dry place.

Is the machine easy to disassemble?

Yes, you can unscrew the screws of the head and tool holder to remove the plates. Follow the instructions in the manual to avoid damaging the parts.

Where can I find spare parts?

Contact Vevor support at www.vevor.com/support to obtain spare parts and warranty.

Can the machine be used by persons with reduced mobility?

Yes, but under adult supervision. Persons with reduced capacities should be accompanied.

What to do if the machine does not work correctly?

Check that the machine is properly installed on a flat surface and that the dough is not too hard. Consult the manual or contact Vevor technical support.

USER MANUAL XZ-40 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DOUGH DIVIDER

MODEL:XZ-10, XZ-40, XZ-18

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:XZ-10, XZ-40, XZ-18

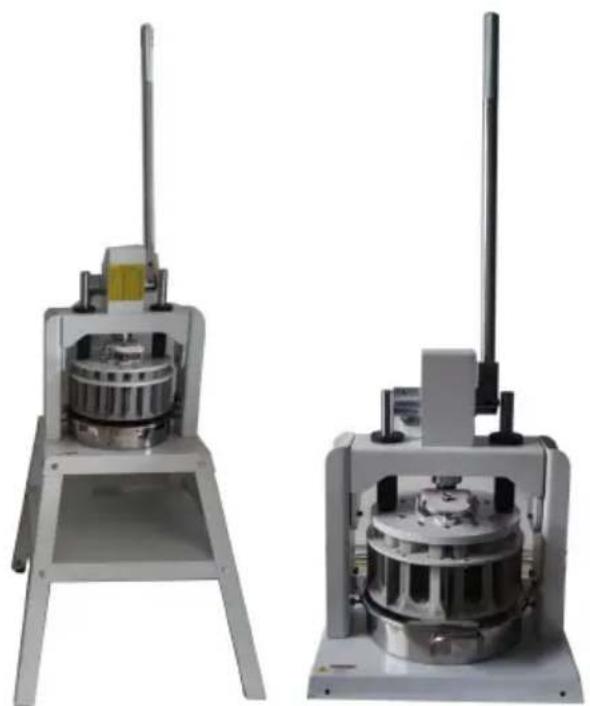

Two industrial mechanical devices with cylindrical components and vertical metal posts, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Before operating this device, please read this instruction manual completely and keep it handy for future reference. Always follow basic safety precautions when using these devices. These include:

1. Do not allow children younger than 14 years old to use the machine product may only be used or maintained by children 14 years of age older, individuals with reduced physical, sensory, or mental capacities, unskilled individuals with adequate adult supervision. Children must not play with the device.

2. For optimal operation and service life of the device, please follow the instructions.

3. Food acids will corrode the metal. Always clean this food preparation equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.

4. The use of accessories or modifications not provided by the manufacturer may cause hazards. This product must only be used for intended purpose and in the manner indicated in the instructions. All other types of use shall be considered inappropriate and hazardous. 1 manufacturer shall not be responsible for any improper or incorrect us and installation damage.

5. Don't put the dough into the feed inlet with your hands, press down the stick.

SAVE THESE INSTRUCTIONS

Installation and operation procedures

1. The machine needs a dry and flat ground, and the machine is st placed on the floor without vibration to ensure good performance.

2. Before using the machine, please put some cooking oil into the tray evenly put the dough into the material tray, mix according to the prescription, and let the dough relax for a while.

3. Place the basin on the work platform and secure it. First press th

bar 2-3 times to compacting the dough and ensuring an even cut, the press down on the handle and press the guide bar to the bottom. F slowly release the guide bar with your hand to ensure that the tool raised to the original position and the job is completed.

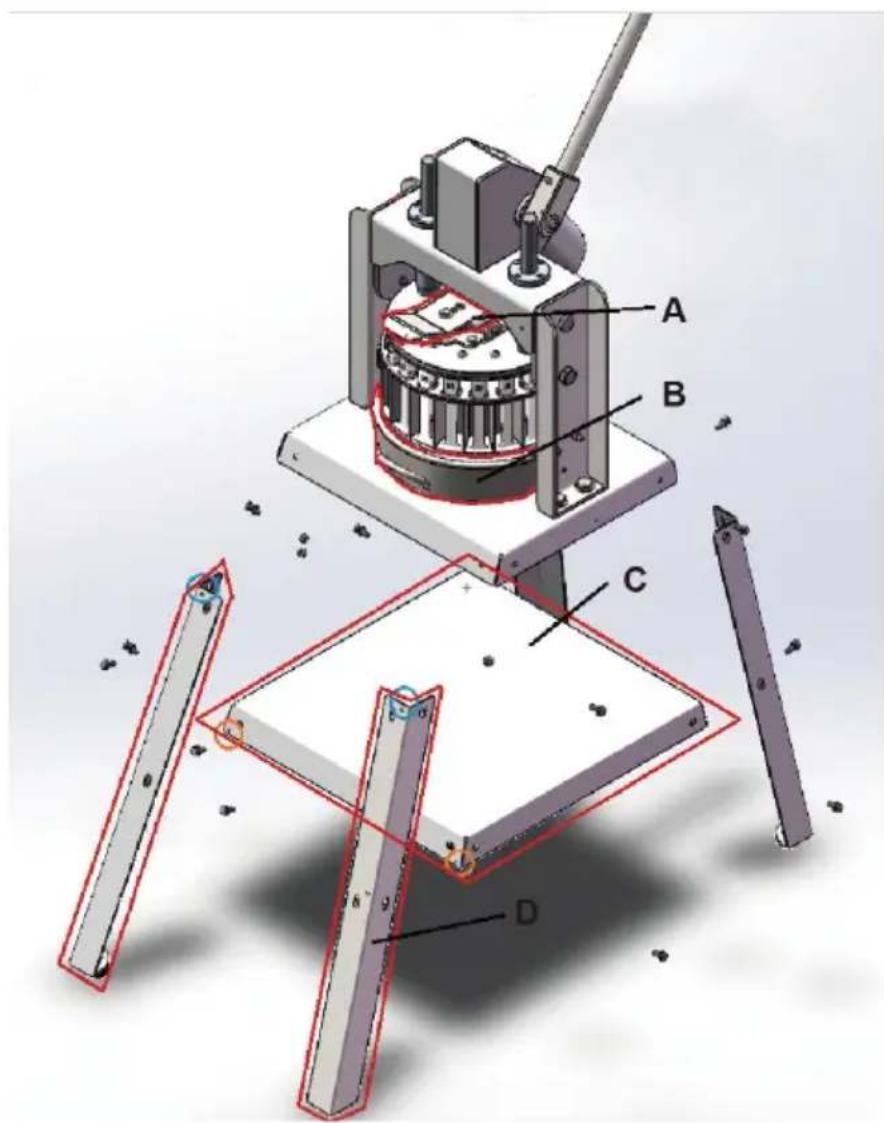

Product diagram

Installation notice

1. Only the front of the machine is easy to use the partition plate an pressure plate,
   2.There are 2 small holes on both sides of the plate to identify which on the front,
2. Only two support plates each have a small hole, which is easy to which side is on the front.

A. Clamp plate

B. Division plate

C.Pallet

D.Front foot board

Cleaning and maintenance process

1. Clean the machine after the day's work, take out the basin, unscr screws on both sides of the machine head (screw 1 and screw 2), rotate the machine head 90 degrees. Use a clean cloth to wipe the workbench and the tool holder.
2. If you need to clean all the tools one by one, unscrew all the s the tool holder (10 /40 in total), and then remove all the plastic pres plates for cleaning.
3. Do not put hard materials into the basin, can not take out the base unless the machine stops working, otherwise it will damage the machine.
4. Regularly clean the head, dust, etc. Keep the head lubricated before using a new machine or not using it for a long time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE: XZ-10, XZ-40, XZ-18

MODÈLE: XZ-10, XZ-40, XZ-18

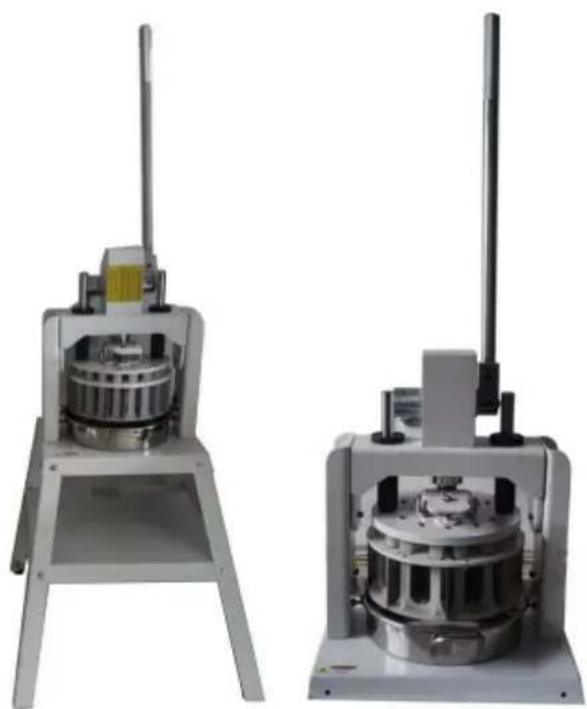

Two industrial mechanical devices with metallic components and vertical metal posts, shown from different angles (no visible text or symbols)
