USER MANUAL YC-BASE-25 Vevor
Affordable. Reliable. Home Improvement.
Fire Pit Heat Deflectors
MODEL: YC-BASE-20 / YC-BASE-25 / YC-BASE-27
Technical Support and E-Warranty Certificate
www.vevor.com/support
MODEL: YC-BASE-20 / YC-BASE-25 / YC-BASE-27
Warning-To reduce the risk of injury, user must instructions manual carefully.
PART LIST
When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during Do not attempt to assemble or use the product if any part is missin damaged.
| NO. | PICTURE | PART NAME | QTY | |
| YC-BASE-20YC-BASE-25 | YC-BASE-27 | |||
| A |  (with hole) | Part A | 3 | 3 |
| B |  | Part B | 3 | 3 |
| C |  | Connecting piece | 1 | 1 |
| D |  | Leg | 3 | 3 |
| E |  | Handel | 2 | 2 |
| F |  | Screws | 30 | 36 |
INSTALLATION METHODS
| Step1: Assemble part A and Part B together with screws | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |

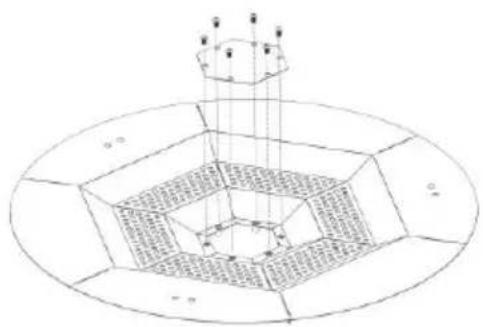

| Step2: Attach Part A to the part assembled in step 1 with | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |
| Step3: Assemble in turn until the parts are all assembled tog | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |

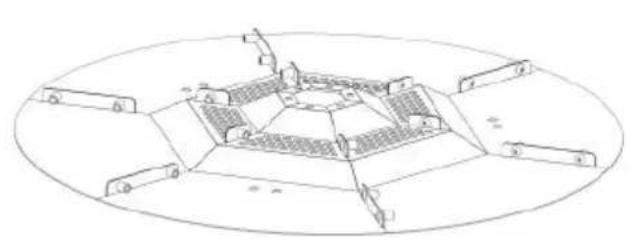

| Step4: Attach the connecting piece to the front of the heat de screws. | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |

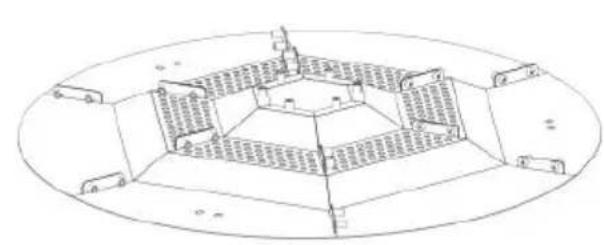

| Step5: Attach the legs to the heat deflector with screws | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |

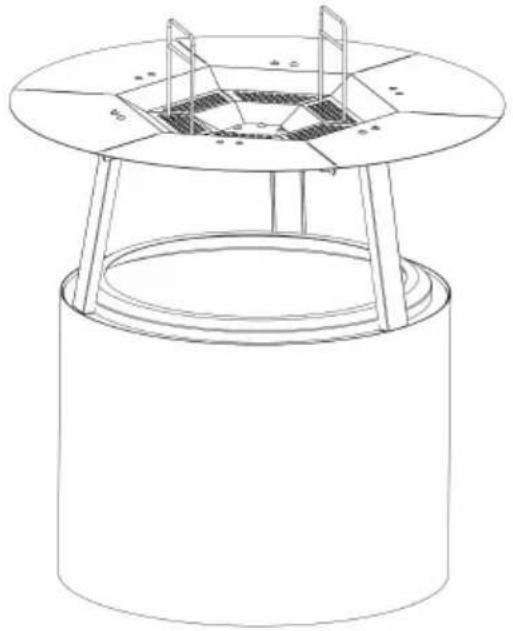

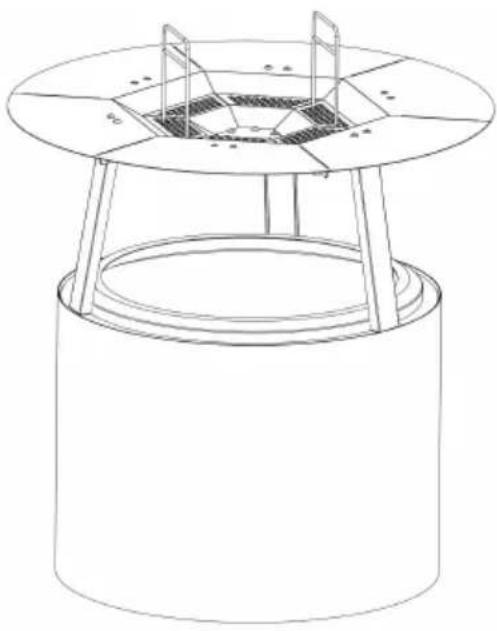

| Step6: Then, you can put the heat deflector on your smokeles | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |
| Step7: Remove the heat deflector with handles when not in use | |
 |  |
| YC-BASE-20 / YC-BASE-25 | YC-BASE-27 |
