Product Type	Garden Wheelbarrow
Brand	Vevor
Model	V680
Maximum Load Capacity	308 kg (680 lbs)
Body Dimensions	860 x 457 x 240 mm (33.8 x 18 x 9.4 inches)
Color	Green body, other parts black
Material	Steel
Number of Wheels	4
Maximum Tire Pressure	30 PSI (2.07 bar)
Recommended User Weight	Not specified, but cart not intended for passenger transport
Assembly Required	Yes, follow the manual instructions
Required Tools	Not listed, but wrenches and screwdrivers likely needed
Intended Use	Transporting loads in the garden on flat, hard ground
Maximum Recommended Speed	8 km/h (5 mph)
Safety Precautions	Do not exceed the load, do not use on highways, do not transport children
Maintenance	Check tire pressure, tighten screws, clean after use
Warranty	Technical support and electronic warranty, contact www.vevor.com/support
Spare Parts	Available from the manufacturer (see parts list in manual)
Repairability	Repairable with Vevor replacement parts
Storage Conditions	Protected from weather, on a flat surface

Frequently Asked Questions - V680 Vevor

How to assemble the Vevor V680 wheelbarrow?

Follow the steps in the assembly manual. Unpack all parts on a flat, clean surface. Use the provided screws and recommended tools. Refer to the assembly diagram to identify each part. Tighten all fasteners securely.

What is the maximum load capacity of the V680?

The maximum load capacity is 308 kg (680 lbs) with evenly distributed load. Never exceed this limit to avoid damage and tipping hazards.

What types of tires are used and what is the recommended pressure?

The wheelbarrow is equipped with 4 tires. The maximum recommended pressure is 30 PSI (2.07 bar). Do not inflate beyond that to avoid bursting.

Can I use the wheelbarrow on rough terrain?

It is not recommended to use the cart on surfaces or to transport objects that may damage the tires or inner tubes. Preferably use it on flat, hard ground.

How to maintain my V680 wheelbarrow?

Regularly check tire pressure, tighten loose screws, clean the cart after each use, and store it protected from weather. Lubricate moving parts if necessary.

Are there important safety precautions?

Yes: do not exceed the maximum load, do not transport passengers, do not drive faster than 5 mph (8 km/h), do not allow children to use it unsupervised, and do not use on highways.

Where can I get spare parts?

Spare parts are available from Vevor. Consult the parts list in the manual and contact support via www.vevor.com/support to order.

Is the cart delivered assembled?

No, the cart requires full assembly. Follow the manual instructions to assemble the frame, handrails, wheels, and handle.

What is the difference between model V500 and V680?

Both models have the same dimensions (860x457x240 mm) but differ in load capacity: V500: 226 kg (500 lbs), V680: 308 kg (680 lbs) and color: V500 is black and yellow, V680 is green and black.

How to contact Vevor customer service?

You can contact customer service and technical support via the website www.vevor.com/support. The manual mentions an electronic warranty and a support certificate.

User questions about V680 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Garden wheelbarrow in PDF format for free! Find your manual V680 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V680 by Vevor.

USER MANUAL V680 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STEEL GARDEN CARTS

MODEL: V500/V680

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

STEEL GARDEN CARTS

MODEL: V500/V680

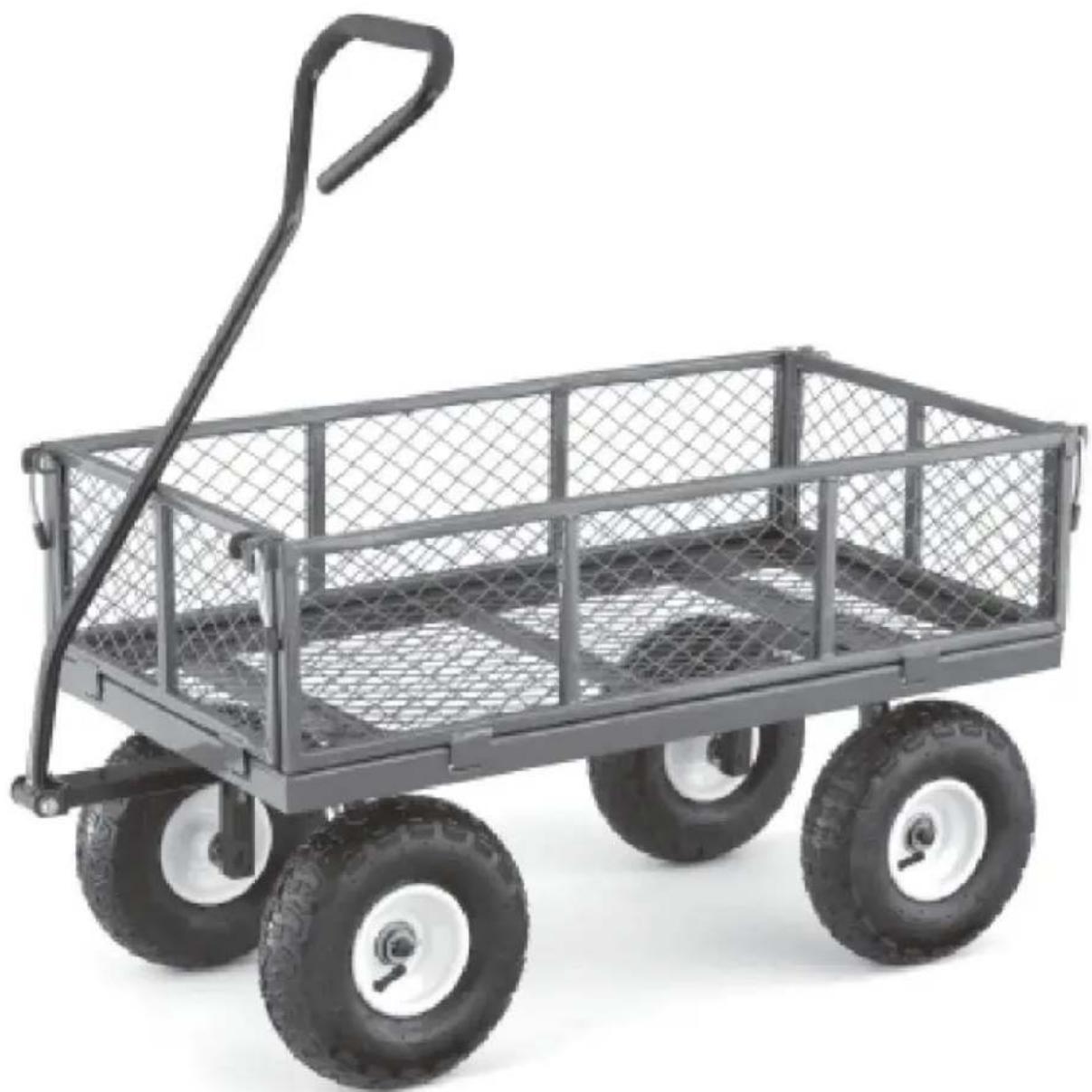

Black metal wire-wrapped cart with chain-link mesh frame and handle, no visible text or symbols.

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Do not assemble if tired or when under the influence of alcohol, drugs or medication.
The product capabilities apply to properly and completely assembled products only.
Assemble on a flat, level, hard and smooth surface capable of safely supporting the Wooden Hall Tree.
For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.

Use precautions

Do not exceed the overall maximum load capacity. The weight rating is based on an evenly distributed load.
Do not load items on the top edges of the panels. Remove panels before loading oversized items.
Distribute the load evenly over the surface of the bed.
Do not allow children to use the cart without supervision. This cart is not
Do not use this cart for transporting passengers.
This cart is not intended for highway use.
Do not exceed 5 mph.
If any parts become damaged, broken or misplaced, do not use the cart until replacement parts have been obtained.
Do not use the cart on surfaces or for transporting objects that can cause damage to the pneumatic tires or tubes. DO NOT INFLATE TIRES TO MORE THAN 30 PSI (2.07 BAR).

SAVE THIS MANUAL

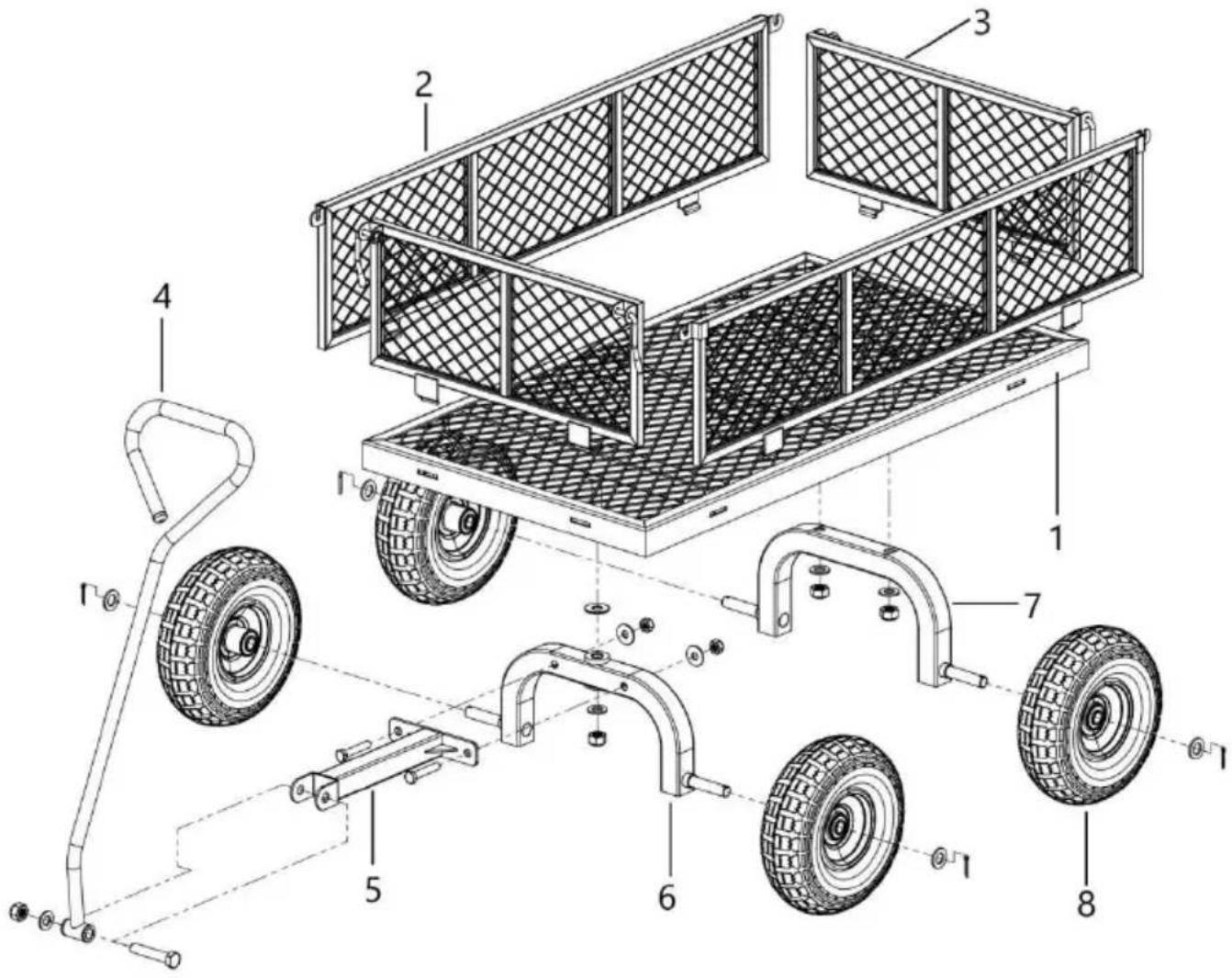

PARTS LIST

No.	Part	Qty.	Name

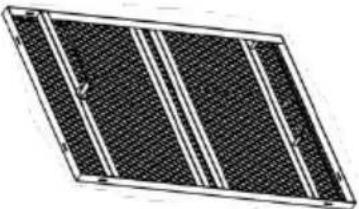

1		1	Bottom frame
2		2	Left and right guardrails
3		2	Front and rear guardrails
4		1	Handle
5		1	Connecting rod
6		1	Front wheel bracket
7		1	Rear wheel bracket
8		4	Tire
9		1	Screw pack

Technical diagram of a wheeled cart with numbered components and exploded view, showing assembly lines and parts.

PRODUCT PARAMETER

Model	V500	V680
Safe Loading Weight	500 LBS/226kg	680 LBS/308kg
Colour	Body:Black ;Other: Yellow	Body:Green ;Other: Black
Body Size	33.8189.4in860457240mm	33.8189.4in860457240mm

Do not exceed the overall safe loading weight.

ASSEMBLY STEP

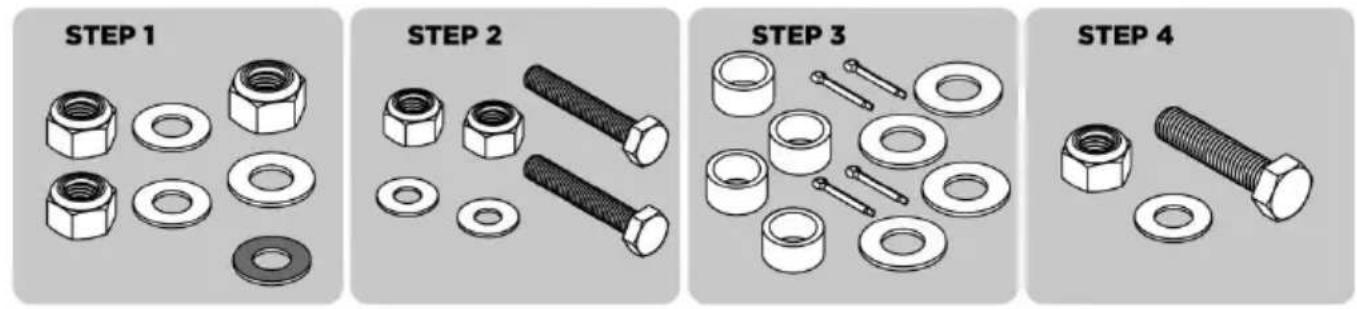

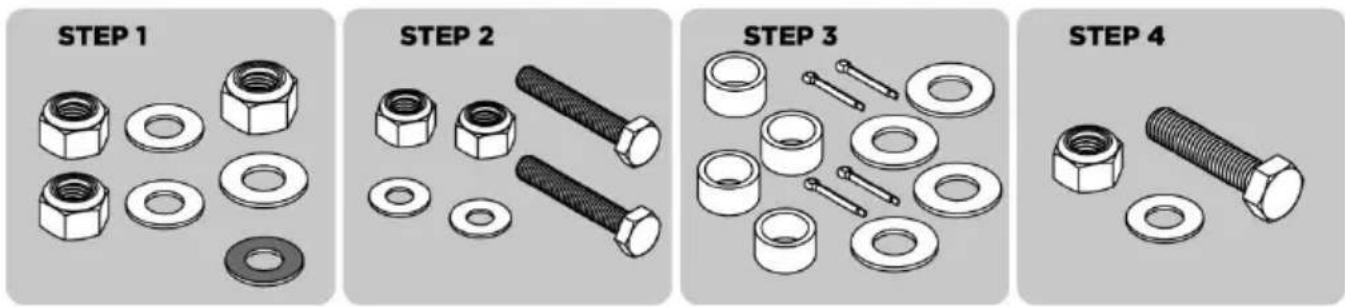

HARDWARE

STEP 1 STEP 2 STEP 3 STEP 4

TOOLS REQUIRED

Three black wrench tools (crimp, wrench, wrench) on a neutral background, no text or symbols present.

ASSEMBLY INSTRUCTIONS

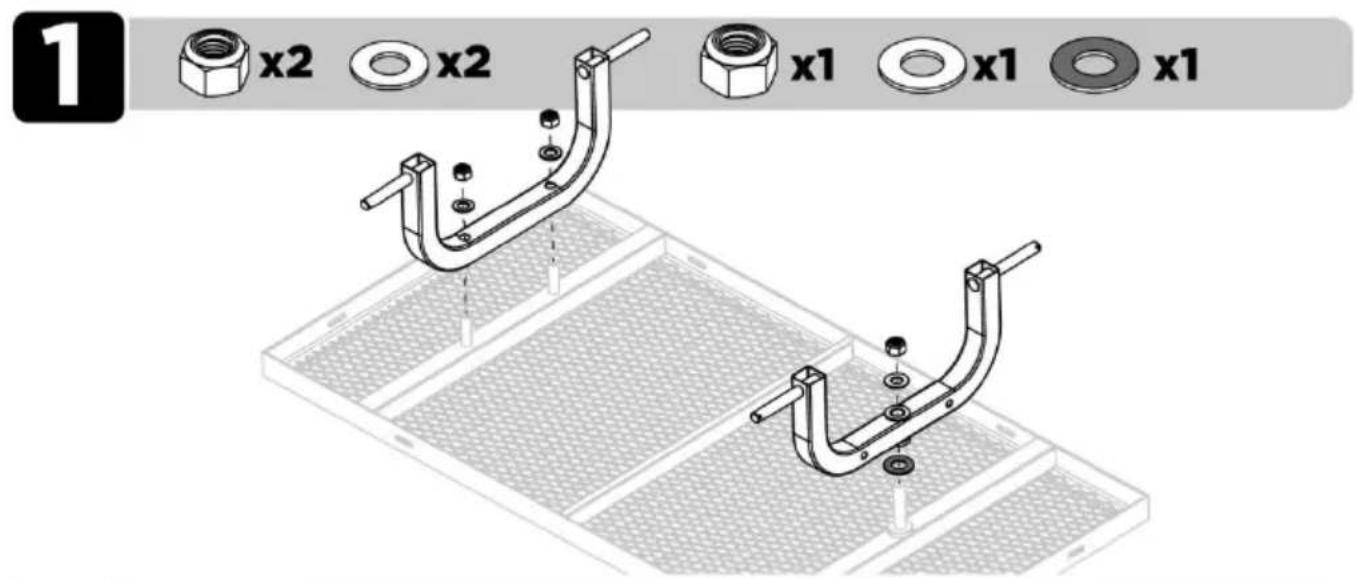

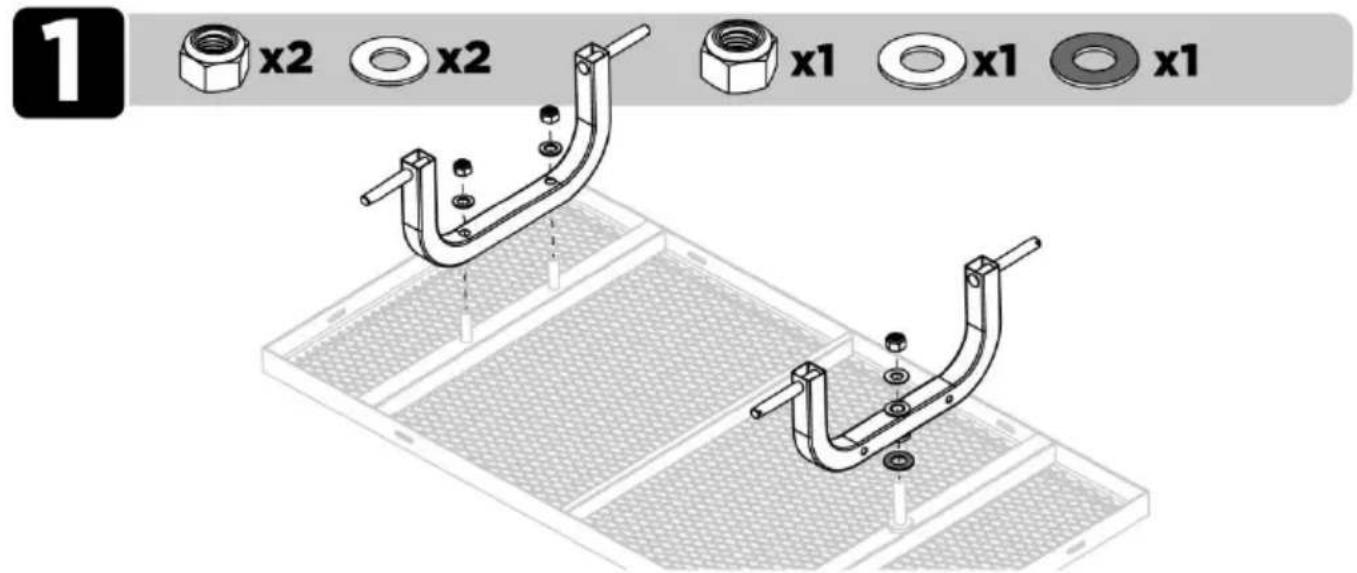

1 x2 x2 x1 x1 x1 x1

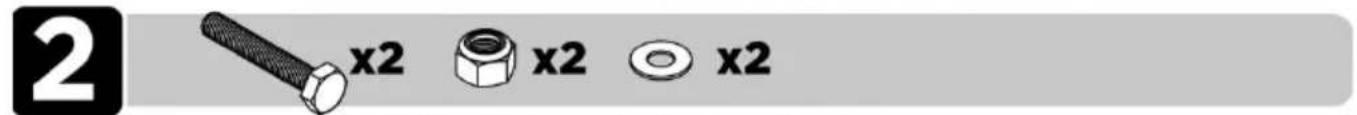

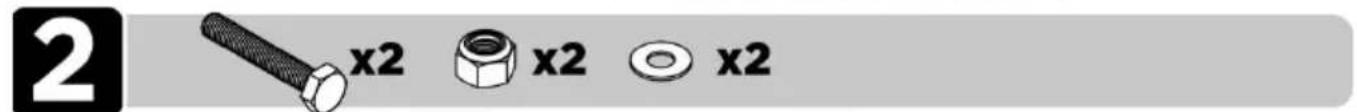

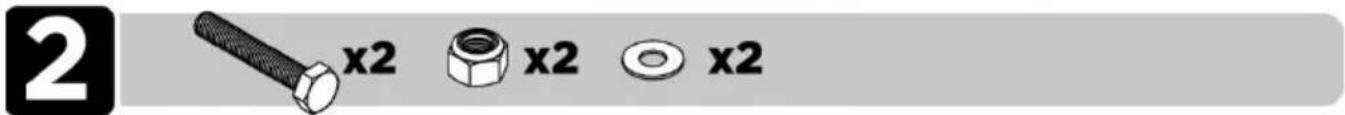

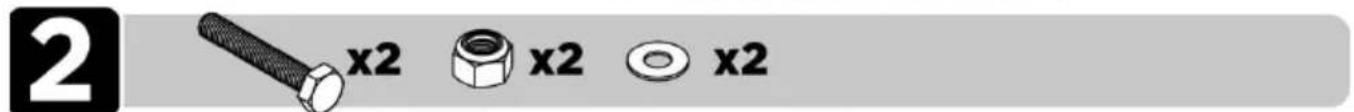

2 x2 x2 x2

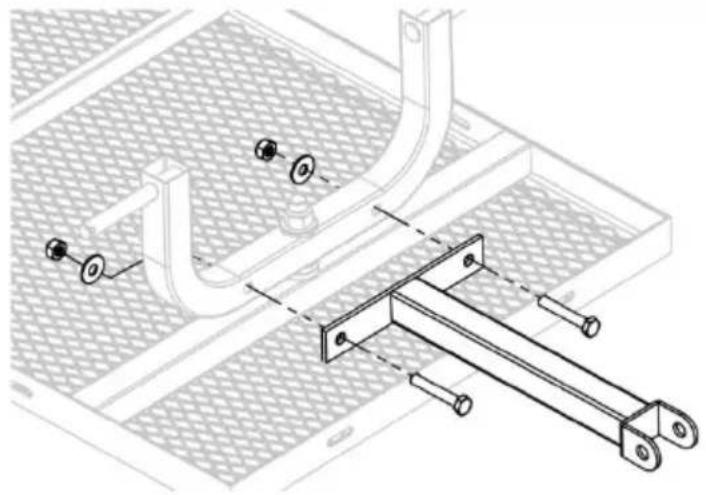

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols).

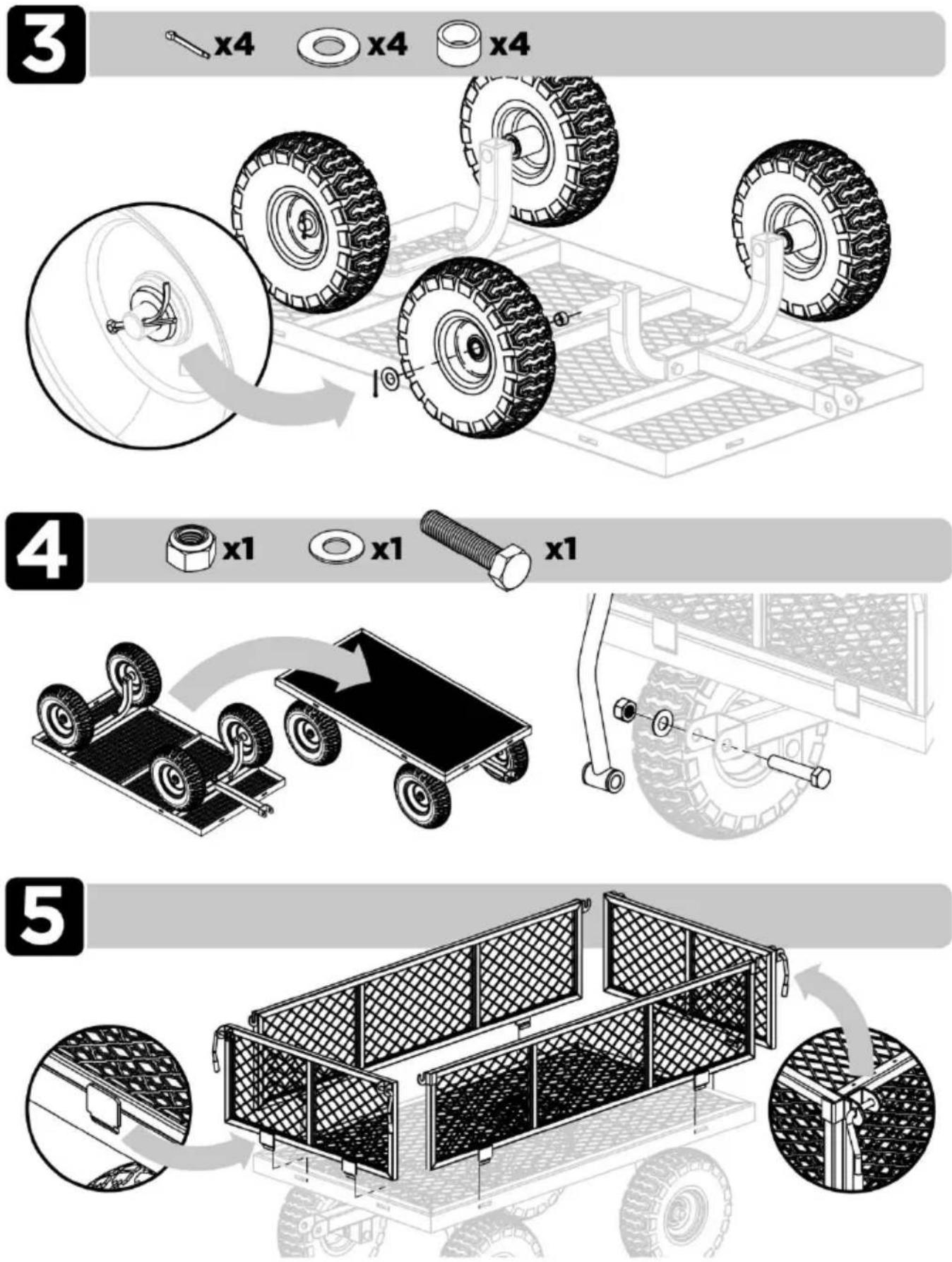

3 x4 x4 x4 4 x1 x1 x1 5

Manufacturer: Shanghai Muxin Muye Youxiangongsi
