Product Type	Outdoor Fire Ring (Fire Pit)
Brand	Vevor
Model	VOLD-30-10
Color	Black
Outer Diameter	91.4 cm (36 inches)
Inner Diameter	76.2 cm (30 inches)
Height	25.4 cm (10 inches)
Material	Painted Steel
Number of Panels	7
Included Fasteners	14 screws + 14 nuts
Included Accessories	2 protective gloves
Usage	Outdoor only, on non-combustible ground
Fuel Type	Firewood (seasoned hardwood recommended)
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate included
Safety Precautions	Do not use indoors, in strong wind, or on grass/concrete. Keep away from children and combustible materials.
Maintenance	Let it cool completely before cleaning or storing.

Frequently Asked Questions - VOLD-30-10 Vevor

How to assemble the Vevor VOLD-30-10 fire ring?

Assemble the 7 panels into a ring shape using the provided screws and nuts. Place the piece with the arrow labels underneath (right side lower than left). Make sure the ring is level and tight.

Where to install my fire ring?

Install it outdoors on a non-combustible surface like stone or earth. Keep it at least 10 meters away from any combustible material (dry grass, branches, wooden decks, etc.).

Can I use my fire pit on a wooden deck?

No, use on wood, concrete, grass, or asphalt is prohibited. The heat could damage these surfaces or cause a fire.

What type of wood should I use?

Use seasoned hardwood (oak, beech). Avoid pine or cedar which produces too many sparks. Never burn trash, paper, cardboard, or treated wood.

Is the fire ring delivered with a grill?

No, the VOLD-30-10 model does not include a grill. Only models ending with '-Y' include a grill, a handle, and a poker.

What are the essential safety precautions?

Never leave the fire unattended, keep children and pets away, do not use flammable liquids to start the fire, and wear gloves (included) when handling hot parts.

Can I move the fire ring once lit?

No, never move the fire ring when it is lit or still hot. Wait until it is completely cooled.

How to clean and maintain my fire pit?

After use, let the ashes cool completely before removing them. Clean the panels with a dry cloth. Store the ring sheltered from rain to prevent rust.

What to do if a part is missing or damaged?

Contact customer service via www.vevor.com/support to obtain replacement parts. Do not attempt to use the product with missing parts.

Can I use the fire ring under an awning or porch?

No, using the fire pit under a roof, awning, tree branches, or any overhang is dangerous and may cause a fire. Always in open air.

USER MANUAL VOLD-30-10 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FIRE RING

MODEL:

VOLD-30-10 VOLD-36-10 VOLD-39-10-2.5 VOLD-31-8.5

VOLD-36-8.5 VOLD-39-10-1.5 VOLD-31-8.5-Y VOLD-36-8.5-Y

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FIRE RING

VOLD-30-10VOLD-31-8.5VOLD-36-10VOLD-36-8.5VOLD-39-10-2.5VOLD-39-10-1.5
VOLD-31-8.5-YVOLD-36-8.5-Y

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any changes in your product data.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL SAFETY RULES BEFORE ASSEMBLY AND USE OF THE FIRE RING.

• Caution: For Outdoor Use Only.
• Use the fire ring on stone, dirt or sand only.
• For adult use only – do not allow children to use the fire ring.
• Do not use on lawns, wooden decks, concrete or asphalt.
• Do not use fire ring indoors or under a patio roof.
• Do not use in windy conditions.
• Do not leave fire unattended at any time.
• Do not burn trash, leaves, paper, cardboard or plywood in fire ring.
• Do not use under low-hanging tree branches, trellis, and overhangs of any kind, including covered porches.
• Do not use flammable liquids such as gasoline, alcohol, diesel fuel, kerosene, or charcoal lighter to light or relight fires.
• Care should be taken to make sure all combustible material is far enough away from the fire ring to not ignite. • Always use in accordance with all applicable local and state fire codes.
• Failure to follow these instructions could result in a hazardous fire, causing property damage or physical injury.

WARNING! FOR YOUR SAFETY:

• Avoid using softwoods such as pine or cedar, because they are likely to throw sparks. The use of seasoned hardwood is recommended.
• Do not allow children to use the fire ring. Keep children and pets away from the fire ring while it is in use.
• Exercise the same precautions you would with any open fire.
• Do not wear flammable or loose clothing when tending an open fire.
• Avoid touching surfaces, as they will be extremely hot. • Assure fire is completely extinguished before leaving fire ring.
• Any modifications to this appliance may be dangerous and are not permitted.

PRODUCT PARAMETERS

Model	Colour	Outer Diameter	Inside Diameter	Height
VOLD-30-10	Black	36”	30”	10”
VOLD-36-10	Black	40”	36”	10”
VOLD-39-10-2.5	Black	45”	39”	10”
VOLD-31-8.5	Black	35”	31”	8.5”
VOLD-36-8.5	Black	40”	36”	8.5”
VOLD-39-10-1.5	Black	45”	39”	10”
VOLD-31-8.5-Y	Black	35”	31”	8.5”
VOLD-36-8.5-Y	Black	40”	36”	8.5”

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

	Pieces A	Pieces B	Screw	Nut Cap	Gloves	Grill	Handle	Poker
VOLD-30-10	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-10	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-2.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-8.5	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-1.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5-Y	6pcs	1pcs	14pcs	14pcs	2pcs	1pcs	1pcs	1pcs
VOLD-36-8.5-Y	7pcs	1pcs	16pcs	16pcs	2pcs	1pcs	1pcs	1pcs

INSTALLATION METHODS

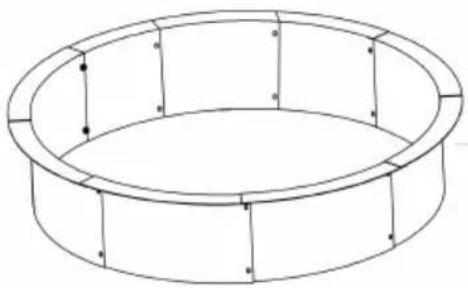

Excluding Grill style

Step 1:

Decide on location for the fire ring. Make sure the fire ring is a safe distance from all combustible materials. Using a rake, level the area if necessary and remove any dry grass or overhanging tree branches.

Step 2:

Using the bolts provided, assemble the pieces of the fire ring together to form a ring. (Place the part with arrow labels below. The right part is higher than the left part when you assemble it). Make sure the ring is level and in the right position.

Step 3:

Stack firewood into the fire ring and light the fire.

Helpful Hints:

• Do not attempt to move the fire ring once the fire is started.
• Do not place the fire ring in an area where it could be easily
• For best results, stack firewood in a pyramid shape for burning.

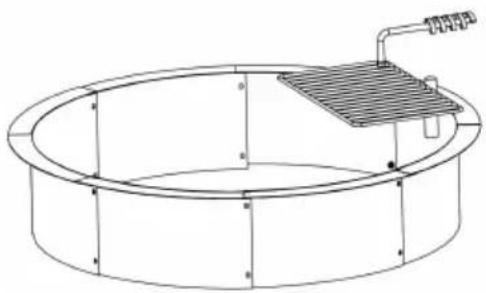

Including Grill style
Step 1:Identify the two parts of the picture.Dec on location for the fire ring. Make sure fire ring is a safe distance from all combustible materials. Using a rake, lev the area if necessary and remove any grass or overhanging tree branches.
Step 2:Using the bolts provided, assemble the pieces of the fire ring together to form ring.(Place the part with arrow labels be The right part is lower than the left pa when you assemble it ). Make sure th is level, tight and in the right position.
Step 3:Insert the grill inside the fire ring, twist handle on the nut of the grill net, twis handle to the outward Angle, tighten th on the handle, and fix the Angle, do shake, to prevent burns.
Step 4:Assembling fire Poker.
