Product Type Load Net for Truck/Trailer
Brand Vevor
Model VCCN0120
Dimensions (L x W) 120 x 105 inches (304.8 x 266.7 cm)
Maximum Load Capacity 700 lbs (approx. 318 kg)
Material Polypropylene (PP)
Color Black
Included Accessories 4 safety straps with hooks, 4 carabiners, carrying bag, user manual
Installation Attach to vehicle anchor points using ratchet straps
Usage Securing cargo in trucks and trailers
Maintenance Clean with mild detergent; store in a cool, dry place away from sunlight
Safety Regularly inspect mesh and straps; do not exceed rated capacity
Warranty Electronic warranty certificate available at www.vevor.com/support
Manufacturer Shanghai Muxin Muye Co., Ltd.
CE Representative E-CrossStu GmbH, Frankfurt am Main
UK Representative YH CONSULTING LIMITED
USA Importer Sanven Technology Ltd.
Repairability If damaged, replace the net; contact support for parts

Frequently Asked Questions - VCCN0120 Vevor

What is the maximum load capacity of the VCCN0120 net?
The maximum load capacity is 700 lbs (approx. 318 kg).
How do I install the load net on my truck?
Open the tailgate, arrange the load, spread the net on the ground, then connect the straps to the truck's anchor points using the carabiners. Tighten the straps with the multi-speed ratchet until the net is securely fastened.
What material is the VCCN0120 net made of?
The net is made of polypropylene (PP), a lightweight and durable material.
Can I use this net for a trailer?
Yes, the net is designed for trucks and trailers equipped with anchor points. Ensure the load does not exceed the rated capacity.
How do I clean and maintain the net?
Clean the net with a standard detergent using a sponge or broom. Rinse with clean water and let dry. Store it in a cool, dry place away from direct sunlight.
Is the net UV resistant?
The manual does not specify UV treatment. It is recommended to store the net away from sunlight to prolong its lifespan.
What if a strap or hook is damaged?
Do not use the damaged net. Replace it or contact Vevor support at www.vevor.com/support for spare parts.
Are carabiners included in the package?
Yes, the package includes 4 carabiners along with 4 straps with hooks and a carrying bag.
What color is the VCCN0120 net?
The net is black.
Where can I find the warranty or technical support?
The electronic warranty and technical assistance are available at www.vevor.com/support. You will find the warranty certificate there and can contact customer service.

User questions about VCCN0120 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Transport accessory in PDF format for free! Find your manual VCCN0120 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VCCN0120 by Vevor.

USER MANUAL VCCN0120 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

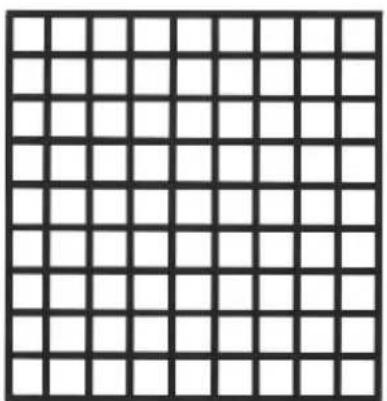

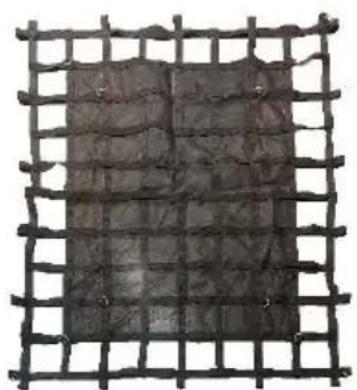

Pure grid pattern with no text, numbers, or symbols.

Webbing

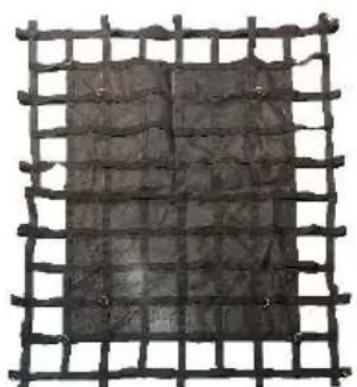

Abstract grid pattern with intersecting lines forming a mesh structure, no text or symbols.

Mesh

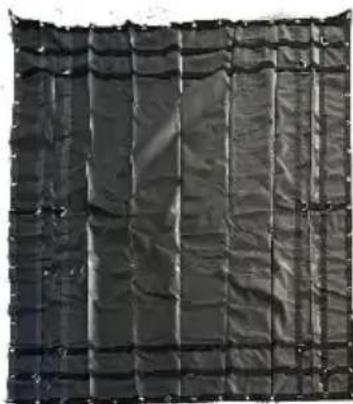

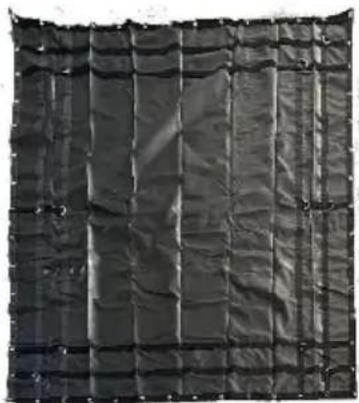

Black textured panel with grid pattern, no visible text or symbols.

Cargo Tarpaulin Cargo Net

NOTE: Photo for reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load Securing

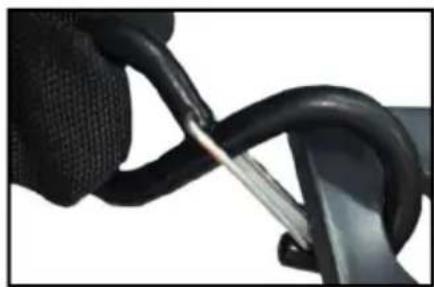

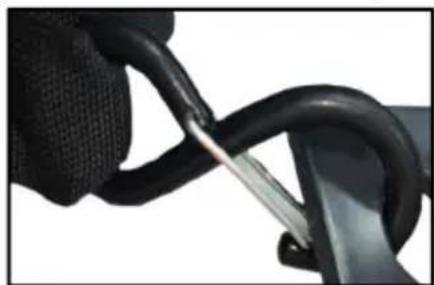

Prevent tensioning your load over sharp surfaces. To avoid damage to web strapping, place a rag between the sharp surface and the net to prevent rubbing or cutting of the mesh or straps.

Load Stability

A "Duty of Care" is required when loading a vehicle or trailer. Do not overload the vehicle. At all times, attempt to position the load to minimize any movement during transport.

Inspection

Regularly inspect your net for possible tears in either the mesh or strapping. If your net is compromised, it may fail to work as effectively as the designed specifications.

Early Detection

Before tensioning pull straps, make sure the net and the straps are not twisted.

Inspect hooks to make sure they are not bent or damaged.

NEVER allow the force exerted against the netting to exceed the capacity.

MODEL AND PARAMETERS

NOTE: Please match your purchase.

ModelPPCN0054XPLCN0054PPCN0060
Net Area54x18 inch54x18 inch60x18 inch
Strap Capacity600lbs1500lbs600lbs
ColorBlackBlackBlack
Strap MaterialPPPolyesterPP
ModelPPCN0096RPPCN0072PLCN0072
Net Area96x72 inch72x57 inch72x57 inch
Strap Capacity600lbs1100lbs1500lbs
ColorBlackBlackBlack
Strap MaterialPPPPPolyester
ModelPLCN0096PLCN0120VCCN0072
Net Area96x81 inch120x105 inch72x57 inch
Strap Capacity1500lbs1500lbs700lbs
ColorBlackBlackBlack
Strap MaterialPolyesterPolyesterPP
ModelVCCN0096VCCN0120
Net Area96x81 inch120x105 inch
Strap Capacity700lbs700lbs
ColorBlackBlack
Strap MaterialPPPP

PACKAGE LIST

  1. Cargo Net x1, Safety Straps with hook x4, Carabiners x4, Carrying Bag x1, User manual x1

Remark: model PPCN0096R doesn't have hooks and carabiners.

INSTALLATION

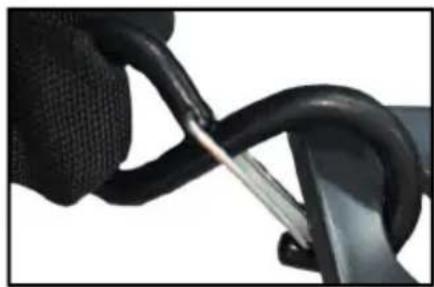

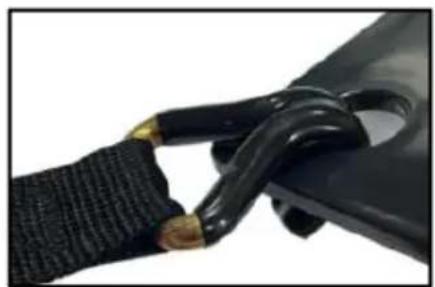

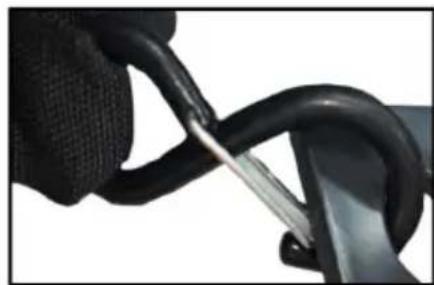

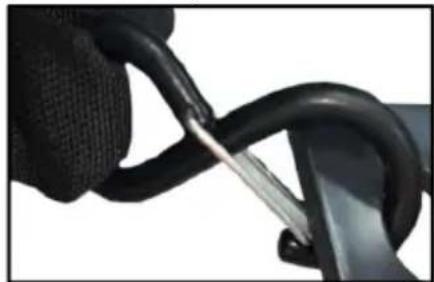

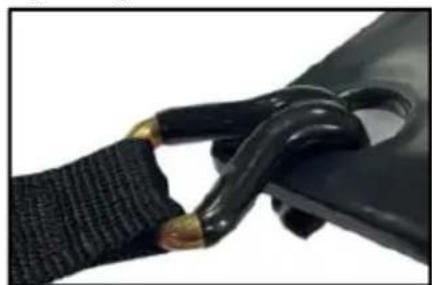

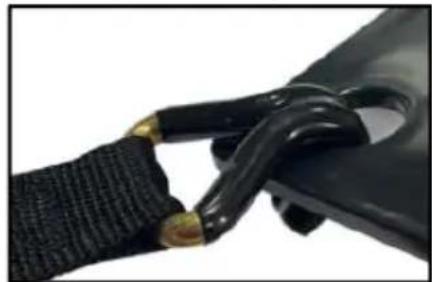

Step 1: Open your truck or trailer gate and locate the cargo anchor. Load the truck or trailer with your cargo. Arrange the cargo so the force exerted against the netting will never exceed its rated capacity. Keep tiedown locations accessible.

Warning: Use additional ratchet straps to secure your load before placing the net over your load.

Step 2: Stretch the cargo net out to its fullest extent on the ground placing it over your load. Step 3: Connect the rings on the end of the straps to the rings on corners or sides of the net with carabiners. Connect the hooks on the bottom of the straps to the truck's cargo anchor points. (NOTE: Refer to your purchase for specific hook types.)

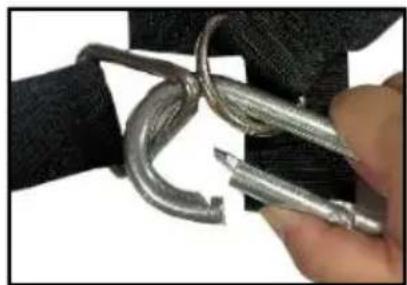

Close-up of a hand holding a metallic chain spring attached to a black fabric, no text or symbols visible.

Close-up of a person using a black cable to lift a weight, no text or symbols visible.

Close-up of a black mechanical component with coiled spring and yellow connectors, no text or symbols visible.

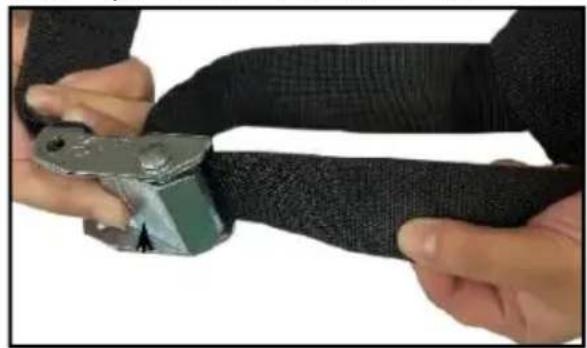

Step 4: Press down the multi-gear ratchet and pull the strap until the net is tightly secured. (NOTE: Ensure the strap is not twisted.)

Close-up of hands adjusting a black belt buckle with a metal clip, no text or symbols visible.

For model PPCN0096R:

  1. Connect the hooks on the bottom of the straps to the truck's cargo anchor points.
  2. Refer to "Step 4" to tighten the net.

MAINTENANCE

  1. Cargo Nets will last longer if cleaned regularly. Simply apply a mild detergent and either sponge or broom across the surface area.
  2. Store this product in a cool, dry place away from direct sunlight and inaccessible to children.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000, CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 Rokeva Street, Eastwood NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
