Product Type	Cargo net for vehicle or trailer
Brand	Vevor
Model	PPCN0096R
Dimensions (net area)	96 x 72 inches (approx. 244 x 183 cm)
Load Capacity	600 lb (approx. 272 kg)
Net Material	Polypropylene (PP)
Color	Black
Strap Type	Multi-speed ratchet straps
Attachment Type	Hooks at strap ends (no carabiners for this model)
Included Accessories	Cargo net, safety straps, carry bag, user manual
Recommended Use	Securing loads on truck or trailer
Care and Cleaning	Clean with standard detergent and a sponge or broom
Storage	In a cool, dry place, away from direct sunlight and out of reach of children
Safety	Do not exceed rated capacity; inspect regularly for tears or damage
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi (Shanghai, China)
CE Representative	E-CrossStu GmbH, Frankfurt am Main
UK Representative	YH Consulting Limited
US Importer	Sanven Technology Ltd.

Frequently Asked Questions - PPCN0096R Vevor

What is the load capacity of the PPCN0096R model?

The load capacity is 600 pounds (approx. 272 kg). Never exceed this limit to avoid risk of breakage.

How to install the PPCN0096R cargo net?

Open the tailgate, load the vehicle, stretch the net over the load, then connect the strap hooks to the anchor points. Tighten using the multi-speed ratchet until the net is secure.

Does the PPCN0096R model come with carabiners?

No, according to the notice, the PPCN0096R model does not include hooks and carabiners. The straps are directly fitted with hooks.

What materials are used for this net?

The net is made of polypropylene (PP), the straps are polyester or PP depending on the model. For the PPCN0096R, the net is PP.

How to clean and maintain the cargo net?

Use a standard detergent with a sponge or broom. Store in a cool, dry place away from sunlight and out of reach of children.

Can this net be used to secure loads on a trailer?

Yes, the net is designed for trucks and trailers. Ensure anchor points are solid and the load is evenly distributed.

How to check the condition of the net before use?

Visually inspect the net and straps for tears, cuts, or deformations. Also check that the hooks are not bent or damaged.

What is the difference between PPCN0096R and other models?

The PPCN0096R has a surface of 96 x 72 inches and a capacity of 600 pounds. Other models like PLCN0096 have a capacity of 1,500 lb and different materials. See the parameter table in the manual.

What to do if the net is damaged?

Do not use a damaged net as it may not hold the load properly. Replace it with a new one. Contact Vevor support via www.vevor.com/support for advice.

Where to find the complete manual for the Vevor PPCN0096R?

You can download the free manual in PDF format from notice-facile.com or from the official Vevor website. The manual is available in several languages.

User questions about PPCN0096R Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Transport accessory in PDF format for free! Find your manual PPCN0096R - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PPCN0096R by Vevor.

USER MANUAL PPCN0096R Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Pure grid pattern with no text, numbers, or symbols.

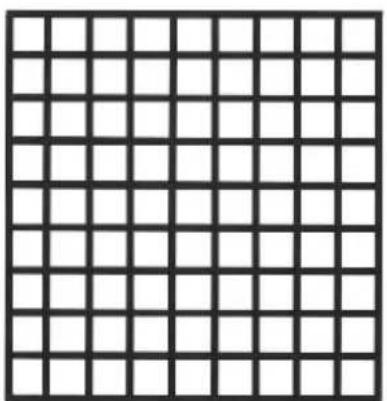

Webbing

Abstract grid pattern with intersecting lines forming a mesh structure (no text or symbols).

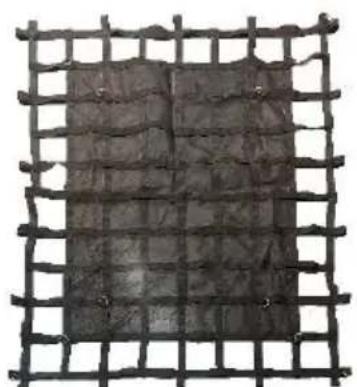

Mesh

Black textured panel with grid pattern, no visible text or symbols.

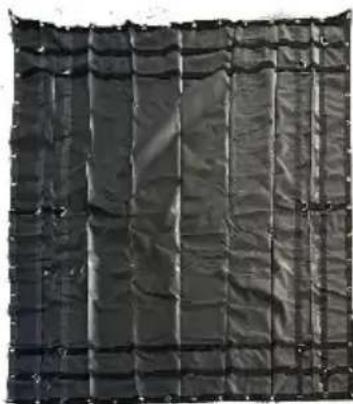

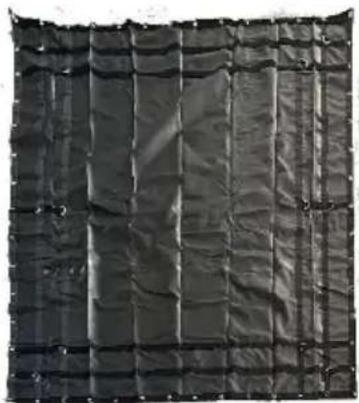

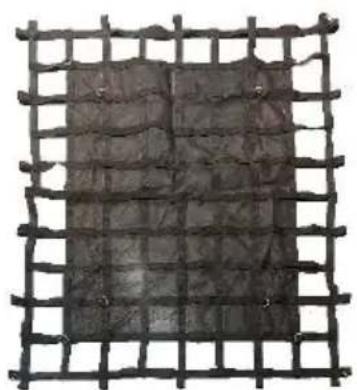

Cargo Tarpaulin Cargo Net

NOTE: Photo for reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load Securing

Prevent tensioning your load over sharp surfaces. To avoid damage to web strapping, place a rag between the sharp surface and the net to prevent rubbing or cutting of the mesh or straps.

Load Stability

A "Duty of Care" is required when loading a vehicle or trailer. You are not to overload the vehicle. At all times, attempt to position the load to minimize any movement during transport.

Inspection

Regularly inspect your net for possible tears in either the mesh or strapping. If your net is compromised, it may fail to work as effectively as the designed specifications.

Early Detection

Before tensioning pull straps, make sure the net and the straps are not twisted.

Inspect hooks to make sure they are not bent or damaged.

NEVER allow the force exerted against the netting to exceed the capacity.

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	PPCN0054X	PLCN0054	PPCN0060
Net Area	54x18 inch	54x18 inch	60x18 inch
Strap Capacity	600lbs	1500lbs	600lbs
Color	Black	Black	Black
Strap Material	PP	Polyester	PP
Model	PPCN0096R	PPCN0072	PLCN0072
Net Area	96x72 inch	72x57 inch	72x57 inch
Strap Capacity	600lbs	1100lbs	1500lbs
Color	Black	Black	Black
Strap Material	PP	PP	Polyester

Model	PLCN0096	PLCN0120	VCCN0072
Net Area	96x81 inch	120x105 inch	72x57 inch
Strap Capacity	1500lbs	1500lbs	700lbs
Color	Black	Black	Black
Strap Material	Polyester	Polyester	PP

Model	VCCN0096	VCCN0120
Net Area	96x81 inch	120x105 inch
Strap Capacity	700lbs	700lbs
Color	Black	Black
Strap Material	PP	PP

PACKAGE LIST

Cargo Net x1 2. Safety Straps with hook x4 3.Carabiners x4 4.Carrying Bag x1 5.User manual x1

Remark: model PPCN0096R doesn't have hooks and carabiners.

INSTALLATION

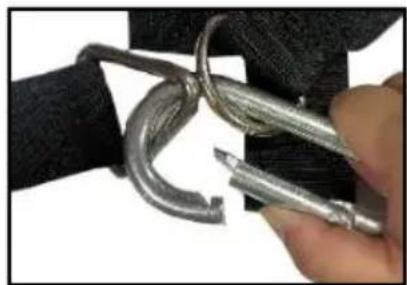

Step 1: Open your truck or trailer gate and locate the cargo anchor. Load the truck or trailer with your cargo. Arrange the cargo so the exerted against the netting will never exceed its rated capacity. Keep tiedown locations accessible.

Warning: Use additional ratchet straps to secure your load before placing the net over your load.

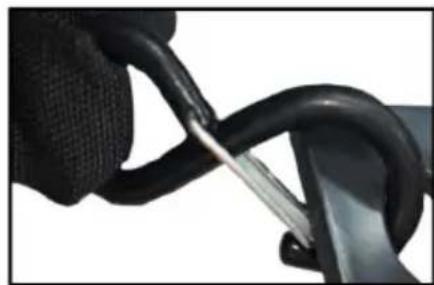

Step 2: Stretch the cargo net out to its fullest extent on the ground placing it over your load. Step 3: Connect the rings on the end of the straps to the rings on corners or sides of the net with carabiners. Connect the hooks on the bottom of the straps to the truck's cargo anchor points. (NOTE: Refer to your purchase for specific hook types.)

Close-up of a hand holding a metallic chain spring attached to a black fabric (no text or symbols visible).

Close-up of a person using a black cable to lift a weight (no text or symbols visible).

Close-up of a black mechanical component with coiled spring and yellow connectors (no text or symbols visible).

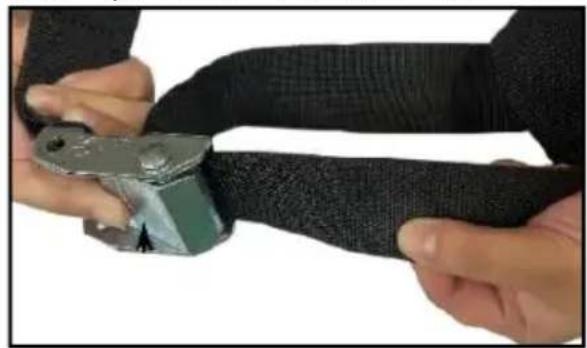

Step 4: Press down the multi-gear ratchet and pull the strap until the net is tightly secured. (NOTE: Ensure the strap is not twisted.)

Close-up of hands adjusting a black belt buckle with metal clamps (no text or symbols visible).

For model PPCN0096R:

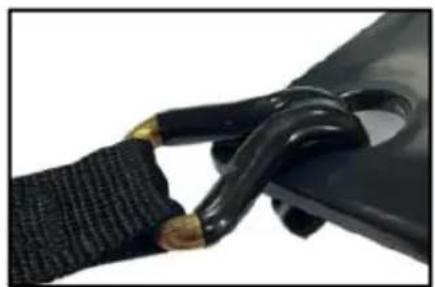

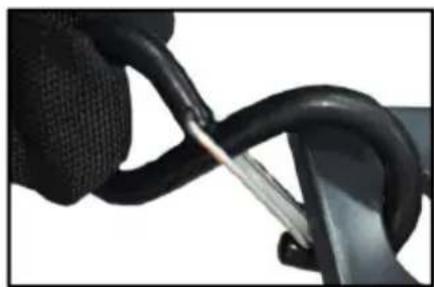

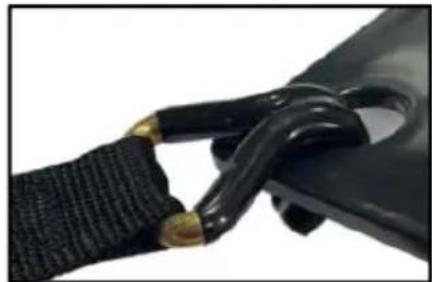

Connect the hooks on the bottom of the straps to the truck's cargo anchor points.
Refer to "Step 4" to tighten the network.

MAINTENANCE

Cargo Nets will last longer if cleaned regularly. Simply apply a sta detergent and either sponge or broom across the surface area.
Store this product in a cool, dry place away from direct sunlight as inaccessible to children.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present.

Woven grid pattern with a dark rectangular block at center (no text or symbols).

Close-up of a dark, textured fabric with vertical grooves and horizontal lines (no text or symbols).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Close-up of a person using a black cable to lift a weight (no text or symbols visible).

Close-up of a black rope tied with a coiled black cable, no text or symbols visible.

A/S YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported in AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines forming squares (no text or symbols).

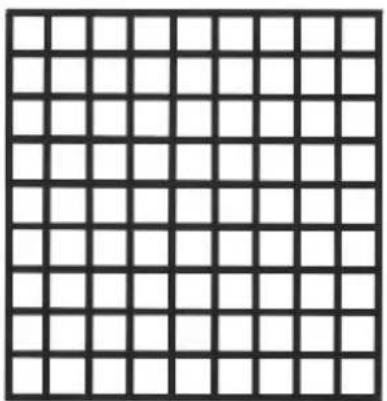

Webbing cargo net

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Mesh cargo net

Close-up of a dark, textured fabric with vertical grooves and horizontal lines, no text or symbols.

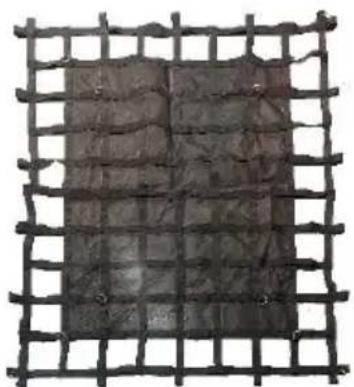

Tarpaulin load net

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFETY INSTRUCTIONS

WARNING!

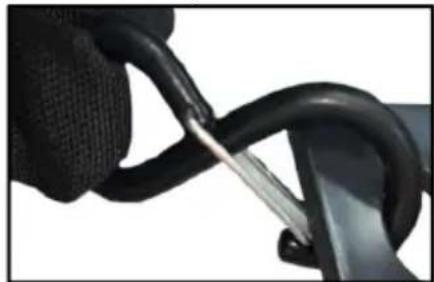

Load securing

Close-up of a black cable being inserted into a mechanical component, no text or symbols visible.

Close-up of a black textured strap securing a metal clip, no text or symbols visible.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

PPCN0072/PLCN0072/PLCN0096/PLCN0120

ITEM CODE: VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present.

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Close-up of a dark, textured fabric or material with vertical grooves and horizontal lines, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component, no visible text or symbols.

Close-up of a black mechanical component with attached golden clips and a textured strap, no visible text or symbols.

UK REPRESENTATIVE: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported in AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present.

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Close-up of a dark, textured fabric or material with vertical grooves and horizontal lines (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component (no text or symbols visible).

Close-up of a black rope tied with a golden clip, attached to a black object (no text or symbols visible).

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines forming squares (no text or symbols).

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Close-up of a dark, textured fabric or material with vertical grooves and horizontal lines (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component (no visible text or symbols).

Close-up of a black mechanical component with coiled black bands and gold connectors (no text or symbols visible).

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present.

Webbing cargo net

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Mesh cargo net

Close-up of a dark, grid-patterned fabric or material with no visible text or symbols.

Tarpaulin cargo net

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load securing

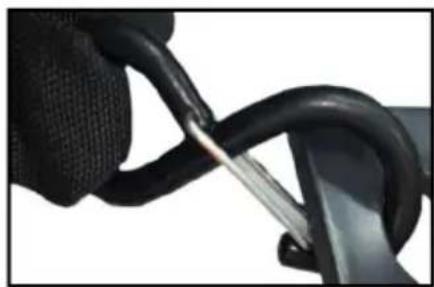

Close-up of a black cable being inserted into a mechanical component (no text or symbols visible)

Close-up of a black rope tied with gold clips, attached to a black object (no text or symbols visible)

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present

Webbing Cargo Net Mesh lastnät Presenning lastnät Woven grid pattern with a dark rectangular block at the center (no text or symbols)

Close-up of a dark, grid-patterned fabric or material with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFETY INSTRUCTIONS

WARNING !

Load securing

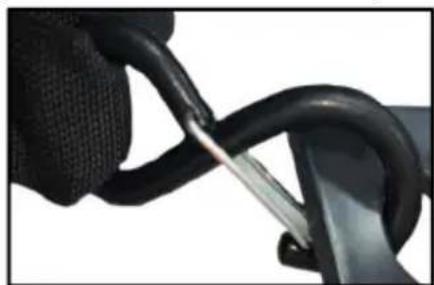

Close-up of a black cable being inserted into a mechanical component (no text or symbols visible)

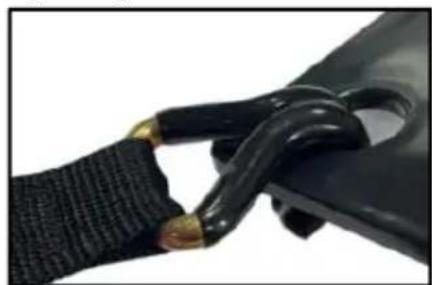

Close-up of a black rope tied with gold clips, no visible text or symbols

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Table of contents Click a title to access it

CARGO NET
VEVOR®
TOUGH TOOLS, HALF PRICE
NEED HELP? CONTACT US
SAFETY INSTRUCTIONS
WARNING
LOAD SECURING
LOAD STABILITY
INSPECTION
EARLY DETECTION
MODEL AND PARAMETERS
PACKAGE LIST
INSTALLATION
FOR MODEL PPCN0096R
MAINTENANCE
MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN
TARPAULIN LOAD NET

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : PPCN0096R

Category : Transport accessory
