W-1.0X1220 - Manual press brake Vevor - Free user manual and instructions

Product type	Manual press brake
Brand	Vevor
Model	W-1.0X1220
Bending capacity (thickness)	Steel up to 1.0 mm
Max bending width	1220 mm (48 in)
Max bending angle	90°
Dimensions (L x W x H)	1240 x 259 x 178 mm (48.8 x 10.2 x 7 in)
Weight	32.7 kg (72 lb)
Material	Steel
Mounting	Workbench mounting with 3/8 in bolts (not provided)
Usage	Manual bending of metal sheets
Operation	Manual lever with ball handles
Maintenance	Clean after use, lubricate axes, store in dry place
Safety	Wear safety glasses; keep fingers away from moving plates
Spare parts	List and diagram in the manual; available from the distributor
Repairability	Standard parts repairable by a qualified technician
Warranty	Manufacturer's warranty (see certificate)

Frequently Asked Questions - W-1.0X1220 Vevor

How to install the Vevor W-1.0X1220 press brake?

Fix the bracket (part no. 1) onto a sturdy workbench using four 3/8-inch diameter bolts (not provided). Screw the ball handles (part no. 7) onto the handle levers, then place the levers into the pins (part no. 5).

What metal thickness can I bend with this press?

The press can bend steel up to 1.0 mm thick. For aluminum or copper, slightly greater thicknesses may be possible, but do not exceed the rated capacity.

How to adjust the bending angle?

The angle depends on the lever stroke. Lower the lever until the moving plate is parallel to the workbench, position the sheet, then lift both levers to bend. The maximum angle is 90°. For intermediate angles, manually adjust the stroke.

What to do if the handle becomes hard to maneuver?

Check that the pivot shafts are lubricated with light oil. Clean any dirt or rust. If the problem persists, inspect the moving parts (plates and pins) for damage or misalignment.

What safety precautions should I take?

Always wear safety glasses and protective equipment. Keep fingers and clothing away from moving plates. Do not wear loose clothing or jewelry. Work in a dry, well-lit area.

Can I bend aluminum or copper with this press?

Yes, you can bend aluminum and copper within the thickness limit (about 1.0 mm for steel; for softer metals, thicknesses up to 1.5 mm may be suitable, but test first.

How to maintain the press brake?

After each use, clean the plates and shafts with a dry cloth. Lubricate pivot points with light oil. Store the press in a dry place to prevent rust.

Where can I find spare parts?

Consult the parts list and diagram in the manual. Spare parts are available from the Vevor distributor or at www.vevor.com/support. Use only identical parts.

What size should the workbench be to mount the press?

The workbench must be sturdy enough to support the press weight (about 32.7 kg) and allow mounting with 3/8 in bolts. Allow at least 1300 x 300 mm of space to handle sheets.

How to replace a worn ball handle?

Unscrew the old handle (part no. 7) from the handle lever (part no. 6). Screw the new handle in place. Make sure it is tight. If the lever is damaged, replace it as well.

USER MANUAL W-1.0X1220 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND BENDING

OPERATION MANUAL

MODEL:W-1.0X610A/W-1.0X915/W-1.0X1220

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:W-1.0X610A/W-1.0X915/W-1.0X1220

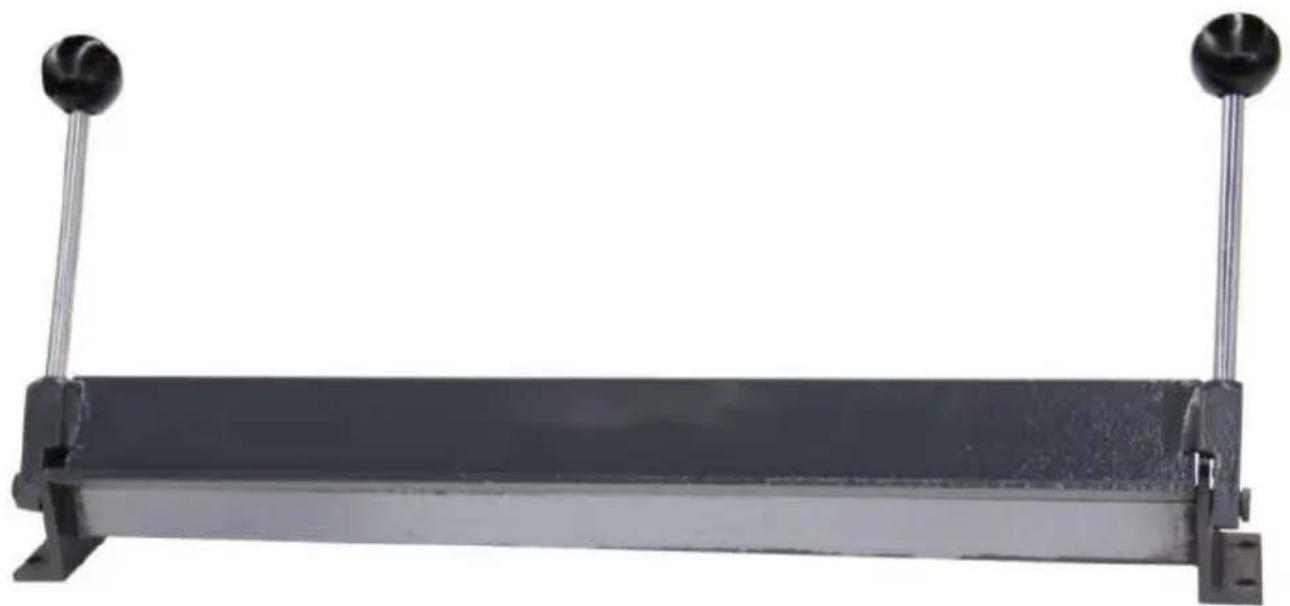

Metal mechanical lever with two vertical supports and a flat base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Specifications

Bending Capacity: Bend materials up to 18 gauge steel; make degree bends; bends material up to 40 inches wide.

Designed for bench top mounting using 3/8" diameter bolts.

Dimensions: 48 - 4/5" x 10 - 1/5" x 7"

Weight: 72 Lbs.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice n on the inside of the front cover. Keep the manual and invoice in a dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of person injury and damage to equipmer

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power to
   damp or wet locations. Don't expose to rain. Keep work area well
   Do not use electrically powered tools in the presence of flammable g
   or liquids.
3. Keep children away. Children must never be allowed in the work Do not let them handle machines, tools, or extension cords.
4. Store idle equipment.. When not in use, tools must be stored in

location to inhibit rust. Always lock up tools and keep out of reach of children.

1. Do not force tool. It will do the job better and more safety at 1 which it was intended. Do not use inappropriate attachments in an at to exceed the tool capacity.
2. Use the right tool for the job. Do not attempt to force a small attachment to do the work of a large industrial tool. Do not use a t purpose for which it was not intended.
3. Dress properly. Do not wear loose clothing of jewelry as they can caught in moving parts. Protective, electrically non-conductive clothes are non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.
4. Use eye and ear protection. Always wear ISO approved impact s goggles. Wear a full-face shield if you are producing metal filings or chips. Wear an ISO approved dust mask or respirator when working around metal, and chemical dusts and mists.
5. Do not overreach. Keep proper footing and balance at all times. [reach over or across running machine.
6. Maintain tools with care. Keep tools sharp and clean for better safer performance. Follow instructions for lubricating and changing accessories. The handles must be kept clean, dry, and free from oil grease at all times.
7. Stay alert. Watch what you are doing; use common sense. Do I operate any tool when you are tried.
8. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignmen and binding of moving parts; any broken parts or mounting fixtures; a any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified techn
9. Guard against electric shock. Prevent body contact with ground surfaces such as pipes, radiators, ranges, and refrigerator enclosures.
10. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only accessories intended for use with this tool. Approved accessories are available from the distributor.

1. Do not operate tool if under the influence of alcohol or drug. Read warning labels on prescriptions to determine if your judgment of reflexes are impaired while taking drugs. If there is any doubt, do not operate the tool.

Note: The warning and instructions contained in this instruction cannot cover all possible conditions and situations that may occur using this product. It must be understood that common sense caution are factors, which cannot be built into this product. The must be supplied by the person whom operating this piece of

Assembly and Operating Instructions

The 40” Mighty Mini Bender requires some minor assembly as described below. Please refer to the parts diagram and the parts list shown before when reading this instruction.

1. The Stand (#1) should be secured to a work bench using the mo holes and 4 bolts (3/8" diameter).

2. Each Handle Ball (#7) should be attached to the Handle Lever (#the Handle Levers should be placed into the Pins (#5).

3. To use the Mighty Mini Bender, lower the Handle Lever until the Plate is parallel to the work bench. Position the material to be bent Supporting Plate (#2) and the moving Plate and properly align with the edge to be bent up against the back edge of the Supporting Plate.

4. Place and secure the Pressing Plate (#3) on top of the Supporting with the back edge of Pressing Plate aligned with back edge of Sup Plate.

5. Raise the two Handle Levers to bend the material to the desired

Warning: When using the Mighty Mini Bender keep fingers clear Supporting Plate and Moving Plate to avoid personal injury.

1. When the Mighty Mini Bender is not in use, it should be covered stored in a dry location.

Parts List

Part #	Description	Qty
1	Stand	1
2	Supporting Plate	1
3	Pressing Plate	1
4	Moving Plate	1
5	Pin	2
6	Handle Lever	2
7	Handle Ball	2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODÈLE : W-1.0X610A/W-1.0X915/W-1.0X1220

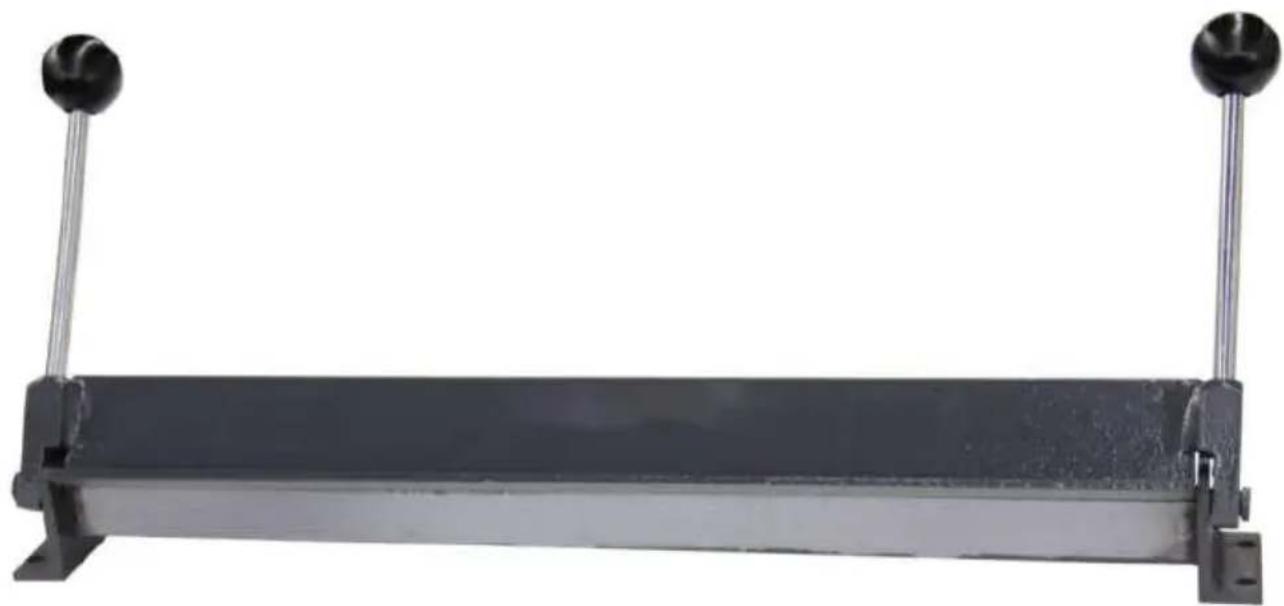

Metal frame with two vertical posts and a flat base, no visible text or symbols
