Product type	Manual press brake
Brand	Vevor
Model	W-1.0X915
Bending capacity (steel)	Up to 1.0 mm thickness
Maximum bending width	915 mm (36 inches)
Maximum bending angle	90 degrees
Dimensions (L x W x H)	1240 x 259 x 178 mm (48.8 x 10.2 x 7 inches)
Weight	32.7 kg (72 lb)
Main material	Robust steel
Mounting	On workbench (holes for 3/8 inch diameter bolts)
Operation	Manual with handle levers
Main parts	Support, backing plate, pressure plate, moving plate, pins, levers, ball handles
Safety	Wear safety goggles; keep fingers away from moving parts
Maintenance	Clean after use, store in a dry place, lubricate if necessary
Repairability	Spare parts available on request
Support	Technical support via www.vevor.com/support

Frequently Asked Questions - W-1.0X915 Vevor

How to assemble the Vevor W-1.0X915 press brake?

Secure the support (#1) to a workbench using 4 bolts of 3/8 inch diameter. Screw each ball handle (#7) onto a handle lever (#6). Place the levers onto the pins (#5). No other tools are needed.

What sheet thickness can I bend with this model?

This model can bend steel up to 1.0 mm thick. For softer materials like aluminum, the maximum thickness may be higher, but it is recommended not to exceed the steel capacity to avoid damaging the machine.

What is the maximum bending width?

The maximum bending width is 915 mm (36 inches). This corresponds to the width of the backing plate.

How to use the press brake for a 90-degree bend?

Lower the handle lever until the moving plate is parallel to the work surface. Place the material on the backing plate (#2) and the moving plate, aligning the edge to be bent against the rear edge of the backing plate. Secure the pressure plate (#3) on top. Raise the levers to bend the material to the desired angle, up to 90 degrees.

What safety precautions should I take?

Always wear ISO-approved safety goggles. Keep your fingers away from the backing plate and moving plate during bending. Do not wear loose clothing or jewelry. Keep the work area clean and tidy. Do not use under the influence of drugs or alcohol.

How to maintain the press brake?

After use, clean the machine to remove metal debris. Store it in a dry place to prevent rust. Periodically lubricate moving parts with light oil. Regularly check the condition of bolts and pins.

Where can I find spare parts?

Spare parts are available from the Vevor distributor. Refer to the parts list in the manual (support, plates, levers, etc.) and contact customer service via www.vevor.com/support to order.

Can I bend materials other than steel?

Yes, you can bend other materials like aluminum, copper, or brass, as long as they respect the maximum bending capacity (in terms of equivalent thickness). However, the machine is designed for steel; for harder materials, the maximum thickness will be reduced.

Does the press brake require electrical installation?

No, it is a manual press brake that operates without electricity. It is operated by the handle levers. Simply ensure it is securely fixed to a workbench.

How to attach the press brake to a workbench?

Use the four mounting holes on the support (#1). Secure it to the workbench with 3/8 inch diameter bolts (not included). Ensure the workbench is stable and can support the weight of the machine (approx. 33 kg).

USER MANUAL W-1.0X915 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND BENDING

OPERATION MANUAL

MODEL:W-1.0X610A/W-1.0X915/W-1.0X1220

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:W-1.0X610A/W-1.0X915/W-1.0X1220

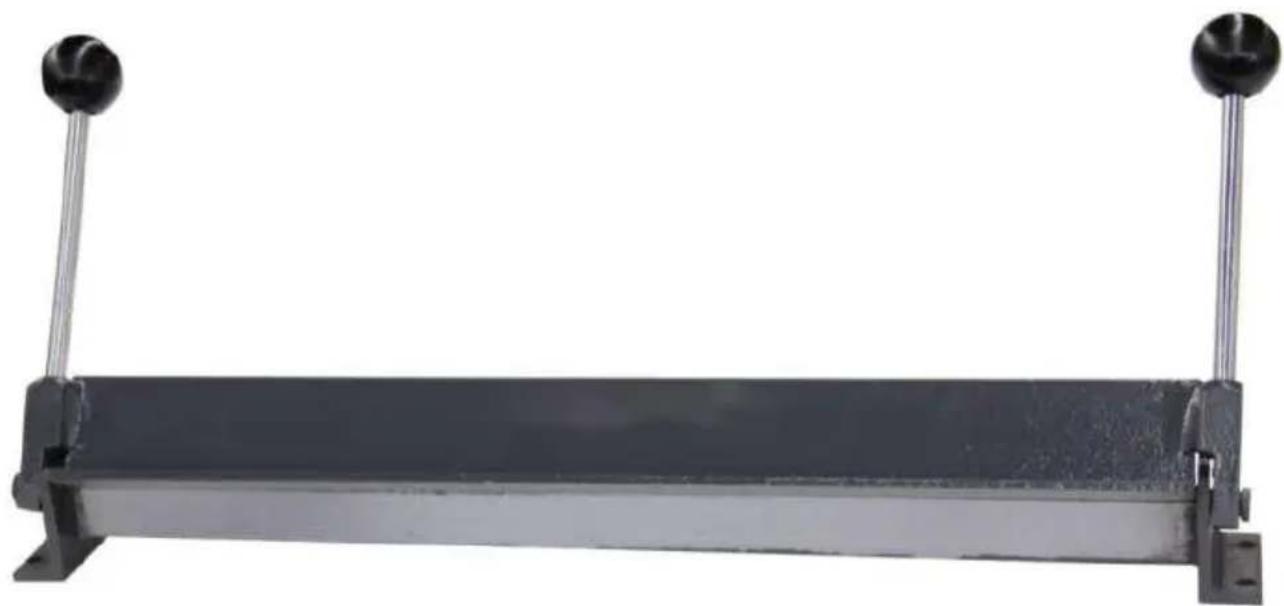

Metal mechanical lever with two vertical supports and a flat base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Specifications

Bending Capacity: Bend materials up to 18 gauge steel; make degree bends; bends material up to 40 inches wide.

Designed for bench top mounting using 3/8" diameter bolts.

Dimensions: 48 - 4/5" x 10 - 1/5" x 7"

Weight: 72 Lbs.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice n on the inside of the front cover. Keep the manual and invoice in a dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of person injury and damage to equipmer

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power to
   damp or wet locations. Don't expose to rain. Keep work area well
   Do not use electrically powered tools in the presence of flammable g
   or liquids.
3. Keep children away. Children must never be allowed in the work Do not let them handle machines, tools, or extension cords.
4. Store idle equipment.. When not in use, tools must be stored in

location to inhibit rust. Always lock up tools and keep out of reach of children.

1. Do not force tool. It will do the job better and more safety at 1 which it was intended. Do not use inappropriate attachments in an at to exceed the tool capacity.
2. Use the right tool for the job. Do not attempt to force a small attachment to do the work of a large industrial tool. Do not use a t purpose for which it was not intended.
3. Dress properly. Do not wear loose clothing of jewelry as they can caught in moving parts. Protective, electrically non-conductive clothes are non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.
4. Use eye and ear protection. Always wear ISO approved impact s goggles. Wear a full-face shield if you are producing metal filings or chips. Wear an ISO approved dust mask or respirator when working around metal, and chemical dusts and mists.
5. Do not overreach. Keep proper footing and balance at all times. [reach over or across running machine.
6. Maintain tools with care. Keep tools sharp and clean for better safer performance. Follow instructions for lubricating and changing accessories. The handles must be kept clean, dry, and free from oil grease at all times.
7. Stay alert. Watch what you are doing; use common sense. Do I operate any tool when you are tried.
8. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignmen and binding of moving parts; any broken parts or mounting fixtures; a any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified techn
9. Guard against electric shock. Prevent body contact with ground surfaces such as pipes, radiators, ranges, and refrigerator enclosures.
10. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only accessories intended for use with this tool. Approved accessories are available from the distributor.

1. Do not operate tool if under the influence of alcohol or drug. Read warning labels on prescriptions to determine if your judgment of reflexes are impaired while taking drugs. If there is any doubt, do not operate the tool.

Note: The warning and instructions contained in this instruction cannot cover all possible conditions and situations that may occur using this product. It must be understood that common sense caution are factors, which cannot be built into this product. The must be supplied by the person whom operating this piece of

Assembly and Operating Instructions

The 40” Mighty Mini Bender requires some minor assembly as described below. Please refer to the parts diagram and the parts list shown before when reading this instruction.

1. The Stand (#1) should be secured to a work bench using the mo holes and 4 bolts (3/8" diameter).

2. Each Handle Ball (#7) should be attached to the Handle Lever (#the Handle Levers should be placed into the Pins (#5).

3. To use the Mighty Mini Bender, lower the Handle Lever until the Plate is parallel to the work bench. Position the material to be bent Supporting Plate (#2) and the moving Plate and properly align with the edge to be bent up against the back edge of the Supporting Plate.

4. Place and secure the Pressing Plate (#3) on top of the Supporting with the back edge of Pressing Plate aligned with back edge of Sup Plate.

5. Raise the two Handle Levers to bend the material to the desired

Warning: When using the Mighty Mini Bender keep fingers clear Supporting Plate and Moving Plate to avoid personal injury.

1. When the Mighty Mini Bender is not in use, it should be covered stored in a dry location.

Parts List

Part #	Description	Qty
1	Stand	1
2	Supporting Plate	1
3	Pressing Plate	1
4	Moving Plate	1
5	Pin	2
6	Handle Lever	2
7	Handle Ball	2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND BENDING

MODÈLE : W-1.0X610A/W-1.0X915/W-1.0X1220

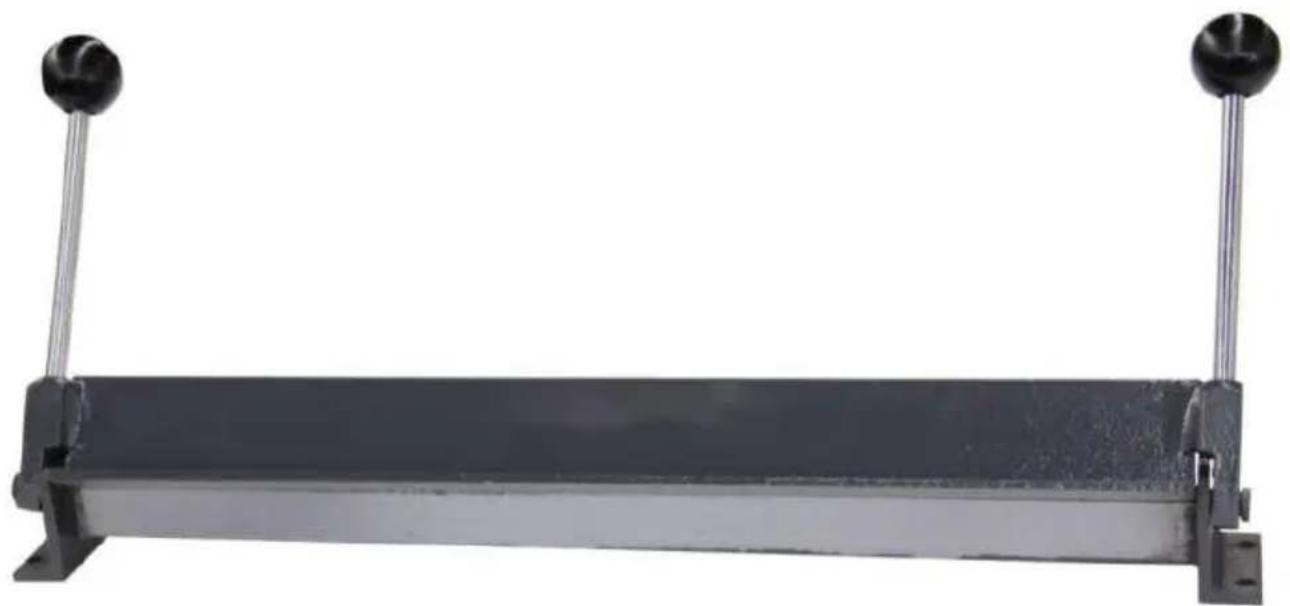

Metal frame with two vertical posts and a flat base, no visible text or symbols
