VDH-44 - Agricultural tool Vevor - Free user manual and instructions

Product Type	Drag Harrow
Brand	Vevor
Model	VDH-44
Color	Black
Main Material	Q235 Steel
Dimensions (W x L)	122 x 122 cm (4 x 4 ft)
Intended Use	Soil preparation, leveling, breaking clods for agricultural use
Traction Method	Towed by suitable vehicle (ATV, tractor)
Assembly Required	Yes, according to manual instructions
Safety Precautions	Wear safety glasses and gloves; do not use on steep slopes; inspect before use
Maintenance and Cleaning	Clean after each use; check nuts and bolts; lubricate moving parts if necessary
Spare Parts and Repairability	Parts available via manufacturer; contact support service to order
Warranty	Electronic warranty via www.vevor.com/support
Technical Support	www.vevor.com/support
Country of Manufacture	China
Compatible Models	VDH-455, VDH-545

Frequently Asked Questions - VDH-44 Vevor

How to assemble the VDH-44 drag harrow?

Follow the manual instructions: assemble on a flat surface, wear safety glasses and gloves, and respect the order of parts shown in the assembly diagram.

What is the maximum weight this harrow can support?

The maximum weight is not specified in the manual. It is recommended not to exceed normal operating capacities and to avoid overloading.

Can the VDH-44 harrow be used on all types of soil?

Yes, it is suitable for most agricultural soils (topsoil, sand, clay) for leveling and breaking clods. Avoid excessively rocky soils.

How to maintain the harrow after use?

Clean it to remove soil and residues, inspect bolts and welds, and lubricate friction points if necessary. Store it in a dry place.

What safety equipment is recommended?

Wear ANSI-approved safety glasses, sturdy work gloves, and closed-toe shoes. Keep children and bystanders away.

Is the VDH-44 harrow compatible with an ATV?

Yes, it can be towed by an ATV or a small tractor with a suitable hitch. Check your vehicle's towing capacity.

Where to find spare parts?

Contact Vevor support at www.vevor.com/support to order spare parts. Specify your model (VDH-44).

What is the lifespan of this tool?

With regular maintenance (cleaning, inspection, sheltered storage), the harrow can last several years. The electronic warranty covers manufacturing defects.

Can the harrow be left outdoors permanently?

It is not recommended to expose it to weather. Store it indoors or under cover to prevent rust and extend its lifespan.

How to contact Vevor technical support?

Visit www.vevor.com/support for assistance, to download documents, or to make a warranty claim.

USER MANUAL VDH-44 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DRAG HARROW

USER MANUAL

MODEL:VDH-44/VDH-455/VDH-545

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

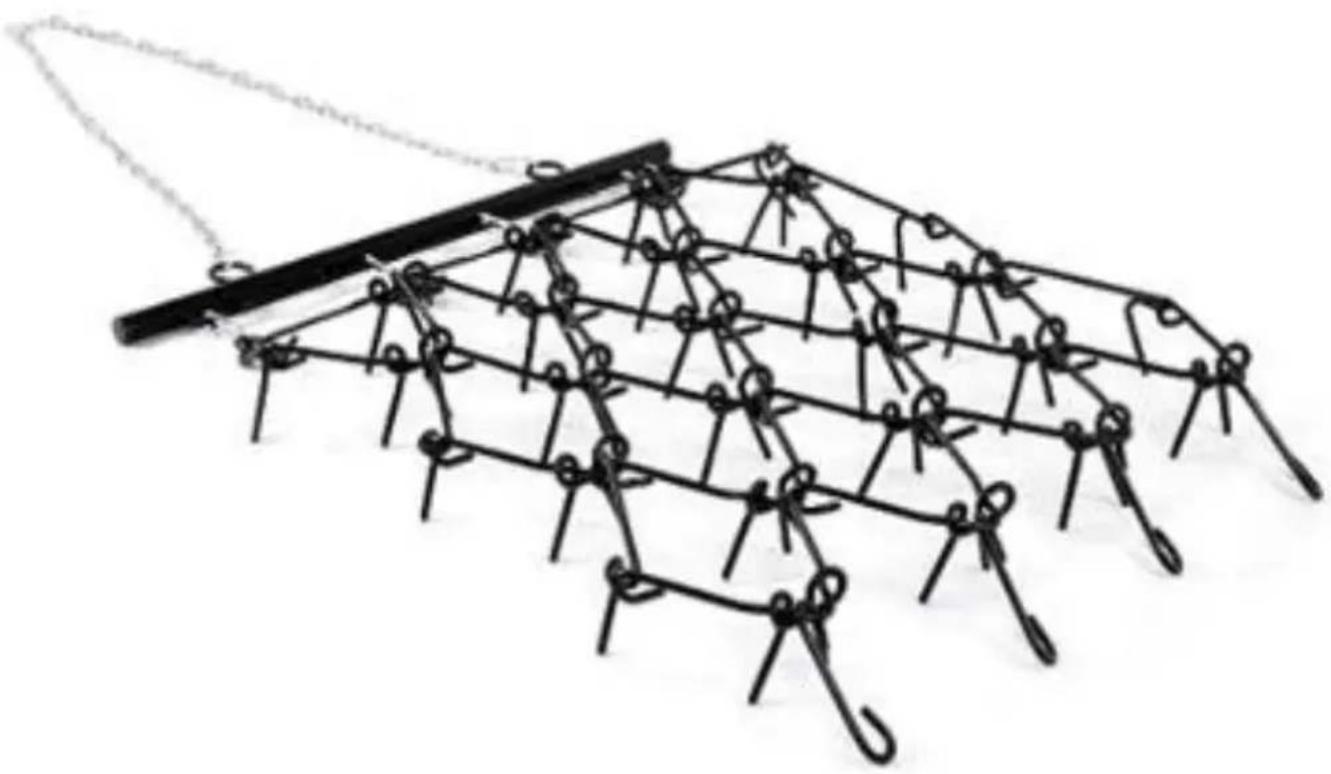

DRAG HARROW

MODEL: VDH-44/VDH-455/VDH-545

Abstract wireframe structure made of rods and rods, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

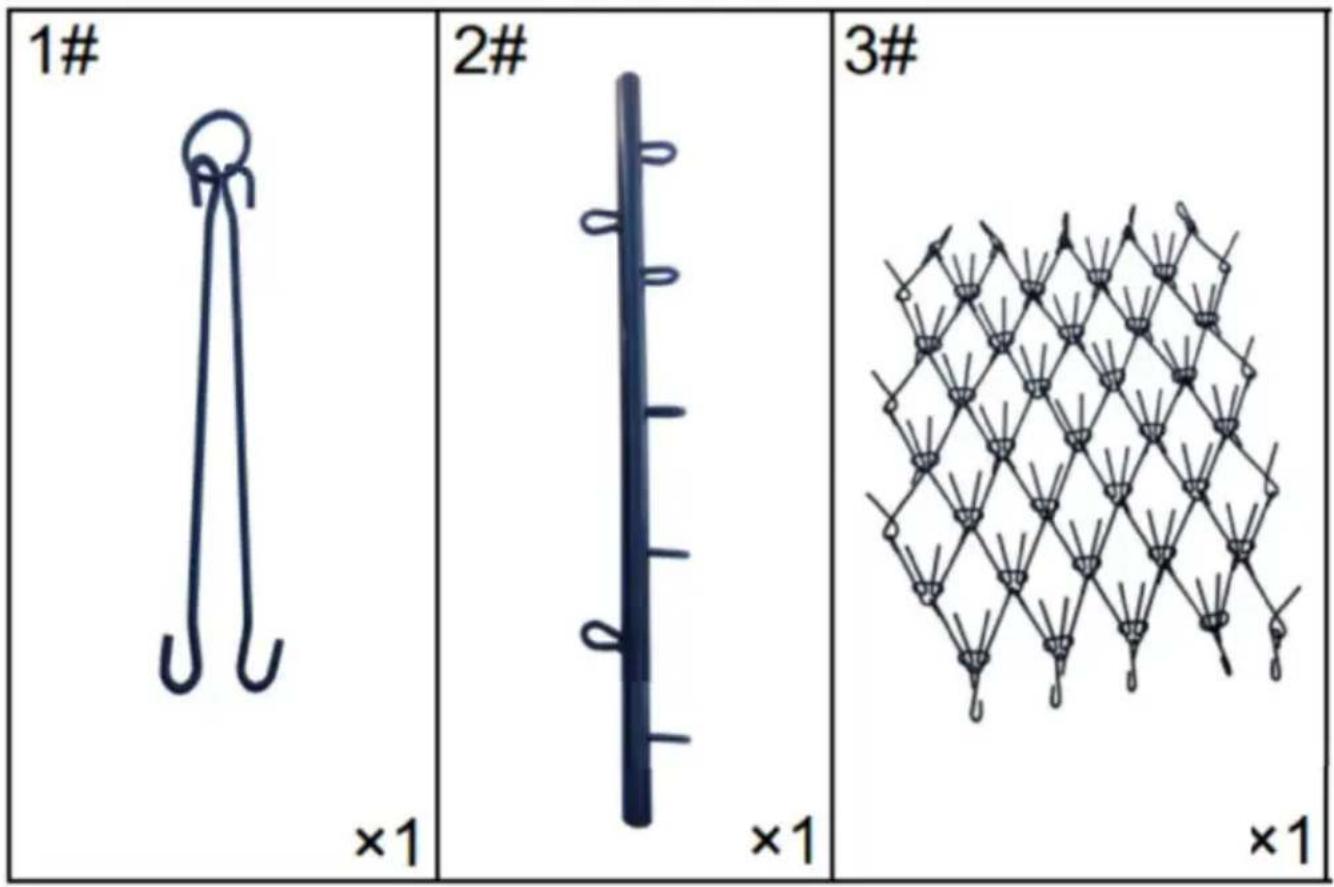

PARTS LIST


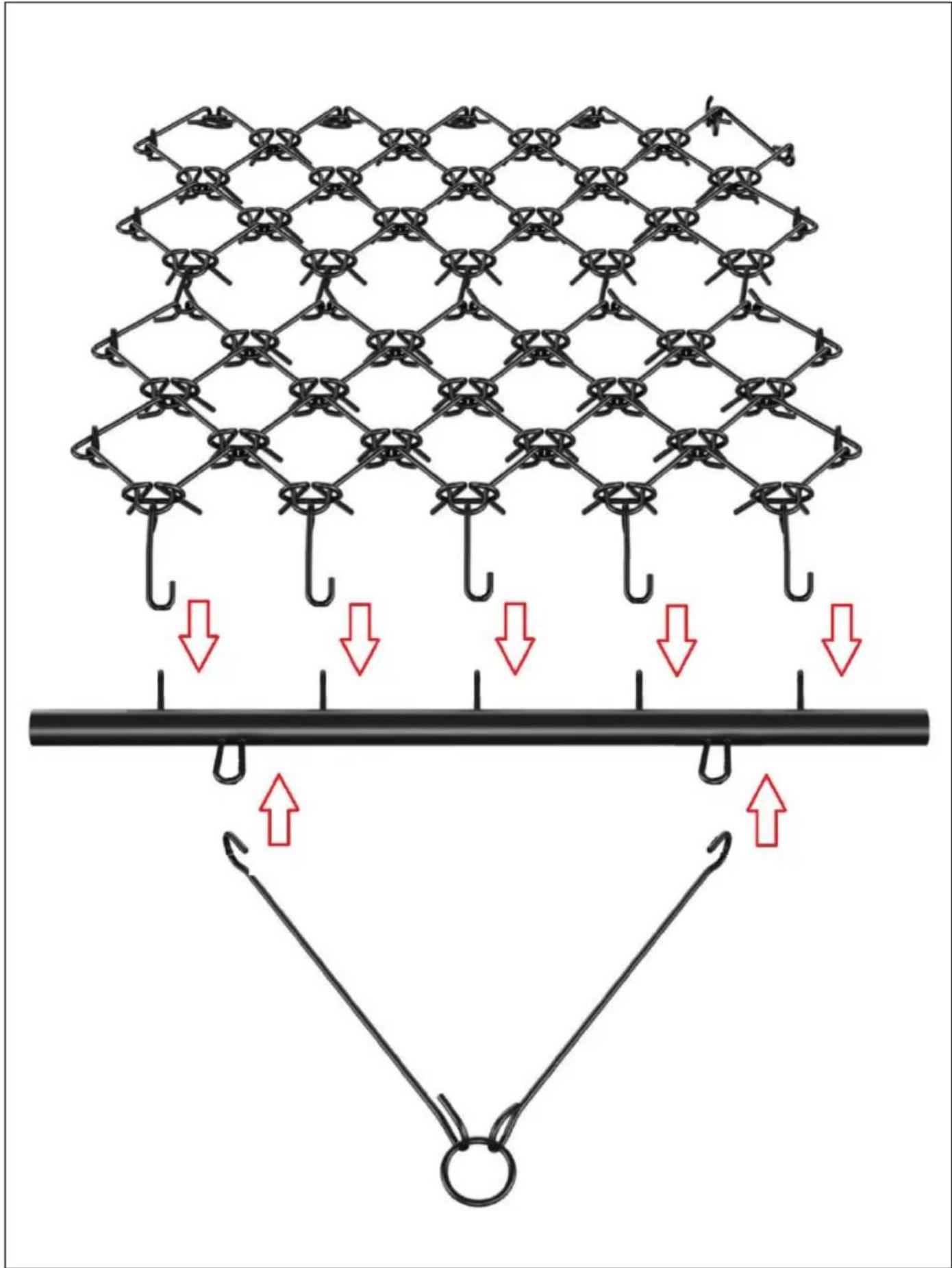

Assembly Complete.

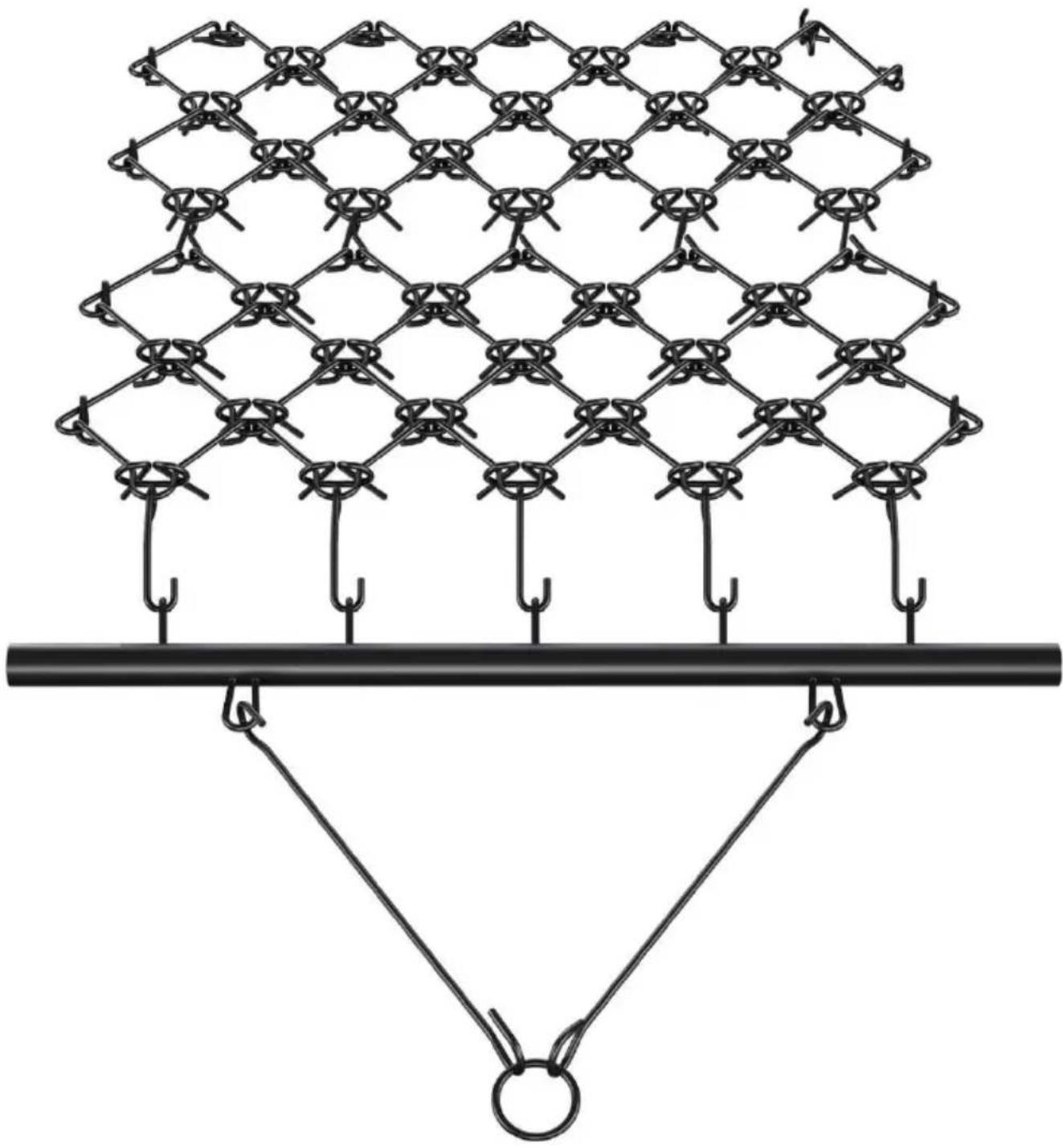

Diagram of a mesh lattice structure with suspended hooks and a triangular load at the bottom (no text or symbols)

LAND LEVELING/COMPOSTING

Versatile application

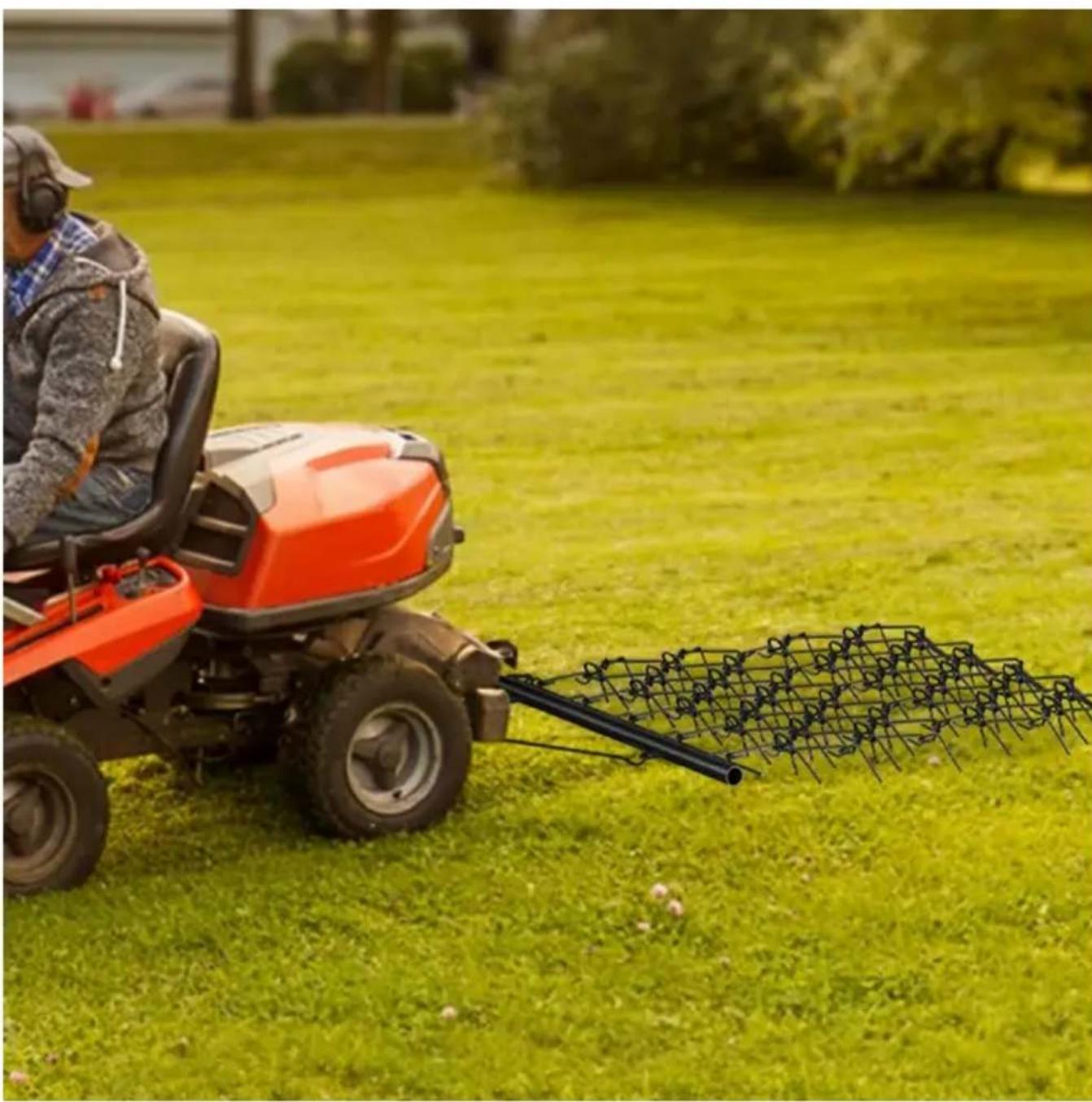

Person operating a red tractor in a grassy field, spraying water with a black rack (no visible text or symbols)

PRODUCT PARAMETER

Model	VDH-44
Colour	Black
Product Specification	4x4ft (122*122cm)
Material	Q235

Model	VDH-455
Colour	Black
Product Specification	4x5.6ft (122*170cm)
Material	Q235

Model	VDH545
Colour	Black
Product Specification	5x4.5ft (152*137cm)
Material	Q235

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
