Product Type Trailing Harrow
Brand Vevor
Model VDM-45
Dimensions 123.5 x 152 cm (4 x 5 ft)
Height 1520 mm (60 in)
Width 1235 mm (48.62 in)
Weight Approximately 25 kg
Material Q235 Steel
Color Black
Power Supply None (towed manual tool)
Main Functions Leveling and soil preparation, breaking clods, aeration
Package Contents 1 x trailing harrow, 2 x angle irons, fixing screws, user manual
Assembly Simple assembly: attach the angle irons using the provided screws
Usage Towed by agricultural vehicle on loose soil
Maintenance and Cleaning Clean after use, store away from moisture, regularly check fasteners
Safety Do not sit or stand on the tool, wear gloves and safety goggles during assembly, use on flat and stable surface
Spare Parts Angle irons and fixing screws included; contact customer service for specific parts
Repairability Technical assistance via www.vevor.com/support
Warranty Electronic warranty certificate available on the Vevor website
Certifications Compliant with current safety standards

Frequently Asked Questions - VDM-45 Vevor

How to assemble the Vevor VDM-45 trailing harrow?
To assemble the harrow, attach the two angle irons (supplied) to the main frame using the included screws. Make sure to tighten all fasteners properly. Wear gloves and safety glasses during assembly.
What are the exact dimensions of the VDM-45?
The dimensions are 123.5 cm width and 152 cm length (4 x 5 ft). The height is 1520 mm.
What is the weight of the Vevor VDM-45 harrow?
The approximate weight is 25 kg, making it easy to tow by an agricultural vehicle.
What material is the harrow made of?
The harrow is made of Q235 steel, a strong and durable carbon steel suitable for agricultural tasks.
Can the VDM-45 harrow be used on all types of soil?
It is designed for loose soils such as plowed fields, meadows, or sandy terrain. Avoid very rocky soils.
How to maintain the harrow to extend its lifespan?
After each use, clean the harrow to remove soil and debris. Store it in a dry place away from moisture. Regularly check that all screws are properly tightened.
Is the VDM-45 harrow difficult to tow?
No, its light weight (approx. 25 kg) and trailing design make it easy to tow with a tractor, ATV, or even an off-road vehicle.
What are the important safety instructions?
Do not sit or climb on the harrow. Keep children away. Use only on a flat and stable surface. Wear protective equipment during assembly.
What to do if a part is missing or damaged?
Contact Vevor customer service via www.vevor.com/support. Have your model number (VDM-45) and proof of purchase ready.
Where to find the complete user manual?
The user manual is available for free download on notice-facile.com. You can also view it on the Vevor website in the support section.

User questions about VDM-45 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Agricultural tool in PDF format for free! Find your manual VDM-45 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VDM-45 by Vevor.

USER MANUAL VDM-45 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DRAG HARROW

USER MANUAL

MODEL:VDM-45

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

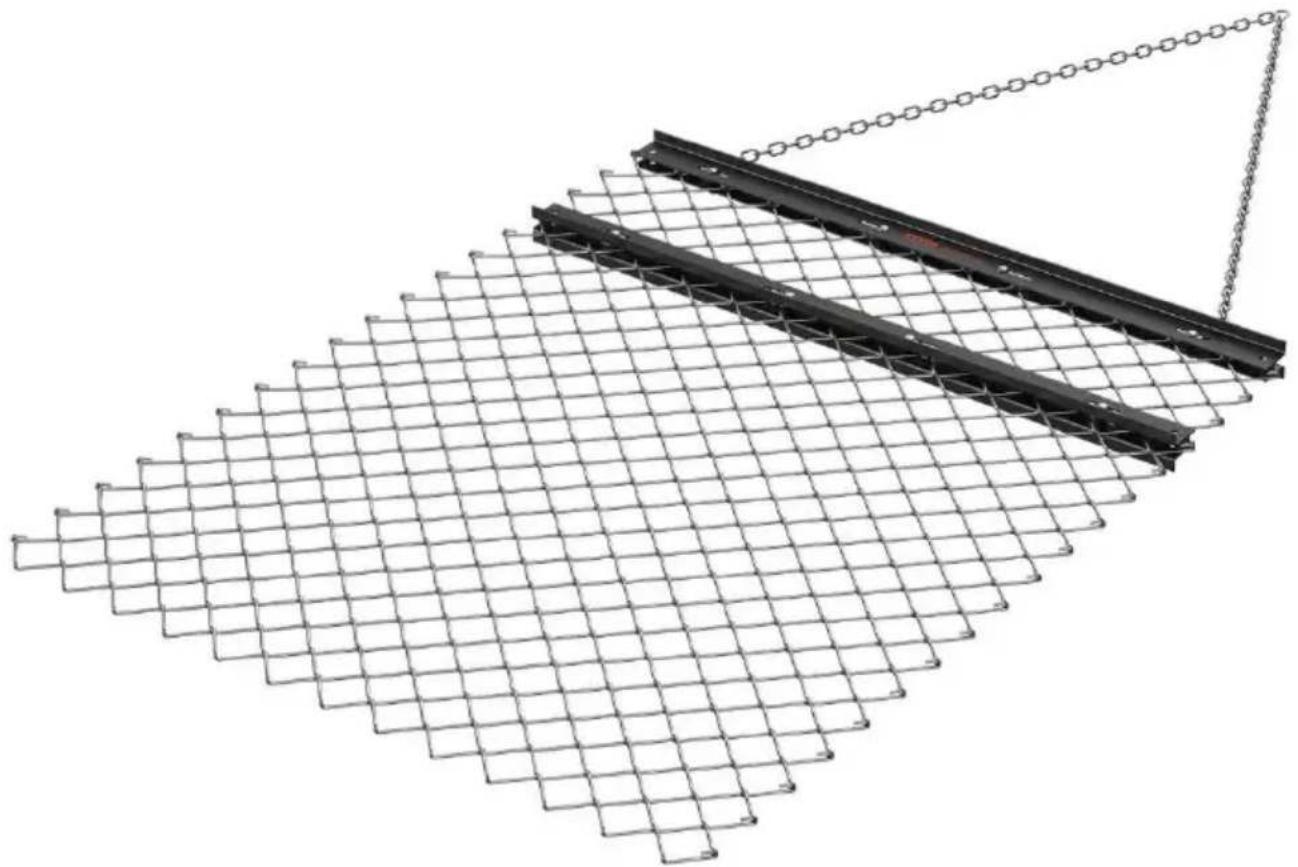

DRAG HARROW

MODEL:VDM-45

Vevor VDM-45 - DRAG HARROW - 1

natural_image Metal grid structure with two black metal truss elements suspended by chains (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

  1. Assemble only according to these instructions. Improper assembly c create hazards.
  2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
  3. Keep the assembly area clean and well-lit.
  4. Keep bystanders out of the area during assembly.
  5. Do not assemble if tired or when under the influence of alcohol, or medication.
  6. The product capabilities apply to properly and completely assembled products only.
  7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
  8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

  1. DO NOT SIT OR STAND ON THIS ITEM.
  2. This product is not a toy. Do not allow children to play with or item.
  3. Do not exceed specified weight capacities.
  4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
  5. Use as intended only.
  6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

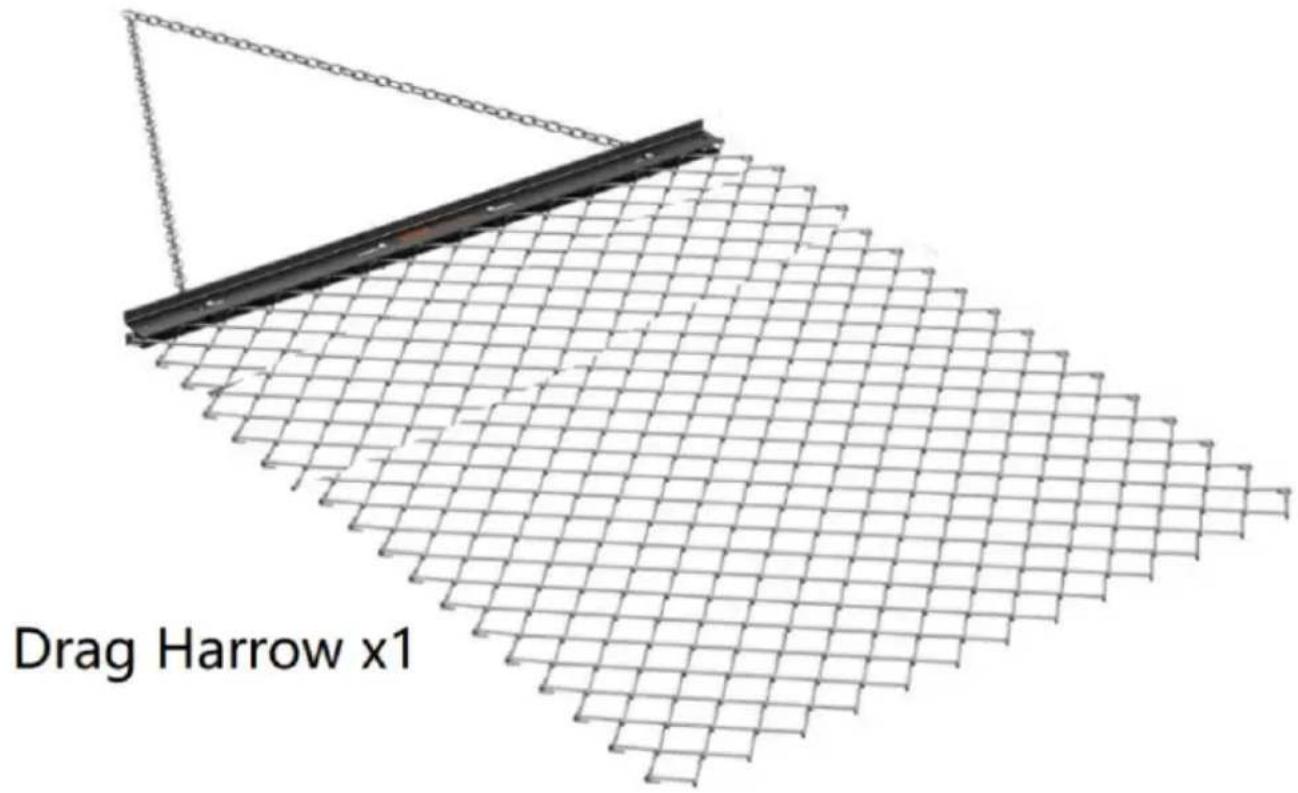

PARTS LIST

Drag Harrow x1

Angle Iron x2

Vevor VDM-45 - PARTS LIST - 3

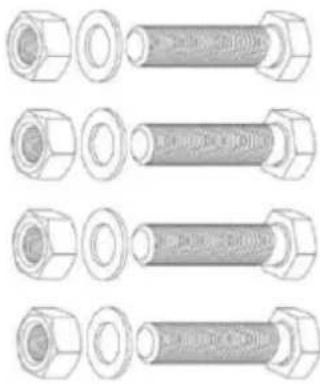

natural_image Illustration of four different types of bolts with hexagonal end caps (no text or symbols)

Screw x4

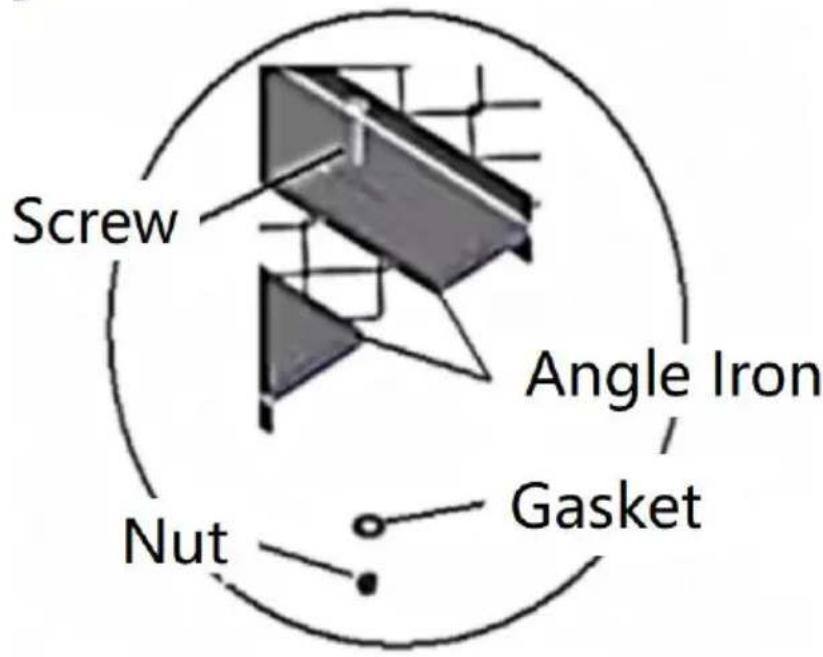

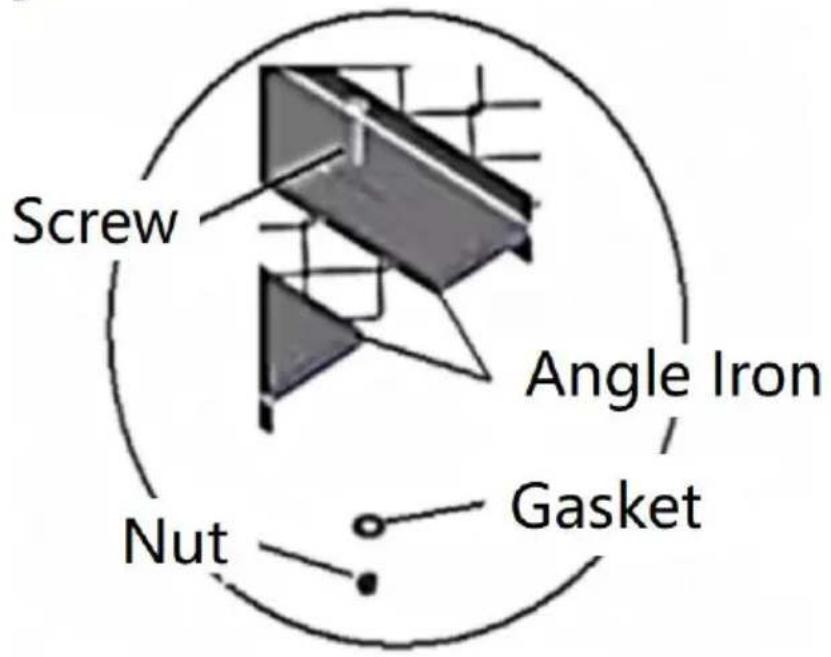

Screw Angle Iron Nut Gasket

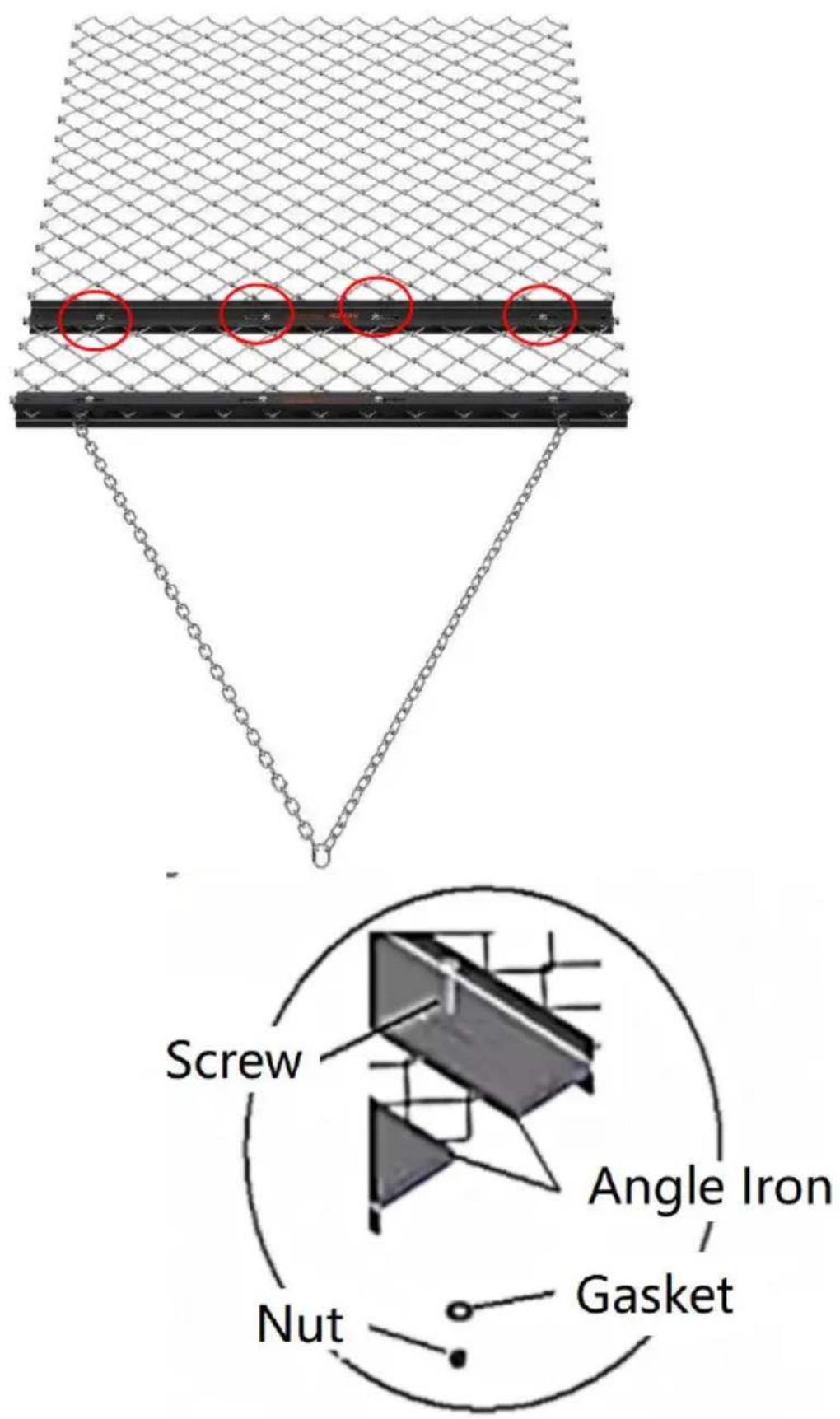

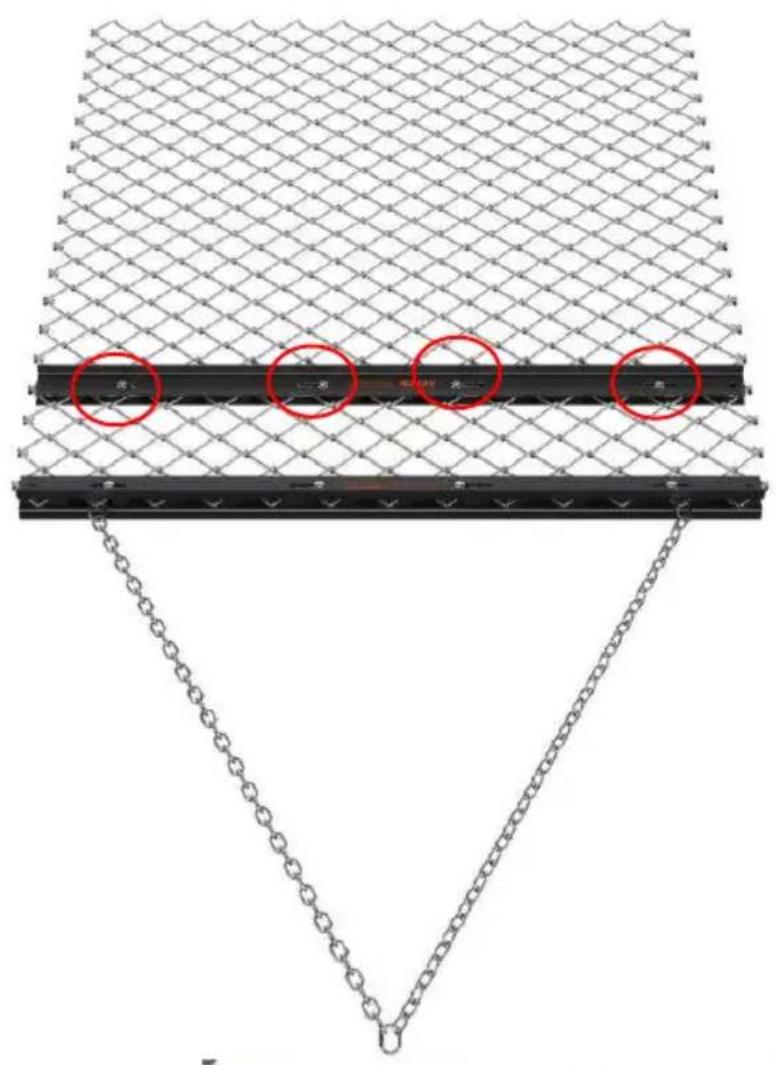

Fasten the angle iron(x2) to Drag Harrow with screws(x4).

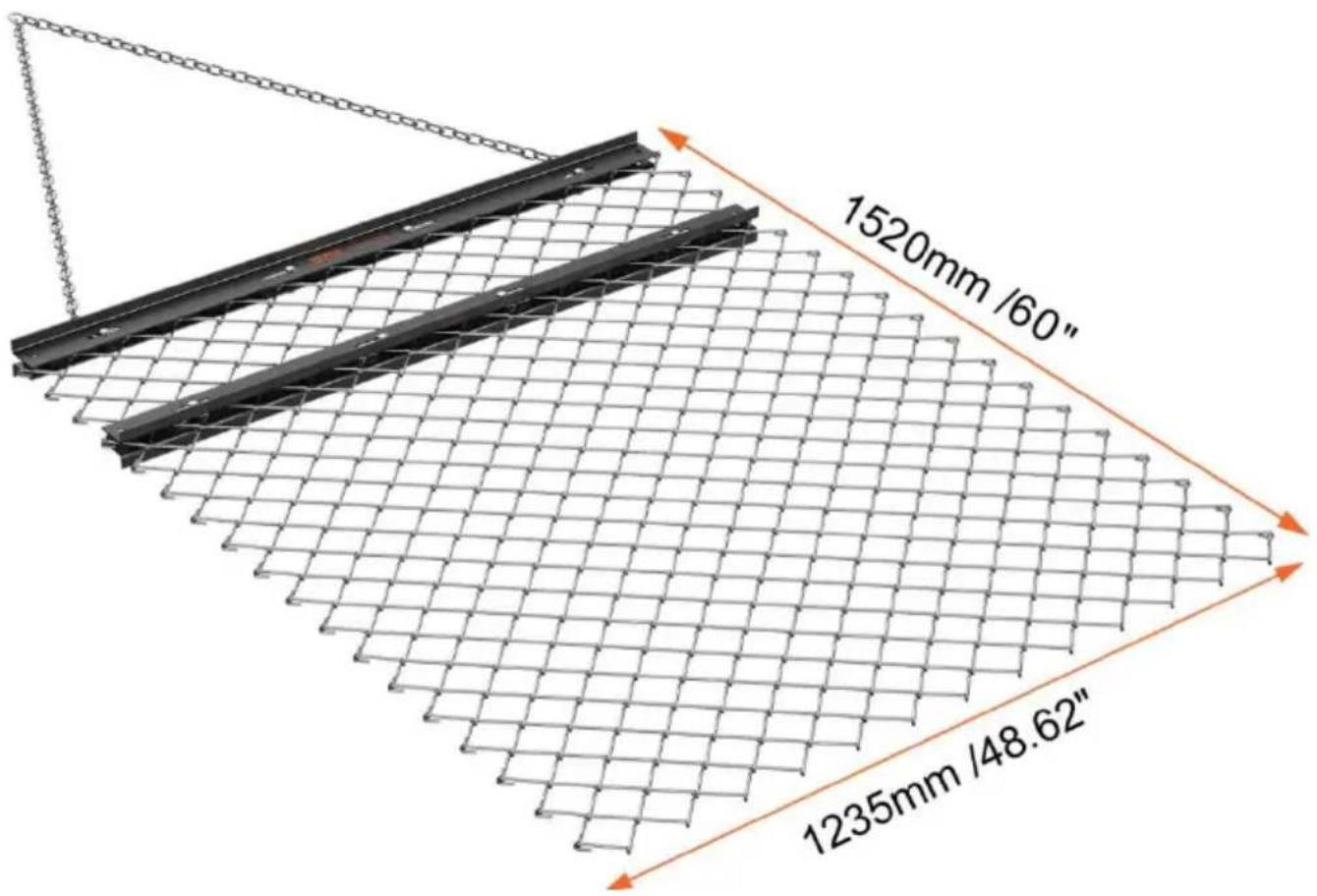

PRODUCT PARAMETER

ModelVDM-45
ColourBlack
Product Specification4x5ft (123.5*152cm)
MaterialQ235

Vevor VDM-45 - PRODUCT PARAMETER - 1

other | Dimension | Value | | ----------------- | ------------ | | Height (mm) | 1520mm / 60" | | Width (mm) | 1235mm / 48.62" |

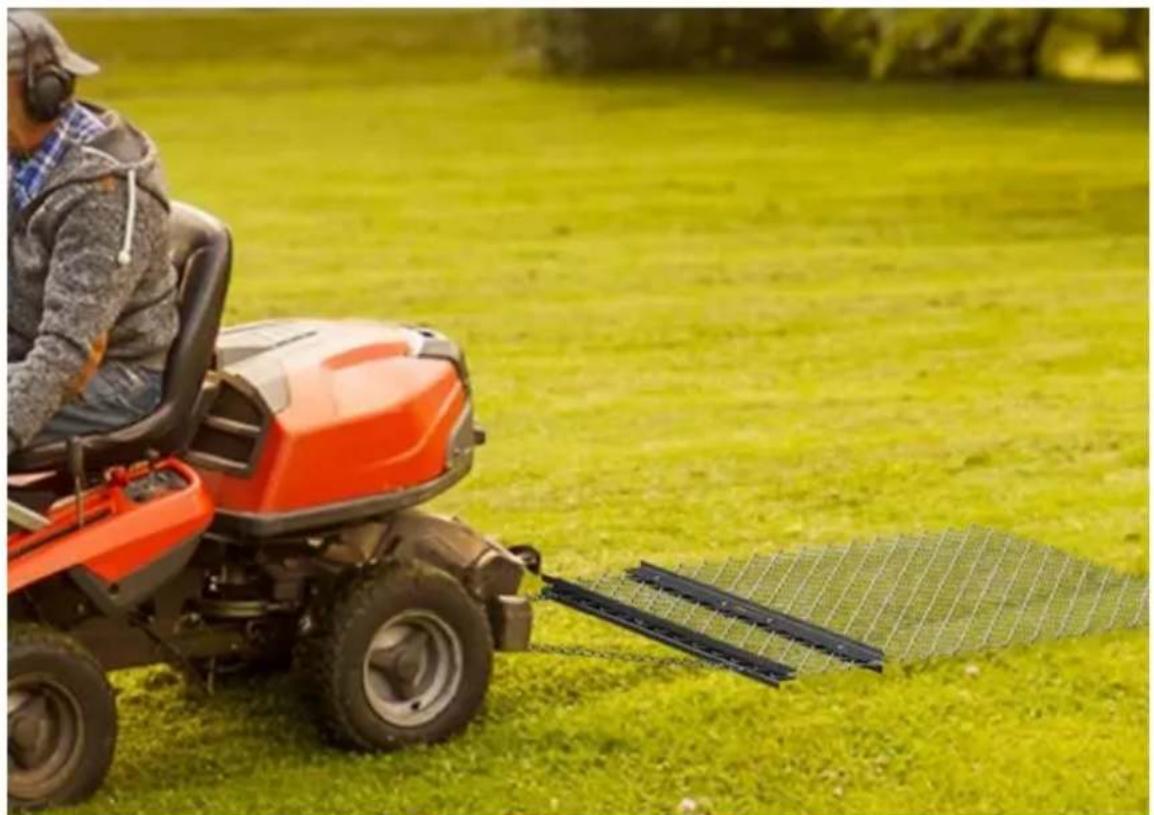

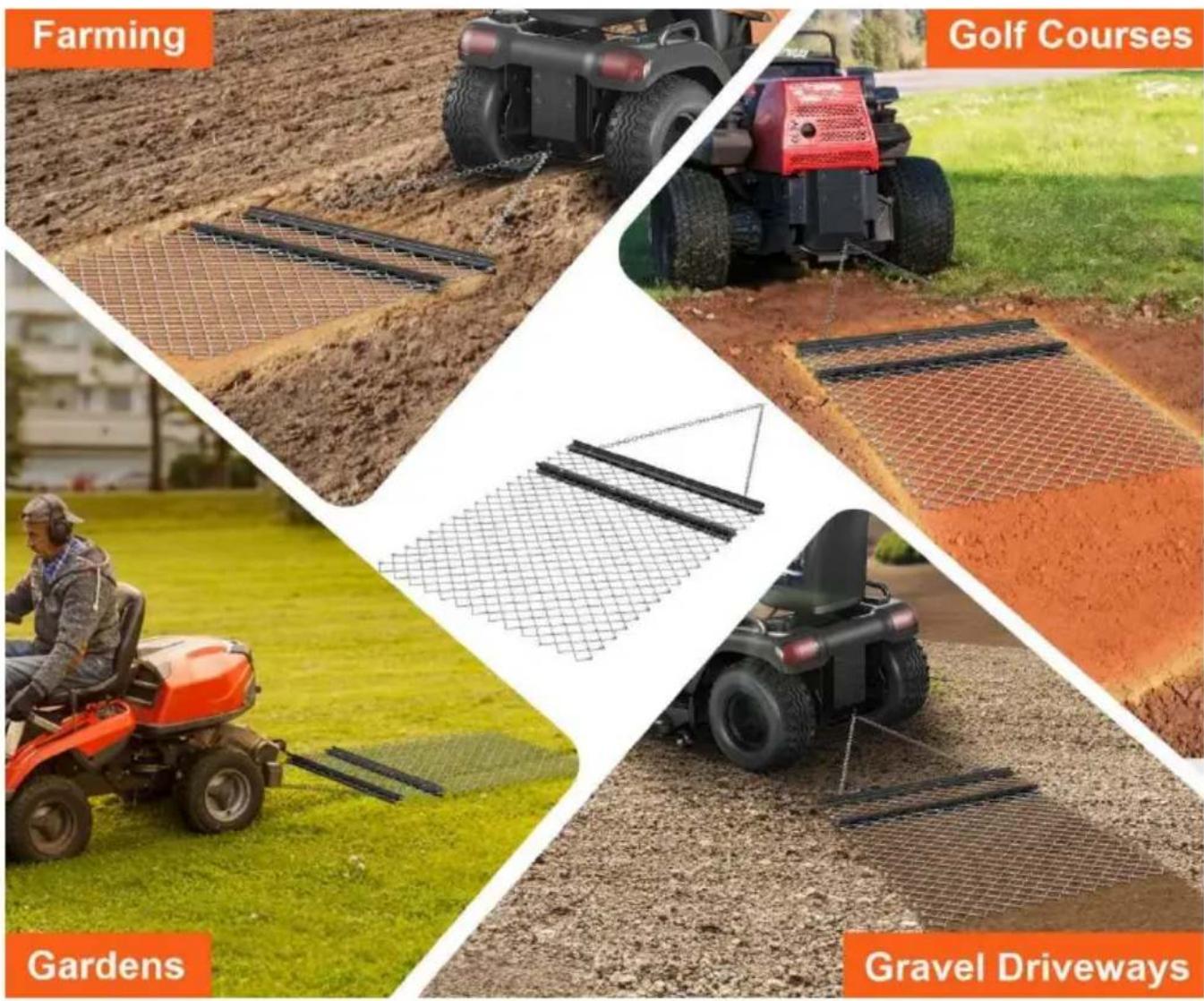

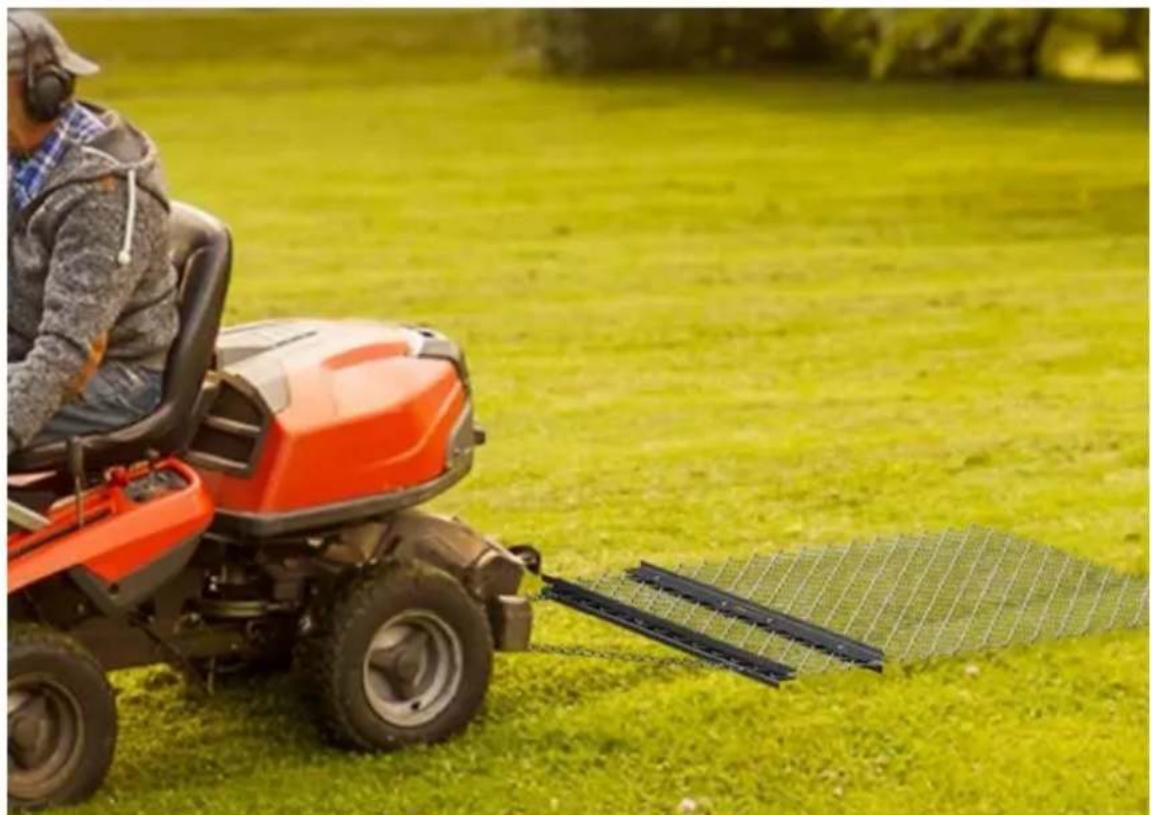

Farming Golf Courses Gardens Gravel Driveways

Vevor VDM-45 - PRODUCT PARAMETER - 3

natural_image Person operating an orange lawn tractor on a grassy field, with a metal mesh fence nearby (no text or symbols visible)

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
