TKS-1 - Hydraulic test tool Vevor - Free user manual and instructions

Product Type	Hydraulic Pressure Test Kit
Brand	Vevor
Model	TKS-1
Pressure Range	0-3500 psi / 25 MPa, 0-5800 psi / 40 MPa, 0-8600 psi / 60 MPa (3 gauges)
Case Dimensions	325 x 305 x 115 mm
Net Weight	2.9 kg
Case Material	Aluminum Alloy
Included Test Connectors	G1/8, G1/4, G3/8, R1/4, M10x1, M14x1.5, M1/8, UNF7/16-20, UNF9/16-18
Number of Gauges	3 (0-3500 psi / 250 bar, 0-5800 psi / 400 bar, 0-8600 psi / 600 bar)
Test Hoses	3
Teflon Tape	1 roll
Intended Use	Hydraulic pressure testing on construction machinery, automotive equipment, steel pipes, and marine systems
Compatibility	Excavators and other construction machinery with standard hydraulic test points
Required Safety Equipment	Safety glasses (OSHA/ANSI Z87.1), gloves, hearing protection
Usage Precautions	Read instructions carefully before use; keep the work area clean and well-lit; keep children and unauthorized persons away
Maintenance	Wipe off oil after each use; check the gauge every six months; store in a dry, clean place
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support
Manufacturing	China

Frequently Asked Questions - TKS-1 Vevor

Which models are compatible with this kit?

This TKS-1 hydraulic test kit is compatible with most excavators and construction machinery equipped with standard test points. It is also used to test automotive hydraulic systems, steel pipes, and marine systems.

How to connect the test kit?

1. Choose the test connector suitable for your measurement point. 2. Screw it firmly onto the gauge using a wrench. 3. Connect the test hose to the pressure connector. 4. Unscrew the dust cap from the test point and connect the other end of the hose. For detailed instructions, refer to the manual.

What is the maximum measurable pressure?

The TKS-1 kit comes with three gauges: 0-3500 psi (250 bar), 0-5800 psi (400 bar), and 0-8600 psi (600 bar). The maximum measurable pressure is 8600 psi / 600 bar.

What to do if a part is missing or damaged?

Check the parts list when unpacking. If a part is missing or damaged, contact your distributor or Vevor technical support via www.vevor.com/support.

How to maintain the test kit?

After each use, wipe off oil and dirt from the device. Check the gauge every six months. Store the kit in a dry, clean place and close the case to protect it.

Can I use this kit to test high-pressure systems?

Yes, but ensure the system pressure does not exceed the maximum range of the gauge used. Never exceed 8600 psi / 600 bar. Always use the gauge appropriate for the expected pressure.

What safety precautions should I take?

Always wear safety glasses, gloves, and hearing protection. Ensure the work area is clean and well-lit. Keep children and unauthorized persons away. Do not wear loose clothing that could get caught in parts.

How to know which connector to use?

The kit includes several connectors: G1/8, G1/4, G3/8, R1/4, M10x1, M14x1.5, M1/8, UNF7/16-20, and UNF9/16-18. Select the one that matches the thread of your test point. If in doubt, consult your machine's documentation.

Can the kit be used for tests on vehicles?

Yes, the kit is designed to test automotive hydraulic systems, including excavators, loaders, and other machinery. It can also be used on steel pipes and marine systems.

Where can I find warranty and technical support?

The electronic warranty certificate and technical support are available at www.vevor.com/support. Feel free to contact support for any questions or issues.

USER MANUAL TKS-1 Vevor

HYDRAULIC PRESSURE TEST KIT

MODEL: TKS-1/TKS-2/TKS-3/TKS-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

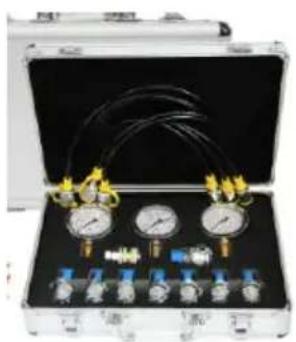

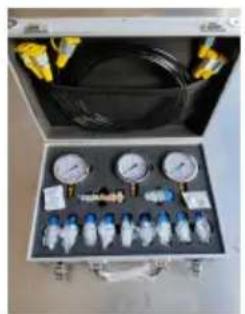

Hydraulic Pressure Test Kit

MODEL: TKS-1/TKS-2/TKS-3/TKS-4

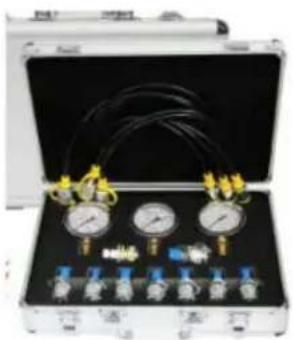

TKS-1 TKS-2

TKS-3 TKS-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PARAMETER LIST

model	TKS-1	TKS-2	TKS-3	TKS-4
pressure range	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-1MPa/150 psi、0-10MPa/1500psi、0-25MPa/4000psi、0-40MPa/6000psi、0-60MPa/10000psi
product size(mm)	325*305*115	285*210*70	320*240*90	325*305*115
net weight(kg)	2.9	2	2.7	6.75

PART LIST

model	picture	TKS-1	TKS-2	TKS-3	TKS-4
Test connector		specificatio n: G1/8 , G1/4, G3/8, R1/4, M10/1, M10/1.25, M14/1.5, M1/8, UNF7/16-2 0, UNF9/16-1 8	specificati on: G1/4, G1/8, G3/8, M14*1.5, M10*1, M10*1.25)	specificati on: (G1/8 G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18,	specificatio n: ZG1/4, G1/4, G1/8, G3/8 , UNF7/16, UNF9/16, M10/1.25, M14*1.5, M10*1, M16*1.5, M12*1.5 , NPT1/4,
hydraulic pressure indicator		0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-10Bar/150psi、0-100Bar/1500psi、0-250Bar/4000psi、0-400Bar/6000psi、0-600Bar/10000psi)
Pressure test hose		3	3	3	5
Teflon tape			1	/	/
spacer inner diameter 10mm)		/	1	/	/
spacer inner diameter 12mm)		/	1	/	/
Three way connector		/	/	/	14

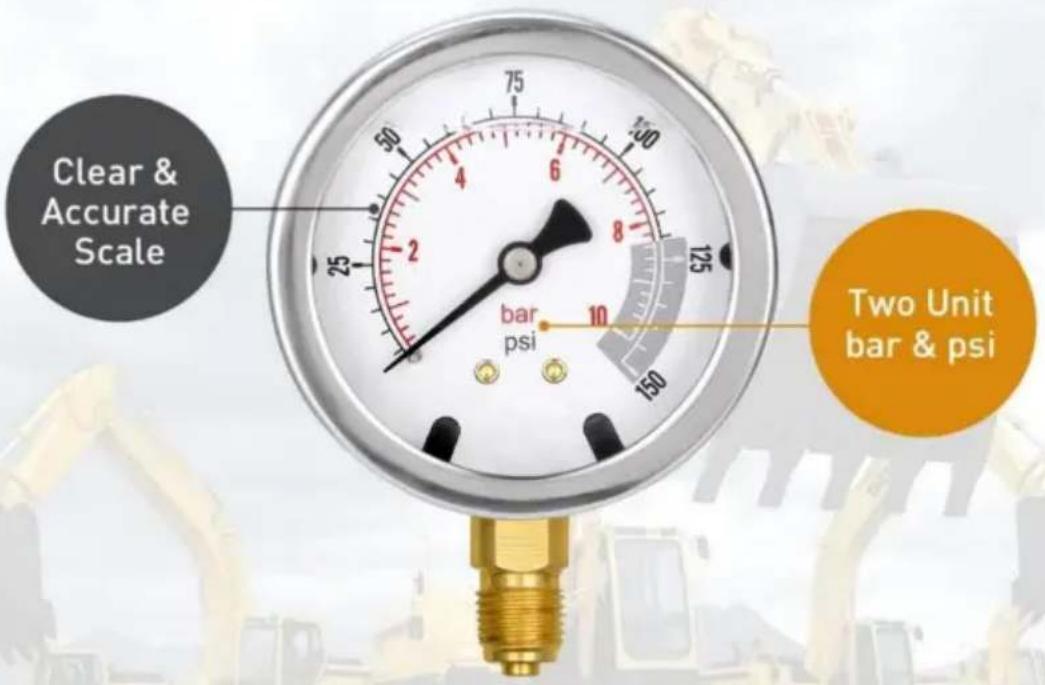

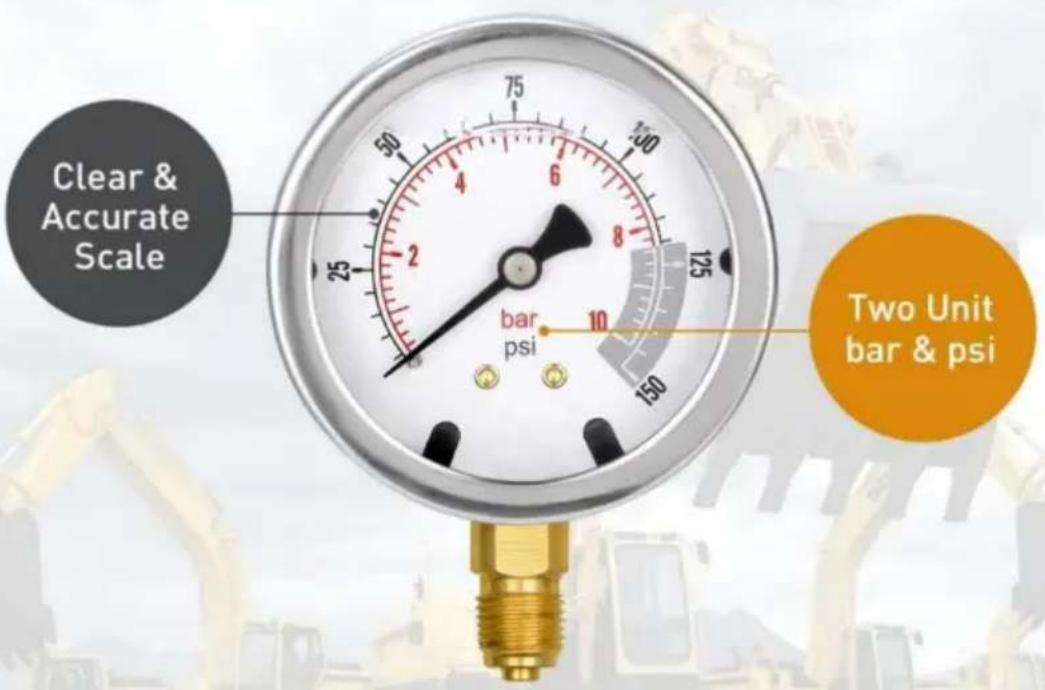

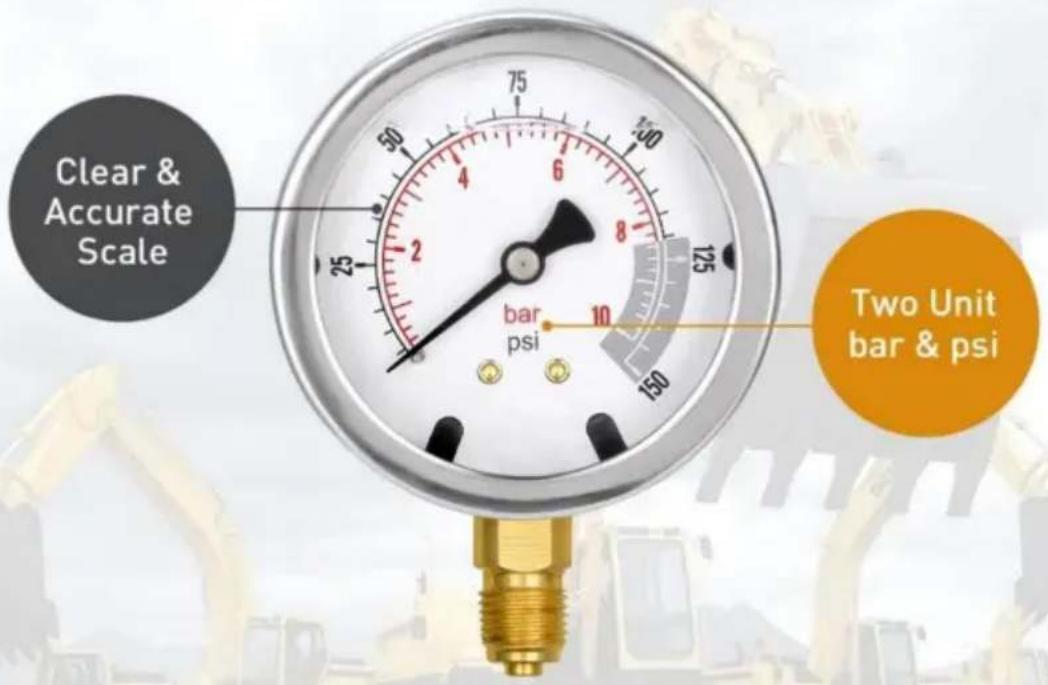

5PCS ACCURATE GAUGE

Ensuring accurate hydraulic system pressure measurement

0~10bar 0~150psi

0~100bar 0~1500psi

0~250bar 0~4000psi

0~400bar 0~6000psi

0~600bar 0~10000psi

PRACTICAL TEE CONNECTORS

Suitable for excavators and machines of most brands

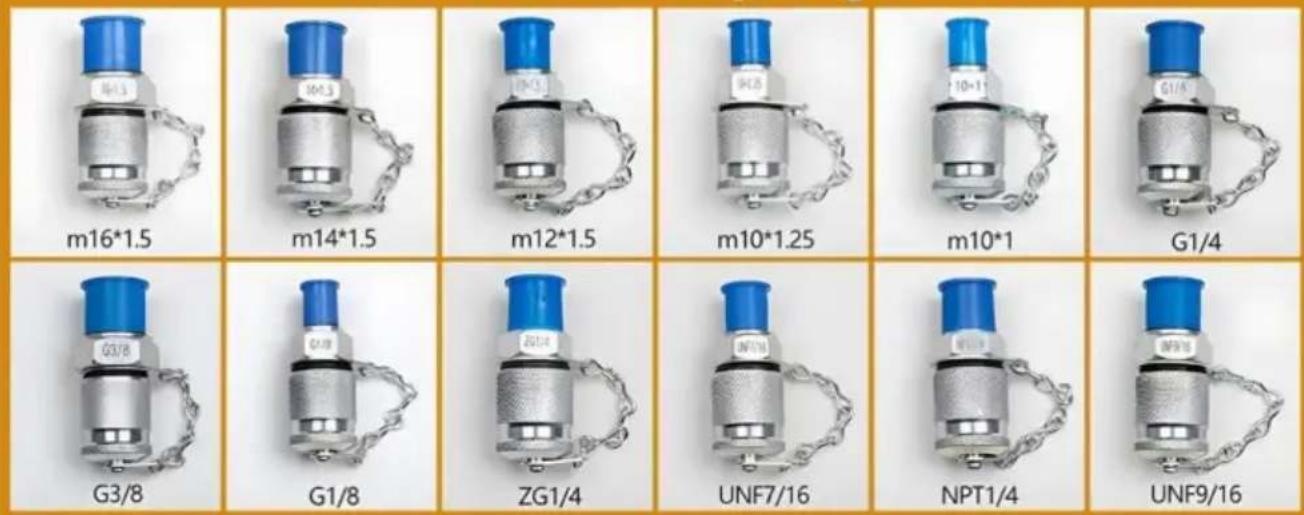

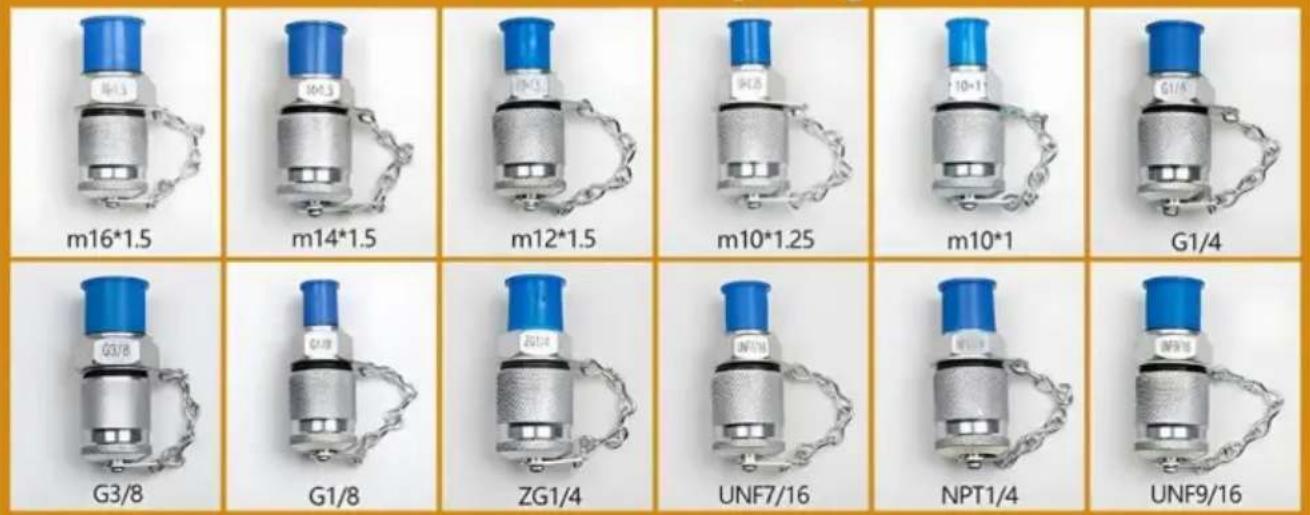

12 Test Couplings

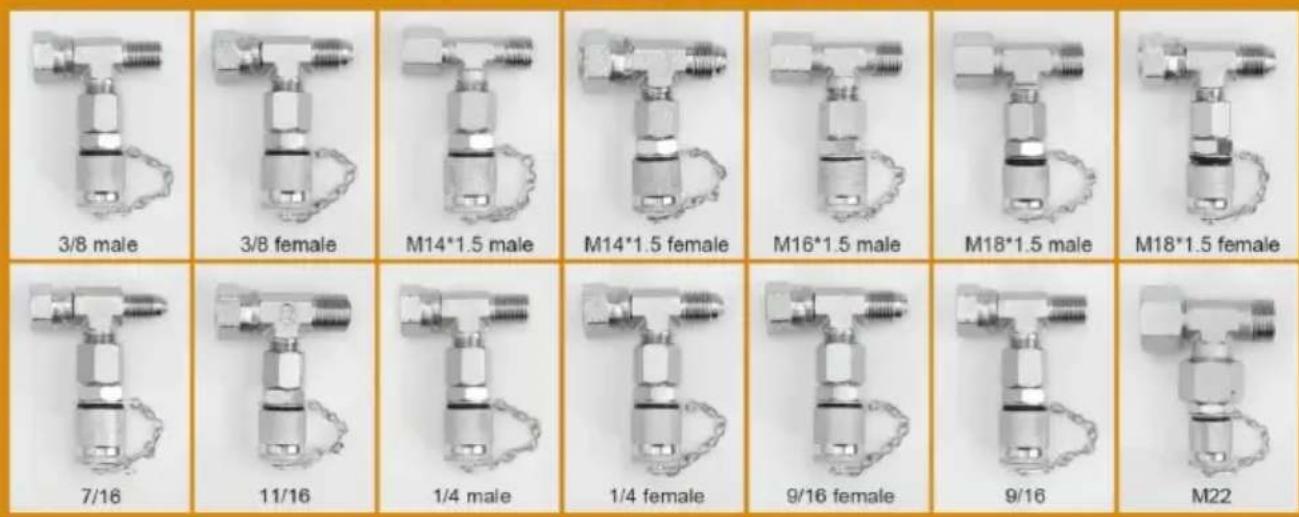

14 Tee Connectors

SECURITY & WARNINGS

WARNING: Study, understand and follow all instructions provided with this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these

instructions in a safe accessible place.

1. Take care: loose or baggy clothing can be caught in parts.
2. Use as intended only.

Always read the instructions carefully before using the tool. Ensure the working area has adequate lighting.

• Keep children and unauthorized persons away from the working area.
• Keep the working area clean and tidy, dry and free from unrelated materials.
• DO NOT allow untrained persons to use this tool kit. Always wear eye protection that meets OSHA and ANSI Z87.1 standards. Always wear gloves when working with the tool. Always wear ear protection.
• Disposal: Customers should follow local regulations to handle used/waste parts.

BEFORE USE

DO NOT DISCARD - GIVE TO USER

When unpacking, check the parts diagram and part list to make sure all parts are included. If any parts are missing or damaged, please call your distributor.

OPERATION

Use and maintenance of pressure measuring devices

1) In use, pressure connectors should be installed at the test site of the pressure measurement system. The connecting thread of the pressure measuring connector should match the thread of the pressure measuring hose. (Use a wrench to tighten the hydraulic gauge and pressure test hose and test connector.) 2) The pressure device can also measure when the hydraulic system is running, but the user should confirm that the pressure point of the pressure gauge is in this range. 3) The pressure device should be placed flat, and the distance between the pressure measuring point and the pressure device should not exceed 85% of the length of the hose. 4) When measuring pressure, the pressure measuring hose should be connected to the corresponding pressure gauge connector. Then, unscrew the dust cap and pressure measuring connector, and connect the other end of the pressure measuring hose to the pressure connector. Users can carry the pressure detection with them. 5) After measuring the pressure, first unscrew the pressure measuring hose connected to the pressure connector, screw on the dust cap, and then unscrew the

pressure measuring hose connected to the corresponding pressure gauge connector.

6) After the test, the oil on the pressure device should be wiped, the lid closed. 7) The equipment should be used and stored with caution, and the pressure should be checked after six months.

Features

1. Hydraulic test kits for most brand excavators
2. Hydraulic test point coupling, pressure gauge
3. Aluminum alloy housing, lightweight, portable, and undistorted
4. Easy to maintain and maintain, and maintain cleanliness through simple wi
5. Used to test the hydraulic pressure of construction machinery at all levels, equipped with common pressure connectors for construction machinery
6. Also used for testing steel, automotive hydraulic pipelines, and marine pres hydraulic system.
