TKS-4 - Hydraulic test tool Vevor - Free user manual and instructions

Product Type	Hydraulic Pressure Test Kit
Brand	Vevor
Model	TKS-4
Product Dimensions	325 x 305 x 115 mm
Net Weight	6.75 kg
Pressure Range (5 gauges)	0-1 MPa / 150 psi, 0-10 MPa / 1500 psi, 0-25 MPa / 4000 psi, 0-40 MPa / 6000 psi, 0-60 MPa / 10000 psi
Number of Pressure Test Hoses	5
Included Test Connectors	ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10×1.25, M14×1.5, M10×1, M16×1.5, M12×1.5, NPT1/4
Three-way Connector	14 pieces
Teflon Tape	1 roll
Housing	Aluminum alloy, lightweight, portable, anti-deformation
Main Use	Hydraulic pressure testing of construction machinery (excavators, etc.), automotive and marine hydraulic pipelines
Maintenance and Cleaning	Wipe off oil after use, close the lid, check the pressure gauge every six months
Safety Instructions	Wear safety glasses (OSHA/ANSI Z87.1), gloves, hearing protection; keep work area clean and well-lit; keep children away
Repairability and Spare Parts	Technical support via www.vevor.com/support; electronic warranty available

Frequently Asked Questions - TKS-4 Vevor

How to use the TKS-4 hydraulic pressure test kit?

Install the appropriate pressure connector on the system test point. Tighten with a wrench. Connect the test hose to the corresponding pressure gauge. Unscrew the dust cap of the test connector and attach the other end of the hose. After measurement, first unscrew the hose at the connector side, replace the cap, then unscrew the hose at the gauge side. Refer to the manual for details.

What connectors are included with the TKS-4?

The kit includes the following connectors: ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10×1.25, M14×1.5, M10×1, M16×1.5, M12×1.5, and NPT1/4.

What is the maximum pressure range of the TKS-4?

The TKS-4 comes with five pressure gauges covering ranges: 0-1 MPa/150 psi, 0-10 MPa/1500 psi, 0-25 MPa/4000 psi, 0-40 MPa/6000 psi, and 0-60 MPa/10000 psi.

Is the kit housing durable?

Yes, the housing is made of aluminum alloy, lightweight, portable, and designed not to deform. It protects the components and facilitates transport.

How to maintain the TKS-4 test kit?

After each use, wipe off residual oil on the unit. Close the lid and store in a dry place. Check the pressure gauge every six months to ensure accuracy.

Is the TKS-4 suitable for all hydraulic excavators?

Yes, this kit is designed to test hydraulic pressure for most branded excavators and other construction machinery. The included connectors cover common thread types.

What are the important safety instructions?

Always wear safety glasses compliant with OSHA and ANSI Z87.1, gloves, and hearing protection. Ensure the work area is clean, well-lit, and free of unauthorized children. Use the tool only for its intended purpose.

Can I use the TKS-4 to test marine hydraulic systems?

Yes, the kit can be used for testing marine hydraulic systems, as well as automotive hydraulic pipelines and construction equipment.

Where can I get technical support or spare parts?

Technical support and an electronic warranty certificate are available at www.vevor.com/support. You can find spare parts and assistance there.

How do I know which pressure gauge to use?

Select the gauge whose pressure range covers the expected pressure of the system being tested. For example, for pressure below 150 psi, use the 0-1 MPa/150 psi gauge. Never exceed the maximum pressure indicated.

USER MANUAL TKS-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HYDRAULIC PRESSURE TEST KIT

MODEL: TKS-1/TKS-2/TKS-3/TKS-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

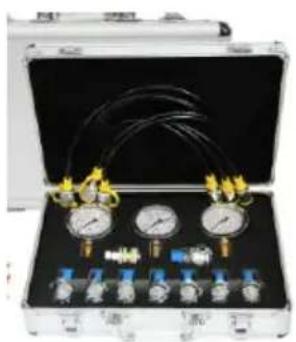

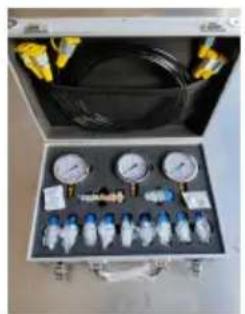

Hydraulic Pressure Test Kit

MODEL: TKS-1/TKS-2/TKS-3/TKS-4

TKS-1 TKS-2

TKS-3 TKS-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PARAMETER LIST

model	TKS-1	TKS-2	TKS-3	TKS-4
pressure range	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-3500psi/25MPa、0-5800psi/40MPa、0-8600psi/60MPa	0-1MPa/150 psi、0-10MPa/1500psi、0-25MPa/4000psi、0-40MPa/6000psi、0-60MPa/10000psi
product size(mm)	325*305*115	285*210*70	320*240*90	325*305*115
net weight(kg)	2.9	2	2.7	6.75

PART LIST

model	picture	TKS-1	TKS-2	TKS-3	TKS-4
Test connector		specificatio n: G1/8 , G1/4, G3/8, R1/4, M10/1, M10/1.25, M14/1.5, M1/8, UNF7/16-2 0, UNF9/16-1 8	specificati on: G1/4, G1/8, G3/8, M14*1.5, M10*1, M10*1.25)	specificati on: (G1/8 G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18,	specificatio n: ZG1/4, G1/4, G1/8, G3/8 , UNF7/16, UNF9/16, M10/1.25, M14*1.5, M10*1, M16*1.5, M12*1.5 , NPT1/4,
hydraulic pressure indicator		0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-3500psi/250Bar、0-5800psi/400Bar、0-8600psi/600Bar)	0-10Bar/150psi、0-100Bar/1500psi、0-250Bar/4000psi、0-400Bar/6000psi、0-600Bar/10000psi)
Pressure test hose		3	3	3	5
Teflon tape			1	/	/
spacer inner diameter 10mm)		/	1	/	/
spacer inner diameter 12mm)		/	1	/	/
Three way connector		/	/	/	14

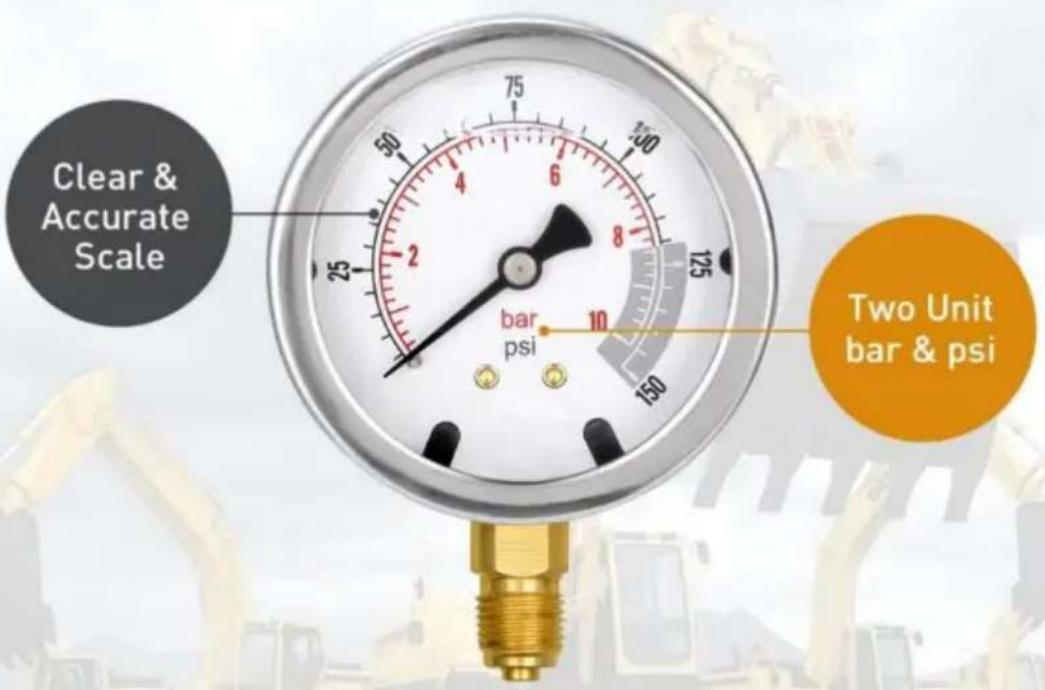

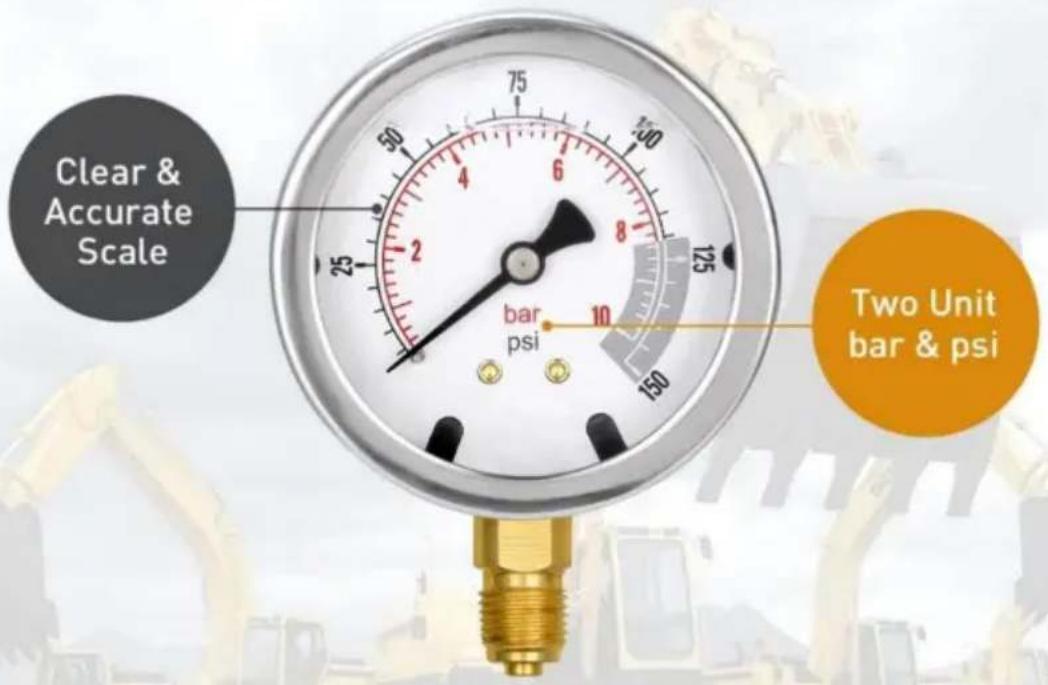

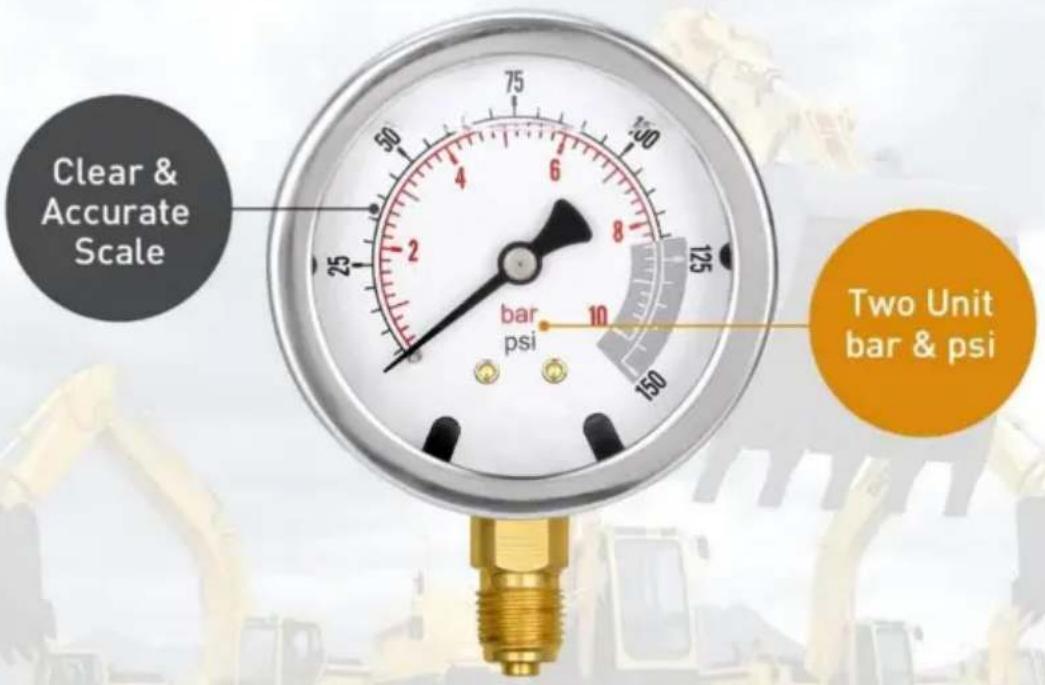

5PCS ACCURATE GAUGE

Ensuring accurate hydraulic system pressure measurement

0~10bar 0~150psi

0~100bar 0~1500psi

0~250bar 0~4000psi

0~400bar 0~6000psi

0~600bar 0~10000psi

PRACTICAL TEE CONNECTORS

Suitable for excavators and machines of most brands

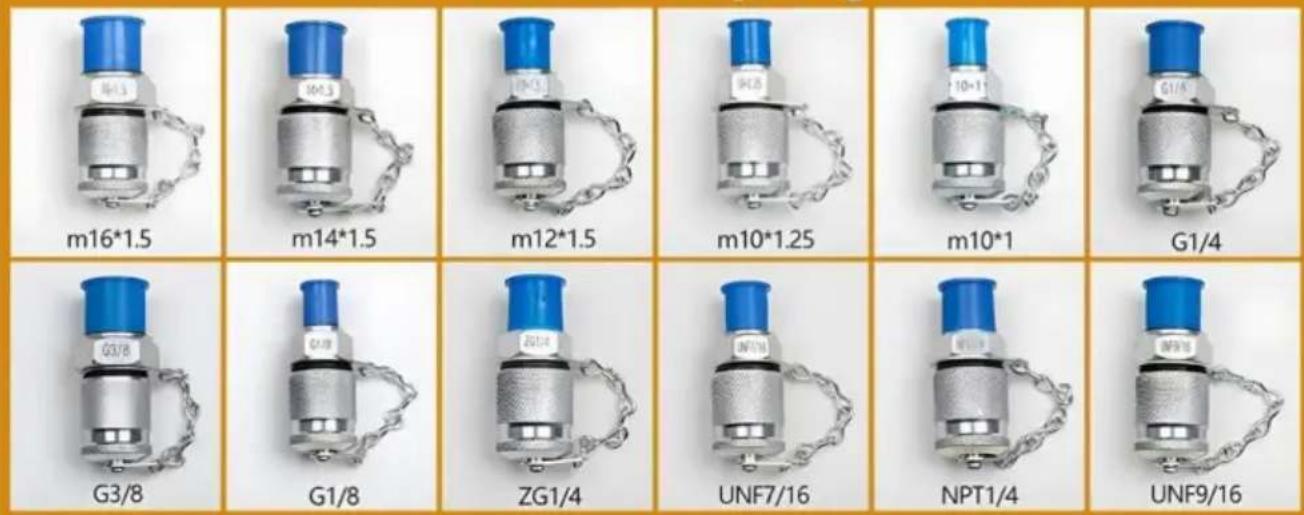

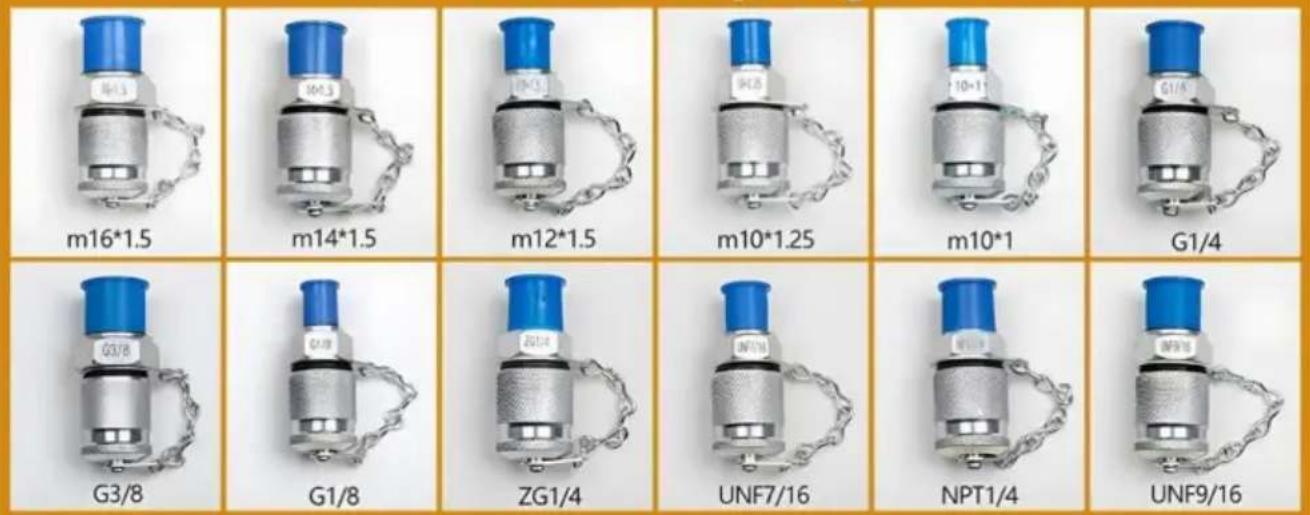

12 Test Couplings

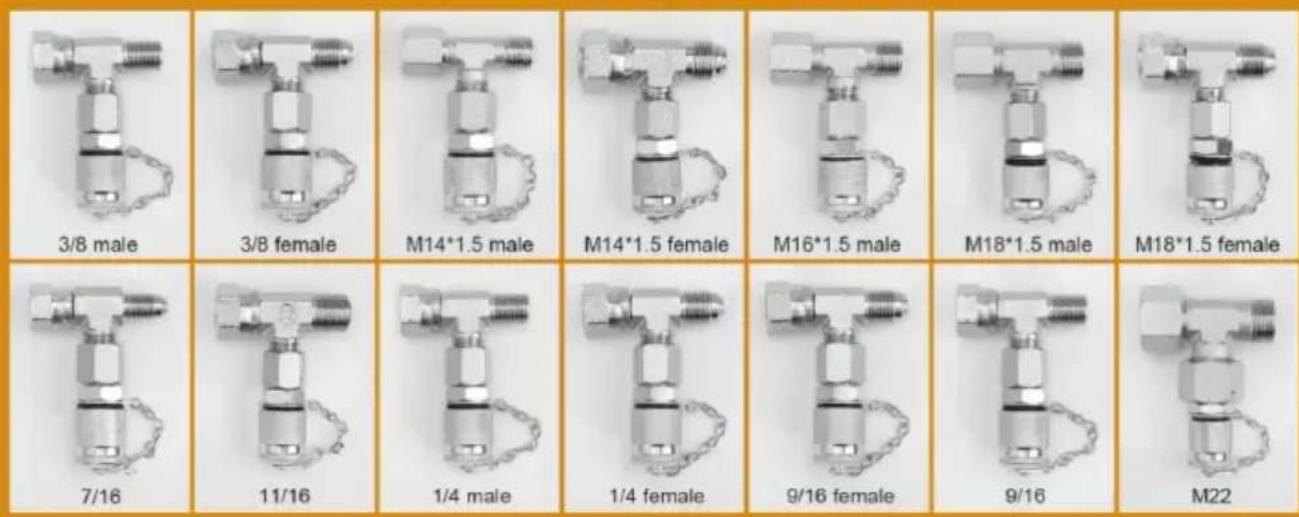

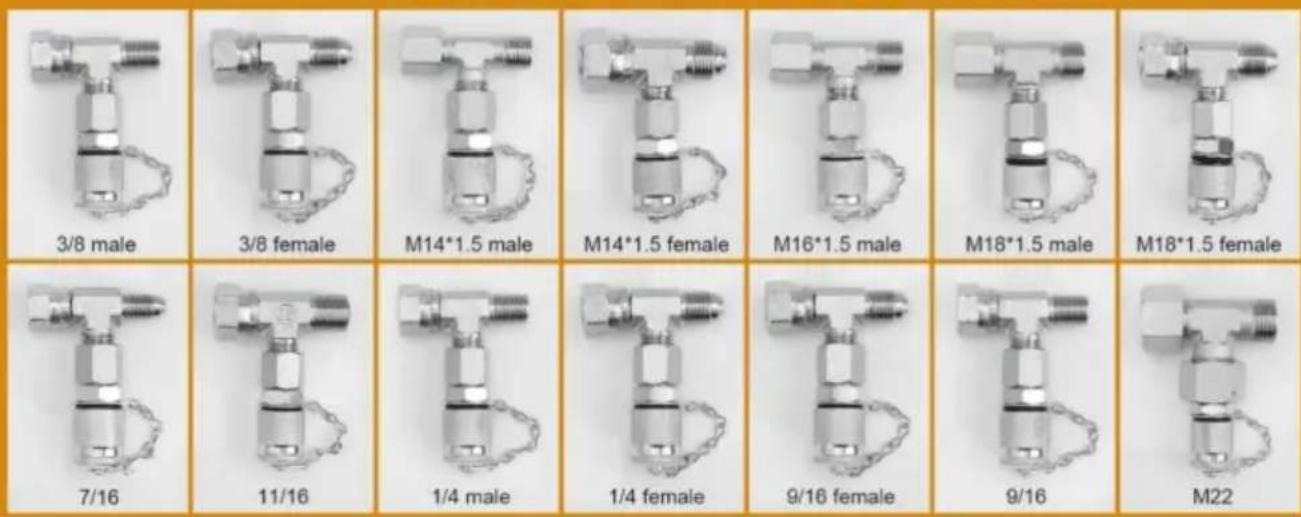

14 Tee Connectors

SECURITY & WARNINGS

WARNING: Study, understand and follow all instructions provided with this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these

instructions in a safe accessible place.

1. Take care: loose or baggy clothing can be caught in parts.
2. Use as intended only.

Always read the instructions carefully before using the tool.

Ensure the working area has adequate lighting.

• Keep children and unauthorized persons away from the working area.
• Keep the working area clean and tidy, dry and free from unrelated material.
• DO NOT allow untrained persons to use this tool kit. Always wear eye protection that meets OSHA and ANSI Z87.1 standards. Always wear gloves when working with the tool. Always wear ear protection.
• Disposal: Customers should follow local regulations to handle used/waste parts.

BEFORE USE

DO NOT DISCARD - GIVE TO USER

When unpacking, check the parts diagram and part list to make sure all parts are included. If any parts are missing or damaged, please call your distributor.

OPERATION

Use and maintenance of pressure measuring devices

1) In use, pressure connectors should be installed at the test site of the pre-measurement system. The connecting thread of the pressure measuring connector should match the thread of the pressure measuring hose. (Use a wrench to tighten the hydraulic gauge and pressure test hose and test connector.) 2) The pressure device can also measure when the hydraulic system is running, but the user should confirm that the pressure point of the pressure gauge is in this range. 3) The pressure device should be placed flat, and the distance between the pressure measuring point and the pressure device should not exceed 85% of the length of the hose. 4) When measuring pressure, the pressure measuring hose should be connected to the corresponding pressure gauge connector. Then, unscrew the dust cap and pressure measuring connector, and connect the other end of the pressure measuring hose to the pressure connector. Users can carry the pressure detection with them. 5) After measuring the pressure, first unscrew the pressure measuring hose connected to the pressure connector, screw on the dust cap, and then unscrew the pressure measuring hose connected to the corresponding pressure gauge connector.

pressure measuring hose connected to the corresponding pressure gauge connector.

6) After the test, wipe the oil off the pressure device and close the lid. 7) The equipment should be used and stored with caution, and the pressure should be checked after six months.

Features

1. Hydraulic test kits for most brand excavators
2. Hydraulic test point coupling, pressure gauge
3. Aluminum alloy housing, lightweight, portable, and undistorted
4. Easy to maintain and keep clean with simple wiping
5. Used to test the hydraulic pressure of construction machinery at all levels, equipped with common pressure connectors for construction machinery
6. Also used for testing steel, automotive hydraulic pipelines, and marine hydraulic systems.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351
