USER MANUAL V500 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STEEL GARDEN CARTS

MODEL: V500/V680

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

STEEL GARDEN CARTS

MODEL:V500/V680

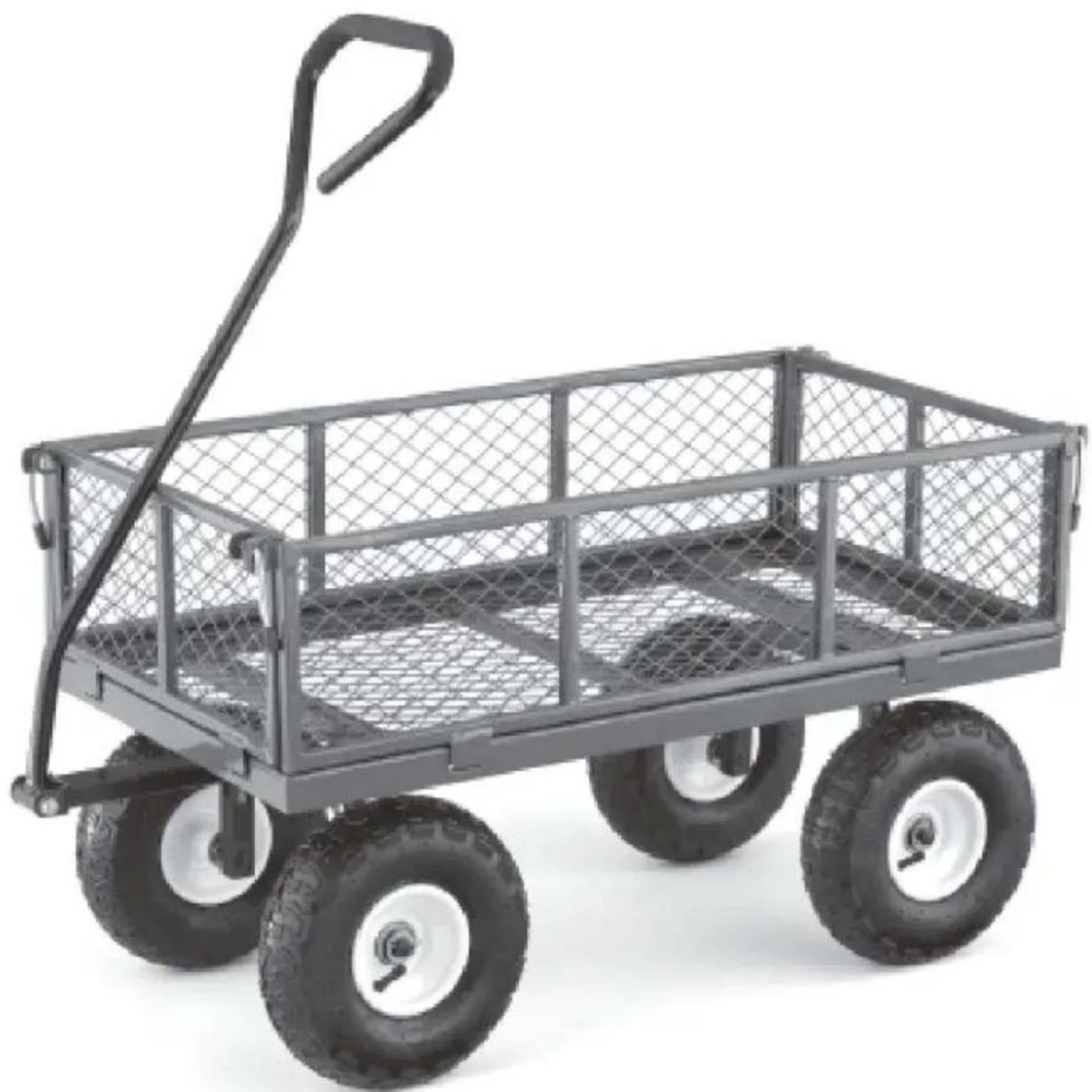

Black metal wire-wrapped cart with chain-link mesh frame and handle, no visible text or symbols

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Do not assemble if tired or when under the influence of alcohol, drugs or medication.
3. The product capabilities apply to properly and completely assembled products only.
4. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Wooden Hall Tree.
5. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.

Use precautions

1. Do not exceed the overall maximum load capacity. The weight rating is b on an evenly distributed load.
2. Do not load items on the top edges of the panels. Remove panels before loading oversized items.
3. Distribute the load evenly over the surface of the bed.
4. Do not allow children to use the cart without supervision. This cart is not
5. Do not use this cart for transporting passengers.
6. This cart is not intended for highway use.
7. Do not exceed 5 mph.
8. If any parts become damaged, broken or misplaced, do not use the cart replacement parts have been obtained.
9. Do not use the cart on surfaces or for transporting objects that can cause damage to the pneumatic tires or tubes. DO NOT INFLATE TIRES TO MOR THAN 30 PSI (2.07 BAR).

SAVE THIS MANUAL

PARTS LIST

No.	Part	Qty.	Name

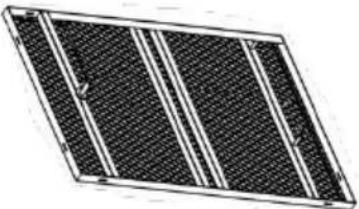

1		1	Bottom frame
2		2	Left and right guardrails
3		2	Front and rear guardrails
4		1	Handle
5		1	Connecting rod
6		1	Front wheel bracket
7		1	Rear wheel bracket
8		4	Tire
9		1	Screw pack

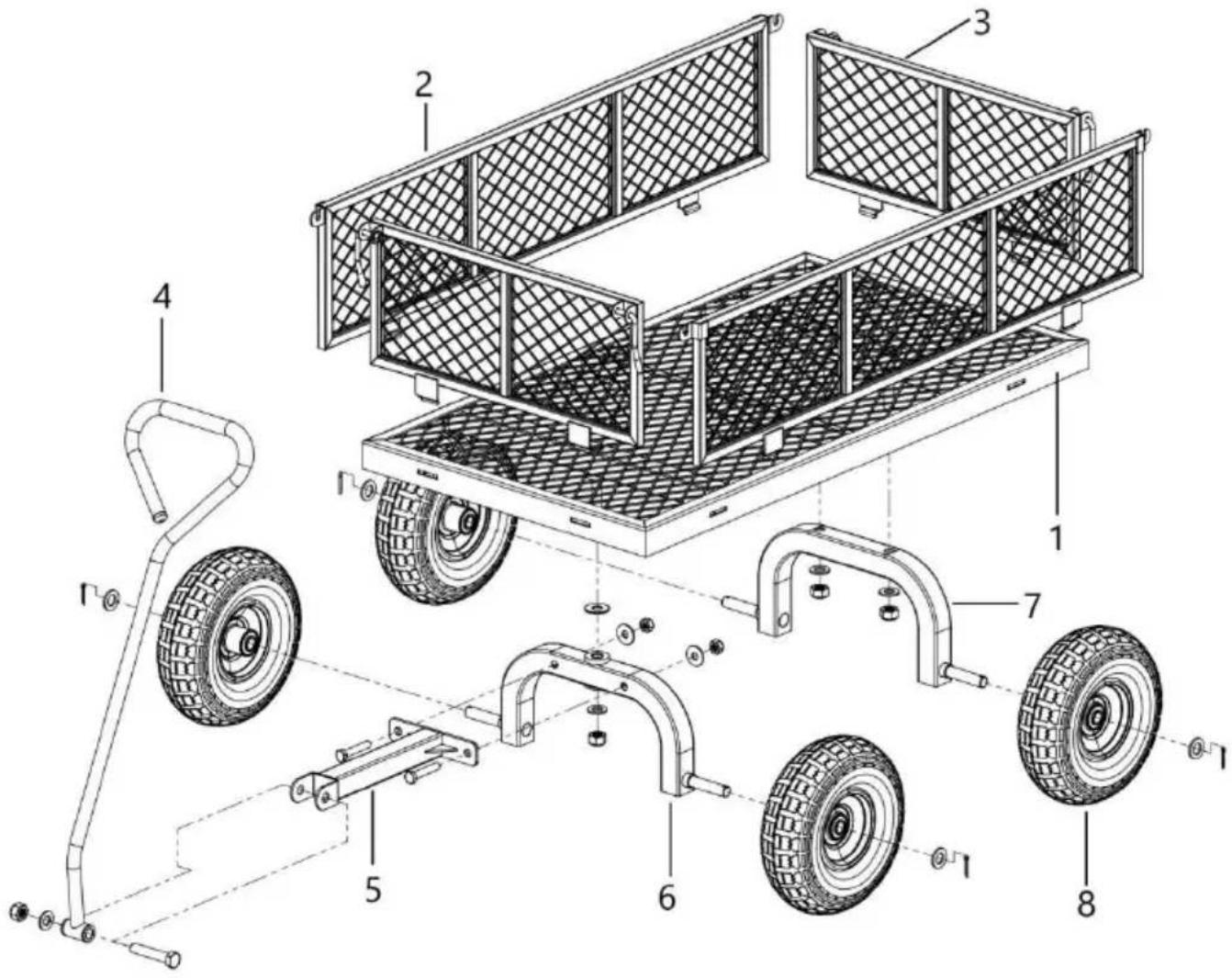

Technical diagram of a wheeled cart with numbered components and exploded view, showing assembly lines and parts.

PRODUCT PARAMETER

Model	V500	V680
Safe Loading Weight	500 LBS/226kg	680 LBS/308kg
Colour	Body:Black ;Other: Yellow	Body:Green ;Other: Black
Body Size	33.8*18*9.4in860*457*240mm	33.8*18*9.4in860*457*240mm

Do not exceed the overall safe loading weigh

ASSEMBLY STEP

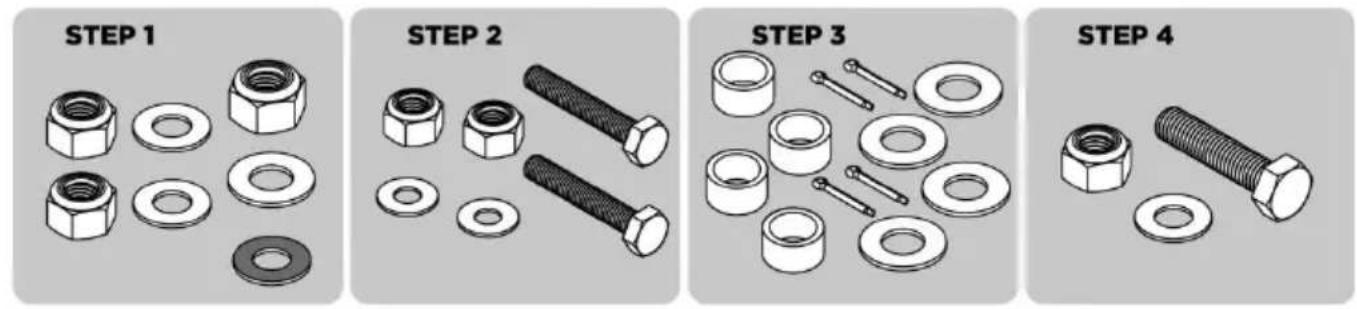

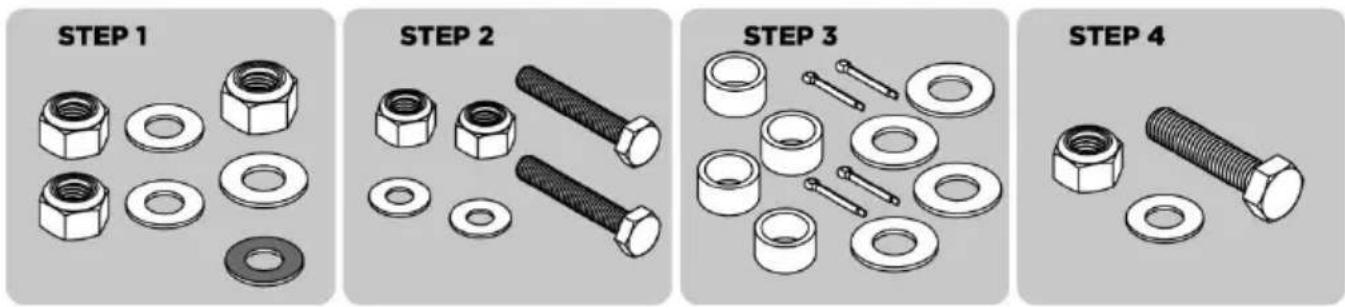

HARDWARE

STEP 1 STEP 2 STEP 3 STEP 4

TOOLS REQUIRED

Three black wrench tools (trow, wrench, and wrench) on a plain background, no text or symbols present.

ASSEMBLY INSTRUCTIONS

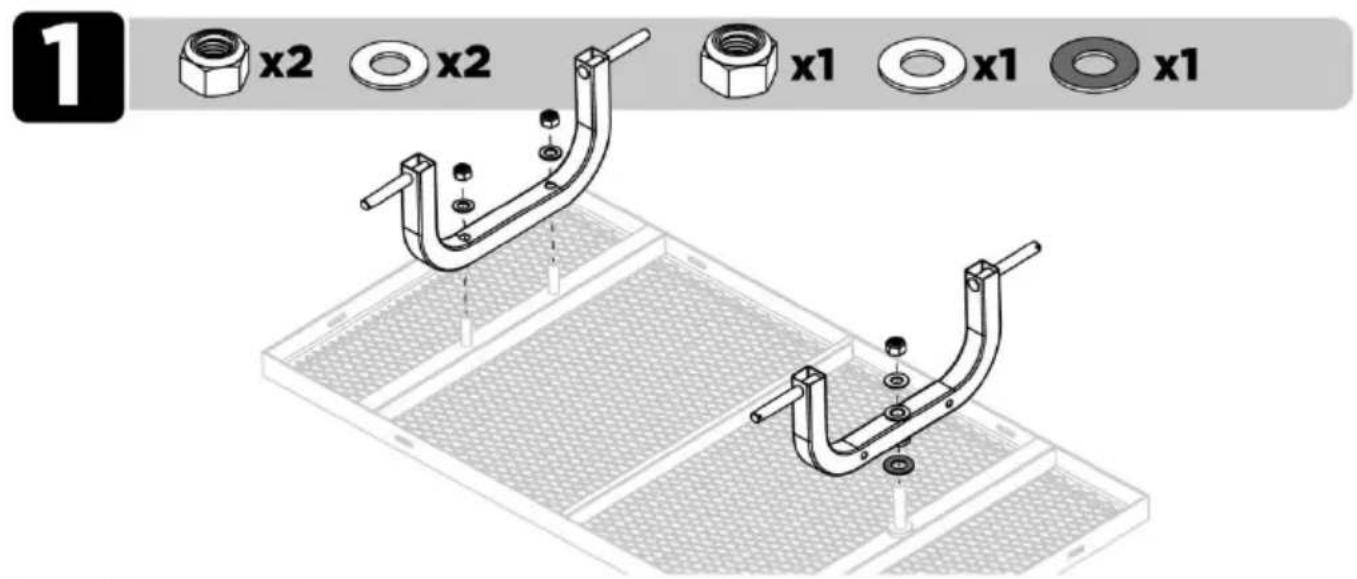

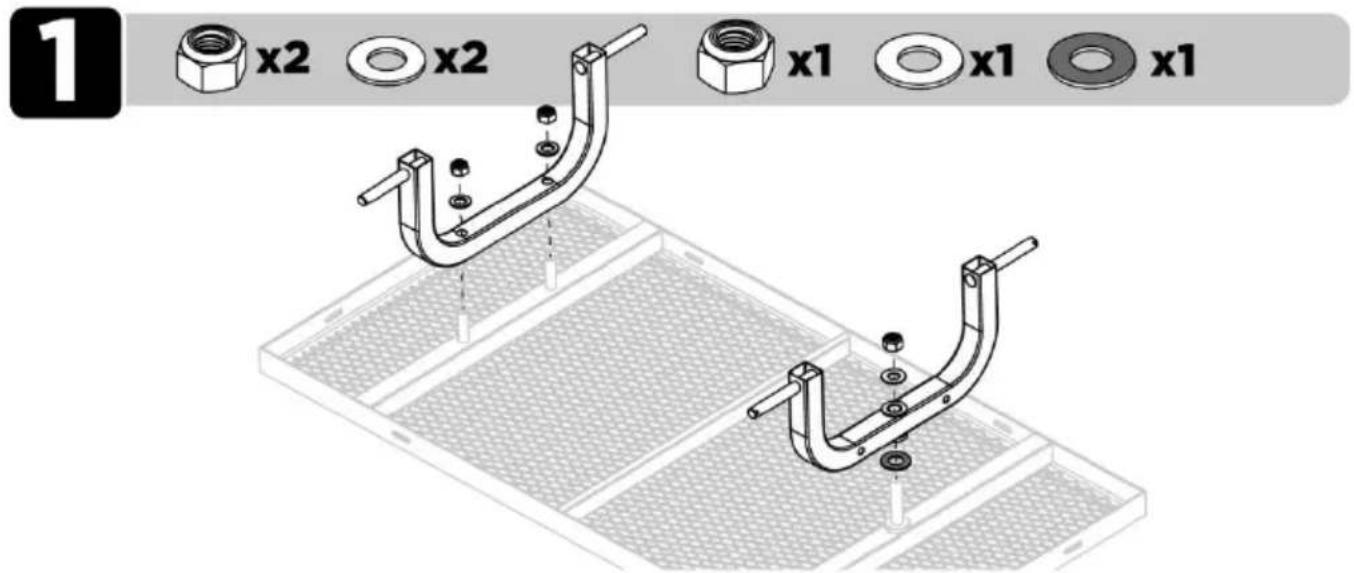

1 x2 x2 x1 x1 x1 x1

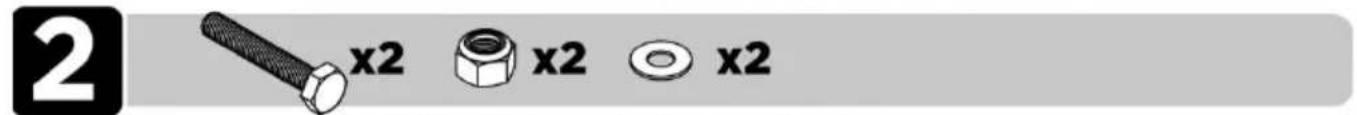

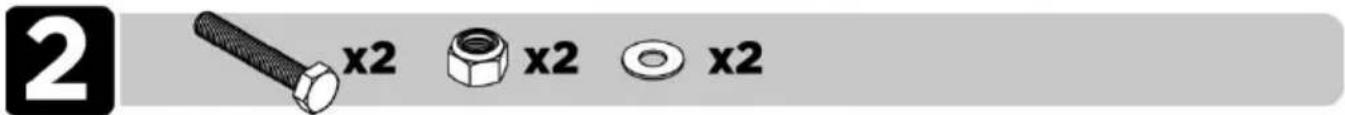

2 x2 x2 x2

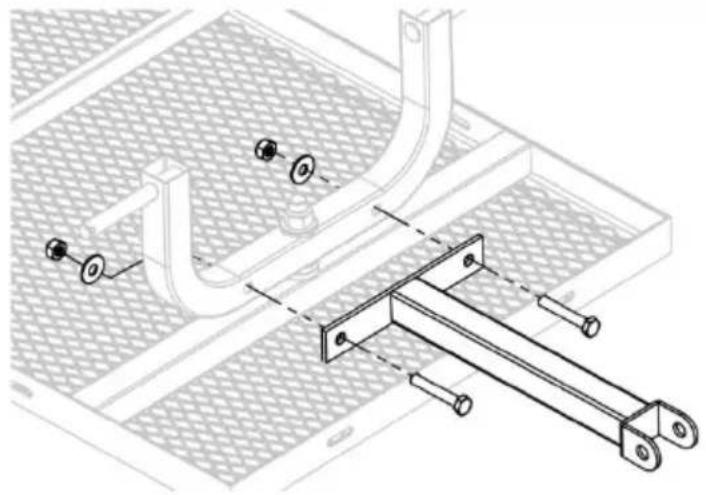

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

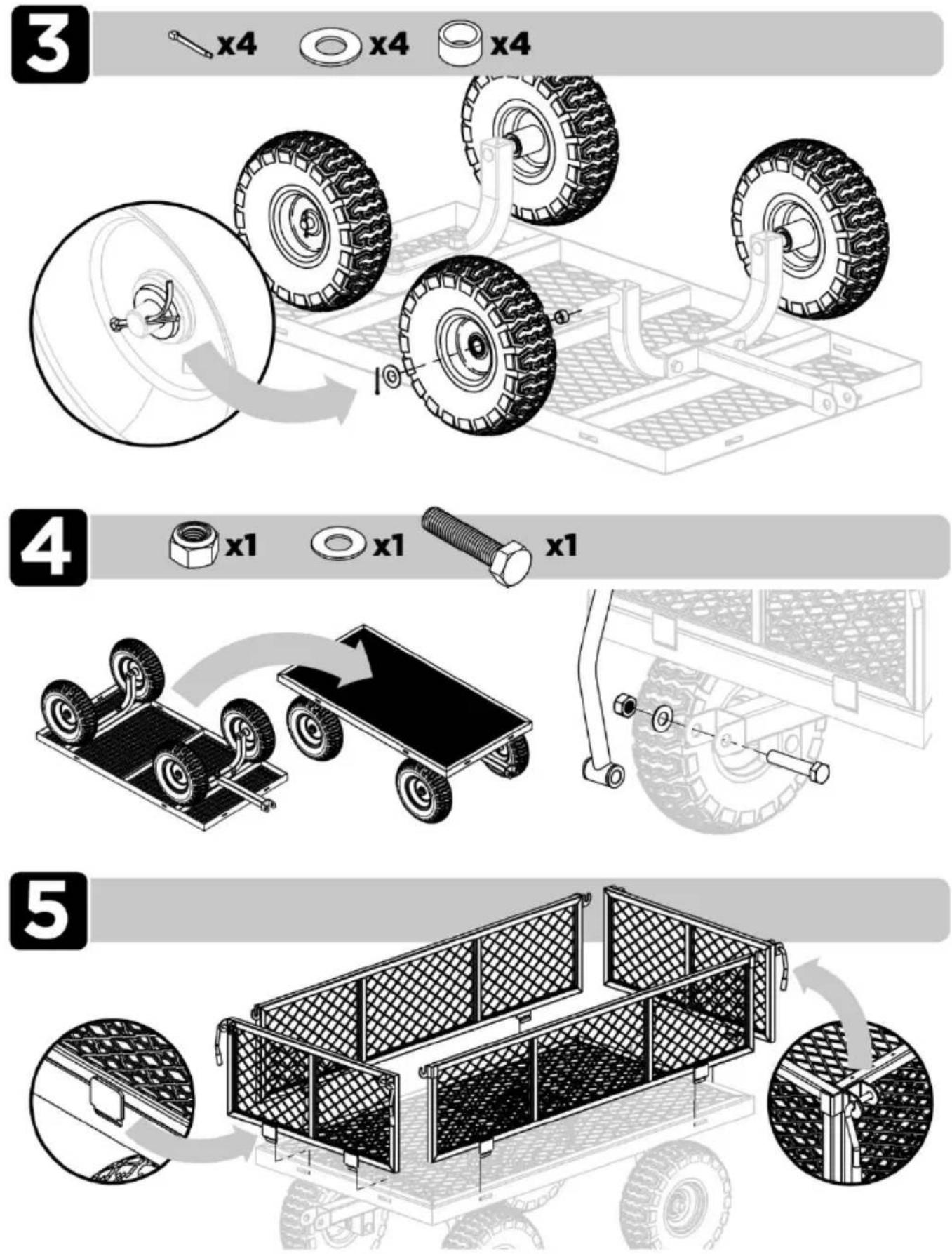

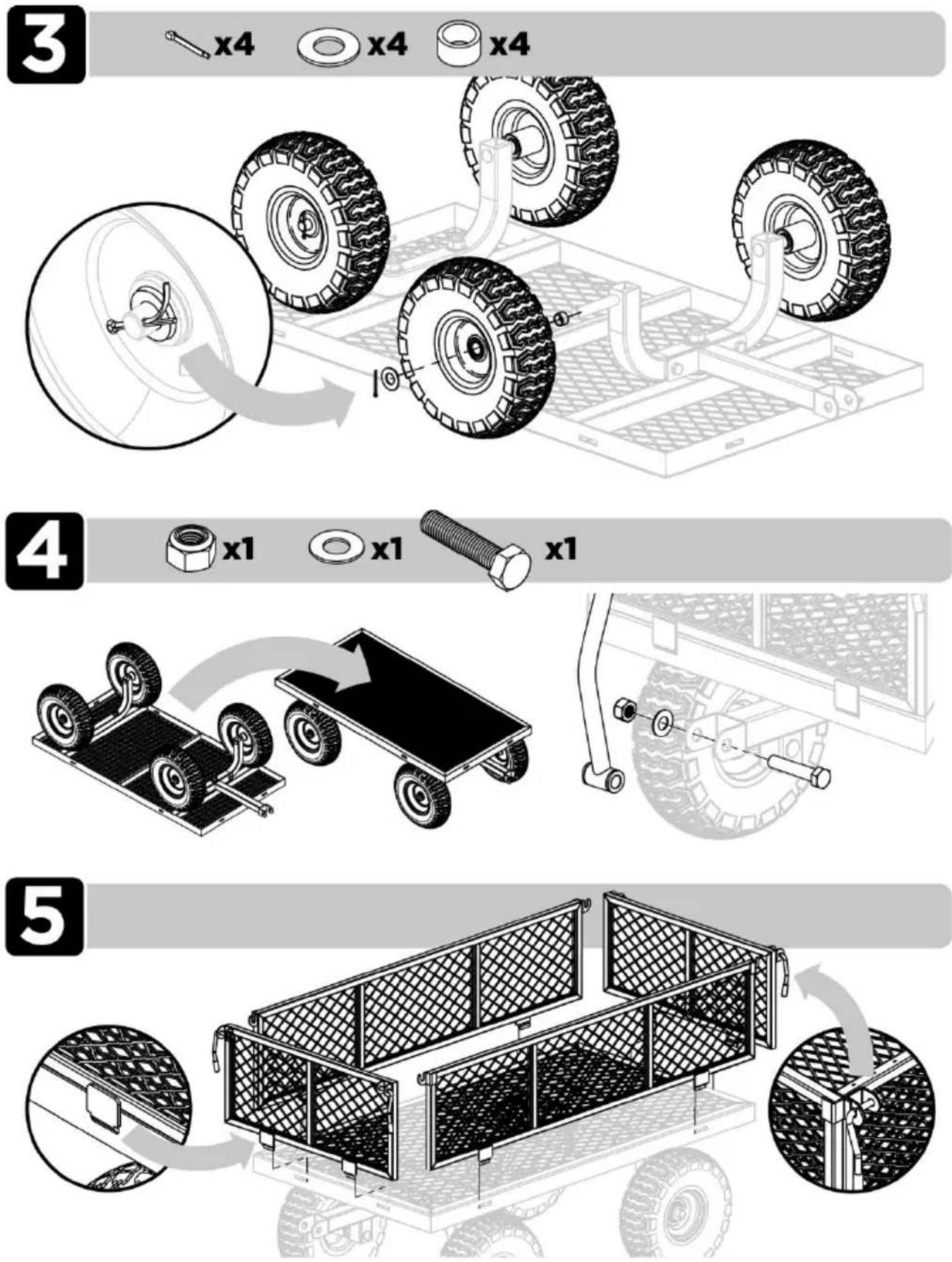

3 x4 x4 x4 4 x1 x1 x1 5

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal wire-wrapped cart with chain-link mesh frame and handle, no visible text or symbols

Technical diagram of a wheeled cart with numbered components for identification and assembly reference.

PRODUCT PARAMETER

ASSEMBLY INSTRUCTIONS

STEP 1 STEP 2 STEP 3 STEP 4

Three black wrench tools (pin, wrench, wrench) on a gray background, no text or symbols present.

1 x2 x2 x1 x1 x1

2 x2 x2 x2

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

3 x4 x4 x4 4 x1 x1 x1 5

Fabricante: Shanghaimuxinmuyeyouxiangongsi

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black metal wire-wrapped cart with chain-link mesh frame and handle, no visible text or symbols

Technical diagram of a wheeled cart with numbered components for identification and assembly reference.

PRODUCT PARAMETER

Three black wrench tools (no text or symbols)

ASSEMBLY INSTRUCTIONS

1 x2 x2 x1 x1 x1 x1

2 x2 x2 x2

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

3 x4 x4 x4 4 x1 x1 x1 5

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 kanadensiska republiken.

Importerad till Australien: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plats, Rancho Cucamonga, Kalifornien 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

STALEN TUINKARREN

MODEL: V500/ V680

Black metal wire-wrapped cart with chain-link mesh frame and handle, no visible text or symbols

Technical diagram of a wheeled cart with numbered components for identification and assembly reference.

PRODUCT PARAMETER

Model	V 500	V680
Veilig laadgewicht	500 pond/226 kg	680 pond/308 kg
Kleur	Lichaam: Zwart;Overig: Geel	Lichaam: Groen ;Overig: Zwart
Lichaamsgrootte	33,8*18*9,4 inch860*457*240mm	33,8*18*9,4 inch860*457*240mm

Three black wrench tools (no text or symbols)

ASSEMBLY INSTRUCTIONS

1 x2 x2 x1 x1 x1 x1

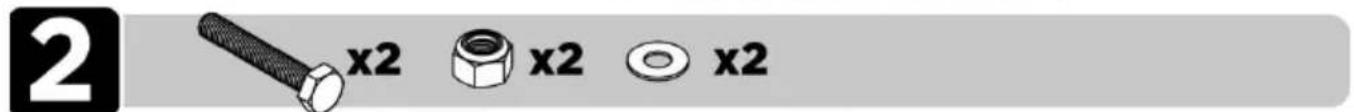

2 x2 x2 x2
