CHICKEN PLUCKER MACHINE

MODEL: TMX-50/TM-50

VEVOR

Affordable. Reliable. Home Improvement.

CHICKEN PLUCKER MACHINE

MODEL:TMX-50/TM-50

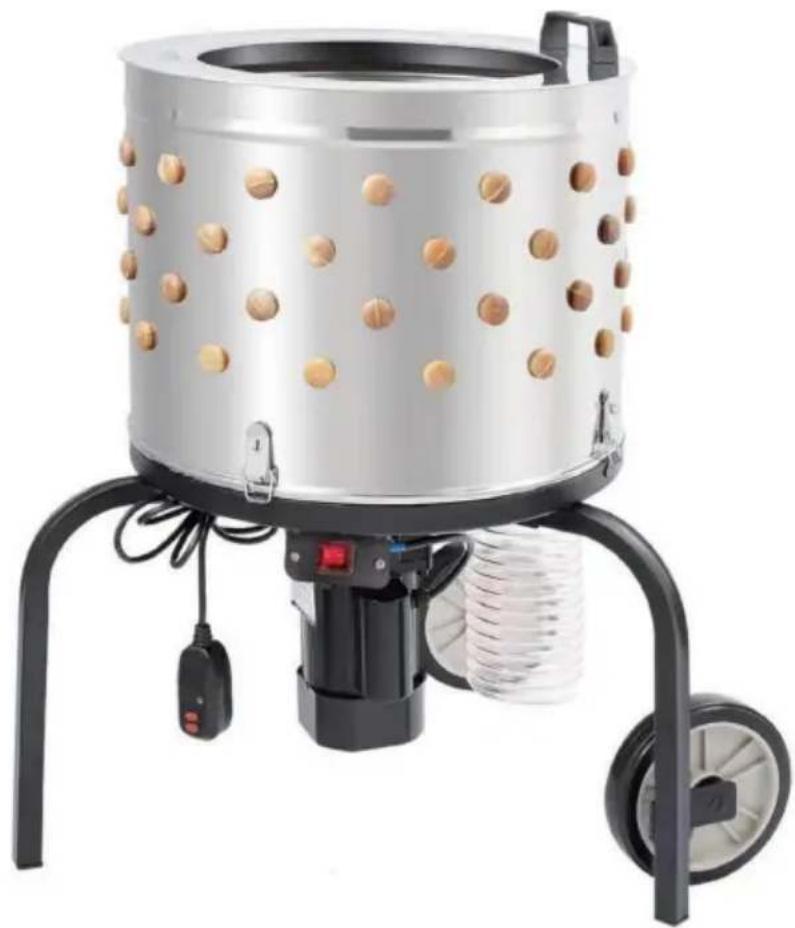

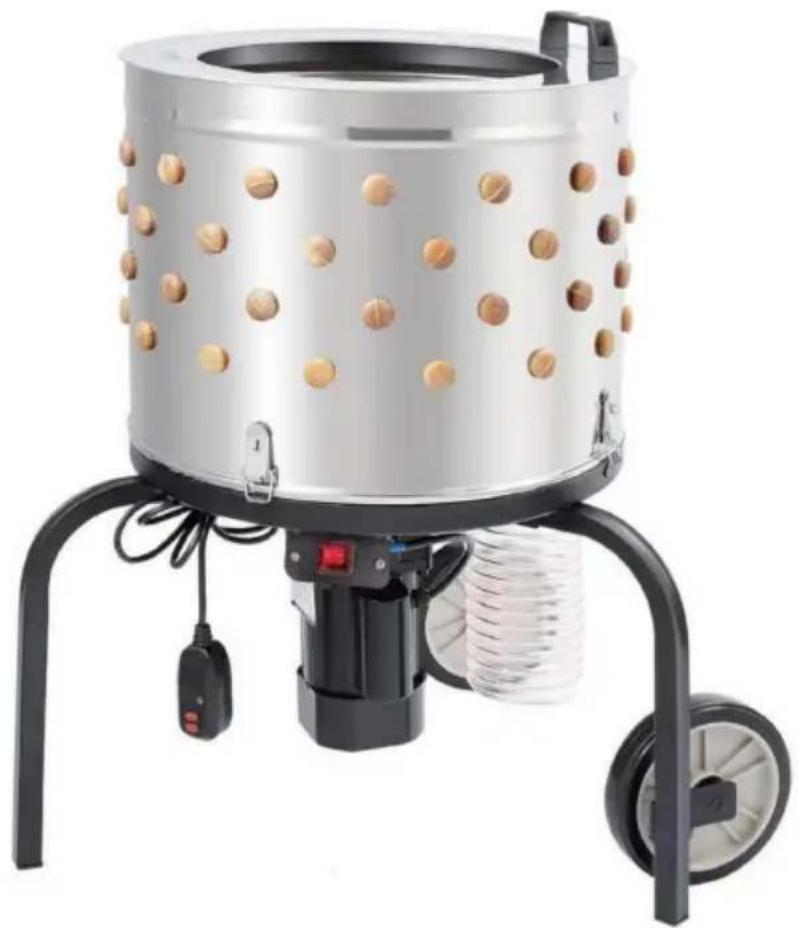

Exterior view of a stainless steel industrial machine with perforated lid and wheels (no visible text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETYINSTRUCTIONS

For your safety and the safety of others, the following precautions must be observed when operating the chicken plucker machine:

1. Ensure the safety of the power supply: install the leakage switch on the groundingwire of the chicken, duck, and goose plucker. Before use, plug in the power supply and turnon the switch to check whether the rotary table operates normally.

2. Picking safety: To ensure user's safety, do not retrieve the bird unless the chickenplucker machine has come to a complete stop.

WARNING:

1. Turn off the power when not in use.
   2.Do not disassemble or change this machine.
2. In the operation process, if the machine sounds abnormal, it must be stopped-immediately for inspection and continue to work only after the fault is eliminated.
3. This product is equipped with an overload protector. In the event the product becomes obstructed by feathers or if any other cause leads to the motor ceasing to function, please power down the device and inspect it to ensure there are no blockages. Once it is confirmed that there are no obstructions press the red button on the overload protector located on the motor housing before re-energizing the product's power supply.

MODEL AND PARAMETERS

Model	TMX-50 / TM-50
Voltage/Frequency	North America: 120V 60Hz
	European Union: 220~240V 50Hz
Applicable poultry	Chicken and Duck and Goose
Capacity	2-4 Chickens
Temperature control switch (overloadprotection function)	110° temperature control off
Waterproof Rating	IP54

• STRUCTURE DIAGRAM

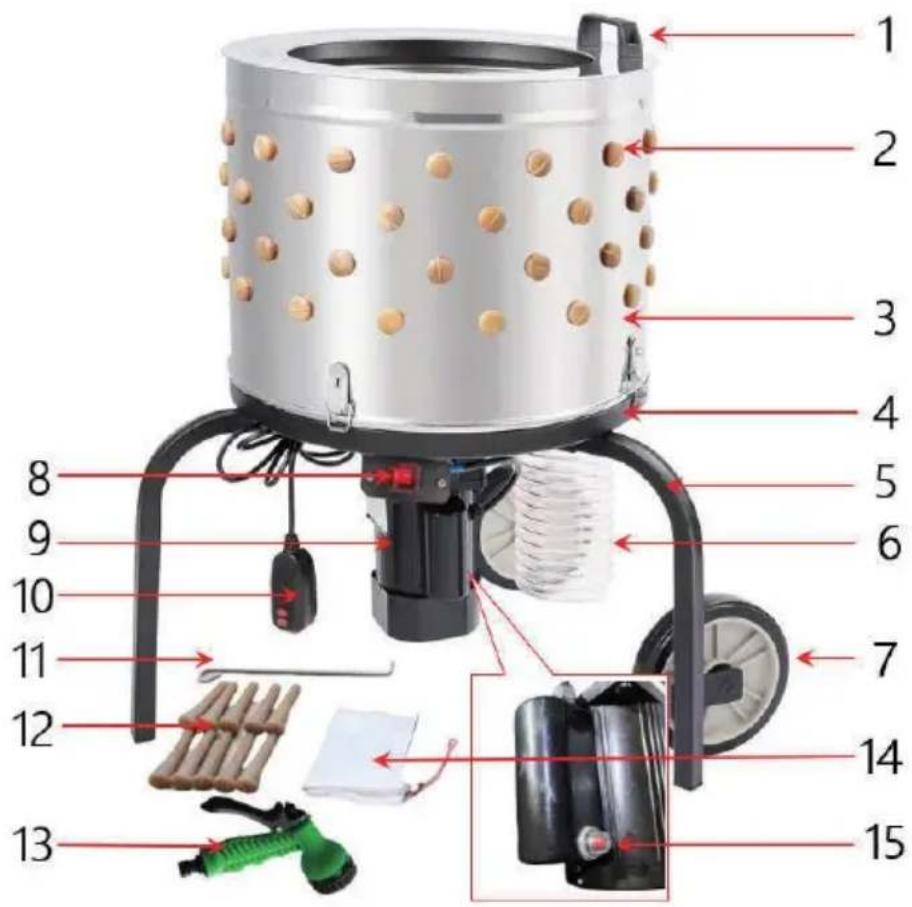

Labeled diagram of a portable air purifier with numbered parts for identification

No	Parts Name No Parts Name
1	Handle	9 Electric Motor
2	Finger 10 Leakage Protection Plug
3	Barrel Body 11	Hook (used for cleaning feathers)
4	Chicken Plucker Machine Disc	12 Spare Finger
5	Leg 13 High Pressure Nozzle
6	Waste Pipe 14 Overload Protector
7	Wheel	15 Machine Insect
8	Switch	16 Screws

• ASSEMBLY AND USE

Step 1: Check all accessories.

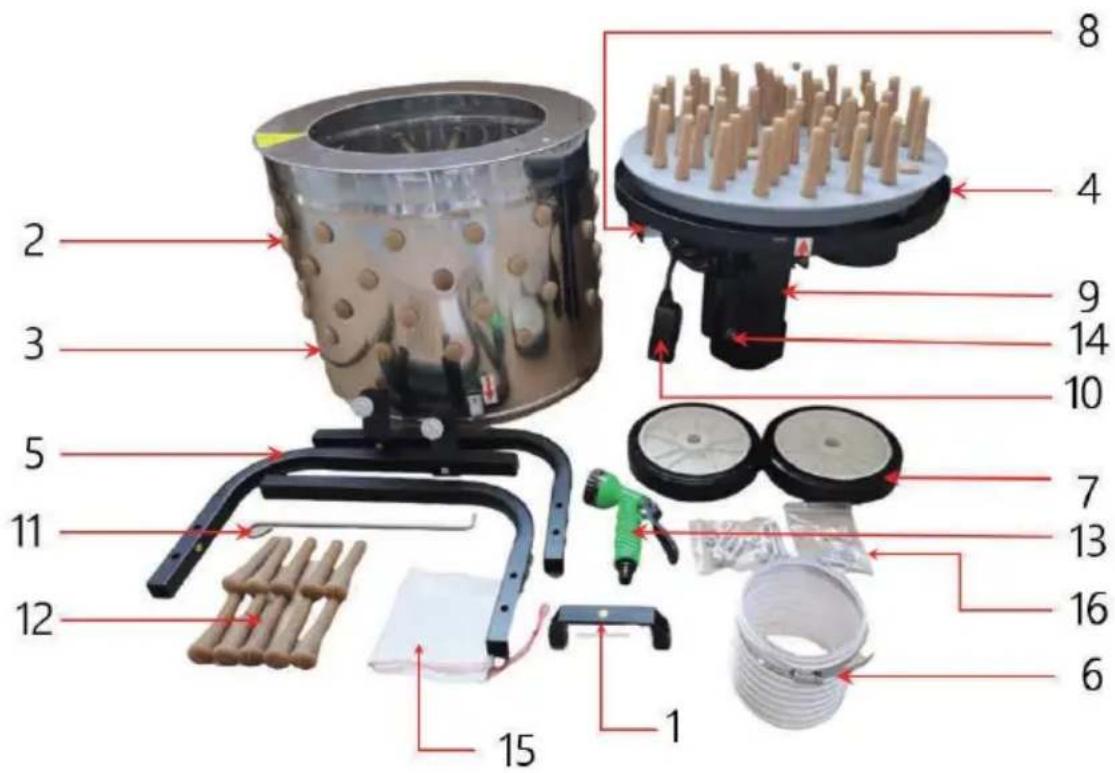

Labeled diagram of a mechanical device with numbered parts for identification

Step 2 : Install the barrel

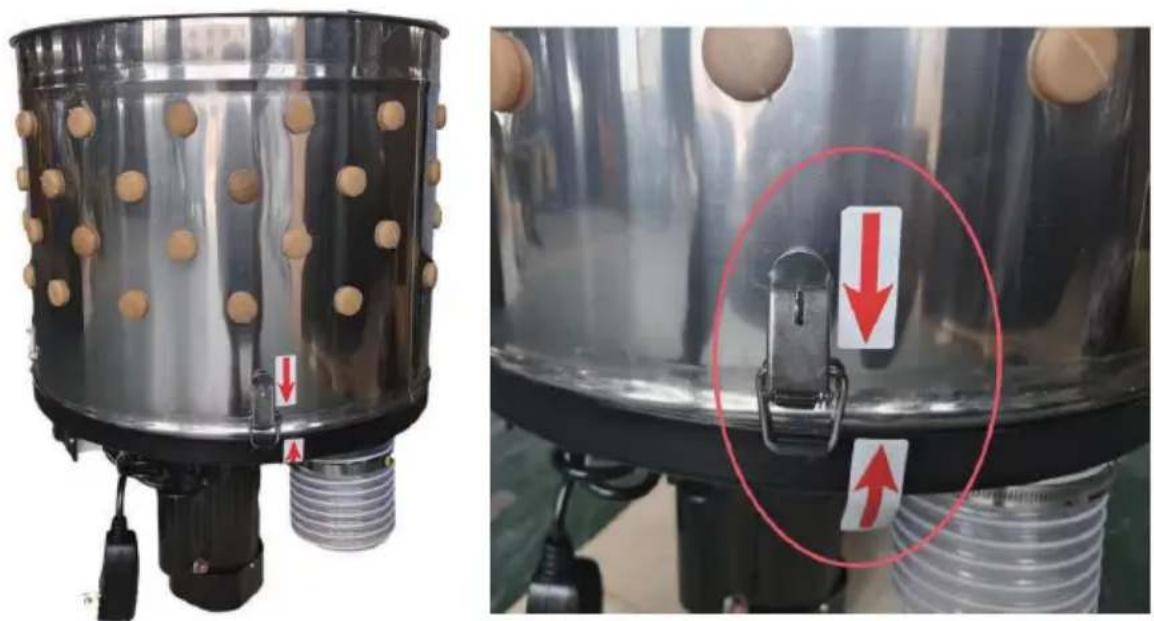

Two views of a stainless steel industrial machine with red arrows indicating downward pressure points, showing internal components and tubing (no text or symbols present)

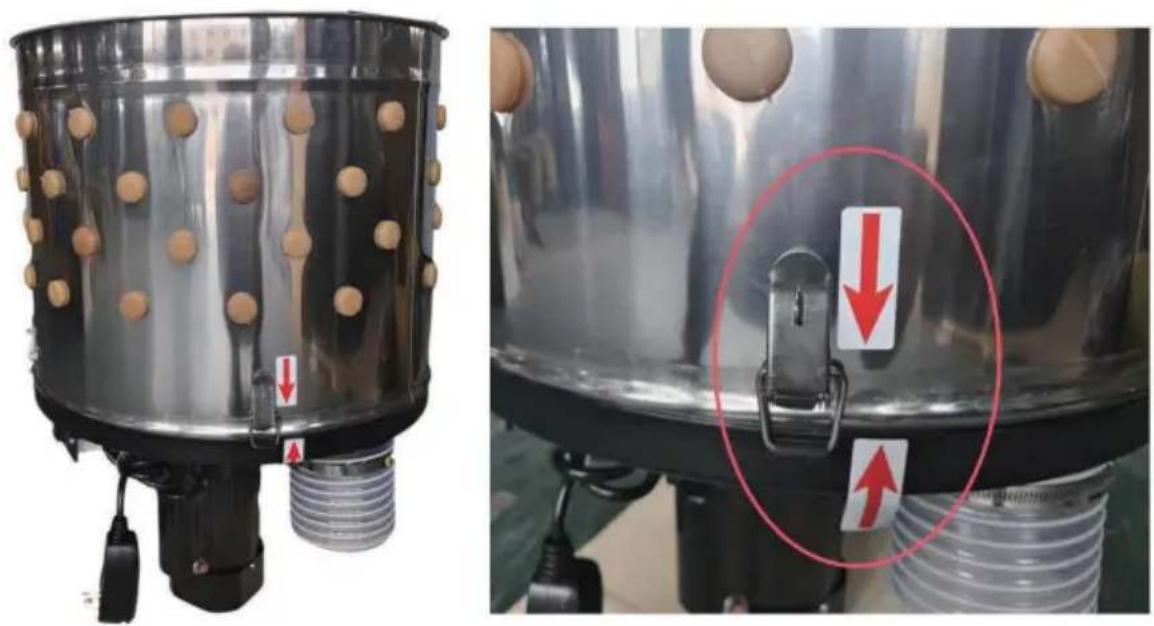

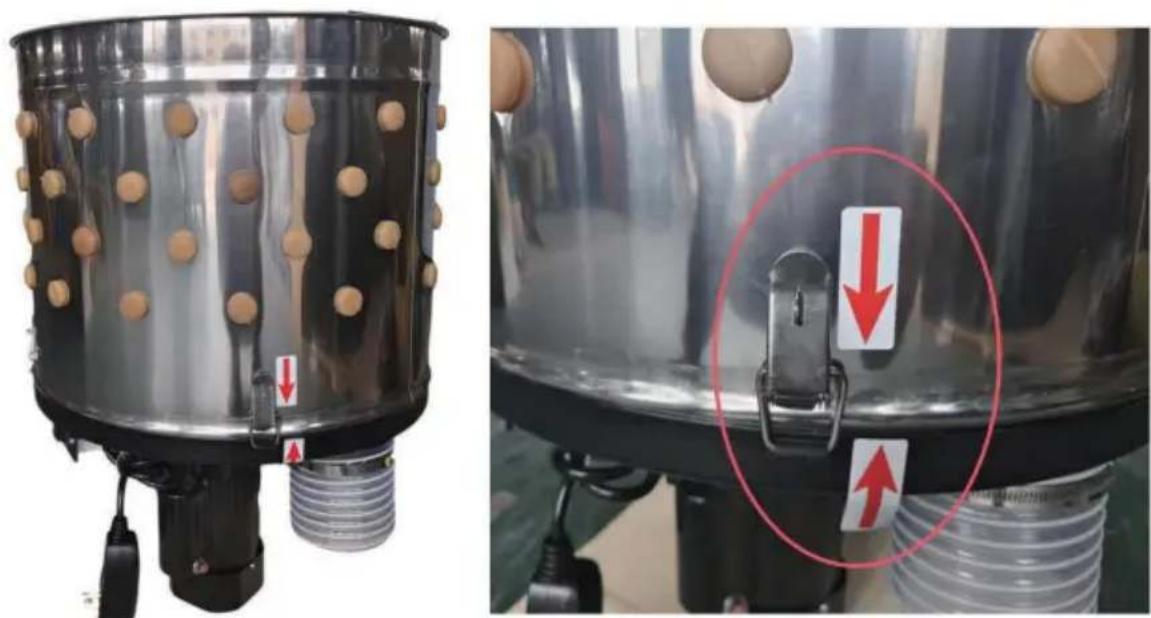

First, place the barrel body above the chicken plucker machine disc. Then, rotate the barrel body to align the red arrow on the barrel body with the red arrow on the disc. Finally, lock the buckle.

Step 3 : Installation of wheels.

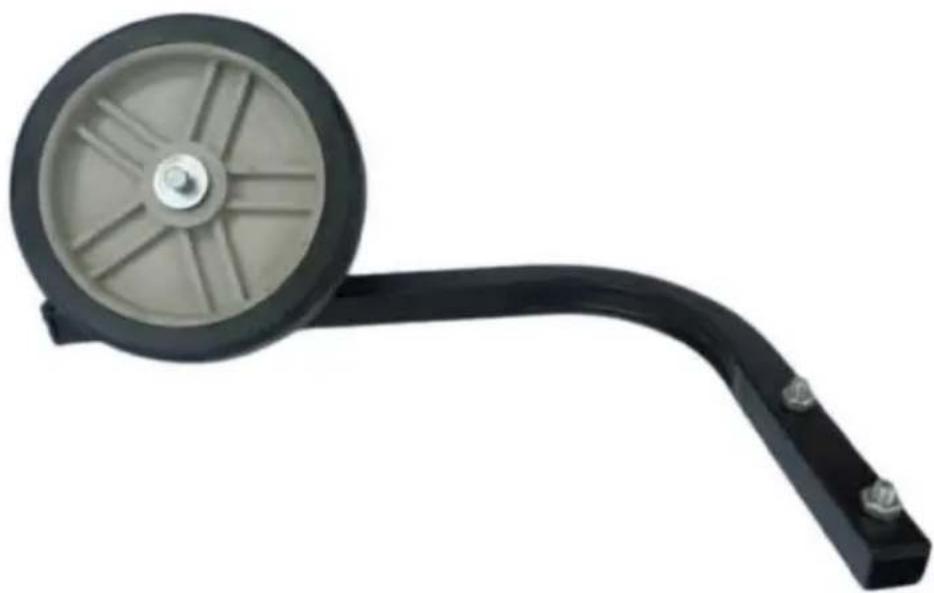

Install the wheel on the leg and tighten the screws.

Mechanical pulley or lever component with a black handle and gray wheel (no text or symbols visible)

Step 4: Installation of leg with wheels.

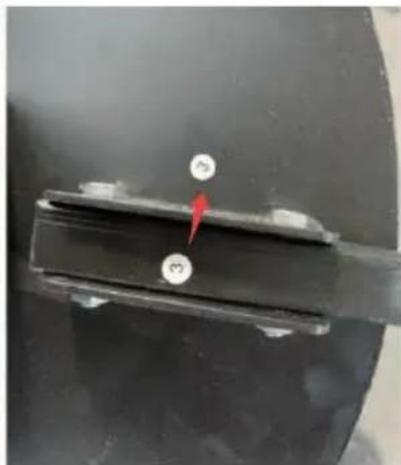

Close-up of a black metal pipe joint with two labeled points (1 and 3) and a red arrow pointing to the center (no text or symbols beyond labels)

A0 A1

Close-up of a black metal bracket with two circular markers and a red arrow pointing to a small feature (no text or symbols visible)

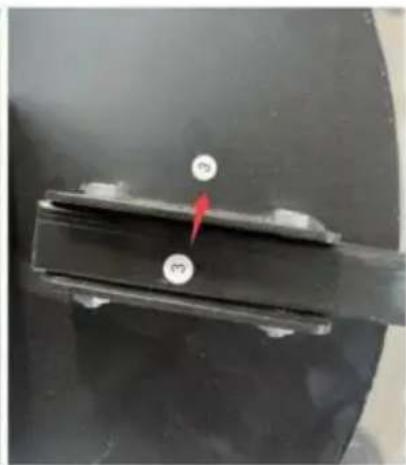

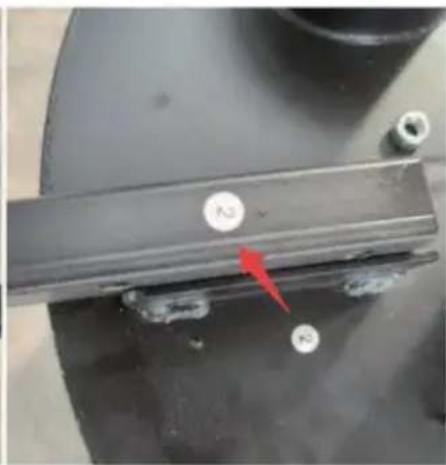

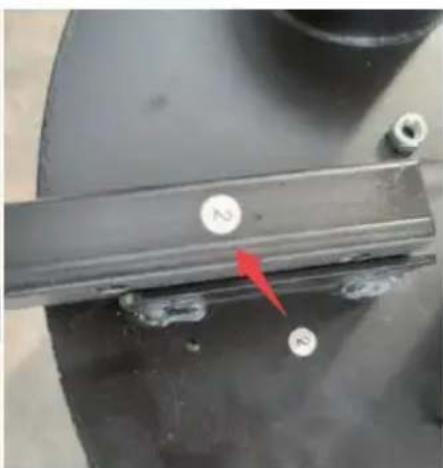

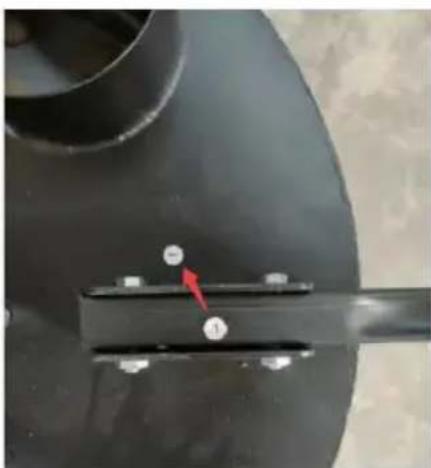

First, directly correspond the serial number of the support leg with wheels to the serial number on the baseplate one by one. Then, insert the support leg with wheels into the corresponding baseplate slot, insert the screws, and tighten the nuts onto the screws with a wrench.

Step 5: Installation of the drain pipe.

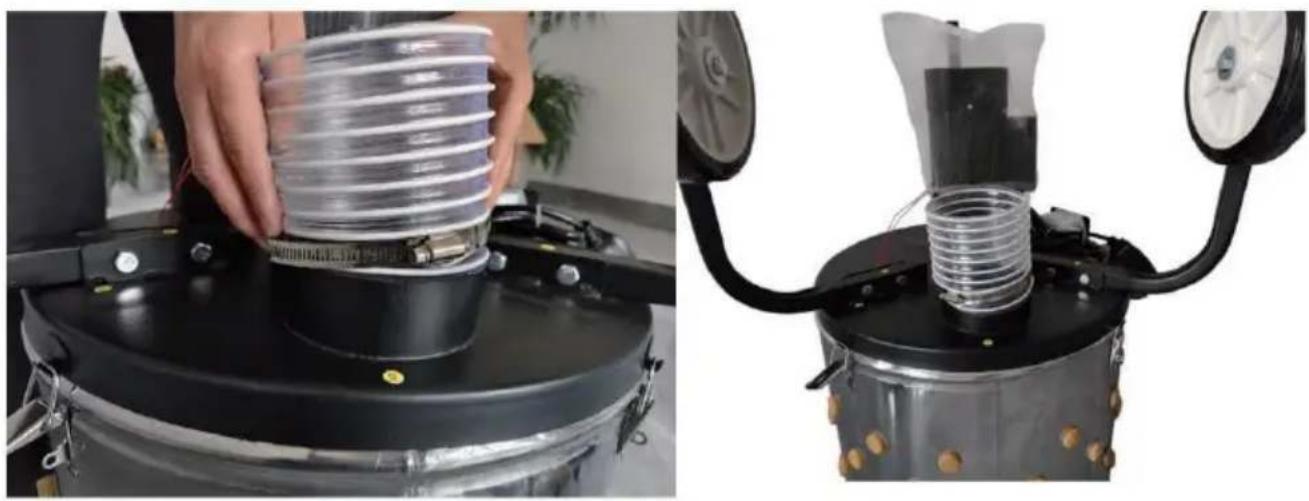

Two industrial equipment photos: one showing a hand holding a coiled spring, the other showing a coiled spring mounted on a metal base with a pressure gauge (no visible text or symbols)

First, hold both sides of the drain pipe mouth with two hands. Then, aim at the base drain mouth and insert it directly.

Step 6: Installation of handle.

Close-up of hands adjusting a metal bracket component with bolt holes, showing mechanical assembly (no text or symbols visible)

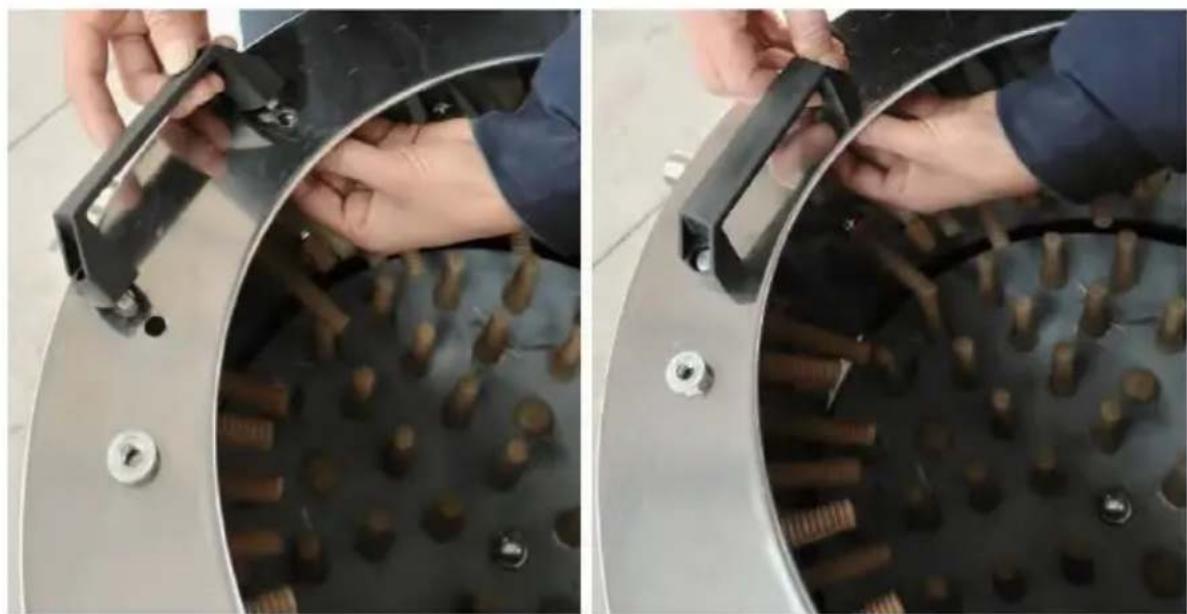

First, put the screws into the holes at both ends of the handle. Then, insert the screws on the handle into the two screw holes at the barrel mouth. Finally, lock the screws with nuts inside the barrel and tighten them with a screwdriver.

Step 7: Connect the plug to the power supply and turn on the machine.

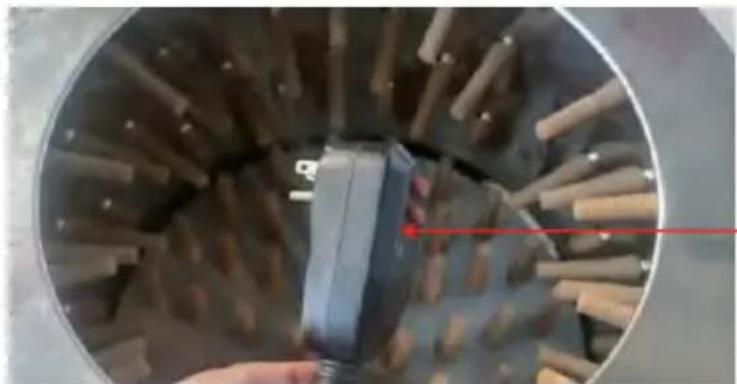

Close-up of a mechanical component inside a circular frame, showing internal structure and a red measurement line (no text or symbols visible)

Power switch, please handle with care and avoid dropping it to the ground.

Step 8: The knife edge should be as small as possible when the chicken is slaughtered. After slaughter, the chicken should be soaked in warm water (about 30^ ) to make feathers wet. It is better to put some salt in warm water to avoid skin damage due to depilation.

Step 9: Heat the soaked chicken in hot water of about 70^ and stir with a wooden stick to make it heated evenly.

Step 10: Press the "1" switch key to start the machine. Put 1 to 4 hot chickens in the machine at a time.

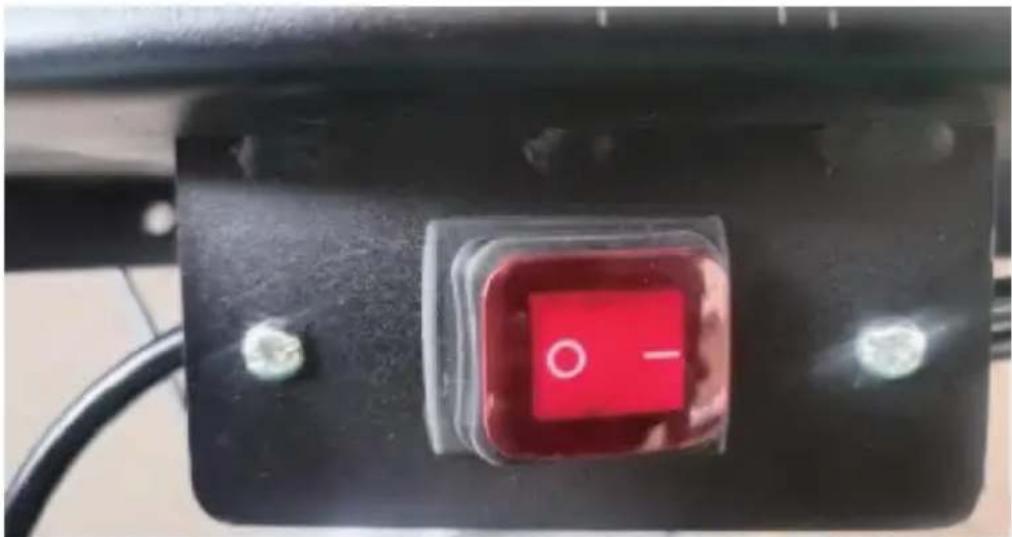

Close-up of a red square button labeled 'O' with metallic pins, mounted on a black mechanical base (no text or symbols beyond the button)

Step 11: Water is added to the poultry while it is running. The feathers and dirt that fall off flow out with the water. The water can be recycled.

Step 12: After 2-3 minutes, remove the feathers and take out the chicken. Connect the high-pressure nozzle with a water pipe. Spray and rinse off the poultry feathers.

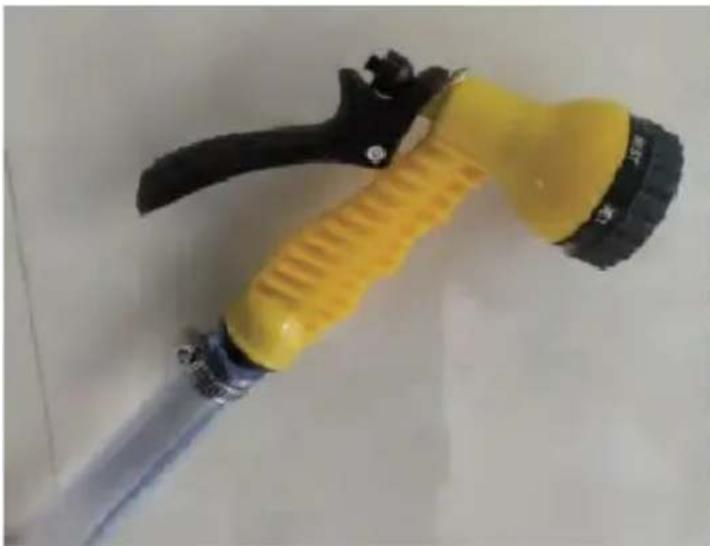

Yellow and black handheld tool with handle, no visible text or symbols

Hand spraying water from a yellow hose in a forest setting (no text or symbols visible)

TROUBLESHOOTING INSTRUCTION

Problem Reason	Solution
Incomplete de-feather	Rubber fingers loss	Replace rubber fingers
	Uneven scalding temperature	Uniform scalding temperature
chicken plucker machine does not rotate	The power cord is not plugged in properly	Plug the power cord
	Switch 1 is not pressed Press	switch 1
	Locked rotor protection in progress	Remove the obstruction, Wait for 30s.
	Overload protector disconnected	Manually reset the overload protector and then turn on the power supply

- CLEAN, CARE AND STORAGE RULES

Care and cleaning:

The chicken plucker machine needs to be used with a faucet and a water pipe, asking it convenient for feathers cleaning and keeping the neatness and beauty of the machine.

The chicken plucker machine is made of stainless steel, which is not easy to rust. After use, please clean it with tap water and wipe it.

Timely cleaning: After use, the bucket should be washed with water, but not directly with a water spray pipe. The feathers and dirt that have been removed should be collected with the water flow and treated in time to avoid environmental pollution or harm to human health. Water can be recycled, but it should be removed in time when not in use.

Storage :

Please store it out of the reach of children.

When the chicken plucker machines are not used for a long time, they should be stored in a dry, non-corrosive environment. Do not contact corrosive substances to avoid product damage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu.

shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69,60329 Frankfurt am

Main.UK REP: YH CONSULTING LIMITED.

C/0 YH Consulting Limited Office 147, Centurion House, LondonRoad,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology

Ltd.Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
