Name: VOLD-36-10
Brand: Vevor
Rating: 9.5 (98 reviews)

Find the device manual for free VOLD-36-10 Vevor in PDF.

📄 78 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Marque	Vevor
Modèle	VOLD-36-10
Type de produit	Outdoor fire pit (fire ring)
Couleur	Black
Diamètre extérieur	40 inches (101.6 cm)
Diamètre intérieur	36 inches (91.4 cm)
Hauteur	10 inches (25.4 cm)
Matériau	Heat-resistant painted steel
Utilisation recommandée	Outdoor, on non-combustible ground (stone, earth, sand)
Interdictions d'usage	Indoor, under a roof, on lawn, wooden deck, in strong wind, near combustible materials
Carburant	Firewood (seasoned hardwood recommended)
Allumage	Do not use flammable liquids (gasoline, alcohol, kerosene, etc.)
Contenu de l'emballage	8 ring panels, 16 bolts, 16 cap nuts, 2 protective gloves
Assemblage	Manual assembly – fit panels together and tighten bolts and nuts
Sécurité enfants	Do not leave children near the fire pit while in operation
Entretien courant	Clean ashes after complete cooling, store away from moisture
Assistance et garantie	www.vevor.com/support

Frequently Asked Questions - VOLD-36-10 Vevor

How to assemble the Vevor VOLD-36-10 fire pit?

Assemble the 8 panels in a circle by screwing the 16 bolts and 16 cap nuts provided. Ensure that the piece with the arrow is placed at the bottom (right side lower than left). Tighten firmly. Do not move once the fire is lit.

Where to place the fire pit safely?

Place it on a non-combustible surface (stone, earth, sand). Keep it away from any combustible materials, low-hanging branches, trellises, and overhangs. Do not use on lawn, wooden deck, concrete or asphalt.

What type of wood to use?

Use seasoned hardwood (oak, beech, etc.). Avoid softwood (pine, cedar) which produces sparks. Do not burn trash, leaves, paper, cardboard or plywood.

Can you cook food on this VOLD-36-10 model?

This model does not include a cooking grate or poker. For cooking, choose the Y models (e.g., VOLD-36-8.5-Y) which come with a grate and handle.

How to clean the fire pit?

Wait until the fire pit is completely cool. Remove ashes with a shovel or metal brush. Store in a dry place. Do not use water to extinguish embers.

Is the fire pit delivered with a protective cover?

No, the cover is not included. It is recommended to store it away from the weather or to get a suitable cover.

Can I use the fire pit on a wooden deck?

No, it is forbidden to use the fire pit on a wooden deck, lawn, or any combustible surface. Use it only on stone, earth, or sand.

What to do if a part is missing or damaged?

Contact Vevor customer service via www.vevor.com/support. Do not attempt to use the device with a missing or damaged part.

How to safely extinguish the fire?

Let the wood burn down until only cold ashes remain. You can spread the ashes to speed up cooling. Never use water. Make sure the fire is completely out before leaving.

Is the fire pit covered by a warranty?

Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty.

User questions about VOLD-36-10 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Outdoor fire pit in PDF format for free! Find your manual VOLD-36-10 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VOLD-36-10 by Vevor.

USER MANUAL VOLD-36-10 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FIRE RING

MODEL:

VOLD-30-10 VOLD-36-10 VOLD-39-10-2.5 VOLD-31-8.5

VOLD-36-8.5 VOLD-39-10-1.5 VOLD-31-8.5-Y VOLD-36-8.5-Y

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FIRE RING

VOLD-30-10VOLD-31-8.5VOLD-36-10VOLD-36-8.5VOLD-39-10-2.5VOLD-39-10-1.5
VOLD-31-8.5-YVOLD-36-8.5-Y

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any changes in data on your product.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL SAFETY RULES BEFORE ASSEMBLY AND USE OF THE FIRE RING.

Caution: For Outdoor Use Only.
Use the fire ring on stone, dirt or sand only.
For adult use only – do not allow children to use the fire ring.
Do not use on lawns, wooden decks, concrete or asphalt.
Do not use fire ring indoors or under a patio roof.
Do not use in windy conditions.
Do not leave fire unattended at any time.
Do not burn trash, leaves, paper, cardboard or plywood in fire ring.
Do not use under low-hanging tree branches, trellis, and overhangs of any kind, including covered porches.
Do not use flammable liquids such as gasoline, alcohol, diesel fuel, kerosene, or charcoal lighter to light or relight fires.
Care should be taken to make sure all combustible material is far enough away from the fire ring to not ignite. • Always use in accordance with all applicable local and state fire codes.
Failure to follow these instructions could result in a hazardous fire, causing property damage or physical injury.

WARNING! FOR YOUR SAFETY:

Avoid using softwoods such as pine or cedar, because they are likely to throw sparks. The use of seasoned hardwood is recommended.
Do not allow children to use the fire ring. Keep children and pets away from the fire ring while it is in use. Exercise the same precautions you would with any open fire.
Do not wear flammable or loose clothing when tending an open fire.
Avoid touching surfaces, as they will be extremely hot. Assure fire is completely extinguished before leaving fire ring.
Any modifications to this appliance may be dangerous and are not permitted.

PRODUCT PARAMETERS

Model	Colour	Outer Diameter	Inside Diameter	Height
VOLD-30-10	Black	36”	30”	10”
VOLD-36-10	Black	40”	36”	10”
VOLD-39-10-2.5	Black	45”	39”	10”
VOLD-31-8.5	Black	35”	31”	8.5”
VOLD-36-8.5	Black	40”	36”	8.5”
VOLD-39-10-1.5	Black	45”	39”	10”
VOLD-31-8.5-Y	Black	35”	31”	8.5”
VOLD-36-8.5-Y	Black	40”	36”	8.5”

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

	Pieces A	Pieces B	Screw	Nut Cap	Gloves	Grill	Handle	Poker
VOLD-30-10	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-10	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-2.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-8.5	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-1.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5-Y	6pcs	1pcs	14pcs	14pcs	2pcs	1pcs	1pcs	1pcs
VOLD-36-8.5-Y	7pcs	1pcs	16pcs	16pcs	2pcs	1pcs	1pcs	1pcs

Excluding Grill style

Simple 3D diagram of a curved rectangular object with labeled corner points and a red arrow pointing to the top edge (no text or symbols beyond basic geometry)

UP DOWN

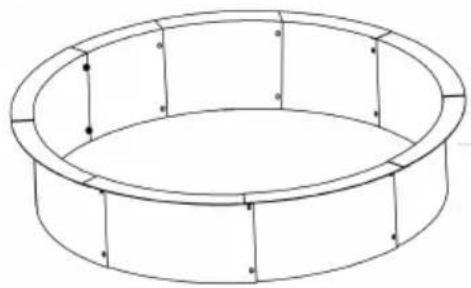

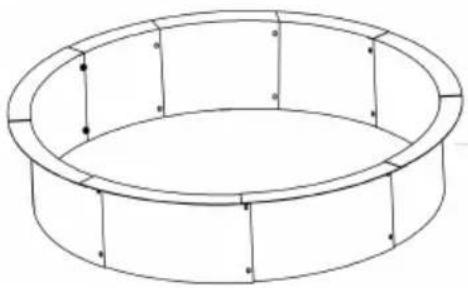

Simple line drawing of a circular mechanical component with labeled points A, B, C, D (no text or symbols beyond labels)

Step 1:

Decide on location for the fire ring. Make sure the fire ring is a safe distance from all combustible materials. Using a rake, level the area if necessary and remove any dry grass or overhanging tree branches.

Step 2:

Using the bolts provided, assemble the pieces of the fire ring together to form a ring. (Place the part with arrow labels below. The right part is higher than the left part when you assemble it). Make sure the ring is level and in the right position.

Step 3:

Stack firewood into fire ring and light the fire.

Helpful Hints:

Do not attempt to move the fire ring once the fire is started.
Do not place the fire ring in an area where it could be easily tipped over.
For best results, stack firewood in a pyramid shape for burning.

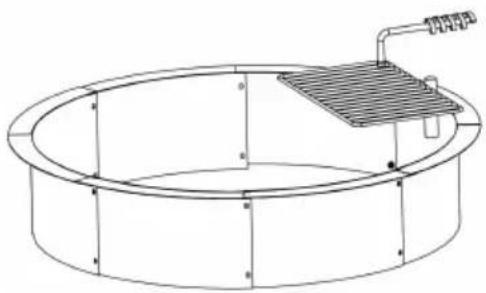

Including Grill style
Step 1:Identify the two parts of the picture.Dec on location for the fire ring. Make sure fire ring is a safe distance from all combustible materials. Using a rake, lev the area if necessary and remove any grass or overhanging tree branches.
Step 2:Using the bolts provided, assemble the pieces of the fire ring together to form ring.(Place the part with arrow labels be The right part is lower than the left pa when you assemble it ). Make sure th is level, tight and in the right position.
Step 3:Insert the grill inside the fire ring, twist handle on the nut of the grill net, twis handle to the outward Angle, tighten th on the handle, and fix the Angle, do shake, to prevent burns.
Step 4:Assembling fire Poker.
