6834-71 - Outdoor fire pit Vevor - Free user manual and instructions

Product Type	Outdoor Fire Pit
Brand	Vevor
Model	6834-71
Diameter	710 mm
Height	430 mm
Main Material	Steel
Fuel	Wood (logs or pellets)
Usage	Outdoor only
Smoke-free Function	Double-wall construction for cleaner combustion
Secondary Combustion	Oxygen channeled between walls to burn smoke particles
Safety: Indoor Use	Prohibited – risk of carbon monoxide asphyxiation
Safety: Distances	Keep away from combustible materials and overhangs
Safety: Installation Surface	Flat, stable, non-flammable
Safety: Supervision	Never leave unattended, especially with children or pets
Maintenance After Use	Clean and dry to prevent rust
Rust Protection	Cover when not in use
Special Feature	High-temperature paint may peel with use
Package Contents	1 fire pit, 1 ash pan, 1 poker, 3 foot pads, 1 manual
Technical Support	www.vevor.com/support

Frequently Asked Questions - 6834-71 Vevor

Where can I use this fire pit?

This fire pit is designed for outdoor use only. Never use it in a building, garage, or any enclosed space due to the risk of carbon monoxide build-up.

How do I properly light the fire?

Use dry wood and natural fire starters. Never use gasoline, kerosene, lighter fluid, or any other flammable liquid to light or rekindle the fire.

Why does my fire pit produce a lot of smoke?

Make sure the air vents are not blocked and the wood is dry. The double-wall design of this model promotes secondary combustion which reduces smoke after about 12 minutes of use.

How do I safely extinguish the fire?

Allow the fire to die out naturally or use an extinguisher. Never pour water on a hot fire pit, as it may cause deformation, rust, or paint peeling.

Can I use this fire pit on a wooden deck?

Yes, but with caution. Place a fireproof mat under the fire pit to protect the surface. Ensure the deck is stable and free of nearby combustible materials.

How do I maintain my fire pit to prevent rust?

After each use, clean and dry the fire pit thoroughly. Cover it with a suitable cover when not in use. If paint peels, brush it off to prevent corrosion.

What fuels are recommended?

Use dry hardwood logs or wood pellets. Avoid treated wood, waste, or highly flammable materials.

Is it dangerous for children or pets?

Yes, the fire pit becomes extremely hot. Supervise children and pets at all times and keep them at a safe distance. Embers can remain hot long after the flames are out.

Can I use the fire pit in windy weather?

No, it is not recommended to use the fire pit in strong winds or gusts. Wind can spread embers and cause fires.

What should I do if the paint peels?

This is normal after repeated use due to heat. Simply brush off the peeling areas to prevent rust. It does not affect the product's function.

USER MANUAL 6834-71 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

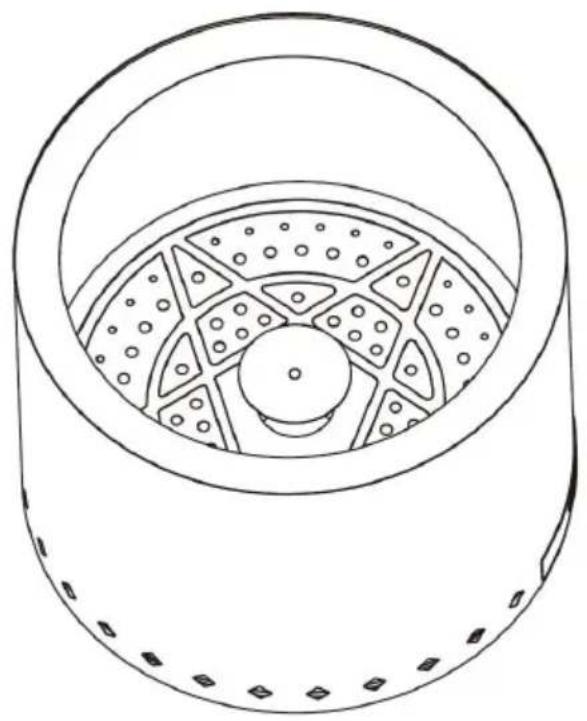

WOOD-BURNING FIRE PIT

MODEL: 6834-38/6834-49/6834-71

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6834-38/6834-49/6834-71

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING

1. The fire pit is for outdoor use only and should not be used in a garage, or any other enclosed area.
2. Do not use the fire pit for indoor heating. Toxic carbon monoxide can accumulate and cause asphyxiation and possibly death.
3. Do not use if you suffer from heart and lung conditions because inhalation may exacerbate existing conditions.
4. Fire pit will be extremely hot when in use. Never attempt to touch or move the fire pit until all fire, coals, and ashes are completely extinguished.
5. Do not sit too close to the burning product. Keep a considerable distance away from the product. Keep kids and pets away from the product.
6. Do not overfill the fire pit during use.
7. Do not use accelerants to light the fire. Do not use gasoline, kerosene, diesel fuel, lighter fluid, alcohol, or any other flammable liquid to light or relight the fire pit.
8. Do not use in inclement weather, such as windy, rainy, or snowy weather.
9. Keep flammable liquids well away from the product, as some flammable liquids can catch fire from the emitting heat.
10. Keep the set-up area clear of any combustible materials. Dry ice, paper, dry grass, or pine needles can catch fire easily from the embers that come out of the product.
11. Do not use the fire pit in any explosive environment. Keep the area around the fire pit clear and free of any combustible materials, gels, or any other flammable liquids.
12. Only handle the product with the poker if you have to.
13. Only adults can set up and maintain the product.

14. Never leave the fire pit unattended, especially when children and pets are nearby. 15. The fire pit is not to be used in a boat or recreational vehicle. 16. Always use the fire pit in accordance with all applicable local, state, and national codes. Contact your local fire department for details. 17. When using the fire pit, exercise the same precautions you would with any open fire. 18. The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to operate the fire pit safely. 19. Do not use the fire pit until you have read the operating instructions and user warnings. 20. Do not alter or modify the fire pit in any manner. 21. Do not store or use LP gas cylinders within 30 feet of the fire pit when it is in operation. 22. Do not use the fire pit under any overhead or near any unprotected combustible constructions. Avoid using under or near any overhanging trees or shrubs. 23. Always use the fire pit on a level and stable surface. Use on wood or composite decks at your own risk. 24. Do not wear flammable or loose clothing when operating the fire pit. 25. Keep all electrical cords away from the fire pit. 26. ALL surfaces of the fire pit are extremely hot when in operation. To avoid burns and serious injury, do not touch the fire pit until the fire is completely out and it has completely cooled. Never touch the coals to see if they're still warm. 27. Avoid breathing smoke from the fire and avoid getting smoke in your eyes. 28. After a period of non-use, check the fire pit for signs of damage or creosote buildup. Do not operate until necessary repairs and/or cleanup are done. 29. Do not use water to extinguish the fire, as this could cause damage to the fire pit as well as injury to the user. 30. Serious injury, death, and/or property damage may occur if the above instructions are not followed exactly.

instructions are not followed exactly.

SAVE THESE INSTRUCTIONS

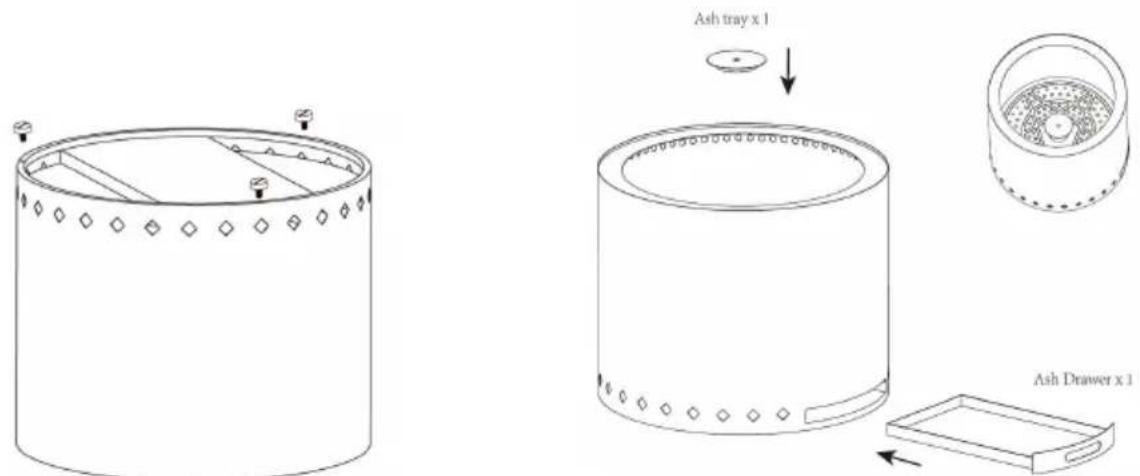

Assembly instructions:

1. Fix the 3 pcs foot pad screws to the bottom of the fire pit, to keep the ground at a lower temperature.

Cautions: If used on a wooden floor, please use a fireproof mat.

2. Put the ash tray on the bottom of the fire pit.

Cautions: When the fire is going, DO NOT open the ash drawer.

3. Set up on a flat surface, away from anything that could pose a fire hazard. As this item is low to the ground, always keep an eye on the fire.

Fire pit user guide:

Please be careful and cautious when using this product.

This product is for outdoor use only and will become very hot during burning.

Maintenance

After each use, please clean and dry it to avoid iron oxidation. If the high-temperature paint on the surface falls off after repeated use, please brush it. Warm tips: if there is slight corrosion, it will not affect use.

Smokeless experience

Enjoy your fire without the nuisance of smoke. Our smokeless fire pit features a double-walled construction that efficiently circulates the air and allows the wood to burn without too much smoke.

Secondary combustion

The camping stove has a double wall design that maximizes airflow during the burning process. Bottom vent holes allow oxygen to feed the fire below while simultaneously channeling warm oxygen up between the walls of the stove and back into the fire. Approximately 12 minutes after ignition is started, the temperature in the furnace increases, and the secondary combustion starts working.

A more efficient burn

A more complete burn means the little particles that would have been smoke are burned up by the top vents. It also means no more half logs to deal with.

Eco-friendly & wood burning

We recommend using dry skin-peeled wood logs or wood pellets for best bonfire experience.

The fire pit should be completely cleaned and dried after use.

Make sure to cover the fire pit to prevent rust.

We cannot be held liable for rust due to weather conditions.

Considerations before use

Check with your fire department for information on burning bans and regulations in your area. Fire pits can remain hot and smolder for hours after the visible fire has been extinguished. Smoldering fire pits are a common cause of injuries and burns, especially for children.

The surface of this product will discolor when placed outdoors and on first use, due to the nature of the product and the heat/naked flames.

CHOOSING A LOCATION FOR SETUP

Fire pits need to be placed in a safe location. Do not place them near buildings, walls, outdoor furniture, inflatable pools, or other flammable items. Nearby items could catch fire from heat or flames. Position on a non-flammable surface, clear of overhanging objects.

Using The Fire Pits

The product is for outdoor use only, and will become very hot during use. To maintain the coating color, cover the bottom of the fire bowl with stones or sand stones before each use.

Using the wrong materials inside a fire pit can be dangerous. Make sure to use only coal or wood.

Do not use highly flammable items such as clothing, rags, paper towels, tissues, or other items that could burn uncontrollably.

Do not use petrol, lighter fuel, alcohol or similar substances to light a fire. Never leave the product unattended.

Wind

The fire pits should be protected from wind and not used when wind is high or gusty. Wind causes the smoke and fire to blow around, which spreads burning embers. When using fire pits during light breezes, keep an eye on it to ensure no small embers escape.

Do not place fire pits near anything that could catch fire.

People & Pets

Supervise children and pets when the fire pit is in use.

Ensure that everyone near the fire pits understands it is an active fire that can produce smoke and embers. Do not allow children or animals to get close to fire pits to avoid smoke inhalation and burns.

The fire pits will get very hot and could burn someone if they get too close.

Extinguishing The Fire Properly

Fire pits are dangerous if the fire is not extinguished properly. Do not extinguish the fire by pouring water into a hot fire bowl because this can

cause distortion, rust or flaking paint. The fire should be allowed to die of its own, or extinguished with a fire extinguisher. It's important to note that fire can continue to smolder and embers remain hot even if there is no visible flame. Make sure to stay near the fire pit after the flame is out and check for burning embers or smoke, which could indicate that a live fire exists. When in doubt, after the bowl has been allowed plenty of time to cool down, fill the inside of the fire pit with water to make sure all embers are out. The fire pit could still be hot for hours after use.

DO NOT USE A CHEMICAL BASED CLEANER as this may ignite a fire on next use.

Storage

It is best to keep the fire pits out of the rain. After you are sure it is completely extinguished, clean it out and store it away so it does not get wet from outdoor conditions.

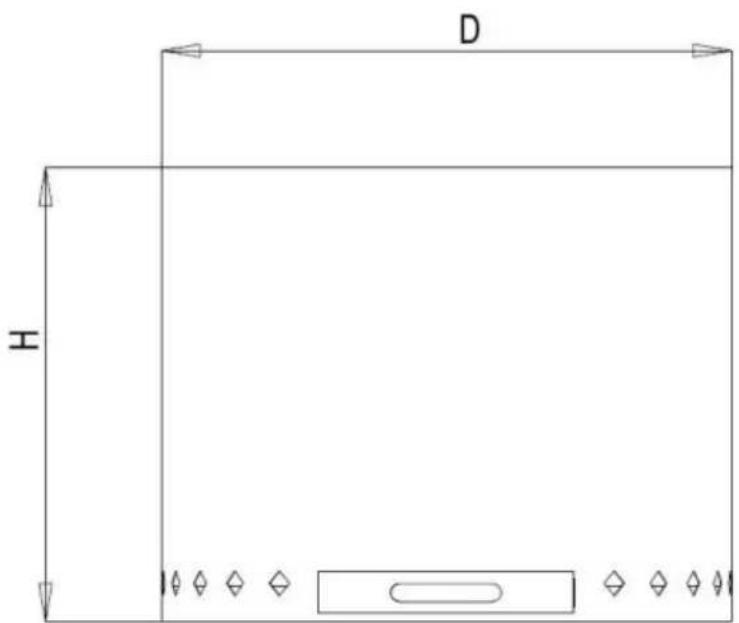

PRODUCT SPECIFICATIONS:

Model	D (mm)	H(mm)
6834-38	Ø 380	320
6834-49	Ø 490	390
6834-71	Ø 710	430

PACKAGE INCLUDE

No	Components	Picture	QTY
1	Fire Pit		1
2	Ash tray		1
3	Poker		1
4	Foot pad		3
5	Manual		1

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and electronic warranty certificate www.vevor.com/support

WOOD BURNING STOVE

MODEL: 6834-38/6834-49/6834-71

Location, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

electronics www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and warranty certificate electronics www.vevor.com/support

WOOD FIRE

MODEL: 6834-38/6834-49/6834-71

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

CHOICE OF INSTALLATION LOCATION

Place, Rancho Cucamonga, California 91730

YH CONSULTING LIMITED LIABILITY COMPANY,

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

WOOD BURNING FIREPLACE

MODEL: 6834-38/6834-49/6834-71

NEED HELP? CONTACT US!

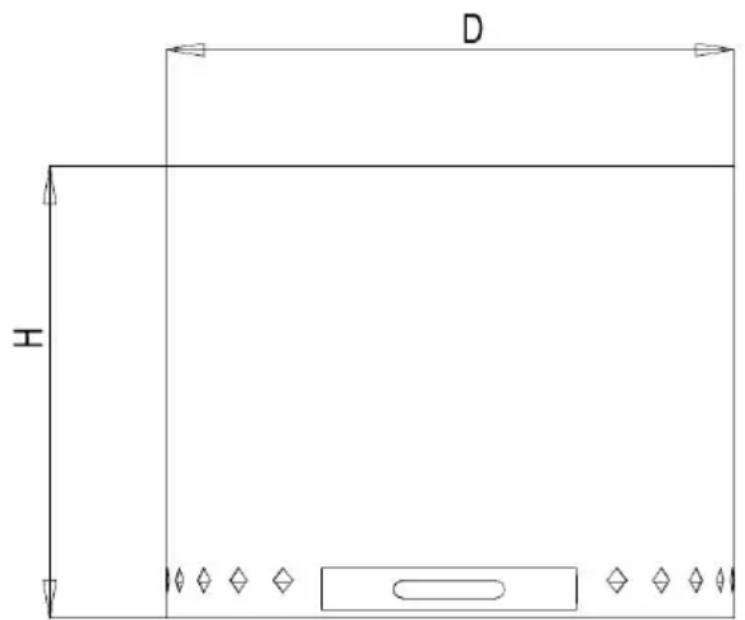

PRODUCT SPECIFICATIONS:
