Vevor TX-SS-03 - Bike accessory
📄 64 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor TX-SS-03 - page 1
1 / 64
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Rear Bike Basket
Brand Vevor
Model TX-SS-03
Maximum Load Capacity 50 lb (approx. 22.7 kg)
Main Material Metal (steel or aluminum)
Basket Dimensions Not specified in the manual (estimated: approx. 40 x 30 x 20 cm)
Included Accessories Rain cover, M6x40 bolts (x4), cable ties (x4), inner lining, iron mounting plates (x4), nuts (x4), wrench
Mounting Type On rear bike rack
Compatibility Not compatible with bikes with thick saddles or without mounting points
Installation Place the basket, install the mounting bars, fix the screws and nuts, attach the cable ties and Velcro strap
Safety Do not exceed 50 lb, periodically check the tightness of screws, wear gloves during installation
Maintenance Wipe with a damp cotton cloth; check and retighten screws every 3 months
Repairability Mounting parts available (screws, nuts, plates); contact Vevor support
Warranty Electronic warranty certificate at www.vevor.com/support
Country of Origin China (manufacturer: Shanghaimuxinmuyeyouxiangongsi)
Manual Contents Assembly instructions, safety, cleaning, warranty terms

Frequently Asked Questions - TX-SS-03 Vevor

Is the Vevor TX-SS-03 basket compatible with all bikes?
No, it is not compatible with bikes that have a thick saddle or no mounting points on the rear rack. Check compatibility before purchase.
What is the maximum load of the basket?
The maximum load is 50 lb (approx. 22.7 kg). Do not exceed it to avoid any risk of breakage or accident.
How to install the basket on my bike?
Place the basket on the rear rack, insert the mounting plates under the rack, fix with the provided bolts and nuts, then tighten. Use the cable ties and Velcro strap to reinforce the attachment.
Is the basket delivered with a rain cover?
Yes, a rain cover is included in the packaging to protect your belongings from bad weather.
How to maintain the Vevor basket?
Regularly wipe the surface with a damp cotton cloth. Check all screws every 3 months and retighten if necessary.
Can I use this basket to transport pets?
It is not recommended to transport live animals. The basket is designed for transporting objects only.
What to do if screws or parts are lost?
Contact Vevor technical support at www.vevor.com/support to obtain replacement parts.
Can the basket be used on an electric bike?
Yes, provided the electric bike has a compatible rear rack and respects the maximum load capacity.
Are specific tools required for installation?
A wrench is included in the packaging. Gloves are recommended for initial installation to protect your hands.
Where to find the complete user manual?
The manual is available for free in PDF format on notice-facile.com or on the Vevor website. You can also request a translation by email.

User questions about TX-SS-03 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Bike accessory in PDF format for free! Find your manual TX-SS-03 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TX-SS-03 by Vevor.

USER MANUAL TX-SS-03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Car Basket

MODEL: TX-SS-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Car Basket

MODEL: TX-SS-03

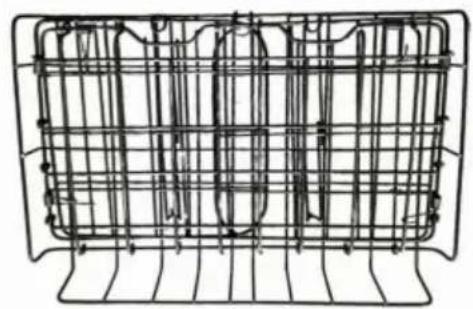

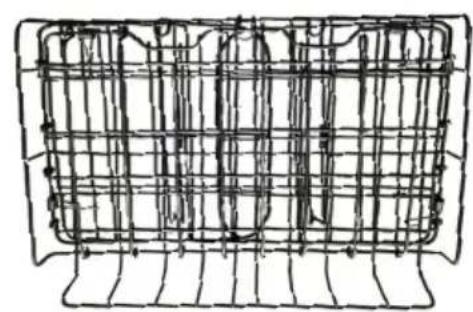

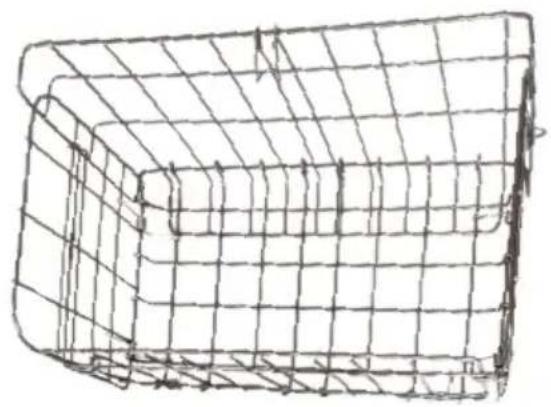

Line drawing of a wireframe container with grid lines (no text or symbols).

Line drawing of a wire cage with multiple vertical supports (no text or symbols).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will help you achieve the best possible results.

Operation safety

Vevor TX-SS-03 - Operation safety - 1

WARNING:

Please read all instructions before using this product. It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

Please read all instructions before using this product.

  1. Keep children and pets away from the product while using it. Children should not use it without adult supervision.
  2. Please check the installation and product size on the reading page to make sure your car fits.
  3. Do not place items that exceed the maximum load bearing capacity.
  4. Fasten the screw periodically. Wear gloves when installing the screw the first time.

Note: The maximum load of the basket cannot exceed 50lbs.

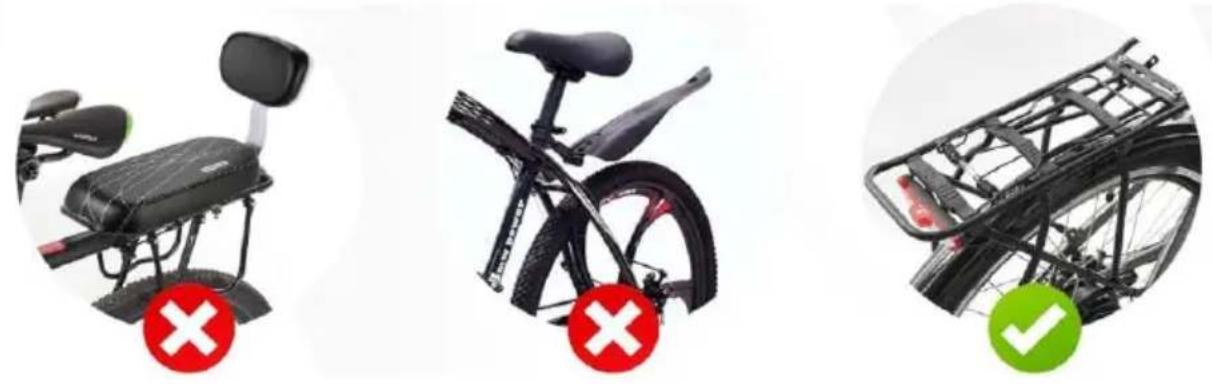

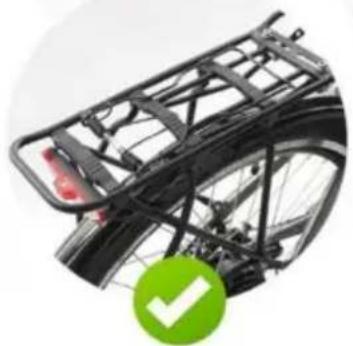

PLEASE CHECK COMPATIBILITY BEFORE PURCHASE.

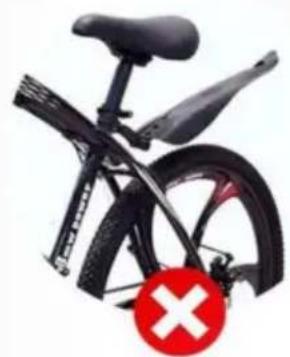

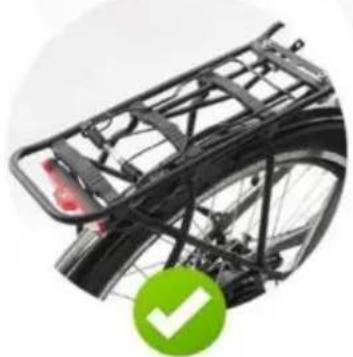

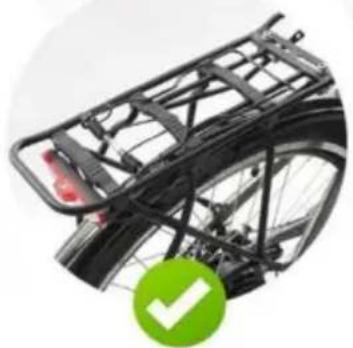

Our bike basket is not compatible with bicycles that have thick seats mounting points.

Vevor TX-SS-03 - PLEASE CHECK COMPATIBILITY BEFORE PURCHASE. - 1

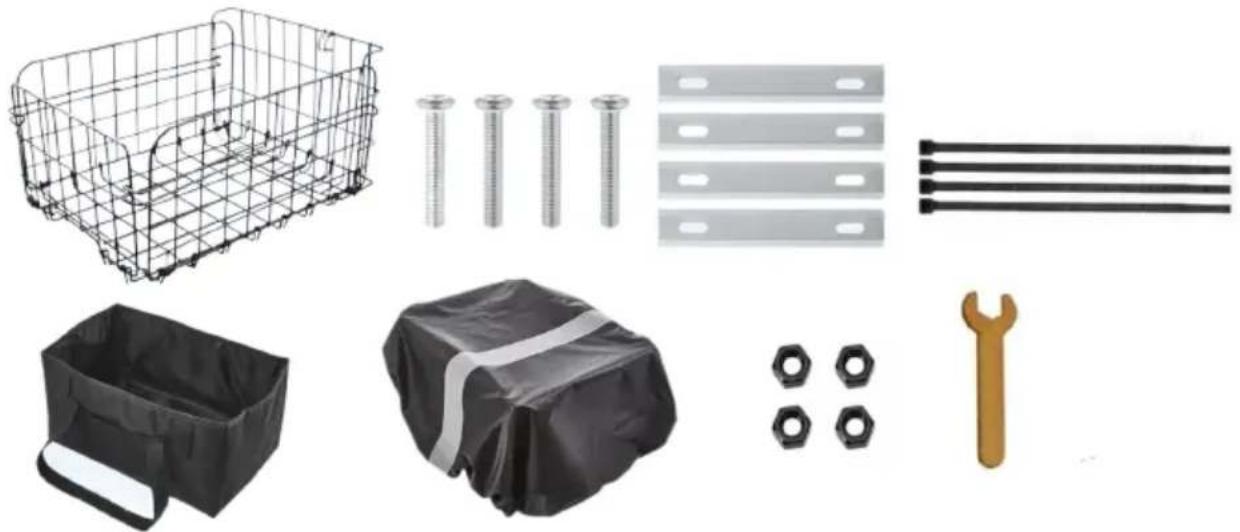

Part List

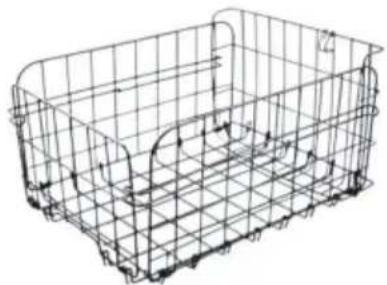

Collection of mechanical components including a wire basket, bolts, plates, and a wrench (no text or symbols visible).

  1. Basket 2. Liner *1
  2. Rain cover *1 4. Mounting iron plate x4,
  3. Bolts m6*40 *4 6. Nuts *4
  4. Cable tie *4 8. Wrench *1

Assembly

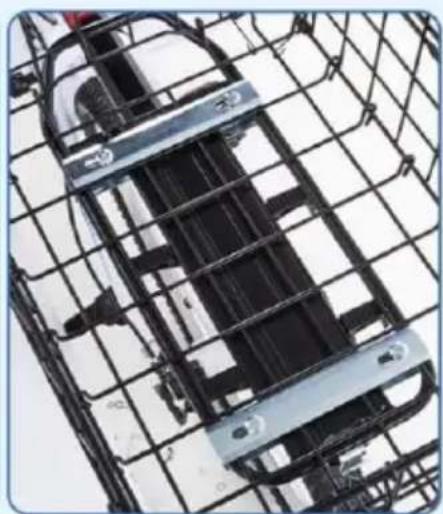

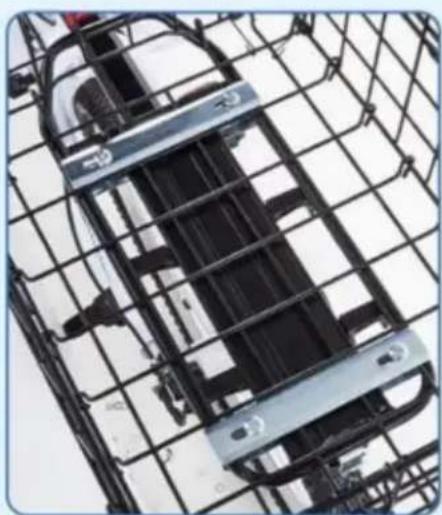

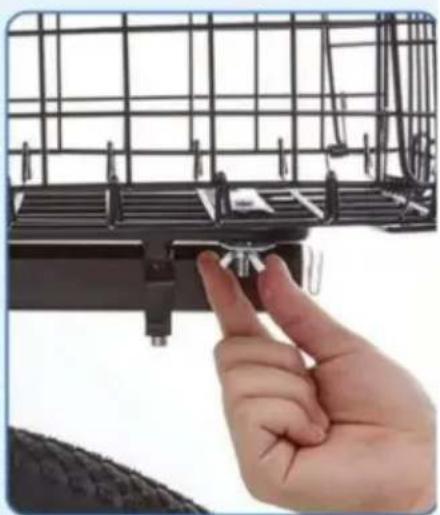

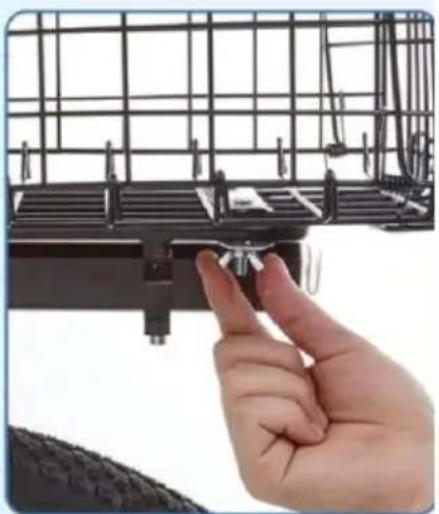

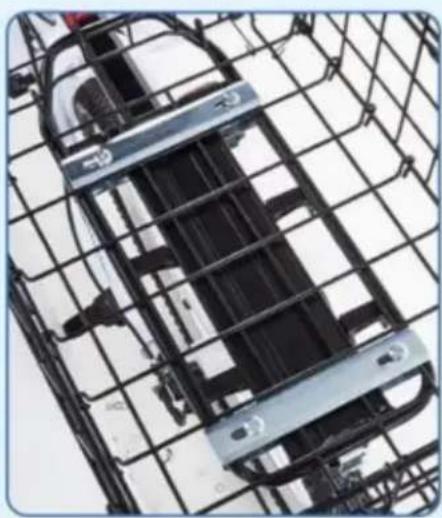

Step 1: Put the basket on the bike rear rack and choose the suitable position. Step 2: Install the mounting bars under the bike rack. Step 3: Fix the screws and tighten the nuts.

Close-up of a hand placing a bicycle into a wire basket next to a tire (no text or symbols visible).

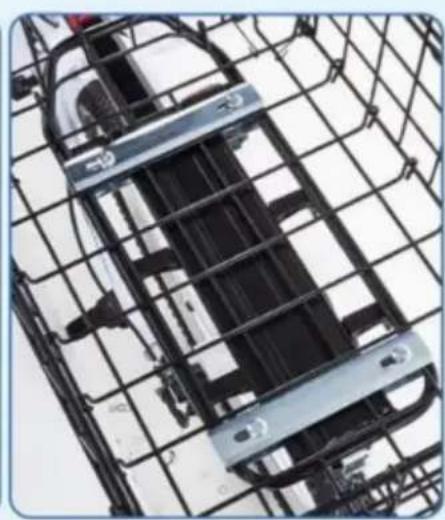

Close-up of a car chassis mounted on a metal grid frame (no visible text or symbols).

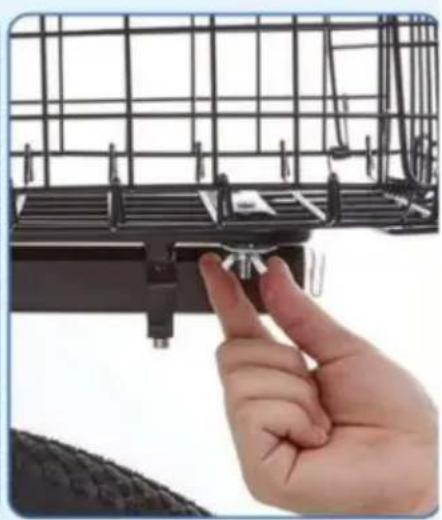

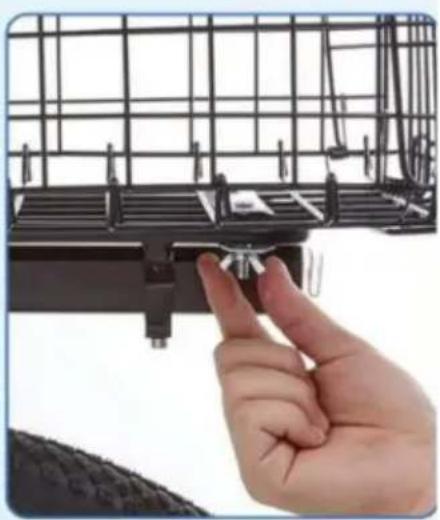

Close-up of a hand adjusting a black wire cage with a small metal clip (no text or symbols visible).

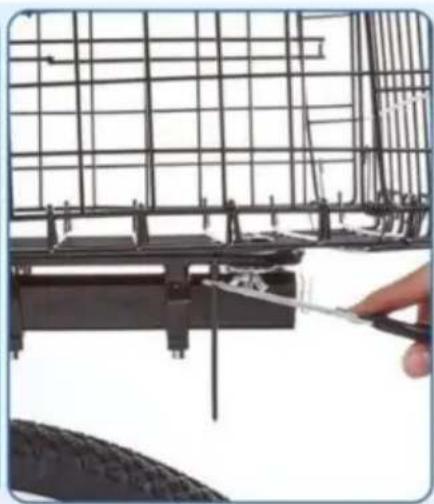

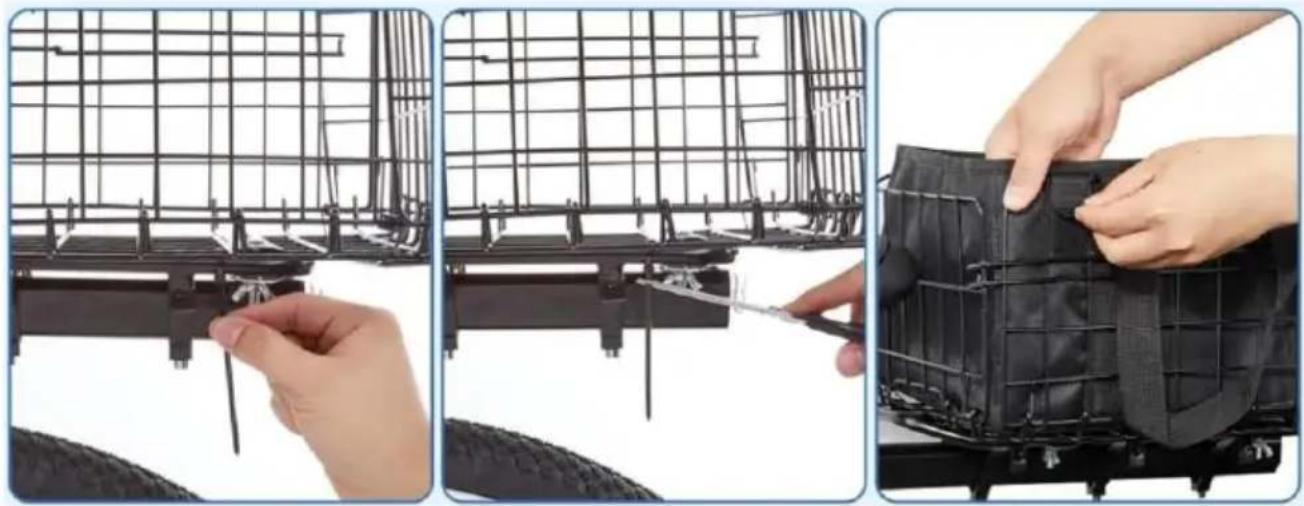

Step 4: Tie the zip ties.

Step 5: Tighten zip ties and cut off the excess.

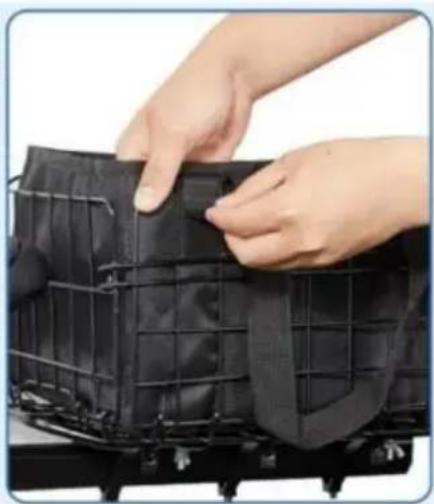

Step 6: Tie Velcro strap and cut off the excess to reinforce the bag.

Three-panel image showing a wire mesh cage, hand positioning, and hands installing a black mesh panel on a tire (no text or symbols visible).

Cleaning and disinfection

  1. Wipe the surface with a wet cotton cloth.
  2. Check the screws regularly every 3 months for loosening and tighten the screws.
