SJ50-36 - Acoustic panels Vevor - Free user manual and instructions

Product type	Acoustic foam panels
Brand	Vevor
Model	SJ50-36
Number of panels	36 pieces
Dimensions of one panel	300 x 300 x 50 mm
Density	30 kg/m³
Shape	Triangle
Material	Acoustic foam
Use	Indoor acoustic correction (reduces echoes and reverberations)
Installation	Wall mounting with universal adhesive (not included)
Expansion time	24 to 48 hours after decompression
Maintenance	Dust with a dry cloth or vacuum cleaner
Safety precautions	Keep children and pets away during installation
Manufacturer	Shanghaimuxinmuyeyouxiangongsi (Shanghai, China)
Importer (Australia)	SIHAO PTY LTD, Eastwood NSW
Importer (USA)	Sanven Technology Ltd, Rancho Cucamonga, CA
Technical support	www.vevor.com/support

Frequently Asked Questions - SJ50-36 Vevor

How to install Vevor SJ50-36 acoustic panels?

Make sure the wall is clean and dry. After decompressing the panels, let them rest for 24 to 48 hours to regain their shape. Apply universal adhesive to the back of the panel (adhesive not included) and press it against the wall. Check adhesion after drying.

How long does it take for the panels to regain their shape?

The panels are shipped vacuum compressed. It takes 24 to 48 hours for them to return to their original volume. You can speed up the process by dampening them and then drying in a clothes dryer on medium heat.

Can I paint the acoustic panels?

It is not recommended to paint acoustic foam panels as paint would clog the pores and reduce their acoustic efficiency. If you wish to color them, use a specific foam dye.

Are the panels fire-resistant?

The instructions do not mention fire-resistant treatment. By default, acoustic foam is flammable. Keep them away from any heat source and flame.

What adhesive should I use to fix the panels?

Use a universal adhesive suitable for foam and wall (spray adhesive or construction adhesive). Make sure it is compatible with the surface. Adhesive is not included with the product.

Can I cut the panels to fit specific spaces?

Yes, you can cut the panels with a sharp utility knife. Use a template for clean cuts. This does not affect their acoustic performance as long as the shape remains consistent.

What is the difference between the SJ50-36 model and other models in the series?

The SJ50-36 contains 36 panels of 300x300x50mm in triangular shape. Other models vary in number of pieces, dimensions and shapes (pyramid, egg). Refer to the instructions for the full list.

What area can these panels cover?

With 36 panels of 30x30 cm, you can cover approximately 3.24 m² of wall surface if placed side by side. This is suitable for a medium-sized room.

How to clean the panels?

Use a vacuum with a soft brush or a dry cloth to remove dust. Avoid water and chemicals that could degrade the foam.

Is there a warranty on this product?

Vevor offers an electronic warranty certificate. Visit www.vevor.com/support for more details. The instructions mention a quality commitment.

USER MANUAL SJ50-36 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Acoustic Foam Panels

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36

/JZT50-24/JDM50-2/JZT50-4/JDM50-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36/JZT50-24/JDM50-2/JZT50-4/JDM50-4

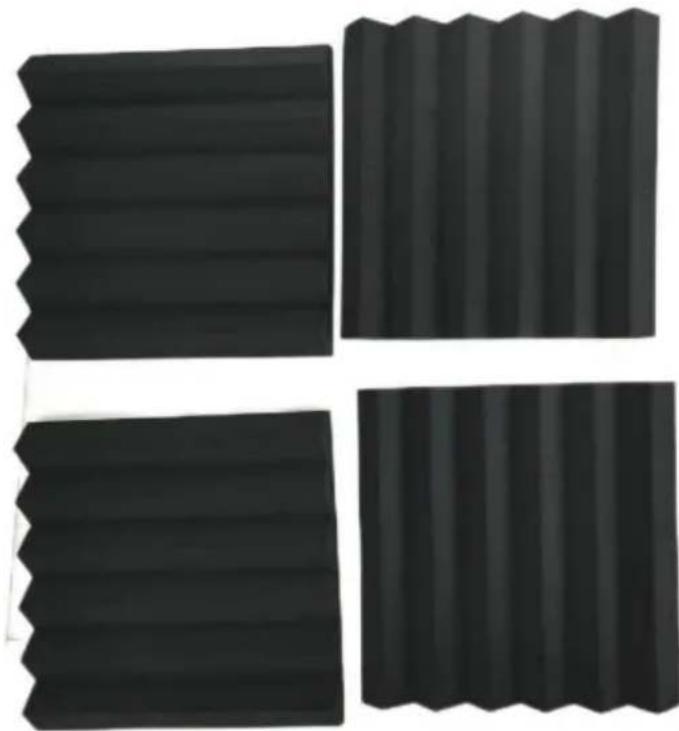

Four black corrugated metal strips arranged in a 2x2 grid, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SECURITY & WARNINGS

WARNING:

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	Quantity	Size	density	Product texture
SJ25-80	80pcs	300*300*25mm	30kg/m^3	triangle
SJ50-36	36pcs	300*300*50mm	30kg/m^3	triangle
SJ50-50	50pcs	300*300*50mm	30kg/m^3	triangle
SJ25-52	52pcs	300*300*50mm	30kg/m^3	triangle
JZT50-36	36pcs	300*300*25mm	30kg/m^3	Pyramid shape
JZT50-24	24pcs	300*300*25mm	30kg/m^3	Pyramid shape
JDM50-2	2pcs	1200*600*50mm	30kg/m^3	Egg shape
JZT50-4	4pcs	1200*600*50mm	30kg/m^3	Pyramid shape
JDM50-4	4pcs	1200*600*50mm	30kg/m^3	Egg shape

Note: The above product installation needs to buy their own additional universal glue.

Note: The instruction manual picture is the model SJ 50-36, please r

the physical objects for other models.

INSTRUCTIONS

1. Open the box and remove the product from the compression bag. Spread the product on an open ground and stand for 24-48 hours.

Note: In order to make the product return to shape quickly, the product be soaked in water, then twist dry the product. Finally, use the dryer medium-gear temperature to dry the product; if the product is wet, it affects the paste effect of the product;

1. Remove the wall of dust and dirt.

2. Apply universal glue on the back of the product and paste it on th

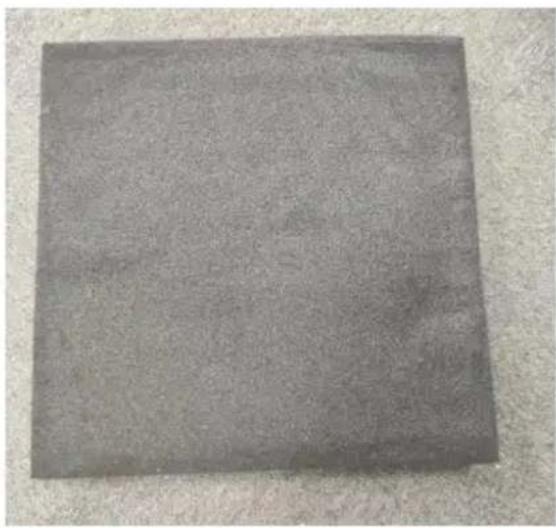

Solid dark gray square material on a textured gray surface (no text or symbols)

Note: Need to buy their own universal glue, glue spraying needs to be evenly.

Question	Ways of resolution
The product thickness is not u the standard	Product did not return to the sh it is recommended to stand for 24-48 hours
Product paste on the wall to	The wall is not clean, it is recommended to clean the wall dry, and apply the universal glue the product paste surface

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36/JZT50-24

/JDM50-2/JZT50-4/JDM50-4

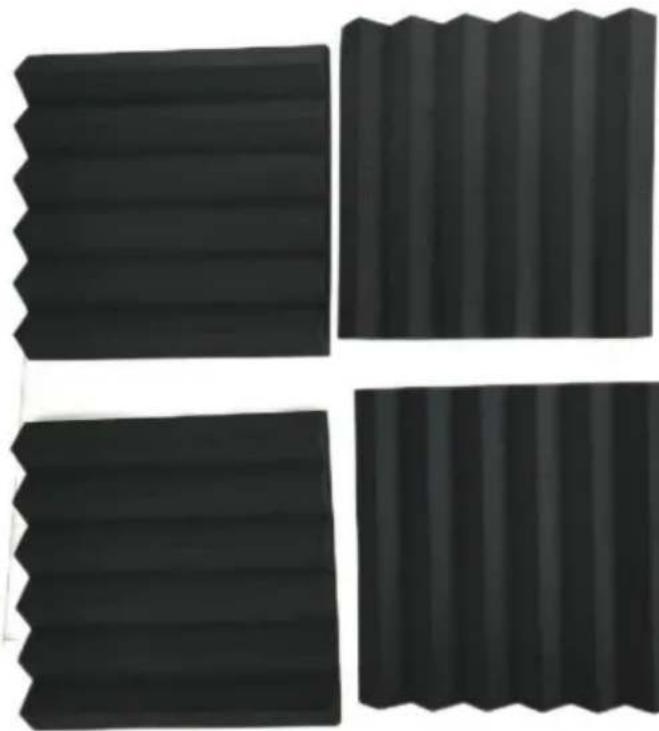

Four black corrugated plastic strips arranged in a 2x2 grid, no text or symbols visible
