SS150 - Projection screen Vevor - Free user manual and instructions

Product Type	Wall-mounted projection screen
Brand	Vevor
Model	SS150
Screen Size	150 inches (diagonal)
Aspect Ratio	16:9
Product Dimensions (W x H x D)	3380 x 1928 mm
Net Weight	Approximately 0.9 kg
Power Supply	None (manual screen)
Mounting Method	Wall mounting with adhesive hooks and grommets
Screen Material	Projection fabric
Tension System	Non-tensioned (free screen)
Included Accessories	Hooks, adhesive tapes
Number of Grommets	Several (depending on model)
Recommended Use	Indoor, on flat and dry surface
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety Precautions	Assembly by two people. Do not let children climb. Use wall anchors if necessary.
Spare Parts and Repairability	Parts not available separately. In case of damage, replace the entire unit.
Assembly Instructions	See manual: steps 1 to 3
Warranty Conditions	Standard manufacturer warranty (refer to manual)
Country of Origin	China
General Information	Easy-to-install wall projection screen, suitable for projectors.

Frequently Asked Questions - SS150 Vevor

How to install the Vevor SS150 projection screen?

Installation is done in three steps: 1) Unroll the screen and mark the positions of the grommets on the wall. 2) Stick each hook onto an adhesive tape. 3) Fix the hooks at the marked positions, then hang the screen by the grommets. Ensure the surface is flat and solid.

What accessories are provided with the SS150 screen?

The package contains the fabric screen, hooks, and adhesive tapes for wall mounting. No additional tools are required.

Is the SS150 screen suitable for a 4K projector?

Yes, the Vevor SS150 projection screen is compatible with 4K projectors. Its matte white surface offers good reflectivity and faithful color reproduction.

What is the actual size of the SS150 screen?

The screen has a diagonal of 150 inches with a 16:9 aspect ratio. The product dimensions are 3380 mm wide and 1928 mm high.

How to clean the Vevor projection screen?

Use a soft, dry cloth to dust. For stains, slightly dampen the cloth with clean water. Never use chemical or abrasive products.

Can I use this screen outdoors?

This screen is designed for indoor use only. Exposure to moisture, wind, or sun can damage the fabric and compromise the mounting.

Does the screen come with a tension system?

No, the SS150 model is a free screen without a tension system. It simply attaches via grommets to wall hooks, which may result in slight wrinkles.

What maximum weight can the screen support?

The screen itself weighs about 0.9 kg. The wall mounting must support this weight. Use anchors suitable for your wall to ensure safety.

How can I get a copy of the manual in PDF format?

You can download the PDF manual for free from the site notice-facile.com by searching for 'Vevor SS150'. The manual is available in several languages.

What to do in case of defect or missing part?

Contact Vevor customer service via their website. Keep your proof of purchase. The warranty covers manufacturing defects, but not damage caused by improper installation.

USER MANUAL SS150 Vevor

WALL MOUNTED PROJECTION SCREEN

MODEL: SS120, SS150

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury.

Please read and observe carefully all the assembly instructions before beginning assembly.

Unit should be assembled by two or more people.

Please do not let your child climb on the product. If you have kids or animals who like to climb, we highly recommend using the wall anchors and brackets/screws that come with the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard, and smooth surface capable of supporting the Wall Mounted Projection Screen.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Do not allow children to play with or in item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard, and smooth surface capable of safely supporting a fully loaded Wall Mounted Projection Screen.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	SS120	SS150
Screen Size	120 inch, 16:9	150 inch, 16:9
Product Dimensions (LxWxH)	2710*1550mm	3380*1928mm
Net Weight	About 0.9kg	About 1.2kg

*Products such as specifications, appearance, and design are subject to modification without prior notice.

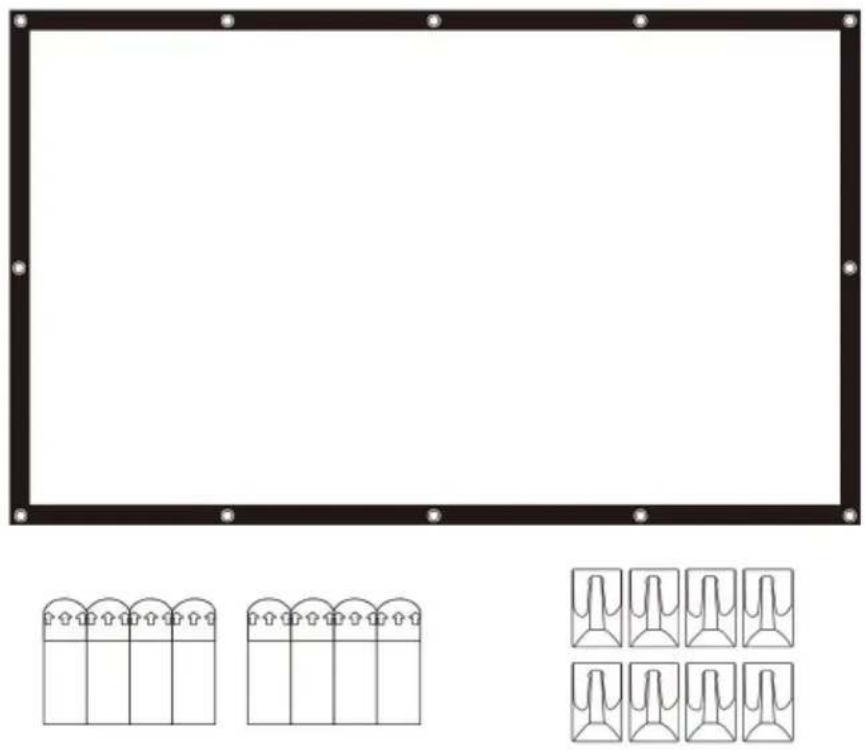

PACKAGE CONTENTS

ASSEMBLY STEPS

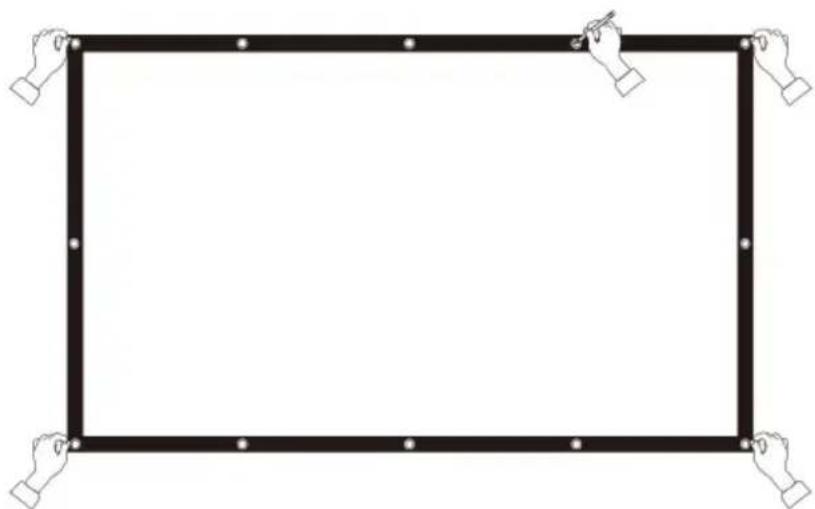

STEP 1

First of all, pull the screen fabric flat and lay it on the wall where it will be installed. Mark every position of the grommets correctly on the wall.

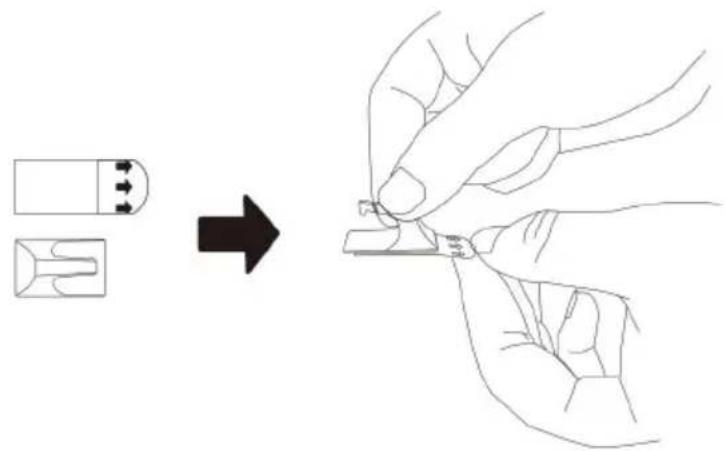

STEP 2

Second, stick each hook on an adhesive tape.

STEP 3

Then stick the hooks with the tapes on every position marked on the wall.

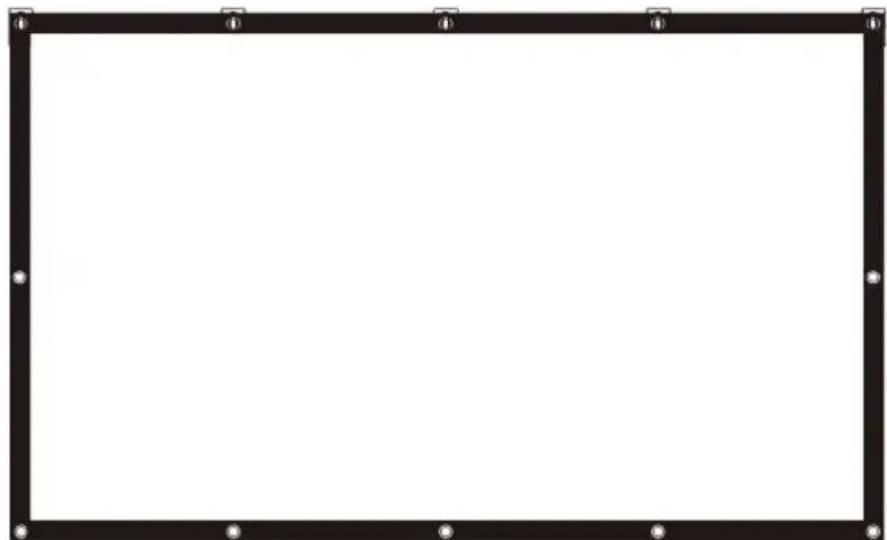

STEP 4

Finally, put the screen flat by hanging the grommets on the relevant hooks.
