Product Type	Pet Barrier for Car
Brand	Vevor
Model	SZJJZW02X
Category	Car Seat (Accessory)
Dimensions (W x H)	38 x 16 inches (96.5 x 40.6 cm)
Main Material	Metal (steel) and side panels
Mounting Type	Headrest attachment with nylon straps
Foldable	Not foldable
Protective Net Included	No
Included Parts	Main panel, 2 side panels, 8 circular clips, 4 bolts, 4 thumb screws, 2 nylon straps, 2 straps, manual
Maintenance	Wipe with a soft slightly damp cloth; do not use corrosive detergents
Safety Precautions	Wear gloves during installation; assemble by an adult; keep children and animals away; regularly check for wear
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Intended Use	Separate pet space in the trunk or rear seat of the car
Width Adjustment	Adjustable via side panels and circular clips
Storage	Disassemble and store in original packaging

Frequently Asked Questions - SZJJZW02X Vevor

How to install the Vevor SZJJZW02X barrier?

First measure the width of the cargo space. Adjust the barrier by attaching the side panels to the main panel with the provided screws and nuts. Attach the nylon straps to the headrests, then hang the barrier. Do not tighten too much to avoid deforming the hooks.

Is the barrier compatible with all vehicles?

The barrier is designed to fit most vehicles thanks to its width adjustment. However, check that the dimensions (38x16 inches) match your space. Refer to the manual for possible configurations.

Is the SZJJZW02X barrier foldable?

No, the SZJJZW02X model is not foldable. It is a rigid non-foldable barrier.

What tools are needed for installation?

No specific tools are required. All fasteners (bolts, thumb screws, circular clips) are provided. It is recommended to wear gloves for handling.

How to clean the barrier?

Wipe the barrier with a soft slightly damp cloth. Never use corrosive detergents, metal brushes, or abrasive sponges.

Is the barrier safe for pets?

Yes, if installed correctly. Follow the safety instructions: wear gloves, assemble by an adult, and regularly check for wear. Replace the barrier if any parts are damaged.

Can I use a protective net with this model?

No, the SZJJZW02X model does not include a protective net and is not designed for adding one. Use the barrier as is.

What to do if a part is missing or damaged?

Contact technical support via www.vevor.com/support. Have your model number (SZJJZW02X) and parts list ready to obtain a replacement part.

What is the warranty of the Vevor barrier?

Vevor provides technical support and an electronic warranty certificate. Visit www.vevor.com/support for more details on warranty terms.

Can I adjust the width of the barrier?

Yes, the barrier is width adjustable thanks to the removable side panels and circular clips. Measure your space and adjust accordingly before final installation.

User questions about SZJJZW02X Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Car seat in PDF format for free! Find your manual SZJJZW02X - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SZJJZW02X by Vevor.

USER MANUAL SZJJZW02X Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PET BARRIER FOR CAR

MODEL: SZJJZW01X/SZJJZW02X/SZJJSZW01/SZJJSZW02/SZJJZW01B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PET BARRIER FOR CAR

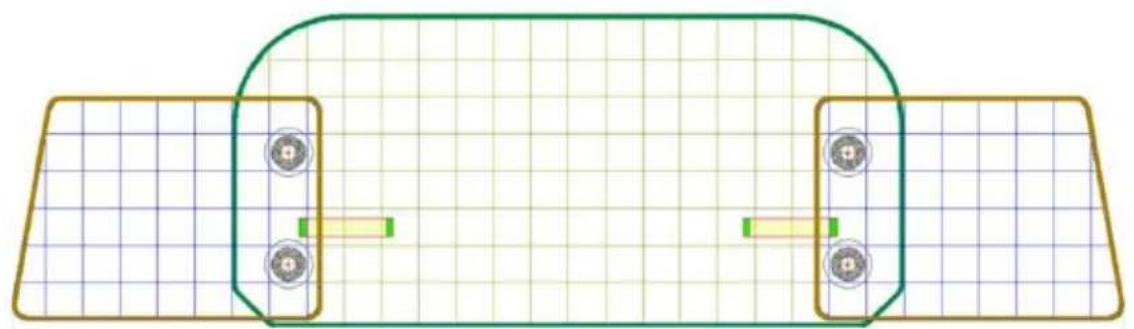

Technical diagram of a vehicle chassis with front and rear compartments, showing wheels and structural elements (no text or labels).

SZJJZW01X/SZJJZW02X/SZJJZW01B

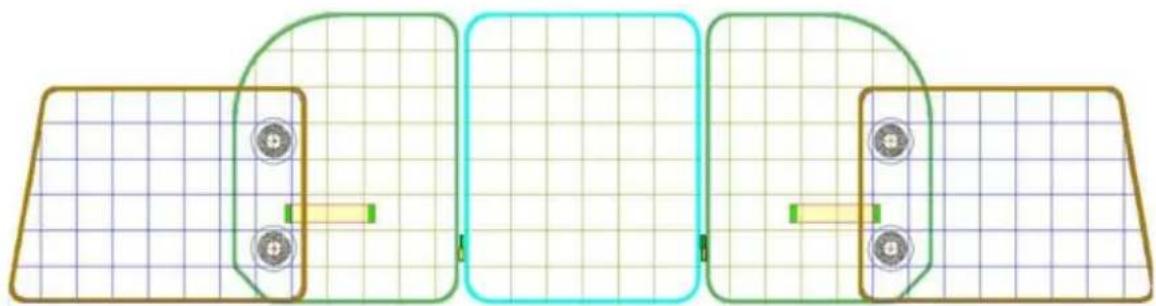

Diagram of a vehicle front view with grid layout and colored rectangular panels (no text or symbols).

SZJJSZW01/SZJJSZW02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning - To reduce the risk of injury, user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this product.

WARNING

Read these instructions carefully and retain them for future use.
When using the product, basic safety precautions should always be followed to reduce the risk of injury, including the following: A competent adult should assemble the product.
Keep children and pets away while assembling the product. Do not let children climb on or play with the product. Wear gloves when installing the product.
Do not use this product if any parts are missing, damaged, or abraded. Do not over-tighten the fasteners (hardware). Regularly examine the product for wear and tear, and replace at the first sign of damage or if parts become detached.

CLEANING AND MAINTENANCE

To clean the product, wipe with a soft, slightly moist cloth. Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

PRODUCTION CONFIGURATION

Model	SZJJZW01X	SZJJZW02X	SZJJSZW01	SZJJSZW02	SZJJZW01B
Product size (inch)	35.4*16.5	38*16	38.5*15.9	36.6*16.5	35.4*16.5
Fold	Non foldable	Non foldable	Foldable	Foldable	Non foldable
Barrier net	✕	✕	✕	✕	✕

PARTS LIST

ITEM	Name	PICTURE	Model
ITEM	Name	PICTURE	SZJJZW01X	SZJJZW02X	SZJJSZW01	SZJJSZW02	SZJJZW01B
A	Main metal mesh		1PCS	1PCS	1PCS	1PCS	1PCS
B	side panels		2PCS	2PCS	2PCS	2PCS	2PCS
C	circular clamps		8PCS	8PCS	8PCS	8PCS	8PCS
D	bolts		4PCS	4PCS	4PCS	4PCS	4PCS
E	Hand screw		4PCS	4PCS	4PCS	4PCS	4PCS
F	nylon straps		2PCS	2PCS	2PCS	2PCS	2PCS
G	straps		2PCS	2PCS	2PCS	2PCS	2PCS
H	Barrier net		×	×	×	×	1PCS
I	manual		1PCS	1PCS	1PCS	1PCS	1PCS

INSTALLATION INSTRUCTIONS

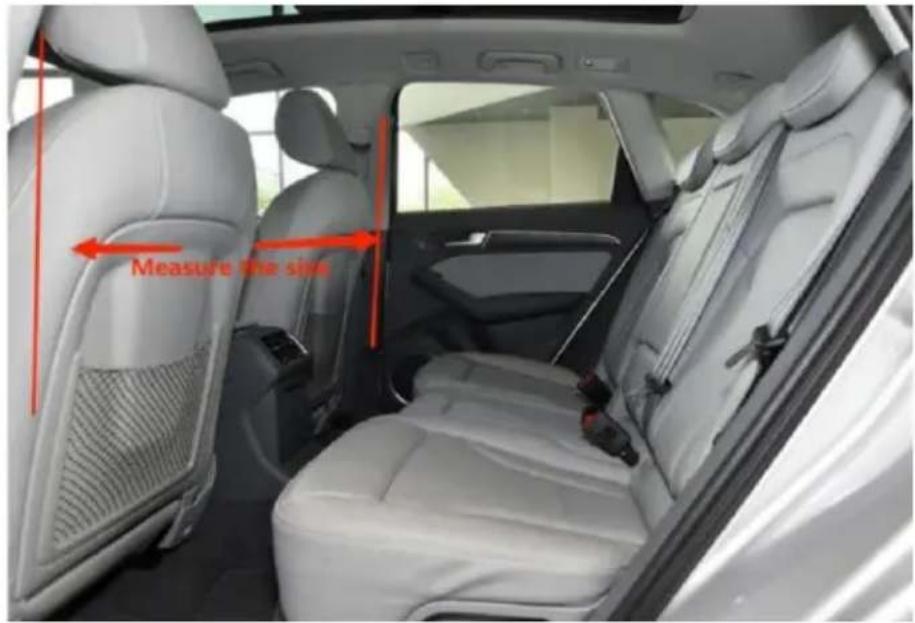

STEP 1:

Measure the dimensions of the interior mounting position of the car.

Measure the size.

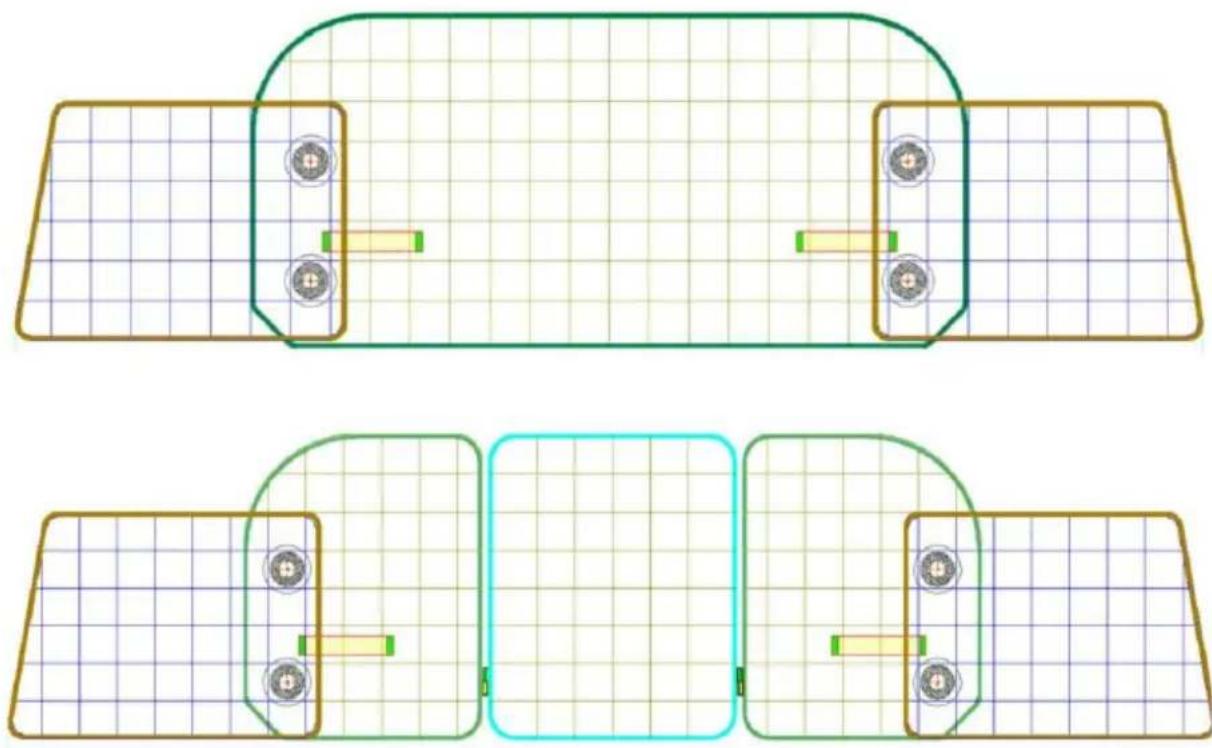

STEP 2:

Measure and adjust the barrier according to the width of the cargo area.

Two technical diagrams showing a vehicle's front and side views with grid background and circular components (no text or symbols).

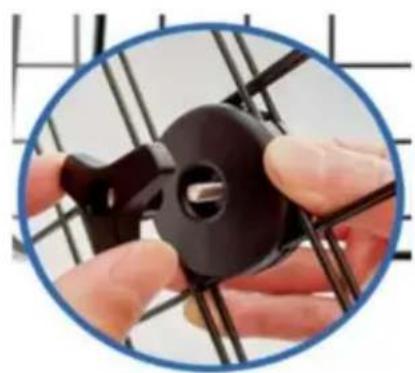

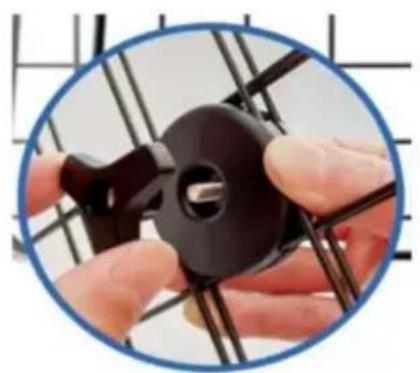

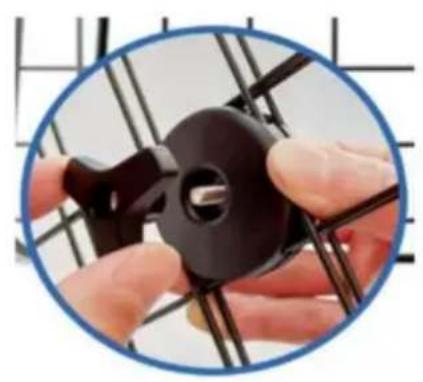

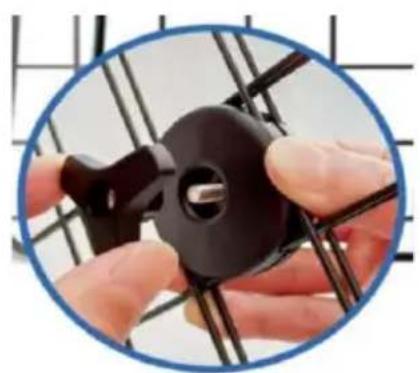

STEP 3:

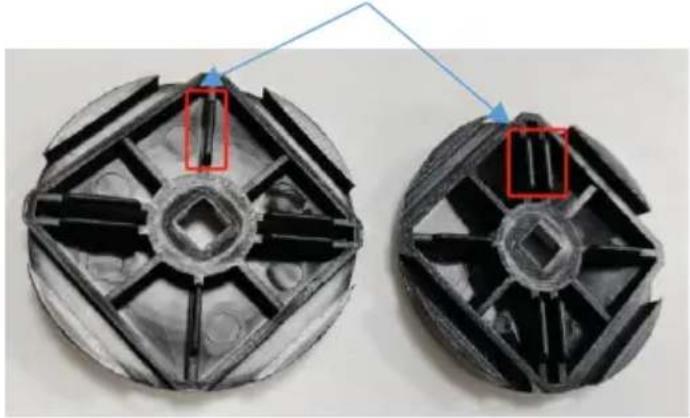

Re-assemble the barrier by fixing the Side Panels to the Main Panel with Screws and Nuts. Do not over-tighten or the hook will lose its shape. When installing C (circular clamps), pay attention to the fitting angle. The correct angle is to fit one side wall to both sides of the wall, and installation cannot be done at the wrong angle.

Unilateral wall and bilateral wall coordination

Two views of a mechanical component with black blades and red annotations highlighting features (no text or symbols present).

Close-up of hands holding a black plastic clip against a metal grid background (no text or symbols visible).

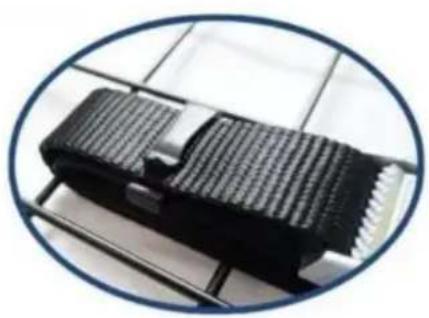

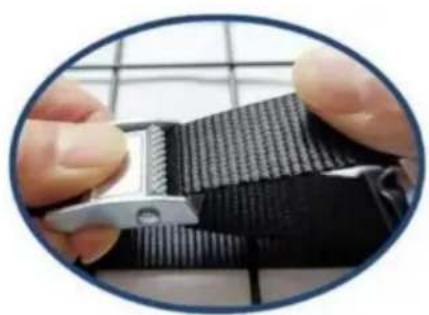

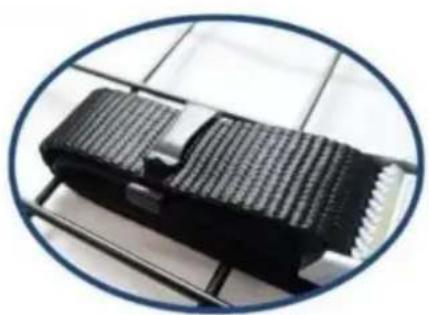

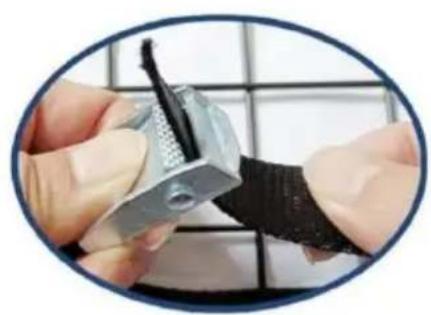

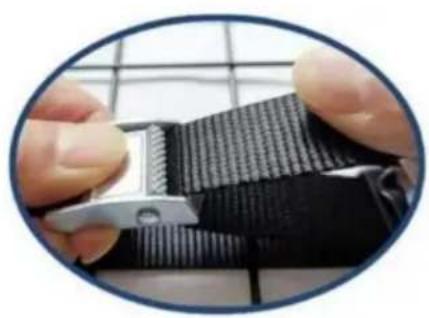

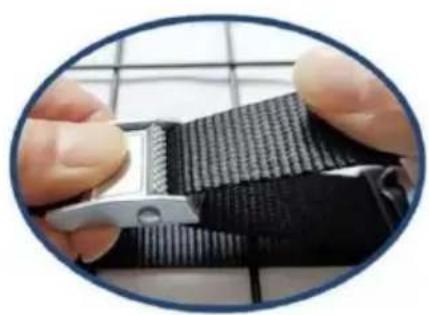

STEP 4:

Pre-fix the straps to the headrests.

Close-up of hands using a mechanical tool to connect a black cable or wire against a grid background (no text or symbols visible).

Close-up of hands holding a black corrugated material with a metal clip (no text or symbols visible).

Close-up of a black plastic electronic component mounted on a metal frame, enclosed in a circular frame (no visible text or symbols).

STEP 5:

Install the barrier to the headrests.

Interior view of a car showing the backrest frame, seatbelt, and window (no visible text or symbols).

The product is equipped with 2 nylon straps, which users can choose to use according to their actual situation to fix the mesh.

Two parallel horizontal lines with curved ends and small circular connectors at the top (no text or symbols).

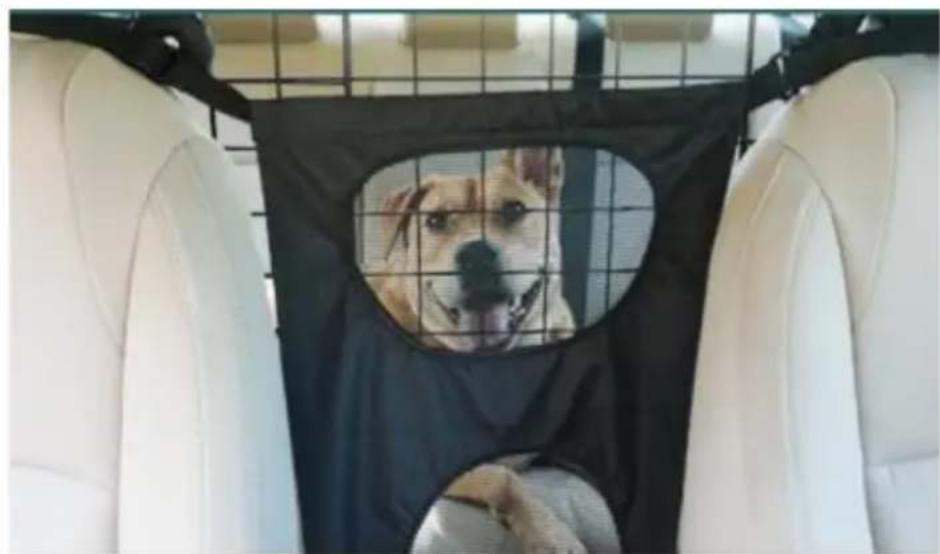

STEP 6:

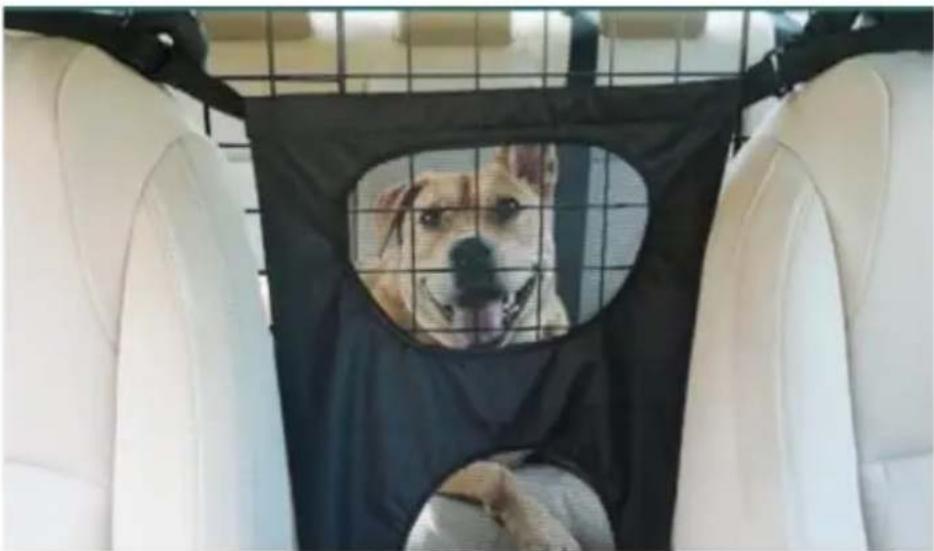

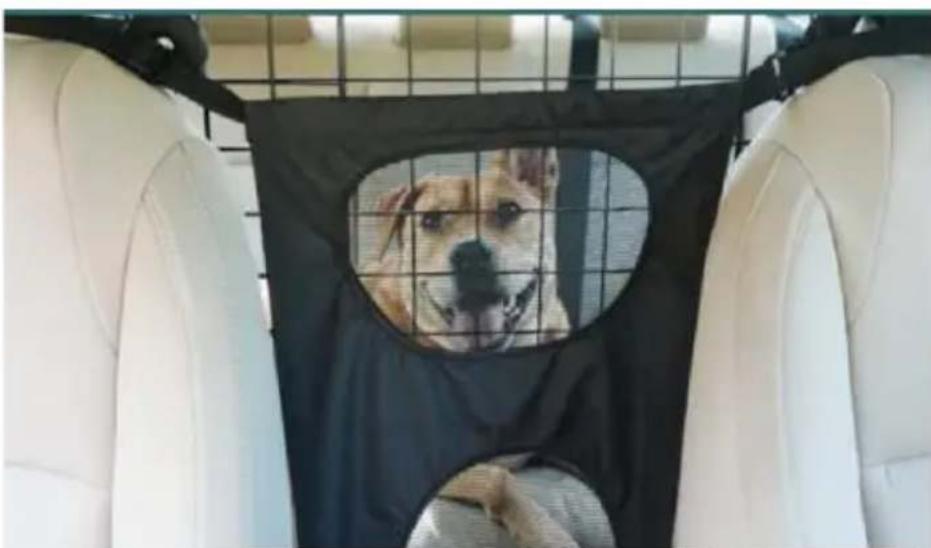

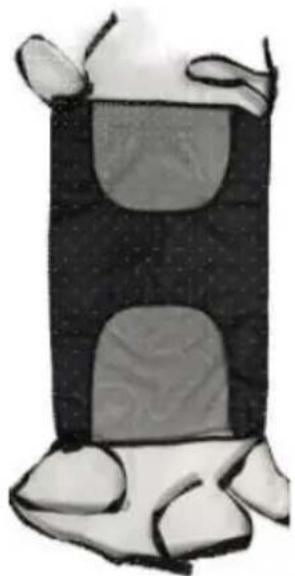

The model SZJJZW01B product is equipped with a barrier net, which is used for installation between the front seats. The two straps above the barrier net are fixed to the headrests on both sides, and the straps below are fixed under the seat.

Simple line drawing of a stylized object resembling a tower or abstract shape (no text or symbols).

Interior view of a car showing a dog behind a black net, with white leather seats and a dog partially visible inside (no text or symbols).

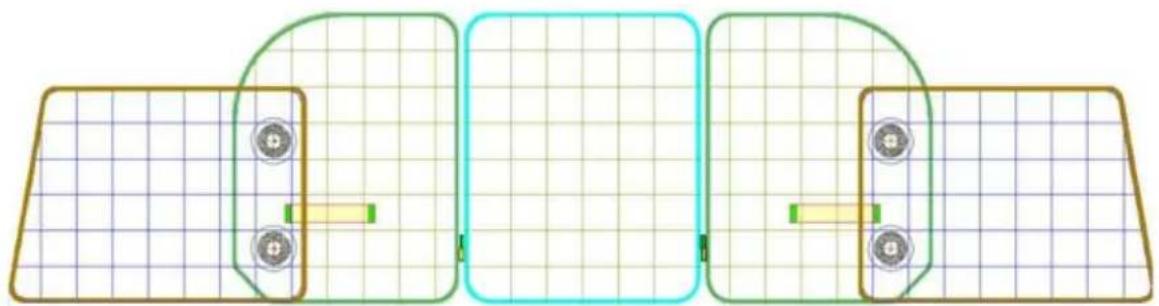

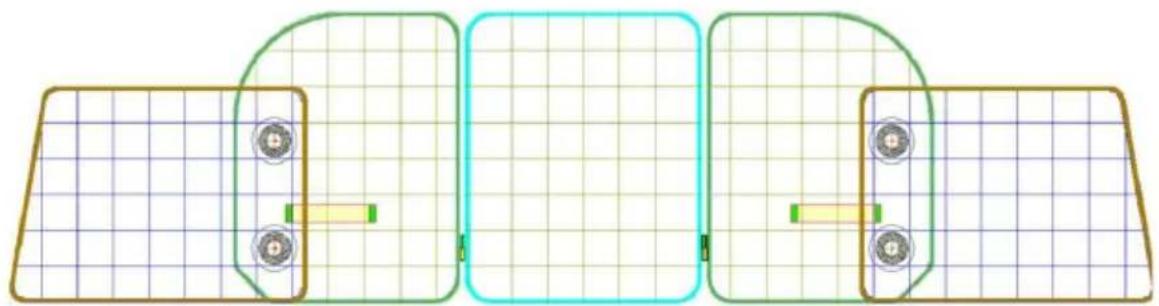

NOTE: The panels can be configured in 6 distinct ways, as pictured below. The way you need to set up the barrier depends on the size of the car.

Pure diagram of a mechanical or structural component with grid pattern and two protruding components (no text or symbols).

Pure diagram of two symmetrical mechanical or electrical components with no text, numbers, or symbols.

Pure diagram of a mechanical or structural component with grid pattern and two rectangular blocks, no text or symbols present.

Diagram of two identical mechanical components with grid patterns and mounting holes, no text or symbols present.

Diagram of a mechanical or electrical component with two purple components and a green grid background, no text or symbols present.

Simple line drawing of two grid-patterned baskets with no text or symbols.

PRODUCT STORAGE

Open the strapping, take it off the car, open the circular clamps and put a piece of protective net into the packing box, complete the storage of all items, or put it back in the carton packaging.
