Product Type	Pet Barrier for Car
Brand	Vevor
Model	SZJJZW01X
Product Dimensions	90 x 42 cm (35.4 x 16.5 inches)
Main Material	Metal Mesh
Color	Black
Folding	Not foldable
Installation	Attachment to headrests with nylon straps
Protective Net	Included (for separation between front seats)
Included Accessories	Side panels (2), circular clamps (8), bolts (4), hand screws (4), nylon straps (2), straps (2), protective net, instruction manual
Usage	Vehicle interior, separation of pets from driver compartment
Maintenance and Cleaning	Wipe with a slightly damp soft cloth; do not use corrosive detergents, metal brushes or abrasive sponges
Safety	Assembly by an adult, gloves recommended, regularly check for wear, keep children and pets away during assembly
Spare Parts and Repairability	Contact Vevor technical support via www.vevor.com/support for replacement parts
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000, China
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122

Frequently Asked Questions - SZJJZW01X Vevor

How to install the pet barrier in the car?

First measure the width of your loading area. Adjust the barrier by attaching the side panels to the main panel with the supplied screws and nuts. Install the C-clamps on door posts or headrests, then secure the nylon straps. Tighten without overtightening. Consult the manual for possible configurations.

Is the barrier compatible with all vehicle types?

The barrier is designed to fit most cars, SUVs and station wagons. Its width is adjustable, but check the dimensions of your loading space against the product dimensions (90 x 42 cm).

Can I use the barrier without the protective net?

Yes, the protective net is an additional accessory to separate the front seats. The main barrier works without the net.

How to clean the barrier?

Wipe it with a slightly damp soft cloth. Never use corrosive detergents, metal brushes or abrasive sponges.

Is the barrier foldable for storage?

The SZJJZW01X model is not foldable. You must disassemble the side panels to store it in the packaging box.

What safety precautions should I take?

Wear gloves during installation. Ensure assembly is done by an adult. Keep children and pets away during assembly. Regularly check for wear or loose parts.

What to do if parts are missing?

Contact Vevor technical support via www.vevor.com/support for replacement parts.

How to attach the barrier to the headrests?

Use the supplied nylon straps: wrap them around the headrest stems and attach them securely to the barrier. The barrier has hooks for this purpose.

Can I use the barrier with bucket seats?

It depends on the configuration. The straps may not fit easily. We recommend checking compatibility by measuring the space and testing the installation.

Is the barrier under warranty?

Yes, Vevor offers an electronic warranty. For more information, visit www.vevor.com/support.

User questions about SZJJZW01X Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Car seat in PDF format for free! Find your manual SZJJZW01X - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SZJJZW01X by Vevor.

USER MANUAL SZJJZW01X Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PET BARRIER FOR CAR

MODEL: SZJJZW01X/SZJJZW02X/SZJJSZW01/SZJJSZW02/SZJJZW01B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

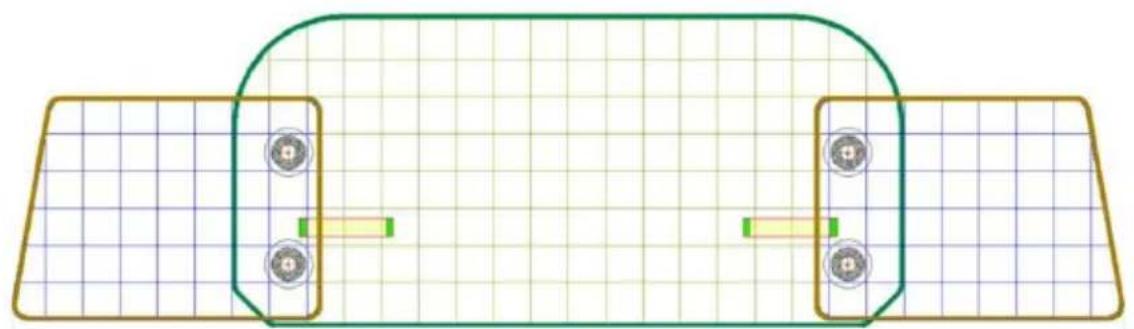

PET BARRIER FOR CAR

Technical diagram of a vehicle chassis with front and rear compartments, showing wheels and structural elements (no text or labels)

SZJJZW01X/SZJJZW02X/SZJJZW01B

Diagram of a vehicle front view with grid layout and colored rectangular panels (no text or symbols)

SZJJSZW01/SZJJSZW02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning - To reduce the risk of injury, user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this product.

WARNING

Read these instructions carefully and retain them for future use.
When using the product, basic safety precautions should always be followed to reduce the risk of injury, including the following: A competent adult should assemble the product.
Keep children and pets away while assembling the product. Do not let children climb on or play with the product. Wear gloves when installing the product.
Do not use this product if any parts are missing, damaged, or abraded. Do not over-tighten the fasteners (hardware). Regularly examine the product for wear and tear, and replace at the first sign of damage or if parts become detached.

CLEANING AND MAINTENANCE

To clean the product, wipe with a soft, slightly moist cloth. Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

PRODUCTION CONFIGURATION

Model	SZJJZW01X	SZJJZW02X	SZJJSZW01	SZJJSZW02	SZJJZW01B
Product size (inch)	35.4*16.5	38*16	38.5*15.9	36.6*16.5	35.4*16.5
Fold	Non foldable	Non foldable	Foldable	Foldable	Non foldable
Barrier net	✕	✕	✕	✕	✕

PARTS LIST

ITEM	Name	PICTURE	Model
ITEM	Name	PICTURE	SZJJZW01X	SZJJZW02X	SZJJSZW01	SZJJSZW02	SZJJZW01B
A	Main metal mesh		1PCS	1PCS	1PCS	1PCS	1PCS
B	side panels		2PCS	2PCS	2PCS	2PCS	2PCS
C	circular clamps		8PCS	8PCS	8PCS	8PCS	8PCS
D	bolts		4PCS	4PCS	4PCS	4PCS	4PCS
E	Hand screw		4PCS	4PCS	4PCS	4PCS	4PCS
F	nylon straps		2PCS	2PCS	2PCS	2PCS	2PCS
G	straps		2PCS	2PCS	2PCS	2PCS	2PCS
H	Barrier net		×	×	×	×	1PCS
I	manual		1PCS	1PCS	1PCS	1PCS	1PCS

INSTALLATION INSTRUCTIONS

STEP 1:

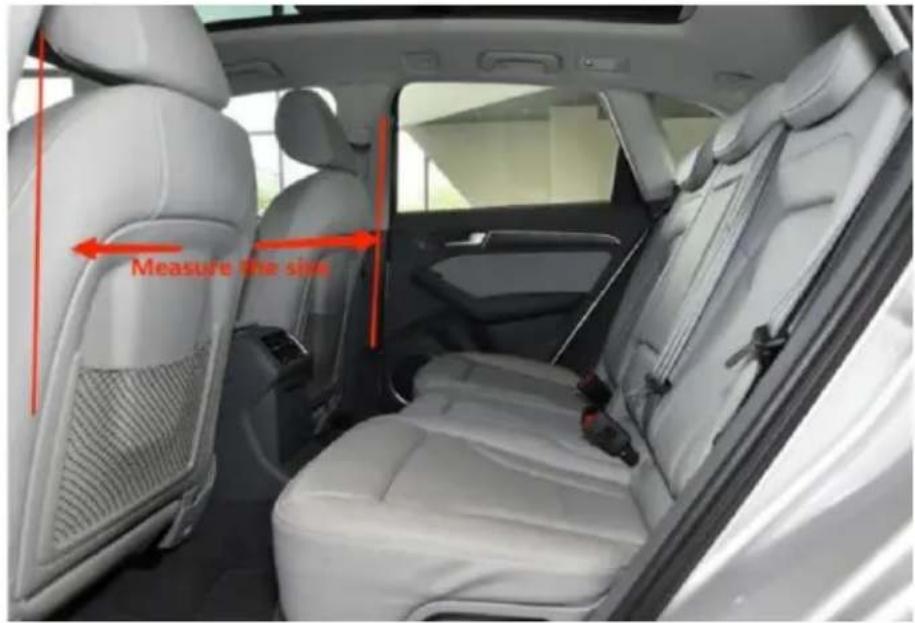

Measure the dimensions of the interior mounting position of the car.

Measure the size

STEP 2:

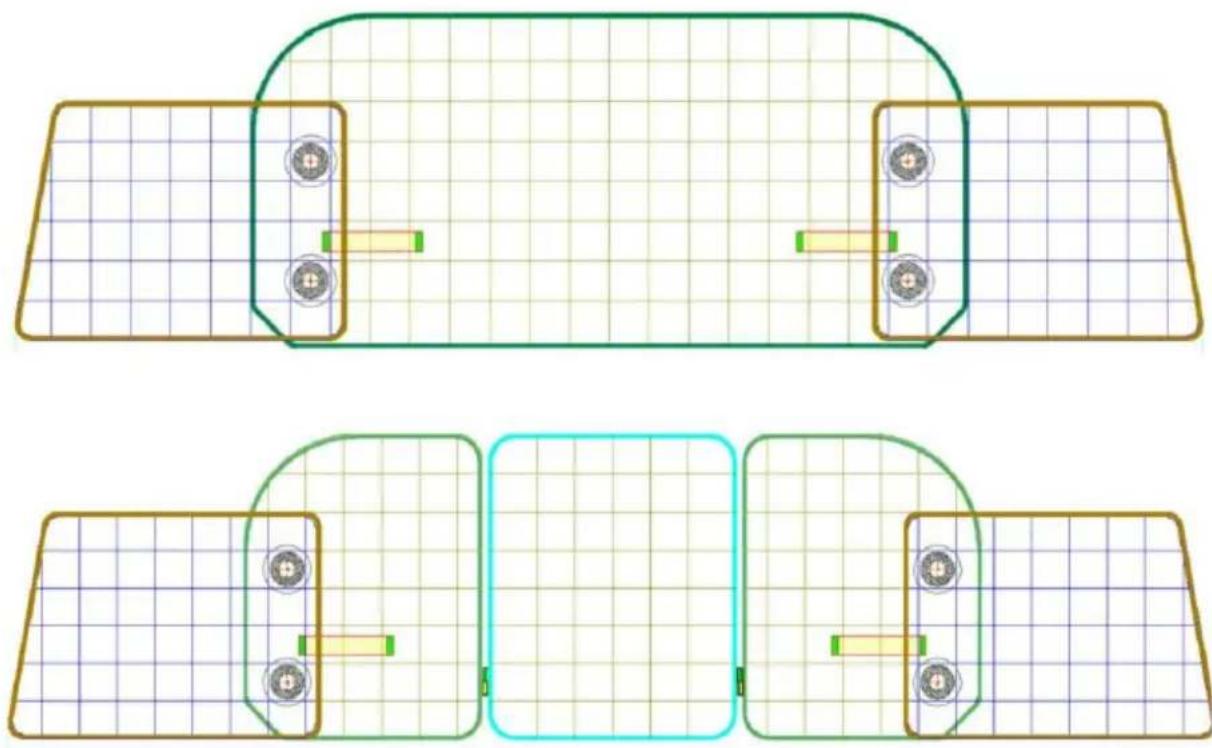

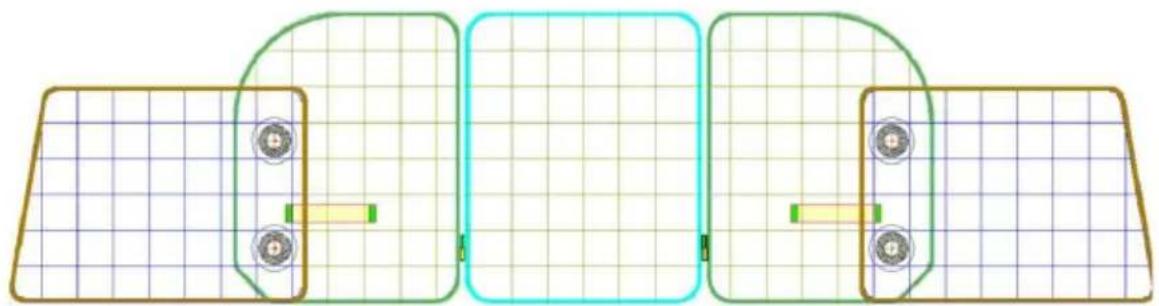

Measure and adjust the barrier according to the width of the cargo area.

Two technical diagrams showing a vehicle's front and side views with grid background and circular components (no text or symbols)

STEP 3:

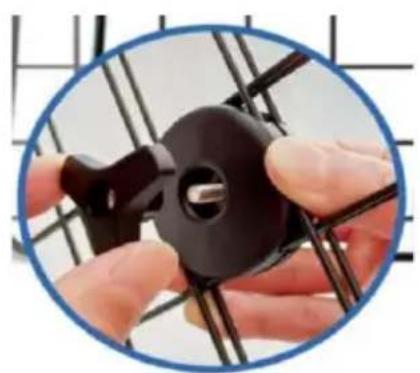

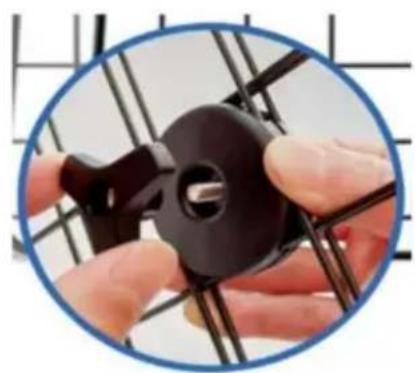

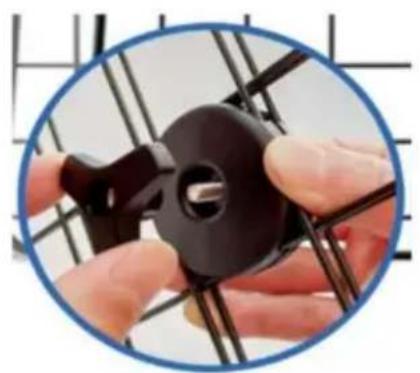

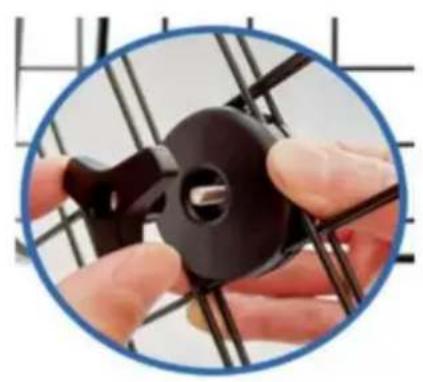

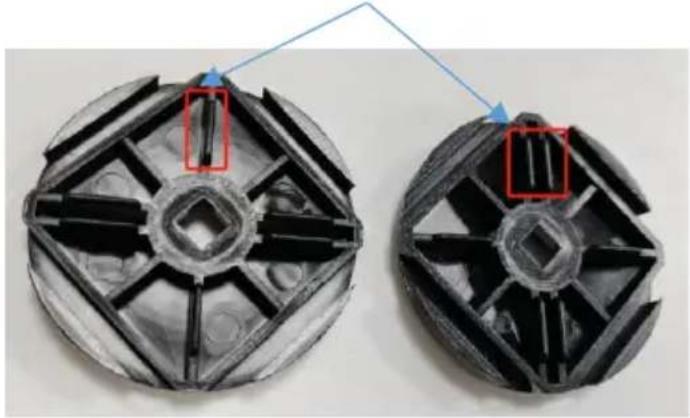

Re-assemble the barrier by fixing the Side Panels to the Main Panel with Screws and Nuts. Do not over-tighten or the hook will lose its shape. When installing C (circular clamps), pay attention to the fitting angle. The correct angle is to fit one side wall to both sides of the wall, and installation cannot be done at the wrong angle.

Unilateral wall and bilateral wall coordination

Two views of a mechanical component with black blades and red annotation boxes, no visible text or symbols.

Close-up of hands holding a black plastic clip against a metal grid background (no text or symbols visible)

STEP 4:

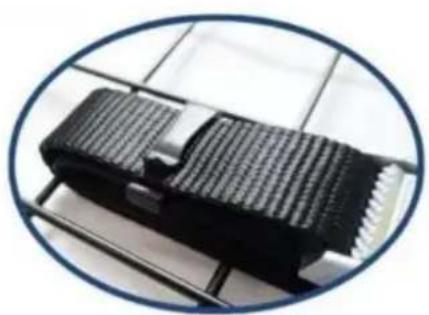

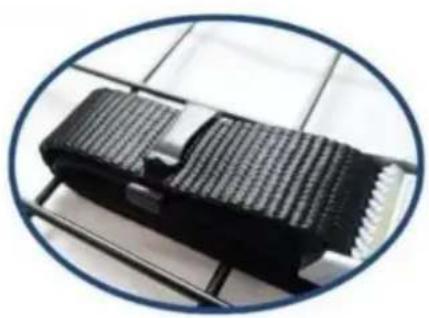

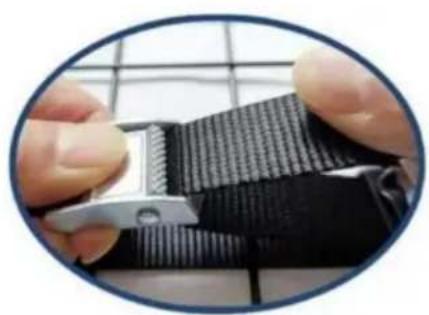

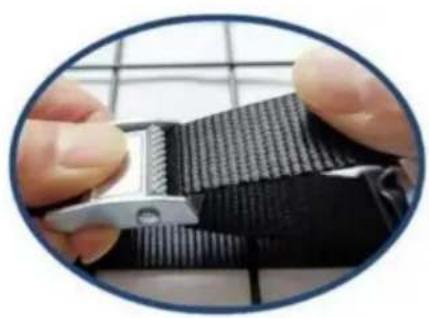

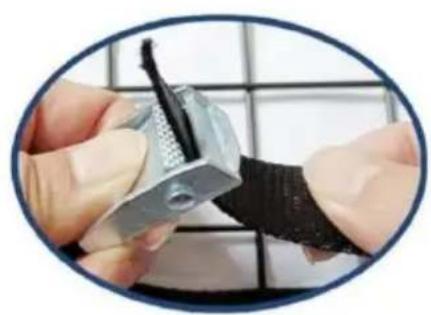

Pre-fix the straps to the headrests.

Close-up of hands using a tool to connect a black cable or wire component on a grid-patterned surface (no text visible)

Close-up of hands using a tool to cut a black corrugated material on a grid-patterned surface (no text or symbols visible)

Close-up of a black plastic electronic component mounted on a metal frame, enclosed in a circular frame (no visible text or symbols)

STEP 5:

Install the barrier to the headrests.

Interior view of a car showing the backrest frame, seatbelt, and window (no visible text or symbols)

The product is equipped with 2 nylon straps, which users can choose to use according to their actual situation to fix the mesh.

Two parallel horizontal black bars with curved ends and small circular connectors at the top (no text or symbols)

STEP 6:

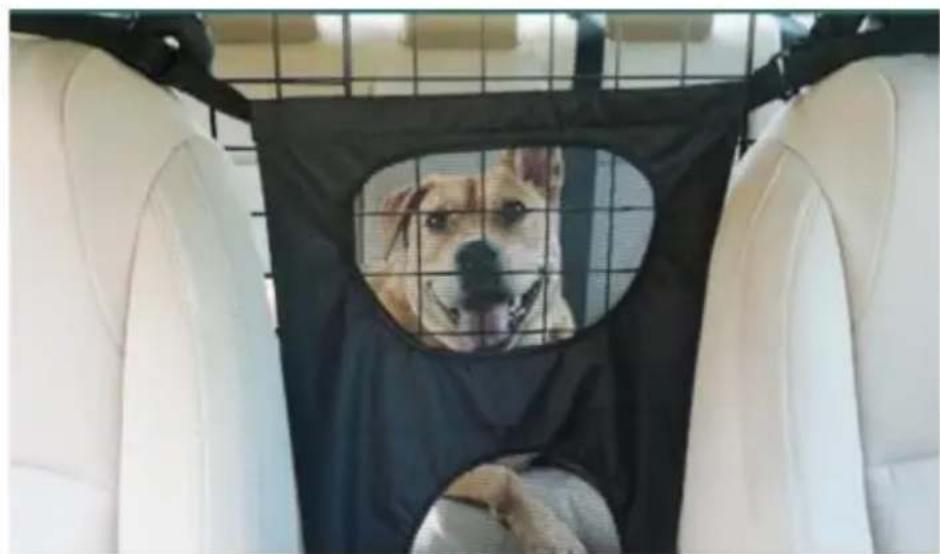

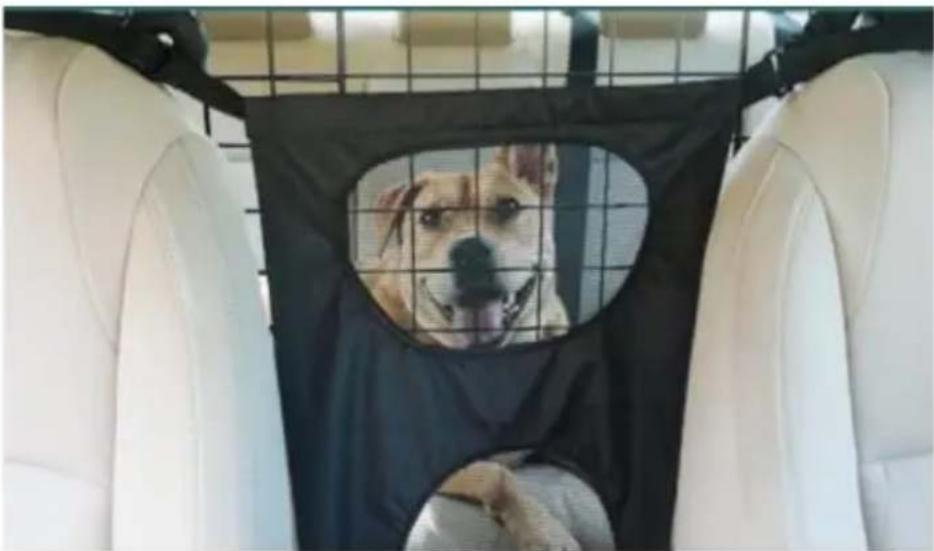

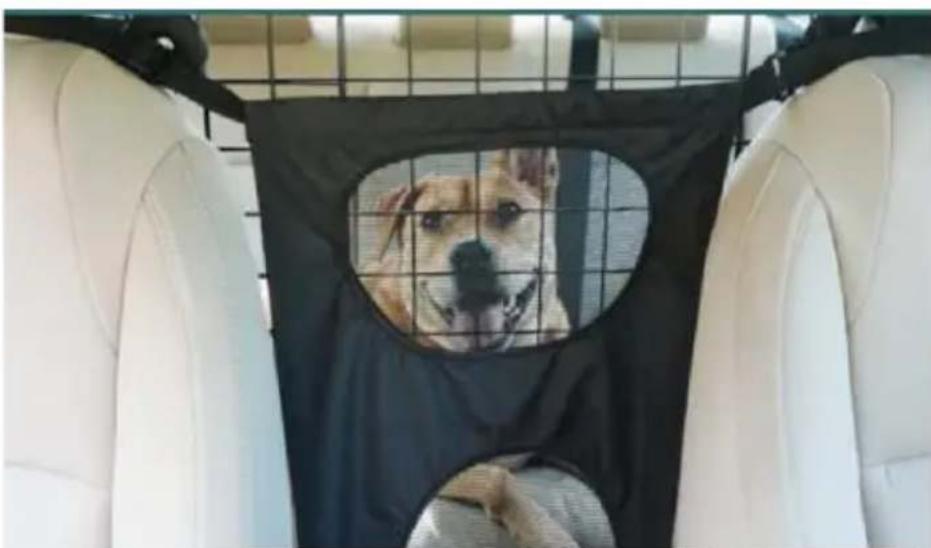

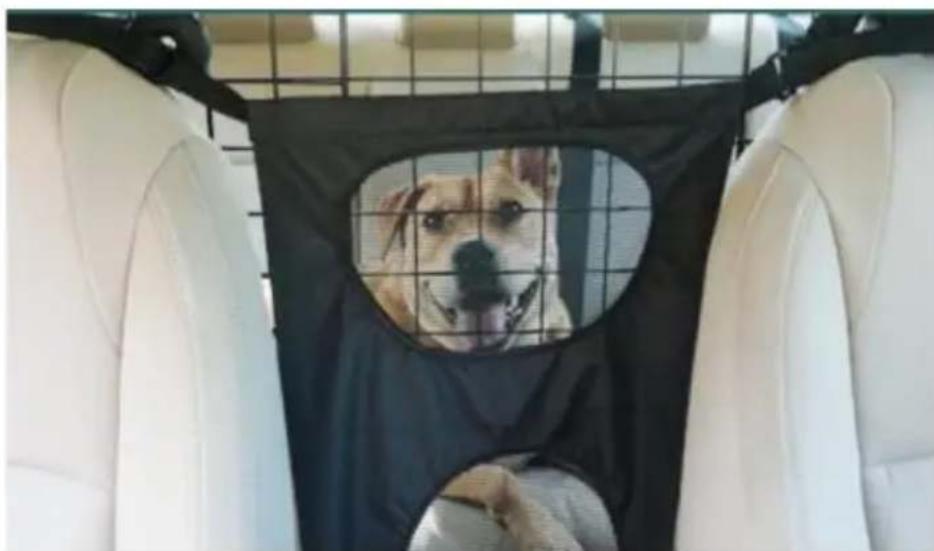

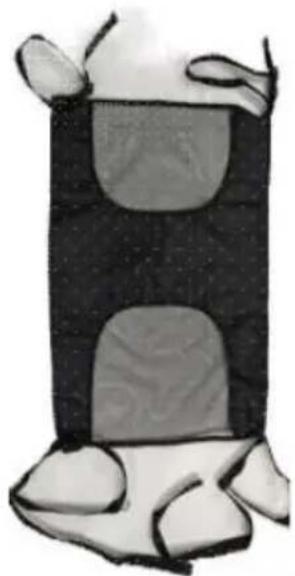

The model SZJJZW01B product is equipped with a barrier net, which is used for installation between the front seats. The two straps above the barrier net are fixed to the headrests on both sides, and the straps below are fixed under the seat.

Simple line drawing of a stylized object resembling a tower or abstract shape (no text or symbols)

Interior view of a car showing a dog behind a black net, with white leather seats and a dog partially visible inside (no text or symbols)

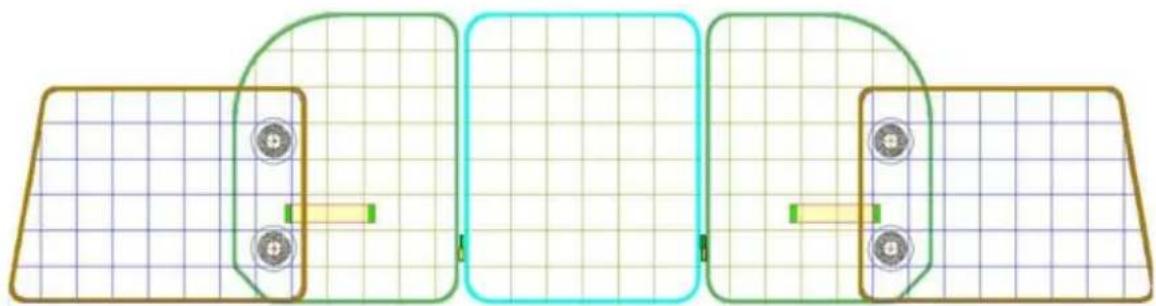

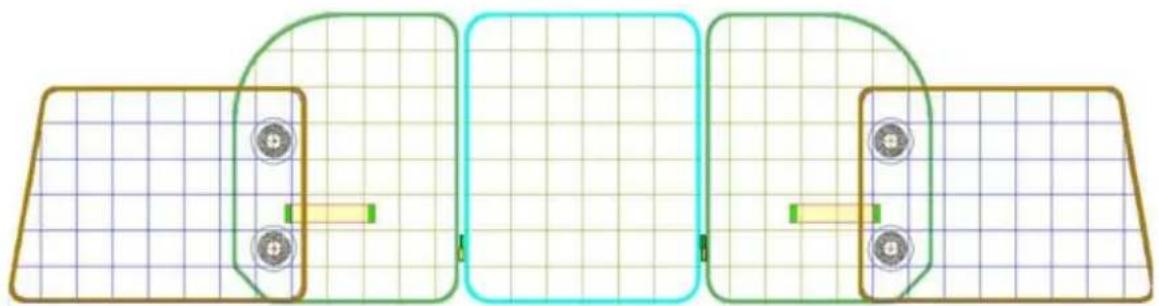

NOTE: The panels can be configured in 6 distinct ways, as pictured below. The way you need to set up the barrier depends on the size of the car.

Pure diagram of a rectangular frame with grid pattern and corner connectors (no text or symbols)

Pure diagram of two symmetrical mechanical components with no text or symbols

Pure diagram of a mechanical or structural component with grid pattern and two vertical supports (no text or symbols)

Diagram of two identical mechanical components with grid patterns and mounting holes, no text or symbols present

Diagram of a mechanical or electrical component with two purple components and a green base, no text or symbols present.

Simple line drawing of two grid-patterned baskets with no text or symbols

PRODUCT STORAGE

Open the strapping, take it off the car, open the circular clamps and put a piece of protective net into the packing box, complete the storage of all items, or put it back in the carton packaging.
