USER MANUAL SS-Y01 Vevor
Technical Support and E-Warranty Certificate
www.vevor.com/support
OZONE GENERATOR
MODEL:SS-Y01
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
OZONE GENERATOR
MODEL:SS-Y01

NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WARNING-To reduce the risk of fire, electric shock, or injury:
- Do not leave appliance when plugged in. Unplug from outlet when use and before servicing.
- Do not use outdoors or on wet surfaces
- Do not allow to be used as a toy, Children shall not play with t appliance. Cleaning and user maintenance shall not be made by child without supervision.
- This appliance is not intended for use by persons(including children reduced physical, sensory or mental capabilities or lack of experience knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their saf Children should be supervised to ensure that they do not play with t appliance.
- To protect against electrical hazards, do not put the ozone general water or other liquids
- Do not operate the ozone generator or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dried damaged in any manner. Return it to the nearest authorized service for examination, repair, or adjustment.
- Do not let the cord hang over the edge of the table or counter hot surfaces.
- Put this instruction manual in a safe place. Do not discard.
- If the power cord is damaged, it must be replaced by the manufacture of its service agent or a similarly qualified person in order to avoid a h
-
Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
-
Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Once of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.
- When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.
- WARNING! It is strictly prohibited to put the main body of the n and the power cord into any liquid. Unplug from outlet before any ro cleaning or maintenance.
- WARNING! Use in unoccupied spaces only
- WARNING! It is forbidden to use in flammable, explosive, hum other harsh environments
- WARNING! It is forbidden to cover the air inlet and outlet . and exhaust hole is strictly prohibited to block foreign objects
CAUTIONS:
- The ozone generator is a high-voltage product and should be plac a safe place and ensured to be in a solid state when in use
- When the ozone generator is working, please make sure that the no people, pets and living things in the room
- Ozone has strong oxidizing properties, we recommend that the operating time of the device does not exceed 2 hours each time
- Ozone is extremely unstable, automatically decomposes into oxygen after one hours, no pollution and no residue
- Ozone has a special smell, if you are sensitive to the smell of please keep away from the device
- Non-professionals are not allowed to disassemble the device without authorization. If it is not used for a long time, the power supply cut off
- The device must be powered off during maintenance, and the pc must be cut off immediately when an abnormality is found
SAVE THESE INSTRUCTIONS
Functional application:
Ozone ( 03 ) is an allotrope of oxygen ( O2 ) . It is gaseous at i temperature.
When the concentration is low , it is colorless and has a grassy sm chemical properties of ozone are more active and have strong oxidizir power . When it encounters bacteria and harmful chemicals ( such as formaldehyde , benzene ,ammonia ) , it will immediately produce an oxidation reaction , thereby achieving the functions of sterilization and disinfection , deodorization , and decomposition of harmful gases . Oz is extremely unstable and will be reduced to O2 within a few hours there is no pollution and residue . It is the only substance recognize world that can directly sterilize food and beverages so far!
- Using the strong oxidizing properties of ozone can remove toxic substances released by decoration, synthetic boards, and paints, bacteria and viruses in the air, kill microorganisms that breed in car eliminate cold germs, prevent the occurrence of flu, and increase I oxygen content.
- Ozone has excellent odor removal performance. The main component of odor are amine R3N, hydrogen sulfide H2S, methyl mercaptan CH2SH, etc. The strong oxidizing performance of ozone can quickly decompose odor and other organic or inorganic substances

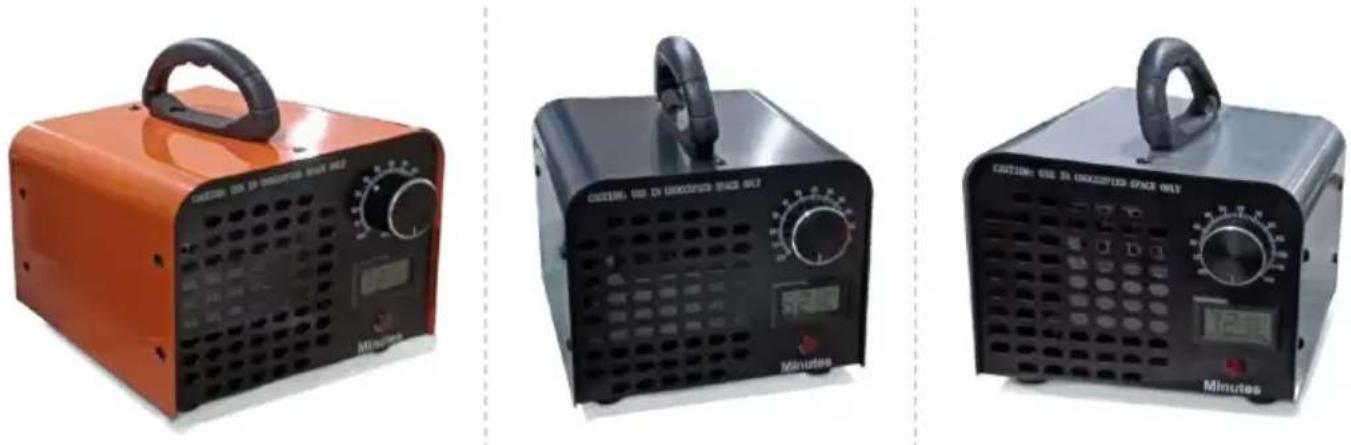

Parameter Table
| Model | SS-Y01 | ||
| Voltage | AC220-240V | AC220-240V | AC220-240V |
| Frequency | 50 Hz | 50 Hz | 50 Hz |
| Power | 90 W | 100 W | 115 W |
| Ozone production | 12g/h | 24g/h | 36g/h |
HOW TO USE
1 . Insert the plug of the power cord into the the disinfection machine ,and connect the other the AC220-240V 50 Hz power supply
2 . Turn on the power switch of the sterilizerlight is on , it means the machine is powered
Normally open : Turn the timing knobcounterclockwise , and when the pointer of tknob is aligned with the " HOLD " gear , will start and there is no timing function
The number pointed by the pointer is the set working time . The equipment stops working end of working hours .
Note : Regardless of whether it is in the normally open mode of timing mode , the cumulative working time for a single operation should not exceed1 hour.
Precautions:
- It is forbidden to use in flammable, explosive, humid and other environments
- It is forbidden to cover the inlet and outlet
- People should be evacuated temporarily when the equipment is w
- The power must be cut off during equipment maintenance
- Non-professionals are not allowed to disassemble the equipment without authorization
- Cut off the power supply if it is not used for a long time,
- The cumulative working time at one time does not exceed 1 hour the equipment can be restarted after cooling down,
- Regularly check whether the equipment is working normally, and immediately cut off the power supply if any abnormality is found
CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to a co-point for recycling electrical and electronic devices
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
Made In China
