USER MANUAL SM-1560N Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Stand Mixer

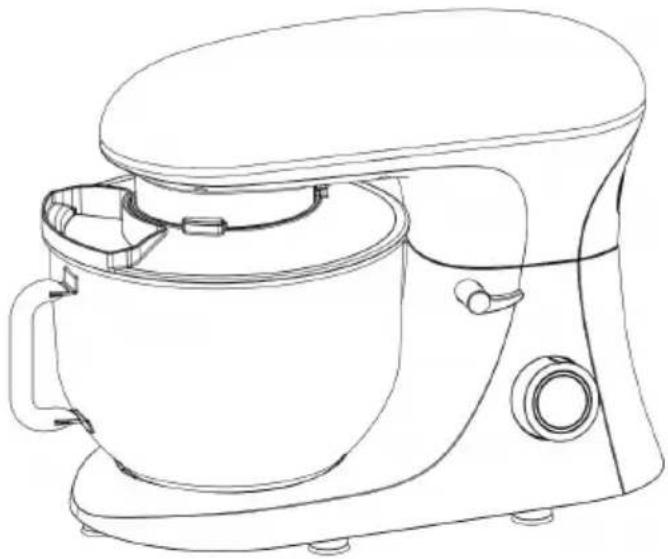

MODEL:SM-1560N

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:SM-1560N

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

General Safety Instructions

Read the operating instructions carefully before putting the appliance in operation and keep the instructions including the warranty, the receipt if possible, the box with the internal packing. If you give this device people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do it outdoors (except if it is designed to be used outdoors). Keep it as sources of heat, direct sunlight, humidity (never dip it into any liquid) sharp edges. Do not use the appliance with wet hands. If the appliance humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and alw out the plug from the socket (pull on the plug, not the cable) if the is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. use the appliance if it is damaged. Do not try to repair the appliance own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent o similarly qualified persons in order to avoid a hazard.
• Use only original spare parts.
• Pay careful attention to the following “Special Safety Instructions”.

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is danger of suffocation!

- When using accessory blender and chopper, the appliance shall not use by children. Keep the appliance and its cord out of reach of child

- When using accessory beater and whisk, the appliance can be used by children aged from 8 years and above if they have been given superior or instruction concerning use of the appliance in a safe way and if it is understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above supervised. Keep the appliance and its cord out of reach of children as less than 8 years

• This device is not a toy. Children shall not play with the appliance
• Appliances can be used by persons with reduced physical, sensory mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a way and if they understand the hazards involved.

Special safety Instructions for this Machine

• Always disconnect the appliance from the supply if it is left unatter and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Do not use appliance for other than intended purpose.
• CAUTION: In order to avoid a hazard due to inadvertent resetting thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is re switched on and off by the utility.
• Only operate this machine under supervision.
• Do not interfere with any safety switches.
• Do not insert anything into the rotating hooks while the machine is working.
• Place the machine on a smooth, flat and stable working surface.
• Do not insert the mains plug of the machine into the power socke having installed all the necessary accessories.
• CAUTION: Ensure that the blender is switched off before removing the stand.

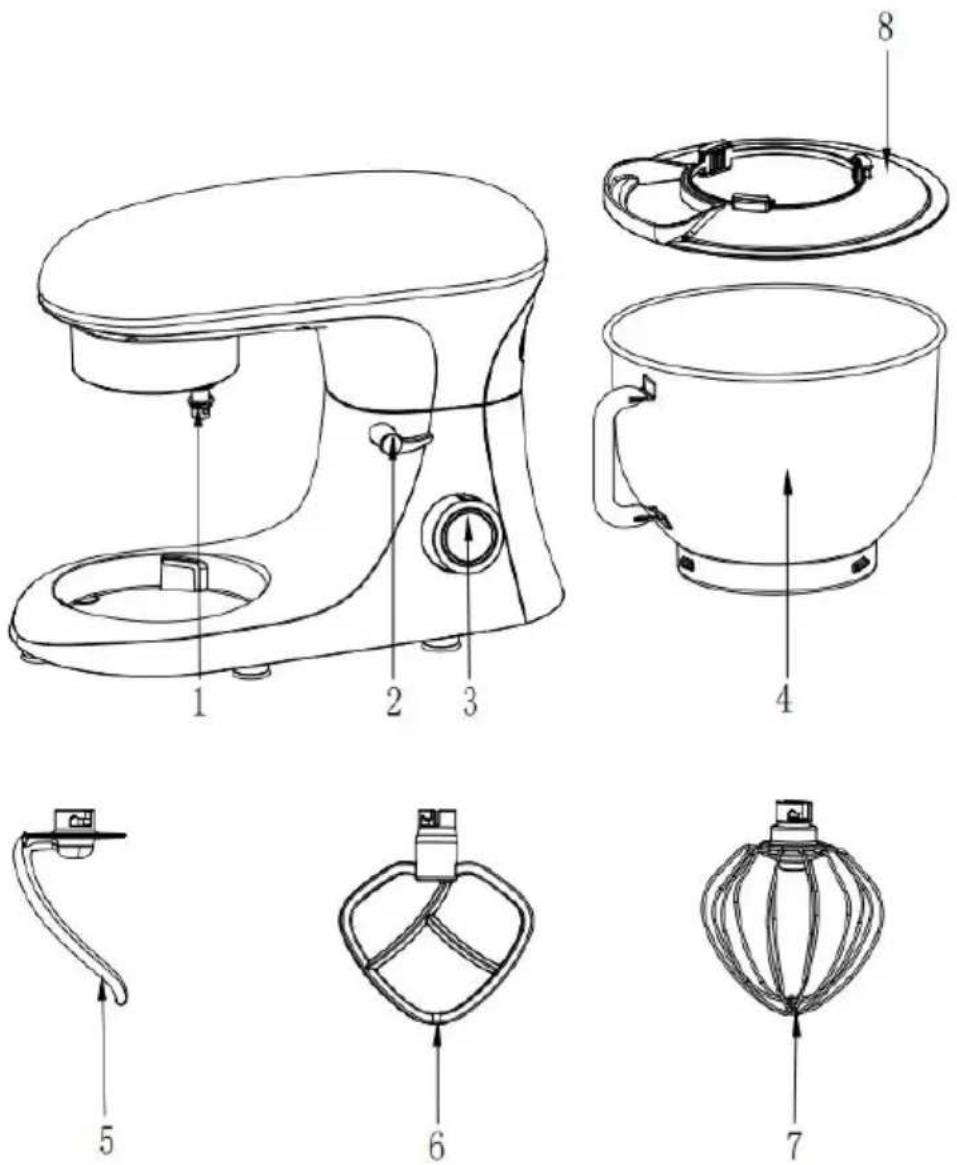

1. Name of different parts

Main parts and standard parts:

1	Output shaft	5	Dough hook
2	Rise knob	6	Beater
3	Speed knob	7	Whisk
4	Bowl	8	Bowl cover

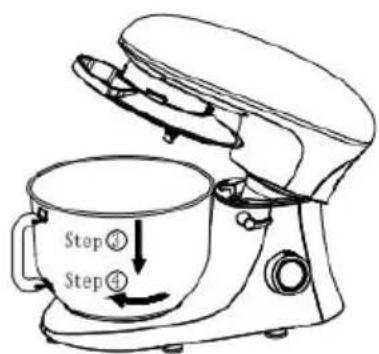

2.How to use the machine

1. Before use, wash the accessories by clean water, rinse and dry.

2. Place the machine on a flat, clean and dry table, Press the head machine, turn again (or press down) the head-up knob (2) Step1, the body will lift up automatically. (PG 1 & 2).

3. Install the pot cover into the stirring end Step2. of the machine a PG2

4. Weigh the food and water to be processed into the mixing bowl, assemble the mixing bowl (4) on the machine step 3, rotate clockwise the buckle is screwed in and locked step 4; (PG3)

5. Do not exceed the amount of dough - the total weight can hold up 1.5kg;

6. Install the required accessories (5), (6) and (7) (only one of the three be used at a time) onto the head mixing output shaft (1) step 5, put accessories to the top, and then turn a quarter turn counterclockwise locking position step 6; (PG4&5)

7. Press the head of the machine, the machine will automatically lock head button (2) step 7, which is in the horizontal position; (PG6).

8. Control speed knob (3) to the position of 0 to make the appliance

9. then plug in the plug and turn on the power switch.

10. Control speed knob (3) to the required speed - start mixing;

11. After the dough meets the requirements, turn the speed knob (3) I to gear 0 to finish.

12. Press the head of the machine by hand, rotate the lifting knob (2 clockwise, lift the upper body, rotate the mixing bowl counterclockwise, remove the mixing bowl and take out the dough.

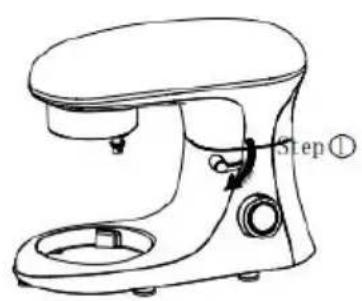

Step①

PG1

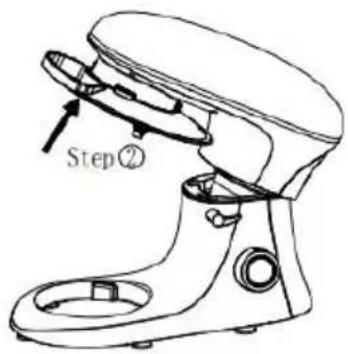

Step②

PG2

Stop Step Step

PG3

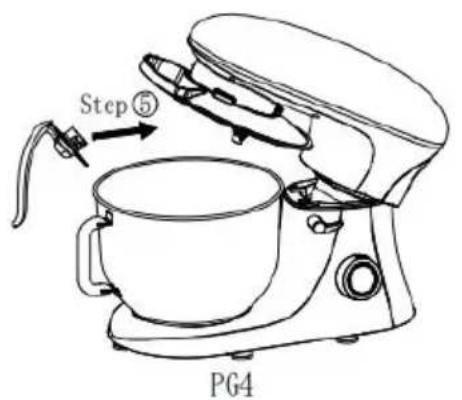

Step⑤ PG4

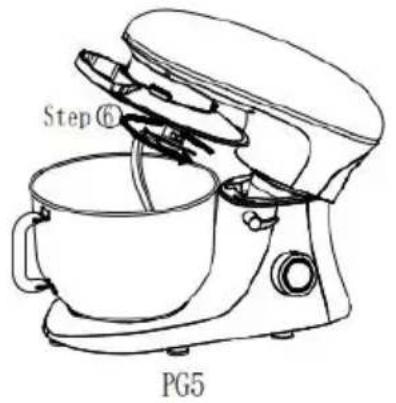

Step 6 PG5

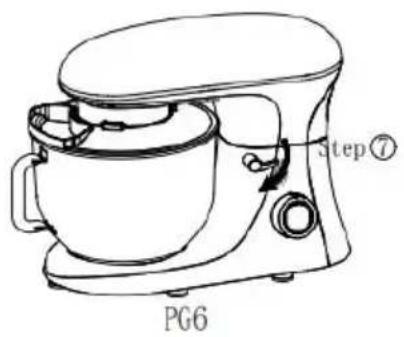

Step⑦ PG6

3.Suggestion

Adjusting the Levels and Using the Hook for not more than 1.5kg of

Accessories	Picture	Speed	Time (min)	Max	Operation method
Dough hook		1-3	3-5	1000g flour+5 38g water	1 speed run for 30s, the speed run for 30s, and then the 3 speed run for 2 min to 4 min to form a cluster
Beater		2-4	3-10	660g flour+8 40g water	2 speed run for20s, the 4 speed run for more than 2min40s
Whisk		5-6	3-10	3 egg whites (min)	Open 5 or 6 speed to run 3min above.

4. Recipe

Linseed Bread Rolls

Ingredients: 30g linseed, 40g water, 250g bread flour, 3g dry yeast, sugar, 3g salt, 10g milk powder, 20g butter, 15g egg liquid

Process:

1. Soak the 30g linseed into 40g water for 12 hours
2. Put 250g bread flour, 3g dry yeast, 30g sugar, 3g salt, 10g milk powder, 150g water into the mixing bowl, use dough hook to knead the ingredients to dough at levels 1-3, and then add 20g butter and con-knead the dough until smooth, then add soaked linseed until the dou well kneaded. Cover with preservative film and allow fermenting to do its size in a warm place.
3. Knead thoroughly once more, remove from the bowl and divided into rolls. After being rounded, cover the rolls and allow fermenting at 38^ hour.
4. After the fermentation is finished, brush the surface of the bread with liquid, put it on penultimate layer in the preheated oven, set fire up down at 180^ C and bake for 20 minutes, then remove the mold and on the grill to cool down.

Toast bread

Ingredients: 270g high-gluten flour, 30g low-gluten flour, 1 egg, 3g sa 55g sugar, 4g yeast, 80g light cream, 10g milk powder, 90g water.

Process:

1. Put all the ingredients into the mixing bowl, use dough hook to kne ingredients to dough at levels 1-3.
2. Keep the mixture in a warm place and allow fermenting to double
3. Knead thoroughly once more, remove from the bowl and divided it portions, cover the dough with preservative film for 15 minutes

4. Take one portion and roll it into a tongue shape, fold both sides t the middle, and roll it up from bottom to top. After all three are roll the rolls with preservative film for 15 minutes

5. After finishing 3 servings, put them into the mold for the 2nd ferment to 80% of the mold height. set fire up and down at 170°C for 40 minutes, then remove the mold and put it on the grill to coo

Homemade Pizza

Raw materials: 170g high-gluten flour, 100g water, 1.5g edible salt, 1 white sugar, 2g yeast, 15g butter, and some stuffing.

Process:

1. Put 170g high-gluten flour, 100g water, 1.5g edible salt, 15g sugar 2g yeast into the mixing bowl. Mix with dough hook at levels 1-3. A kneading into dough, add butter and continue to knead until it can p to be a flexible film
2. Leave the dough fermenting to double its size in a warm place.
3. During the fermentation, the pizza stuffing can be made and reserve future use.
4. Knead thoroughly once more, take half of the dough to roll it round to relax for 5 minutes, then use a rolling pin to gently roll it to the six pizza pan, put it on the pizza pan, press it around the pizza pan with hands, finally use a fork to make small holes.
5. Set the upper and lower tube heating mode of the oven, preheat Brush the pie mold base with olive oil first, then scoop the pizza sa spread it evenly, and then, sprinkle a little mozzarella cheese and sh onion, put the 8-inch pizza pan in the second layer of the preheated and bake for 8 minutes.
6. When the time is up, take out the pizza pan and spread a layer Here you can put your favorite food and prepared stuffing in order.
7. Put it in the preheated oven, set the working time for 15 minutes cheese is melted and the crust is golden.

Butter bread

Ingredients: 375g high-gluten flour, 180g milk, 35g butter, 30g sugar, milk powder, 4g yeast, 3g salt, 1 egg

Process:

1. Put all the ingredients into the mixing bowl except the butter, leave of egg for the final brushing.
2. Use dough hook to mix at levels 1-3, after forming dough, add so butter and continue kneading into glove film status.
3. Cover the mixture with preservative film and allow fermenting to do its size in a warm place.
4. Knead thoroughly once more, remove from the bowl and divided it 10 portions. Take a portion of the dough and roll it into an oval share roll it up from top to bottom.
5. Place the greased paper on the baking tray, then put the rolled dough on the tray, allow fermenting to double its size in a warm plate.
6. Brush the egg liquid on the bread dough surface, preheat the oven 160^ C, put the bread dough at the middle layer and bake for 20 min.

French bread

Ingredients: 250g high-gluten flour, 50g low-gluten flour, 150g water, sugar, 3g yeast powder, 1g edible salt.

Process:

1. Put all the ingredients into the mixing bowl, use the dough hook levels 1-3, and knead the dough into a dough shape.
2. Cover the mixture with preservative film and allow fermenting to do its size in a warm place.
3. Knead thoroughly once more, remove from the bowl and divided it portions. Take a portion of the dough and roll it into an oval shape, it up from top to bottom.
4. Then cover with preservative film and allow fermenting to double it
5. Brush the surface with sesame oil, preheat the oven to 180^ C, pu bread dough at the middle layer and bake for 20 minutes.

Original cake

Ingredients: 100g cake flour, 5 eggs, 50g edible oil, 80g sugar, a s amount of lemon juice, 55g milk.

Process:

1. Separate the egg white and egg yolk, add 20g sugar into the egg mix with egg beater at level 6 until the sugar is completely melted. and continue to stir evenly at level 6
2. Pour edible oil and continue beating until fully emulsified.
3. Pour the cake flour through a sieve, and stir evenly into a fine epsilon paste.
4. Put a few drops of lemon juice into the egg white, add sugar in times and beat with an egg beater until it is cotton-like.
5. Take 1/3 of the egg white, put them in the egg yolk paste and pour the paste back to the remaining egg white and stir evenly to a cake paste
6. Brush edible oil on the surface of cake mold, then pour the cake into the mold
7. Preheat the oven to 150^ C, set upper and lower pipe heating mode baking time 50 minutes, then bake it till golden color.

Chocolate cake

Ingredients: 150g egg liquid, 50g pure milk, 40g cocoa powder, 80g sugar.

Process:

1. Add 150g egg liquid, beat with egg beater at level 6 until it is c then take it out and set aside
2. Put 80g white sugar, 50g milk, and 40g cocoa powder into a bow stir into a fine powder with a stirring paddle at level 6.
3. Pour the prepared fine powder into the beaten egg liquid and mix
4. Pour the mixed raw materials into the oil-brushed baking tray molc put it in the oven for baking at 180^ C.
5. After being baked and shaped, take them out from the mold and cooling down before eating

Chocolate ice cream cake

Ingredients: 140g cream cheese, 140g dark chocolate, 220g milk, 100 powdered sugar, 240g whipped cream, 2g edible salt.

Process:

1. The outside of the square mold is wrapped with tin foil, and put baking paper inside
2. Add powdered sugar and a pinch of salt into cream cheese and with a stirring paddle.
3. Chop the dark chocolate and heat it to melt, pour the melted chol into the cheese, then use a stirring paddle to stir evenly. Take it out place it on a tray for later use.
4. Put whipped cream in the pot and then stir until it is almost cott
5. Add the whipped cream in 2 times into the chocolate cheese and evenly, then pour the milk into it in 2 times and mix it well again.

6. Finally, pour it into the mold and put it in the refrigerator for sev Take it out and de-mould it.

7. Analysis of common problems

Phenomenons	causes	Solutions
The machine suddenly stops working during use.	It may be that the machine runs too long, or the ambient temperature is too high, resulting in the machine's motor temperature being too high; the machine starts the overheating protection program, automatic shutdown.	Gear reset to "0", unp the power, wait for the machine to return to room temperature can be restarted (generally need 15-30 minutes, the room temperature varies cooling time).
Turning the gear knob machine does not run	Check if the plug is good contact with the socket.	Verify that the power plug is plugged into the outlet.
	Check if the power out.	Wait for power before operating
	Check if the rise button spring back i place.	Make sure the headstock is stuck in place.
Excessive noise when the machine running	1The machine will work louder in high gear than in low ge2The amount of fo stirred is too large, resulting in overloading the machine.3Voltage is unstable4Working time is to long.	1 Choose the right g to stir food according the recommendations in the manual2 Reduce the amount stirring.3If the voltage is unstable, wait for the voltage to stabilize before using.4If the working time i too long, stop and co down for a while befo using.
The machine speed drops, or the spee is unstable	1Whether the room temperature is low, causing the lubricant in the machine to harden.2The ingredients stirred are too hard and too much, resulting in too muc load on the machine3Whether the voltage suddenly becomes low.	1Remove the mixing bowl and let the mach idle for 5 minutes to soften the lubricant in machine and restore th speed stability.2Reduce the mixing volume and let the machine work according to the normal workload3When the voltage is stable, use the machin again.
Machine swaying and shaking when working	1Check if the foot pad on the base is 2Whether themachine is placed o a smooth and flat countertop for use.	1Check if the foot pa on the base is off.2Place on a smoothand flat countertop for use
The headstock can'spring back to rese after putting on the anti-splash cover and mixing bowl	Check that the anti-splash cover is place and the mixing bowl is assembled.	Rotate the anti-splash cover and assemble it place, and assemble th mixing pot in place.
Dough darkening found after use	Black powder falls onto the dough at mixing head.	Please check that the mixing head and hook are dry and that no w or dust is present on surface before use.

6.Cleaning

Body Cleaning	1. Do not immerse the machine in the water not use water to shower directly on top of machine to prevent the host body from ente the water to avoid short circuits, electric sho leakage, rust, and other failures.2. Do not use a dripping wet towel to wipe machine3. Do not use detergent/vinegar/salt and othe corrosive, strongly acidic, strong alkaline clear products to clean the machine body, otherwise accessible to damage the machine's surface.4. Do not use sharp and rough tools such balls to brush the accessories. Otherwise, it easy to damage the surface of the accessor
Accessory Cleaning	1. Do not put the cast aluminum parts into dishwasher or wash them with corrosive, stro acidic, or alkaline cleaning products. Pleasenot put them into the dishwasher for cleaning (Except for stainless steel parts or surface-trt Teflon parts and electrophoresis parts)2. Do not soak for a long time in detergent saltwater, vinegar, and other corrosive liquids in time to clean accessories.3. After cleaning, dry the accessories, mainly keep the internal parts dry in time.
Special Cleaning	1. The rotating output shaft will produce a black trace due to high speed and friction v the machine is working. After each use, plea clean it promptly and keep the part dry.2. Pay attention to the sharp blade and rela sharp edge parts or accessories.
Preservation and maintenance	1. You can use olive oil to apply on the b surface, knife plate, and mixing pot to ensur dry and wet environment to oxidize it.2. When not in use, you can cover the ma with a packaging bag and place it in a dry environment.

7.Disposal

Do not dispose of the device in normal domestic waste Dispose of the device over a registered waste disposal through your communal waste disposal facility. Observe the currently valid regulations. In case of doubt consult your waste disposal facility.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Step 6 PG5

Step ⑦ PG6

3. Suggestion

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

Step ⑥ PG5

Step⑦ PG6

3. Vorschlag

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

Step 6 PG5

Step⑦ PG6

3.Suggerimento

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

www.vevor.com/support

Step ⑥ PG5

Step ⑦ PG6

3. Sugerencia

Line drawing of a modern kitchen mixer with handle and control panel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

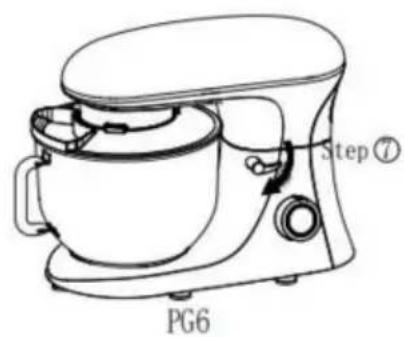

Step ⑥ PG5
