Product Type	Safe
Brand	Vevor
Model	SS-700DZ
Dimensions (H x W x D)	700 x 420 x 380 mm
Power Supply	4 AA alkaline 1.5V batteries (operating voltage 4.2-6.8 VDC)
Emergency Power Supply	External power supply unit included
Opening	Touch keypad + mechanical emergency key
Number of Keys	4 emergency keys
User Code	3 to 12 digits, changeable
Manager Code	Yes, to configure the safe
Vibration Alarm	Yes, adjustable and deactivatable via code
Wrong Code Attempts	3 or 5 attempts before alarm 30-60 s, then lockout 4 min
Sound Option	Activation/deactivation by code "11#"
Mounting	Expansion bolts for floor or wall (4 provided)
Material	Steel (manual weld joints, possible rust spots)
Included Accessories	Fireproof bag, external power supply unit, expansion bolts, emergency keys, manual
Maintenance	Clean with a dry cloth, avoid any liquid on the control panel
Reset	Internal green button held 5 s to clear all codes

Frequently Asked Questions - SS-700DZ Vevor

How to open the safe if the batteries are dead?

Use the emergency key provided or plug in the external power supply unit on the front panel.

How to change the user password?

Press the internal green button (code change switch), enter a new code of 3 to 12 digits, then confirm with #.

How to activate the vibration alarm?

Touch the touch screen to wake it, then press *. The alarm will trigger if the safe is moved or shaken.

What to do if I forgot my code?

Use the emergency key to open the safe. Once open, press the internal green button for 5 seconds to reset all codes and set a new one.

How to fix the safe to the floor?

Drill holes at the marked positions, insert the expansion bolts provided, and tighten from inside the safe.

Why won't the door close?

Ensure the locking bolts are retracted. Turn the handle clockwise to retract them, then close.

How to disable the key sound?

Wake the touch screen, type 11#. A long beep confirms all sounds are disabled. Repeat to reactivate.

What to do if the alarm goes off by mistake?

Enter the correct code and press # to open the door and stop the alarm. After that, you must reactivate the alarm manually if desired.

Can I use the emergency key from another safe?

No, each emergency key is unique and only works with its safe. Attempting to use an incorrect key may damage the lock.

How to clean the safe?

Use a dry, soft cloth. Do not spill any liquid on the control panel to avoid electronic damage.

USER MANUAL SS-700DZ Vevor

SAFE BOX

USER MANUAL

MODEL: SS-700DZ

MODEL: SS-700DZ

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

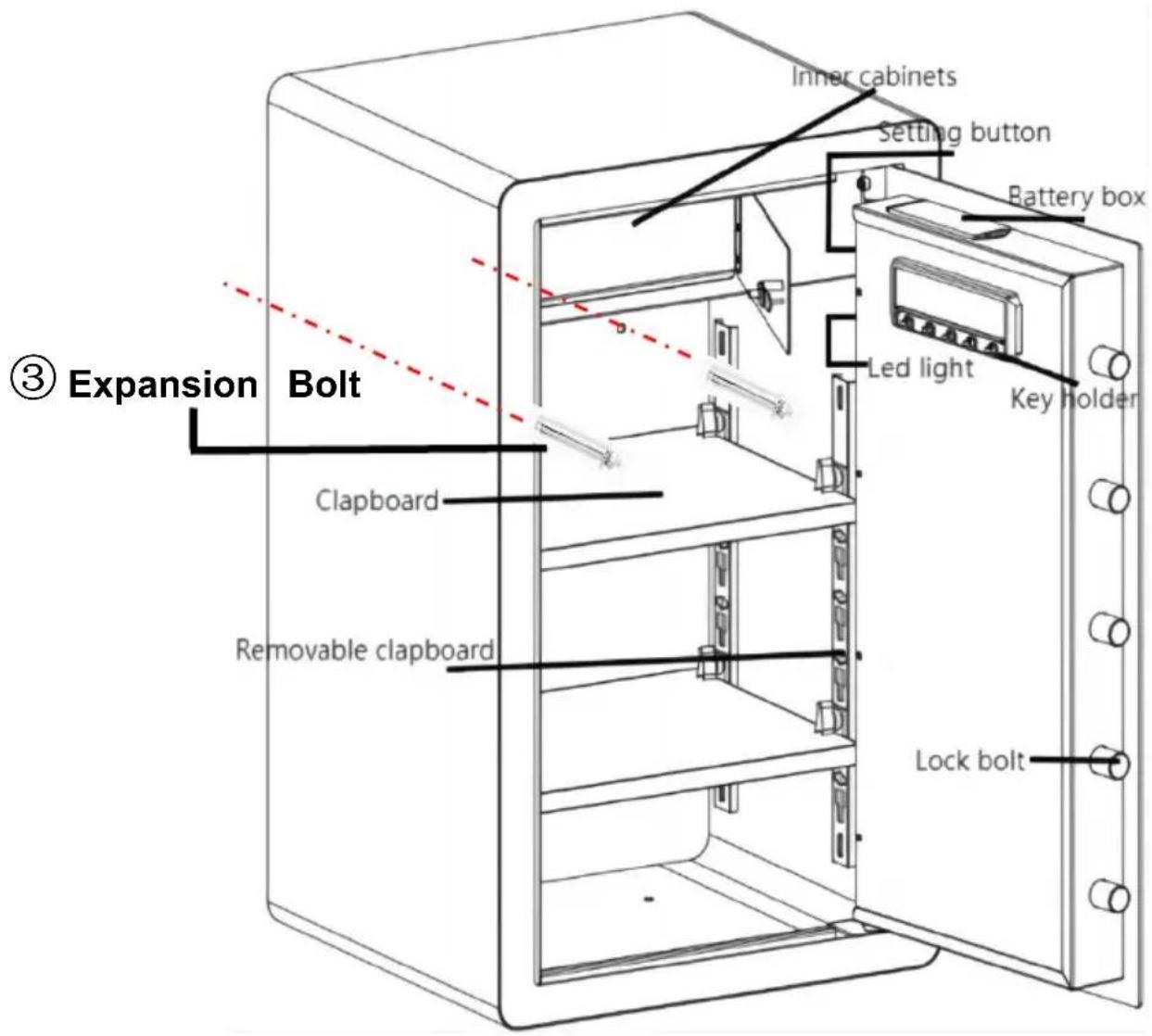

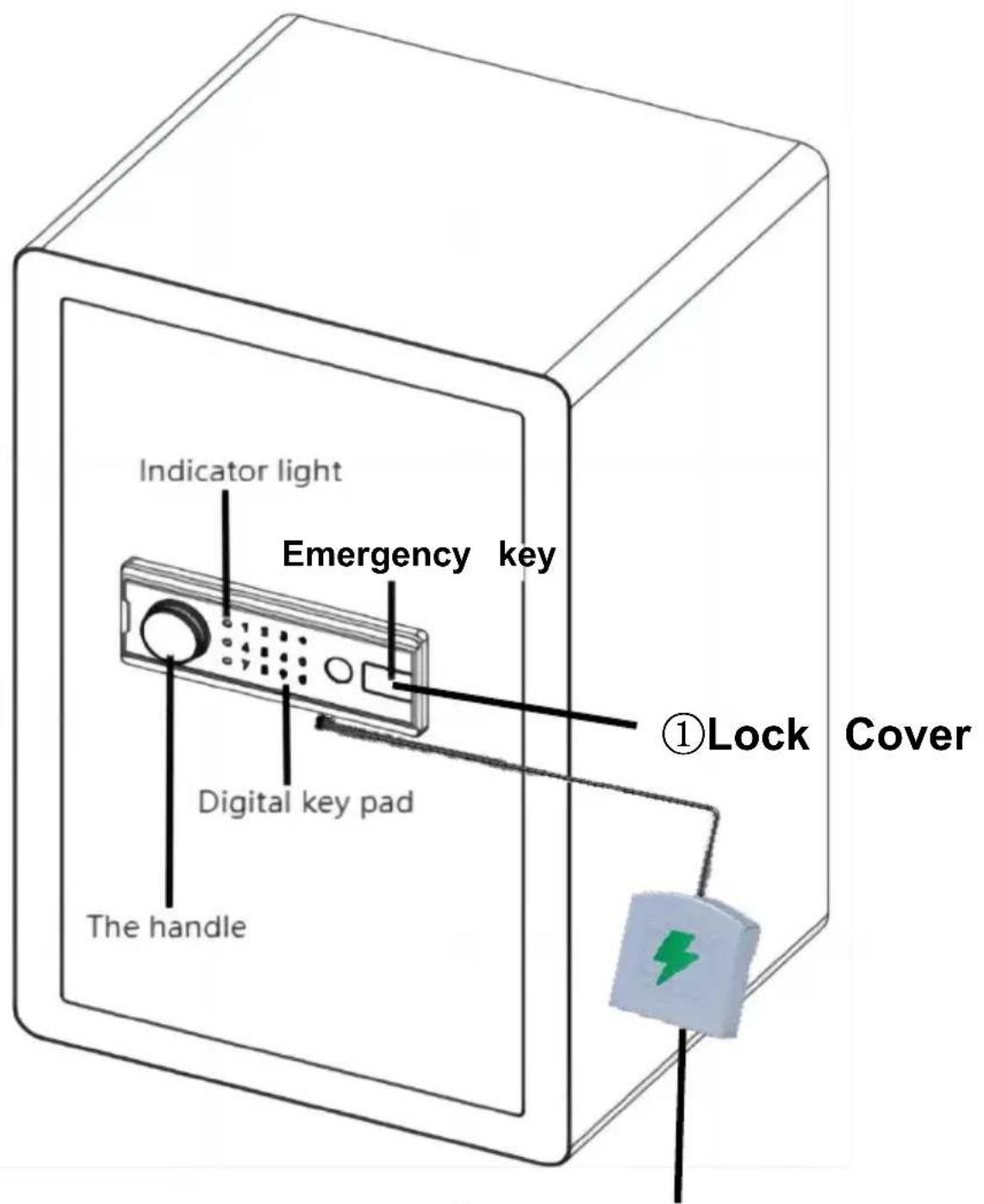

PARTS LIST

Thank you very much for choosing this safe box. Please read all of the instructions before using it. The information will help you achieve the best possible results.

② External Power Box

1	Lock Cover*1
2	External Power Box*1
3	Expansion Bolt*4
4	Emergency Key*4
5	Fireproof Bag*1
6	English Manual*1

OPENING YOUR SAFE FOR THE FIRST TIME

Open the door for the first time, use the configured emergency key to open the door. The operation steps are as follows:

1. Slide right to open the emerg lock cover.	4. Install batteries into battery box.
2. Insert the emergency key in the keyhole and rotate it counterclockwise.	5. Make sure the battery matches ‘+’ and (not including 4 alkaline 1.5V batteries)
3. Turn the handle clockwise open the door.	6. Weak power, emergency method: Emergency key

DESCRIPTION:

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

1. Press the green button in the box (code change switch), the buzzer sounds and the touch light is on.
2. Enter the password you need, the password length is 3-12 characters. Press the "#" key to confirm, the buzzer has a long sound, the light indicating that the password is set and changed successfully.

Notice: After your password is set, please test the new password to make sure it is valid.

MANAGE PASSWORD SETTINGS

1. In the state of opening the door, press number key "0" twice, then press internal setting button.
2. Enter the password you need, the password length is 3-12 characters. Press the "#" key to confirm, the buzzer has a long sound, the light indicating that the password is set and changed successfully.

Notice: Do not set personal password same with management code.

OPEN THE SAFE

1. Touch the wake up touch screen and enter the password you set.
2. Press the "#" key to confirm. The door opening indicator will light up, buzzer will sound twice, indicating that the password is entered correctly.

UNDERVOLTAGE INDICATION

1, The system uses four 1.5V alkaline batteries, if the voltage is insufficient after opening the door will continuously remind "drip, drip, beep". "Drip, drip, beep" twice, reminding the user to replace the battery in time. 2, If the battery voltage is insufficient, can use the emergency power supply or mechanical emergency key operation. 3. The electronic lock has power down protection, password never disappears function.

VIBRATION ALARM SETTING

1. Vibration alarm electronic lock alarm has the function of setting alarm and eliminating alarm.
2. Setting alert method: First touch the touch screen to wake up, press key, computer board automatically enter the alert state. Alarm when safe vibrates.
3. Disalarm method: After the safe alarm, enter the password set, press key to open the door, you can eliminate the alarm.

NOTE: After entering the correct password to eliminate the alarm sound, you need to restart the alarm to enter the alert state.

ALARM OPERATION

This electronic lock has 3 (5) password errors, automatic alarm 30 second 1 minute after the alarm is eliminated, the panel is locked screen, wait 4 minutes, enter the correct password can be opened.

SOUND ON AND OFF

Touch the touch screen to wake up. Enter "11#" and the buzzer "drip ~" a long sound, indicating that all sounds are successfully enabled or disabled.

Press and hold the green button on the organization for 5 seconds, and system will restore the initial Settings and clear all passwords.

HOW TO WALL OR FLOOR MOUNTING

* Drill the appropriate size holes for the anchors you are using * Mount the safe by running screws from inside of the safe and secure anchors * Use proper drill tools depending on the type of floor you are mounting the safe on (wood, tile, or concrete)

SAFETY AND COMPLIANCE

1. Reduce the risk of theft, the safe must be fixed on the wall or floor to ensure safety.
2. Please take good care of the emergency key and store it in a safe place away from the safe. Do not put the emergency key into the safe, and ensure the emergency key will not be used to open the safe when the battery runs out.
3. Do not place the product on an unsafe overhead, so as to avoid damaging the product or injuring people.
4. Do not spill liquid on the control panel, or it may cause electric components in the internal electronic components and prevent them from working properly.

WARMLY REMINDER

1. Because it is purely handmade, inside solder joint or rust stains are a normal phenomenon.
2. Please keep emergency keys, secret cabinet keys, and the external power supply box in a safe place.
3. The emergency key cannot open safes of other brands or even this brand, as it is unique.

(Please do not try, to avoid damaging the safe; the unmatched key cannot be removed.)

1. The protective film on the knob cover can be torn off.
2. Before closing the door, do not remove the emergency key or adjust its

direction, which can prevent the lock bolt from jamming, and the knob operation will be smoother.

1. The door won't shut: Make sure there are no obstructions. If the bolts are extended, re-enter the user code and turn the knob clockwise to retract them.

TECHNICAL PARAMETERS

Model	SS-700DZ
Working Voltage Range	4.2-6.8Vdc
Product Size	420*380*700mm
Working Power	4 xAA (1.5V) Alkaline Batteries

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

SAFE

USER MANUAL

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

SAFE

USER MANUAL

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

CASSETTA DI SICUREZZA

USER MANUAL

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

SAFETY BOX

USER MANUAL

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

SAFE BOX

USER MANUAL

MODEL:SS-700DZ

MODEL:SS-700DZ

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

PARTS LIST

Thank you very much for choosing this safe box. Please read all of the instructions before using it. The information will help you achieve the best possible results.

②External Power Box

1	Lock Cover*1
2	External Power Box*1
3	Expansion Bolt*4
4	Emergency Key*4
5	Fireproof Bag*1
6	English Manual*1

OPENING YOUR SAFE FOR THE FIRST TIME

To open the door for the first time, use the configured emergency key. The operation steps are as follows:

1. Slide right to open the emerg lock cover.	4. Install batteries into battery box.
2. Insert the emergency key in the keyhole and rotate it counterclockwise.	5. Make sure the battery matches ‘+’ and (not including 4 alkaline 1.5V batteries)
3. Turn the handle clockwise open the door.	6. Weak power, emergency method: Emergency key

DESCRIPTION:

The electronic lock factory default password is "123456".

PERSONAL PASSWORD SETTING

1. Press the green button inside the box (code change switch); the buzzer sounds and the touch light turns on.
2. Enter the password you need; the password length is 3-12 characters. Press the "#" key to confirm; the buzzer emits a long sound and the light indicates that the password has been set and changed successfully.

Note: After setting your password, please test the new password to ensure it is valid.

MANAGE PASSWORD SETTINGS

1. With the door open, press the number key "0" twice, then press the internal setting button.
2. Enter the password you need; the password length is 3-12 characters. Press the "#" key to confirm; the buzzer emits a long sound and the light indicates that the password has been set and changed successfully.

Note: Do not set the personal password the same as the management code.

OPEN THE SAFE

1. Touch the wake-up touch screen and enter the password you set.
2. Press the "#" key to confirm. The door opening indicator will light up and the buzzer will sound twice, indicating that the password has been entered correctly.

UNDERVOLTAGE INDICATION

1. The system uses four 1.5V alkaline batteries. If the voltage is insufficient, after opening the door it will continuously remind with "drip, drip, beep". "Drip, drip, beep" twice reminds the user to replace the battery in time. If the battery voltage is insufficient, you can use the emergency power supply or the mechanical emergency key operation.
2. The electronic lock has power-down protection; the password never disappears.

VIBRATION ALARM SETTING

1. The vibration alarm electronic lock has the function of setting and eliminating the alarm.
2. Setting alert method: First touch the touch screen to wake up, press the key, and the computer board automatically enters the alert state. The alarm sounds when the safe vibrates.
3. Disarming method: After the safe alarm, enter the password set, press the key to open the door, and you can eliminate the alarm.

NOTE: After entering the correct password to eliminate the alarm sound, you need to restart the alarm to enter the alert state.

ALARM OPERATION

This electronic lock has 3 (5) password errors, automatic alarm for 30 seconds (1 minute). After the alarm is eliminated, the panel is locked, wait 4 minutes, then enter the correct password to open.

SOUND ON AND OFF

Touch the touch screen to wake up. Enter "11#" and the buzzer will emit a long "drip" sound, indicating that all sounds are successfully enabled or disabled.

Press and hold the green button on the organization for 5 seconds, and the system will restore the initial settings and clear all passwords.

HOW TO WALL OR FLOOR MOUNTING

* Drill the appropriate size holes for the anchors you are using. * Mount the safe by running screws from inside of the safe and secure the anchors. * Use proper drill tools depending on the type of floor you are mounting the safe on (wood, tile, or concrete).

SAFETY AND COMPLIANCE

1. To reduce the risk of theft, the safe must be fixed to the wall or otherwise secured.
2. Please take good care of the emergency key and store it in a place away from the safe. Do not put the emergency key inside the safe, as it will not be usable to open the safe when the battery runs out.
3. Do not place the product on an unsafe overhead surface, to avoid damaging the product or injuring people.
4. Do not spill liquid on the control panel, as it may cause electric shock or damage the internal electronic components, preventing them from working properly.

WARMLY REMINDER

1. Because it is purely handmade, internal solder joints or rust stains are a normal phenomenon.
2. Please keep the emergency keys, secret cabinet keys, and external power supply box in a safe place.
3. The emergency key cannot open safes of other brands or even this brand, as it is unique.

(Please do not try, to avoid damaging the safe; the unmatched key cannot be removed.)

1. The protective film on the knob cover can be torn off.
2. Before closing the door, do not remove the emergency key or adjust its direction, which can avoid the lock bolt from jamming, and the knob operation will be smoother.

direction, which can avoid the lock bolt from jamming, and knob operation will be smoother.

1. The door won't shut: Make sure there are no obstructions. If the bolts are extended, re-enter the user code and turn the knob clockwise to retract them.

TECHNICAL PARAMETERS

Model	SS-700DZ
Working Voltage Range	4.2-6.8Vdc
Product Size	420*380*700mm
Working Power	4 xAA (1.5V) Alkaline Batteries

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000, CN.

Imported to AUS: Sihao Pty Ltd. 1 Rokeva Street, Eastwood NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH Consulting Limited. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

KLUIS

User Manual

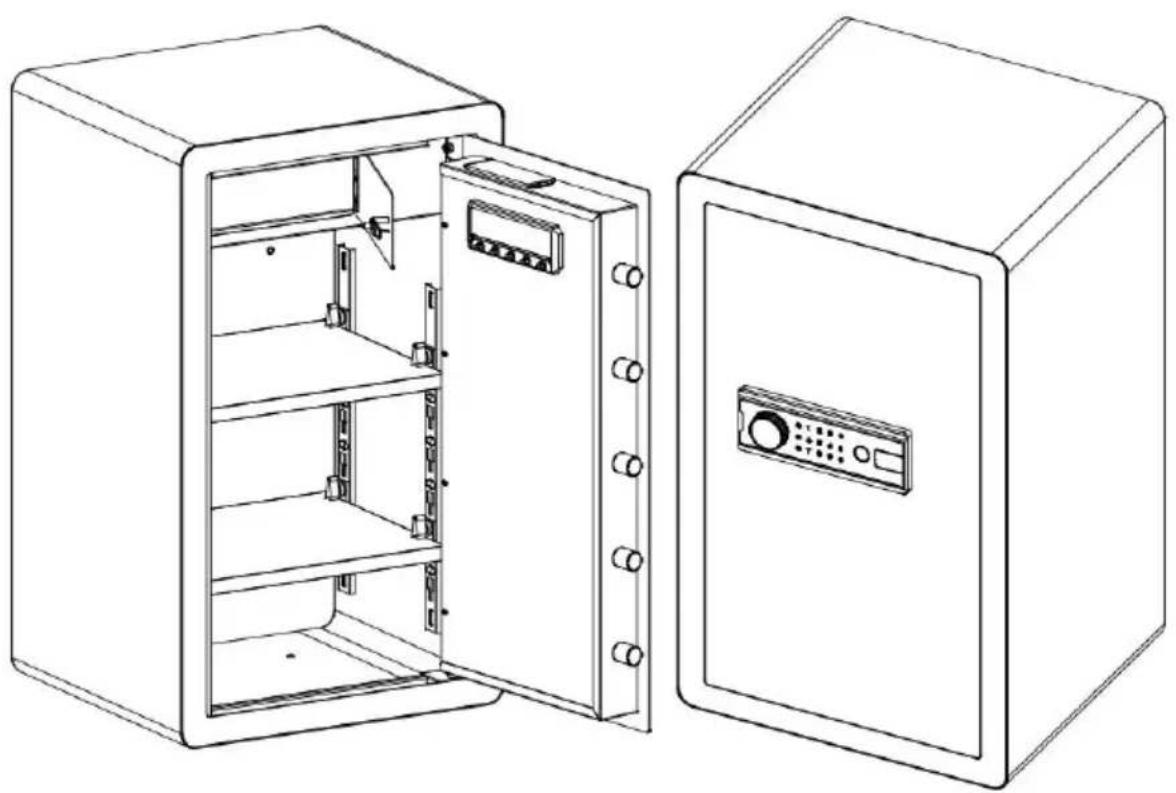

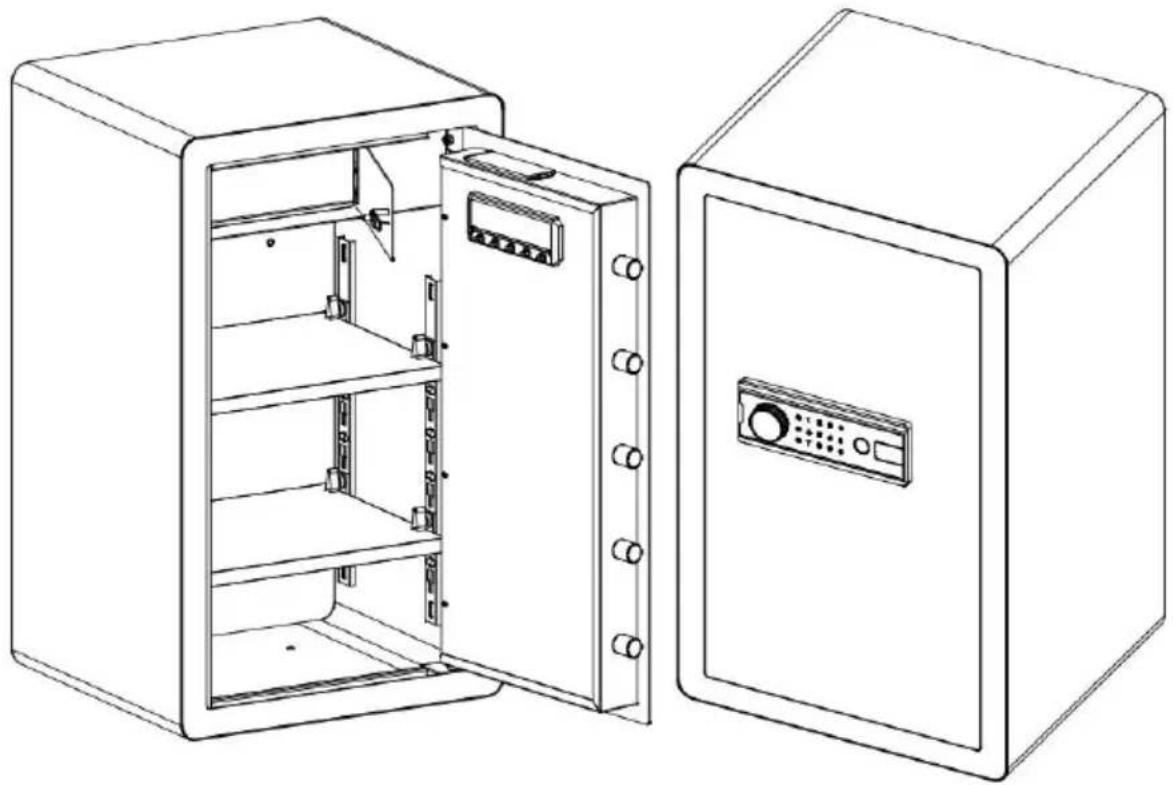

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

KASSASKÅP

USER MANUAL

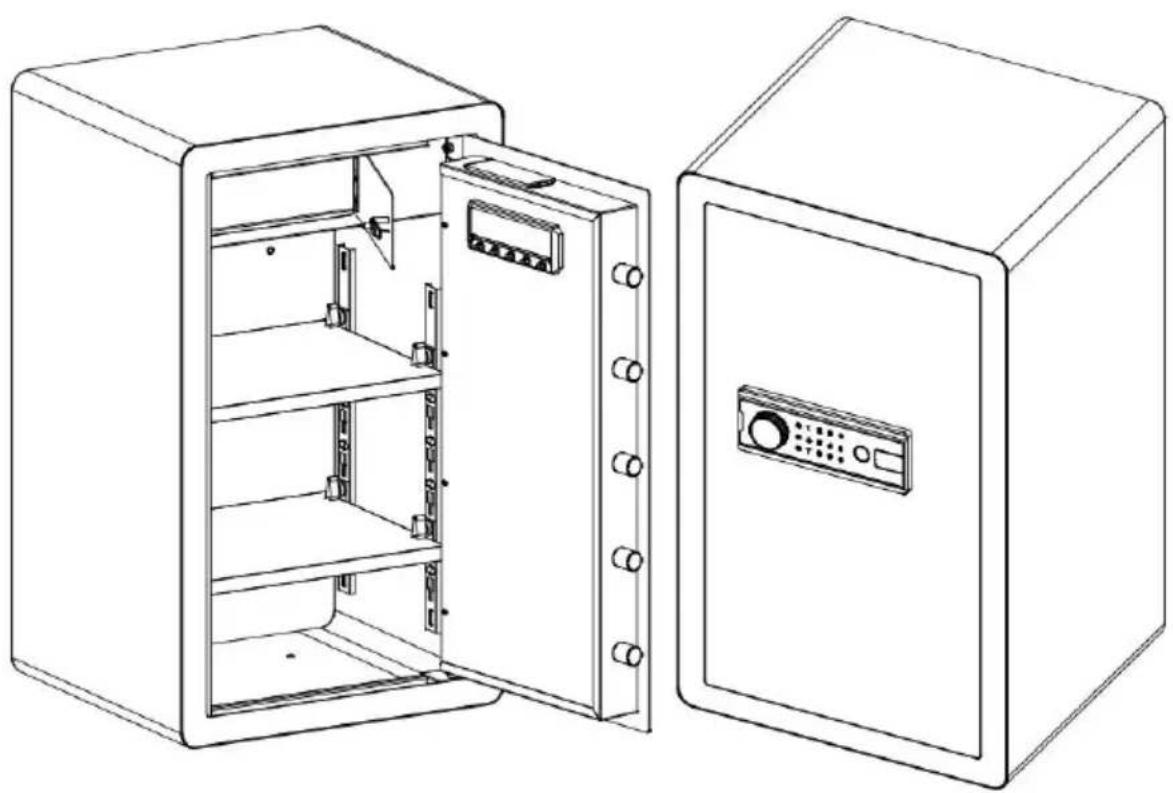

MODEL: SS-700DZ

MODEL: SS-700DZ

②External Power Box

OPENING YOUR SAFE FOR THE FIRST TIME

Electronic lock factory default password is "123456"

PERSONAL PASSWORD SETTING

VIBRATION ALARM SETTING

HOW TO WALL OR FLOOR MOUNTING

SAFETY AND COMPLIANCE

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.
