WALL MOUNTED PROJECTION SCREEN

MODEL: SS120, SS150

MODEL: SS120, SS150

Empty rectangular frame with black border and corner markers (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

Please read and observe carefully all the asset instructions before beginning assembly.

Unit should be assembled by two or more pe

DO NOT CLIMB

Please do not let your child climb on the product have kids or animals who like to climb, we high recommend using the wall anchors and brackets/s that come with the package.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wall Mounted Projection Screen.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Do not allow children to play with or item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Wall Mounted Projection Screen.
4. Use as intended only.

Inspect before every use; do not use if parts are loose or damaged.

TECHNICAL SPECIFICATIONS

Model	SS120	SS150
Screen Size	120 inch, 16:9	150 inch, 16:9
Product Dimensions (LxWxH)	2710*1550mm	3380*1928mm
Net Weight	About 0.9kg	About 1.2kg

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

Empty rectangular frame with black border and corner markers (no text or symbols)

Grid of nine identical abstract geometric shapes with curved and straight outlines, no text or symbols present.

ASSEMBLY STEPS

STEP 1

Empty rectangular frame with four hands holding it, no text or symbols present

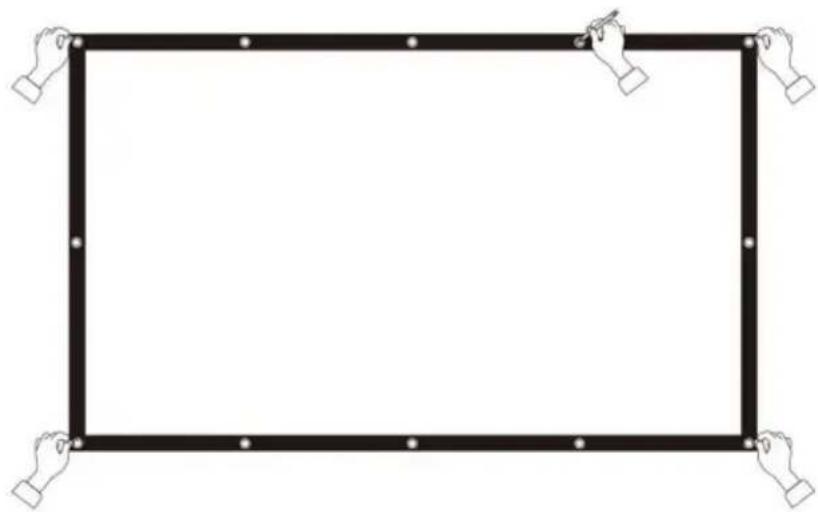

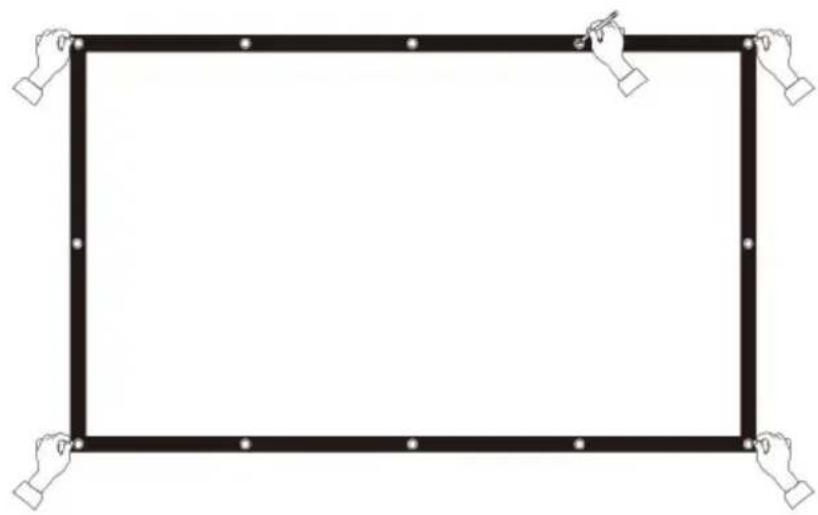

First of all, pull the screen fabric flat and layit on the wall where it installed. Mark every position of the grommets correctly on the wall.

STEP 2

Diagram showing a hand holding a small electronic component before and after cutting a clip, with an arrow indicating the process.

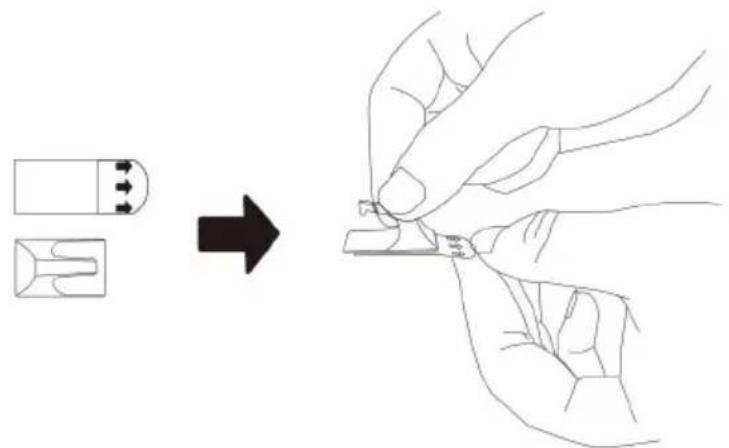

Second, stick each hook on an adhesive tape.

STEP 3

Line drawing of a finger pressing a small component with three downward arrows (no text or symbols)

Then stick the hooks with the tapes on every positon marked on the

STEP 4

Empty white rectangle with black border and corner markers (no text or symbols)

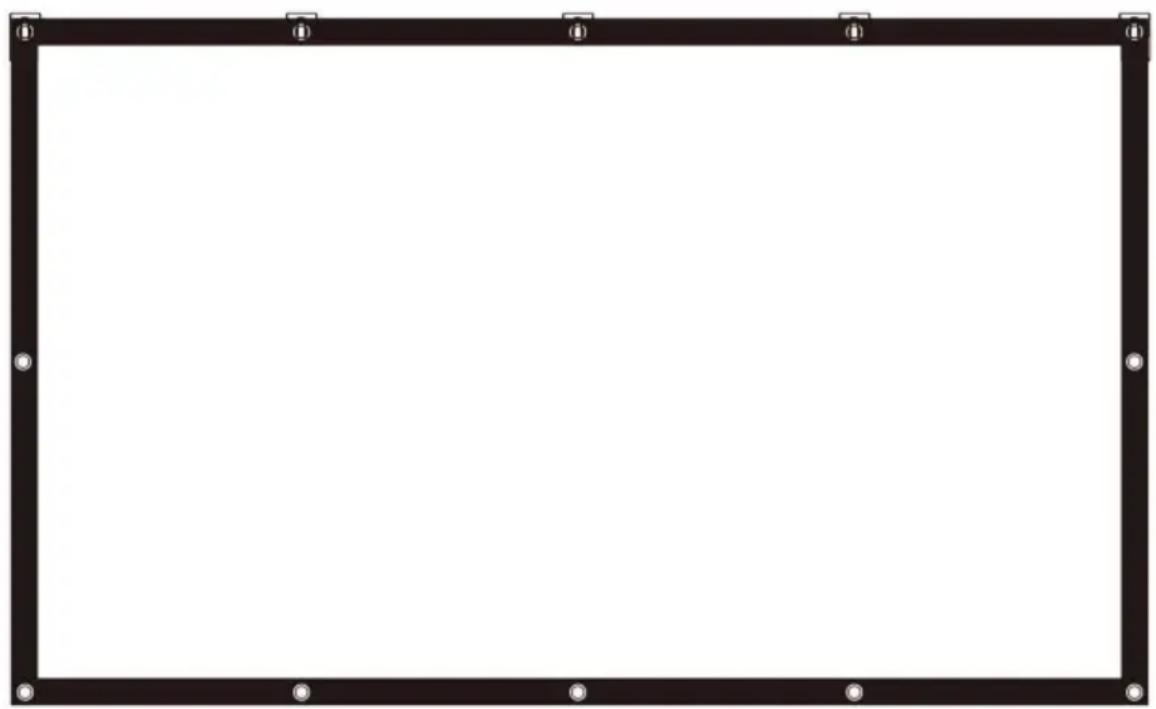

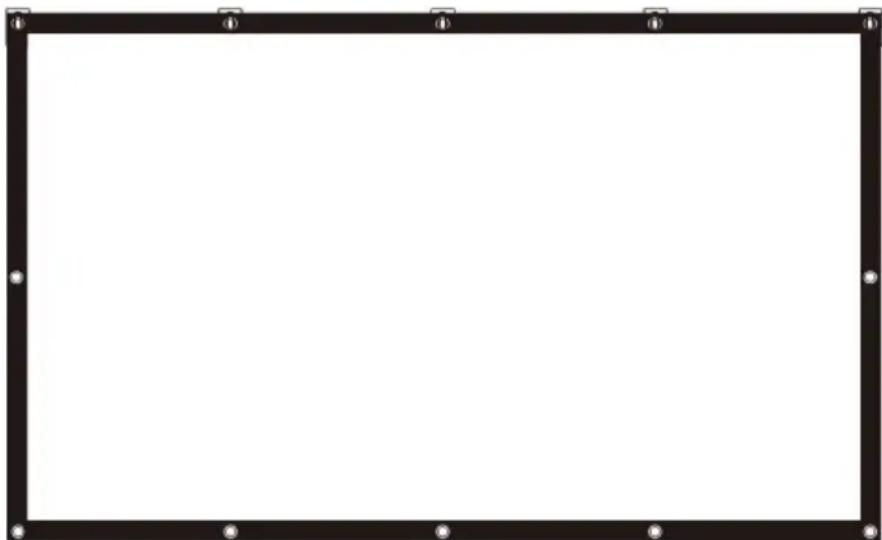

Finally, put the screen flat by hanging the grommets on the relevant hooks.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
