USER MANUAL SZJJSZW01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PET BARRIER FOR CAR

MODEL: SZJJZW01X/SZJJZW02X/SZJJJSZW01 /SZJJSZW02/SZJJZW01B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

PET BARRIER FOR CAR

SZJJZW01X/SZJJZW02X/SZJJZW01B
SZJJSZW01/SZJJSZW02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, user must read instructions manual carefully.

This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.

Warning- Be sure to wear gloves when using this product.

WARNING

• Read these instructions carefully and retain them for future use.
• When using the product, basic safety precautions should always be followed to reduce the risk of injury including the followings: A competent adult should assemble the product.
• Keep children and pets away while assembling the product. Do not let children climb on or play with the product.
• Wear gloves when installing the product.
• Do not use this product if any parts are missing, damaged, or abras. Do not over-tighten the fasteners(hardware). Regularly examine the product for wear and tear, replace at first sign of damage or if parts become detached.

CLEANING AND MAINTENANCE

• To clean the product, wipe with a soft, slightly moist cloth.
• Never use corrosive detergents, wire brushes, abrasive scourers metal or sharp utensils to clean the product.

PRODUCTION CONFIGURATION

Model	SZJJZW01X	SZJJZW02X	SZJJSZW01	SZJJSZW02	SZJJZW01B
Product size (inch)	35.4*16.5	38*16	38.5*15.9	36.6*16.5	35.4*16.5
Fold	Non foldable	Non foldable	Foldable	Foldable	Non foldable
Barrier net	×	×	×	×	√

PARTS LIST

ITEM	Name	PICTURE	Model
			SZJJZW01X	SZJJZW02X	SZJJZSZW01	SZJJZSZW02	SZJJZW01B
A	Main metal mesh	or	1PCS	1PCS	1PCS	1PCS	1PCS
B	side panels		2PCS	2PCS	2PCS	2PCS	2PCS
C	circular clamps		8PCS	8PCS	8PCS	8PCS	8PCS
D	bolts		4PCS	4PCS	4PCS	4PCS	4PCS
E	Hand screw		4PCS	4PCS	4PCS	4PCS	4PCS
F	nylon straps		2PCS	2PCS	2PCS	2PCS	2PCS
G	straps		2PCS	2PCS	2PCS	2PCS	2PCS
H	Barrier net		×	×	×	×	1PCS
I	manual		1PCS	1PCS	1PCS	1PCS	1PCS

INSTALLATION INSTRUCTIONS

STEP1:

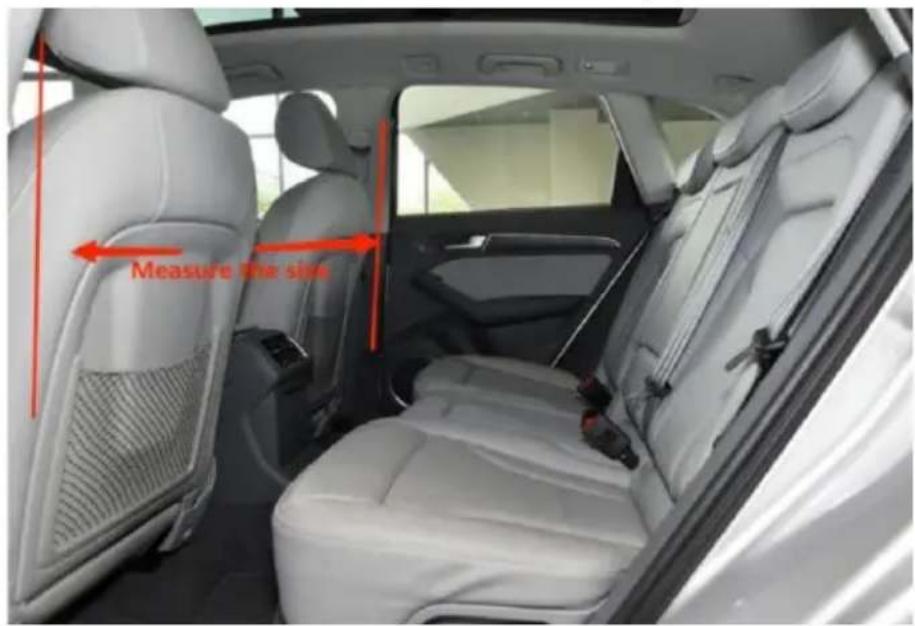

Measure the dimensions of the interior mounting position of the car.

STEP 2:

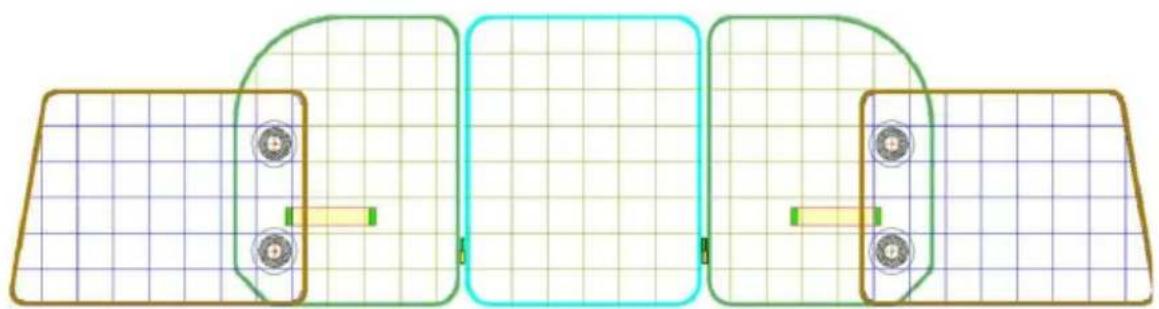

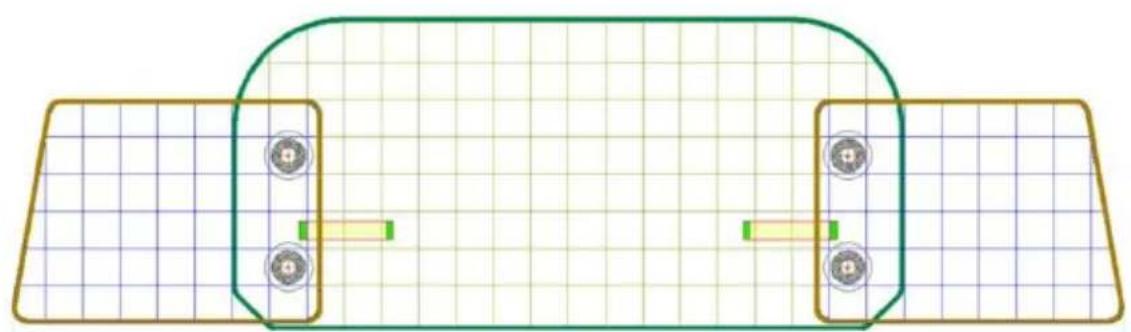

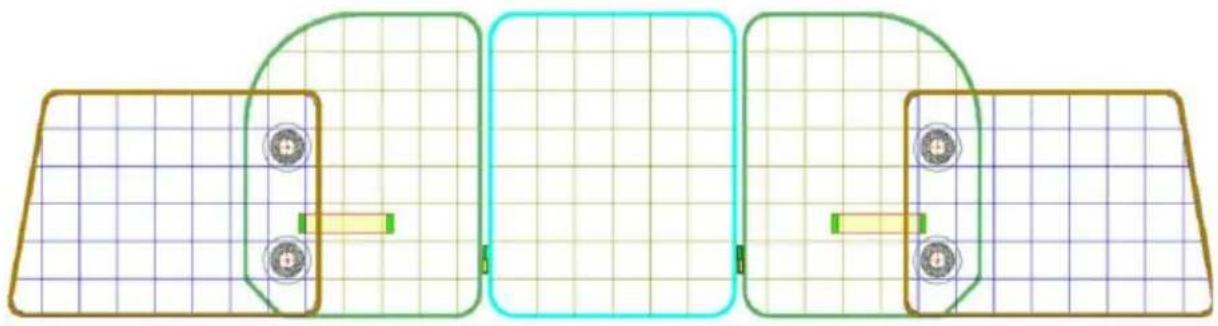

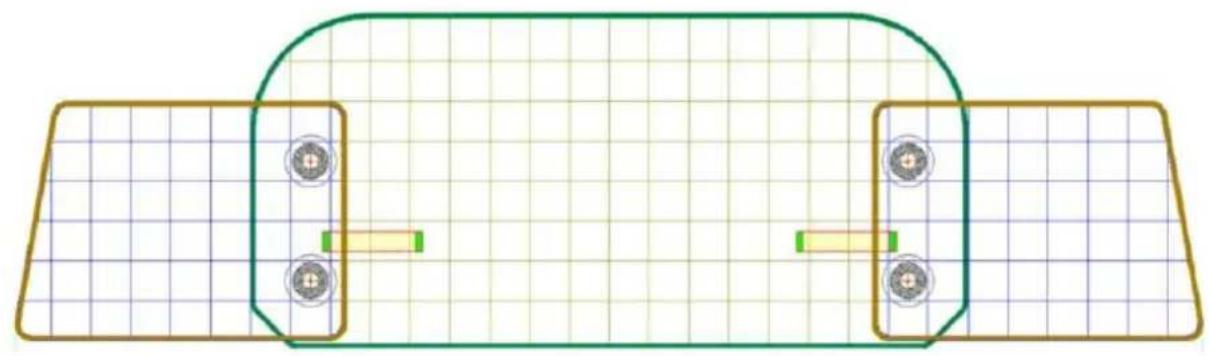

Measure and adjust the barrier according to the width of the cargo area.

STEP 3:

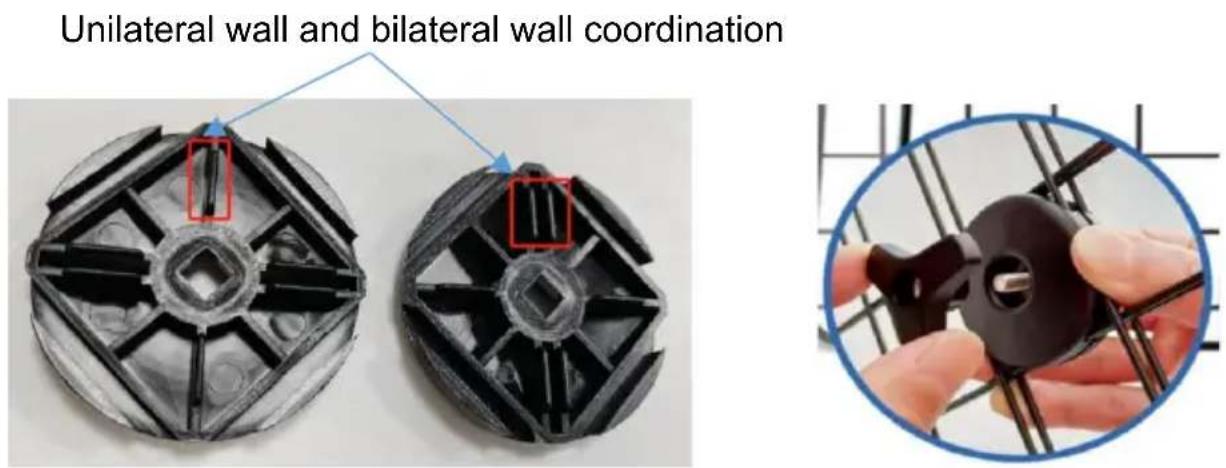

Re-assemble the barrier by fixing the Side Panels to the Main Panel with Screws and Nuts. Do not over-tighten or the hook will lose its shape. When installing C (circular clamps), pay attention to the fitting angle. The correct angle is to fit one side wall to both sides of the wall, and installation cannot be done at the wrong angle.

STEP 4:

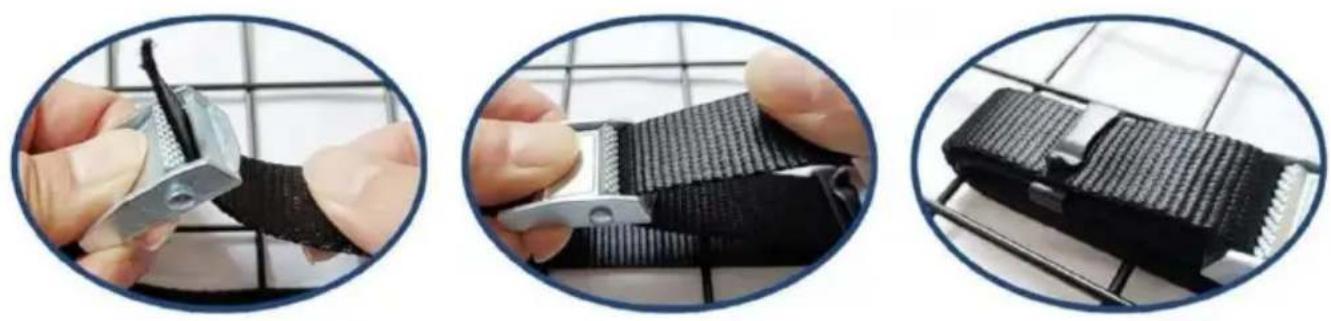

Pre-fix the Straps to the headrests.

STEP 5:

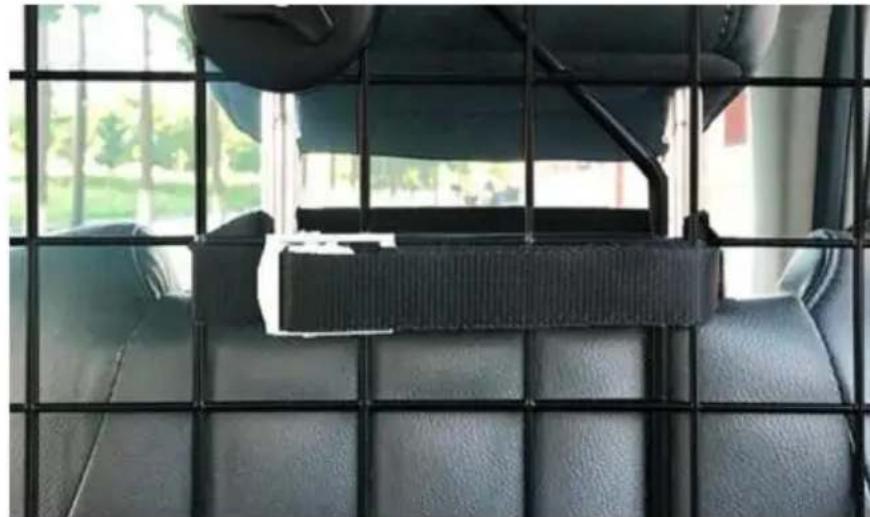

Install the barrier to the headrests.

The product is equipped with 2 nylon straps, which users can choose to use according to their actual situation to fix the mesh.

STEP 6:

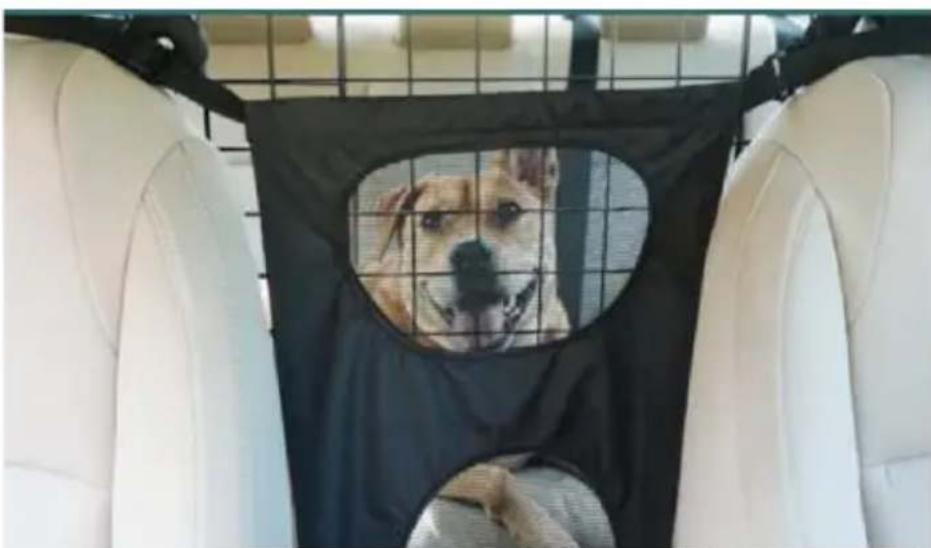

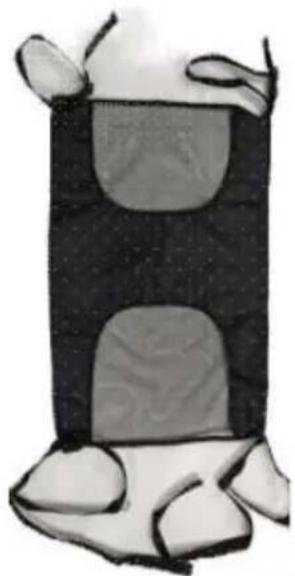

The model SZJJZW01B product is equipped with a Barrier net, which is used for installation between the front seats. The two straps above the Barrier net are fixed to the headrests on both sides, and the straps below are fixed under the seat.

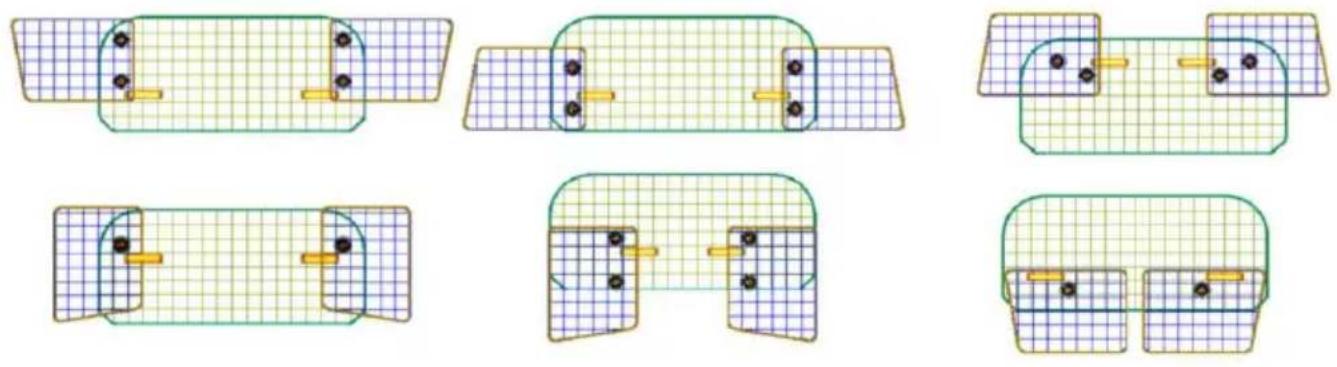

NOTE: The panels can be configured in 6 distinct ways, as pictured below, the way you need to set up the barrier depends on the size of the car.

PRODUCT STORAGE

Open the strapping, take it off the car, open the circular clamps and put a piece of protective net into the packing box, complete the storage of all items, or put it back in the carton packaging.
