SJ5 - Mounting brackets Vevor - Free user manual and instructions

Product Type	Shelf Support / Fixing Bracket
Brand	Vevor
Model	SJ5
Horizontal Dimensions	16 inches (40.64 cm)
Vertical Dimensions	6 inches (15.24 cm)
Thickness	10 mm
Support Material	Steel
Fixing Type	M8x60 mm expansion bolts and expansion steel nails (Class F)
Kit Contents	4 brackets, 8 expansion bolts, 8 self-tapping screws M5x16 mm, 8 steel nails
Usage	Wall mounting for shelves, indoor
Required Table Thickness	Greater than 10 mm
Installation Instructions	Included in the manual
Maintenance	Clean with a dry cloth
Safety	Use drills suitable for the wall, fasten securely
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Origin	Made in China
Approximate Weight	About 1.5 kg (estimate)

Frequently Asked Questions - SJ5 Vevor

What is the difference between the SJ1 and SJ5 models?

The SJ1 measures 10x6 inches with a thickness of 5 mm, while the SJ5 measures 16x6 inches with a thickness of 10 mm. Additionally, the SJ5 uses Class F expansion steel nails and Class E expansion screws, whereas the SJ1 uses glue nails and self-tapping screws of different classes.

What types of fixings are provided with the SJ5?

The SJ5 kit includes 4 brackets, 8 M8x60 mm expansion bolts, 8 M5x16 mm self-tapping screws, and 8 Class F expansion steel nails.

How to install the shelf brackets?

Select drills suitable for the wall openings. Fix the brackets using expansion bolts or steel nails depending on the wall type. Ensure the table thickness is greater than 10 mm. Follow the included manual for detailed instructions.

What is the maximum load capacity of the brackets?

The load capacity is not specified in the manual. It is recommended to distribute the load evenly and not exceed reasonable limits for a household shelf.

Can these brackets be used outdoors?

The manual does not mention outdoor use. The brackets are designed for indoor use. Outdoors, they could rust or deteriorate.

How to maintain the shelf brackets?

Clean the brackets with a dry cloth to remove dust. Avoid abrasive products to prevent scratching the surface.

Can I use these brackets with a glass shelf?

The manual does not specify the shelf material. However, it is important that the table thickness is greater than 10 mm. For a glass shelf, check compatibility and use protective pads.

What to do if the expansion bolts do not hold in the wall?

Make sure to use the correct size drill bits for the expansion bolts. If the wall is too fragile, use suitable wall plugs or consult a professional.

Is there a warranty on this product?

Yes, Vevor provides an electronic warranty certificate available at www.vevor.com/support. Please contact technical support for more information.

How to contact Vevor technical support?

You can contact technical support via the website www.vevor.com/support. Technical support and the warranty certificate are available there.

USER MANUAL SJ5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHELF-BRACKETS

OPERATING INSTRUCTIONS

MODEL: SJ1/SJ5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHELF-BRACKETS

OPERATING INSTRUCTIONS

MODEL: SJ1/SJ5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTALLATION

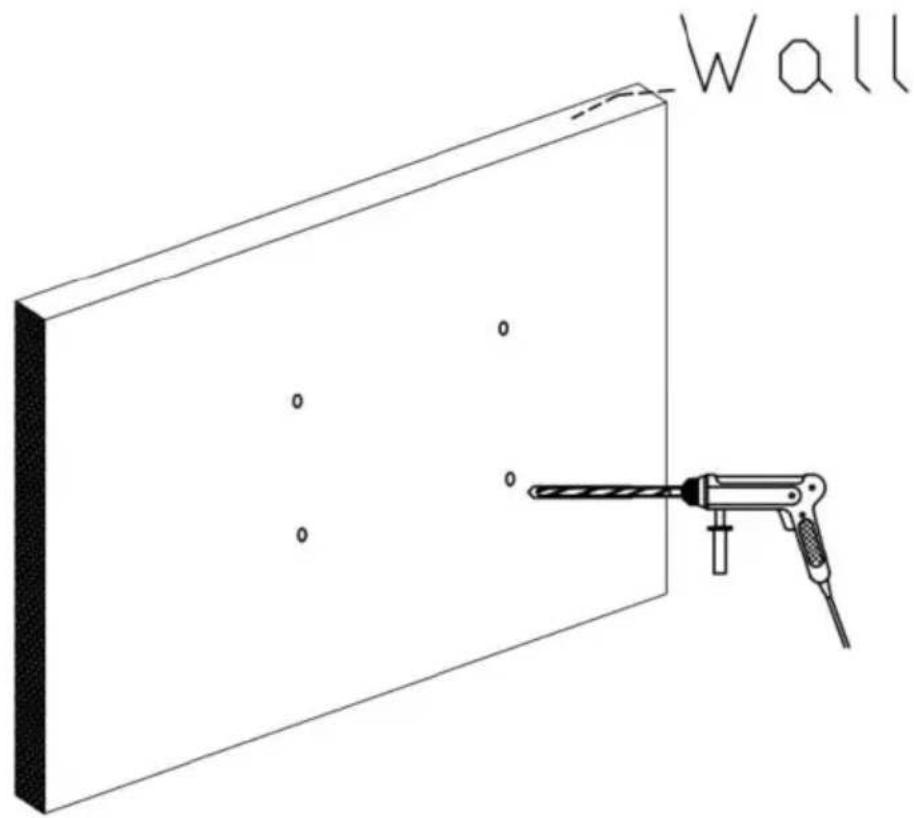

NOTE: Select suitable drill bits for wall openings

NOTE:

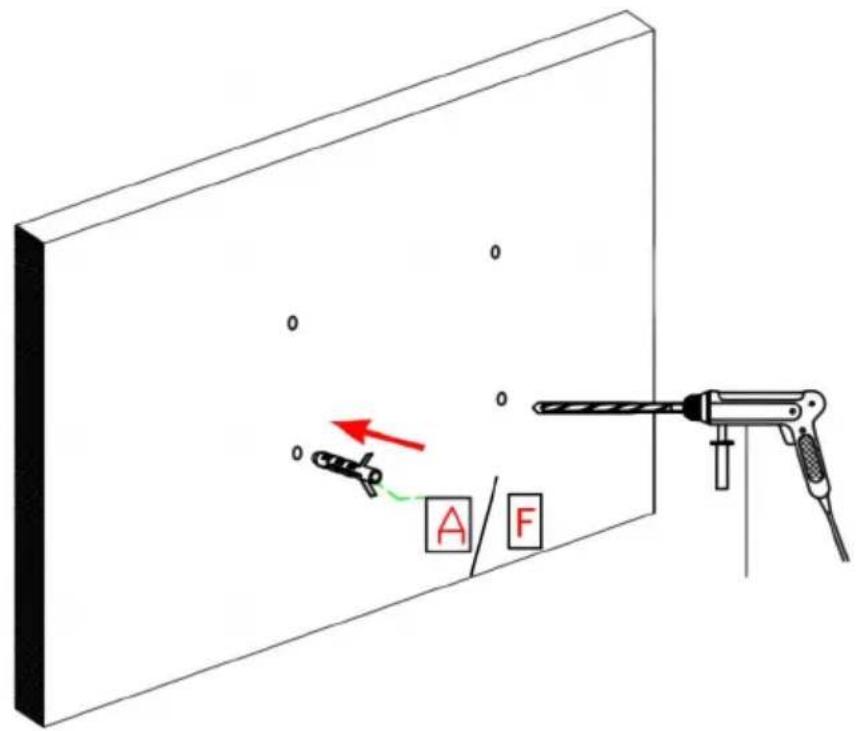

Model: SJ1 uses Class A expansion glue nail and SJ5 uses Class F expansion steel nails.

NOTE:

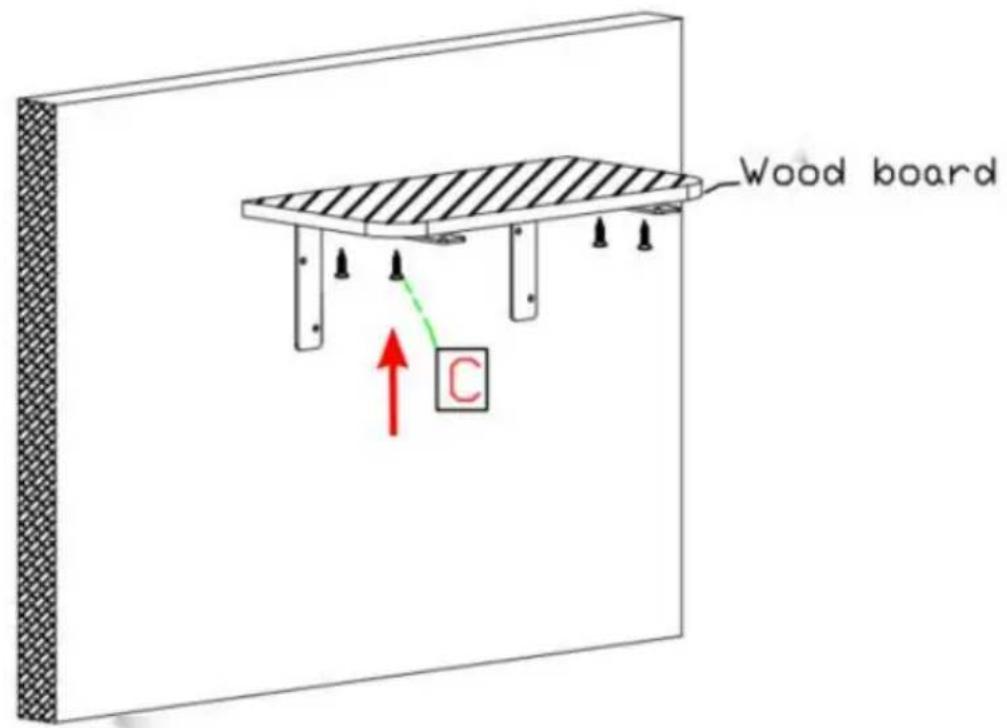

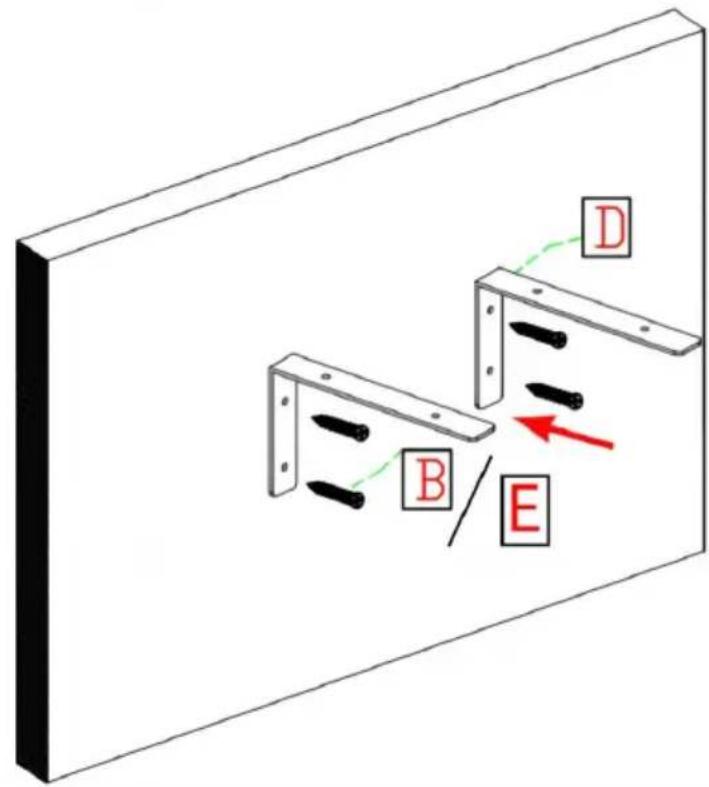

Model: SJ1 uses Class B self-tapping screws and SJ5 uses Class E expansion screws.

PARTS LIST

No	Components	Picture	Fits Model#
			SJ1	SJ5
A	Expansion glue nail		8pcs	N
B	Self-tapping screws M5*40mm		8pcs	N
C	Self-tapping screws M5*16mm		8pcs	8pcs

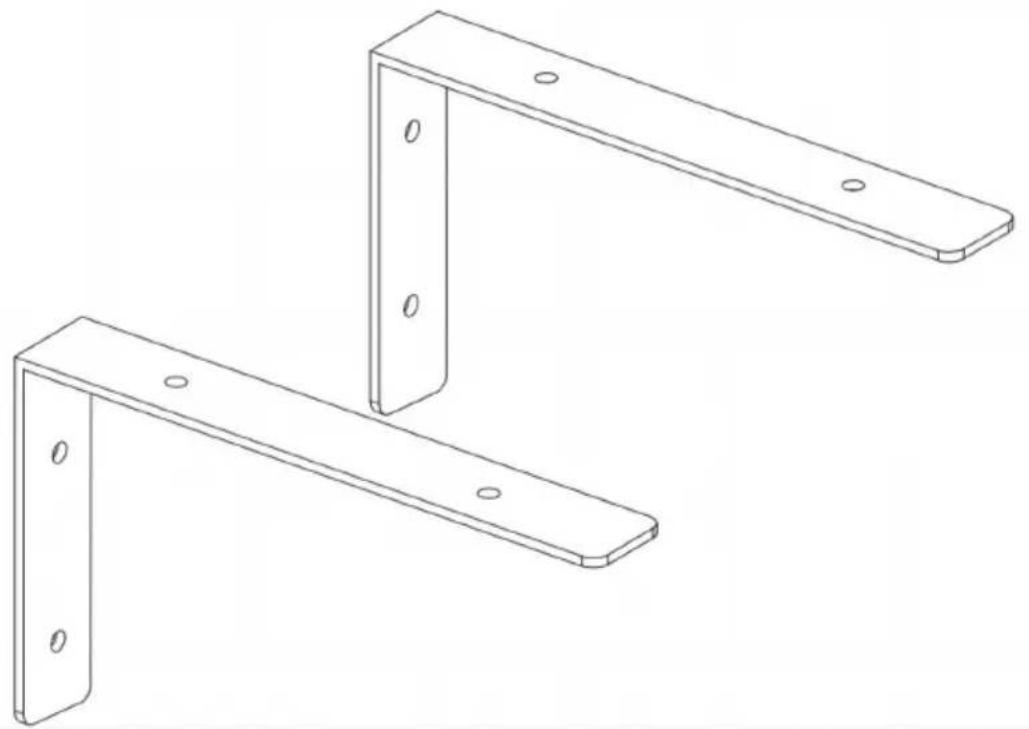

D	Shelf-Brackets		4pcs	4pcs
E	Expansion bolt M8*60		N	8pcs
F	Expansion steel nails		N	8pcs

PARAMETER TABLE

Model	Size	Thickness
SJ1	10*6inch	5mm
SJ5	16*6inch	10mm
