SJ8 - Shelf bracket Vevor - Free user manual and instructions

Brand	Vevor
Model	SJ8
Product Type	Shelf Bracket
Dimensions (L×H×D)	6 × 4.0 × 1.6 inches (152 × 102 × 41 mm)
Thickness	5 mm
Material	Steel (estimated)
Maximum Load	Not specified (estimated 20-30 kg per bracket)
Package Contents	6 brackets, 24 expansion anchors, 24 M5×40 mm screws, 12 M5×16 mm screws, 1 spirit level
Installation	Wall mounting with anchors and screws, requires drilling
Required Tools	Drill, suitable drill bit, screwdriver, spirit level
Usage Conditions	Indoor, flat and solid surface
Maintenance and Cleaning	Clean with a damp cloth, avoid abrasive products
Safety	Check wall load capacity, do not exceed recommended load
Spare Parts and Repairability	Non-interchangeable parts, non-repairable bracket
General Information	Made in China, technical support at www.vevor.com/support

Frequently Asked Questions - SJ8 Vevor

What is the maximum weight that an SJ8 bracket can support?

The manual does not specify an exact maximum load. However, for a proper installation on a solid wall, each bracket can support approximately 20 to 30 kg depending on the wall material and fastening.

What types of screws are provided with the SJ8 bracket?

The kit includes 24 self-tapping M5×40 mm screws for wall fixing and 12 self-tapping M5×16 mm screws for fixing the shelf to the bracket.

How to properly install the SJ8 bracket?

1. Mark the locations on the wall using a spirit level. 2. Drill holes suitable for the diameter of the anchors. 3. Insert the expansion anchors. 4. Fix the bracket to the wall using the M5×40 mm screws. 5. Place the shelf on the brackets and fix it with the M5×16 mm screws from underneath.

Is the thickness of the shelf important for installation?

Yes, the manual indicates that the thickness of the shelf (table) must be greater than 10 mm to ensure a strong fix with the provided screws.

What drill bit diameters should be used for drilling?

The drill bit diameter should match the size of the expansion anchors provided. Generally, for 6 mm anchors, use a 6 mm drill bit. Check the anchor packaging.

Can I use these brackets on a plaster wall?

It is not recommended to fix heavy loads on plaster without reinforcement. For optimal safety, choose a concrete, brick, or wood wall. Use anchors suitable for plaster if necessary.

Are SJ8 brackets suitable for a glass shelf?

Yes, but ensure that the glass shelf has a thickness greater than 10 mm and that the total distributed weight is reasonable. Use non-slip pads between the bracket and glass to avoid scratches.

How to maintain SJ8 shelf brackets?

Clean regularly with a soft, damp cloth. Avoid harsh chemicals that could damage the coating. Periodically check the tightness of the screws.

Where can I find warranty or technical support?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. Keep the proof of purchase.

Are SJ8 brackets compatible with other Vevor models?

Yes, the same fixing kit is used for models SJ2, SJ4, SJ7 and SJ8. Only the dimensions of the brackets differ.

USER MANUAL SJ8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHELF-BRACKETS

OPERATING INSTRUCTIONS

MODEL: SJ2/SJ4/SJ7/SJ8

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHELF-BRACKETS OPERATING INSTRUCTIONS

MODEL: SJ2/SJ4/SJ7/SJ8

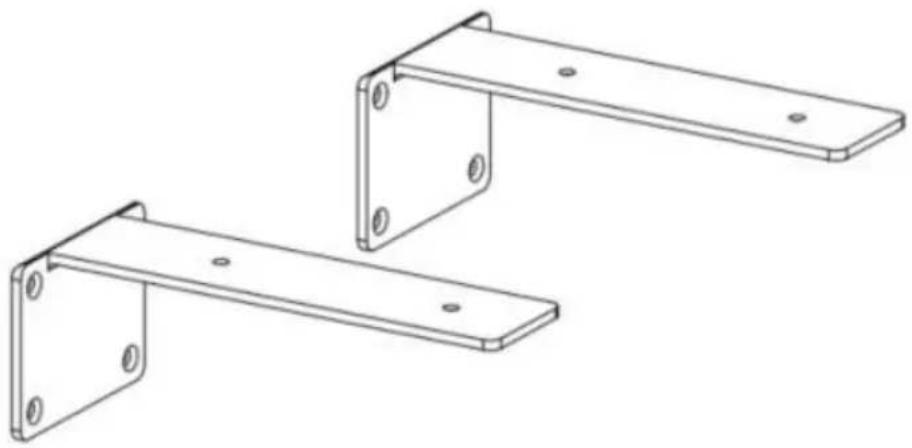

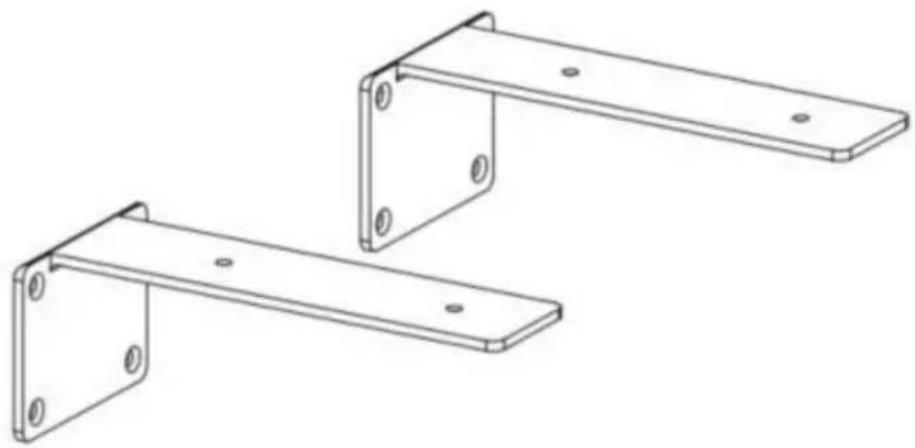

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

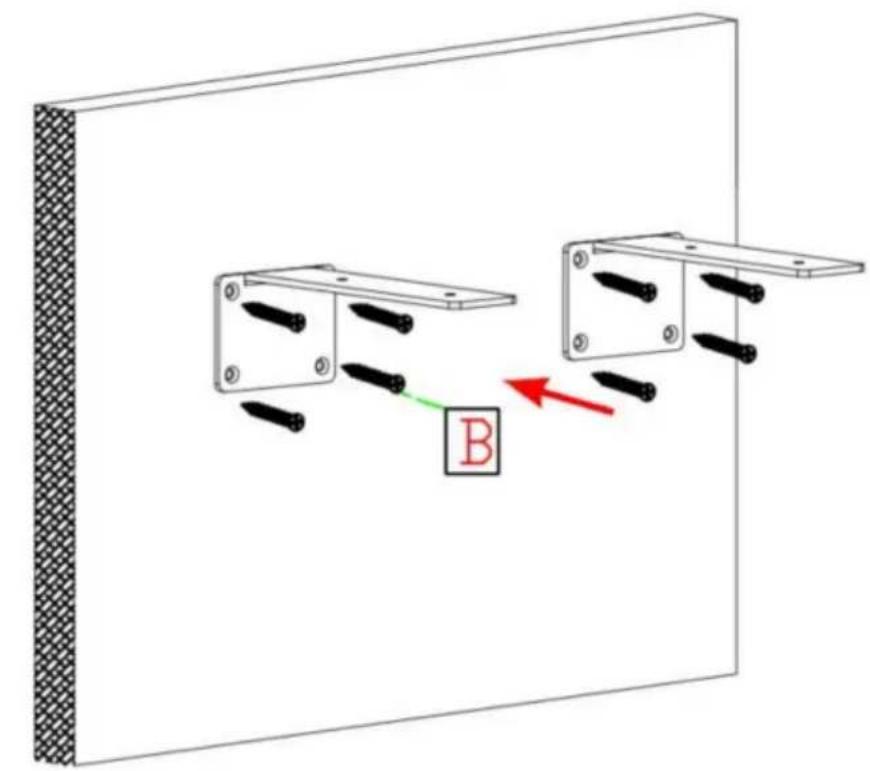

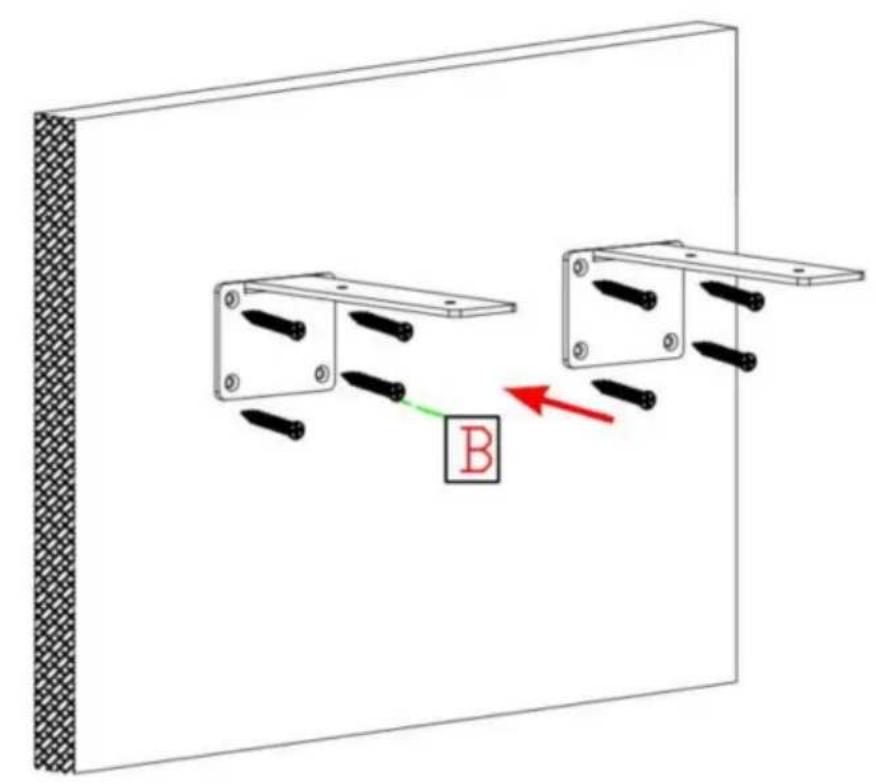

INSTALLATION

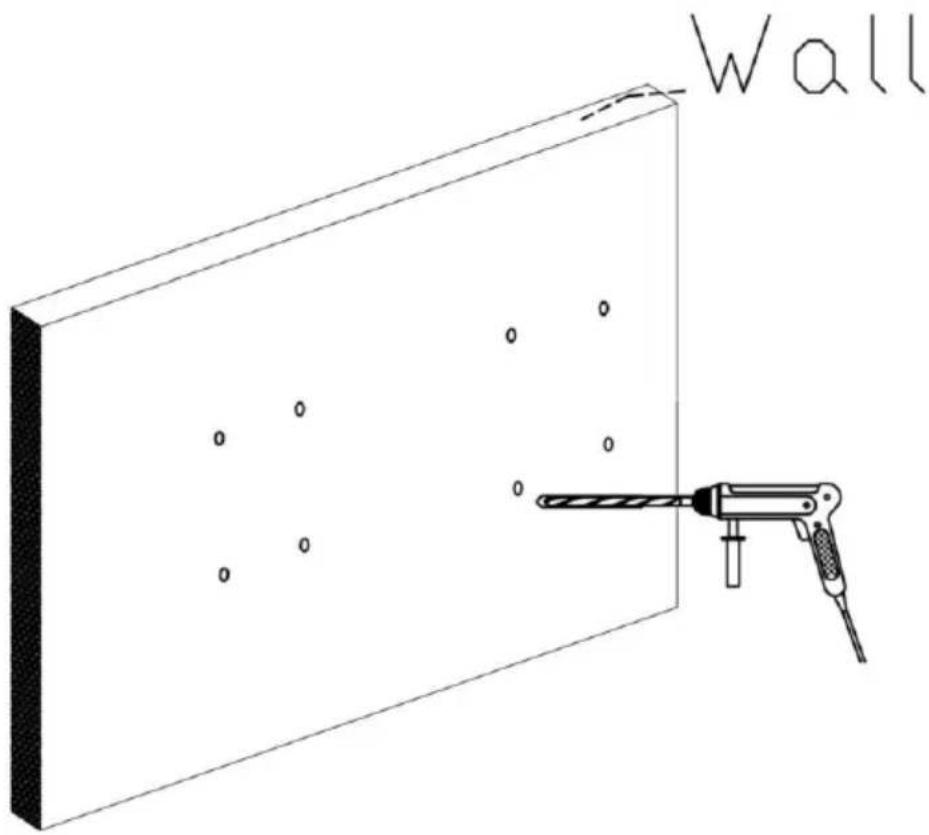

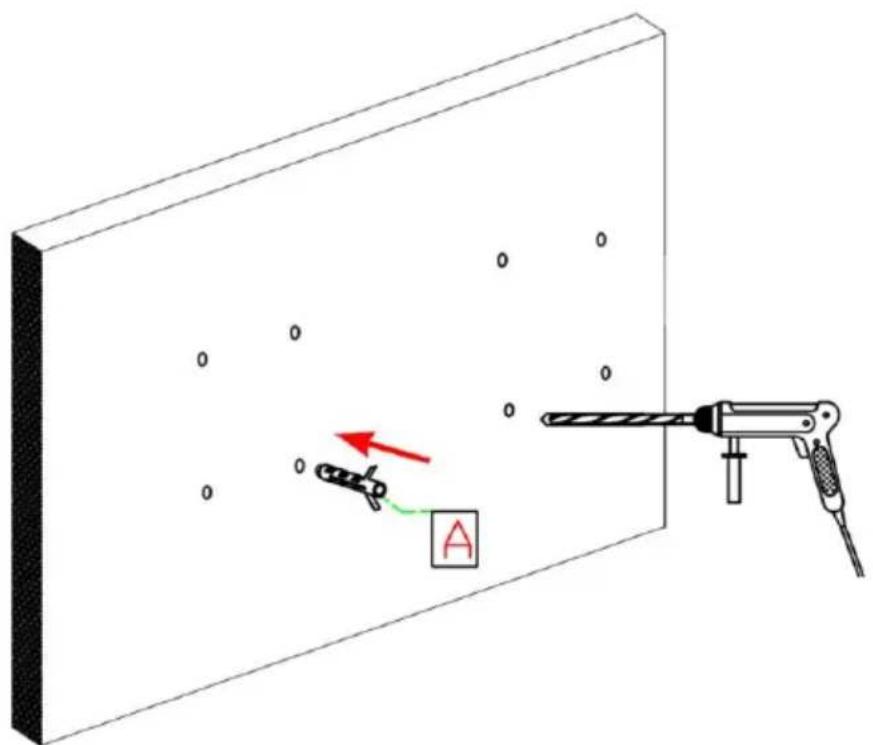

NOTE: Select suitable drill bits for wall openings

Diagram of a solar panel array with labeled components and directional arrows (no text or symbols)

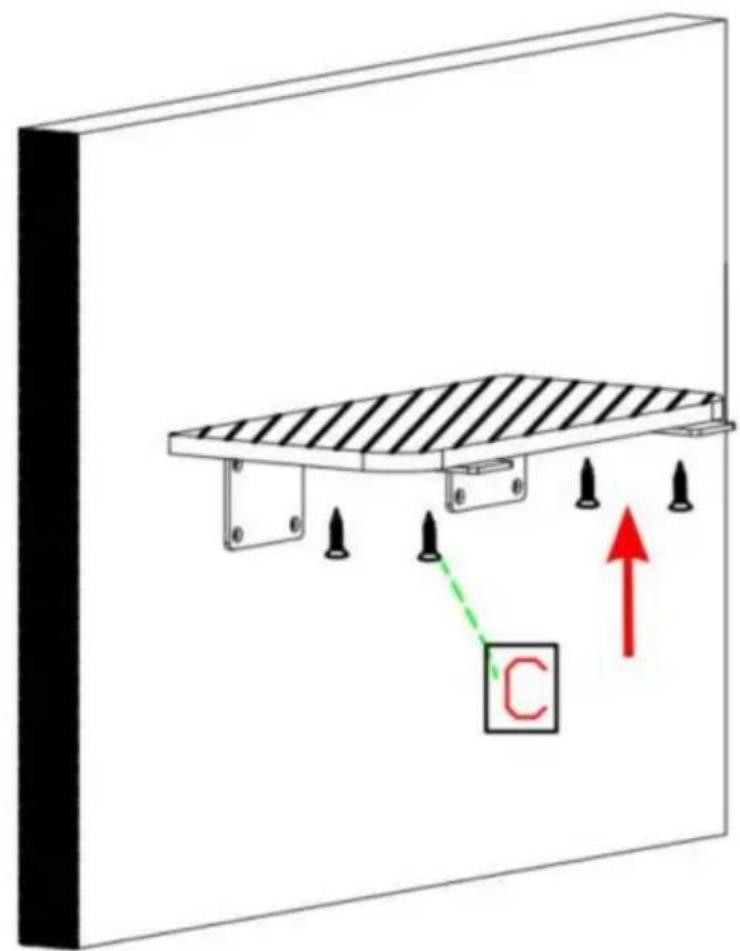

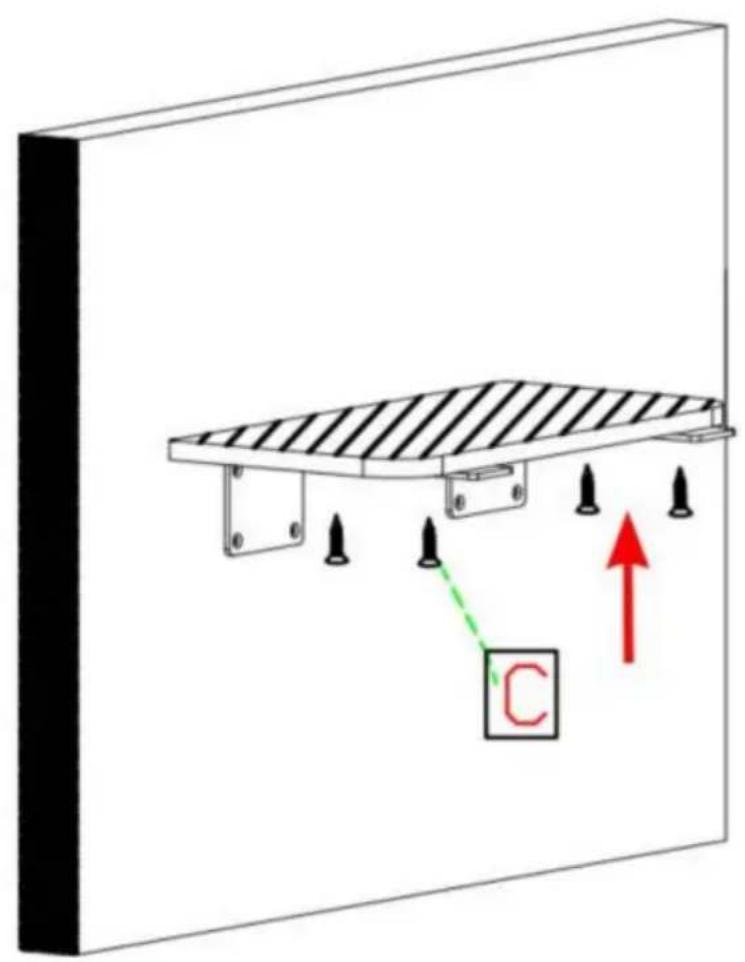

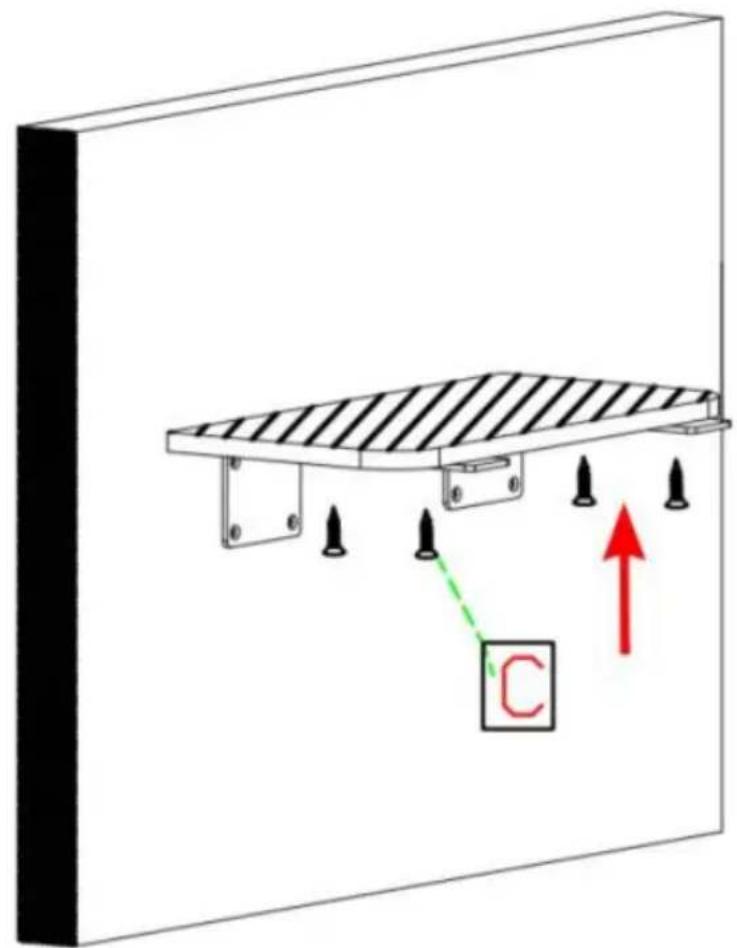

NOTE: The thickness of the table should be greater than 10mm

PARTS LIST

No	Components	Picture	Fits Model#
			SJ2	SJ4	SJ7	SJ8
A	Expansion glue nail		24pcs	24pcs	24pcs	24pcs
B	Self-tapping screws M5*40mm		24pcs	24pcs	24pcs	24pcs
C	Self-tapping screws M5*16mm		12pcs	12pcs	12pcs	12pcs
D	Shelf-Brackets		6pcs	6pcs	6pcs	6pcs
E	Spirit level		1pcs	1pcs	1pcs	1pcs

PARAMETER TABLE

Model	Size	Thickness
SJ2	10*4.0*1.6inch	5mm
SJ4	12*4.0*1.6inch	5mm
SJ7	8*4.0*1.6inch	5mm
SJ8	6*4.0*1.6inch	5mm
