USER MANUAL SSX90 Vevor

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL:SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL:SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 SSX140 \ SSX300 \ SSX440

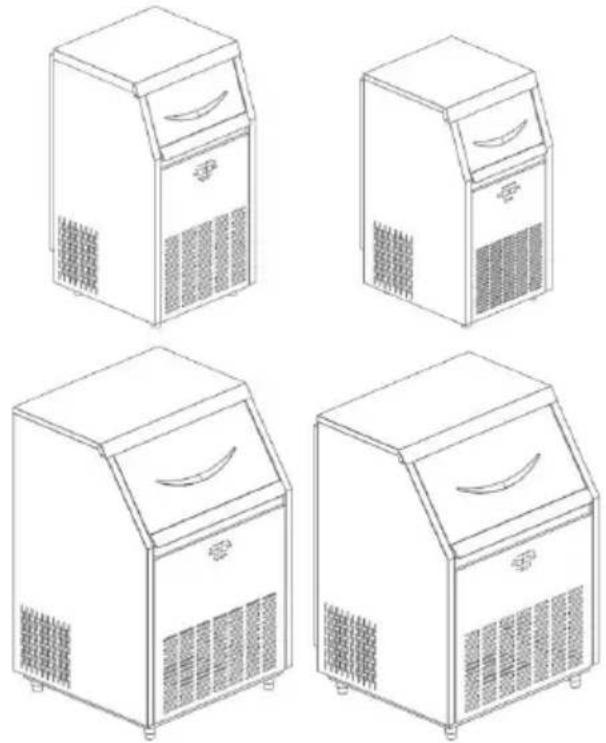

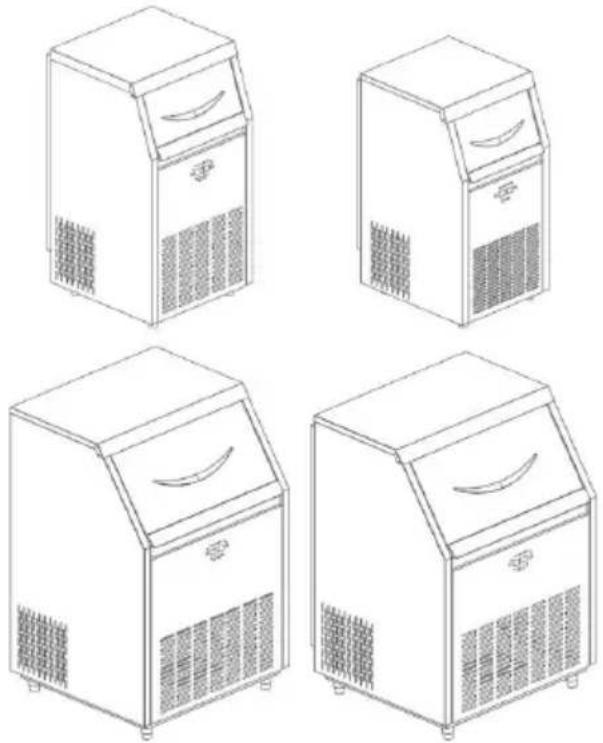

Four line drawings of industrial cooling machines with no visible text or symbols

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

The warning diagram and operation safety instruction

Prohibition mark	Warning mark	Beware of fire	Dangerous voltage
Indicates a prohibited act that could caus fatal injury or serious injury	Indicates matters that may cause personal injury or damage to items	Indicates that the material used is a combustible material, beware of fire	Indicates a high-voltage electric danger zone, beware of high-voltage electricity

Note: Be sure to keep this manual in a location that users can at any time.

Safe operation precautions.

Caution	After receiving the goods, you have to let the com lubricating oil settle for 24 hours to start the use, it will easily damage the compressor.
	Do not use the ice machine in the open air. Whe machine is wet by rain, it may cause electric leaf electric shock.
	Never place this ice machine in a wet location or subject to splashing water. Damage to the insulation ice machine may cause electric leakage or electric
	Never spray water directly onto the ice machine. A machine may cause electric shock or short circu
	Be sure not to put volatile or flammable substance the ice machine. Storage of such materials may ca explosion or fire.
	The ice machine should only be installed by qua engineers or maintenance personnel. Installing the machine by yourself may cause gas or liquid leaf electric shock or fire.
	Never disassemble, repair, or modify the ice mach such work is performed by unqualified personnel, i cause fire or personal injury due to work failur
	Never ground the ice machine through a gas pipe mains, telephone line or lightning rod. This is cons unsafe to ground.
	Never insert metal materials such as iron pins or v the vents, passage holes or exhaust ports for air c in the tank. This may result in electric shock or injury due to accidental operation of moving par
	Be sure to place the ice machine firmly on a soli the floor is not strong enough or not placed prope cause damage due to the ice machine being turned down or overturned.
	Be sure to use the dedicated power supply specif the nameplate of this ice machine. Using a branch may cause a fire.
	Be sure to insert the power plug firmly into the o removing the dust.A dusty socket or improperly inserted may causeUse a grounded outlet to prevent electric shock. unlikely event that there is no grounded outlet, grounding device must be assembled by a qualif engineering technician. The socket should be in an accessible position after installation.
	If there is any abnormal temperature or alarm in the any reason, you must immediately transfer the cont the box to a safe place to avoid your loss.
	This appliance contains flammable materials and mu disposed of and recycled by qualified personnel a agencies.
	Do not use mechanical equipment or other mean speed up the defrosting process except as recommended by the manufactu
	Do not damage the refrigeration circuit.
	Except for the type recommended by the manufactu appliance must not be used in the food storage ro appliance.
	Use the new hose assembly that comes with the a and the old hose assembly cannot be reused.
	When handling toxic, hazardous or radioactive mate use this ice machine in a safe place. Improper u adversely affect your health and the environmenThe disposal of the ice machine should be done special person. Never throw the ice machine away it be natural. This may cause the child to be shut the ice machine.
	There are no obstructions around the appliance or embedded structure, keeping the ventilation open.
	Unplug the power cord before cleaning, maintaining inspecting the ice machine to prevent electric shock personal injury.
	Some models use flammable refrigerants and flamm foaming agents, beware of fire, (the product has a of fire mark). When an abnormality occurs in the product, it must be repaired by qualified personnel institutions.
	This appliance contains a flammable blowing agercyclopentane, which must be disposed of and recyqualified personnel and institutions.
	Children should be supervised to ensure that children not play with the machine.
	When the ice machine malfunctions, unplug the po cord. Continued abnormal operation may result in e shock or fire.

Electrical safety matters

1. The working voltage of the ice maker should be consistent with the famous brand. If the voltage is not in this range, please purchase a regulator above 1000W.
2. Be sure to connect the ground wire and ground it safely. The ground should not be connected to the water pipe or gas pipe.
3. In order to protect the compressor, do not start the ice machine ag within 10 minutes after power off or shutdown.
4. Please do not connect other electrical appliances to the same sock
5. If the power cord is damaged, in order to avoid danger, it must be replaced by a person arranged by the manufacturer or a qualified professional.
6. The electrical control system has a voltage of more than 36V, do not open and touch when used, if you need to repair, please contact the manufacturer or have relevant qualified technical personnel to deal with

WARNING: Do not operate the ice machine when a gas leak occurs environment in which the ice machine is located. Because the spark caused by the opening and closing of the plug or the temperature could may cause a fire, the air source should be cut off and the window opened to allow air to circulate.

Installation Precautions

Requirements for handling and moving conditions:

When transporting, the cabinet should be kept as straight as possible, the inclination should not exceed 45^ at most. Do not invert and lie horizontally.

To operate the ice machine properly and get the best performance place the ice machine in the following conditions:

1. Solid and flat ground

Place the ice machine on a solid, level surface to avoid excessive v and noise.

2.Keep away from the heat source

Avoid placing the ice machine near hot equipment such as gas stove stoves. Heating the ice machine can cause a decrease in cooling efficiency.

3. Avoid direct sunlight

If the ice machine is installed in direct sunlight, it may cause abnormal and may shorten the working life of the ice machine.

4.Dry area

Avoid placing the ice machine in a wet area, for example, near a face near a sink.

Be careful

After receiving the goods, you have to let the compressor's lubricating oil settle for 24 hours to use, otherwise it will easily damage the compres

If the ice machine is placed in a wet area, a switch must be installed and the ice machine m grounded. Install the disconnect switch on the pow For further information, consult the ice machine ret electrical technician.

Caution

Always use a plug with a grounding structure and the ice machine to prevent electric shock during

Replacing a grounding terminal with a water pipe provide proper grounding protection in many situat as plastic pipes are often used in plumbing.

Never ground the ice machine through a gas pipe is very dangerous.

Never ground the ice machine by telephone line lightning protection, because if lightning lightning st a large current will be generated, which makes grounding very dangerous.

1. Nothing will fall to the ice machine.

2. Installation and operating instructions shall be provided with cautionary statements concerning the handling, moving, and use of the ice maker to avoid either damaging the refrigerant tubing or increasing the risk of a leak.

3. The installation and operating instructions shall indicate that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts improper service.

4. The installation instructions shall indicate the ice maker is to be installed in accordance with the safety standard for Refrigeration systems, ASHRAE 15. In addition, the instructions shall indicate that ice maker shall not be installed in corridors or hallways of public buildings.

Environmental conditions:

This equipment is designed in accordance with the following conditions:

1. Indoor use.
2. The altitude is not higher than 2000 meters.
3. The ambient temperature is in the range of 10^ C to 32^ C.
4. When the temperature is not higher than 31 °C, the maximum relat humidity is 80%, and the maximum relative humidity decreases linearly with increasing temperature.

5. The main power supply voltage fluctuation does not exceed ±10% or rated voltage.

6. In accordance with the equipment installation level (over voltage level transient over voltage.

This appliance is used for similar purposes such as:

-- a kitchen area in a store, office or other workplace;

-- Farmers as well as hotels, motels and residential environments; Fam -- hotel environment;

Catering industry and similar non-retail applications. This appliance is intended for general household use.

Correct operation

When using for the first time and continuous operation, please follow rules below.

1. Connect the ice maker to a special socket (the power supply is co with the famous brand).

2. The ice machine needs to run for a long time to stabilize the temp in the ice storage room, and minimize the number of door opening of this period.

3. The ice machine is surrounded by a cooling system for cooling the system. It is forbidden to block the items.

4. After completing the inspection of the operation of the ice machine, on the power of the ice machine and let the machine start making i

- Use an independent water source for the ice machine and check it regularly to prevent low water pressure, fluctuations or filter clogging.

- Do not store any debris in the ice storage room, or freeze or free food in the ice storage room and keep the ice shovel clean.

- When the ice storage bucket is plasticized, it should be lightly open closed. Do not drop the door. After the ice is finished, please close sliding door of the ice storage bin.

- The ice machine should be kept away from heat sources. It is stri

forbidden to use in high temperature or low temperature environment. to avoid direct sunlight, so as not to affect the heat dissipation of the machine.

• Do not directly wash the surface of the ice machine by splashing. Otherwise, it may cause short circuit or electric leakage.
  • After using the ice machine for a period of time, if it is left for a should be energized every 4 months for 4 to 6 hours.

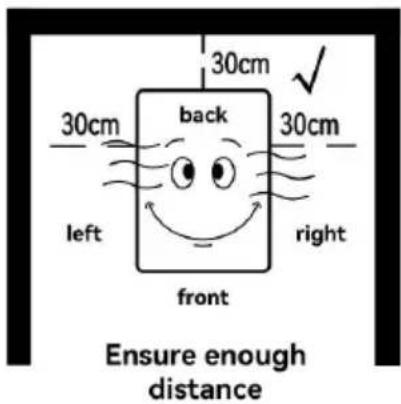

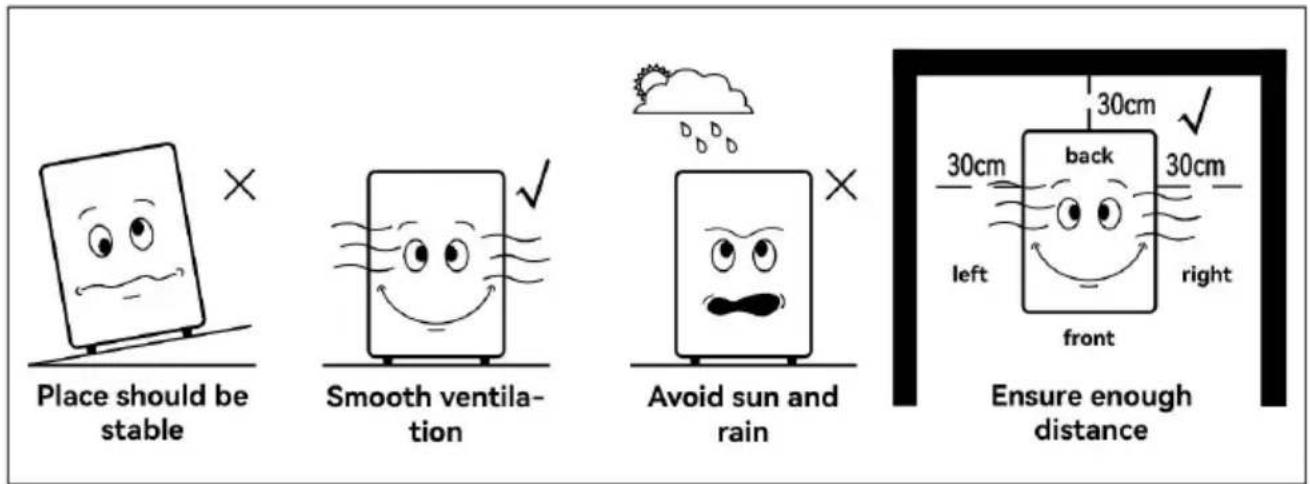

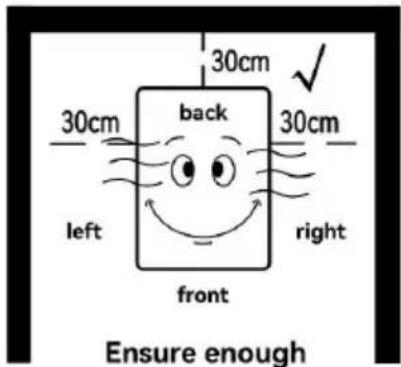

Place should be stable Smooth ventilation Avoid sun and rain Ensure enough distance 30cm back front 30cm 30cm left right 30cm

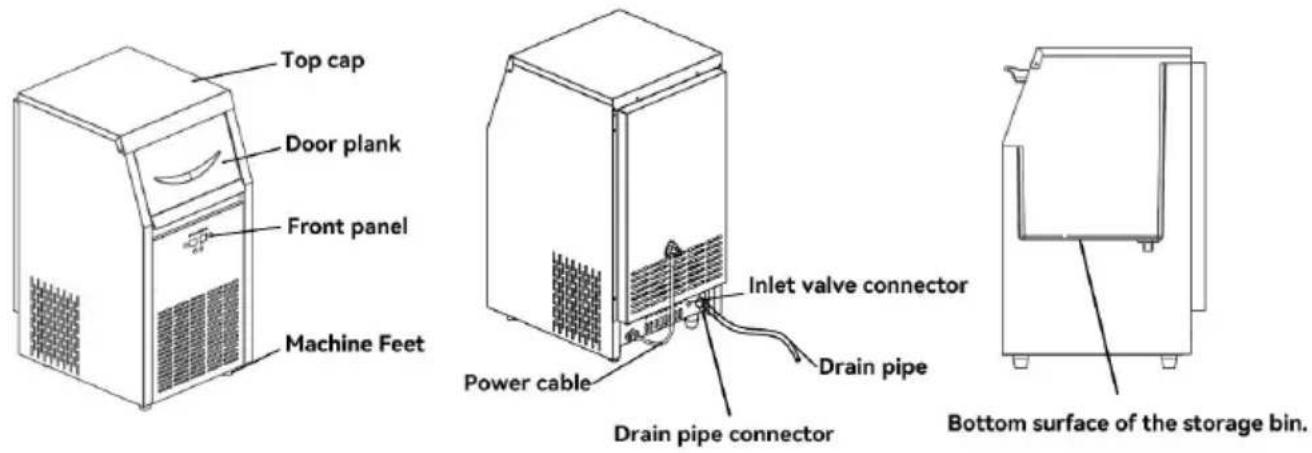

Installation instructions

Due to the product is updated and classified continuously, the machine you get may not be as the same as the picture complete the manual. Please give your understanding. We will improve it continuously.

1. It should use the filtered drinking water with normal temperature to ice.
2. The pressure of water supply should be controlled between 130-55 pa.If the water pressure is over high,please install a relief valve .Do the hose be under high pressure.
3. Please connect the outside branch hose of the machine to the tap drinking water filter. The filter has a sign to show the outlet and inlet
4. Connect the inlet of the filter to the tap of the drinking water.
5. To ensure the smooth drainage of the machine, it is important to that the drainage pipeline is below the bottom surface of the machine drainage pipe of the machine with a drainage pump has to be lower the bottom surface of the storage bin.

Warning

It's merely permitted to connect to the drinking water

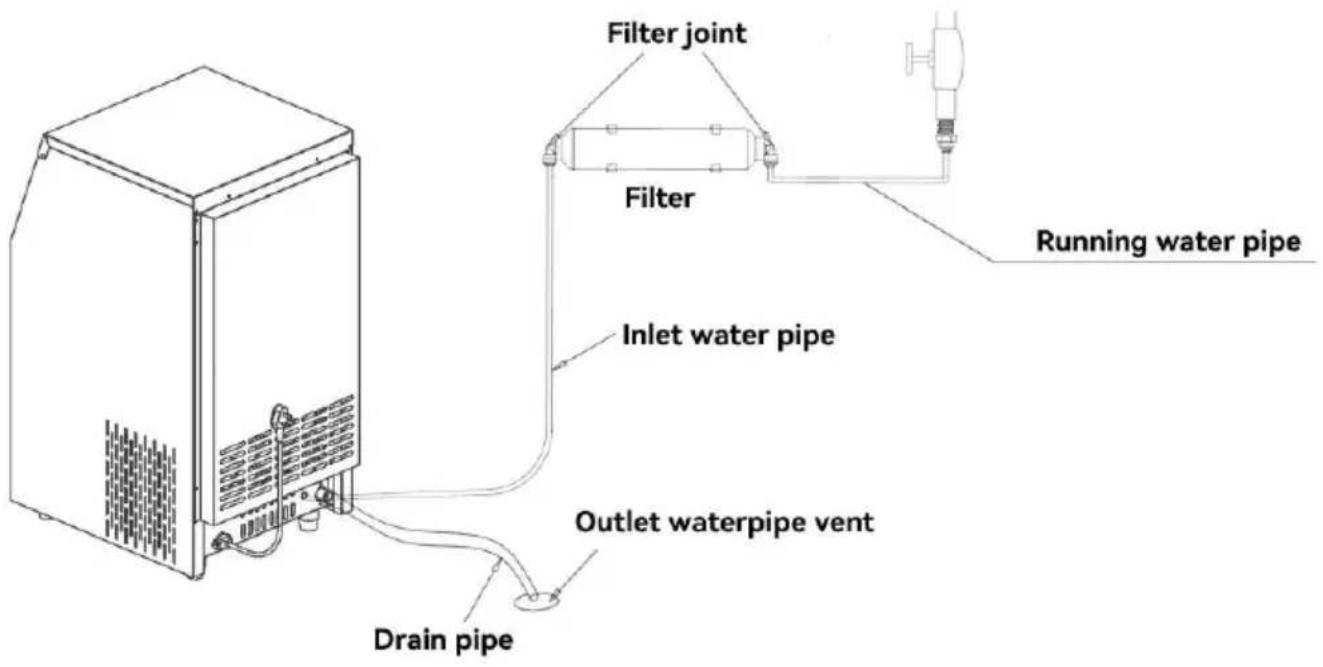

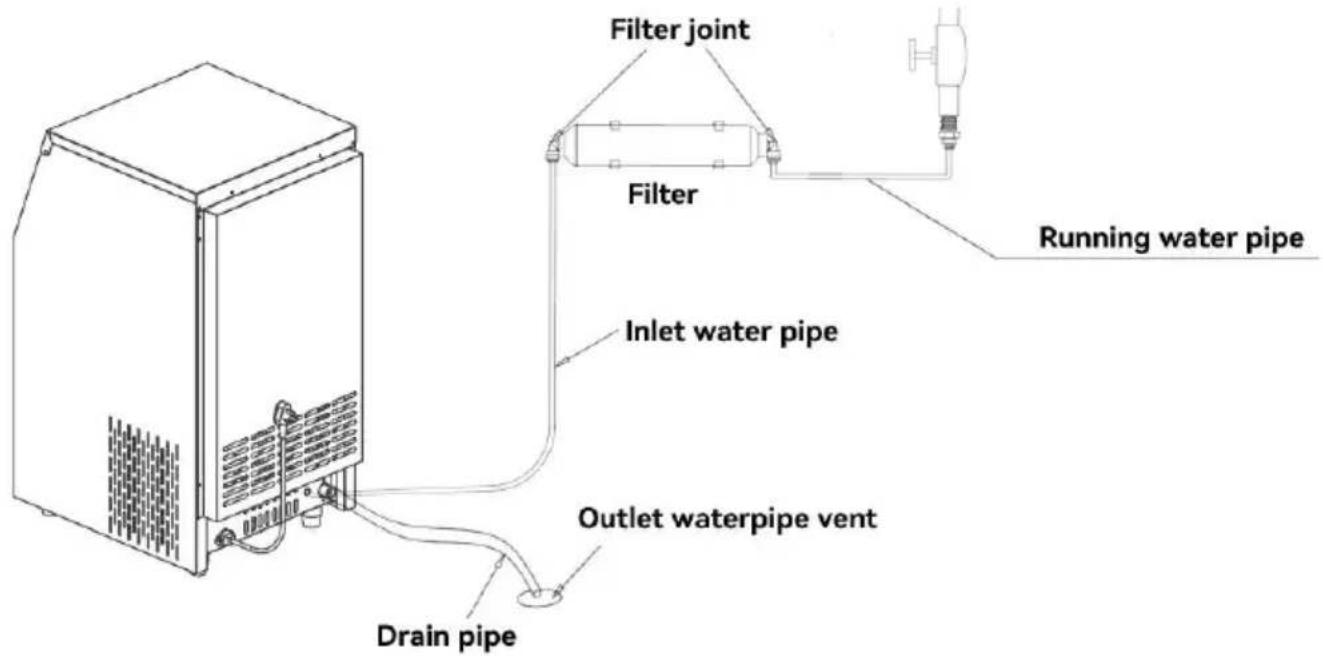

All-in-one installation

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

※ If the ice machine does not come with a filter, customers need to purchase it themselves

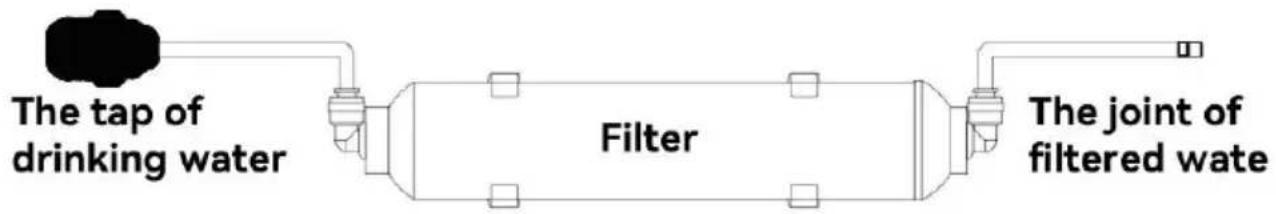

The instructions of the filter installation.

The instructions of the filter installation

The instruction of the filter installation

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

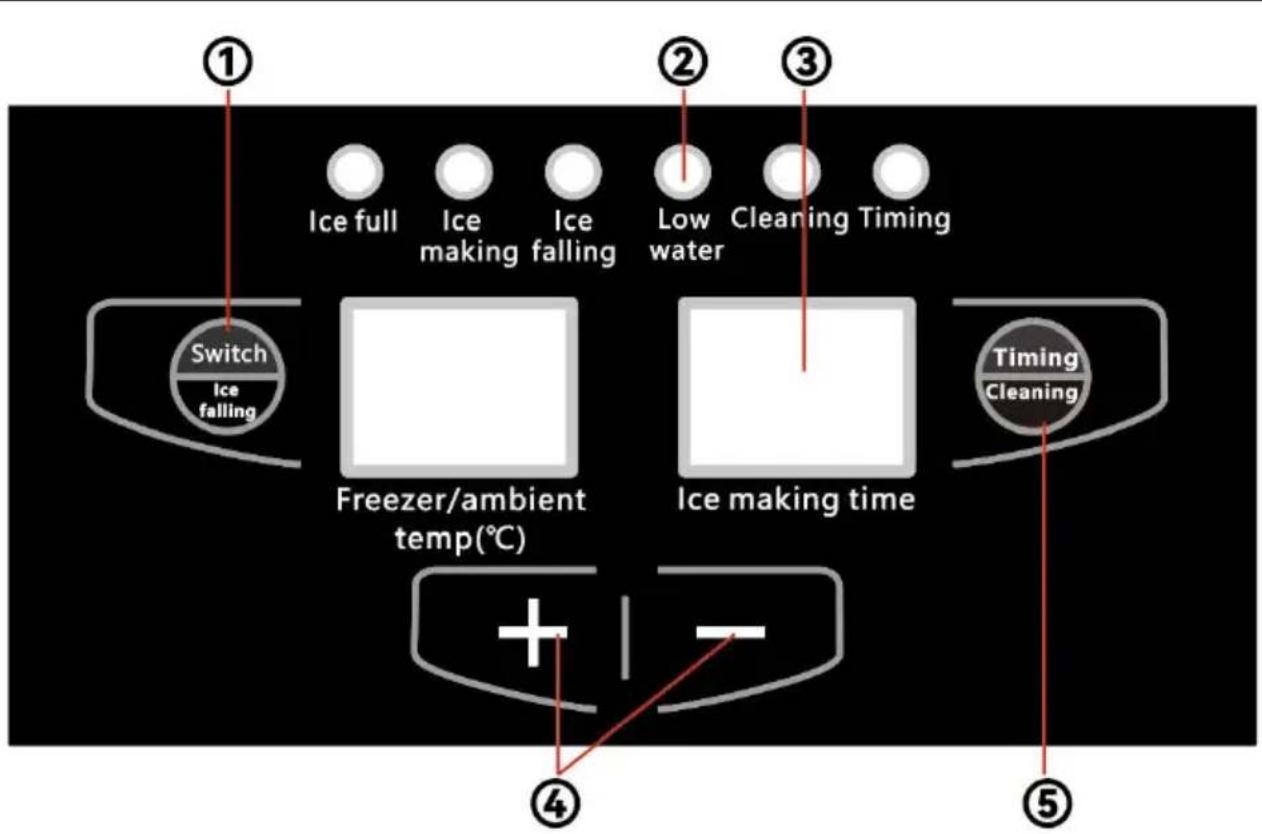

Function description of four-button digital tube operation panel.

① Ice full Ice making falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

① Power switch and deicing key after power on, click to enter making state; Click to enter the deicing state during the ice n process; In the ice-making and de-icing state, press and hold seconds to enter the shutdown state.
② LED light : Represents the state of the machine
③ Digital display tube

The left digital tube displays the ambient temperature and return temperature; The digital tube on the right shows the timing swing and ice making time.

④ +- button;

Adjust the thickness of the ice cube in the working mode; In timing off or timing on and off, Adjust timing switch time; Lon "-" button for 3 seconds to turn on or off the light.

⑤ Cleaning and timing button

In standby mode, press the key continuously for 3 seconds, then enters the cleaning mode; Press this button when starting up the countdown of the scheduled shutdown, and then click to be scheduled shutdown; Press this button in the standby state to countdown of the scheduled power-on, and then click to cancel scheduled power-on; The displayed time unit is hour.

Button Operation Instructions

•Operation process

1. Plug in the power, click the ice machine switch button, the ice m starts to run.
2. Open the water inlet solenoid valve to enter the water. After the level rises, the floating ball floats up. When the water level reaches requirement, the water inlet valve is closed, and the cleaning program run. After the cleaning is completed, it will automatically enter the ice making cycle.
3. When the thickness of the ice cube reaches the set thickness, the deicing program starts, the solenoid valve starts to work, the water press stops working, the heat enters the evaporator, and the ice cube falls about 1.5 minutes. When the ice cube falls, the ice falling baffle Flipp open the reed switch, when the reed switch closes again, the machine goes back into the ice making process.
4. The compressor does not stop during the entire ice making and c process.
5. When the ice bucket is full of ice and the magnetic reed switch closed automatically, the machine will automatically stop working. When

enough ice cubes are removed and the magnetic reed switch is close again, the machine will start up with a delay of 3 minutes and re-er ice making process.

Ice Cube Thickness Adjustment

1. Press and hold the “+” button for 3 seconds until the displayed temperature starts flashing. Then, press the “+” or “-” button to adjust thickness of the ice cubes. Pressing the “+” button will display number minutes, with each increment of 1 minute adding to the current ice-m time, up to a maximum of 15 minutes. Each decrement of 1 minute the ice-making time, with a minimum reduction of -7 minutes. Increasing the ice-making time will result in thicker ice cubes, while decreasing it make the cubes thinner.

2. Once the ice-making time has been adjusted, the new ice-making will apply to the next batch of ice after the current batch has finished

Click the blue light switch to turn it on, otherwise turn it off •Scheduled power-on function

1. In the standby state, press the preset timing key to execute the 1 power-on function, the timing LED light is on, and the displayed numl the remaining power-on time, and the unit is hour.

2. In the timing power-on state, click + or - to adjust the remaining power-on time.

3. After executing the scheduled power-on, click the scheduled reserve button to cancel the scheduled power-on.

- Ice full function

1. When the ice bucket is full of ice and the ice baffle cannot be cl automatically, the machine will stop working automatically.

2. When the ice cubes are used up, the ice baffle will reset, and the machine will automatically start up after a delay of 3 minutes. If the maker stops due to fluctuations in voltage and water pressure, and d not make ice or de-ice, please first After unplugging the power for 5

minutes, turn on the power to test the machine. Due to the change temperature and ambient temperature, ice may sometimes appear in the sink. If the ice is severe, please unplug the power for 10 minutes a turn on the power again.

1. When not in any setting interface, force the drainage pump to work seconds and then end (including standby and startup) by continuously pressing the "-" button twice (effective within 2 seconds).
2. When the machine is powered on, the drainage pump automatically starts for 20 seconds every 15 minutes and then turns off. Note: The machine which is in full ice, ice making, deicing, adding water, lacking water, and short-term cleaning all belong to the startup mode.

Precautions

Please follow the requirement of this manual to maintain your machine order to increase the reliability and longevity of this ice machine, also maintenance can avoid the over energy consumption.

1. Clean the environment around the ice machine frequently to keep clean, and do not block the louvers used for ventilation of the ice m
2. The shell can be cleaned with a neutral detergent, and then wipe a soft cloth. If necessary, commercial stainless steel cleaners and poli can be used.
3. Filters should be checked regularly and replaced with new filters immediately if damaged.
4. The water tank of the ice machine and the interior of the ice stop room can be washed directly with water pipes. Do not use too much pressure, and do not directly flush the water pump and the part above ice tray to prevent the circuit from being soaked.
5. Maintenance of air-cooled ice machine condenser: Clean the air-coo condenser once every three months. Use a soft brush or a vacuum with a brush to brush the condenser fins up and down along the dir the fins to avoid damaging the fins and affecting the cooling effect.

	Any kinds of maintenance are not including to warranty.
	The filter elements should be changed regularly
	Please cut off the waterhead and electricity before clean or check the the machine.
	If there is much dirt and scale in the machine,or of pipes are blocked,please dial the telephone of a service. But, it will cost fees for the door to-door
	The air-cooled condenser warping blade is very sharpen.Be careful of getting hurt when you clear

safety use guide of ice

Routine maintenance and inspection is especially important if the ice i be used as edible ice.

If the ice machine has been used for a long time, the ice produced become entrapped with scale, mold or rust due to temperature, water quality or aging. Therefore, it is important to keep the inside of the refrigerator clean through routine maintenance. If you find foreign matter the bottom of the refrigerator or in the ice during operation or maintenance, please stop using the ice maker and contact the seller immediately.

1. Ice Scoop (clean once a day)

soak the ice scoop in warm water (30\~ 40°C) containing a disinfect solution for more than 3 minutes, then rinse with tap water and wipe

1. Refrigerator door(clean once a day)

since the door of the refrigerator is susceptible to bacterial contaminat make sure to keep it clean by wiping it with a soft cloth with warm Refrigerator, ice scoop holder, and case (clean weekly) .

Important information

1. To prevent deformation or cracking of plastic parts, avoid contact with pesticides or other oily substances.
2. Thoroughly remove the dirt or dust on the ice scooper fixing frame

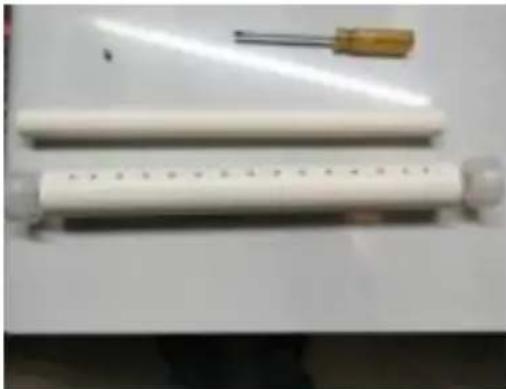

cleaning of the major components

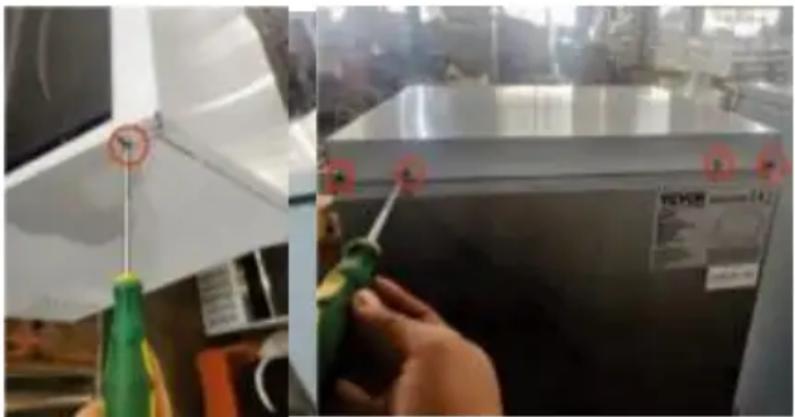

1. Top cover disassembly

There are six screws in front of the top cover of the machine on the right sides and the back, use a cross screwdriver to remove these s screws Counterclockwise, and then gently lift the top cover plate and it in a suitable position.

Two-panel image showing a hand holding a screwdriver next to a device with a green handle; no visible text or symbols.

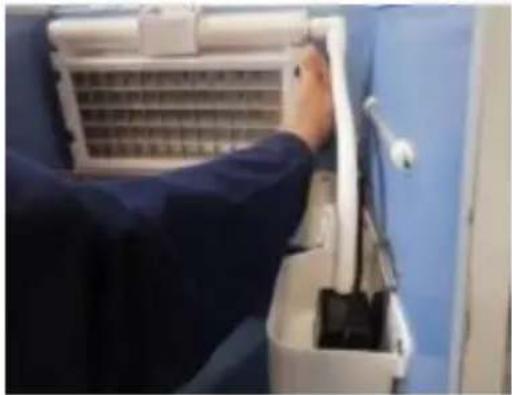

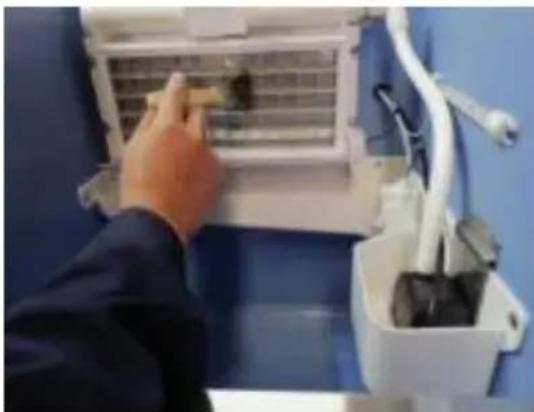

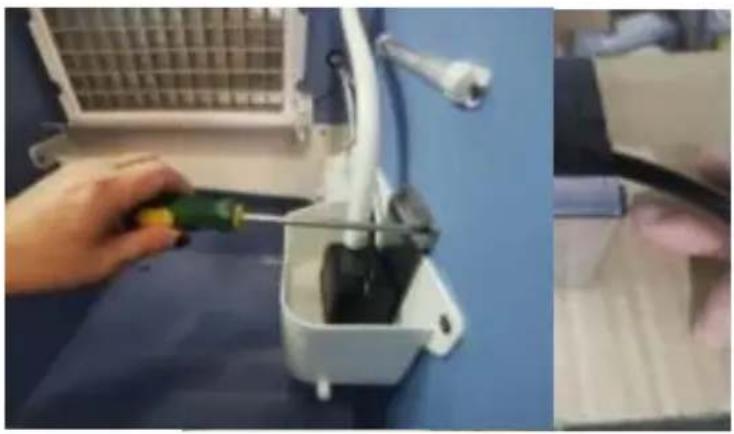

2. Removal and cleaning of water pump (cleaning each 2 months)

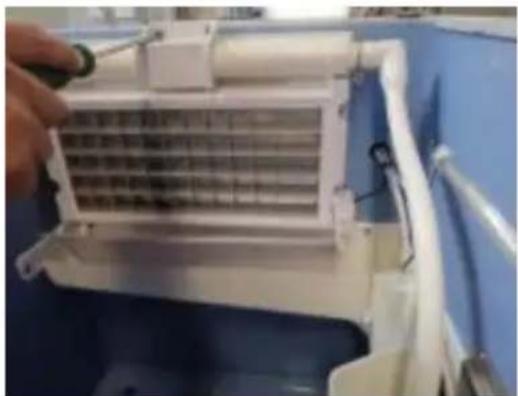

2.1 Remove the two screws above the pump support bracket with a screwdriver, then pull out the pump pumping pipe joint from the pump outlet nozzle, and remove the two screws at the bottom of the pump support, support with a cross screwdriver.

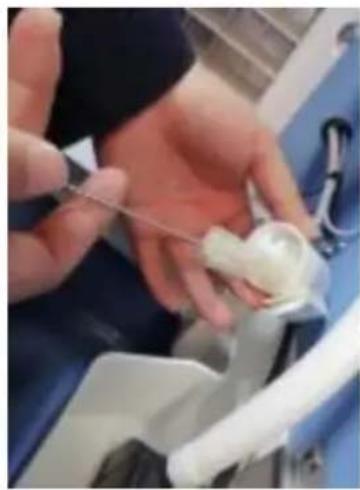

Hand using a screwdriver to adjust or install a mechanical component, with no visible text or symbols.

Figure 1 Figure 2

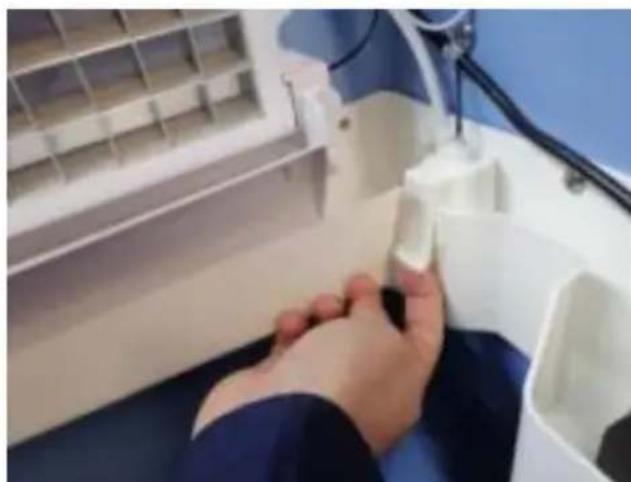

2.2 Remove the front cover filter(Figure 1), and the filter can be rem directly.

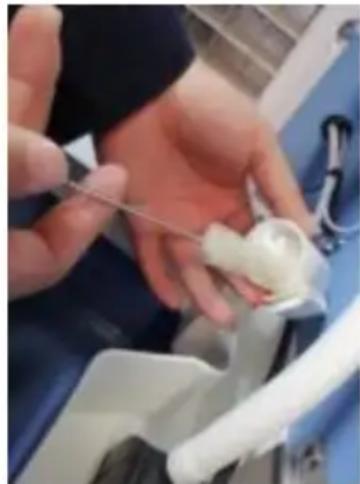

2.3 Rotate the cap counterclockwise and remove the cap (Figure 2).

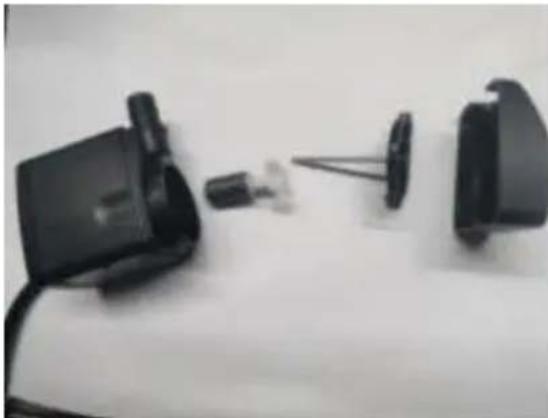

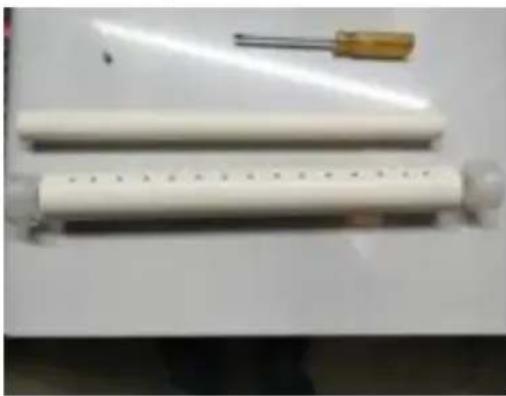

2.4 After removing the sealing lid, remove the rotor. The rotor is fixed the proper position by a magnet, and can be removed only by holdir water leaf with a clip or fingernail(Figure3).

2.5 clean it up and put the water pump back in again.

Black plastic electronic device with attached cable and connector, shown on a plain surface (no text or symbols visible)

Figure 3

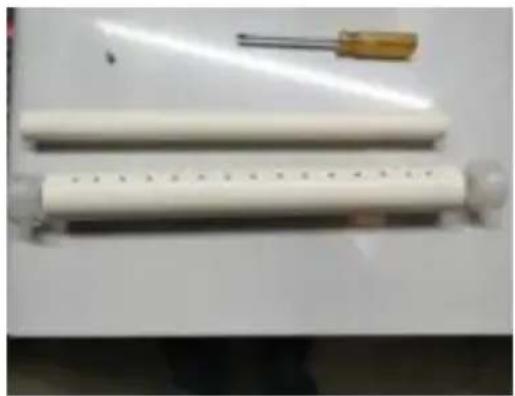

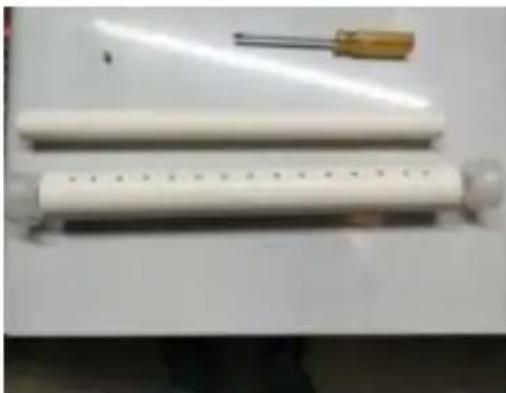

1. Cleaning of ice grids (cleaning each 2 months)

3.1 Hold the clamp on the water pipe, and then pull off the pump

Person in blue lab coat handling a white rack with a laptop, next to a blue cabinet (no visible text or symbols)

3.2 Remove the two screws on the holder of the pipe with a cross screwdriver, then remove the holder and the pipe.

Close-up of a white plastic air conditioner unit being handled by hand, with blue background (no visible text or symbols)

3.3 Wash the ice lattice surface with a soft brush or sponge dipped vinegar or scale remover to clean up the scale.

Person using a white air conditioner unit to clean or install a small electronic device (no visible text or symbols)

3.4 Use a cross screwdriver to remove the fixing screw on the ice pipe, and then remove the left and right plug and the shower pipe at time. Then clean the pipe inside and outside of the shower pipe with brush.

White cylindrical object with a small protrusion on a plain surface (no text or symbols visible)

Two white cylindrical objects with circular ends and a wooden screwdriver on top, placed on a plain surface (no text or symbols visible)

3.5 Clean the pump head hose with a brush.

Close-up of a small object with a yellow block and a white tool, placed on a dark surface (no visible text or symbols)

1. Wash of the float ball (wash once every 2 months)

Remove the float ball assembly from the sink slot and wash the float assembly with a brush.

Close-up of a hand adjusting a white plastic component inside a white container (no visible text or symbols)

Close-up of hands using a tool to apply a small white object on a blue surface (no visible text or symbols)

5.Cleaning of the sink and the storage refrigerator

5.1 Dip in vinegar or scale agent with soft cloth, wipe the surface of and refrigerator, clean the surface.

5.2 The sink is cleaned every 2 months, and the refrigerator is clear

once a week.

6.Daily cleaning of the waterways

6.1 Mix the right amount of citric acid solution with a clean bucket. pour the solution into the sink, click the display screen to clear the After cleaning, pull the tank drain plug, and then drain the citric acid solution in the tank.

VEVOR® 88 88 + -

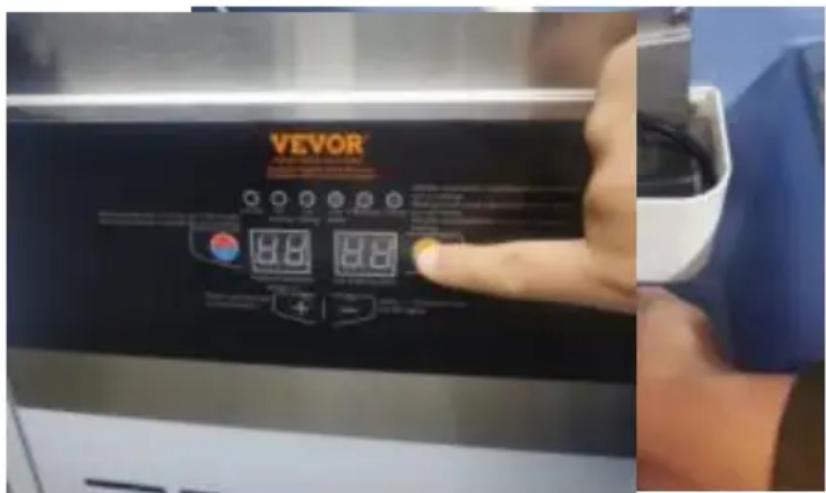

6.2 pour an appropriate amount of water into the sink, then press the key, wash for 3-5 minutes drain the water in the tank, repeat 4-6 tir 6.3 Ensure that the waterway is cleaned every 7-15 days.

Before consulting with after-sales customer service

If the ice maker is operating abnormally, please contact after-sales customer service. However, you need to confirm the following situation

1. If the water head is normal or not.

The correct way to check it is to loosen the inlet joint(6 branch con) behind the machine.if it leaks normally when you loosen the joint to required value,it means normal. otherwise, there is no water.

1. Confirm the machine if it is electrified or not.

our ice machines are all fully automatic.so, some of models don't have electric switch. You can ask for a electric technician to help you check. Mainly, you should pay attention to the socket.

1. The model number and serial number.

There is a nameplate on the front board, and there are model numb

serial number on the side board.

	It will cost fees for the door to door service if caused by the users(for example,no water,no electricity,environment, etc)
	To prevent from high-pressure water spraying ,do loosen the joint of the inlet completely when you o waterhead.
	Plastic parts are not in including to the warran

Warranty

1. Our company agrees the warranty of the product within 1 labor cost and the replacement of components are free within warranty.

2. All the plastic parts are not including to the warranty.

3. Our warranty is limited liability.Except the machine itself,any joint liability is not in the warranty.

4. The routine maintenance ,cleaning,and all the hitches from the incorrect operation are not in the warranty.

5.All the warranty services should be finished by the machine or related institutes.

Troubleshooting of this series of machines

Fault	Possible cause	Solution
Ice machine does not work	Not connected to the power supply or water supply.	1. Fuses 2. Power switch Cable 4. Water switch 5 Power plug 6. Sockets
	Ice tray baffle remain open	If the ice tray baffle could open and close automatica
The machine stops 3 minutes after it's turned on	High Voltage Protection	1. High temperature environment2. Dirty condenser filter3. Damaged fan motor
The machine car only make one tray of ice every time it is turned on	Ice full or ice tray remains open	1. If the ice tray baffle can open and close automatica2. The ice full switch whe be falls
Ice could not fa off the ice tray	Dirty Ice Tray	Cleaning and disinfection needs to be done
	Machine not placed a level ground	Adjust the machine to a leg ground
	Environment temperature is too low	Environment temperature should be higher 5 °C
	The ice is too thick	Adjust tee ice thickness parameter to below 0
	Faulty Solenoid valve	Replace the solenoid valve
Ice too thin or complete	Tank water level is low	Check the water level che if there is any leakage
	Inlet valve does not work	Check the inlet valve
	Not enough water pressure	Water pressure must be 0.13 - 0.55Mpa
	Water pipes are blocked	Check the pipes and join for dirt
Ice making is slow	Condenser is dirty	Clean the condenser
	Temperature too high or the ventilation is t	Ambient temperature should not exceed 40 °C, and ensure ventilation
	The float ball in tank too high or there is leakage	Adjust the float ball or replace the water tank
	Water tank leakage	Replace water tank
	Inlet valve could not closed tightly or leakage	Clean or replace the inlet valve
	Not enough space around the machine	Provide adequate space
Ice full indicator light is lit up b there is no ice	Faulty ice tray baffle	Check if the ice tray baffle stuck
E1 Alarm	Ambient temperature sensor get broken	Replace ambient temperature sensor
E2 Alarm	Return air temperature sensor get broken	Replace return air temperatuer sensor
E1,E2 Alarm	Ambient temperature sensor and return air temperature sensor both get broken	1.replace ambient temperature sensor and return air temperature sensor2.provide enough space

Circuit diagram

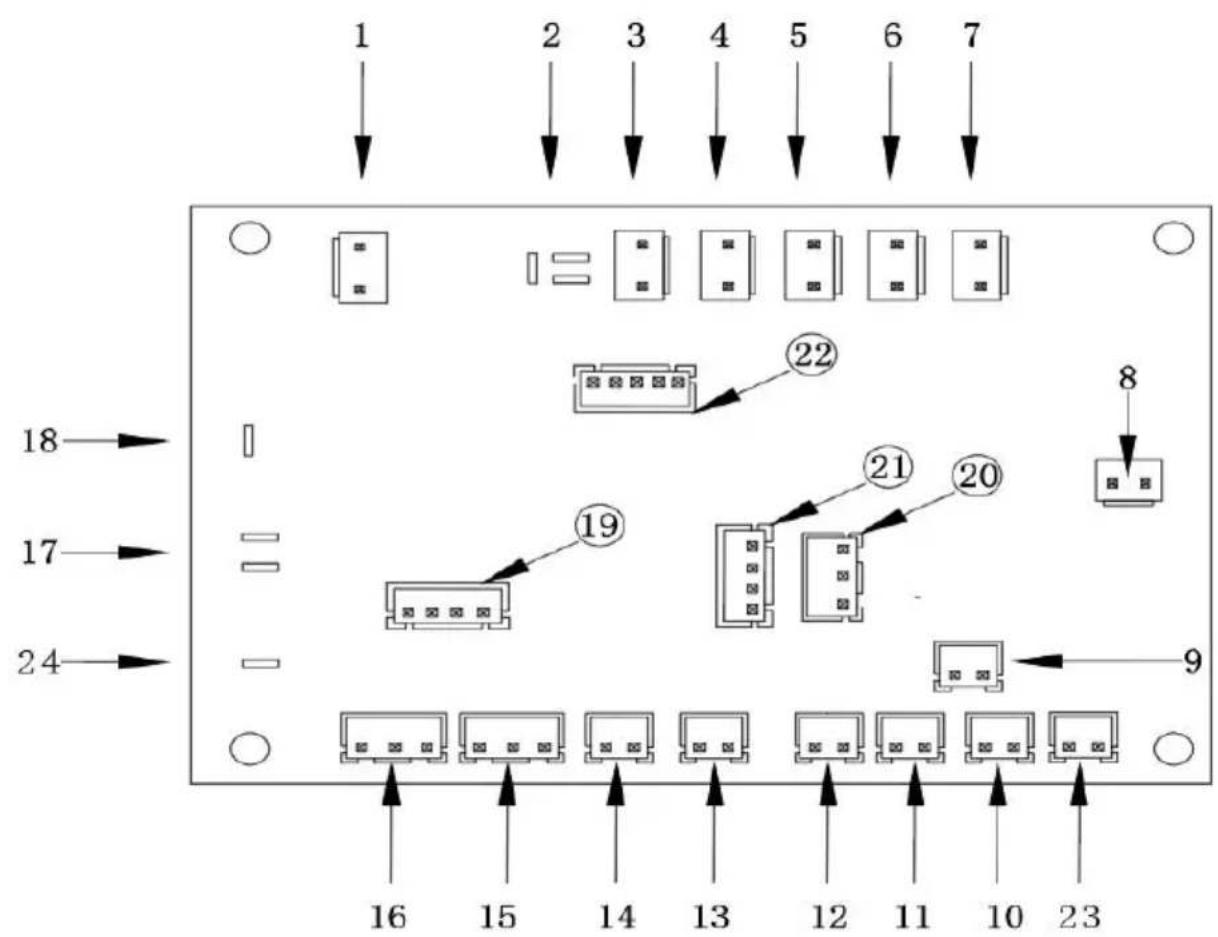

Small ice maker mother board wiring diagram.

1 2 3 4 5 6 7 18— 17— 24— 16 15 14 13 12 11 10 23 9 ②2 ②1 ②0 ①9

1. Elementary Transformer Pavilion
2. Zero line
3. De-icing valve
4. Water pump
5. Fan
6. Inlet valve
7. Drain valve
8. Transformer Secondary
9. Ambient Light
10. blue light
11. Float

12. Evaporation probe

13. Condensation probe

14. Drainage options
15. Blue light control
16. De-icing detection
17. Connect live wire
18. Compressor live wire
19. Connect to Swift serial port
20. Ice full probe
21. Download port
22. Display screen
23. Direct current fan
24. Connect machine

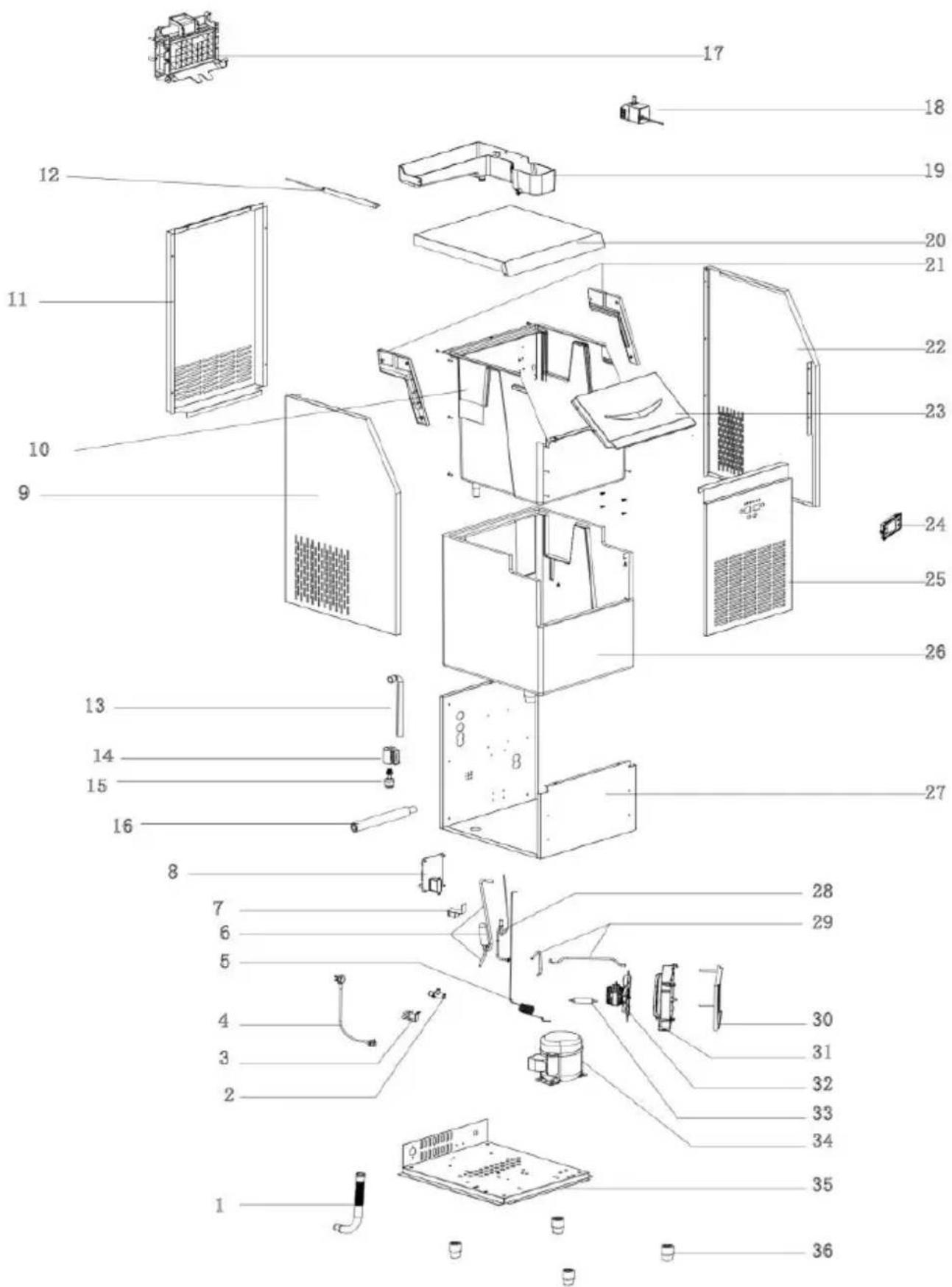

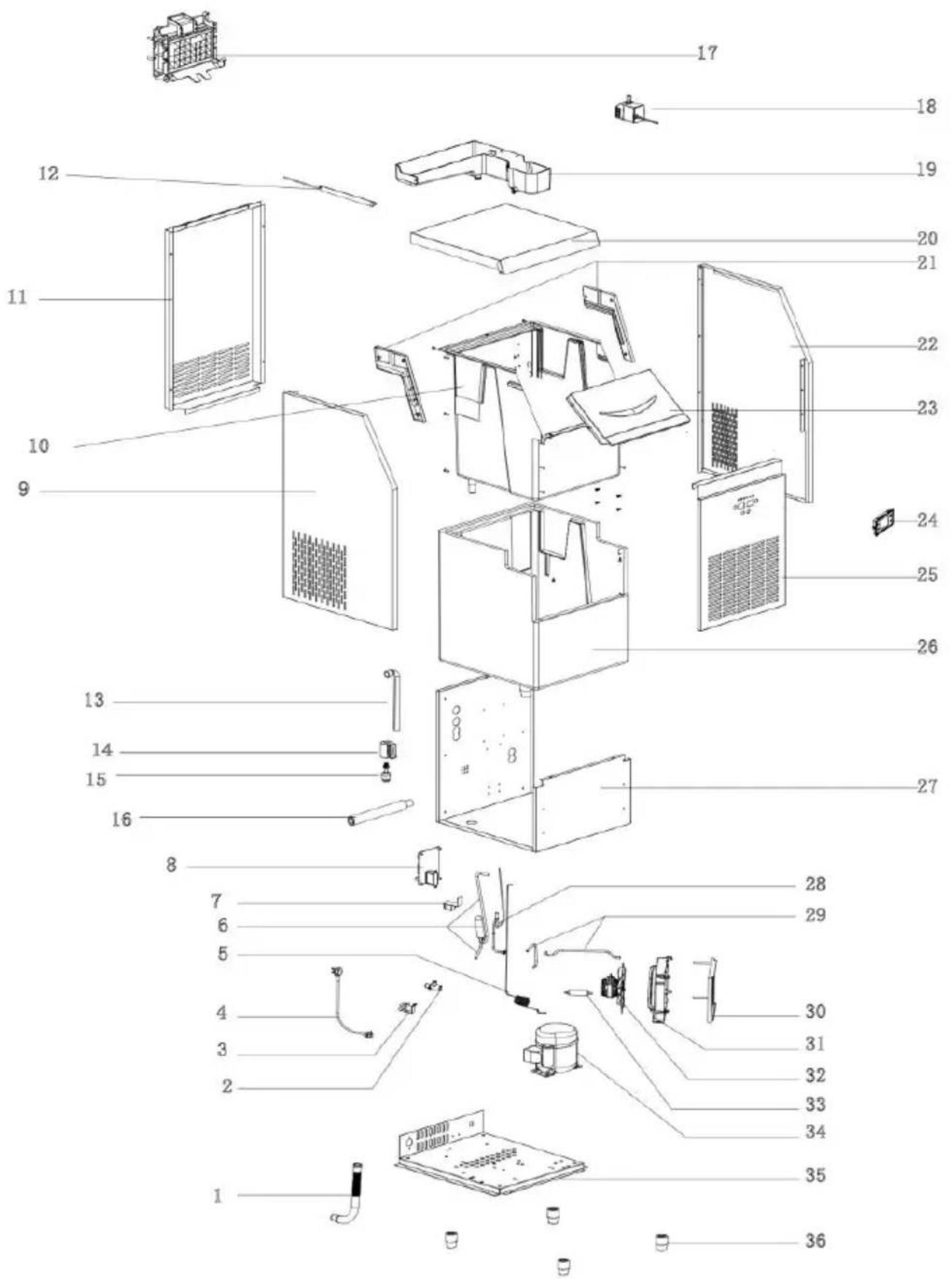

PRODUCT EXPLOSION DIAGRAM

Exploded view diagram of a refrigerator internal structure with numbered components

Reference number	Part name	Reference number	Part name
1	Inner tank drain pipe	19	Water tank / Water trough
2	Drain outlet	20	Top cover panel
3	Water inlet valve	21	Left and right slide r
4	Power cord	22	Right side panel
5	Capillary tube	23	Door panel
6	Liquid reservoir	24	Display screen
7	Solenoid valve coil	25	Front panel
8	Control board	26	Inner tank foam insulation
9	Left side panel	27	Rear panel
10	Inner tank	28	Solenoid valve
11	Rear air vent cover	29	High-pressure tube
12	Blue light LED	30	Condenser
13	Water pump discharge pipe	31	Fan cover
14	Float cove	32	Fan
15	Float ball	33	Filter
16	Ice tray water supply p	34	Compressor
17	Ice tray	35	Base plate
18	Water pump	36	Machine feet

VEVOR

Affordable. Reliable. Home Improvement.

MACHINE À GLACE

MODÈLE : SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODÈLE : SSX65C | SSX160V | SSX200V | SSX265V | SSX360V | SSX440V | SSX80 | SSX90 | SSX100 | SSX110 | SSX120 | SSX130 | SSX140 | SSX300 | SSX440

Four line drawings of industrial cooling machines with no visible text or symbols

The warning diagram and operation safety instruction

Simple cartoon drawing of a sad document character with a wavy line and an 'X' symbol (no text or labels)

Place should be stable

Simple line drawing of a smiling rectangular object with eyes and motion lines, no text or symbols present.

Smooth ventilation

Simple cartoon drawing of a document with an angry face and a neutral mouth, no text or symbols present.

Avoid sun and rain

30cm back 30cm 30cm left front right Ensure enough

Ensure enough distance

Installation instructions

Top cap Door plank Front panel Machine Feet Power cable Drain pipe connector Inlet valve connector Drain pipe Bottom surface of the storage bin.

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making Ice falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

Two-panel image showing a hand holding a green screwdriver near a white appliance; no visible text or symbols.

Hand using a screwdriver to adjust or install a mechanical component on a blue surface (no visible text or symbols)

Figure 1 Figure 2

Black mechanical components including a camera, connector, and shank on a plain surface (no text or symbols visible)

Figure 3

Person in blue uniform handling a white medical device with a device inside a blue room (no visible text or symbols)

Close-up of a white plastic air conditioner unit being handled by hand, with blue background (no visible text or symbols)

Person installing or adjusting a white air conditioner panel on a blue wall (no visible text or symbols)

White cylindrical object resting on a plain surface, possibly a rolled paper or roller (no visible text or symbols)

White cylindrical roller with perforated edges and a small screwdriver attached, placed on a plain surface (no text or symbols visible)

Close-up of a white shelf with a small yellow object on top and a small white object beside it (no visible text or symbols)

Close-up of a hand pressing down on a white plastic container with a rack and handle (no visible text or symbols)

Close-up of hands assembling a small white object with a string, no visible text or symbols

Troubleshooting of this series of machines

SCHÉMA D'EXPLOSION DU PRODUIT

Exploded view diagram of a refrigerator with numbered parts for identification

Affordable. Reliable. Home Improvement.

EISMASCHINE

MODELL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODELL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 SSX140 \ SSX300 \ SSX440

Four line drawings of industrial cooling unit machines, no text or symbols present

The warning diagram and operation safety instruction

Cartoon drawing of a sad document character with a wavy line and an 'X' symbol (no text or symbols on the character itself)

Place should be stable

Simple line drawing of a smiling rectangular character with eyes and mouth, emitting steam (no text or symbols)

Smooth ventilation

Simple cartoon illustration of a sad book character with raindrops and a cloud above, no text or symbols present.

Avoid sun and rain

30cm back 30cm 30cm left front right Ensure enough

Ensure enough distance

Installation instructions

All-in-One-Installation

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making Ice falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

Two-panel image showing a hand holding a screwdriver next to a metallic appliance; no visible text or symbols.

Hand using a screwdriver to adjust or install a mechanical component, with no visible text or symbols.

Black mechanical components including a motor, connector, and shank on a plain surface (no text or symbols visible)

Abbildung 3

Person in blue uniform handling a white air conditioner unit with a handle (no visible text or symbols)

Close-up of a white plastic air conditioner unit with a hand adjusting it, mounted on a blue shelf (no visible text or symbols)

Person installing or adjusting a white air conditioner cover on a blue wall (no visible text or symbols)

White cylindrical object resting on a flat surface, possibly a battery or roller, with no visible text or symbols.

Two white cylindrical rollers with perforated edges, one lying flat and the other with a screwdriver inserted (no text or symbols visible)

Close-up of a small electronic component with a yellow tag and cable, placed on a metallic surface (no visible text or symbols)

Close-up of a hand pressing down on a white plastic container with a blue rack and water outlet (no visible text or symbols)

Close-up of hands assembling a small white object with a tool, no visible text or symbols

Troubleshooting of this series of machines

Exploded view diagram of a refrigerator internal structure with numbered components

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL:SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL:SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 SSX140 \ SSX300 \ SSX440

Four line drawings of industrial cooling machines with no visible text or symbols

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

The warning diagram and operation safety instruction

Prohibition mark	Warning mark	Beware of fire	Dangerous voltage
Indicates a prohibited act that could caus fatal injury or serious injury	Indicates matters that may cause personal injury or damage to items	Indicates that the material used is a combustible material, beware of fire	Indicates a high-voltage electric danger zone, beware of high-voltage electricity

Note: Be sure to keep this manual in a location that users can at any time.

Safe operation precautions.

Caution	After receiving the goods, you have to let the com lubricating oil settle for 24 hours to start the use, it will easily damage the compressor.
	Do not use the ice machine in the open air. Whe machine is wet by rain, it may cause electric leaf electric shock.
	Never place this ice machine in a wet location or subject to splashing water. Damage to the insulation ice machine may cause electric leakage or electric
	Never spray water directly onto the ice machine. A machine may cause electric shock or short circu
	Be sure not to put volatile or flammable substance the ice machine. Storage of such materials may ca explosion or fire.
	The ice machine should only be installed by qua engineers or maintenance personnel. Installing the machine by yourself may cause gas or liquid leaf electric shock or fire.
	Never disassemble, repair, or modify the ice mach such work is performed by unqualified personnel, i cause fire or personal injury due to work failur
	Never ground the ice machine through a gas pipe mains, telephone line or lightning rod. This is cons unsafe to ground.
	Never insert metal materials such as iron pins or v the vents, passage holes or exhaust ports for air c in the tank. This may result in electric shock or injury due to accidental operation of moving par
	Be sure to place the ice machine firmly on a soli the floor is not strong enough or not placed prope cause damage due to the ice machine being turned down or overturned.
	Be sure to use the dedicated power supply specif the nameplate of this ice machine. Using a branch may cause a fire.
	Be sure to insert the power plug firmly into the o removing the dust.A dusty socket or improperly inserted may causeUse a grounded outlet to prevent electric shock. unlikely event that there is no grounded outlet, grounding device must be assembled by a qualif engineering technician. The socket should be in an accessible position after installation.
	If there is any abnormal temperature or alarm in the any reason, you must immediately transfer the cont the box to a safe place to avoid your loss.
	This appliance contains flammable materials and mu disposed of and recycled by qualified personnel a agencies.
	Do not use mechanical equipment or other mean speed up the defrosting process except as recommended by the manufactu
	Do not damage the refrigeration circuit.
	Except for the type recommended by the manufactu appliance must not be used in the food storage ro appliance.
	Use the new hose assembly that comes with the a and the old hose assembly cannot be reused.
	When handling toxic, hazardous or radioactive mate use this ice machine in a safe place. Improper u adversely affect your health and the environmenThe disposal of the ice machine should be done special person. Never throw the ice machine away it be natural. This may cause the child to be shut the ice machine.
	There are no obstructions around the appliance or embedded structure, keeping the ventilation open.
	Unplug the power cord before cleaning, maintaining inspecting the ice machine to prevent electric shock personal injury.
	Some models use flammable refrigerants and flamm foaming agents, beware of fire, (the product has a of fire mark). When an abnormality occurs in the product, it must be repaired by qualified personnel institutions.
	This appliance contains a flammable blowing agercyclopentane, which must be disposed of and recyqualified personnel and institutions.
	Children should be supervised to ensure that children not play with the machine.
	When the ice machine malfunctions, unplug the po cord. Continued abnormal operation may result in e shock or fire.

Electrical safety matters

1. The working voltage of the ice maker should be consistent with the famous brand. If the voltage is not in this range, please purchase a regulator above 1000W.
2. Be sure to connect the ground wire and ground it safely. The ground should not be connected to the water pipe or gas pipe.
3. In order to protect the compressor, do not start the ice machine ag within 10 minutes after power off or shutdown.
4. Please do not connect other electrical appliances to the same sock
5. If the power cord is damaged, in order to avoid danger, it must be replaced by a person arranged by the manufacturer or a qualified professional.
6. The electrical control system has a voltage of more than 36V, do not open and touch when used, if you need to repair, please contact the manufacturer or have relevant qualified technical personnel to deal with

WARNING: Do not operate the ice machine when a gas leak occurs environment in which the ice machine is located. Because the spark caused by the opening and closing of the plug or the temperature could may cause a fire, the air source should be cut off and the window opened to allow air to circulate.

Installation Precautions

Requirements for handling and moving conditions:

When transporting, the cabinet should be kept as straight as possible, the inclination should not exceed 45^ at most. Do not invert and lie horizontally.

To operate the ice machine properly and get the best performance place the ice machine in the following conditions:

1. Solid and flat ground

Place the ice machine on a solid, level surface to avoid excessive v and noise.

2.Keep away from the heat source

Avoid placing the ice machine near hot equipment such as gas stove stoves. Heating the ice machine can cause a decrease in cooling efficiency.

3. Avoid direct sunlight

If the ice machine is installed in direct sunlight, it may cause abnormal and may shorten the working life of the ice machine.

4.Dry area

Avoid placing the ice machine in a wet area, for example, near a face near a sink.

Be careful

After receiving the goods, you have to let the compressor's lubricating oil settle for 24 hours to use, otherwise it will easily damage the compres

If the ice machine is placed in a wet area, a switch must be installed and the ice machine m grounded. Install the disconnect switch on the pow For further information, consult the ice machine ret electrical technician.

Caution

Always use a plug with a grounding structure and the ice machine to prevent electric shock during

Replacing a grounding terminal with a water pipe provide proper grounding protection in many situat as plastic pipes are often used in plumbing.

Never ground the ice machine through a gas pipe is very dangerous.

Never ground the ice machine by telephone line lightning protection, because if lightning lightning st a large current will be generated, which makes grounding very dangerous.

1. Nothing will fall to the ice machine.

2. Installation and operating instructions shall be provided with cautionary statements concerning the handling, moving, and use of the ice maker to avoid either damaging the refrigerant tubing or increasing the risk of a leak.

3. The installation and operating instructions shall indicate that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts improper service.

4. The installation instructions shall indicate the ice maker is to be installed in accordance with the safety standard for Refrigeration systems, ASHRAE 15. In addition, the instructions shall indicate that ice maker shall not be installed in corridors or hallways of public buildings.

Environmental conditions:

This equipment is designed in accordance with the following conditions:

1. Indoor use.
2. The altitude is not higher than 2000 meters.
3. The ambient temperature is in the range of 10^ C to 32^ C.
4. When the temperature is not higher than 31 °C, the maximum relat humidity is 80%, and the maximum relative humidity decreases linearly with increasing temperature.

5. The main power supply voltage fluctuation does not exceed ±10% or rated voltage.

6. In accordance with the equipment installation level (over voltage level transient over voltage.

This appliance is used for similar purposes such as:

-- a kitchen area in a store, office or other workplace;

-- Farmers as well as hotels, motels and residential environments; Fam -- hotel environment;

Catering industry and similar non-retail applications. This appliance is intended for general household use.

Correct operation

When using for the first time and continuous operation, please follow rules below.

1. Connect the ice maker to a special socket (the power supply is co with the famous brand).

2. The ice machine needs to run for a long time to stabilize the temp in the ice storage room, and minimize the number of door opening of this period.

3. The ice machine is surrounded by a cooling system for cooling the system. It is forbidden to block the items.

4. After completing the inspection of the operation of the ice machine, on the power of the ice machine and let the machine start making i

- Use an independent water source for the ice machine and check it regularly to prevent low water pressure, fluctuations or filter clogging.

- Do not store any debris in the ice storage room, or freeze or free food in the ice storage room and keep the ice shovel clean.

- When the ice storage bucket is plasticized, it should be lightly open closed. Do not drop the door. After the ice is finished, please close sliding door of the ice storage bin.

- The ice machine should be kept away from heat sources. It is stri

forbidden to use in high temperature or low temperature environment. to avoid direct sunlight, so as not to affect the heat dissipation of the machine.

• Do not directly wash the surface of the ice machine by splashing. Otherwise, it may cause short circuit or electric leakage.
  • After using the ice machine for a period of time, if it is left for a should be energized every 4 months for 4 to 6 hours.

Place should be stable Smooth ventilation Avoid sun and rain Ensure enough distance 30cm back front 30cm 30cm left right 30cm

Installation instructions

Due to the product is updated and classified continuously, the machine you get may not be as the same as the picture complete the manual. Please give your understanding. We will improve it continuously.

1. It should use the filtered drinking water with normal temperature to ice.
2. The pressure of water supply should be controlled between 130-55 pa.If the water pressure is over high,please install a relief valve .Do the hose be under high pressure.
3. Please connect the outside branch hose of the machine to the tap drinking water filter. The filter has a sign to show the outlet and inlet
4. Connect the inlet of the filter to the tap of the drinking water.
5. To ensure the smooth drainage of the machine, it is important to that the drainage pipeline is below the bottom surface of the machine drainage pipe of the machine with a drainage pump has to be lower the bottom surface of the storage bin.

Warning

It's merely permitted to connect to the drinking water

All-in-one installation

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

※ If the ice machine does not come with a filter, customers need to purchase it themselves

The instructions of the filter installation.

The instructions of the filter installation

The instruction of the filter installation

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

Function description of four-button digital tube operation panel.

① Ice full Ice making falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

① Power switch and deicing key after power on, click to enter making state; Click to enter the deicing state during the ice n process; In the ice-making and de-icing state, press and hold seconds to enter the shutdown state.
② LED light : Represents the state of the machine
③ Digital display tube

The left digital tube displays the ambient temperature and return temperature; The digital tube on the right shows the timing swing and ice making time.

④ +- button;

Adjust the thickness of the ice cube in the working mode; In timing off or timing on and off, Adjust timing switch time; Lon "-" button for 3 seconds to turn on or off the light.

⑤ Cleaning and timing button

In standby mode, press the key continuously for 3 seconds, then enters the cleaning mode; Press this button when starting up the countdown of the scheduled shutdown, and then click to be scheduled shutdown; Press this button in the standby state to countdown of the scheduled power-on, and then click to cancel scheduled power-on; The displayed time unit is hour.

Button Operation Instructions

•Operation process

1. Plug in the power, click the ice machine switch button, the ice m starts to run.
2. Open the water inlet solenoid valve to enter the water. After the level rises, the floating ball floats up. When the water level reaches requirement, the water inlet valve is closed, and the cleaning program run. After the cleaning is completed, it will automatically enter the ice making cycle.
3. When the thickness of the ice cube reaches the set thickness, the deicing program starts, the solenoid valve starts to work, the water press stops working, the heat enters the evaporator, and the ice cube falls about 1.5 minutes. When the ice cube falls, the ice falling baffle Flipp open the reed switch, when the reed switch closes again, the machine goes back into the ice making process.
4. The compressor does not stop during the entire ice making and c process.
5. When the ice bucket is full of ice and the magnetic reed switch closed automatically, the machine will automatically stop working. When

enough ice cubes are removed and the magnetic reed switch is close again, the machine will start up with a delay of 3 minutes and re-er ice making process.

Ice Cube Thickness Adjustment

1. Press and hold the “+” button for 3 seconds until the displayed temperature starts flashing. Then, press the “+” or “-” button to adjust thickness of the ice cubes. Pressing the “+” button will display number minutes, with each increment of 1 minute adding to the current ice-m time, up to a maximum of 15 minutes. Each decrement of 1 minute the ice-making time, with a minimum reduction of -7 minutes. Increasing the ice-making time will result in thicker ice cubes, while decreasing it make the cubes thinner.

2. Once the ice-making time has been adjusted, the new ice-making will apply to the next batch of ice after the current batch has finished

Click the blue light switch to turn it on, otherwise turn it off •Scheduled power-on function

1. In the standby state, press the preset timing key to execute the power-on function, the timing LED light is on, and the displayed number the remaining power-on time, and the unit is hour.
2. In the timing power-on state, click + or - to adjust the remaining power-on time.
3. After executing the scheduled power-on, click the scheduled reserve button to cancel the scheduled power-on.

- Ice full function

1. When the ice bucket is full of ice and the ice baffle cannot be clear automatically, the machine will stop working automatically.
2. When the ice cubes are used up, the ice baffle will reset, and the machine will automatically start up after a delay of 3 minutes. If the maker stops due to fluctuations in voltage and water pressure, and d not make ice or de-ice, please first After unplugging the power for 5

minutes, turn on the power to test the machine. Due to the change temperature and ambient temperature, ice may sometimes appear in the sink. If the ice is severe, please unplug the power for 10 minutes a turn on the power again.

1. When not in any setting interface, force the drainage pump to work seconds and then end (including standby and startup) by continuously pressing the "-" button twice (effective within 2 seconds).
2. When the machine is powered on, the drainage pump automatically starts for 20 seconds every 15 minutes and then turns off. Note: The machine which is in full ice, ice making, deicing, adding water, lacking water, and short-term cleaning all belong to the startup mode.

Precautions

Please follow the requirement of this manual to maintain your machine order to increase the reliability and longevity of this ice machine, also maintenance can avoid the over energy consumption.

1. Clean the environment around the ice machine frequently to keep clean, and do not block the louvers used for ventilation of the ice m
2. The shell can be cleaned with a neutral detergent, and then wipe a soft cloth. If necessary, commercial stainless steel cleaners and poli can be used.
3. Filters should be checked regularly and replaced with new filters immediately if damaged.
4. The water tank of the ice machine and the interior of the ice stop room can be washed directly with water pipes. Do not use too much pressure, and do not directly flush the water pump and the part above ice tray to prevent the circuit from being soaked.
5. Maintenance of air-cooled ice machine condenser: Clean the air-coo condenser once every three months. Use a soft brush or a vacuum with a brush to brush the condenser fins up and down along the dir the fins to avoid damaging the fins and affecting the cooling effect.

	Any kinds of maintenance are not including to warranty.
	The filter elements should be changed regularly
	Please cut off the waterhead and electricity before clean or check the the machine.
	If there is much dirt and scale in the machine,or of pipes are blocked,please dial the telephone of a service. But, it will cost fees for the door to-door
	The air-cooled condenser warping blade is very sharpen.Be careful of getting hurt when you clear

safety use guide of ice

Routine maintenance and inspection is especially important if the ice i be used as edible ice.

If the ice machine has been used for a long time, the ice produced become entrapped with scale, mold or rust due to temperature, water quality or aging. Therefore, it is important to keep the inside of the refrigerator clean through routine maintenance. If you find foreign matter the bottom of the refrigerator or in the ice during operation or maintenance, please stop using the ice maker and contact the seller immediately.

1. Ice Scoop (clean once a day)

soak the ice scoop in warm water (30\~ 40°C) containing a disinfect solution for more than 3 minutes, then rinse with tap water and wipe

1. Refrigerator door(clean once a day)

since the door of the refrigerator is susceptible to bacterial contaminat make sure to keep it clean by wiping it with a soft cloth with warm Refrigerator, ice scoop holder, and case (clean weekly) .

Important information

1. To prevent deformation or cracking of plastic parts, avoid contact with pesticides or other oily substances.
2. Thoroughly remove the dirt or dust on the ice scooper fixing frame

cleaning of the major components

1. Top cover disassembly

There are six screws in front of the top cover of the machine on the right sides and the back, use a cross screwdriver to remove these s screws Counterclockwise, and then gently lift the top cover plate and it in a suitable position.

Two-panel image showing a hand holding a screwdriver next to a device with a green handle; no visible text or symbols.

2. Removal and cleaning of water pump (cleaning each 2 months)

2.1 Remove the two screws above the pump support bracket with a screwdriver, then pull out the pump pumping pipe joint from the pump outlet nozzle, and remove the two screws at the bottom of the pump support, support with a cross screwdriver.

Hand using a screwdriver to adjust or install a mechanical component, with no visible text or symbols.

Figure 1 Figure 2

2.2 Remove the front cover filter(Figure 1), and the filter can be rem directly.

2.3 Rotate the cap counterclockwise and remove the cap (Figure 2).

2.4 After removing the sealing lid, remove the rotor. The rotor is fixed the proper position by a magnet, and can be removed only by holdir water leaf with a clip or fingernail(Figure3).

2.5 clean it up and put the water pump back in again.

Black plastic electronic device with attached cable, connector, and lens (no visible text or symbols)

Figure 3

1. Cleaning of ice grids (cleaning each 2 months)

3.1 Hold the clamp on the water pipe, and then pull off the pump

Person in blue lab coat handling a white air conditioner unit with a blue door (no visible text or symbols)

3.2 Remove the two screws on the holder of the pipe with a cross screwdriver, then remove the holder and the pipe.

Close-up of a white plastic air vent or filter unit being handled by hand, with blue background (no visible text or symbols)

3.3 Wash the ice lattice surface with a soft brush or sponge dipped vinegar or scale remover to clean up the scale.

Person using a white air conditioner unit to clean or install a small electronic device (no visible text or symbols)

3.4 Use a cross screwdriver to remove the fixing screw on the ice pipe, and then remove the left and right plug and the shower pipe at time. Then clean the pipe inside and outside of the shower pipe with brush.

White cylindrical object with a small protrusion on a plain surface (no text or symbols visible)

Two white cylindrical objects with circular ends and a wooden screwdriver on top, placed on a plain surface (no text or symbols visible)

3.5 Clean the pump head hose with a brush.

Close-up of a small object on a metallic surface, possibly a tool or device, with no visible text or symbols.

1. Wash of the float ball (wash once every 2 months)

Remove the float ball assembly from the sink slot and wash the float assembly with a brush.

Close-up of a hand adjusting a white plastic component inside a white container (no visible text or symbols)

Close-up of hands assembling a small white object with a tool, no visible text or symbols

5.Cleaning of the sink and the storage refrigerator

5.1 Dip in vinegar or scale agent with soft cloth, wipe the surface of and refrigerator, clean the surface.

5.2 The sink is cleaned every 2 months, and the refrigerator is clear

once a week.

6.Daily cleaning of the waterways

6.1 Mix the right amount of citric acid solution with a clean bucket. pour the solution into the sink, click the display screen to clear the After cleaning, pull the tank drain plug, and then drain the citric acid solution in the tank.

VEVOR® 88 88 + -

6.2 pour an appropriate amount of water into the sink, then press the key, wash for 3-5 minutes drain the water in the tank, repeat 4-6 tir 6.3 Ensure that the waterway is cleaned every 7-15 days.

Before consulting with after-sales customer service

If the ice maker is operating abnormally, please contact after-sales customer service. However, you need to confirm the following situation

1. If the water head is normal or not.

The correct way to check it is to loosen the inlet joint(6 branch con) behind the machine.if it leaks normally when you loosen the joint to required value,it means normal. otherwise, there is no water.

1. Confirm the machine if it is electrified or not.

our ice machines are all fully automatic.so, some of models don't have electric switch. You can ask for a electric technician to help you check. Mainly, you should pay attention to the socket.

1. The model number and serial number.

There is a nameplate on the front board, and there are model numb

serial number on the side board.

	It will cost fees for the door to door service if caused by the users(for example,no water,no electricity,environment, etc)
	To prevent from high-pressure water spraying ,do loosen the joint of the inlet completely when you o waterhead.
	Plastic parts are not in including to the warran

Warranty

1. Our company agrees the warranty of the product within 1 labor cost and the replacement of components are free within warranty.

2. All the plastic parts are not including to the warranty.

3. Our warranty is limited liability.Except the machine itself,any joint liability is not in the warranty.

4. The routine maintenance ,cleaning,and all the hitches from the incorrect operation are not in the warranty.

5.All the warranty services should be finished by the machine or related institutes.

Troubleshooting of this series of machines

Fault	Possible cause	Solution
Ice machine does not work	Not connected to the power supply or water supply.	1. Fuses 2. Power switch Cable 4. Water switch 5 Power plug 6. Sockets
	Ice tray baffle remain open	If the ice tray baffle could open and close automatica
The machine stops 3 minutes after it's turned on	High Voltage Protection	1. High temperature environment2. Dirty condenser filter3. Damaged fan motor
The machine car only make one tray of ice every time it is turned on	Ice full or ice tray remains open	1. If the ice tray baffle can open and close automatica2. The ice full switch whe be falls
Ice could not fa off the ice tray	Dirty Ice Tray	Cleaning and disinfection needs to be done
	Machine not placed a level ground	Adjust the machine to a leg ground
	Environment temperature is too low	Environment temperature should be higher 5 °C
	The ice is too thick	Adjust tee ice thickness parameter to below 0
	Faulty Solenoid valve	Replace the solenoid valve
Ice too thin or complete	Tank water level is low	Check the water level che if there is any leakage
	Inlet valve does not work	Check the inlet valve
	Not enough water pressure	Water pressure must be 0.13 - 0.55Mpa
	Water pipes are blocked	Check the pipes and join for dirt
Ice making is slow	Condenser is dirty	Clean the condenser
	Temperature too high or the ventilation is t	Ambient temperature should not exceed 40 °C, and ensure ventilation
	The float ball in tank too high or there is leakage	Adjust the float ball or replace the water tank
	Water tank leakage	Replace water tank
	Inlet valve could not closed tightly or leakage	Clean or replace the inlet valve
	Not enough space around the machine	Provide adequate space
Ice full indicator light is lit up b there is no ice	Faulty ice tray baffle	Check if the ice tray baffle stuck
E1 Alarm	Ambient temperature sensor get broken	Replace ambient temperature sensor
E2 Alarm	Return air temperature sensor get broken	Replace return air temperatuer sensor
E1,E2 Alarm	Ambient temperature sensor and return air temperature sensor both get broken	1.replace ambient temperature sensor and return air temperature sensor2.provide enough space

Circuit diagram

Small ice maker mother board wiring diagram.

1 2 3 4 5 6 7 18— 17— 24— 16 15 14 13 12 11 10 23 9 ②2 ②1 ②0 ①9

1. Elementary Transformer Pavilion
2. Zero line
3. De-icing valve
4. Water pump
5. Fan
6. Inlet valve
7. Drain valve
8. Transformer Secondary
9. Ambient Light
10. blue light
11. Float

12. Evaporation probe

13. Condensation probe

14. Drainage options
15. Blue light control
16. De-icing detection
17. Connect live wire
18. Compressor live wire
19. Connect to Swift serial port
20. Ice full probe
21. Download port
22. Display screen
23. Direct current fan
24. Connect machine

PRODUCT EXPLOSION DIAGRAM

Exploded view diagram of a refrigerator internal structure with numbered components

Reference number	Part name	Reference number	Part name
1	Inner tank drain pipe	19	Water tank / Water trough
2	Drain outlet	20	Top cover panel
3	Water inlet valve	21	Left and right slide r
4	Power cord	22	Right side panel
5	Capillary tube	23	Door panel
6	Liquid reservoir	24	Display screen
7	Solenoid valve coil	25	Front panel
8	Control board	26	Inner tank foam insulation
9	Left side panel	27	Rear panel
10	Inner tank	28	Solenoid valve
11	Rear air vent cover	29	High-pressure tube
12	Blue light LED	30	Condenser
13	Water pump discharge pipe	31	Fan cover
14	Float cove	32	Fan
15	Float ball	33	Filter
16	Ice tray water supply p	34	Compressor
17	Ice tray	35	Base plate
18	Water pump	36	Machine feet

VEVOR

Affordable. Reliable. Home Improvement.

ICE MA CHINE

MODEL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODEL: SSX65C | SSX160V | SSX200V | SSX265V | SSX360V | SSX440V | SSX80 | SSX90 | SSX100 | SSX110 | SSX120 | SSX130 SSX140 | SSX300 | SSX440

Four line drawings of industrial cooling machines with no visible text or symbols

The warning diagram and operation safety instruction

Simple cartoon drawing of a sad document character with a wavy line and a cross symbol (no text or labels)

Place should be stable

Simple line drawing of a smiling rectangular object with eyes and smoke, no text or symbols present

Smooth ventilation

Simple cartoon drawing of a document with an angry face and a neutral mouth, no text or symbols present.

Avoid sun and rain

30cm back 30cm 30cm left front right Ensure enough

Ensure enough distance

Installation instructions

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making Ice falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

1. Boven c over demontage

Two-panel image showing a kitchen appliance with a screwdriver and a hand holding a green tool, both without visible text or symbols.

Person using a screwdriver to adjust or install a mechanical component on a blue surface (no visible text or symbols)

Figuur 1 Figuur 2

Black mechanical components including a camera, connector, and shank on a plain surface (no text or symbols visible)

Figuur 3

Person in blue uniform handling a white air conditioner unit with a handle, next to a blue door (no visible text or symbols)

Close-up of a white air conditioner unit with cooling fins and a hand adjusting it (no visible text or symbols)

Person installing or adjusting a white air conditioner panel on a blue wall (no visible text or symbols)

White cylindrical roller on a plain surface, no visible text or markings

Two white cylindrical objects with circular ends, one with a wooden screwdriver attached (no visible text or symbols)

Close-up of a white shelf with a small yellow object on top and a small white object beside it (no visible text or symbols)

Close-up of a hand pressing down on a white plastic container with a rack and handle (no visible text or symbols)

Close-up of hands assembling a small white object with a string, no visible text or symbols

Troubleshooting of this series of machines

PRODUCT EXPLOSIEDIAGRAM

Exploded view diagram of a refrigerator internal components with numbered labels

Affordable. Reliable. Home Improvement.

MACCHINA PER IL GHIACCIO

MODELLO: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODELLO: SSX65C | SSX160V | SSX200V | SSX265V | SSX360V | SSX440V | SSX80 | SSX90 | SSX100 | SSX110 | SSX120 | SSX130 | SSX140 | SSX300 | SSX440

Four line drawings of industrial cooling machines with no visible text or symbols

The warning diagram and operation safety instruction

Place should be stable

Smooth ventilation

Avoid sun and rain

30cm back 30cm 30cm left front right Ensure enough distance

Installation instructions

Top cap Door plank Front panel Machine Feet Power cable Drain pipe connector Inlet valve connector Drain pipe Bottom surface of the storage bin.

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

Two-panel image showing a kitchen appliance with a hand holding a screwdriver near a display panel (no visible text or symbols)

Person using a screwdriver to adjust or install a mechanical component on a blue surface (no visible text or symbols)

Figura 1 Figura 2

Black mechanical components including a camera, connector, and shank on a plain surface (no text or symbols visible)

Figura 3

Person in blue robe holding a white rack with a grid pattern, next to a blue door (no visible text or symbols)

Close-up of a white plastic air conditioner unit with a hand adjusting it, mounted on a blue cabinet (no visible text or symbols)

Person installing or adjusting a white air conditioner panel on a blue wall (no visible text or symbols)

White cylindrical object resting on a plain surface, possibly a rolled paper or plastic sheet (no visible text or symbols)

White cylindrical roller with perforated edges and a small screwdriver attached, placed on a plain surface (no text or symbols visible)

Close-up of a white shelf with a small yellow object on top and a small white object beside it (no visible text or symbols)

Close-up of a hand pressing down on a white plastic container with a rack and outlet (no visible text or symbols)

Close-up of hands assembling a small white object with a string, no visible text or symbols

Troubleshooting of this series of machines

Exploded view diagram of a refrigerator with numbered parts for identification

Affordable. Reliable. Home Improvement.

MÁQUINA DE HIELO

MODELO: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODELO: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130SSX140 \ SSX300 \ SSX440

Four line drawings of industrial cooling unit machines, no text or symbols present

The warning diagram and operation safety instruction

Place should be stable

Smooth ventilation

Avoid sun and rain

30cm back 30cm 30cm left front right Ensure enough distance

Installation instructions

Top cap Door plank Front panel Machine Feet Power cable Drain pipe connector Inlet valve connector Drain pipe Bottom surface of the storage bin.

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

Two-panel image showing a hand holding a screwdriver near a ceiling fixture and a close-up of a device with a green tool (no visible text or symbols)

Hand using a screwdriver to adjust or install a mechanical component on a blue surface (no visible text or symbols)

Figura 1 Figura 2

Black mechanical components including a camera and two connected devices on a plain surface (no text or symbols visible)

Figura 3

Person in blue robe holding a white rack with a grid pattern, next to a blue door (no visible text or symbols)

Close-up of a white plastic air conditioner unit with a hand adjusting it, mounted on a blue cabinet (no visible text or symbols)

Person installing or adjusting a white air conditioner panel on a blue wall (no visible text or symbols)

White cylindrical object resting on a flat surface, possibly a printer or roller, with no visible text or symbols.

Two white cylindrical objects with circular ends, one with a wooden screwdriver attached (no visible text or symbols)

Close-up of a white shelf with a small yellow object on top, placed on a plain surface (no text or symbols visible)

Close-up of a hand pressing down on a white plastic container with a rack and handle (no visible text or symbols)

Close-up of hands assembling a small white object with a string, no visible text or symbols

Troubleshooting of this series of machines

Exploded view diagram of a refrigerator with numbered parts for identification

Affordable. Reliable. Home Improvement.

ICE MA CHINE

MODELL: SSX65C SSX160V SSX200V

SSX265V SSX360V SSX440V

SSX80 SSX90 SSX100

SSX110 SSX120 SSX130

SSX140 SSX300 SSX440

VEVOR

Affordable. Reliable. Home Improvement.

ICE MACHINE

MODELL: SSX65C \ SSX160V \ SSX200V \ SSX265V \ SSX360V \ SSX440V \ SSX80 \ SSX90 \ SSX100 \ SSX110 \ SSX120 \ SSX130 SSX140 \ SSX300 \ SSX440

Four line drawings of industrial cooling machines with ventilation grilles (no text or symbols)

The warning diagram and operation safety instruction

Place should be stable Smooth ventilation Avoid sun and rain Ensure enough distance 30cm back front 30cm 30cm left right Ensure enough distance

Installation instructions

Top cap Door plank Front panel Machine Feet Power cable Inlet valve connector Drain pipe Drain pipe connector Bottom surface of the storage bin.

Filter joint Filter Running water pipe Inlet water pipe Outlet waterpipe vent Drain pipe

The instruction of quick installation for the filter

Insert the adapter into the filte

The installation for the pipeline and joint

①

1. Take off the blue clip

②

2. Make the orifice flat, insert the pipe stopper firmly, make sure the orifice to connect the inside seal firmly.

③

Simple line drawing of a pipe fitting with a valve and handle (no text or symbols)

1. Fix the blue clip on

④

Line drawing of a mechanical connector or fitting with a cylindrical shaft and flange (no text or symbols)

1. Finished installation

Operating Instructions

① Ice full Ice making Ice falling ② Low water Clearing Timing Switch Ice falling Freezer/ambient temp(℃) Ice making time Timing Cleaning ④ ⑤

cleaning of the major components

Two-panel image showing a hand holding a screwdriver next to a device with a green handle; no visible text or symbols.

Hand using a screwdriver to adjust or install a mechanical component, with no visible text or symbols.

Figur 1 Figur 2

Black mechanical device with attached components, no visible text or symbols

Figur 3

Person in blue lab coat handling a white rack with a laptop, next to a blue cabinet (no visible text or symbols)

Close-up of a white plastic air vent or filter unit being handled by hand, with blue background (no visible text or symbols)

Person using a white air conditioner unit to clean or install a small electronic device (no visible text or symbols)

White cylindrical object with a small protrusion on a plain surface (no text or symbols visible)

Two white cylindrical objects with circular ends and a wooden screwdriver on top, placed on a plain surface (no text or symbols visible)

Close-up of a small object with a yellow block and a white tool, placed on a dark surface (no visible text or symbols)

Close-up of a hand adjusting a white plastic component inside a white container (no visible text or symbols)

Close-up of hands assembling a small white object with a tool, no visible text or symbols

Troubleshooting of this series of machines

PRODUKTEXPLOSIONSDIAGRAM

Exploded view diagram of a refrigerator internal structure with numbered components
