USER MANUAL PC8-5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PLASTIC ROOF PANELS

MODEL:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

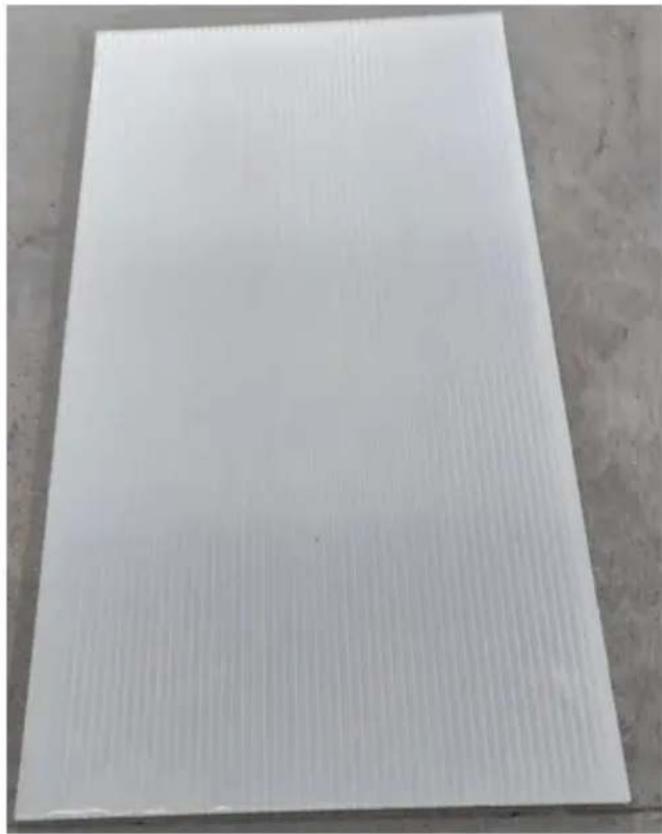

Plain white rectangular panel with vertical striations, placed on a concrete surface (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Plastic Roof Panels.
2. The installation should be done by an adult, and children should not it without supervision.
3. Please do not stand on the installed Plastic Roof Panels, which may cause serious harm to people.
4. Please wear gloves and install the plastic roof panels to avoid cuts installation.

PARAMETER LIST

Model	Material Quality	Thickness	Size	Quantity
PC6-15	polycarbonate	6mm	1210×605mm	15
PC8-14	polycarbonate	8mm	1210×605mm	14
PC4-24	polycarbonate	4mm	1210×605mm	24
PC4-14	polycarbonate	4mm	1210×605mm	14
PC6-12	polycarbonate	6mm	1210×605mm	12
PC8-5	polycarbonate	8mm	1210×605mm	5
PC4-6	polycarbonate	4mm	1210×605mm	6

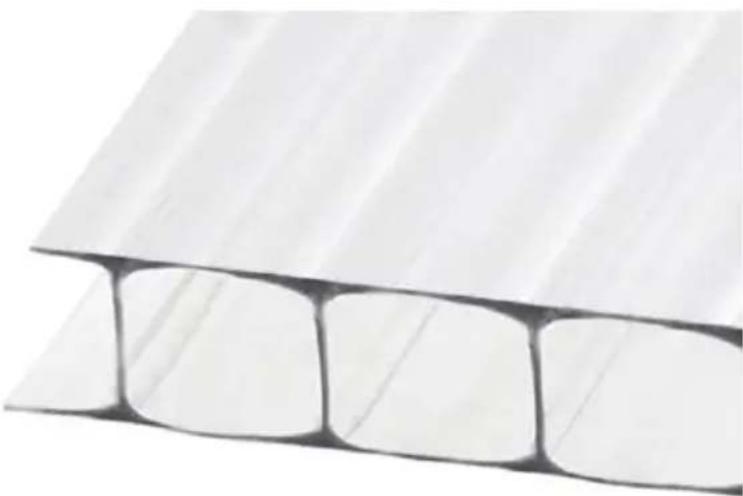

Plastic roof board is a hollow board.

Close-up of a white corrugated metal structure with four rounded rectangular cutouts (no text or symbols visible)

Installation considerations

1. According to the use scenario, you need to buy the fixed bracket t meets the strength requirements.

2. During transportation, do not put heavy objects on the plastic roof p and do not contact the plastic roof panels with sharp objects.

3. Before installation, it is recommended to seal all open ends of the roof plate with aluminum seals (additional purchase) to prevent dust a insects from entering the plate and affect the light transmittance.

4. Both sides of the middle cavity plate are provided with a protective To keep the panel surface clean, do not damage the film before inst

5. During installation, the protective film of the edge part can be stripped about 5cm as required and completely removed after installation.

6. When installation, follow the instructions on the surface of the produce and install the marked upward side to face ultraviolet light.

7. The plastic roof plate should be installed with the grille facing down which reduces the internal dust accumulation and makes the condense water easy to be discharged.

8. For horizontal installation (roof, lighting window, etc.), the minimum ti Angle is 5 degrees; Steep installation facilitates drainage and self-cleaning and prevents hardware fasteners from rusting.

9. You cannot stand directly on the panel during the installation process.

10. After installation, remove dirt from the chamber plate.

Cleaning and Care

If the plastic roof plate has a small surface area, the product can be cleaned with a neutral detergent (such as ethanol or butylcellulose).

The surface can be cleaned with a sponge or soft cloth and then rises with water.

If the area is large, it is recommended to use a low-pressure cleanir machine to wash the plastic roof board with clean water.

Avoid rubbing the surface of the cavity plastic roof plate with a hard Plastic roof panels should not be cleaned using alkaline materials or cleaners incompatible with polycarbonate (for example, benzene, gasoline acetone, carbon oxide, etc.).

Avoid direct contact with incompatible chemicals.

Product cutting

Plastic roof panels can be cut with a sharp knife. The tes shall be fire avoid vibration which may cause human injury.

Remove dirt after cutting to keep the plastic roof slab clean.

Product drilling

The Plastic roof panels can be drilled with a common drill bit. The c of the drill hole shall be 150% of the screw diameter for the thermal expansion and shrinkage of the absorption plate.

Do not drill holes at 40 mm below the edge of the plate.

sealing material

Plastic roof panels can be sealed with neoprene (CR), EPDM (EPDM) window silicone or acrylic resin. When using other materials, the chem

compatibility with the plastic roof board material should be considered, addition, the thermal expansion and aging resistance of the material s also be compatible with the plastic roof board.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
