Product Type	Plastic roofing panel (polycarbonate honeycomb)
Model	PC4-6
Brand	Vevor
Material	Polycarbonate
Thickness	4 mm
Dimensions	1210 x 605 mm
Quantity per Lot	6 panels
Structure Type	Hollow panels (honeycomb)
Transparency	Translucent with UV protection (marked side facing up)
Minimum Installation Slope	5 degrees
Fixing	Suitable brackets to be purchased separately
Cutting	Sharp knife or saw, drilling possible with standard drill bit
Sealing	Neoprene, EPDM, silicone or acrylic resin
Cleaning	Neutral detergent (ethanol, butylcellulose) and soft cloth, avoid alkaline products
Maintenance	Remove dirt, low-pressure cleaning possible for large surfaces
Safety	Do not stand on panels, wear protective gloves
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Manufacture	China
Repairability	Individual replacement of damaged panels possible

Frequently Asked Questions - PC4-6 Vevor

What is the difference between the PC4-6 model and other references?

The PC4-6 model corresponds to 4 mm thick panels sold in lots of 6. Other models (PC6-15, PC8-14, etc.) differ in thickness (6 or 8 mm) and quantity.

How to install Vevor roofing panels correctly?

Installation must be done by an adult. Install the panels with the grid facing down, the marked side facing up (UV protection). Maintain a minimum slope of 5 degrees, do not stand directly on the panels, and wear protective gloves.

Can the panels be cut to the desired size?

Yes, the panels can be cut with a sharp knife or saw. Firmly secure the panel to avoid vibrations. After cutting, clean the edges to remove debris.

How to drill holes in the panels?

Use a standard drill bit. The hole diameter must be 150% of the screw diameter to compensate for thermal expansion. Do not drill within 40 mm of the panel edge.

What products to use for sealing around the panels?

Use neoprene (CR), EPDM, window silicone, or acrylic resin. Check chemical compatibility with polycarbonate.

How to clean the roofing panels?

For small areas, use a neutral detergent (ethanol or butylcellulose) with a sponge or soft cloth, then rinse with water. For large areas, a low-pressure water cleaner is recommended. Avoid alkaline products or solvents such as benzene, acetone, or gasoline.

Do the panels resist UV rays?

Yes, the panels have UV protection. During installation, place the marked side facing up to face the ultraviolet rays.

What is the lifespan of Vevor PC4-6 panels?

The lifespan depends on installation and maintenance conditions. Under normal use, polycarbonate panels can last 10 to 15 years or more, with proper maintenance and UV protection.

How to obtain the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. Keep your proof of purchase.

Can I install the panels on a flat roof?

Yes, but a minimum slope of 5 degrees is required to facilitate drainage and self-cleaning. A steeper slope is recommended to avoid rust on fixings and dust accumulation.

USER MANUAL PC4-6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

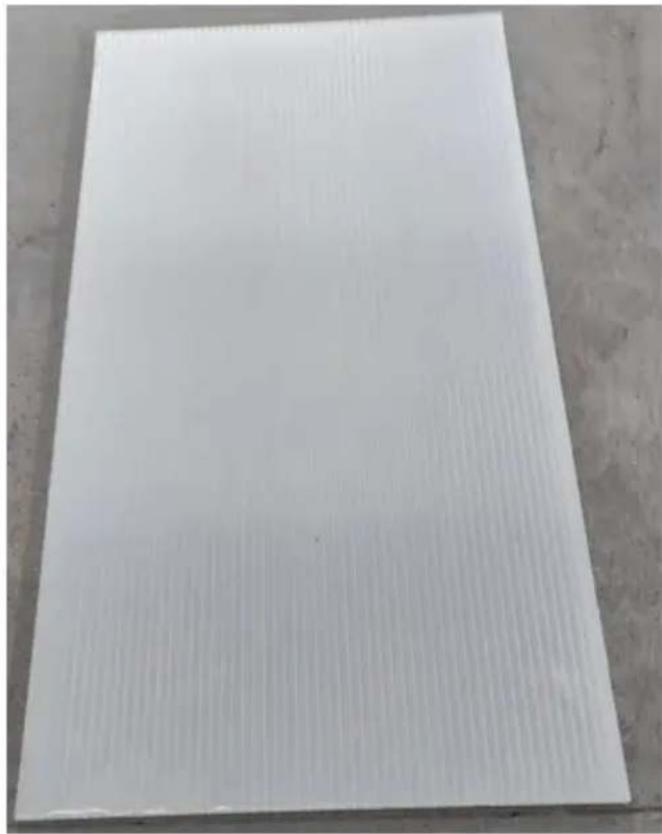

PLASTIC ROOF PANELS

MODEL:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Model:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Plastic Roof Panels.
2. The installation should be done by an adult, and children should not do it without supervision.
3. Please do not stand on the installed Plastic Roof Panels, which may cause serious harm to people.
4. Please wear gloves and install the plastic roof panels to avoid cuts during installation.

PARAMETER LIST

Model	Material Quality	Thickness	Size	Quantity
PC6-15	polycarbonate	6mm	1210×605mm	15
PC8-14	polycarbonate	8mm	1210×605mm	14
PC4-24	polycarbonate	4mm	1210×605mm	24
PC4-14	polycarbonate	4mm	1210×605mm	14
PC6-12	polycarbonate	6mm	1210×605mm	12
PC8-5	polycarbonate	8mm	1210×605mm	5
PC4-6	polycarbonate	4mm	1210×605mm	6

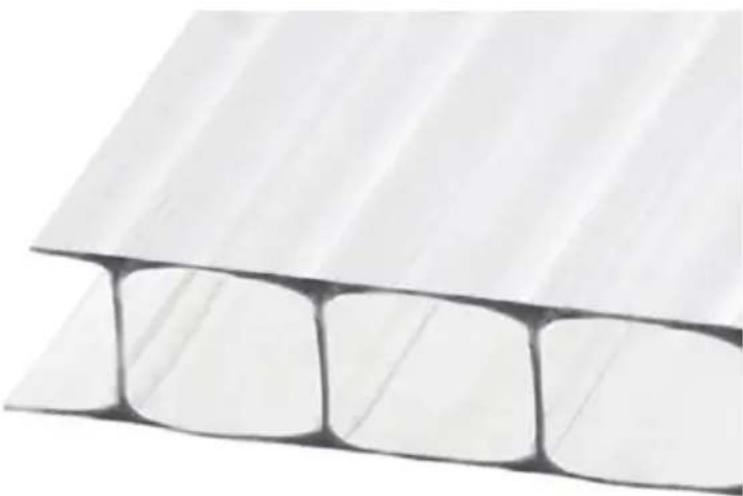

Plastic roof board is a hollow board.

Installation considerations

1. According to the use scenario, you need to buy the fixed bracket that meets the strength requirements.
2. During transportation, do not put heavy objects on the plastic roof panels and do not contact the plastic roof panels with sharp objects.
3. Before installation, it is recommended to seal all open ends of the roof plate with aluminum seals (additional purchase) to prevent dust and insects from entering the plate and affect the light transmittance.
4. Both sides of the middle cavity plate are provided with a protective film. To keep the panel surface clean, do not damage the film before installation.
5. During installation, the protective film of the edge part can be stripped about 5cm as required and completely removed after installation.
6. When installing, follow the instructions on the surface of the product and install the marked upward side to face ultraviolet light.
7. The plastic roof plate should be installed with the grille facing down, which reduces the internal dust accumulation and makes the condensed water easy to be discharged.
8. For horizontal installation (roof, skylight, etc.), the minimum tilt angle is 5 degrees; a steeper installation facilitates drainage and self-cleaning and prevents hardware fasteners from rusting.
9. Do not stand directly on the panel during installation.
10. After installation, remove dirt from the chamber plate.

Cleaning and Care

If the plastic roof plate has a small surface area, the product can be cleaned with a neutral detergent (such as ethanol or butyl cellosolve).

The surface can be cleaned with a sponge or soft cloth and then rinsed with water.

If the area is large, it is recommended to use a low-pressure cleaning machine to wash the plastic roof board with clean water.

Avoid rubbing the surface of the cavity plastic roof plate with hard objects. Plastic roof panels should not be cleaned using alkaline materials or cleaners incompatible with polycarbonate (for example, benzene, gasoline, acetone, carbon tetrachloride, etc.).

Avoid direct contact with incompatible chemicals.

Product Cutting

Plastic roof panels can be cut with a sharp knife. The cuts should be made carefully to avoid vibration, which may cause injury.

Remove dirt after cutting to keep the plastic roof slab clean.

Product drilling

The plastic roof panels can be drilled with a common drill bit. The diameter of the drill hole shall be 150% of the screw diameter to allow for thermal expansion and shrinkage of the absorption plate.

Do not drill holes within 40 mm of the edge of the plate.

Sealing material

Plastic roof panels can be sealed with neoprene (CR), EPDM (EPDM), window silicone, or acrylic resin. When using other materials, the chemical

compatibility with the plastic roof board material should be considered. In addition, the thermal expansion and aging resistance of the material should also be compatible with the plastic roof board.
