RG1461 - Welding clamp Vevor - Free user manual and instructions

Brand	Vevor
Model	RG1461
Product Type	Welding Vise for Straight Pipes
Pipe Capacity	1/2" to 8" (15 mm to 200 mm)
Material	Cast Iron
Color	Red/Black
Dimensions (L x W x H)	390 x 95 x 70 mm
Weight	Approx 4.5 kg
Power Supply	Manual (none)
Main Function	Clamping and holding straight tubes for welding
Mechanism	Chain with tightening screw
Maintenance	Clean dry, avoid abrasive materials
Safety	Wear protective equipment (mask, gloves, goggles), keep area clean
Included Accessories	Chain, handle
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - RG1461 Vevor

How to assemble the Vevor RG1461 welding vise?

Unscrew the chain and handle. Pass the chain under the main body and tighten the handle to complete assembly. Refer to the diagram in the manual.

What is the maximum clamping capacity?

The clamping capacity ranges from 1/2" to 8" (15 mm to 200 mm) tube diameter.

What material is the vise made of?

The vise is made of cast iron, a durable material resistant to heat and deformation.

How to maintain the vise?

Clean the vise with a dry cloth. Do not use abrasive materials that could damage the surface.

What safety precautions should I take?

Always wear safety equipment such as gloves, goggles, and a dust mask. Keep the work area clean and well-lit. Keep children and bystanders away.

Can I use the vise for other types of pipes?

This vise is designed for straight pipes. For other shapes, use a suitable vise. Clamping on non-straight pipes may be unstable.

Is the vise portable?

Yes, thanks to its lightweight and compact design (390 x 95 x 70 mm, approx 4.5 kg), it is easy to transport on job sites.

How to clean the vise?

Use a dry cloth to remove dust. Avoid solvents or abrasive cleaners that could corrode the cast iron.

Where to find spare parts?

Spare parts are not listed in the manual. Contact technical support via www.vevor.com/support for any requests.

How to contact technical support?

Go to www.vevor.com/support to get technical assistance and download your electronic warranty certificate.

USER MANUAL RG1461 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Straight Pipe Welding Vise

Model: RG1461

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Straight Pipe

Welding Vise

Model: RG1461

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to ensure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes.

Please read ALL the instructions before using your machine.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Keep children and bystanders away while operating; distractions will cause you to lose control.

2. Personal safety

a. Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of alcohol or medication. A moment of inattention while operating the Chain Vise may result in serious personal injury. b. Use safety equipment. Safety equipment such as dust mask, non-skid shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. d. Store idle Chain Vise out of the reach of children and do not allow persons unfamiliar with the Chain Vise to use it. This tool is dangerous in the hands of untrained users, who can break fingers or break feet and more. e. Inspect before every use. Do not use it if parts are loose or damaged. f. Do not apply this unit to any other purposes than the indicated usage. g. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

Production Introduction

Straight Pipe Welding Vise Model RG1461

Pipe Capacity: 1/2" to 8"

Designed for secure clamping onto straight pipes; pipe welding vise is available straight.

If you are wanting something easy to carry into your installs, the compact line weight design makes this unit the ideal tool for installation and assembly.

Capacity:

Straight pipe welding vise has a 1/2-inch to 8-inch (15 mm to 200 mm) pipe capacity.

Minimum: 1/2" Pipe.

Maximum: 8" Pipe.

Features:

1. Constructed of durable, performance-proven material for reliable, long-lasting use
2. Straight welding vise resists strain, heat and warping during tacking
3. Machined swivel nuts and pins combined with special chain screws allow smooth, trouble-free vise assembly onto the pipe

Applications: Soldering of pipe

TECHNICAL INFO

Model No	RG1461
Pipe Capacity	1/2 to 8 inch
Material:	Cast Iron
Color:	Red/Black

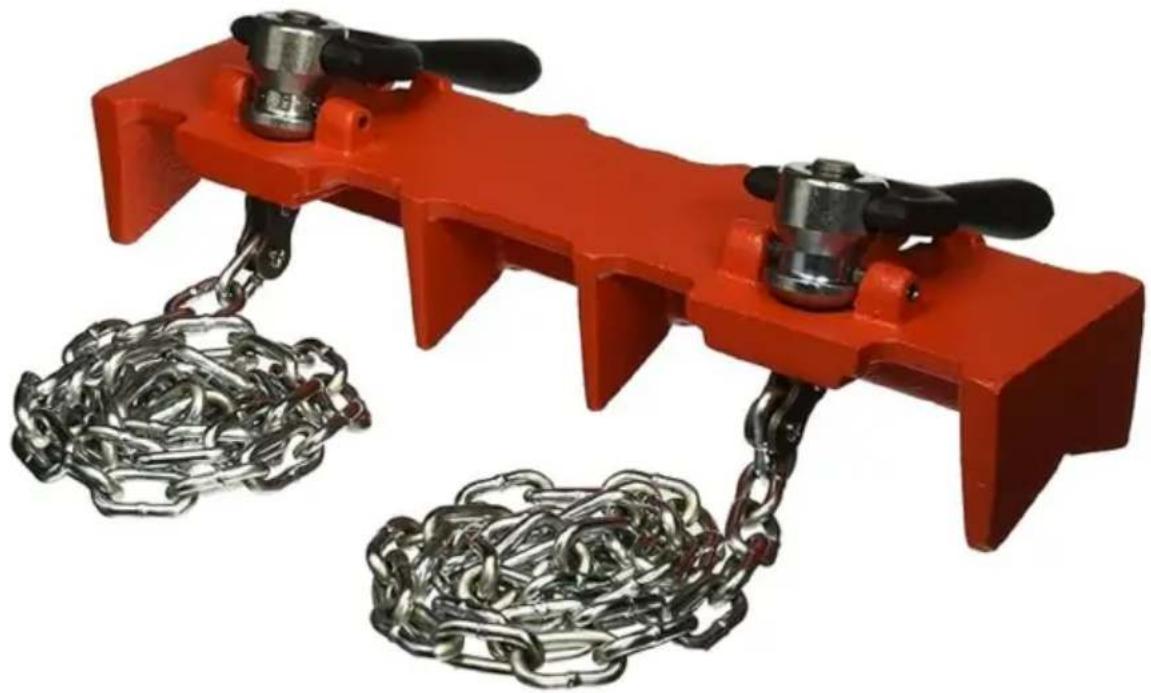

Product photo
Accessories	/
Size (mm)	390*95*70

Assemble

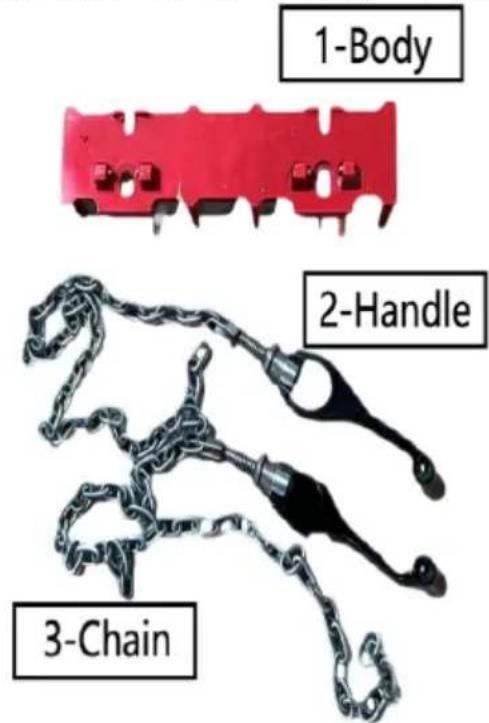

1. After receiving the product, as shown in the figure. The received process consists of a chain, a handle and a body.

1. Unscrew the chain and handle.
2. Pass the chain under the main body and tighten the handle to complete the assembly.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
