RG1204S8 - Bench vise Vevor - Free user manual and instructions

Product Type	Bench Chain Vise
Brand	Vevor
Model	RG1204S8
Pipe Capacity	1/2 to 8 inches (12.7 to 203.2 mm)
Material	Cast Iron
Color	Red / Black
Dimensions	115 x 165 x 110 mm
Power Source	None (manual tool)
Main Function	Scratch-free pipe clamping thanks to a robust steel chain
Installation	Mount on workbench or tripod via three fixing holes
Safety	Read warnings, wear protective equipment, do not use if damaged
Maintenance	Apply anti-rust oil to the chain, inspect before each use
Cleaning	Do not use abrasive materials
Repairability	Entrust to a qualified technician, use identical replacement parts
Included Accessories	None (S8 model without tow plate)
Support and Warranty	www.vevor.com/support

Frequently Asked Questions - RG1204S8 Vevor

How to install the Vevor RG1204S8 chain vise?

Secure the vise to a workbench or tripod using the three mounting holes. Use appropriate bolts (not included) to screw it tightly. Ensure the surface is stable before use.

What types of pipes can I clamp with this model?

The RG1204S8 accepts pipes with a diameter of 1/2 to 8 inches (12.7 to 203.2 mm). The grooved jaws and steel chain prevent scratches on the surface.

How to properly tighten the chain?

Place the pipe in the V-groove, then turn the ergonomic handle to tighten the chain until the pipe is firmly held. Do not overtighten to avoid damaging the pipe.

Can I use this vise on a tripod?

Yes, thanks to the three mounting holes, it can be fixed on a tripod or any suitable support. Ensure the tripod is stable and capable of handling the workload.

How to maintain the vise to prevent rust?

Regularly apply anti-rust oil to the chain and metal parts. Store the vise in a dry place. Clean with a soft cloth; do not use abrasive products.

What to do if the handle is hard to turn?

Check if the chain is jammed or debris is stuck. Lubricate moving parts with light oil. If the problem persists, contact technical support.

Is the vise suitable for PVC pipes?

Yes, but tighten moderately to avoid crushing the pipe. The V-grooves provide good grip without damaging the surface. For fragile PVC, use additional protection if necessary.

Can I use the vise to hold non-cylindrical parts?

The vise is designed for cylindrical pipes and tubes. For flat or irregular-shaped parts, a standard vise is more appropriate. The chain adapts poorly to non-cylindrical shapes.

What safety precautions should be taken?

Wear safety glasses and gloves. Keep children away. Do not use the tool if parts are loose or damaged. Inspect before each use.

Where to find spare parts?

Spare parts are available from the manufacturer. Visit the website www.vevor.com/support for technical support and electronic warranty.

USER MANUAL RG1204S8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bench Chain Vise

Model: RG1204S5/RG1204S6/RG1204S8

We continue to be committed to providing you with tools at competitive prices. "Save Half," "Half Price," or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

Model: RG1204S5/RG1204S6/RG1204S8

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes.

Please read ALL the instructions before using your machine.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Keep children and bystanders away while operating; distractions will cause loss of control.

2. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of alcohol or medication. A moment of inattention while operating the Chain Vise may result in serious personal injury. b. Use safety equipment. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. d. Store idle Chain Vise out of the reach of children and do not allow persons unfamiliar with the Chain Vise to use it. This tool is dangerous in the hands of untrained users, who can break fingers or break feet and more. e. Inspect before every use. Do not use it if parts are loose or damaged. f. Do not apply this unit to any other purposes than the indicated usage. g. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

3. Service

Have your Bench Chain Vise serviced by a qualified service technician using identical replacement parts. This will ensure that the safety of the Bench Chain Vise Kit is maintained.

Production Introduction

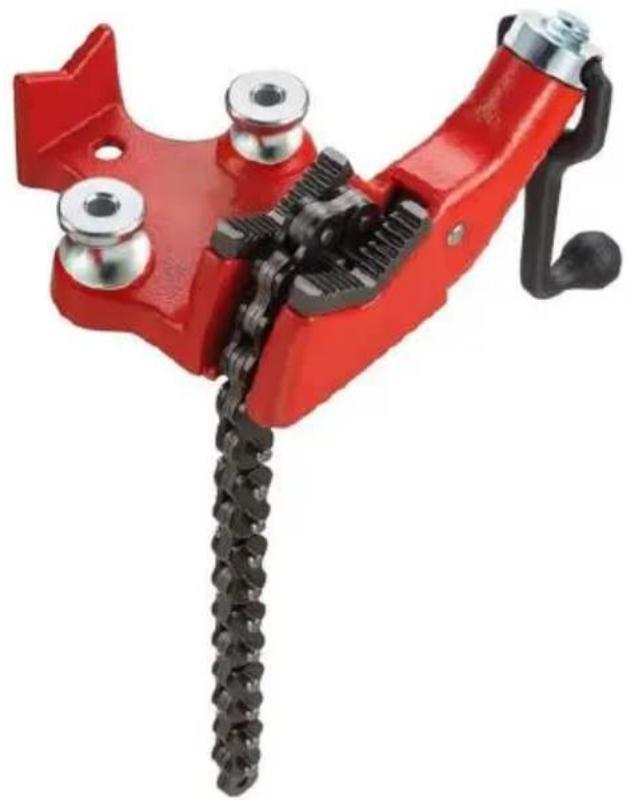

The bench chain vise is perfect for securely holding pipes without scoring the surface. It is designed with a crank handle for tightening the chain. It is equipped with a rugged cast-iron base for exceptional durability and stability.

Main features:

Large Holding Capacity, Solid & Durable Frame

No-Fatigue Operation, Easy Installation

TECHNICAL INFO

Model No	RG1204S5	RG1204S6	RG1204S8
Pipe Capacity	1/8-5inch	1/4-6inch	1/2-8inch
Material:	Cast Iron
Color:	Red/Black
Product photo
Accessories	Hitch Mount Vise Pla	/	/
Size (mm)	400*300*170	255*305*130	115*165*110

Hitch Mount Vise Plate accessories Parameter information

*This accessory is only equipped with model RG1. Users can also purchase it according to their own needs.

Model: RG1204S5 Table Chain Vise equipped with Hitch Mount Vise Plate

Hitch Mount Vise Plate/Holder is crafted from robust all-steel construction, compatible with Class III and IV receivers.

It features versatile mounting holes designed to accommodate a wide range of vises and other bench-type devices.

The durable powder coat finish ensures long-lasting performance.

1. The height can be adjusted to a desired height for optimal comfort, with an adjustment range of 16".
2. The vise mount plate dimensions are 7-7/8" L x 7" W, and the vise mounting holes measure 5/8" x 2".
3. The 2 inch x 2 inch anti-rattle device is included for stability.
4. The overall dimensions are 22" long, 7-7/8" wide, and 22-5/8" high.

Adjustable Height

The main column has different mounting holes that allow the user to adjust in increments for added versatility.

Travel 16" (400mm) in 1.7" (45mm) increments for a total of 9 stops. The height of the beam must be greater than 18.5 inches (460mm) from the ground.

UNDERSTAND YOUR TOOL

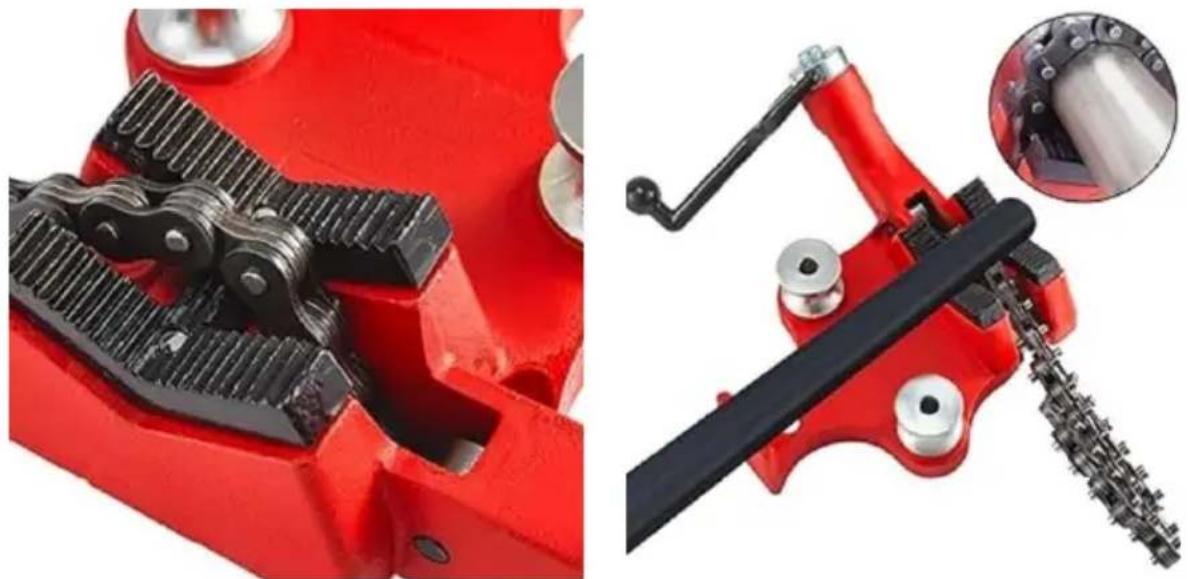

1. Cast Iron Base & Jaws

Built of cast iron, the chain pipe vise is solid and hard. Grooves enhance gripping on the pipe surface. All you need to do is place the appropriate size of pipe in the V-groove and vise, and then fasten it with a chain.

Its sturdy construction and reliable clamping mechanism make it a favorite among professionals and hobbyists alike. Whether you're working on a plumbing project or fabricating metal parts, this pipe vise provides the stability and versatility you need to get the job done right.

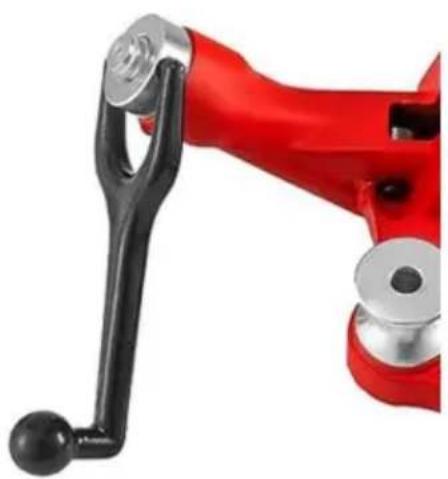

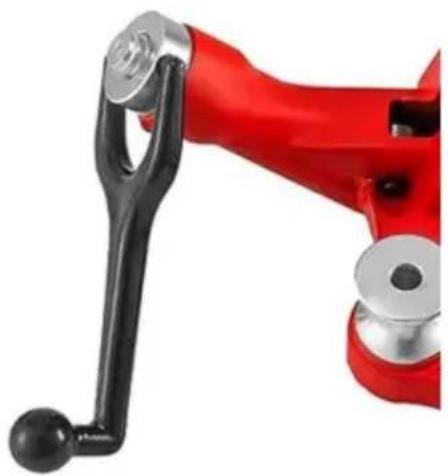

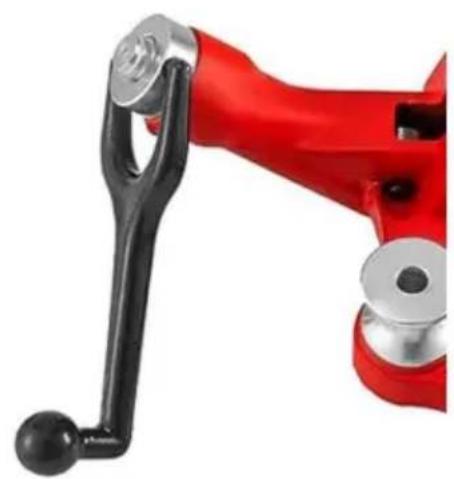

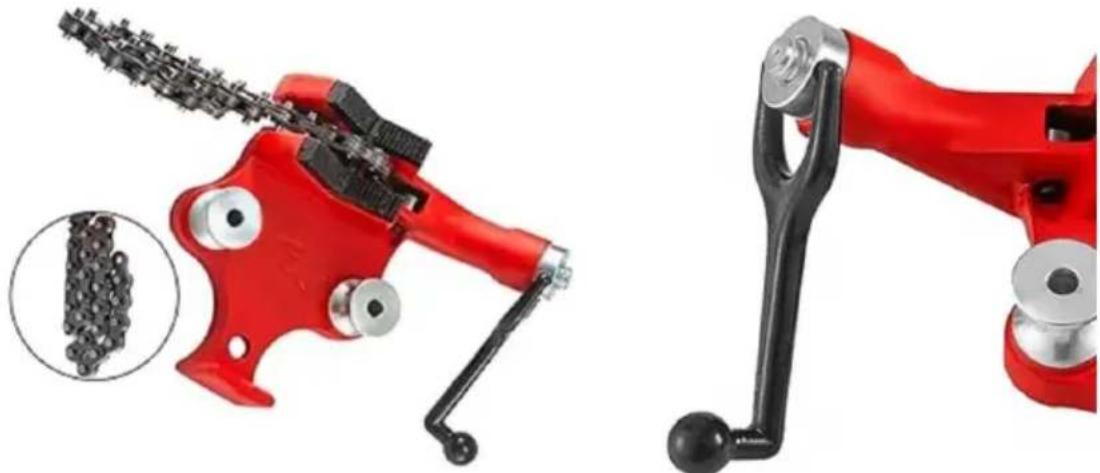

2. Ergonomic Crank Handle & Tough Durable Chain

The crank handle is firmly anchored on the base for you to adjust the press and tighten the chain, convenient to use.

Chain durability and reliability are paramount. The pipe vise stand is a testament to this philosophy, designed with a tough steel chain to fix and lock pipes tightly in place. This critical feature ensures efficient and safe use, allowing for precise work without the risk of slippage or movement.

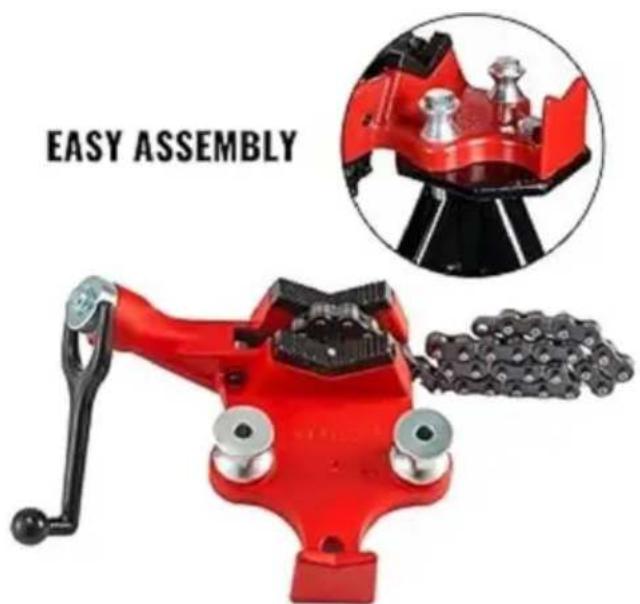

3. Easy Assembly

The bench chain vise is a versatile tool that can be easily mounted to various surfaces for added convenience and stability. With three mounting holes, you can securely attach the vise to a workbench, or even a tripod stand, depending on your specific needs and working environment. This feature ensures that the bench chain vise is not only functional but also adaptable to different scenarios, making it a valuable addition to any workshop or job site.

MAINTENANCE AND SERVICING

Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

1. Before each use, inspect the general condition of the tool. Check for loose screw misalignment or binding of moving parts, cracked or broken parts, or other conditions that may affect its safe operation.
2. Paint anti-rust oil on metal surfaces such as the chain to avoid rust.
3. Service to the tool should only be done by a qualified Service Technician.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
