Product Type	Semi-truck hub cap
Brand	Vevor
Model	RL-LG001
Material	Stainless steel
Shape	Dome
Rim Compatibility	20", 22.5", 24.5" with 10 holes and bolt circle of 11.25 inches
Number of pieces in the kit	2 sets (front wheel cover, nut covers, sleeve)
Kit contents	2 front wheel covers, 20 nut covers, 1 sleeve
Included accessories	Tightening sleeve (installation tool)
Main function	Protection and decoration of the wheel hub
Installation	Attaches to existing hub bolt threads (requires at least 8 mm of thread protrusion)
Fastening type	Screw-on nut covers with anti-loosening clip
Maintenance	Clean with a soft, non-abrasive cloth; avoid harsh chemicals
Repairability	Spare parts available (nut covers, sleeve); disassembly may damage anti-loosening clips
Safety	Check that the nut covers are properly tightened; do not use if bolt threads are damaged
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - RL-LG001 Vevor

What types of rims are compatible with the RL-LG001?

The RL-LG001 is compatible with 20-inch, 22.5-inch, and 24.5-inch rims with 10 holes and a bolt circle of 11.25 inches.

Does the kit include everything needed for installation?

Yes, the kit includes two front wheel covers, 20 nut covers, and a tightening sleeve. No additional tools are required.

How to install the hub caps?

Place the hub cap on the rim aligning the holes with the hub bolts. Hand-tighten the nut covers, then tighten them with the provided sleeve. You can insert a rod into the sleeve hole for tighter tightening.

Must the hub bolt threads protrude?

Yes, the bolts must have threads protruding at least 8 mm from the nut. If original decorations or nut covers are installed, remove them before installation.

Can I reuse the anti-loosening clips after disassembly?

No, disassembly may damage the anti-loosening clips. It is recommended not to disassemble the hub caps once installed.

Is the RL-LG001 suitable for rear wheels?

The RL-LG001 model only includes front wheel covers. For rear wheels, you need to use models RL-LG002, RL-LG003, RL-LG004, RL-LG005, or RL-LG006 as per your needs.

How to maintain the stainless steel hub caps?

Clean them with a soft, non-abrasive cloth. Avoid harsh chemicals that could scratch or tarnish the surface.

What to do if a nut cover is lost or damaged?

Contact Vevor technical support via www.vevor.com/support to obtain spare parts.

Does the product come with a warranty?

Yes, an electronic warranty is available. Register your product at www.vevor.com/support to activate the warranty.

What is the difference between models RL-LG001 to RL-LG006?

The models differ in the number of pieces and wheel coverage: RL-LG001 (2 sets, front only), RL-LG002 (4 sets, front+rear), etc. See the manual for details.

User questions about RL-LG001 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Industrial vehicle accessories in PDF format for free! Find your manual RL-LG001 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RL-LG001 by Vevor.

USER MANUAL RL-LG001 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SEMI TRUCK HUB COVERS

MODEL: RL-LG001/ RL-LG002/ RL-LG003/ RL-LG004 RL-LG005/ RL-LG006

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

STAINLESS STEEL EXHAUST MANIFOLD

MODEL: RL-LG001/ RL-LG002/ RL-LG003/

RL-LG004 RL-LG005/ RL-LG006

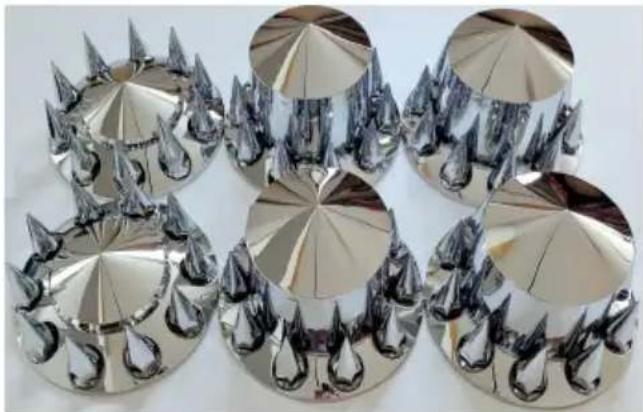

Six metallic 3D-printed circular objects with pointed spires, arranged in a grid. No text or symbols visible.

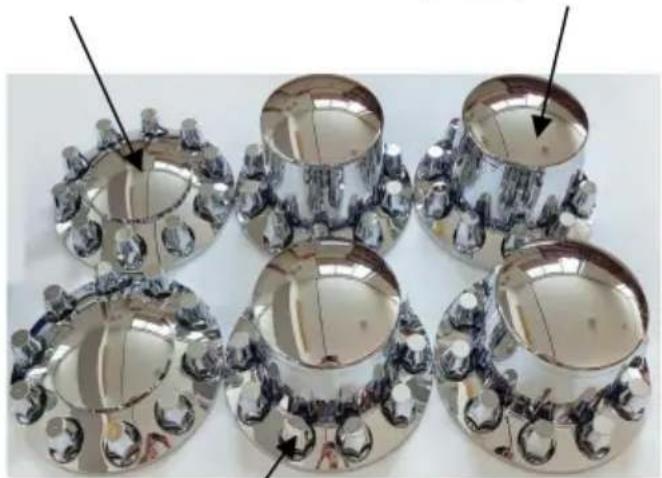

Six metallic mechanical components with reflective surfaces, arranged in a grid. No text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

- Before purchasing this product, please confirm that there are threads on the wheel hub bolts of the truck that protrude from the nut (Because the product cover is fastened to the wheel through the original wheel hub thread), Protrude screw teeth with a length of greater than 8mm. If you have modified and in the axle cover and nut cover decorations, please remove the original decoration before installation.

Vevor RL-LG001 - WARNING - 1

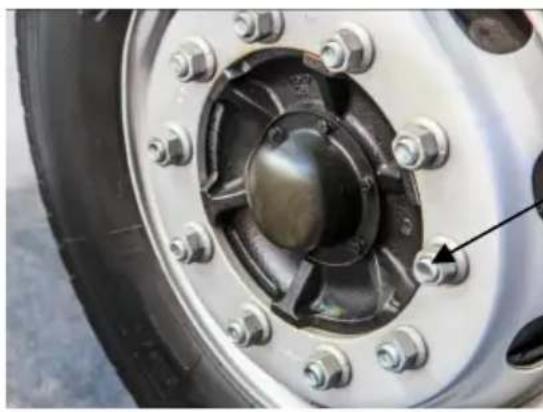

Close-up of a car wheel rim with bolts and a black arrow pointing to a specific component. No text or symbols visible.

The screw thread has a protruding nut part

Vevor RL-LG001 - WARNING - 3

Close-up of a mechanical tire with multiple bolts and mounting holes. No visible text or symbols.

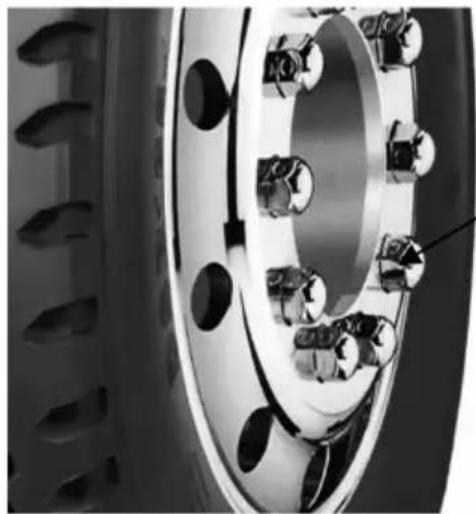

Screw thread without protruding nut part

Vevor RL-LG001 - WARNING - 5

Close-up of a red truck tire with a metallic rim and mounting holes, showing tire alignment and tire marking. No text or symbols visible.

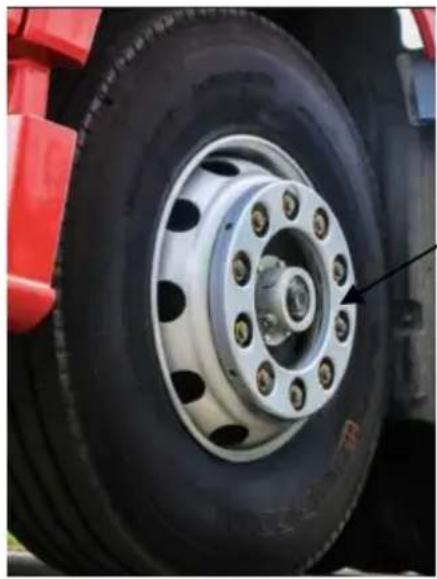

The added shaft cover needs to be removed

Close-up of a car tire wheel with black bolts and a blue logo. No visible text or symbols.

The added nut decorative cover needs to be removed

- When installing the product, the nut cover and shaft cover are equipped with anti-loosening clamps. Disassembling the product may damage the clamps, which may affect the second installation and use.

PRODUCTION CONFIGURATION

Model	RL-LG001	RL-LG002	RL-LG003	RL-LG004	RL-LG005	RL-LG002
Adapt to wheel rims	Rims of 20-inch, 22.5-inch, and 24.5-inch with 10 holes and 11.25-in positioning circle
Type	Dome shaped			Spike type
Quantity	2 SET	4 SET	6 SET	2 SET	4 SET	6 SET

PARTS LIST

Front wheel cover Rear wheel cover Front wheel cover Rear wheel cover

Six metallic 3D-printed circular objects with pointed spines, arranged in a grid. No text or symbols visible.

Nut cover

Six metallic mechanical components with reflective surfaces, arranged in a grid. No text or symbols visible.

Nut cover

Black rectangular metal rod with a small hole, isolated on white background. No text or symbols.

Sleeve

Model	RL-LG001	RL-LG002	RL-LG003	RL-LG004	RL-LG005	RL-LG006
Total quantity	2 SET	4 SET	6 SET	2 SET	4 SET	6 SET
Front wheel cover	2 SET	None	2 SET	2 SET	None	2 SET
Rear wheel cover	None	4 SET	4 SET	None	4 SET	4 SET
Nut cover	20 PCS	40 PCS	60 PCS	20 PCS	40 PCS	60 PCS
Sleeve	1 PCS	1 PCS	1 PCS	1 PCS	1 PCS	1 PCS

INSTALLATION INSTRUCTIONS

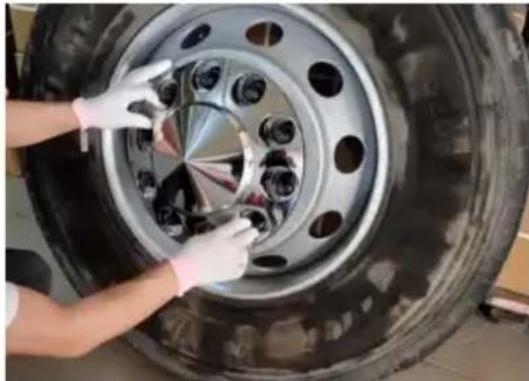

Install the axle cover onto the surface of the wheel rim, aligning the axle cover with the hub bolts.

Close-up of hands adjusting a tire wheel rim with a metal gear. No visible text or symbols.

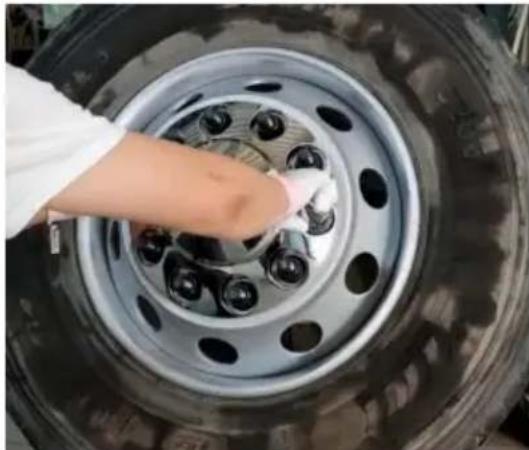

Hand tighten all nut covers onto the bolts of the wheel hub.

Close-up of a hand adjusting a car tire with a white plastic wheel. No text or symbols visible.

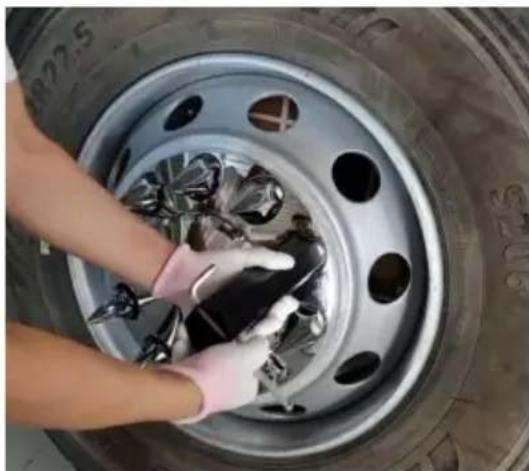

Use the matching sleeve to tighten all nut covers, which can be tightened by adding a force rod through the small hole at the end of the sleeve.

Close-up of hands installing a tire component into a car wheel rim. No visible text or symbols.

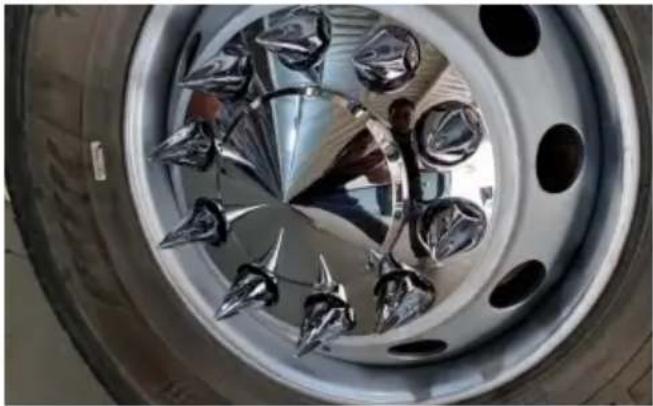

Complete the installation (as shown below), and use the same method to install the front and rear wheels.

Close-up of a car wheel rim with metallic tire and star-shaped calipers. No text or symbols visible.
